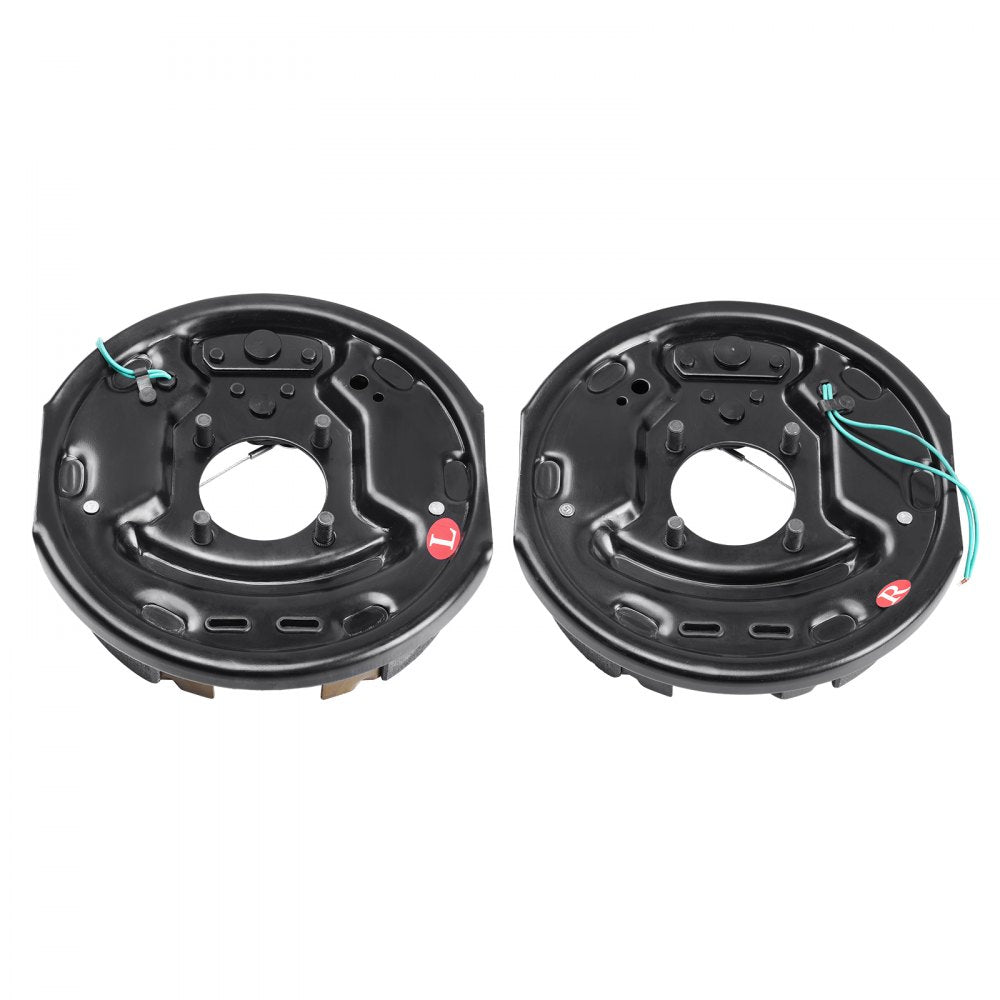

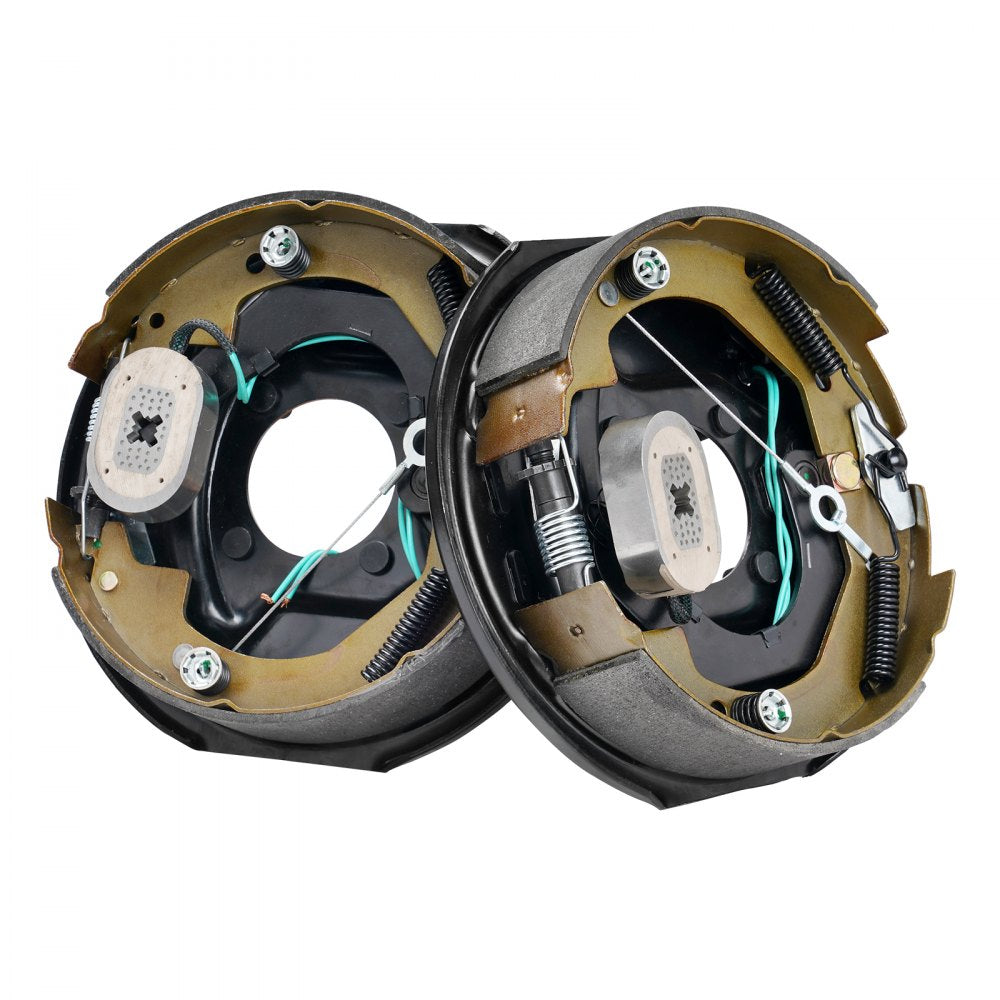

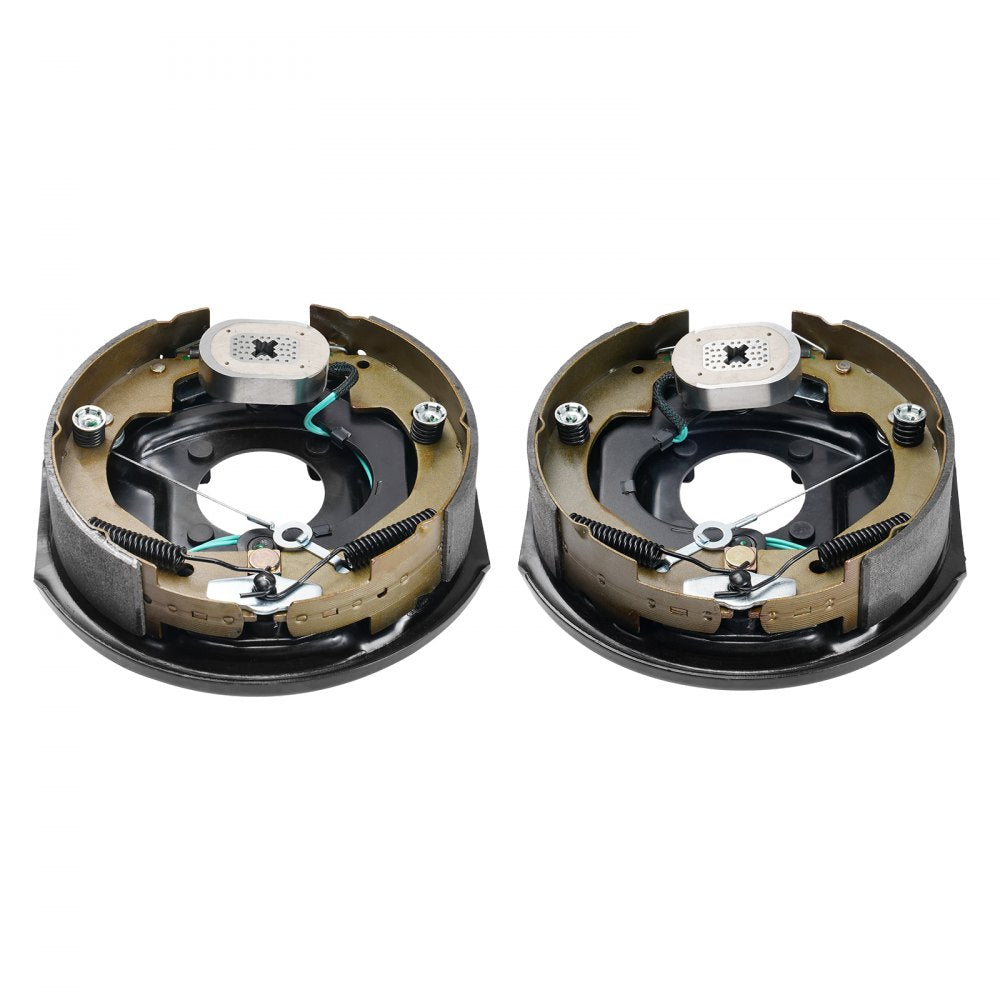

The VEVOR Electric Trailer Brake Assembly is a reliable and durable replacement kit designed for 3500 lbs axle trailers. This self-adjusting brake set includes one right and one left brake, each measuring 10" x 2-1/4", ensuring even and effective braking performance. Crafted from high-quality SPHC and Q235 materials with asbestos-free semi-metallic brake pads, these brakes provide a longer lifespan and superior stopping power. Designed for easy installation with a 4-hole mounting pattern, this kit fits a wide range of trailer applications.
Features
-
Self-Adjusting Brake Pads: Automatically maintain optimal pad clearance for consistent braking
-

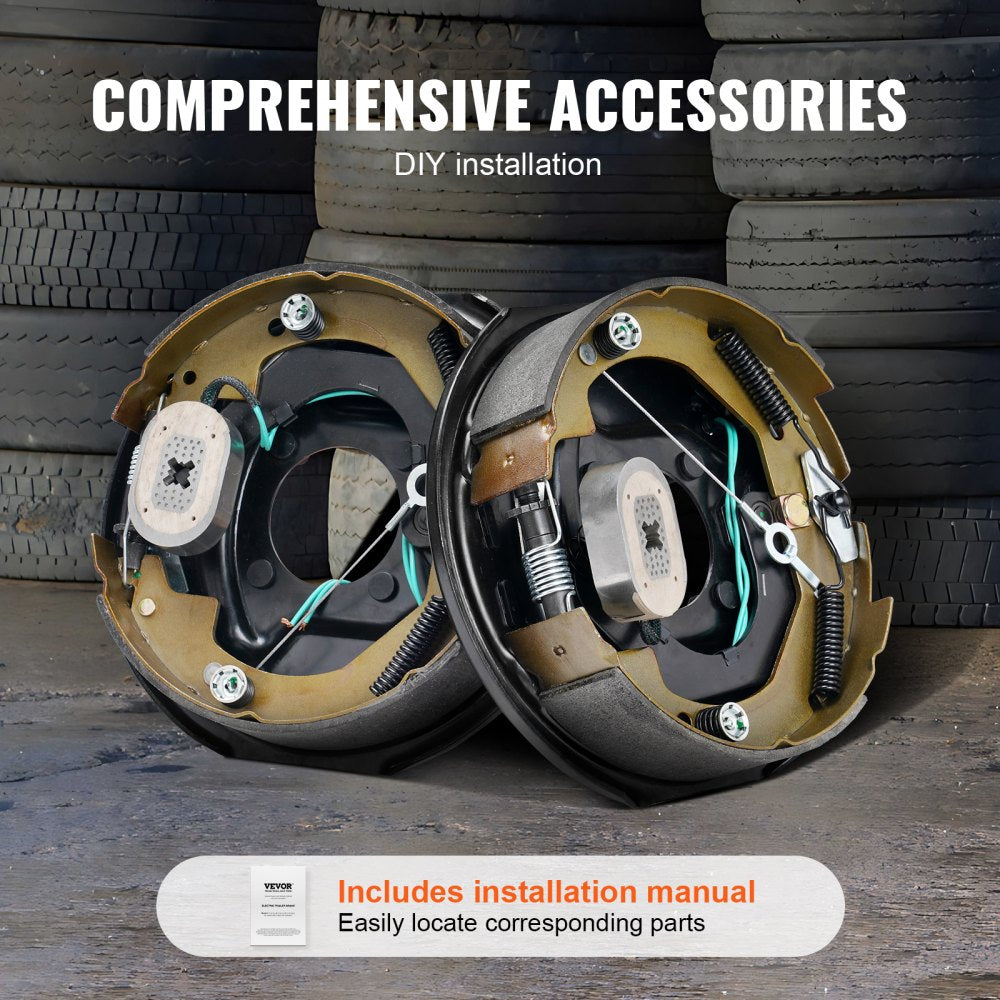

Easy Installation: Compatible with standard 4-hole mounting, simplifying the replacement process
-
Durable Materials: Made from SPHC and Q235 steel with asbestos-free semi-metallic pads for enhanced durability
-
Wide Application: Suitable for trailers up to 3500 lbs axle weight
-
Superior Packaging: Securely packaged to prevent damage during transit
-
Reliable Performance: Magnetic force of approximately 450N and friction coefficient of 0.48 for efficient braking
-
Long Lifespan: Designed to last approximately 30,000 km

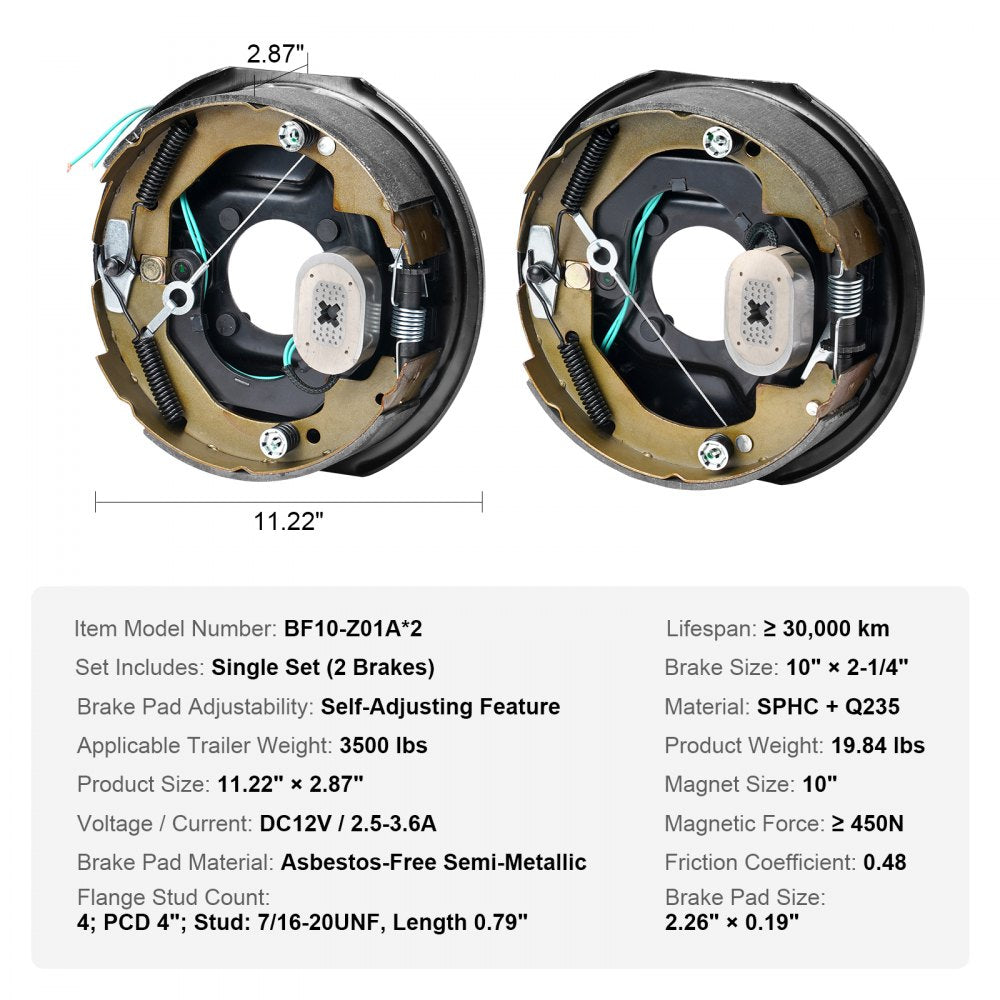

Specifications
-

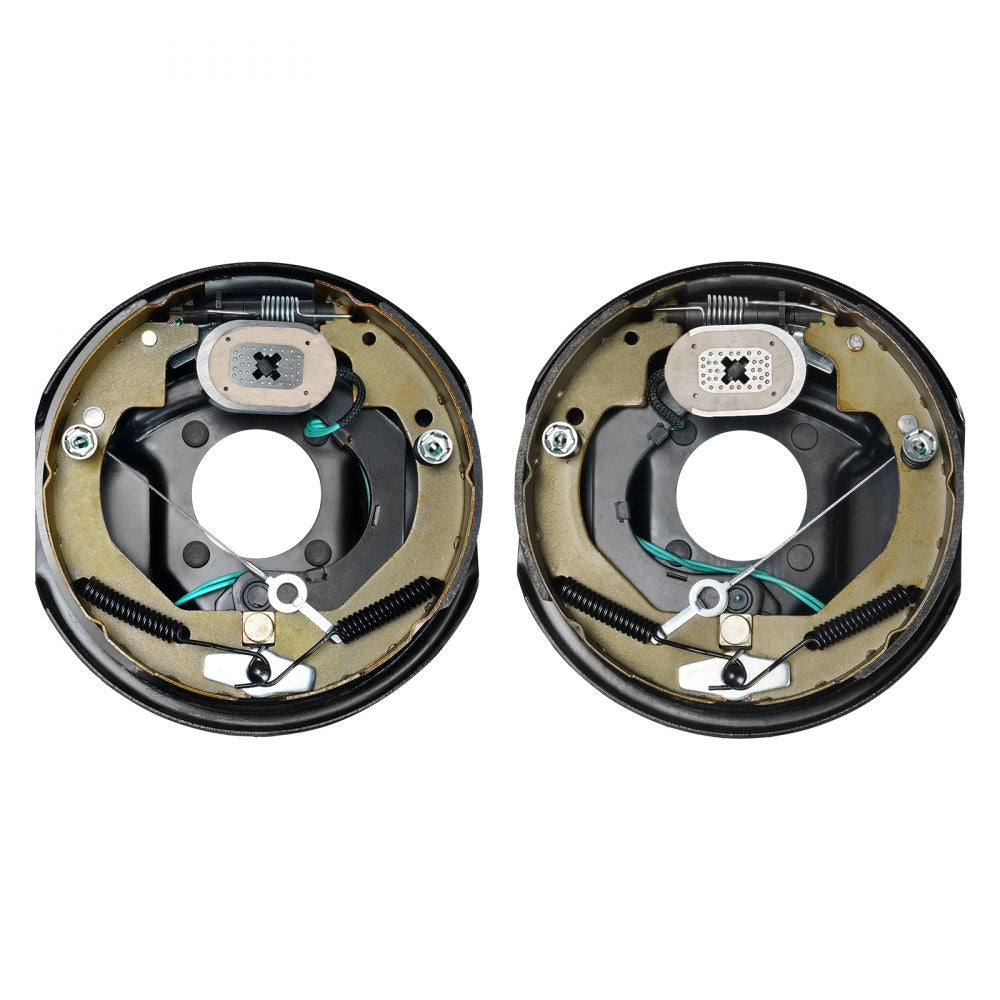

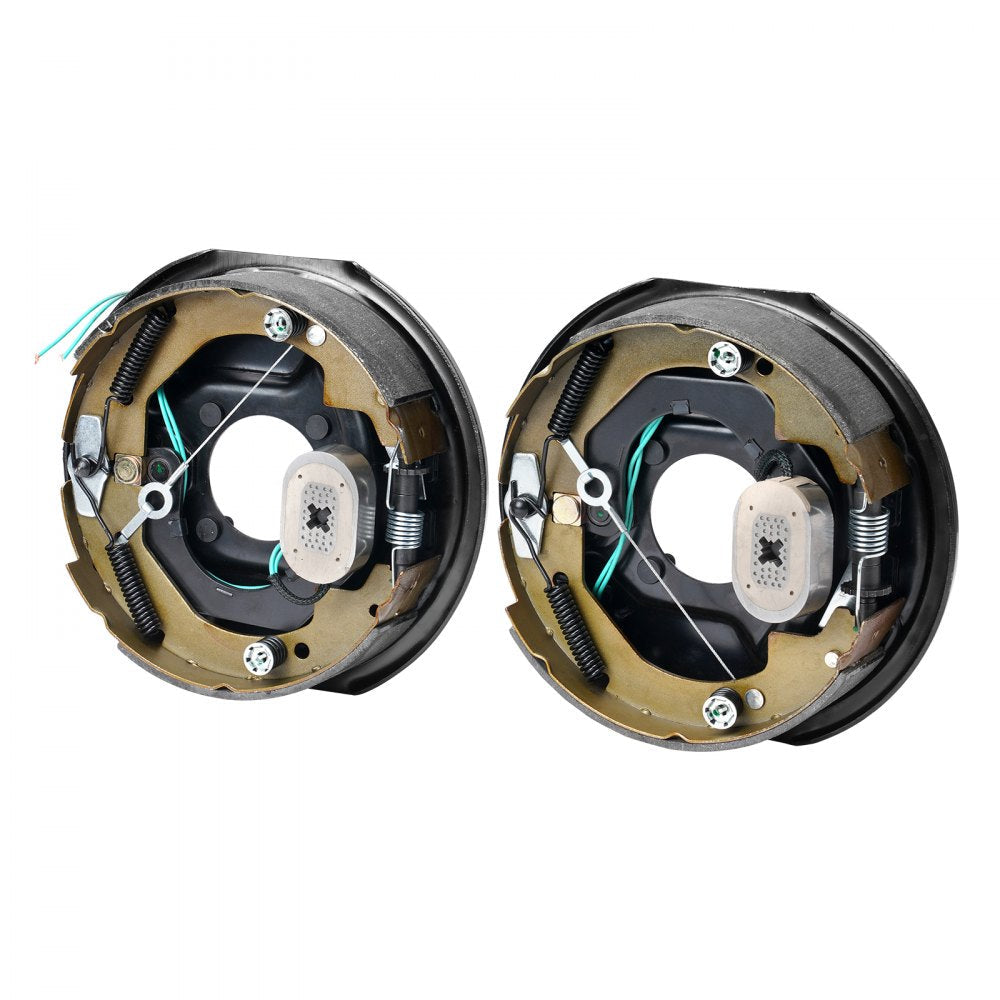

Set Includes: 1 Pair (Right + Left) Electric Trailer Brakes
-

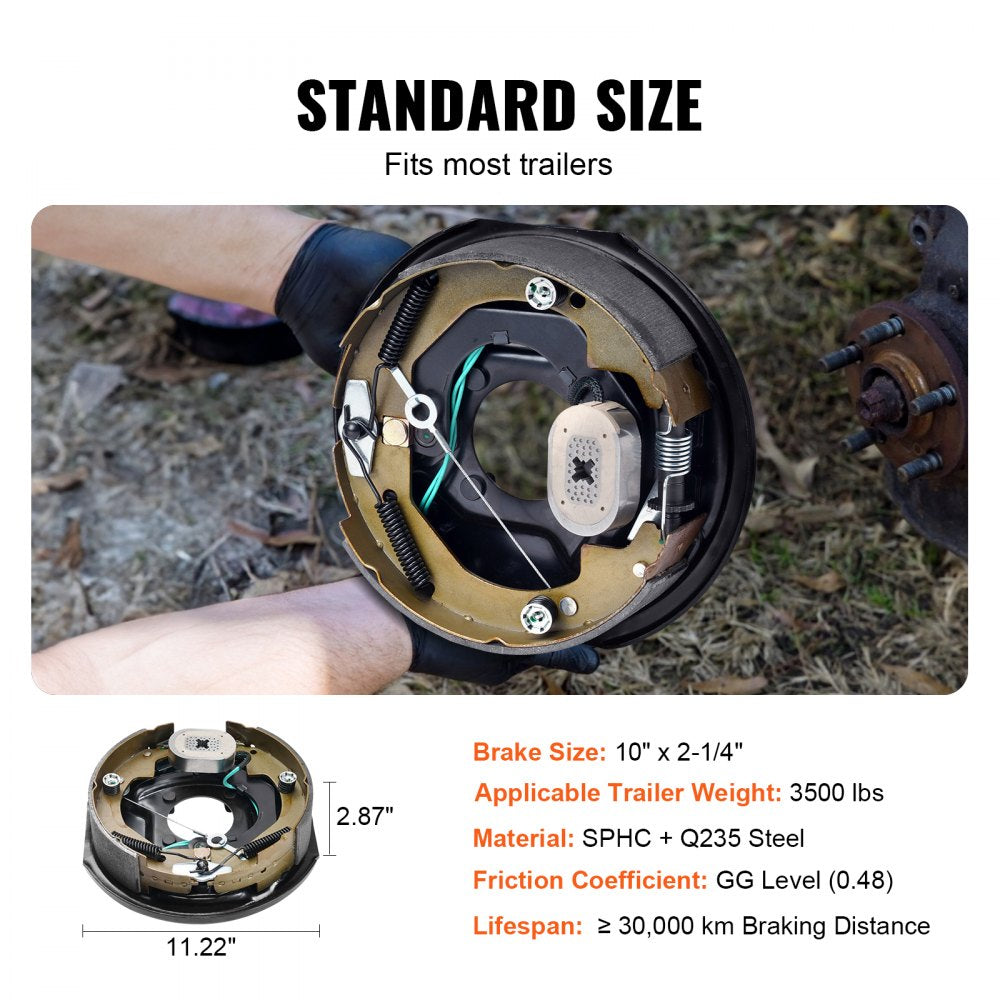

Brake Size: 10" x 2-1/4"
-

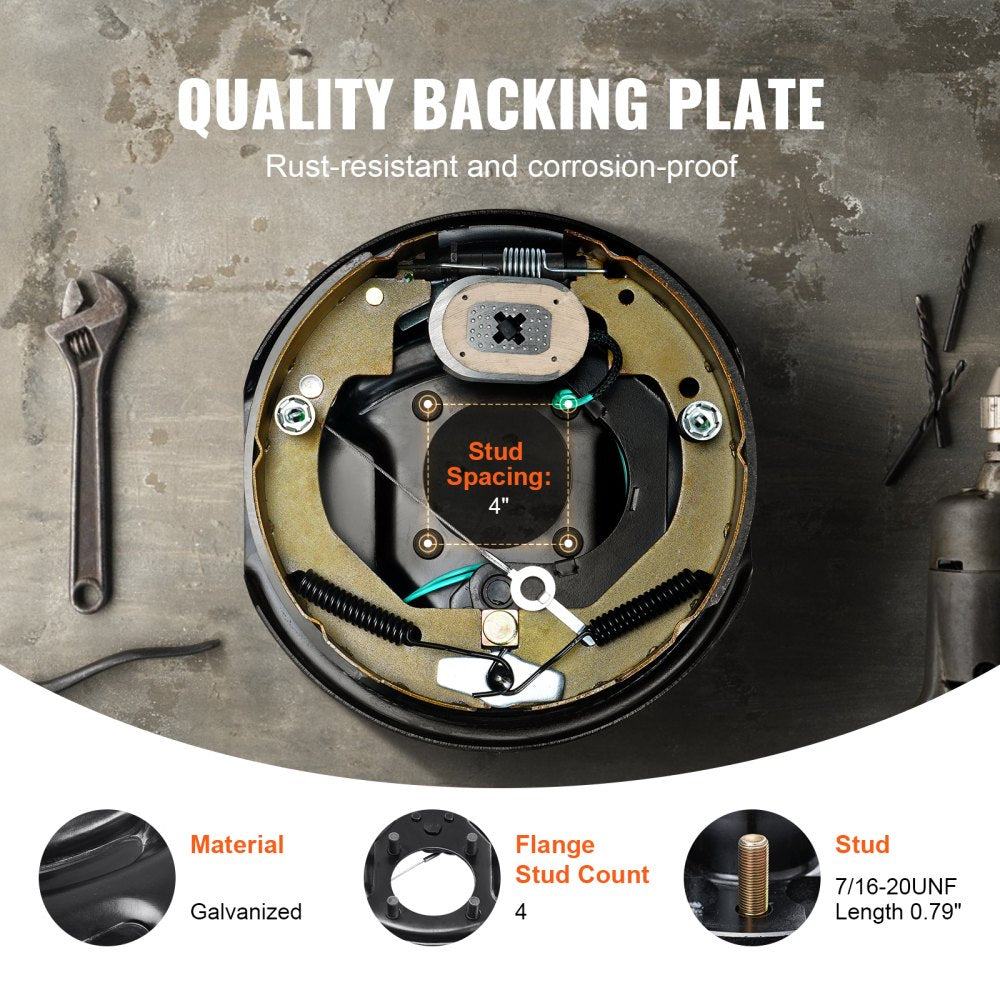

Mounting Flange Stud Count: 4
-
Brake Pad Size: 2.26" x 0.19"
-
Brake Pad Material: Asbestos-Free Semi-Metallic
-
Applicable Trailer Weight: 3500 lbs
-
Magnetic Force: ~450N
-
Friction Coefficient: 0.48
-
Voltage/Current: DC 12V / 2.5-3.6A
-
Product Dimensions: 11.22" x 2.87"
-
Material: SPHC + Q235 Steel
-
Item Model Number: BF10-Z01A*2
-
Product Weight: 19.84 lbs
