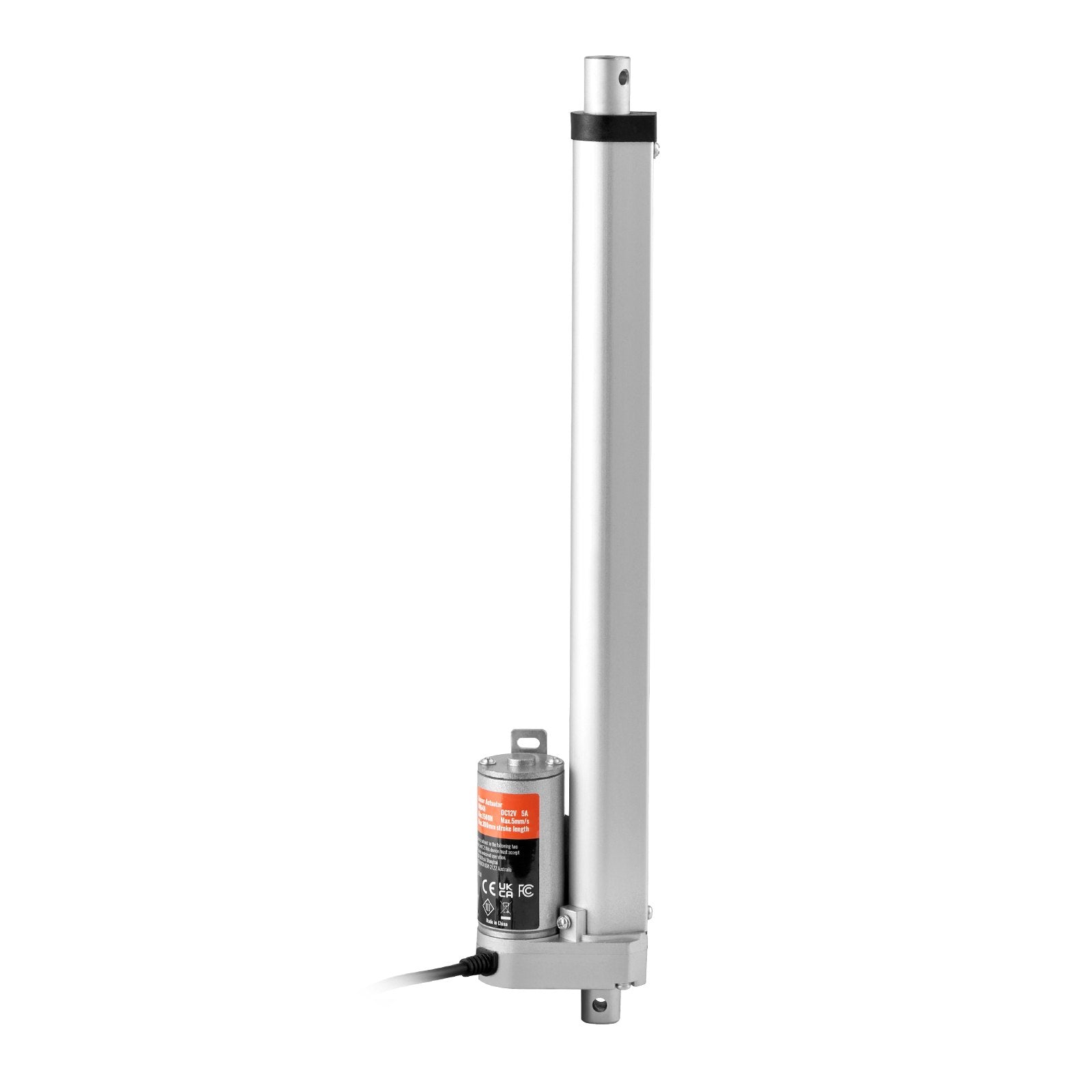

Automate your projects with the VEVOR 12V Linear Actuator, engineered for powerful and precise motion. With a high load capacity of 330 lbs (1500N) and a 12-inch stroke, this actuator is perfect for applications like furniture automation, industrial machinery, and home automation systems. Constructed from durable aluminum alloy and rated IP54 for dust and splash resistance, it operates smoothly at a quiet ≤60 dB. Easy to install and compatible with various control systems, this actuator delivers consistent, linear motion with minimal maintenance.
Features
-

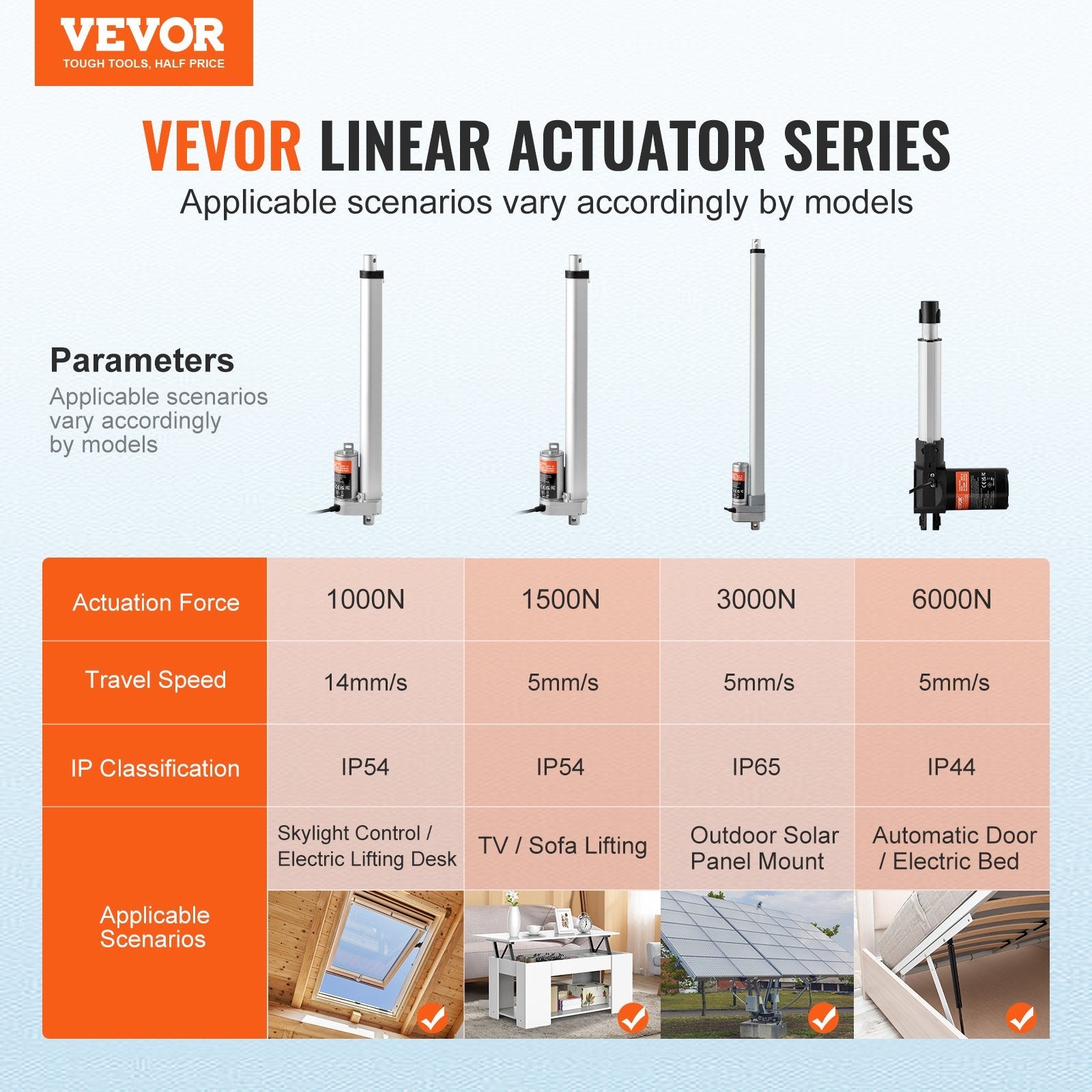

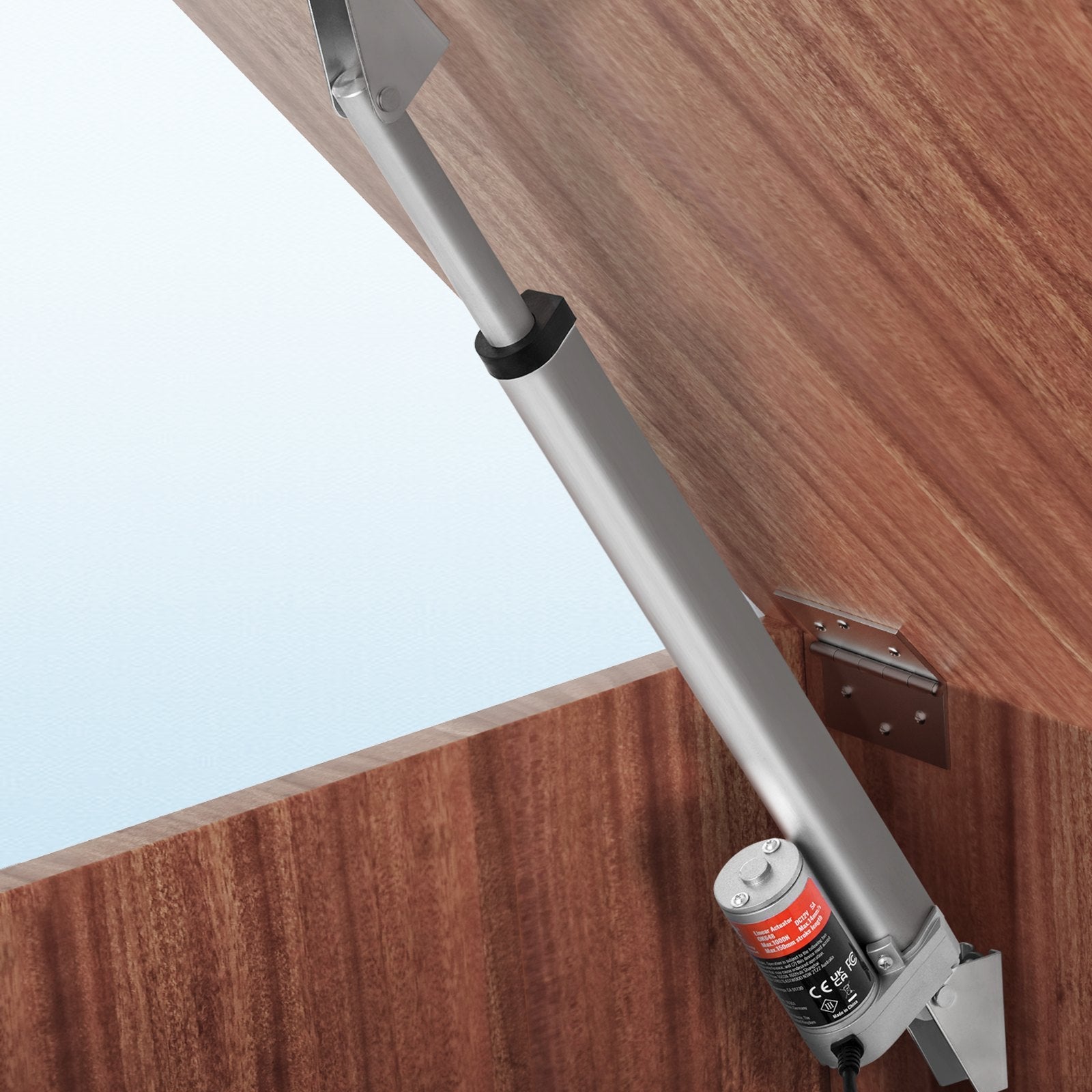

Enable Automation in Every Step: Ideal for electric beds, industrial equipment, solar tracking, and more
-

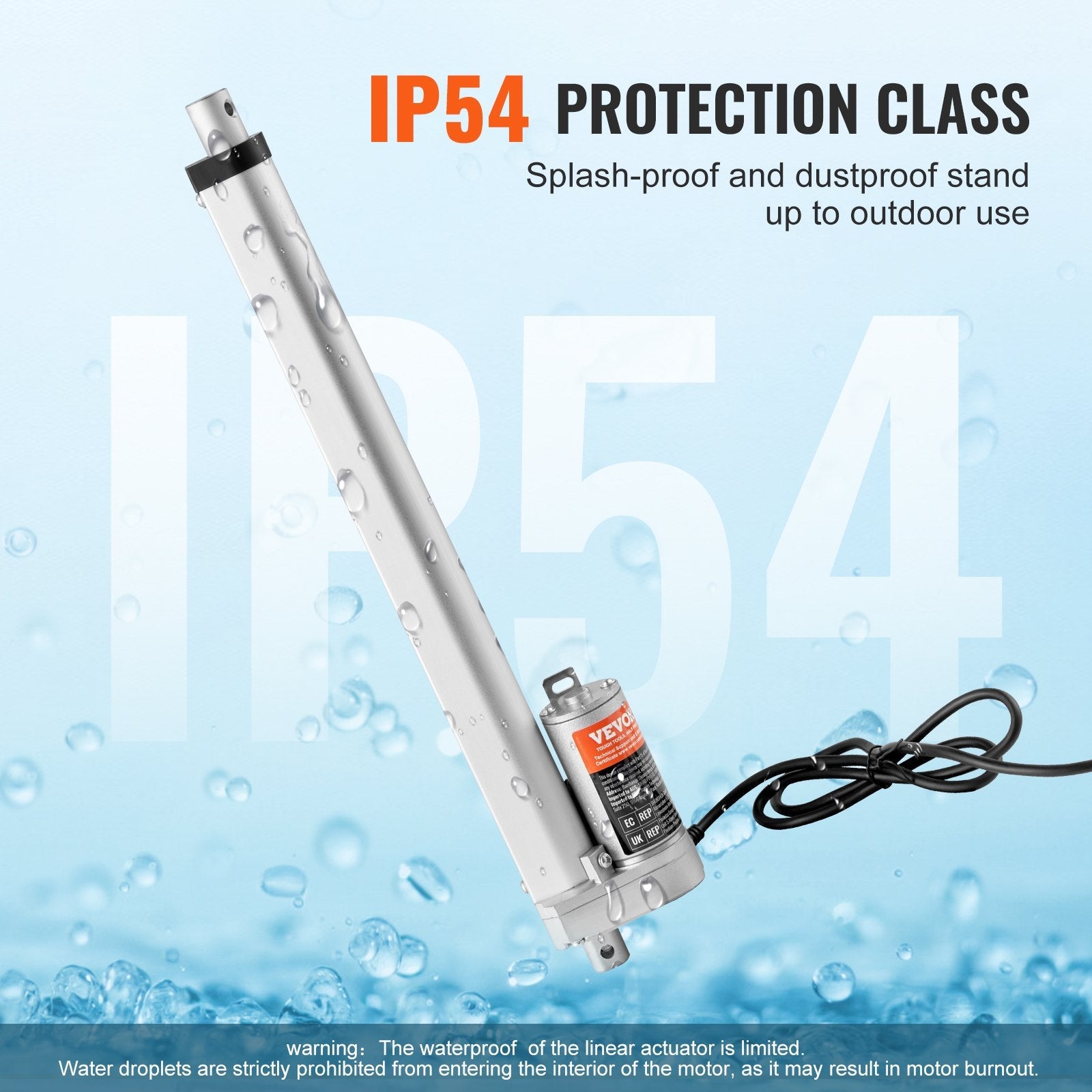

IP54 Protection: Guards against dust and water splashes for reliable outdoor and indoor performance
-

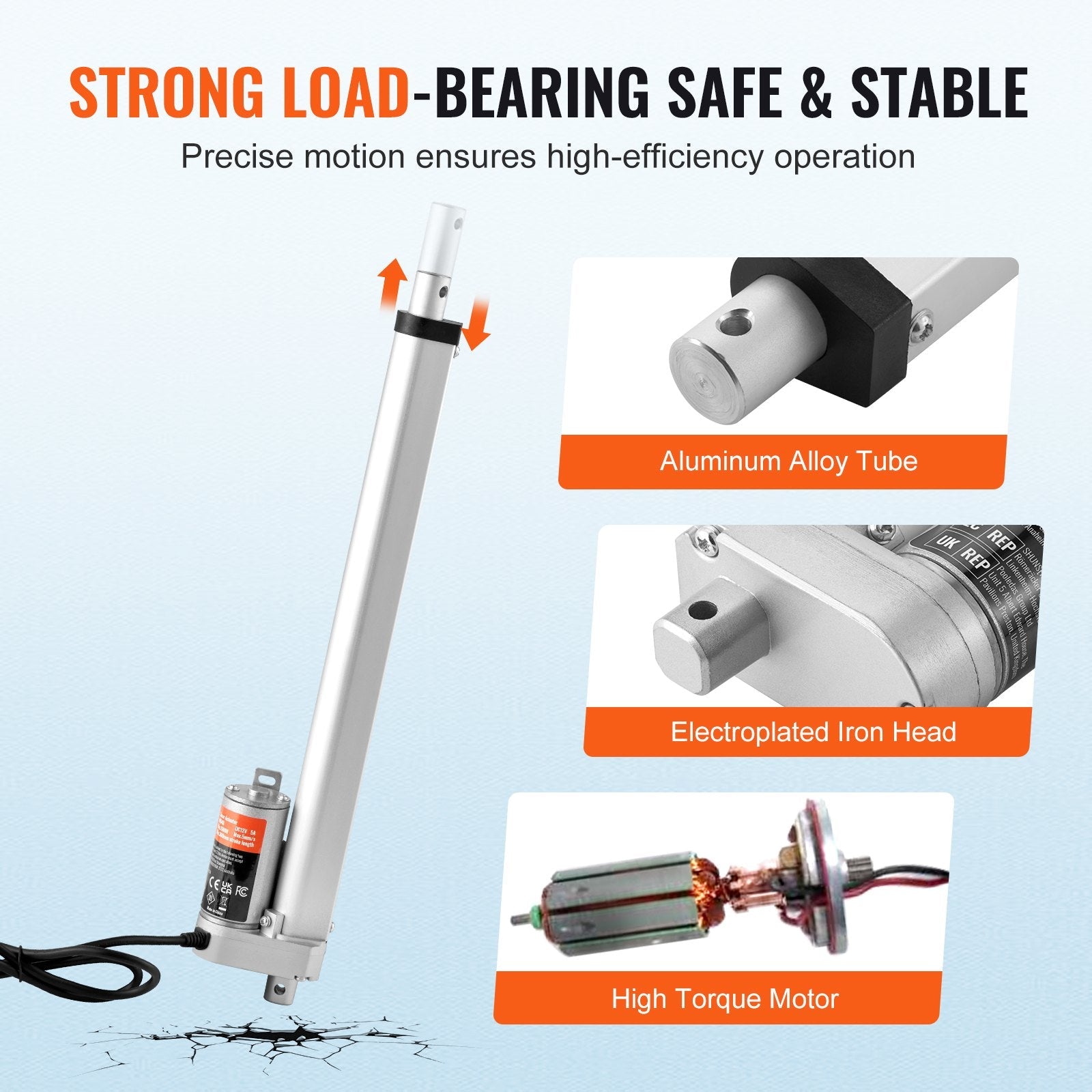

High-Quality & Durable: Rugged aluminum alloy build ensures long service life
-

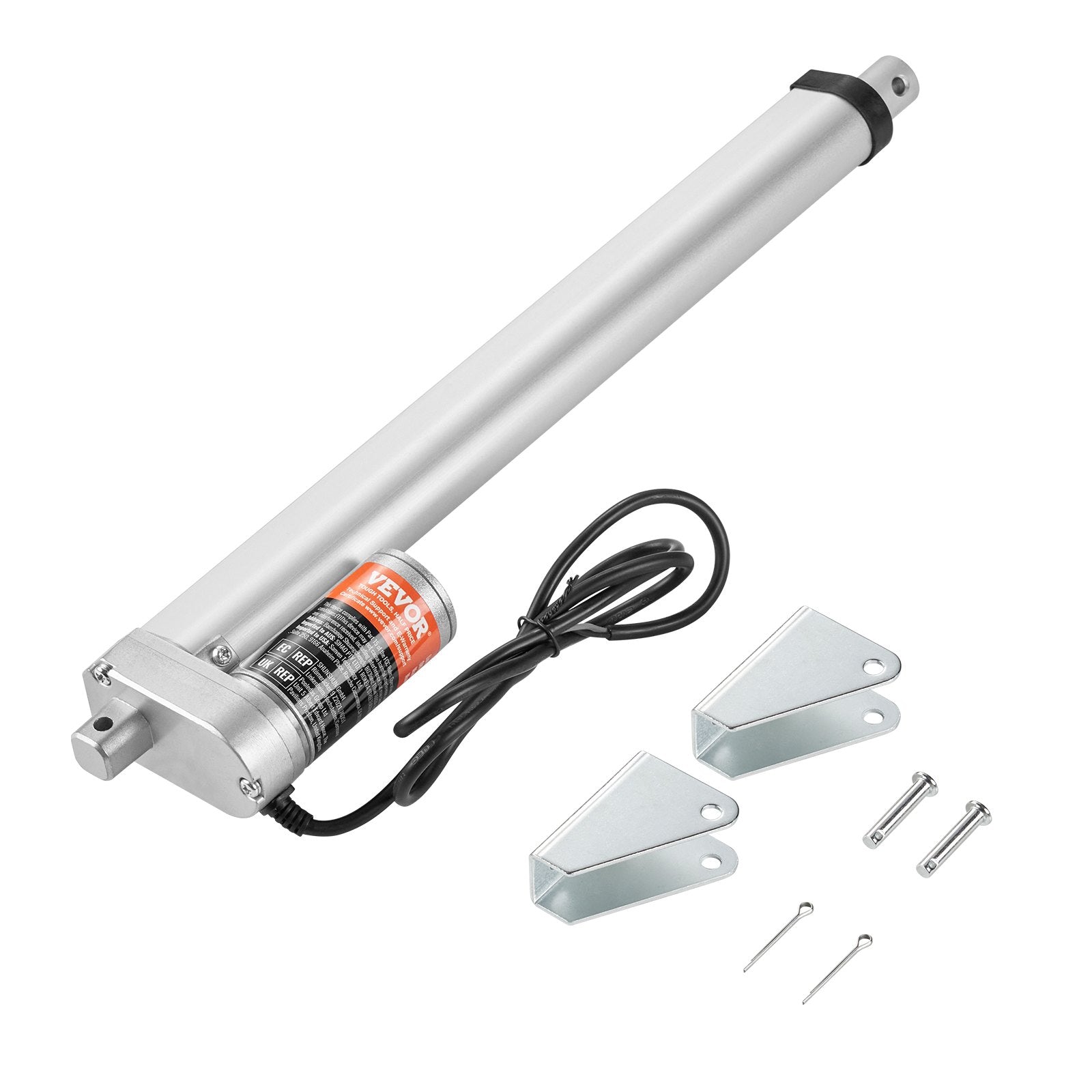

Easy Installation: Comes with mounting brackets for quick and secure setup
-

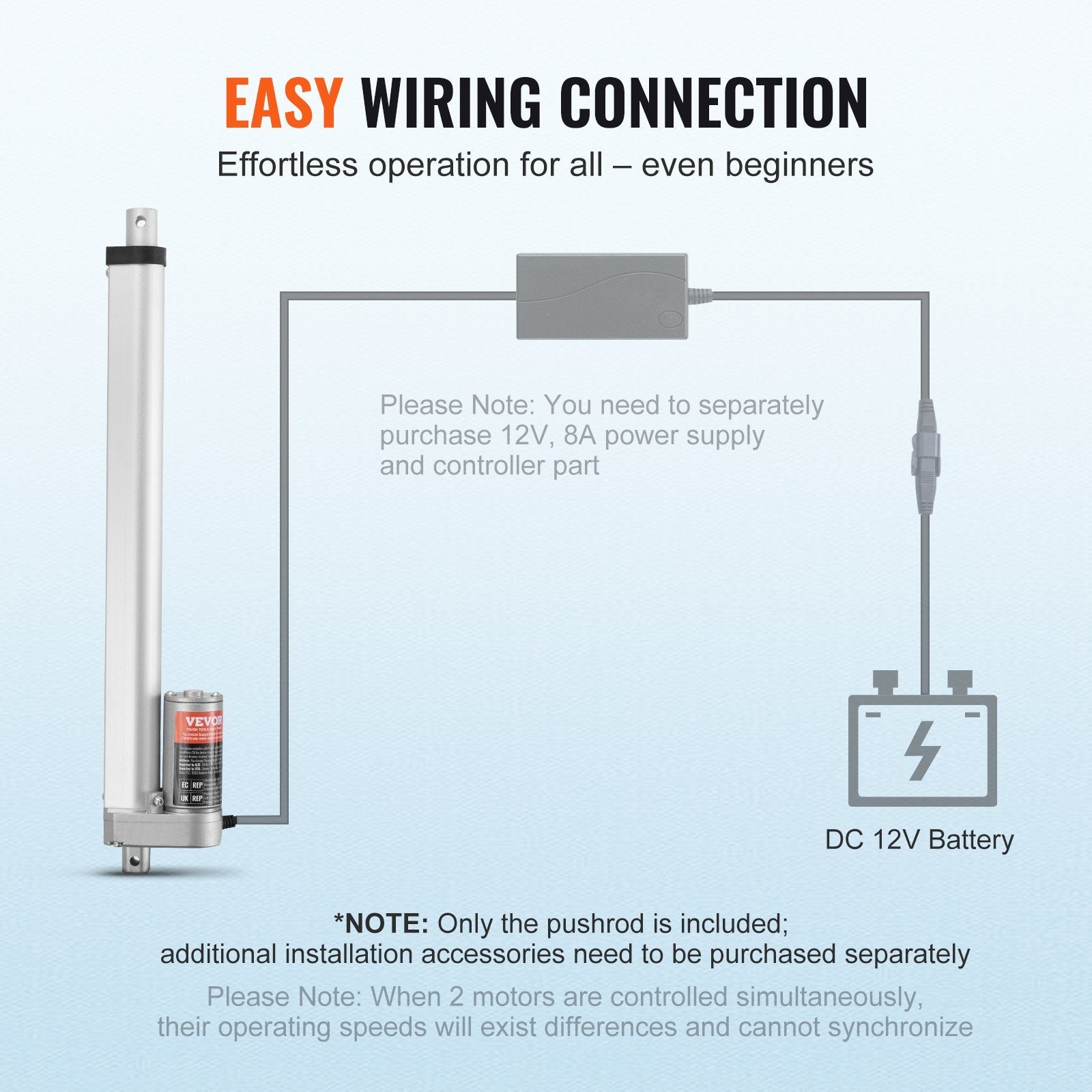

Warm Tips: Use a suitable controller or switch to manage actuator movement
-
Wide Applications: Suitable for DIY projects, medical devices, RV lifts, and adjustable furniture

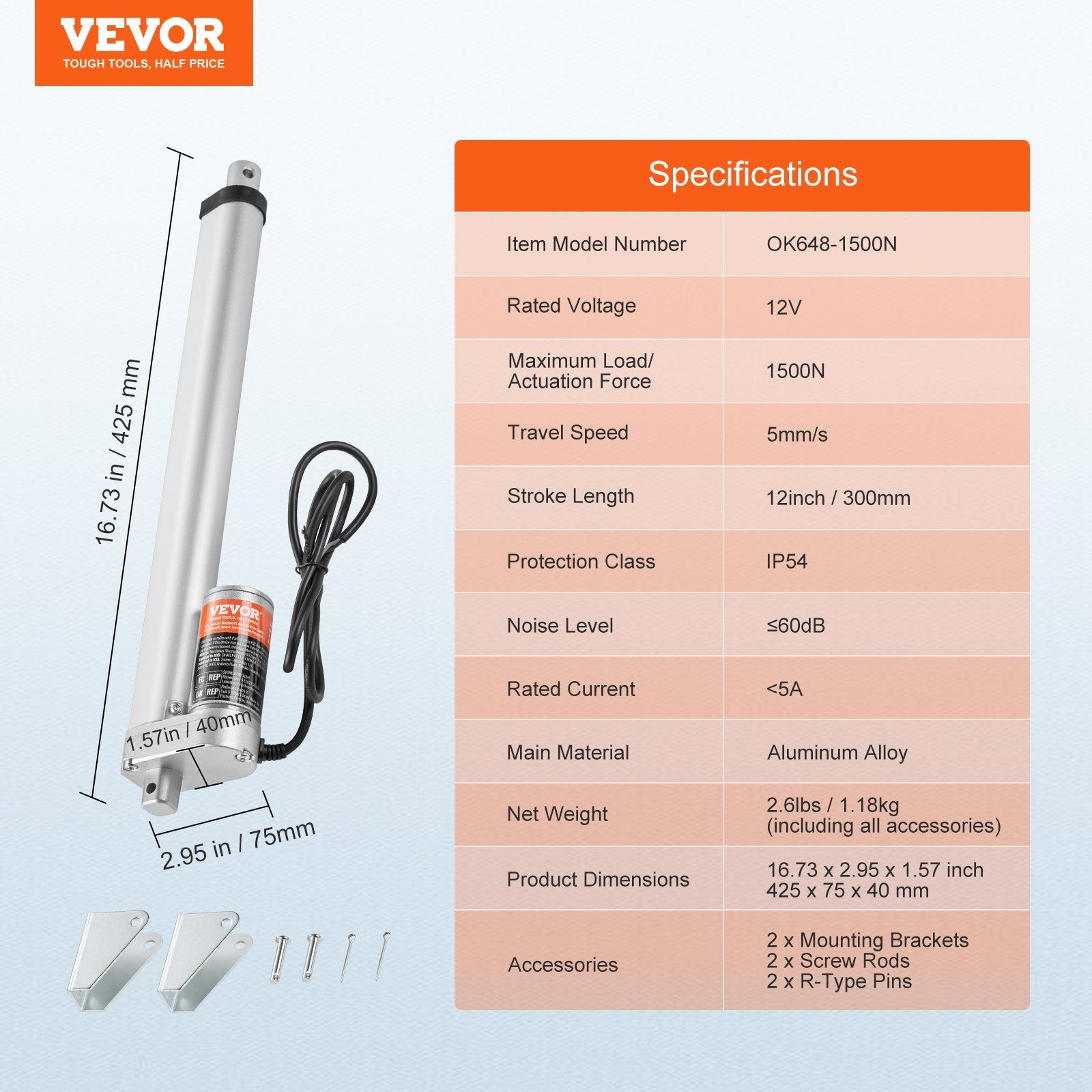

Specifications
-

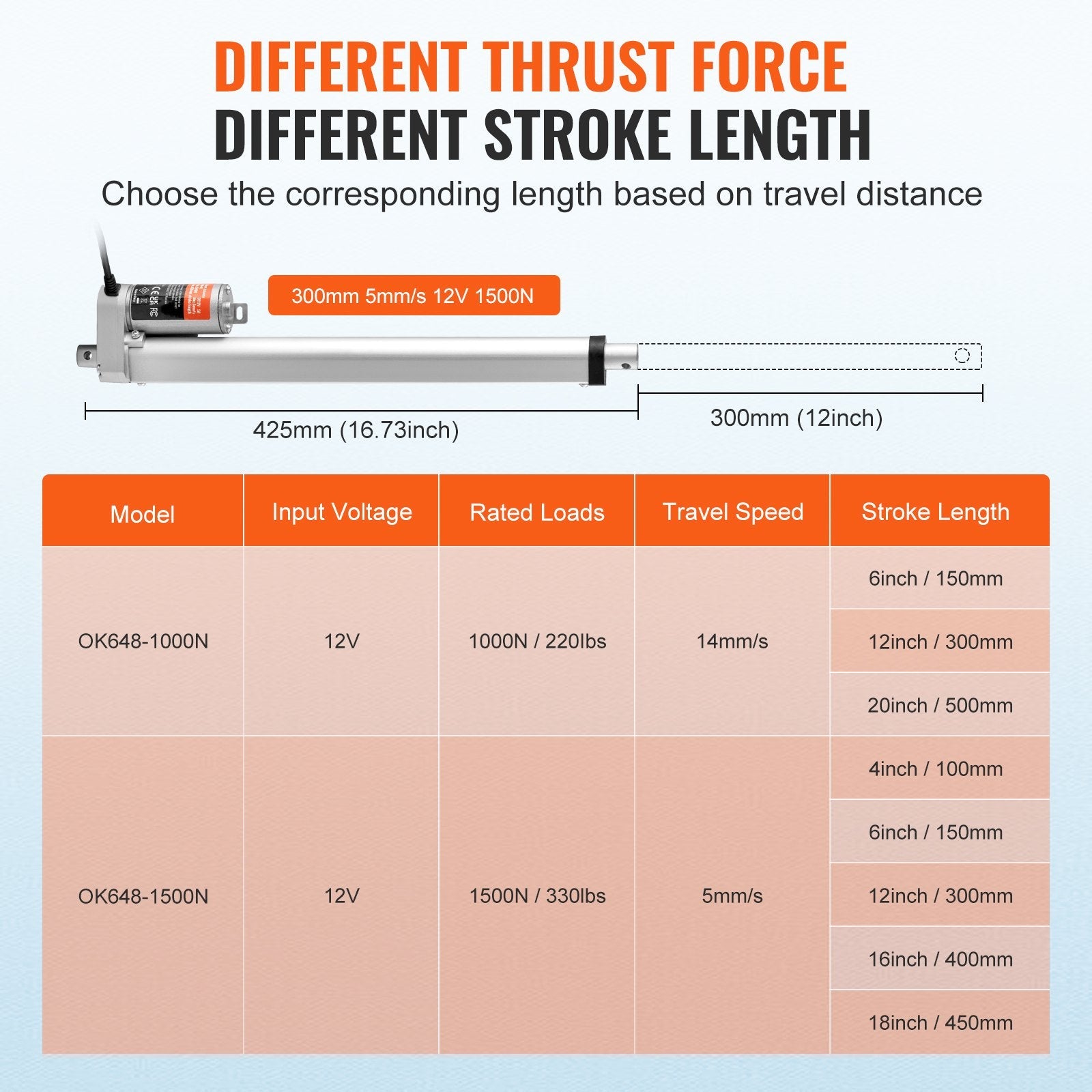

Stroke Length: 12 inch / 300 mm
-
Max Load: 1500N / 330 lbs
-
Travel Speed: 0.19 inch/s (5 mm/s)
-
Noise Level: ≤60 dB
-
Rated Voltage: DC12V
-
Rated Current: <5A
-
Protection Class: IP54
-
Product Dimensions: 16.73 x 2.95 x 1.57 in / 425 x 75 x 40 mm
-
Net Weight: 2.6 lbs / 1.18 kg
-
Main Material: Aluminum Alloy
-
Item Model Number: OK648-1500N
