Description

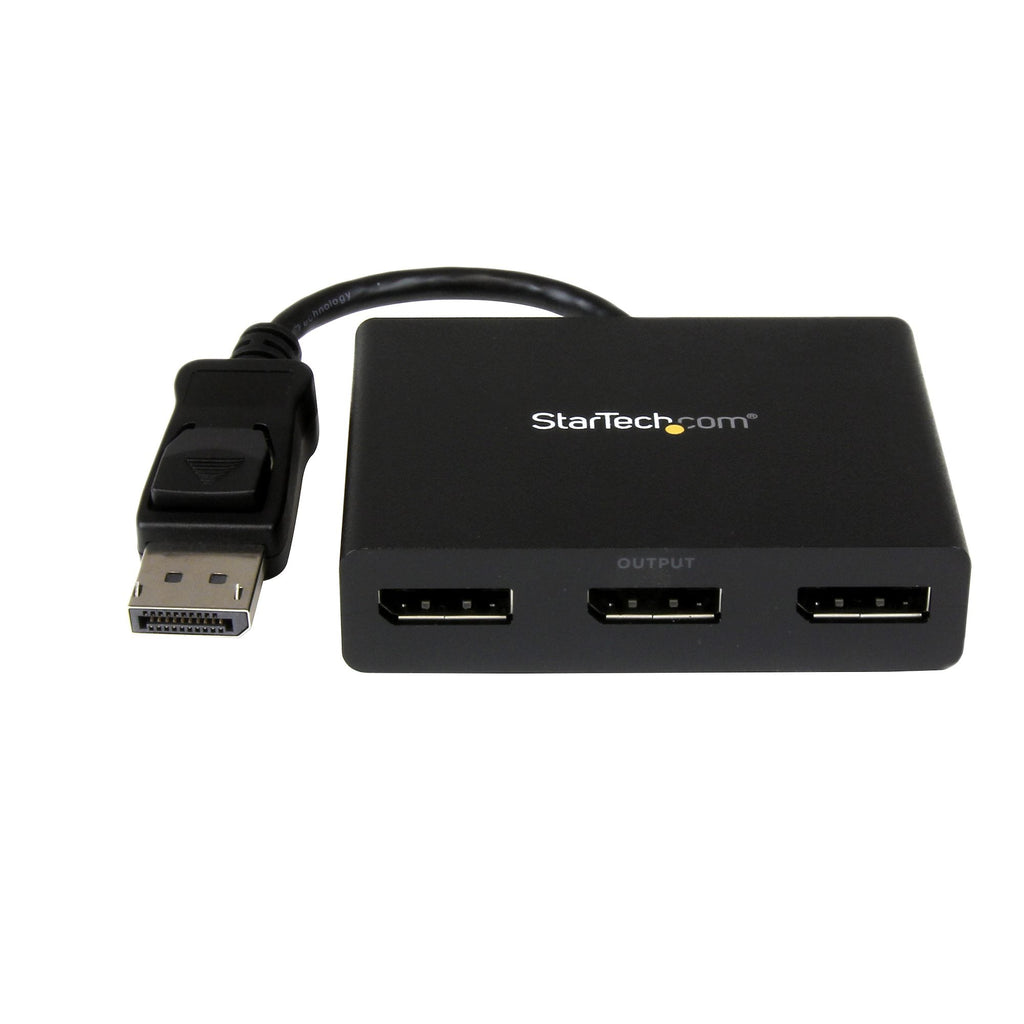

Unlock the power of multitasking with the 3-Port DisplayPort 1.2 MST Hub, designed to connect up to three independent DisplayPort monitors to a single DisplayPort output. Leveraging MST (Multi-Stream Transport), this adapter supports dual 4K @ 30Hz or triple 1080p @ 60Hz displays for high-efficiency workflows. Ideal for financial traders, engineers, and content professionals, this hub is USB bus-powered and requires no external power. Compatible with Windows only (macOS does not support MST), it’s a practical solution for expanding your productivity across multiple screens.
Key Features
-
Triple Monitor Support – Connect 3 DisplayPort monitors from a single DisplayPort output
-
DisplayPort 1.2 + MST – Enables extended or mirrored desktops on Windows
-
Dual 4K @ 30Hz or Triple 1080p @ 60Hz – Flexible display configurations based on host GPU
-
USB Bus-Powered – No external power adapter required (USB-A to Micro-USB cable included)
-
Plug-and-Play – Quick setup, no drivers needed for most Windows PCs
-
Compact and Portable – Ideal for professional workstations and mobile users
-
Windows Only – MST functionality is not supported on macOS
Specifications
-

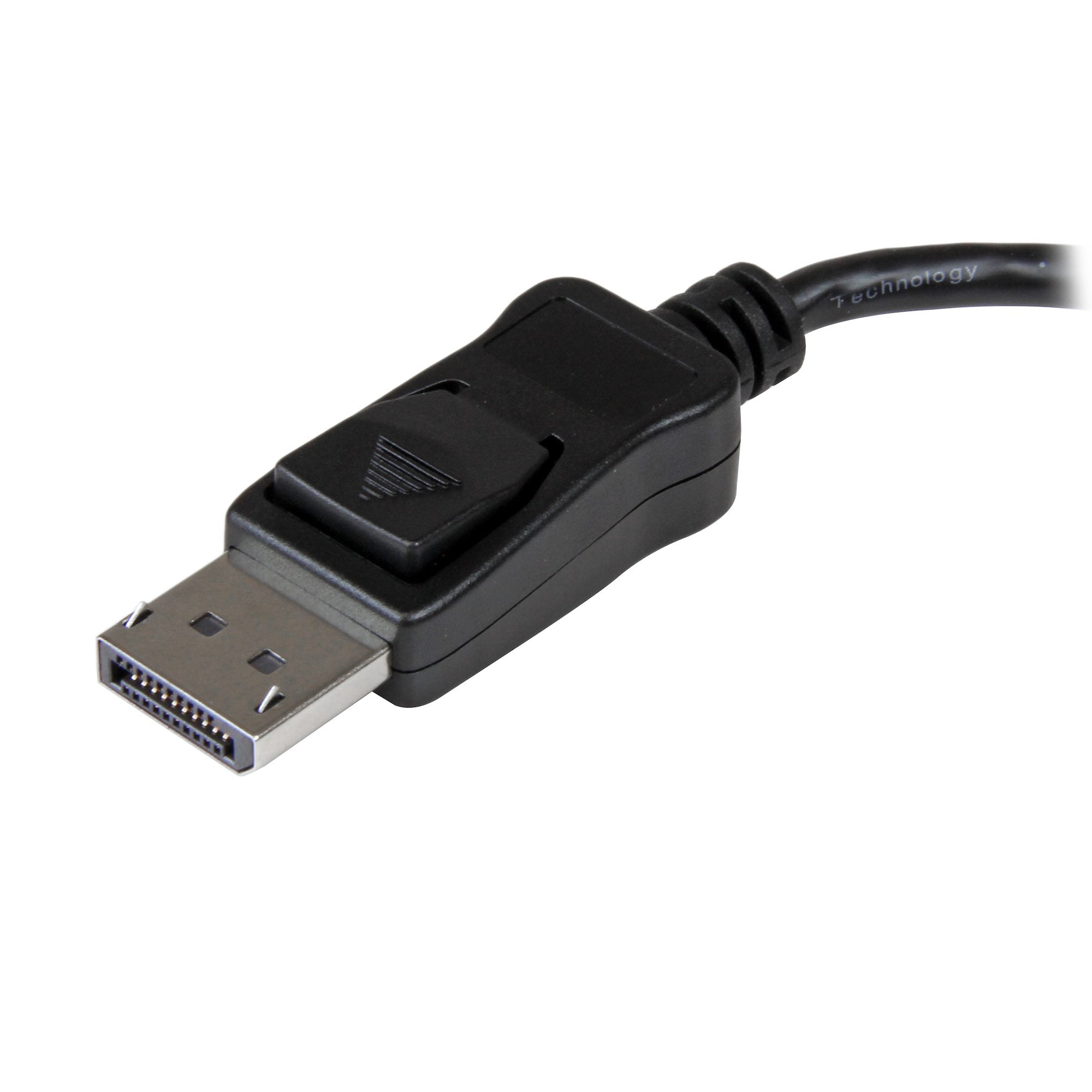

Input Connector: DisplayPort 1.2 (Male, via 1ft built-in cable)
-

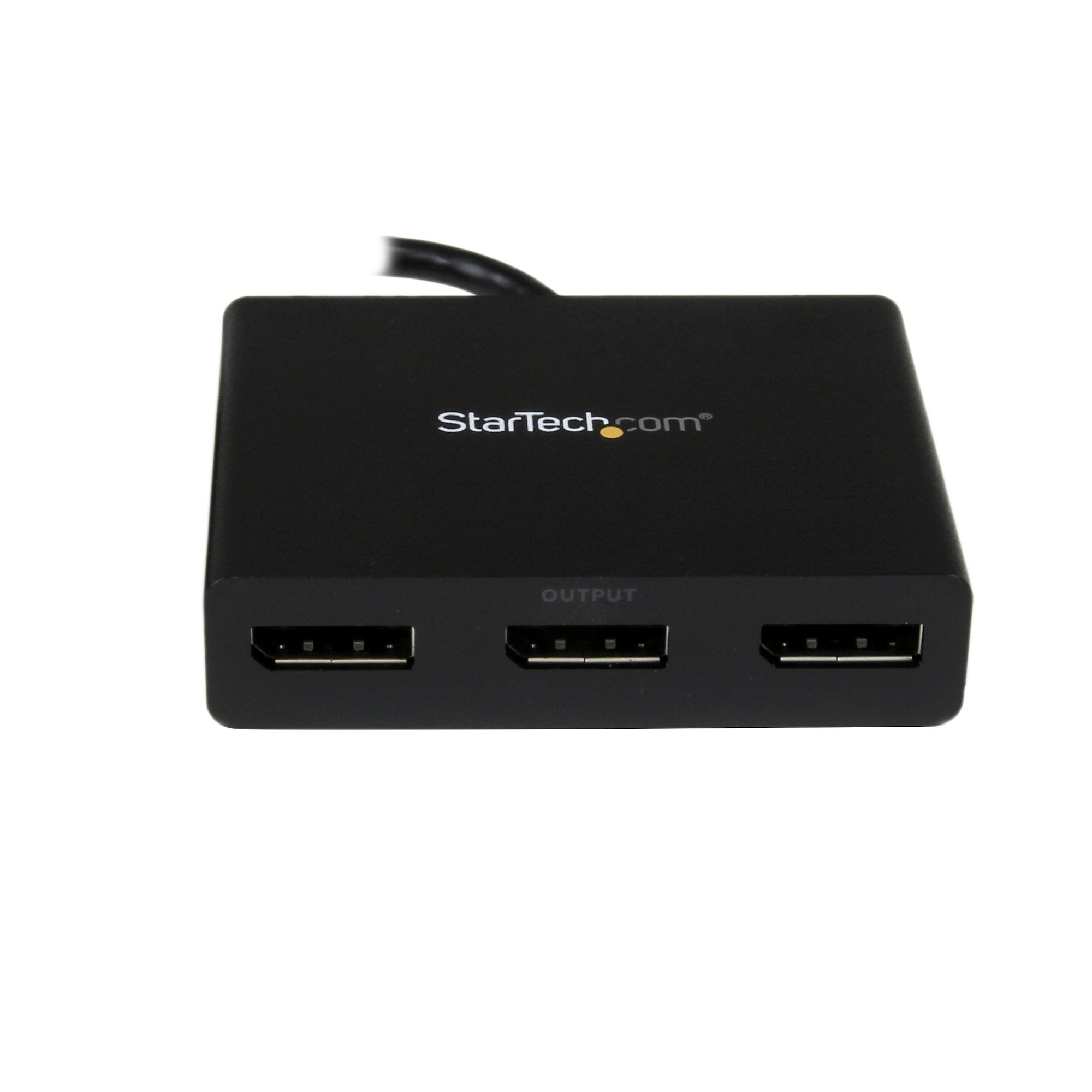

Output Connectors: 3 × DisplayPort 1.2 (Female)
-

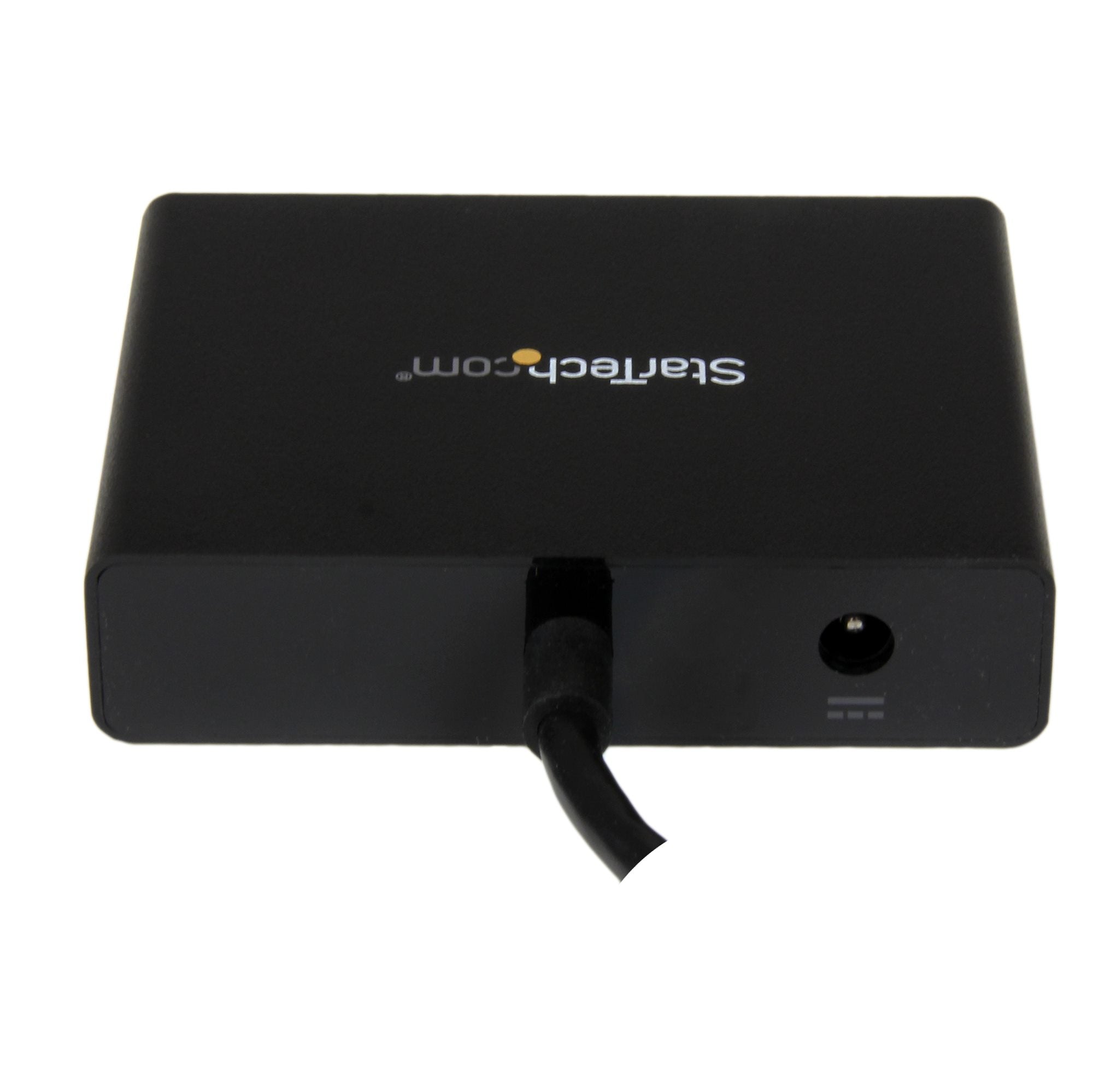

USB Power Input: Micro-USB (USB-A to Micro-USB cable included)
-

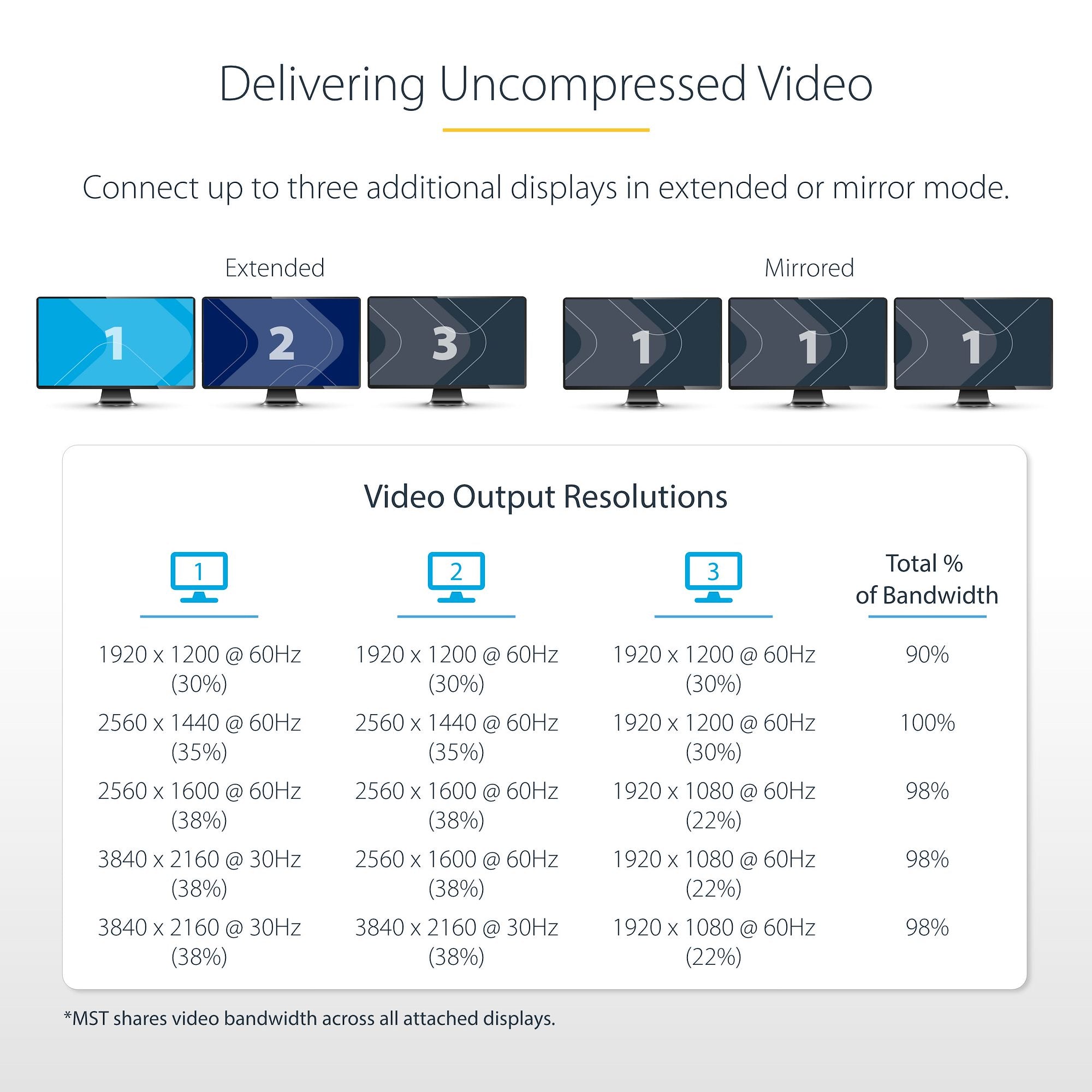

Max Resolution Support:
-
2 x 3840x2160 @ 30Hz
-
3 x 1920x1080 @ 60Hz
-
Single 4K @ 60Hz (if only one monitor is used)
-
-

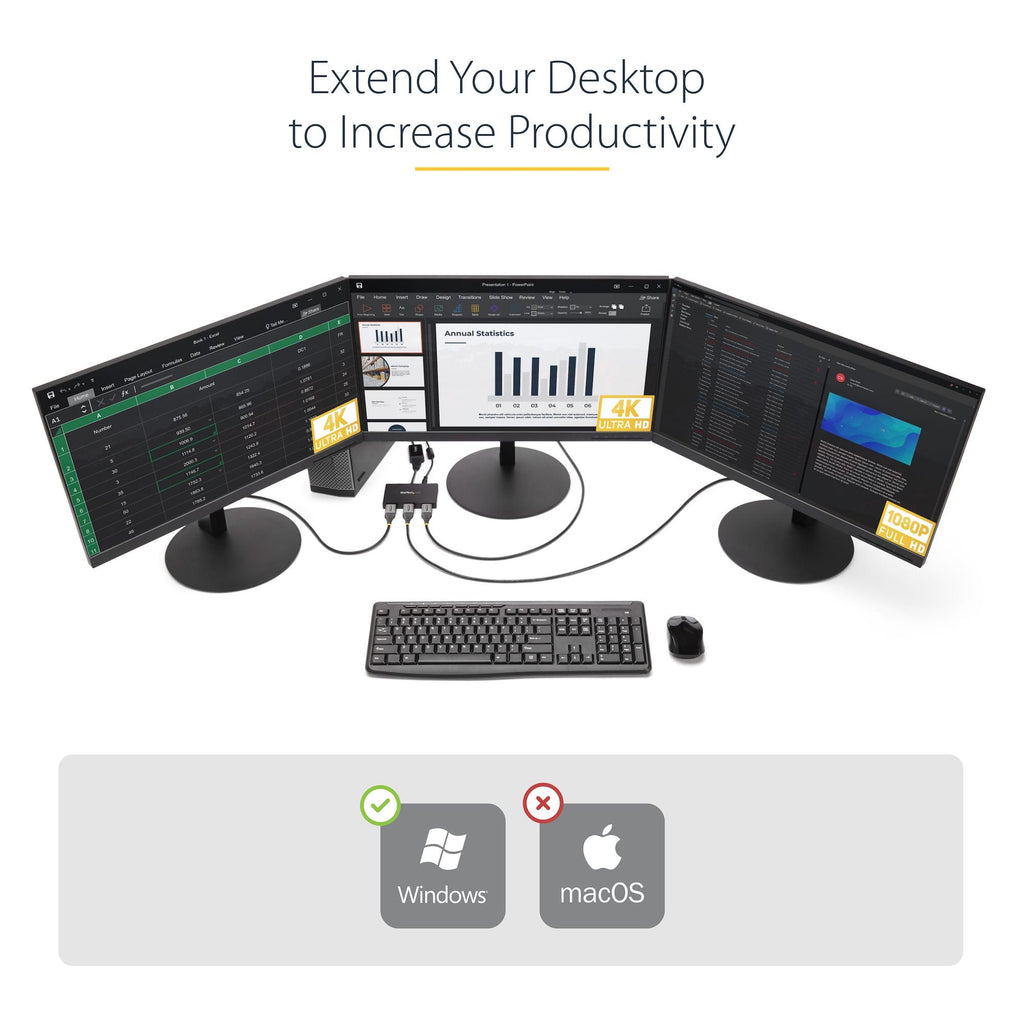

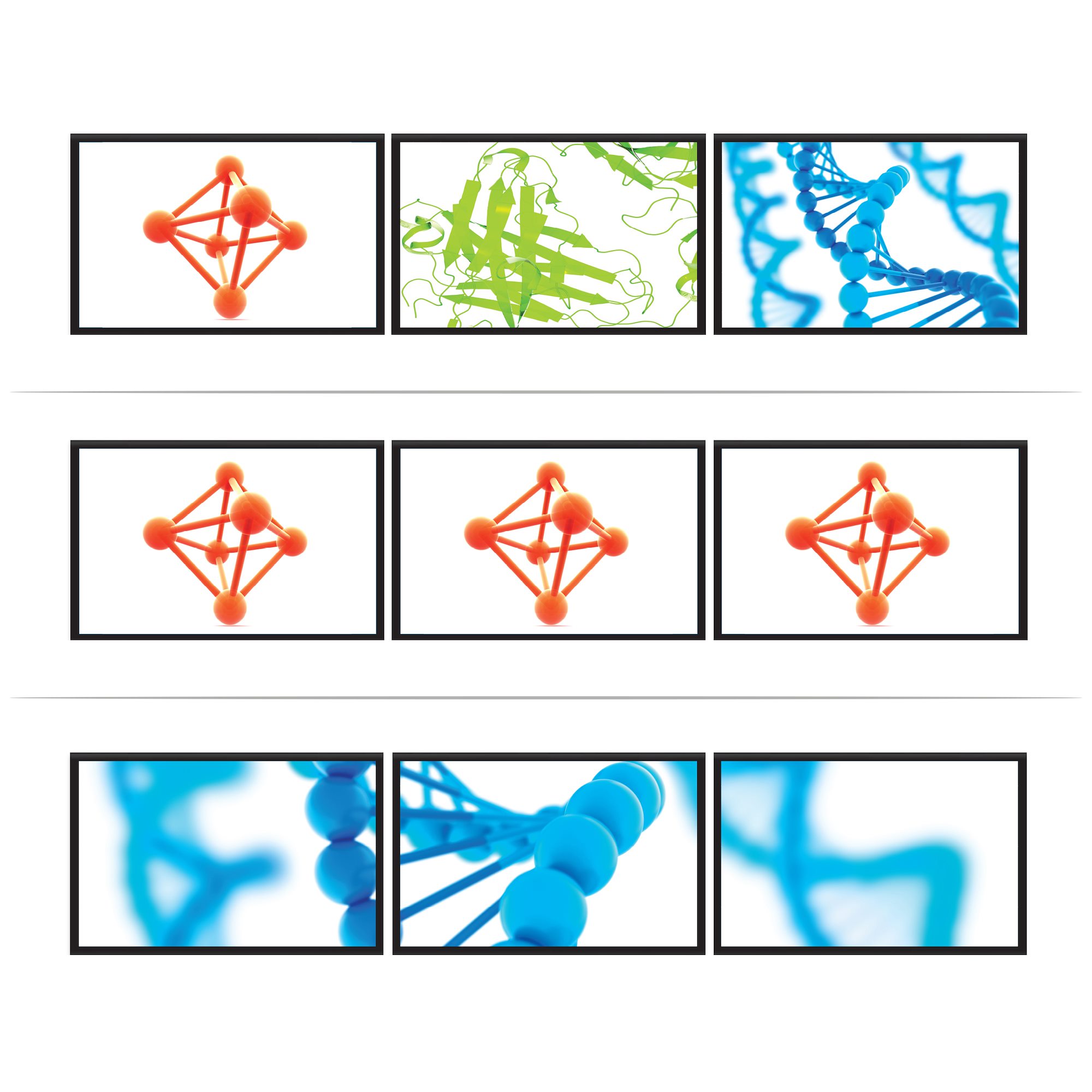

Display Modes: Extended, Mirrored, Collage (Windows Display Settings)
-
Audio Support: Yes (if supported by host GPU and display)
-
HDCP Support: Yes (HDCP 1.3/1.4)
-
OS Compatibility: Windows 10/11 only

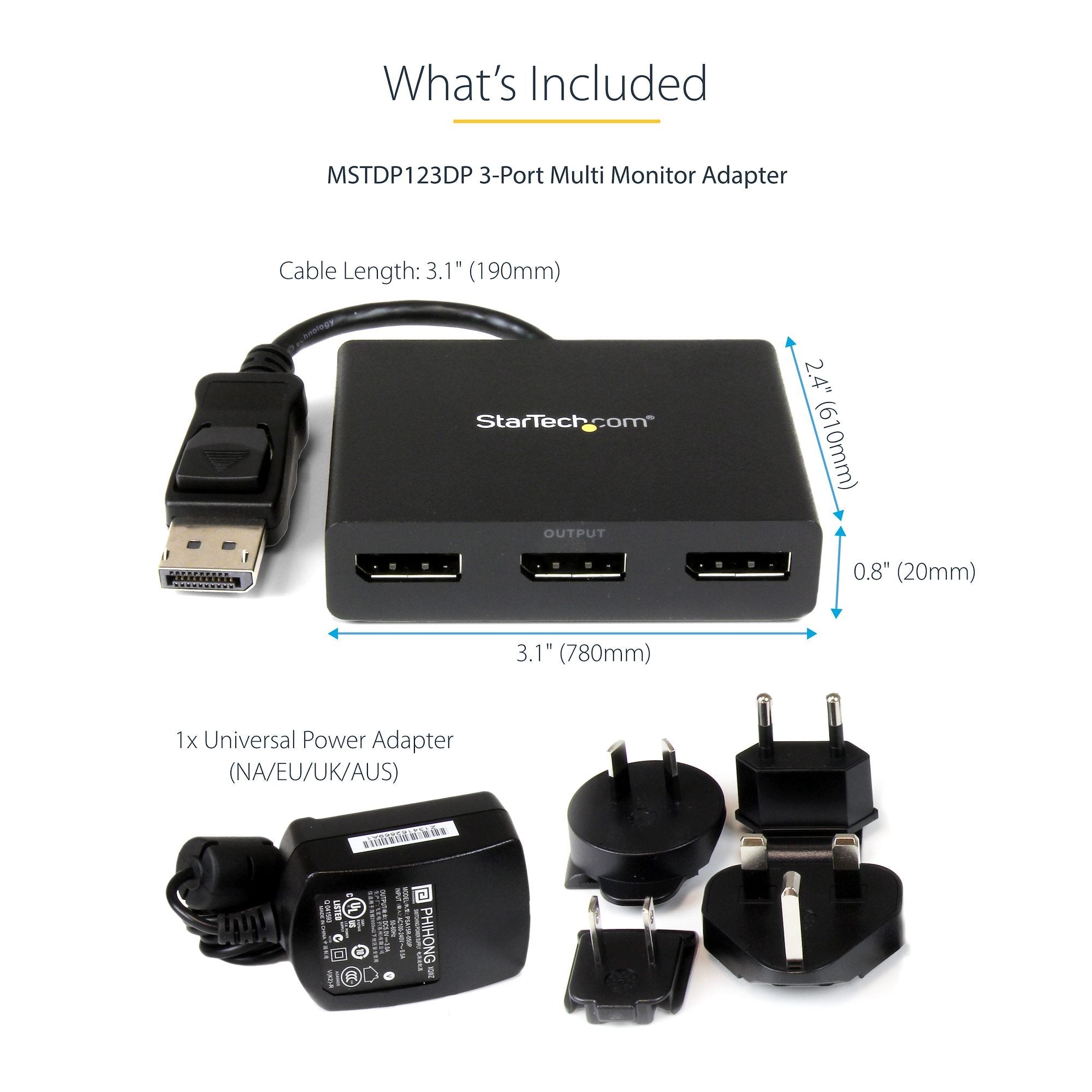

Product Dimensions / Weight
-
Hub Size: ~3.9 x 2.5 x 0.6 in (10 x 6.4 x 1.5 cm)
-
Built-in Cable Length: ~1ft (30 cm)
-
Weight: ~4.8 oz (135 g)
Package Dimensions / Weight
-
Package Size: ~8.3 x 5.5 x 1.6 in (21 x 14 x 4 cm)
-
Shipping Weight: ~6.7 oz (190 g)
