Description
Professional 4-Channel Temperature Monitoring & Data Logging

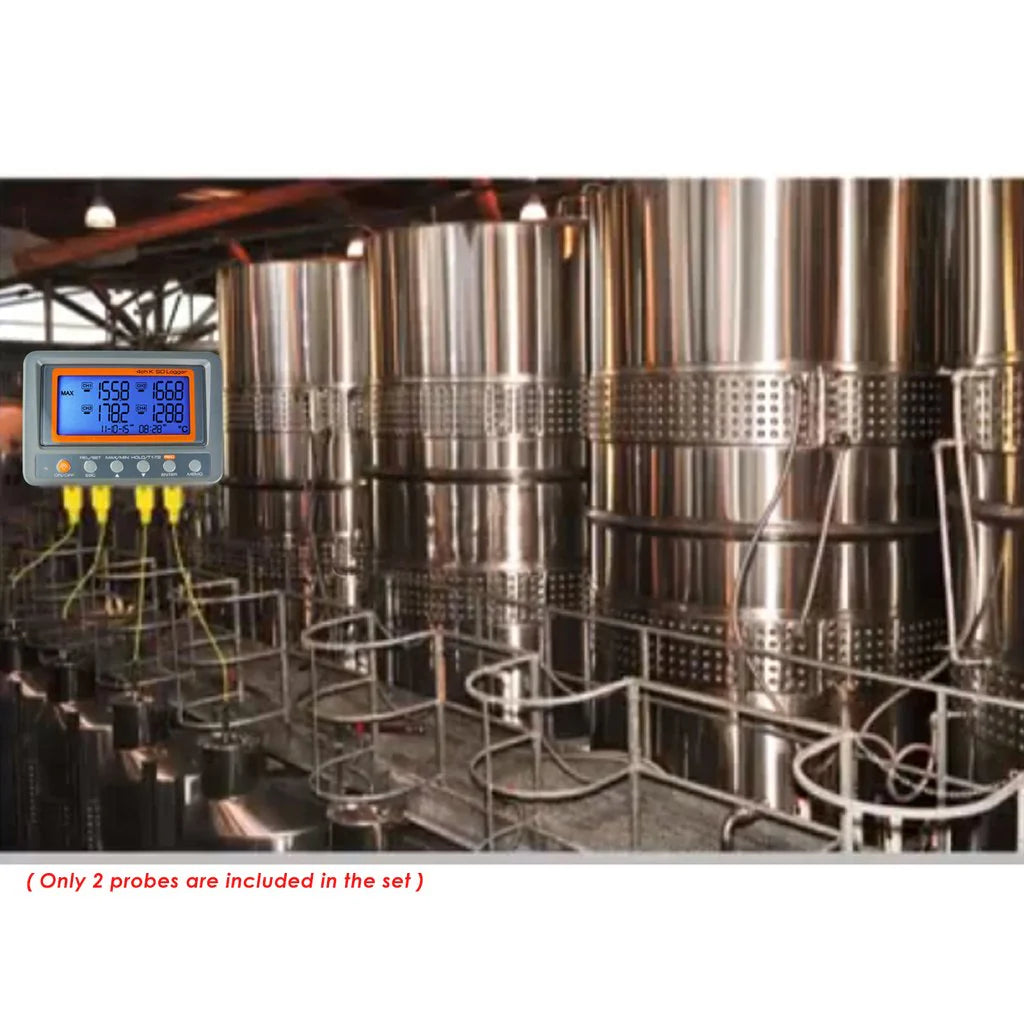

Monitor and record temperatures with confidence using this 4-Channel K-Type Thermocouple Temperature Data Logger. Designed for industrial, laboratory, HVAC, manufacturing, food processing, and research applications, this advanced thermometer measures up to four temperature channels while recording data directly to an SD card—no additional software required.
The large backlit LCD displays multiple readings simultaneously, while programmable high and low temperature alarms with both LED and audible alerts help you monitor critical conditions in real time.
With unlimited data logging capacity (limited only by the SD card size), this logger is ideal for long-term monitoring and detailed temperature analysis.
Features

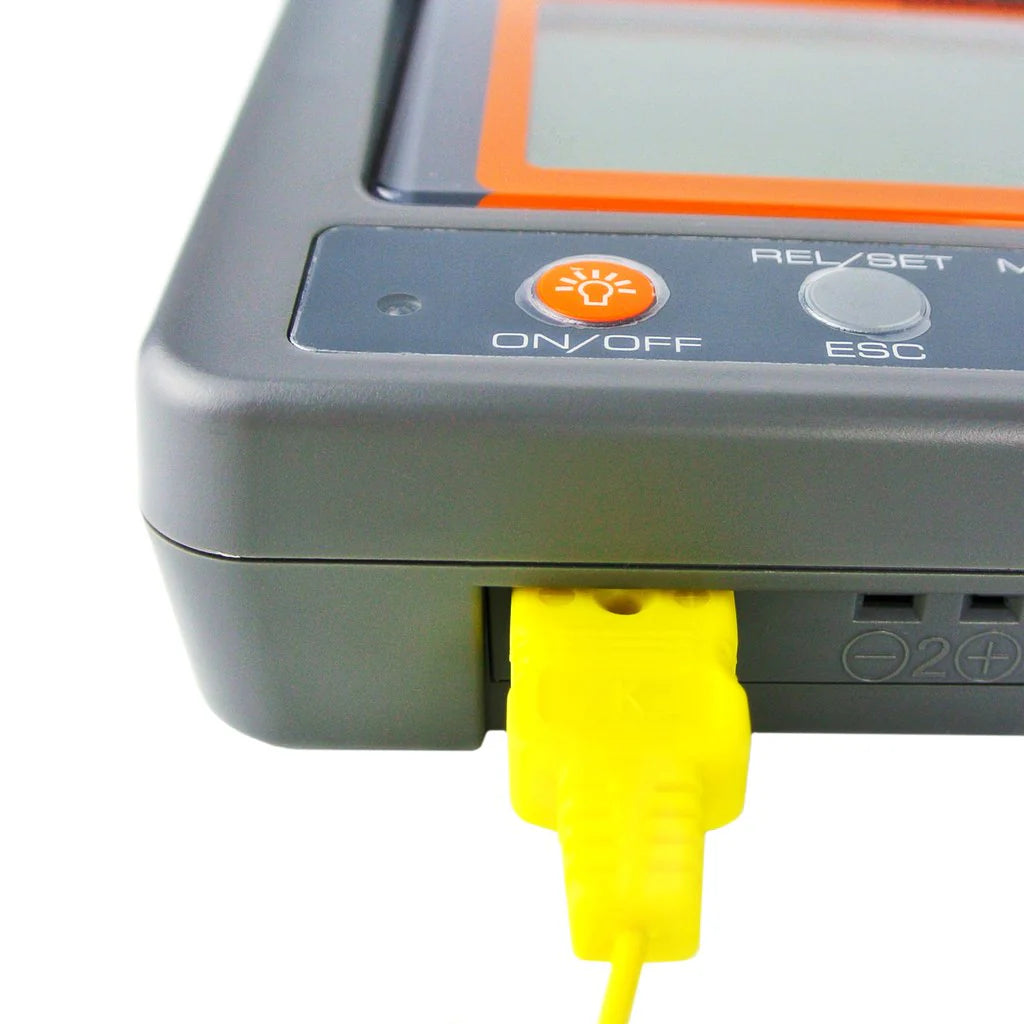

- Measures temperature using K-Type thermocouples

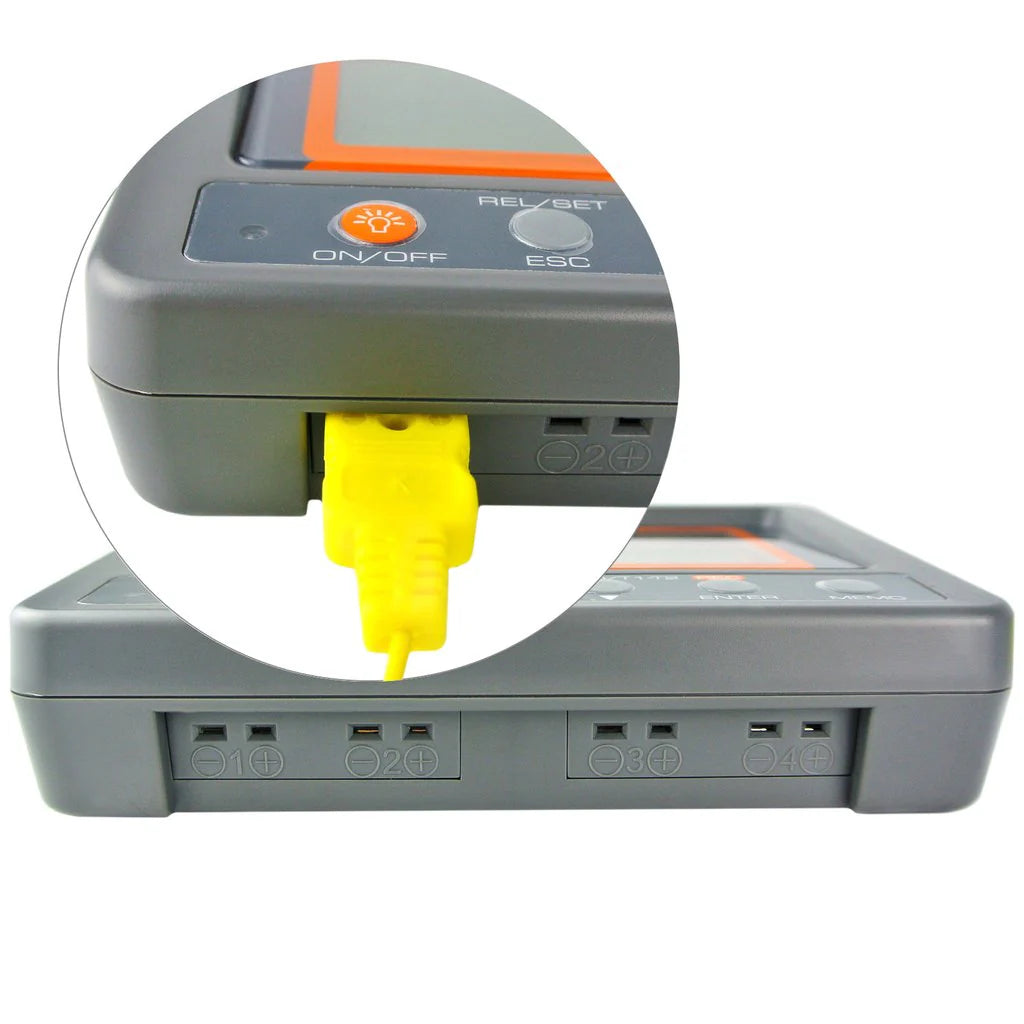

- Supports up to 4 temperature channels

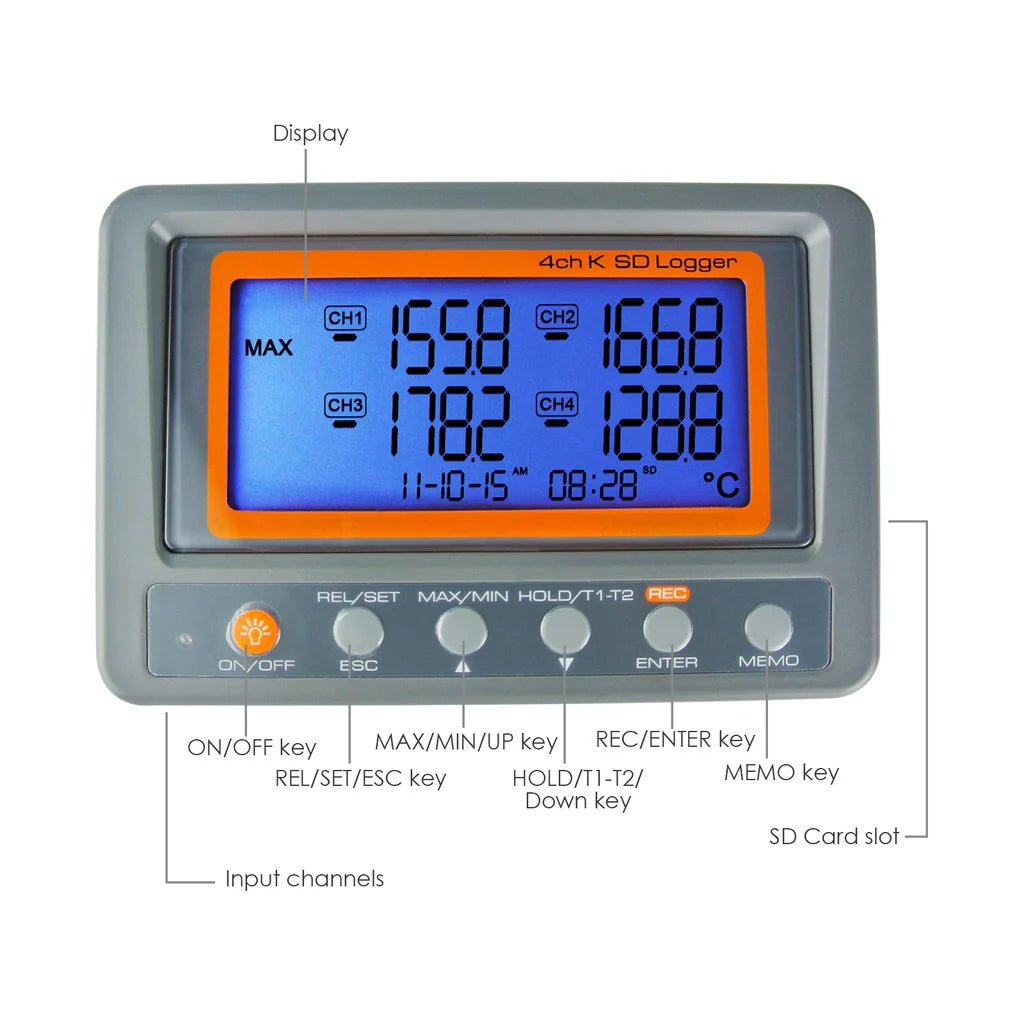

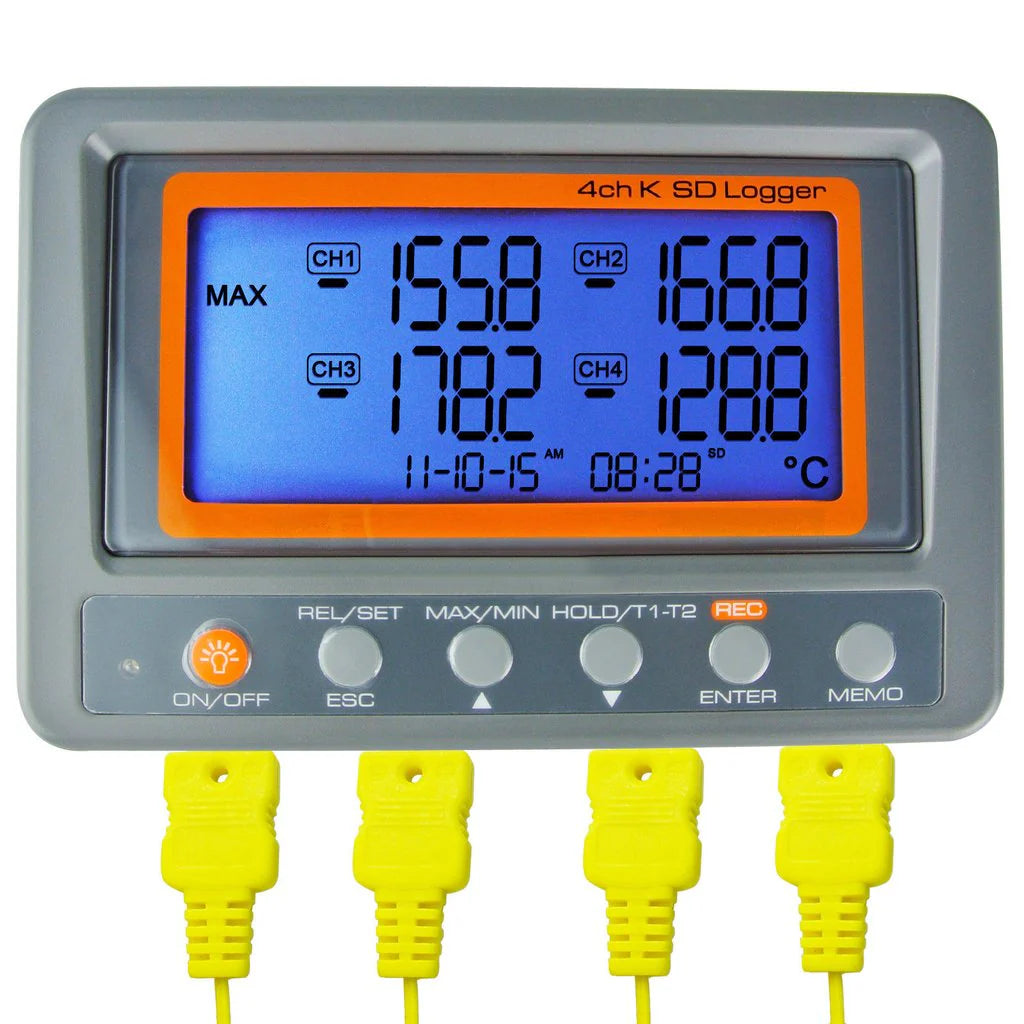

- Large backlit LCD displays multiple temperature readings simultaneously

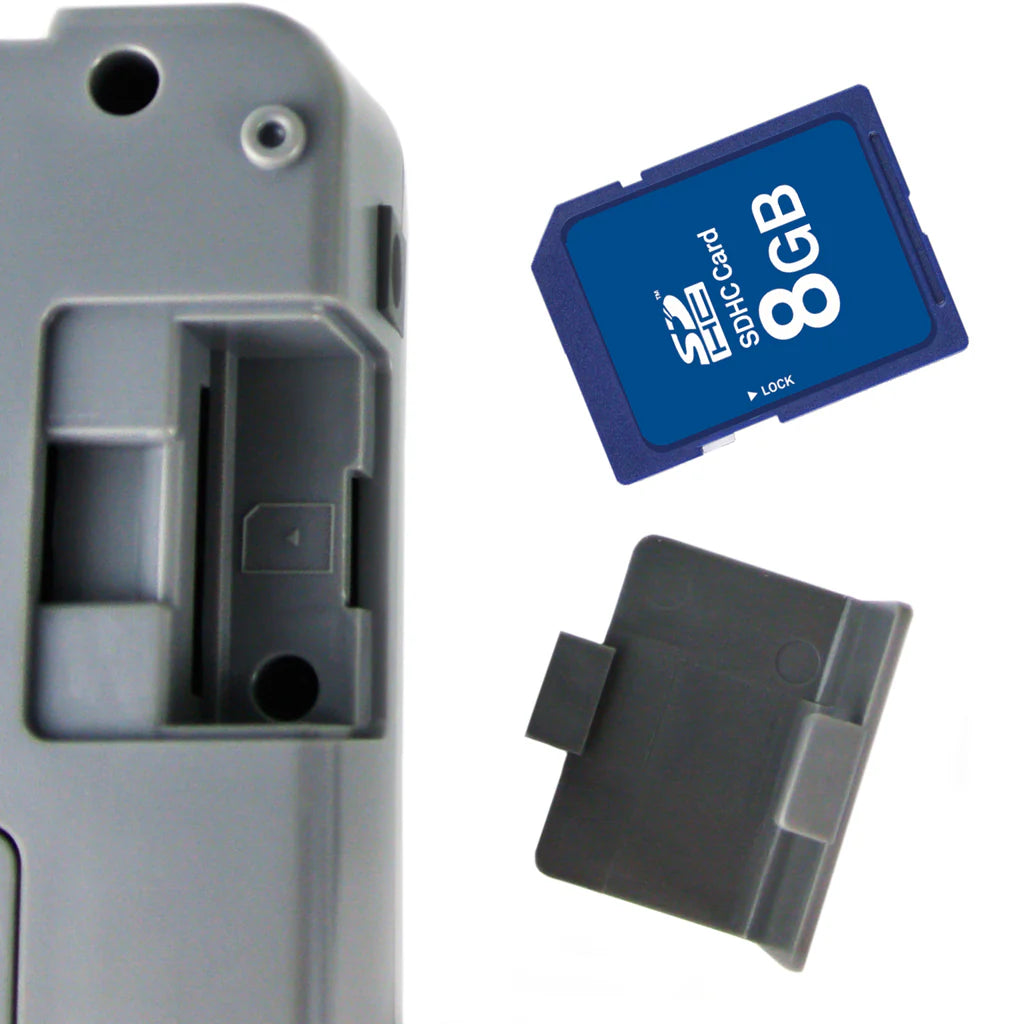

- Records data directly to the included SD card
- No proprietary software required
- Unlimited automatic or manual data logging (SD card capacity dependent)
- Programmable high and low temperature alarms for each channel
- Audible beeper and LED alarm indicators
- One-touch T1-T2 differential temperature display
- Temperature change baseline function
- Data Hold freezes current readings
- MAX/MIN memory recall
- Temperature offset calibration function
- Real-time clock with date and time display
- Selectable 12-hour or 24-hour clock format
- Automatic power-off after 20 minutes (can be disabled if required)
- Switch between Celsius and Fahrenheit
- Low battery indicator

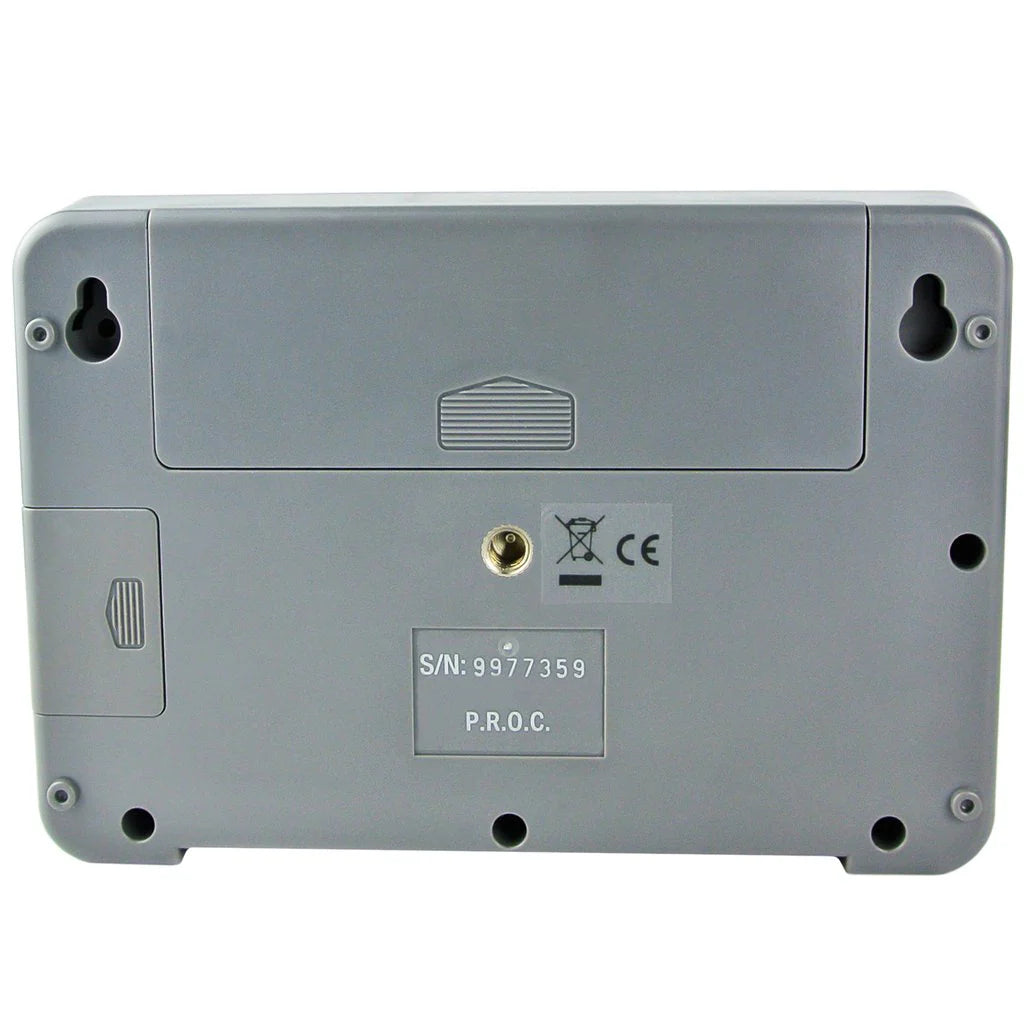

- Portable handheld design or wall-mount installation
Specifications
Main Unit

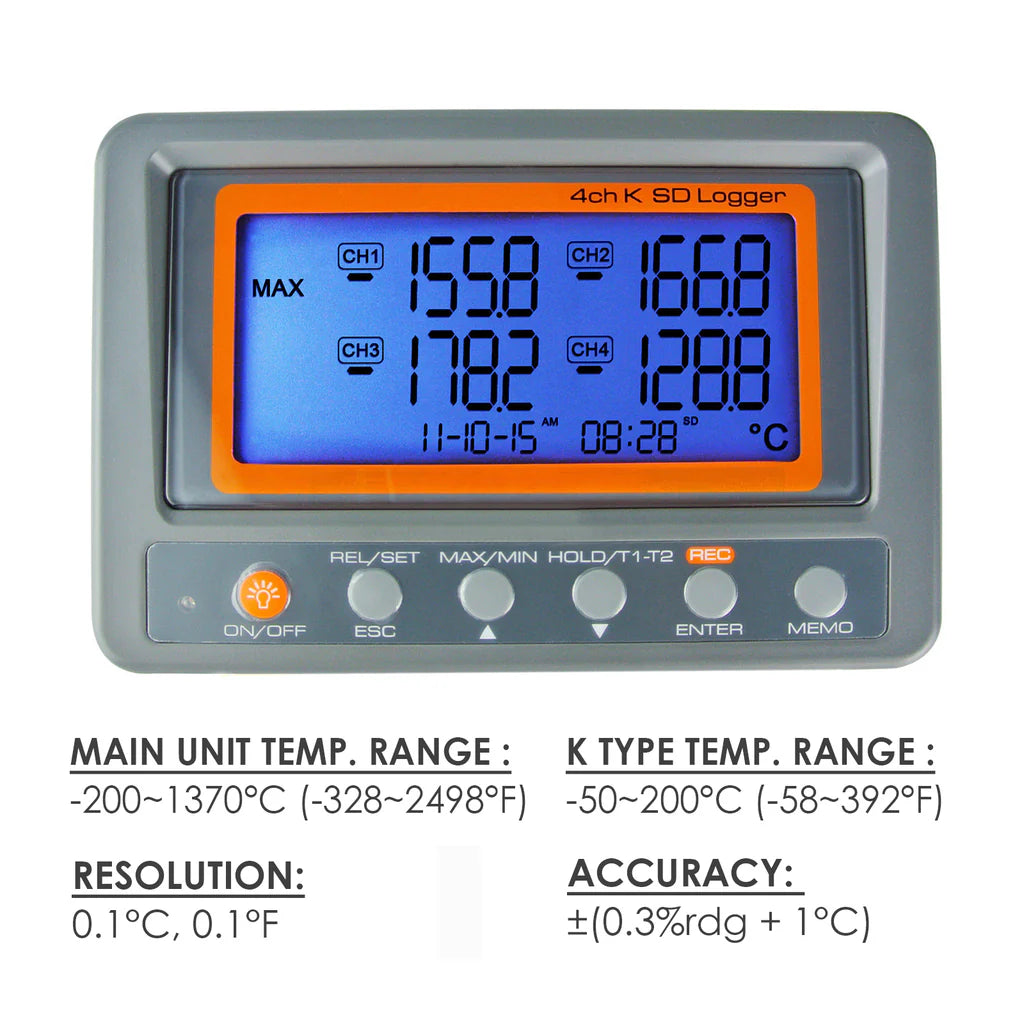

- Temperature Range: -200°C to 1370°C (-328°F to 2498°F)
- Resolution: 0.1°C / 0.1°F
- Accuracy: ±(0.3% of reading + 1°C)
- Display: 104 × 47 mm Backlit LCD
- Sampling Interval: Programmable from 1 second and up
- Operating Temperature: 0°C to 50°C
- Operating Humidity: Below 80% RH
- Storage Temperature: -20°C to 50°C
- Storage Humidity: Below 90% RH

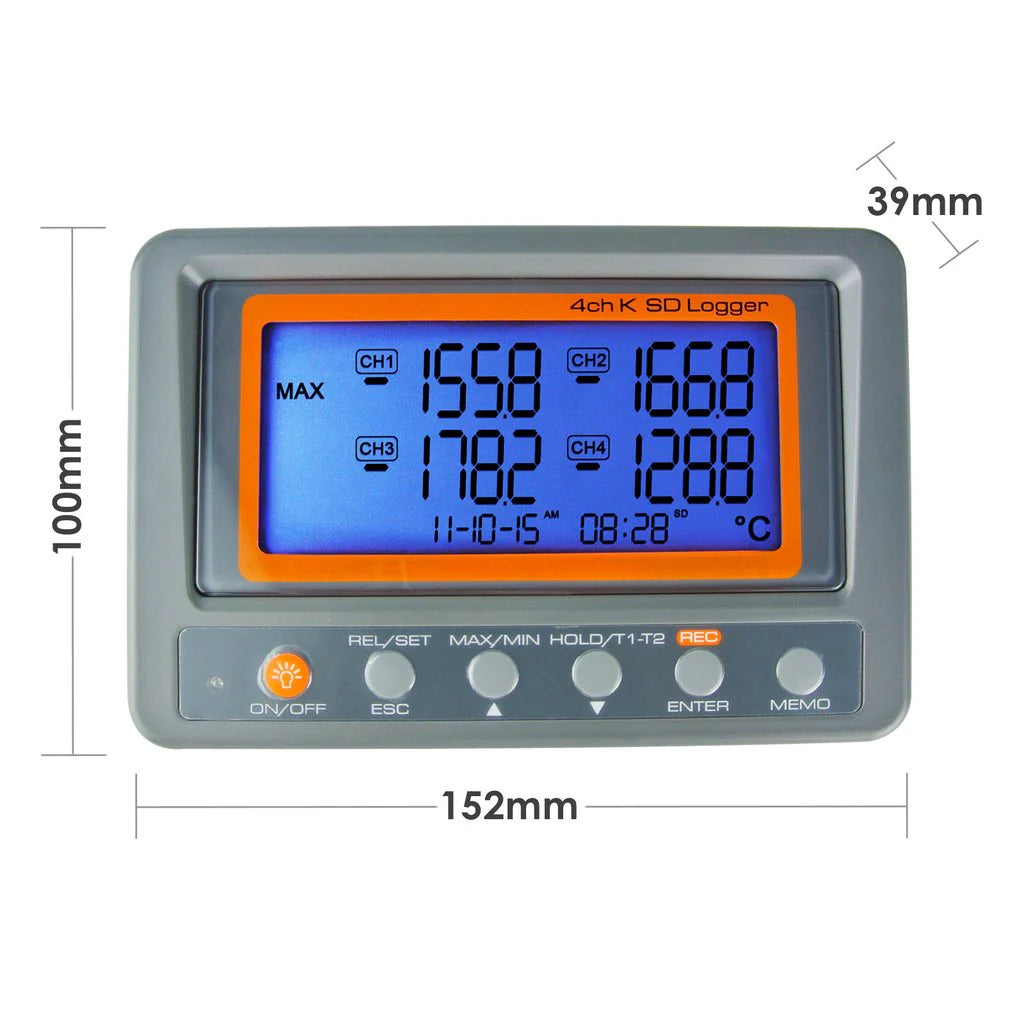

- Dimensions: 152 × 100 × 39 mm
- Weight: Approximately 300 g

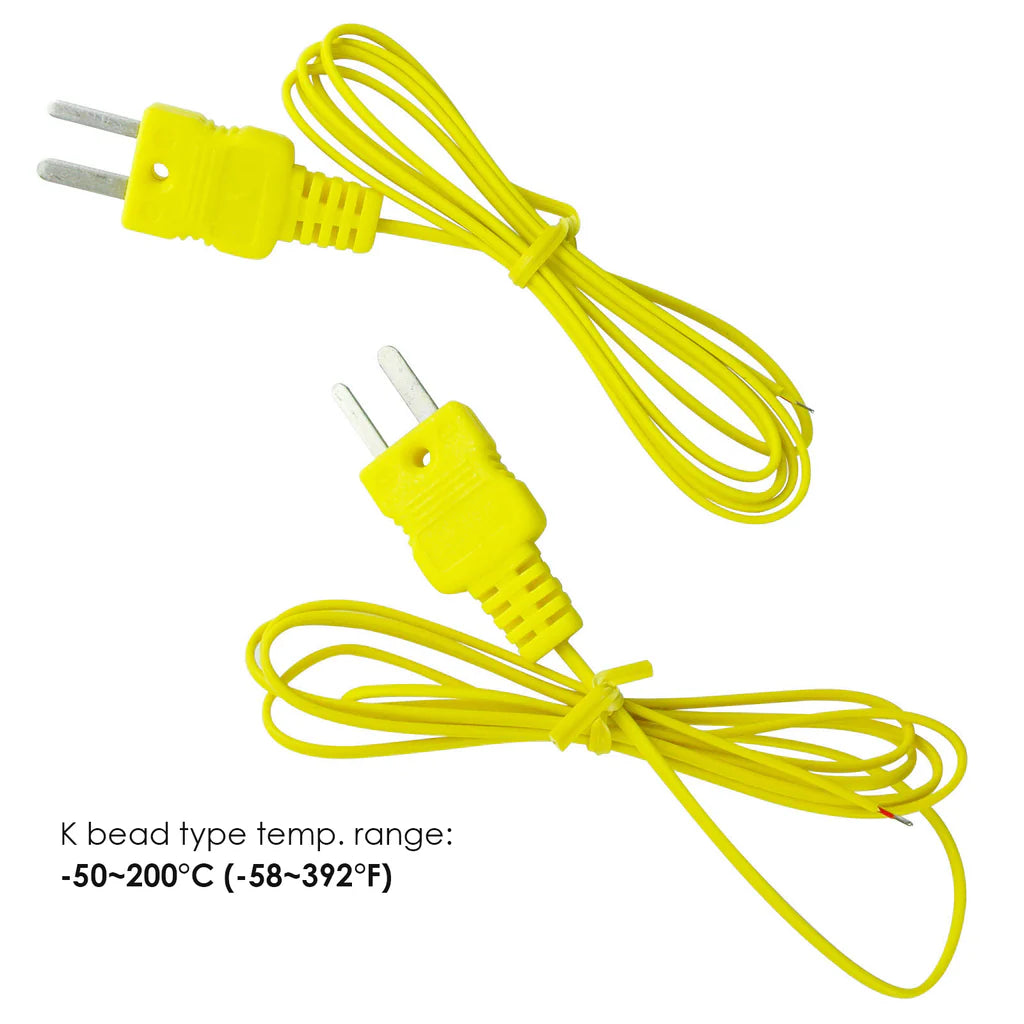

Included K-Type Thermocouples
- Temperature Range: -50°C to 200°C (-58°F to 392°F)
Power Supply
- 4 × AA Batteries (Included)

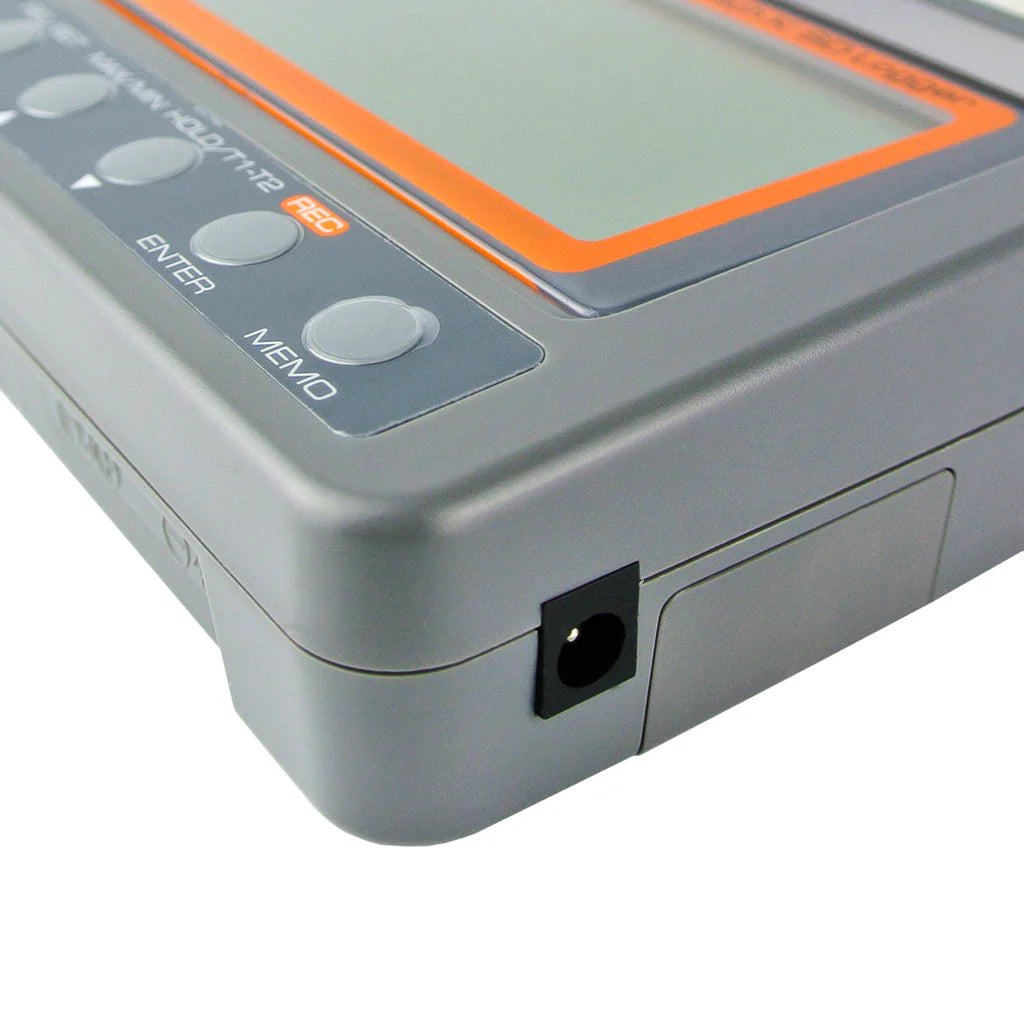

- Optional 9V AC Adapter (Not Included)

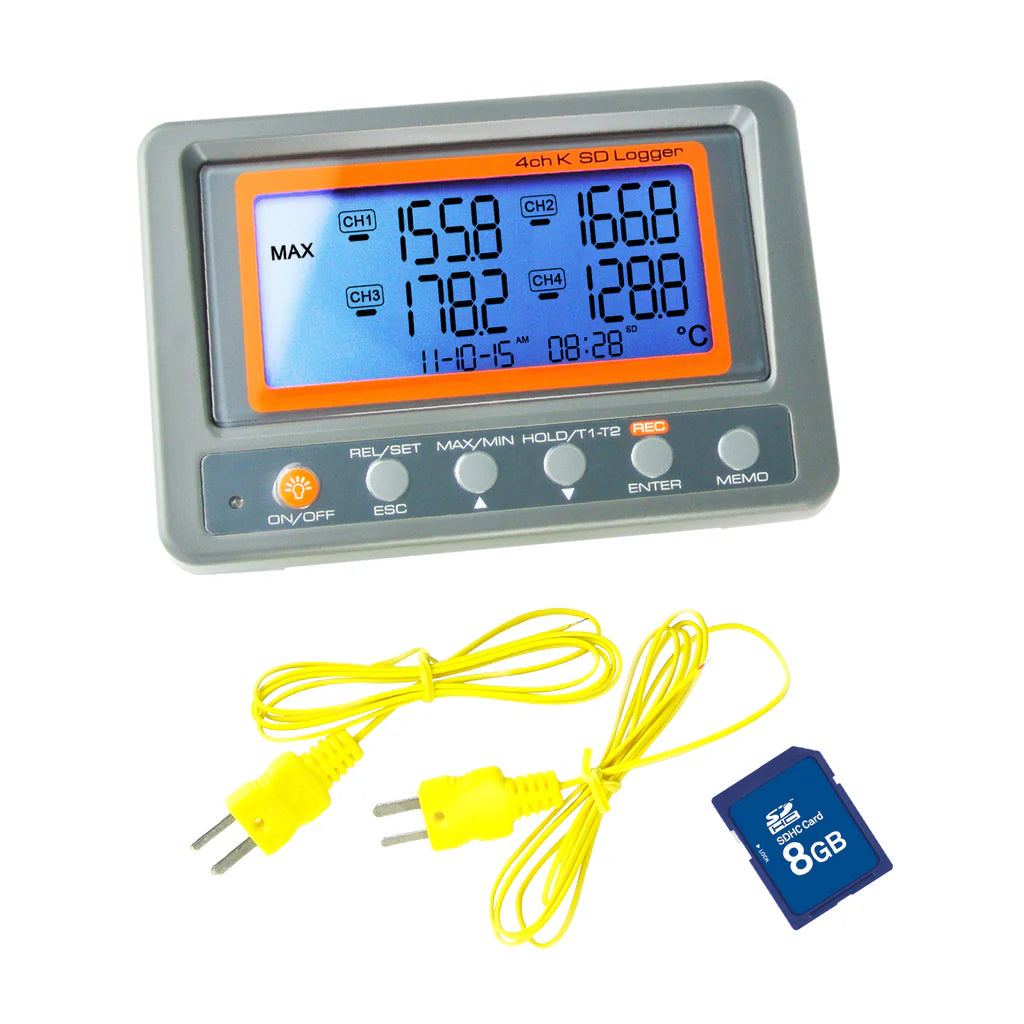

Package Includes
- 1 × 4-Channel K-Type Thermocouple Temperature Logger
- 2 × K-Type Thermocouples
- 1 × 8GB SD Card
- 4 × AA Batteries
- 1 × English User Manual
- Standard Factory Packaging
