Description
Effortlessly control up to 8 DisplayPort-enabled computers or servers using one monitor, keyboard, and mouse with this 8-Port DisplayPort KVM Switch. Featuring DisplayPort 1.2 support with resolutions up to 4K 60Hz, it delivers crisp visuals for professional and mission-critical environments. The 1U rack-mountable design makes it ideal for data centers and server rooms. Enjoy smooth switching using push-buttons or keyboard hotkeys, and share USB devices across systems via the integrated 4-port USB hub. Fully OS-independent and TAA compliant, it’s ready for secure enterprise and government use.
Key Features:
-
8-Port DisplayPort KVM Switch – Centralize control of multiple systems with one set of peripherals
-
DisplayPort 1.2 with 4K 60Hz Support – High-performance video output with vivid clarity
-
1U Rack-Mountable – Space-saving metal chassis with standard 19” rack kit
-
Push-Button & Hotkey Switching – Easy switching via front panel or keyboard shortcuts
-
4-Port USB Hub – Share printers, webcams, flash drives, and more
-
OS Independent – Compatible with Windows, macOS, Linux, and BIOS-level access
-
TAA Compliant – Government-ready for secure procurement
Specifications:
-

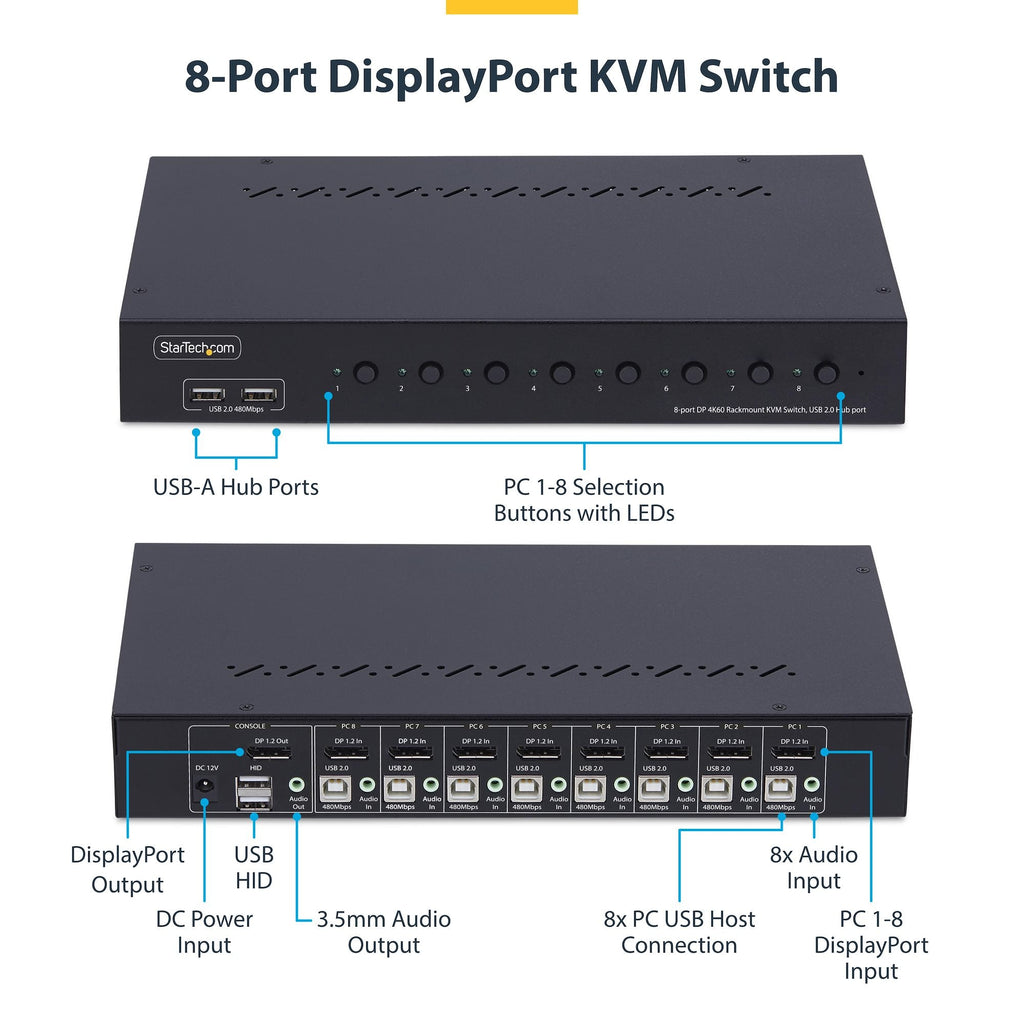

Video I/O: 8x DisplayPort In, 1x DisplayPort Out (DP 1.2)
-
USB I/O: 8x USB-B for PC, 2x USB-A for keyboard/mouse, 4x USB-A for shared peripherals
-
Max Resolution: 3840x2160 @ 60Hz (4:4:4)
-
Switching Methods: Push-button, Hotkey, Auto-scan
-
Rack Compatibility: 1U, 19-inch standard
-
Enclosure: Metal
-
Power: DC 12V power adapter (included)
-
Audio: Optional via DisplayPort audio passthrough
-
Compliance: TAA, CE, FCC, RoHS
-
OS Support: Windows, macOS, Linux, ChromeOS
Product Dimensions / Weight:
Approx. 17.2 x 7.9 x 1.75 in (1U) / ~2.6kg
Package Dimensions / Weight:
Approx. 20 x 10 x 3 in / ~3.6kg (includes cables, rack kit, PSU)
