Description
Measure Angles with Professional Accuracy

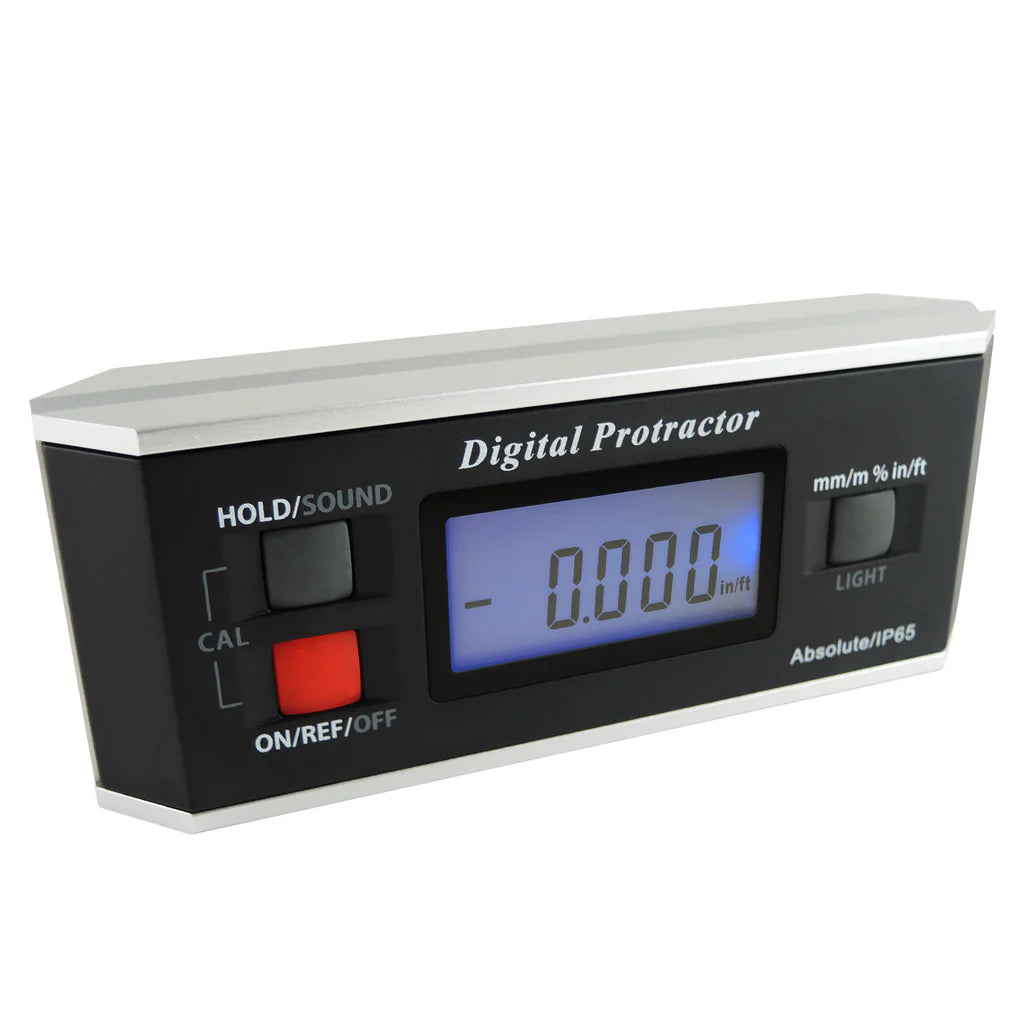

Achieve precise angle measurements with this Digital Protractor, Angle Finder, and Inclinometer, designed for professionals and DIY users alike. Using advanced angle sensor technology, it instantly measures angles from 0° to 360° (4 × 90°) with exceptional accuracy.

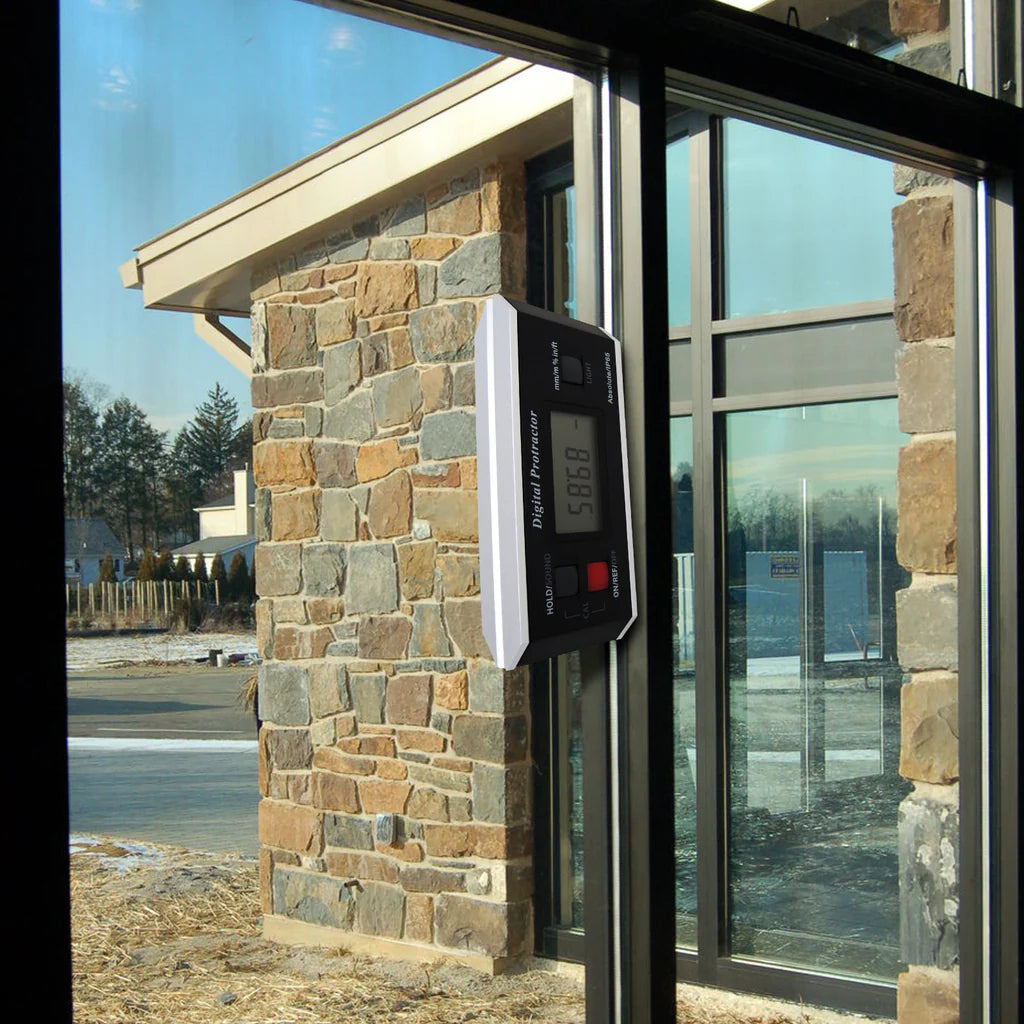

The bright backlit LCD display automatically rotates so readings remain upright regardless of the tool's orientation, making measurements quick and easy in any position. Its magnetic V-groove base securely attaches to flat or curved metal surfaces, making it ideal for pipework, machinery, automotive repairs, fabrication, and woodworking.
Built with an IP65-rated housing, this rugged digital angle finder is protected against dust and water splashes, making it suitable for demanding workshop and job site environments.
Key Features
✔ Measures angles through a full 360° (4 × 90°) range
✔ High-precision digital inclinometer and protractor

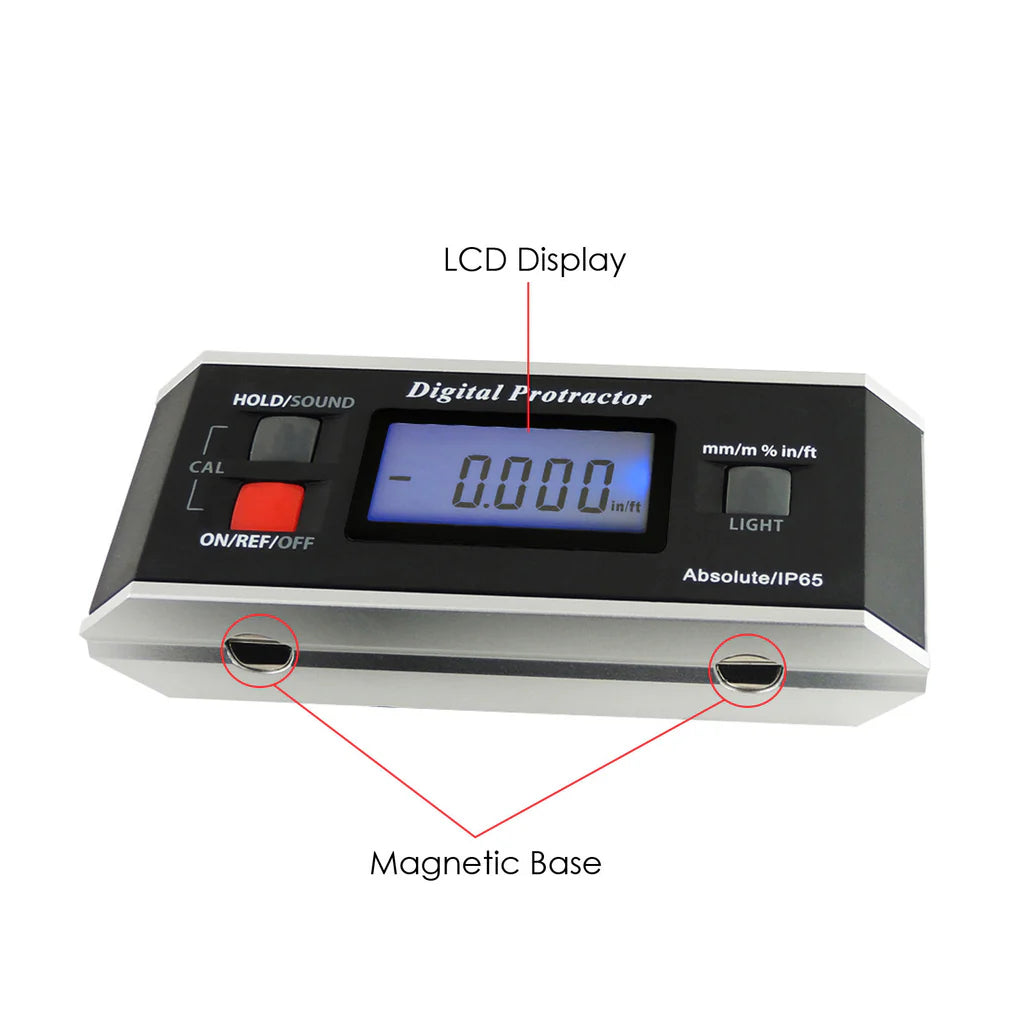

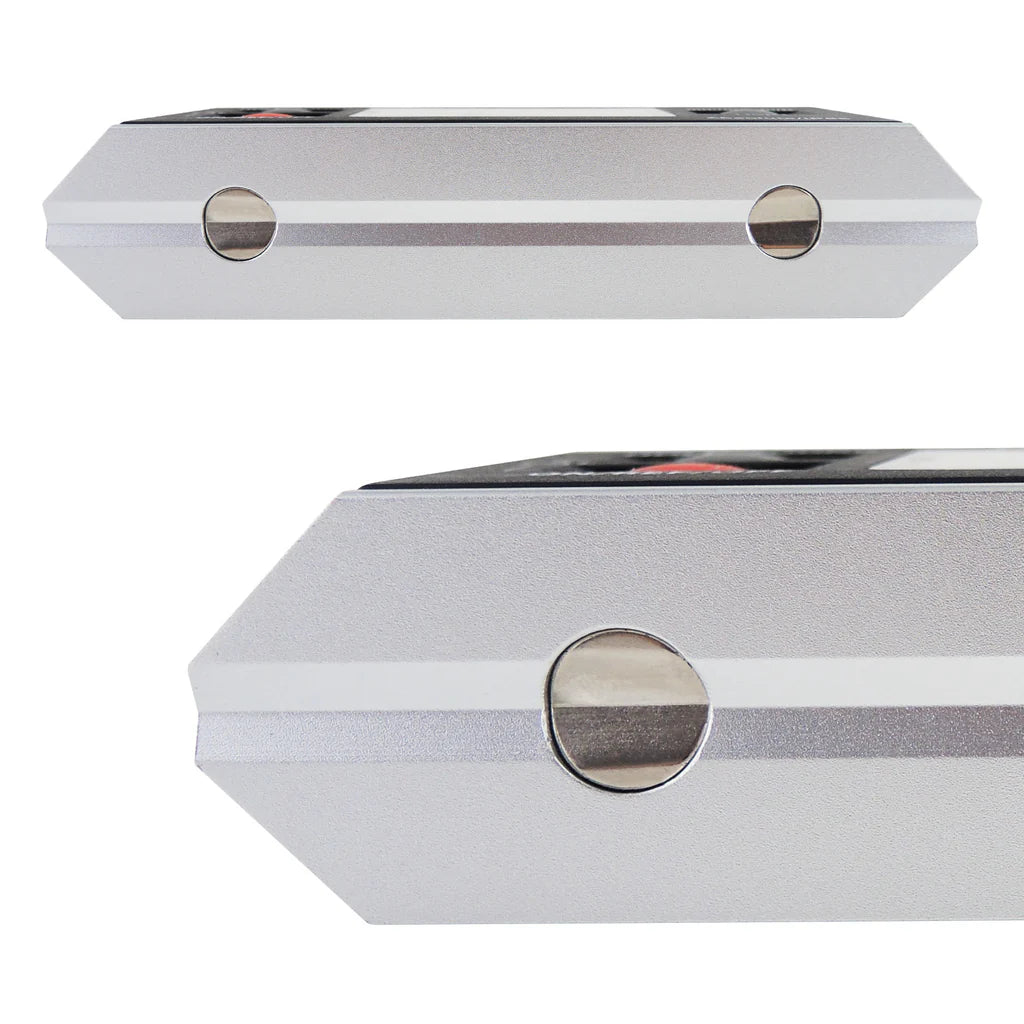

✔ Strong magnetic V-groove base for secure attachment to flat and round metal surfaces

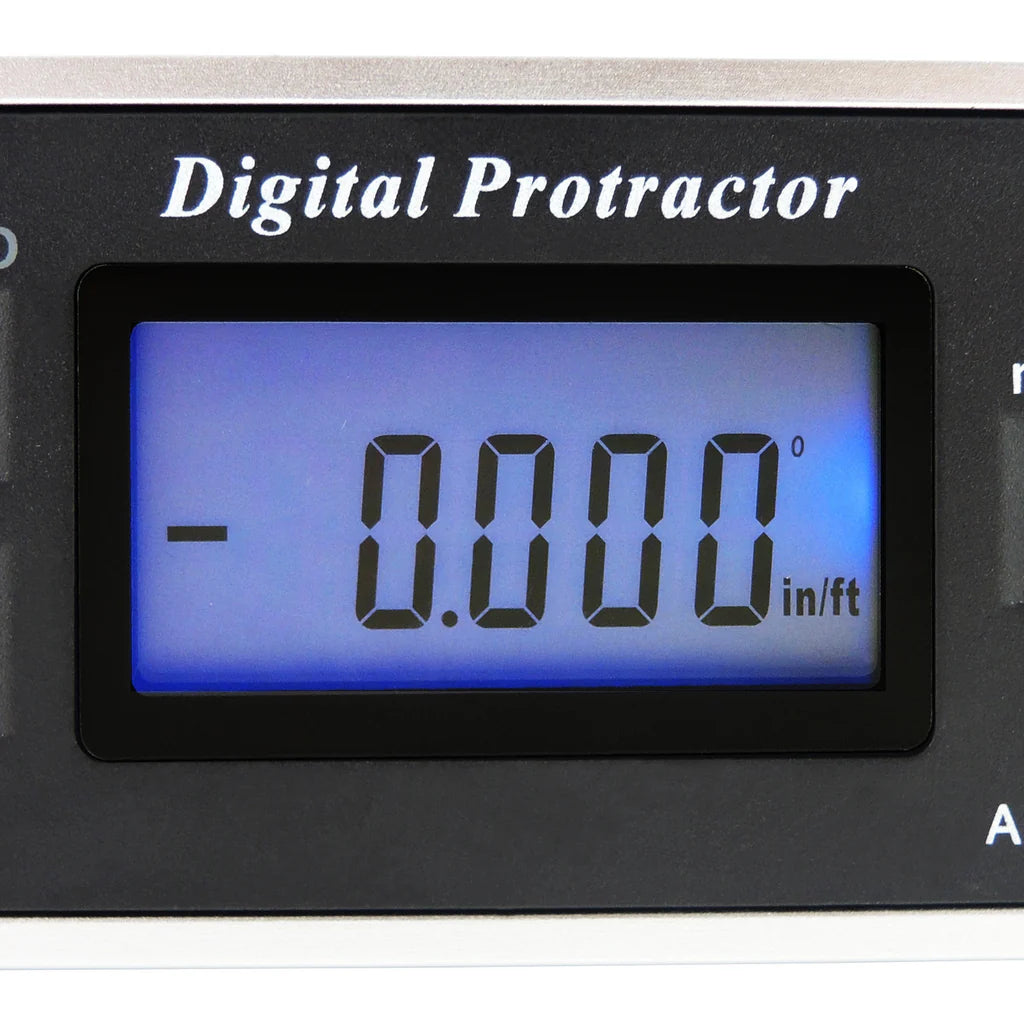

✔ Bright backlit LCD for easy viewing in low-light conditions
✔ Display automatically rotates for upright viewing at any angle
✔ Absolute and relative measurement modes
✔ Converts measurements between:
- Degrees (°)
- Millimeters per meter (mm/m)
- Percent slope (%)
- Inches per foot (in/ft)
✔ Audible beeper function for reference angles
✔ Factory calibrated for reliable accuracy
✔ Fast response with high-resolution readings
✔ Compact and portable for field or workshop use
✔ Durable IP65-rated construction
✔ CE, RoHS, and PAHS compliant
Ideal Applications
- Automotive wheel alignment
- Drive shaft alignment
- Race car chassis setup
- Machine installation
- Lathe and milling machine alignment
- Circular saw blade adjustment
- Miter saw setup
- Table saw calibration
- Cabinet making
- Furniture manufacturing
- Woodworking projects
- Metal fabrication
- Construction layout
- Roof pitch measurement
- Drainage slope calculations
- Rail and road construction
- Satellite and antenna alignment
- Industrial quality control
Specifications
| Feature | Specification |
|---|---|
| Measuring Range | 0°–360° (4 × 90°) |
| Slope Range | 1000 mm/m, 100%, 12 in/ft |

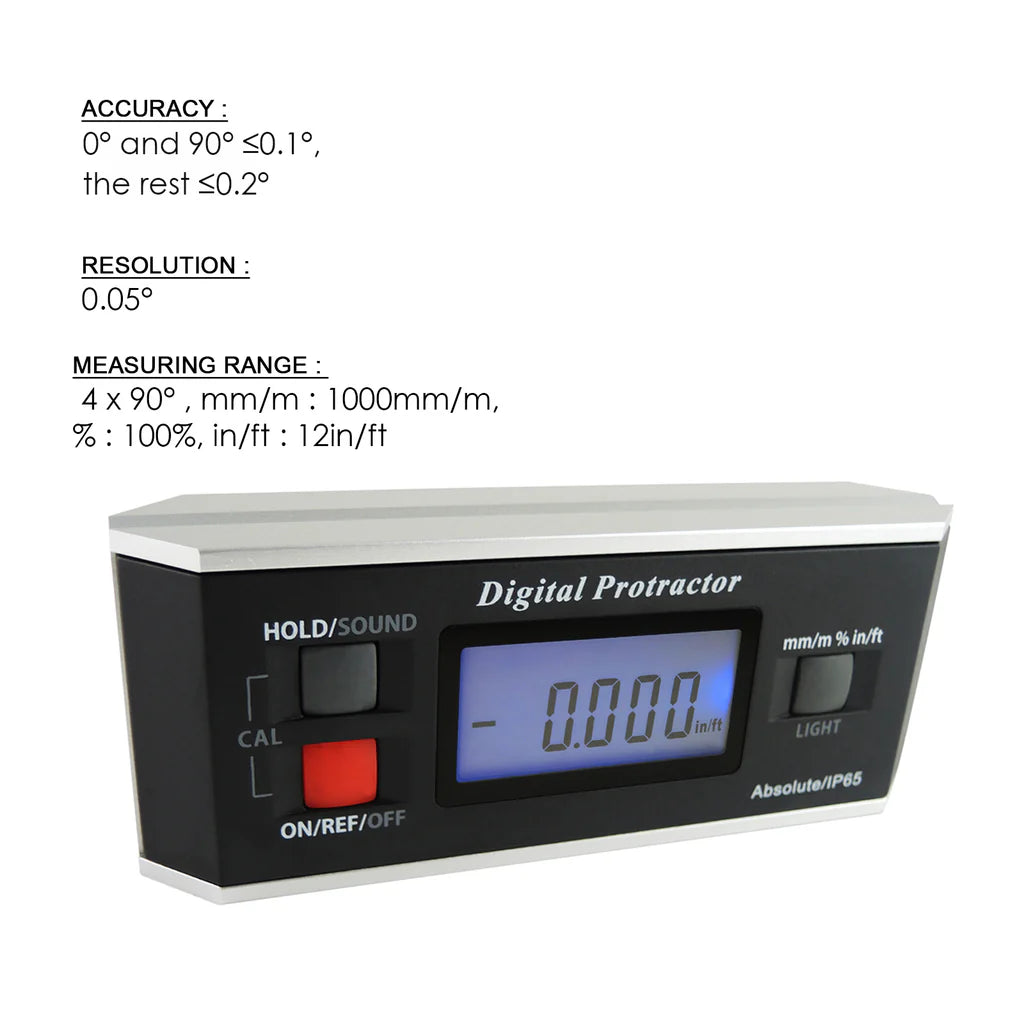

| Accuracy | 0° & 90°: ±0.1°; Other Angles: ±0.2° |
| Resolution | 0.05° |
| Operating Temperature | 0°C–40°C (32°F–104°F) |
| Operating Humidity | ≤85% RH |
| Protection Rating | IP65 |

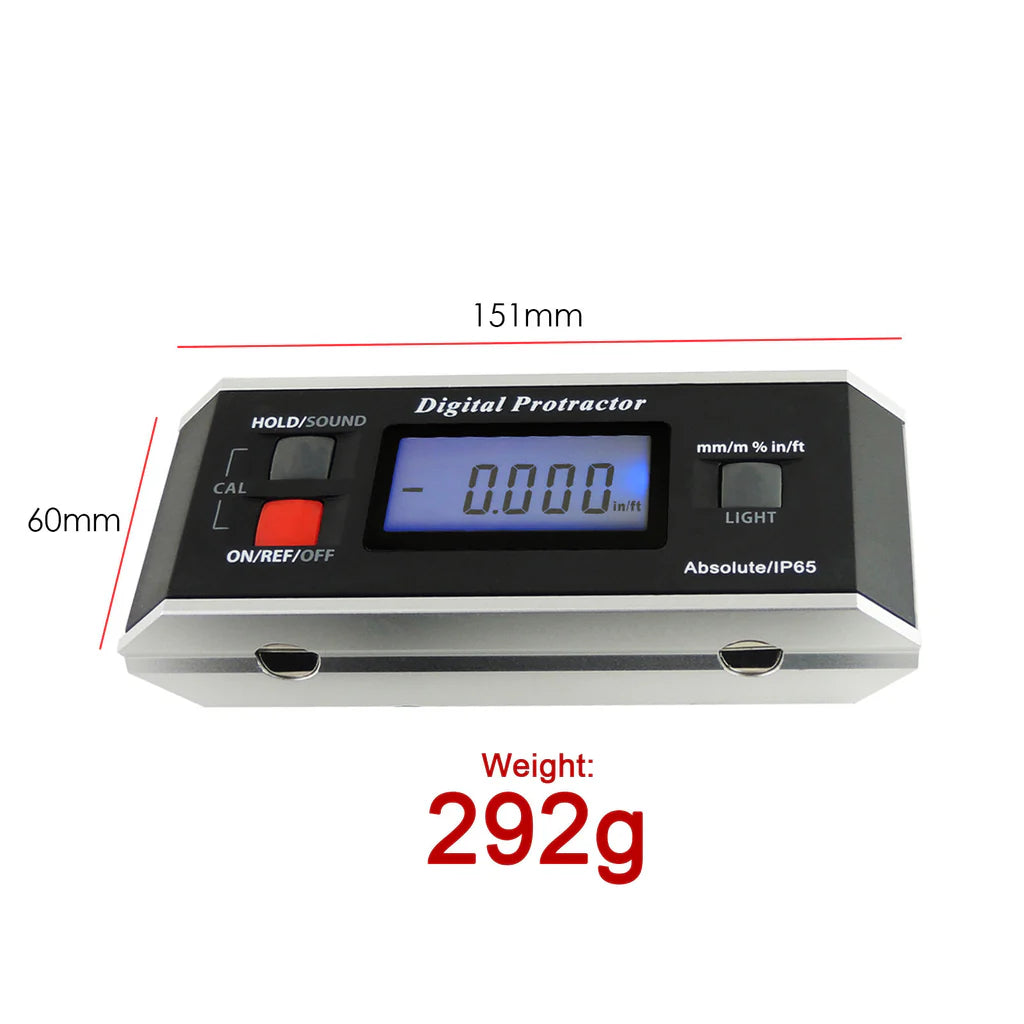

| Dimensions | 151 × 60 × 32 mm |
| Weight | Approximately 292 g |

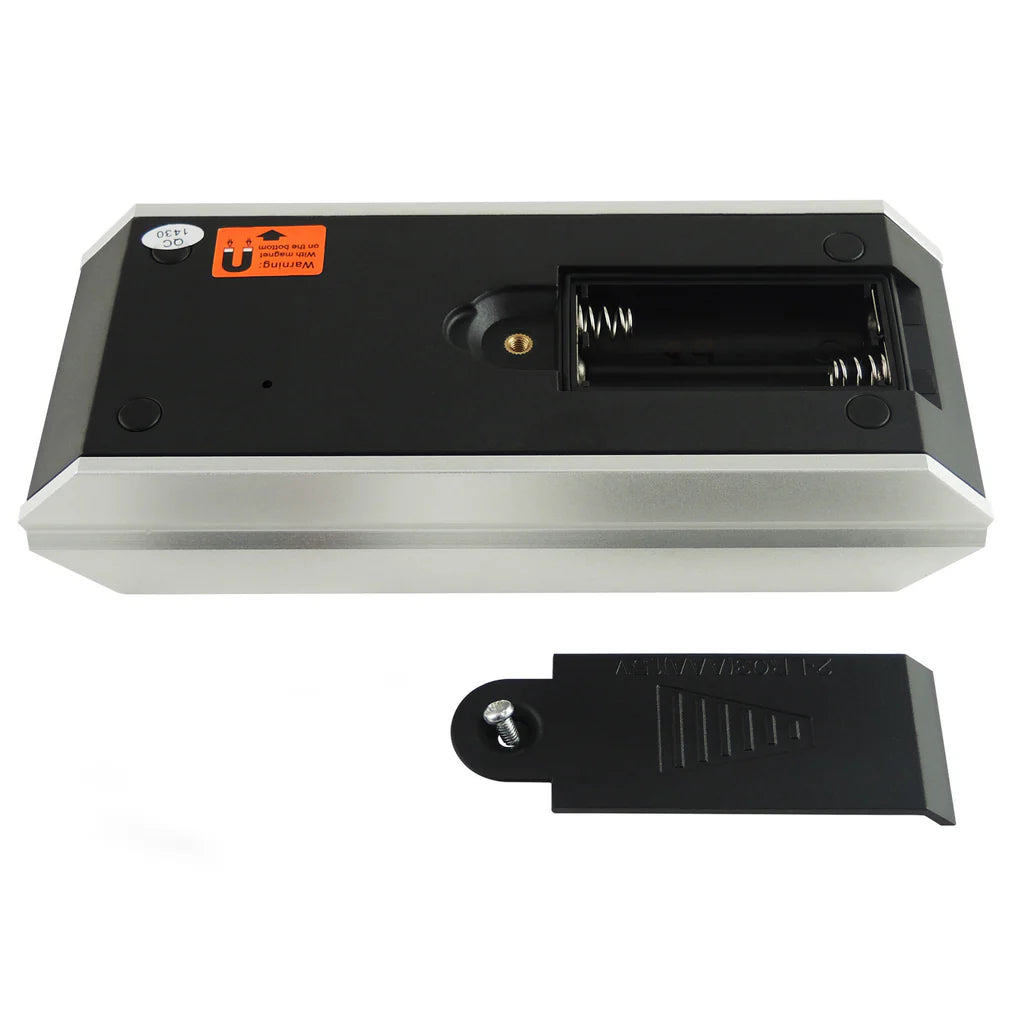

| Power Supply | 2 × AAA Alkaline Batteries (Included) |
| Battery Life | Up to 2,000 hours of continuous use |

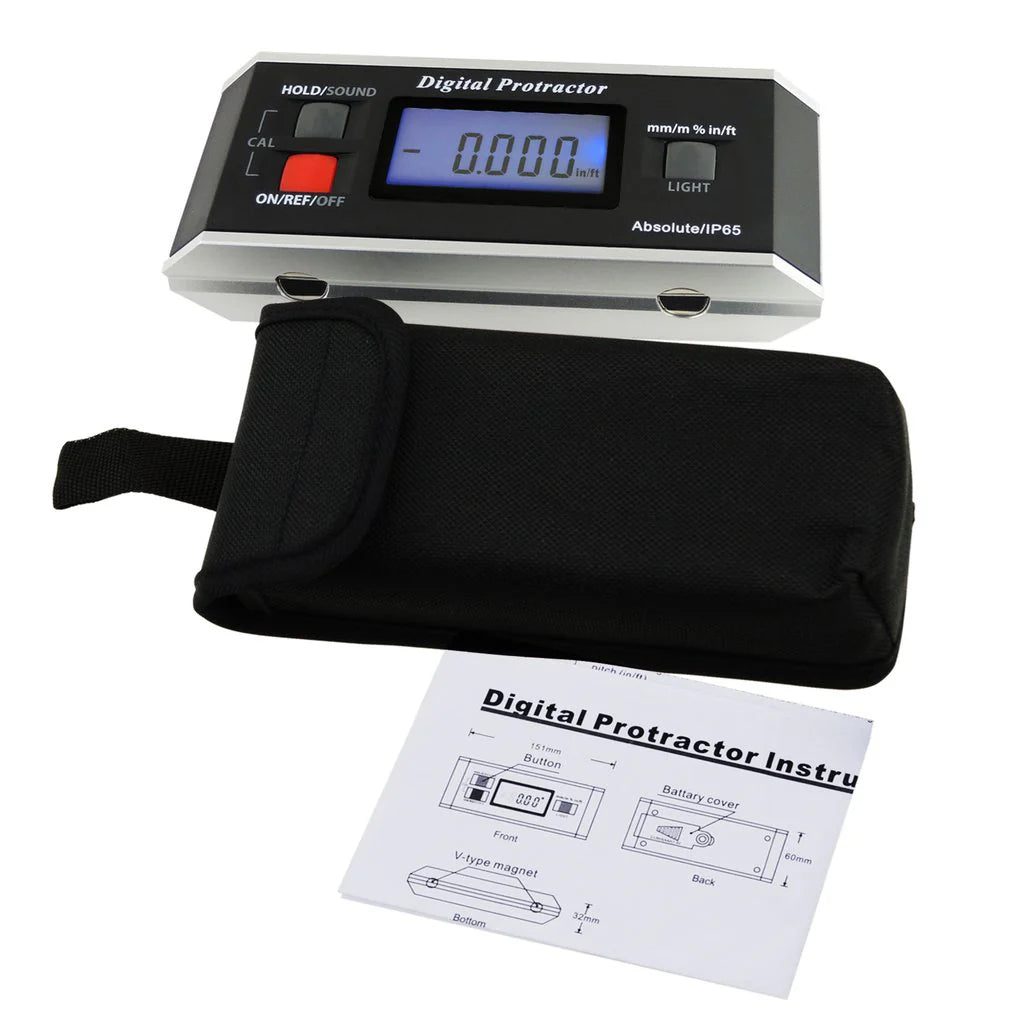

Package Includes
- 1 × Digital Protractor / Angle Finder
- 2 × AAA Alkaline Batteries
- 1 × Protective Storage Pouch
- 1 × English Instruction Manual
- Standard Factory Packaging
