Description
Professional Shore D Hardness Testing for Hard Rubber & Plastics

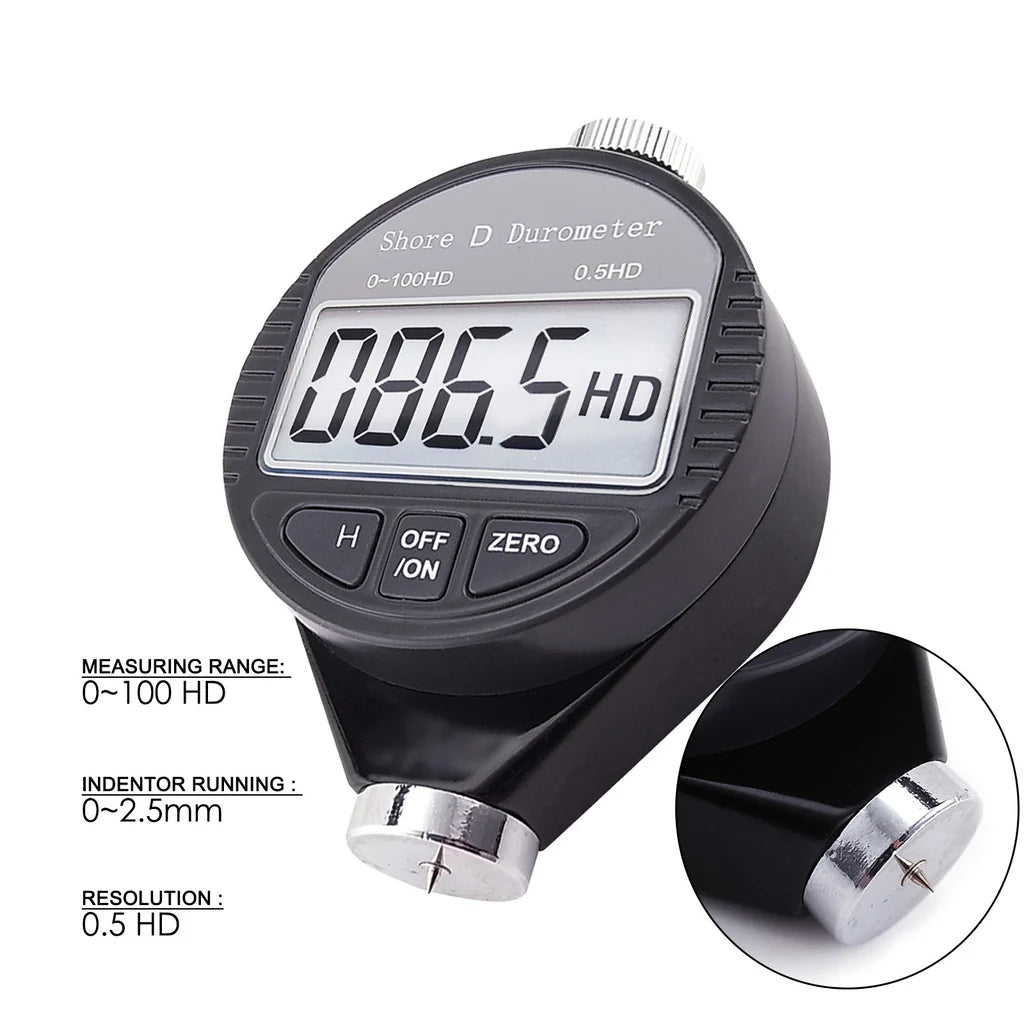

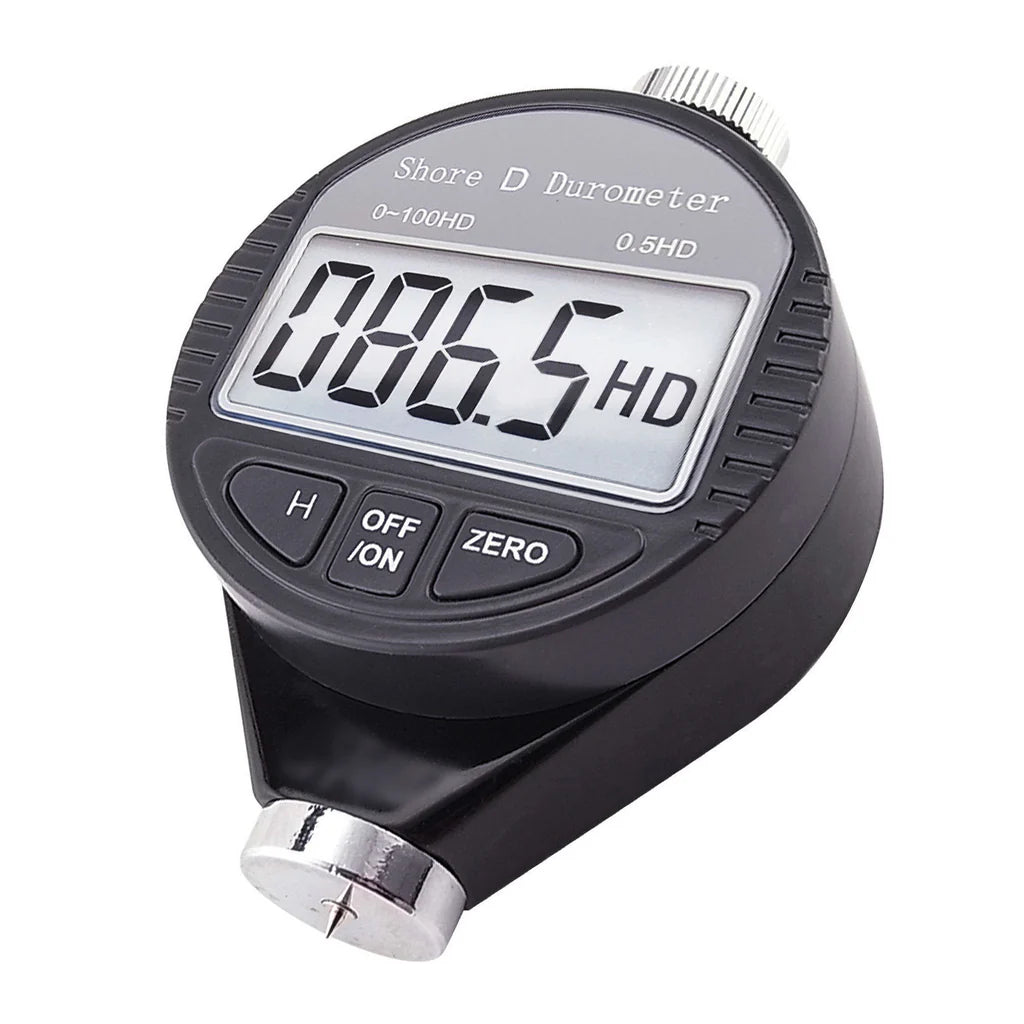

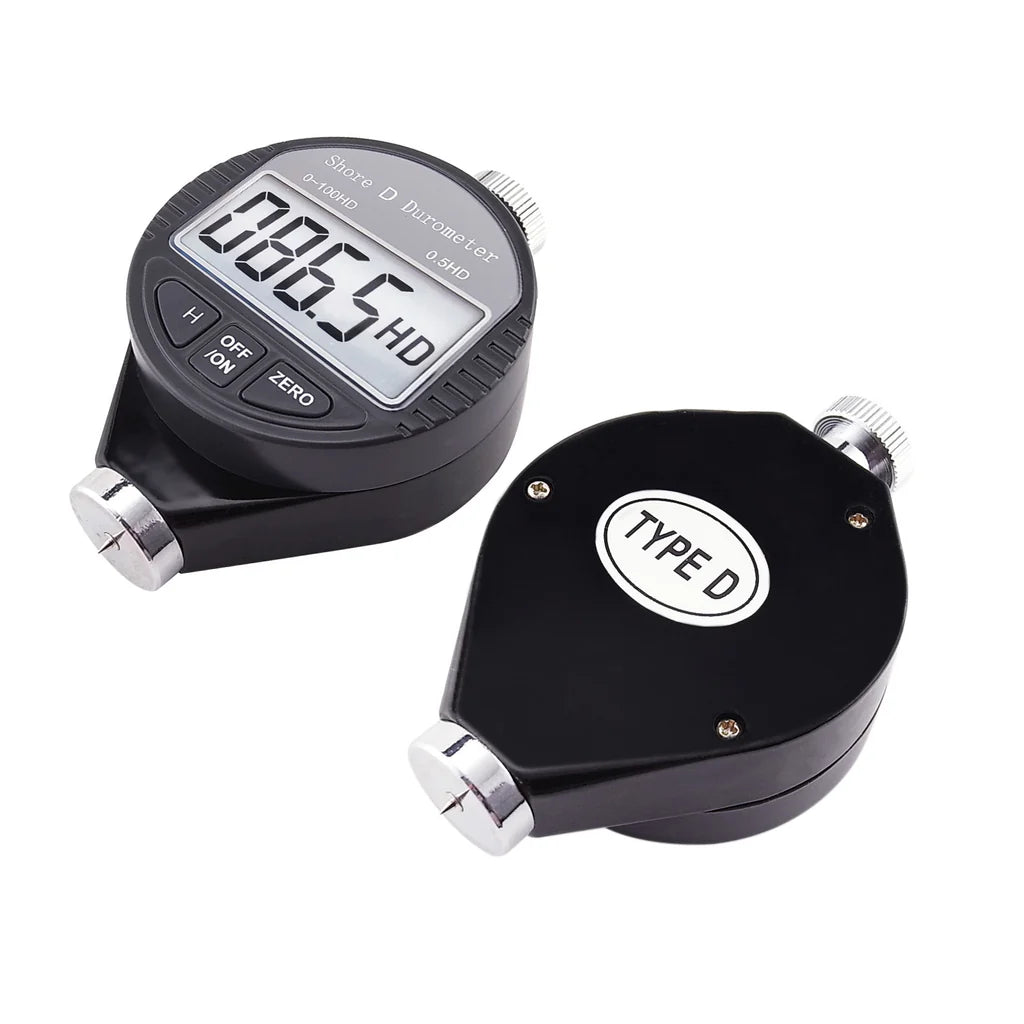

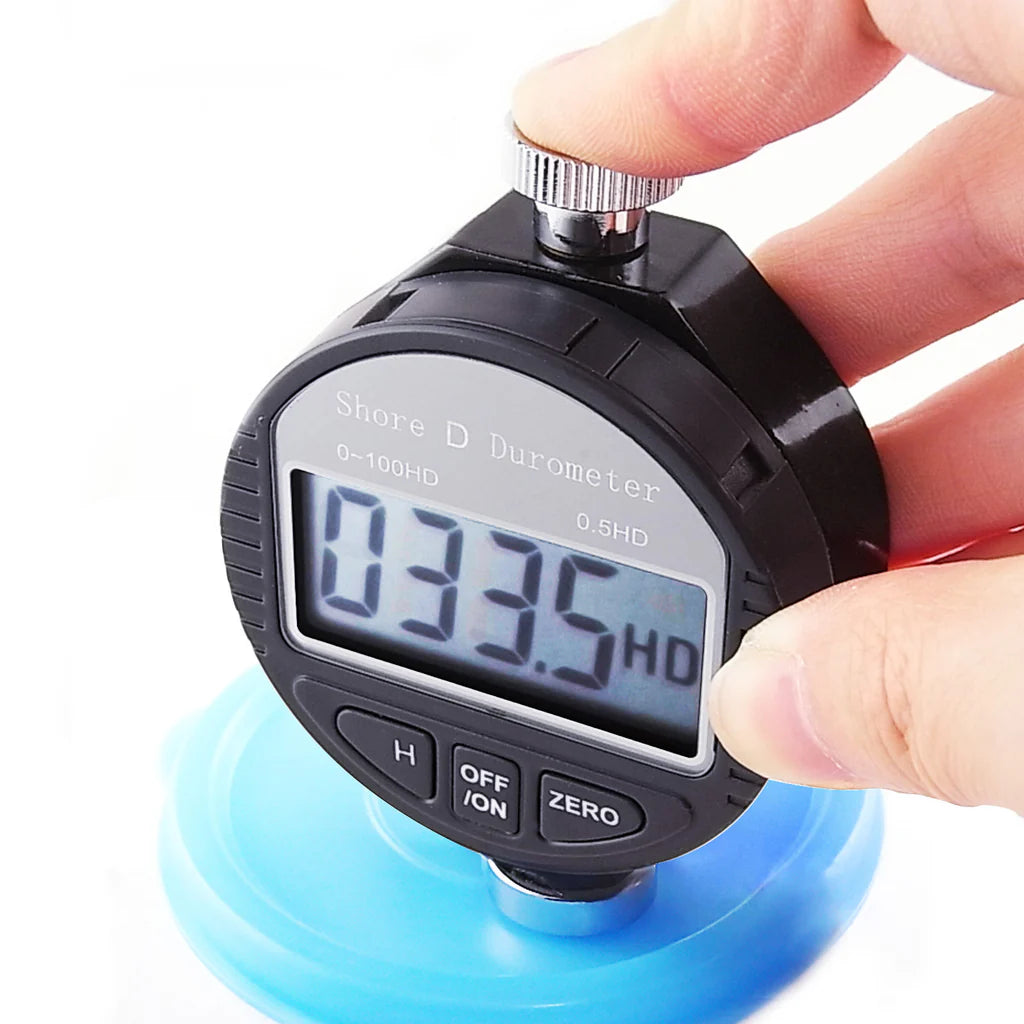

Measure the hardness of hard rubber and plastic materials quickly and accurately with this Digital Shore D Hardness Tester (Durometer). Designed for quality control, manufacturing, laboratories, and industrial inspection, this precision instrument provides reliable hardness measurements on materials such as thermoplastics, rigid rubber, flooring materials, and bowling balls.
Featuring a 0–100HD measuring range, a large LCD display, and Data Hold functionality, this compact tester makes it easy to obtain accurate readings whether you're in the workshop, laboratory, or on the production floor.
With simple self-calibration and compliance with recognized testing standards, this Shore D durometer is an essential tool for professionals working with hard polymer materials.
Key Features
✔ Designed for measuring hard rubber and rigid plastics
✔ Ideal for thermoplastics, flooring materials, bowling balls, and similar materials
✔ Wide 0–100HD measuring range

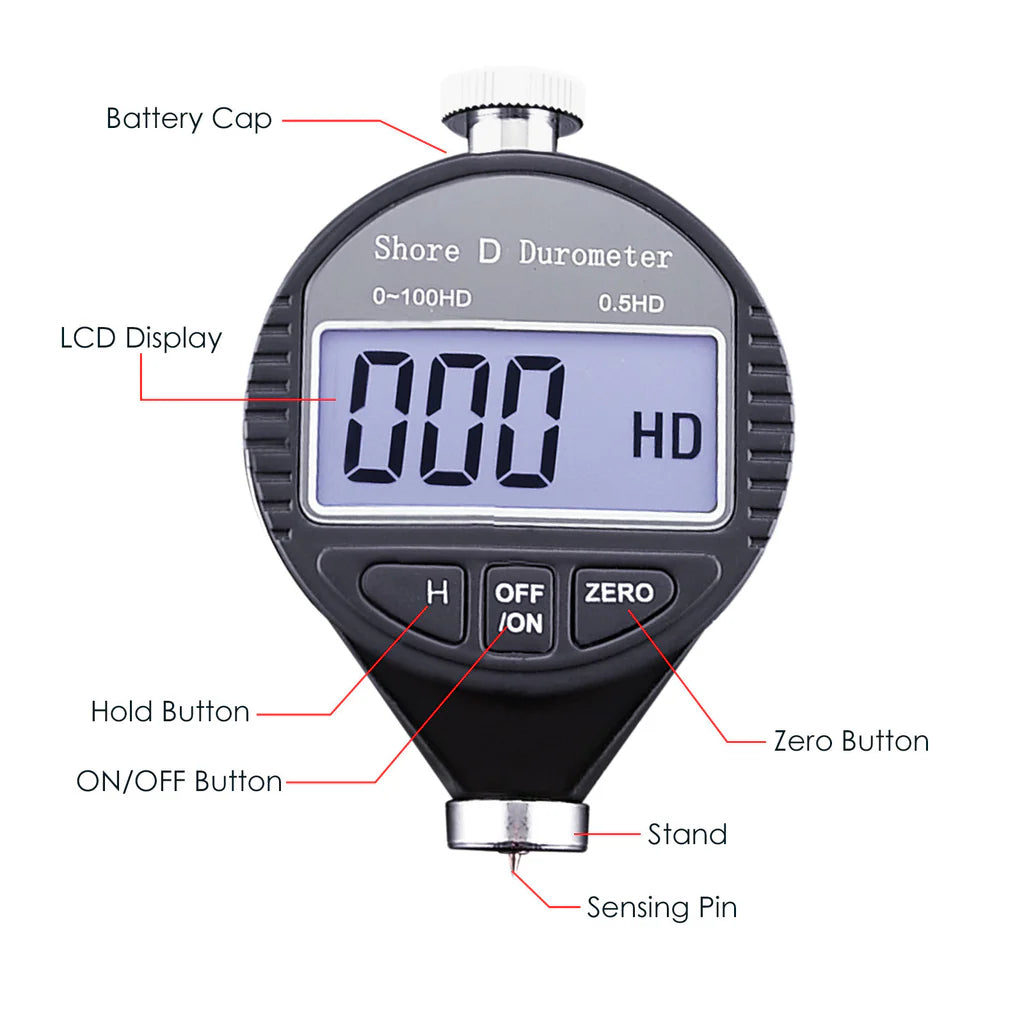

✔ Large easy-to-read LCD display
✔ Data Hold function for convenient reading
✔ One-touch zero calibration
✔ Compact handheld design
✔ High-precision measurement
✔ Durable construction for professional use
✔ Battery included and ready to use
✔ CE Certified
✔ Complies with multiple international testing standards
Suitable Materials
- Thermoplastics
- Hard Rubber
- Rigid Plastics
- Plastic Flooring
- Bowling Balls
- Industrial Plastic Components
- Molded Plastic Parts
- Engineering Plastics
- Composite Materials
Specifications
| Feature | Specification |
|---|---|
| Hardness Scale | Shore D |
| Measuring Range | 0–100 HD |
| Resolution | 0.5 HD |
| Display | 4-Digit LCD (40 × 18 mm) |

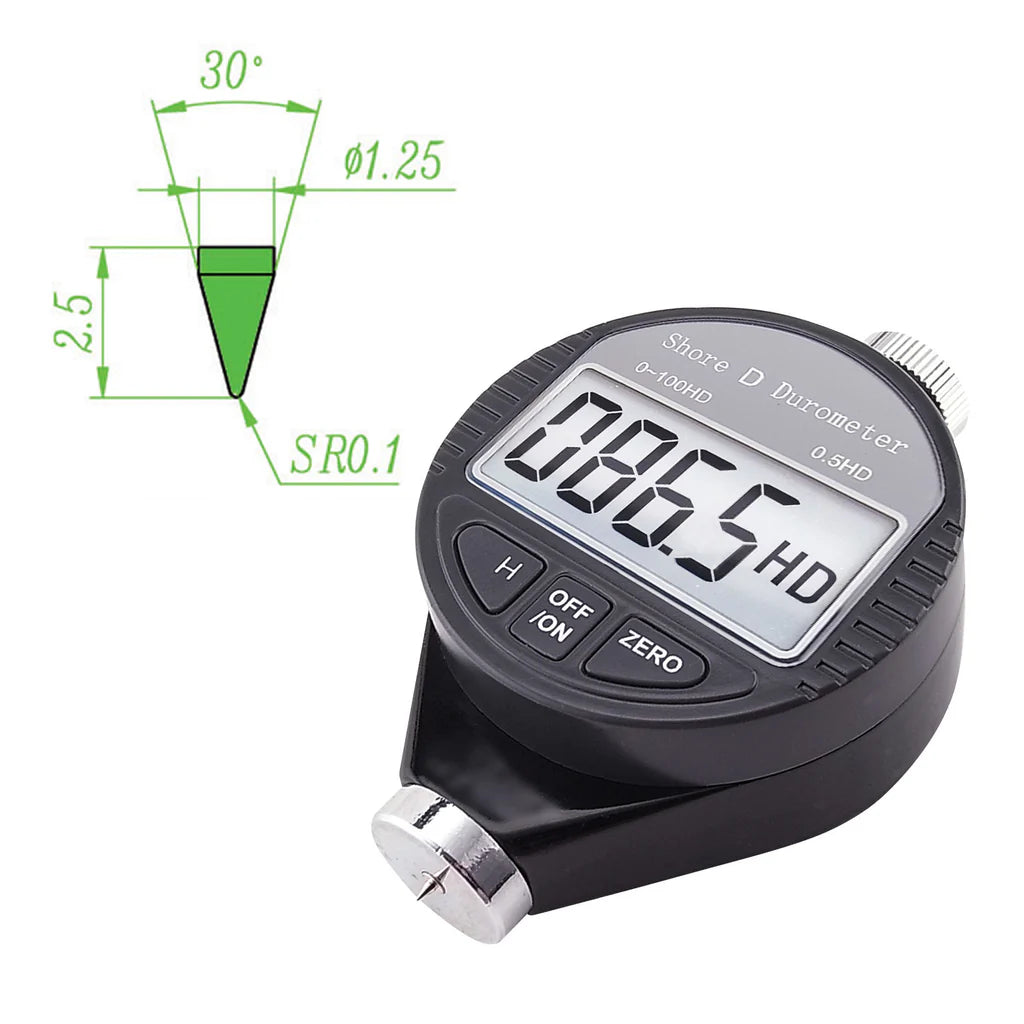

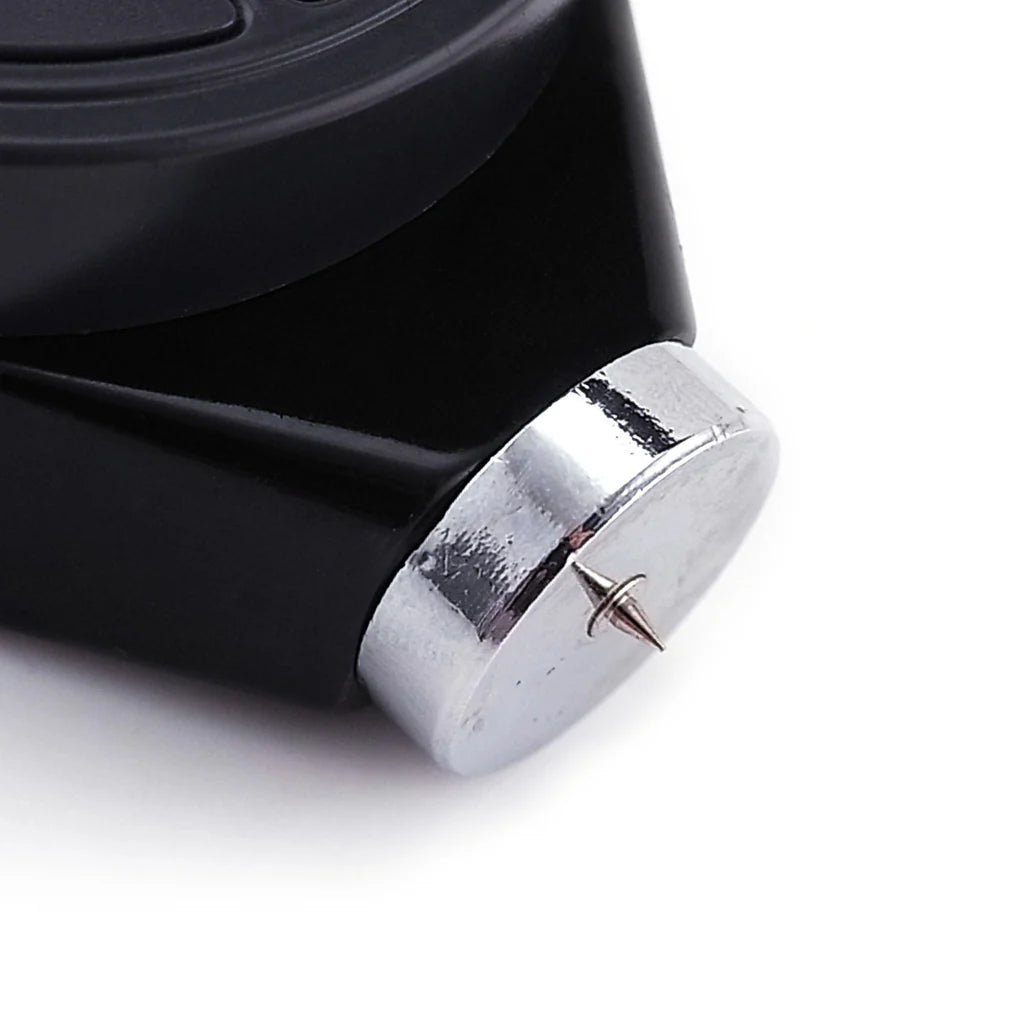

| Indenter Type | Sharp Cone, SR 0.1 mm |
| Cone Angle | 30° Included Angle |
| Indenter Travel | 0–2.5 mm |
| Pressure Force | D Type: 0–44.5 N |
| Minimum Sample Thickness | Greater than 6 mm (Maximum 3 Layers) |
| Minimum Test Area | At least 15 mm |
| Power Supply | 1 × SR44 Button Cell Battery (Included) |

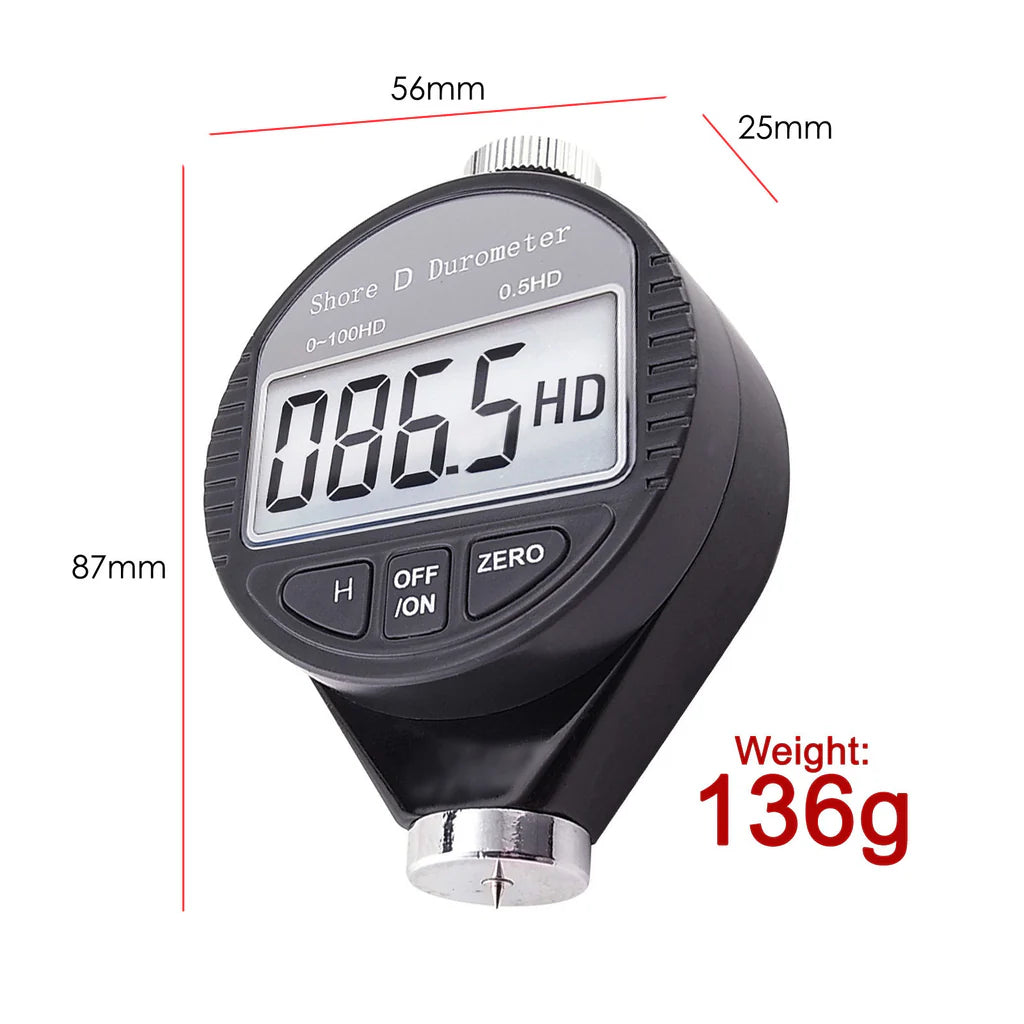

| Dimensions | 87 × 56 × 25 mm |
| Weight | 136 g |
Testing Standards
This instrument complies with:
- GB/T531-99
- GB2411-80
- HGT2489-93
- JJG304-2003

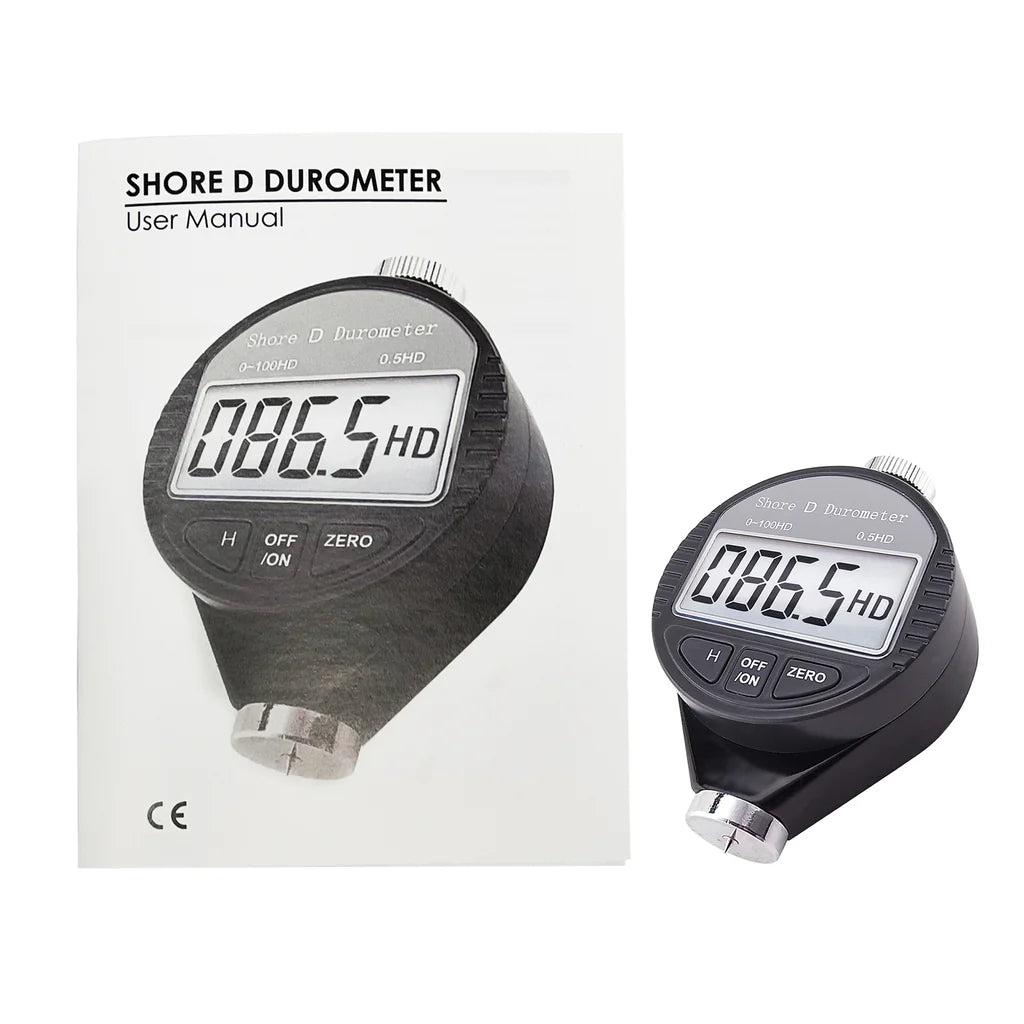

Package Includes
- 1 × Digital Shore D Hardness Tester
- 1 × SR44 Button Cell Battery (Installed)
- 1 × English Instruction Manual
- Standard Factory Packaging
