Description

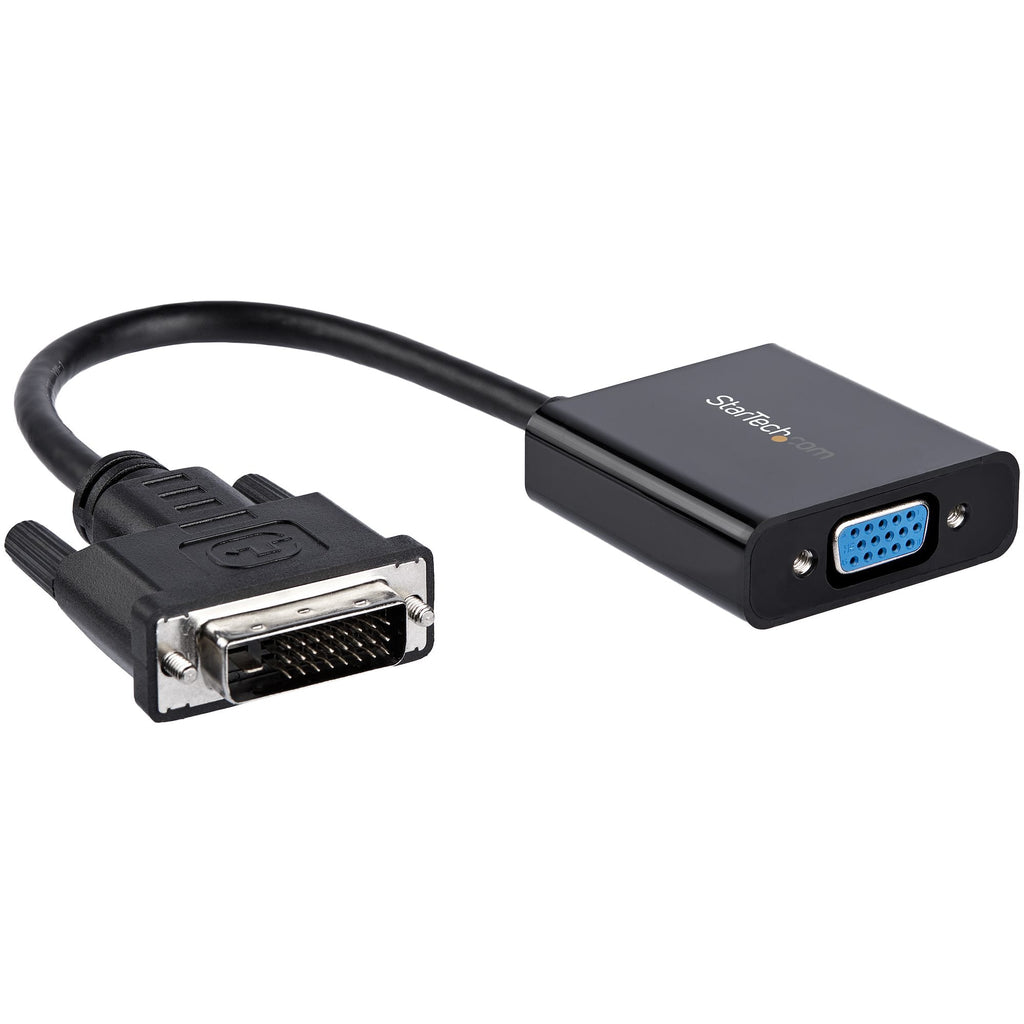

Connect a digital DVI-D source (such as a desktop GPU or older workstation) to an analog VGA monitor or projector using this Active DVI-D to VGA Adapter Converter Cable. Designed to bridge the gap between digital and analog video technologies, this compact adapter converts DVI-D (digital signal) to VGA (analog signal) for legacy displays. Supporting resolutions up to 1920x1080 (1080p), it’s ideal for classroom setups, conference rooms, or reusing older VGA displays with modern hardware.
Key Features
-
Active DVI-D to VGA Conversion – Converts digital DVI signal to analog VGA
-
1080p Full HD Support – Supports resolutions up to 1920x1080 @ 60Hz
-
Compact & Lightweight – Easy to carry and install
-
Plug-and-Play – No drivers or software required
-
Wide Compatibility – Works with DVI-D (24+1 pin) outputs on PCs, GPUs, docking stations
-
VGA Lock Screws – Secure, stable monitor connection
-
Power Efficient – Bus-powered (no external power needed in most cases)
Specifications
-
Input Connector: DVI-D (24+1 pin Male)
-
Output Connector: VGA (15-pin Female)
-
Adapter Type: Active
-
Max Resolution: 1920x1080 @ 60Hz
-
Signal Direction: DVI-D (Digital) to VGA (Analog) only
-
Audio Support: No (video only)
-
HDCP Support: Not supported
-
Power: Bus-powered (may include auxiliary power via USB if required)
Product Dimensions / Weight
-
Cable Length: ~6 in (15 cm)
-
Weight: ~1.7 oz (48 g)
Package Dimensions / Weight
-
Package Size: ~6.3 x 4.7 x 1 in (16 x 12 x 2.5 cm)
-
Shipping Weight: ~2.8 oz (80 g)
