Product Description

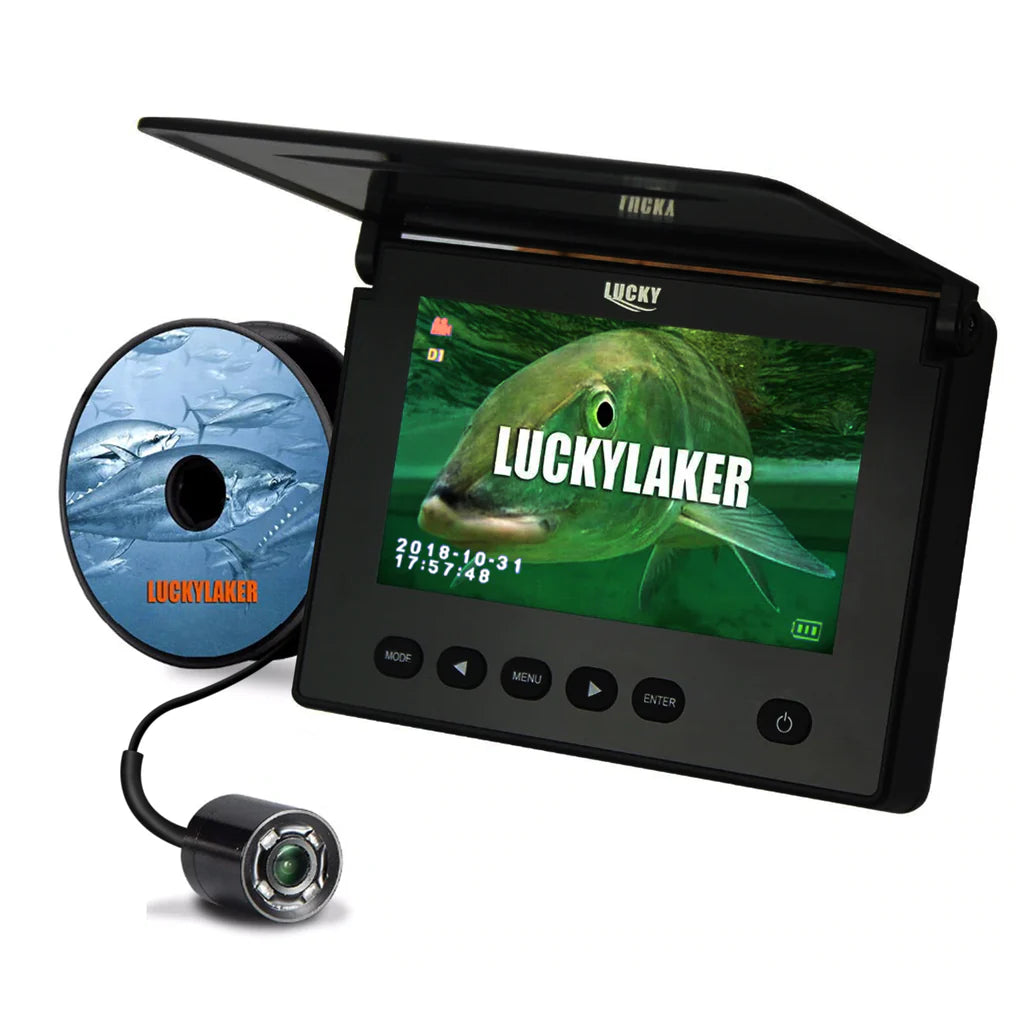

See beneath the surface like never before with the FF-180AR Underwater Fishing Camera Fish Locator. Designed for both recreational and professional anglers, this advanced underwater camera system helps you locate fish, observe underwater structures, monitor bait movement, and identify fish species with ease.

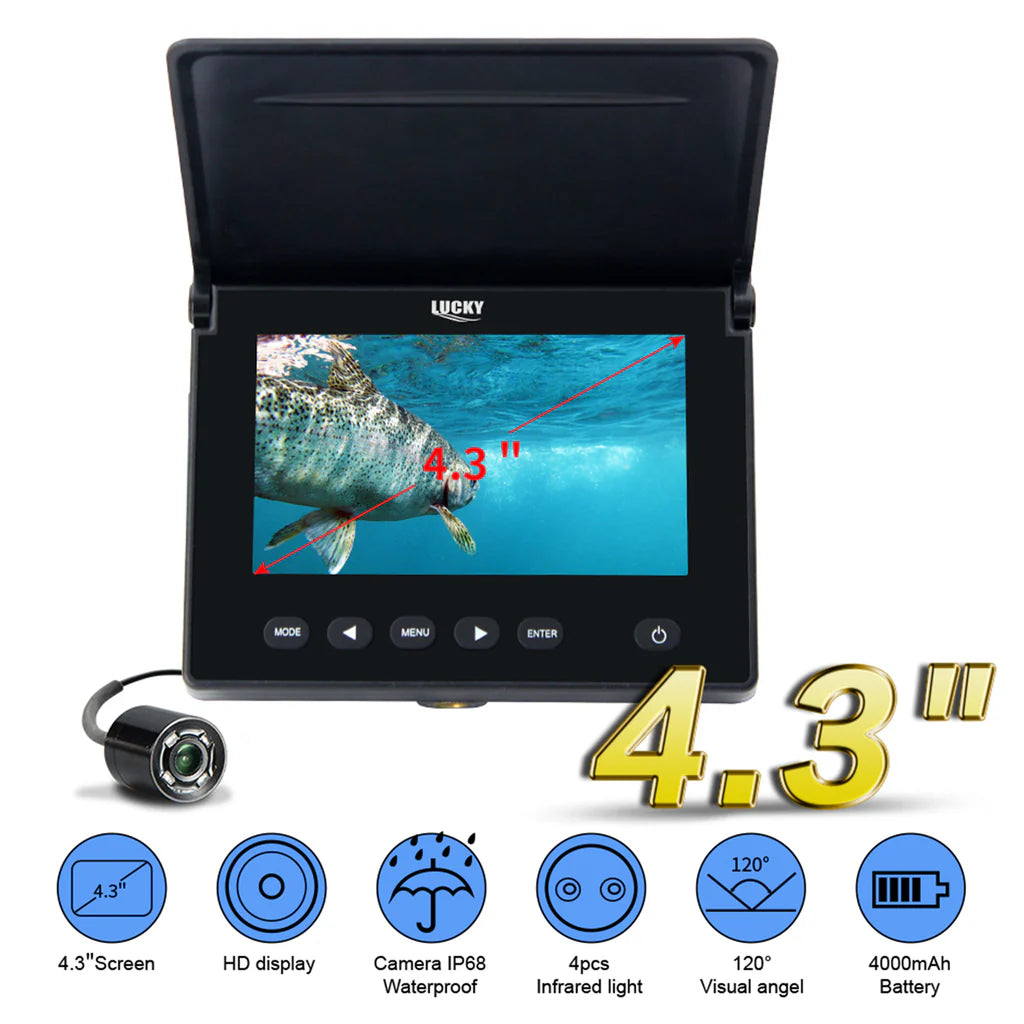

The 4.3-inch HD TFT LCD monitor features a built-in sun visor, providing excellent screen visibility even in bright sunlight. The 120° wide-angle IP68 waterproof camera captures a broad underwater view, while 4 infrared LED lights illuminate dark or murky water for clear viewing during low-light conditions.
The durable 20-meter (65.6 ft) high-tensile cable withstands pulling forces greater than 15 kg (33 lbs), making it ideal for ice fishing, boat fishing, kayak fishing, dock fishing, and shore fishing. Easily capture photos and record videos directly to an optional SD/TF memory card (up to 16GB supported), then transfer your recordings to a computer via USB.
With a rechargeable 4000mAh lithium battery providing up to 6 hours of operation and an adjustable mounting system for rods or boats, the FF-180AR is the perfect companion for serious fishing adventures.
Features

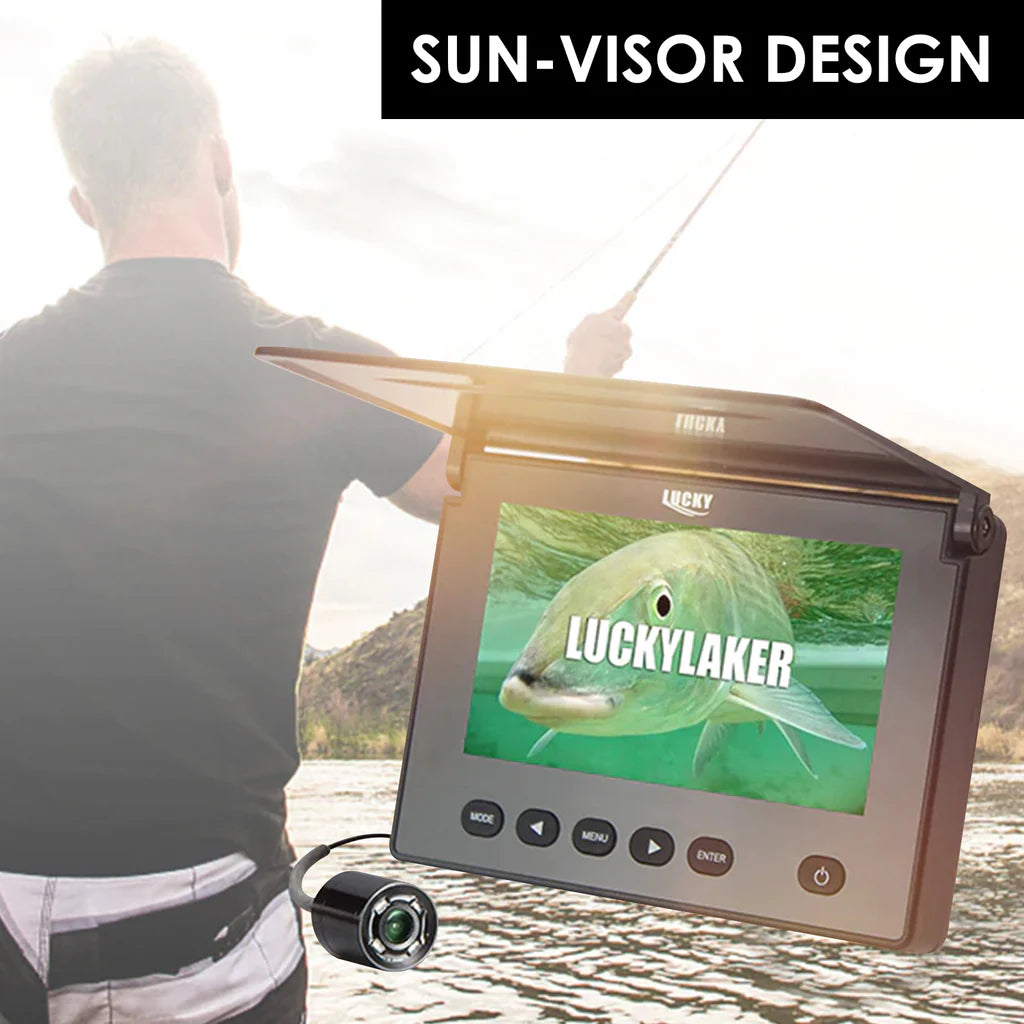

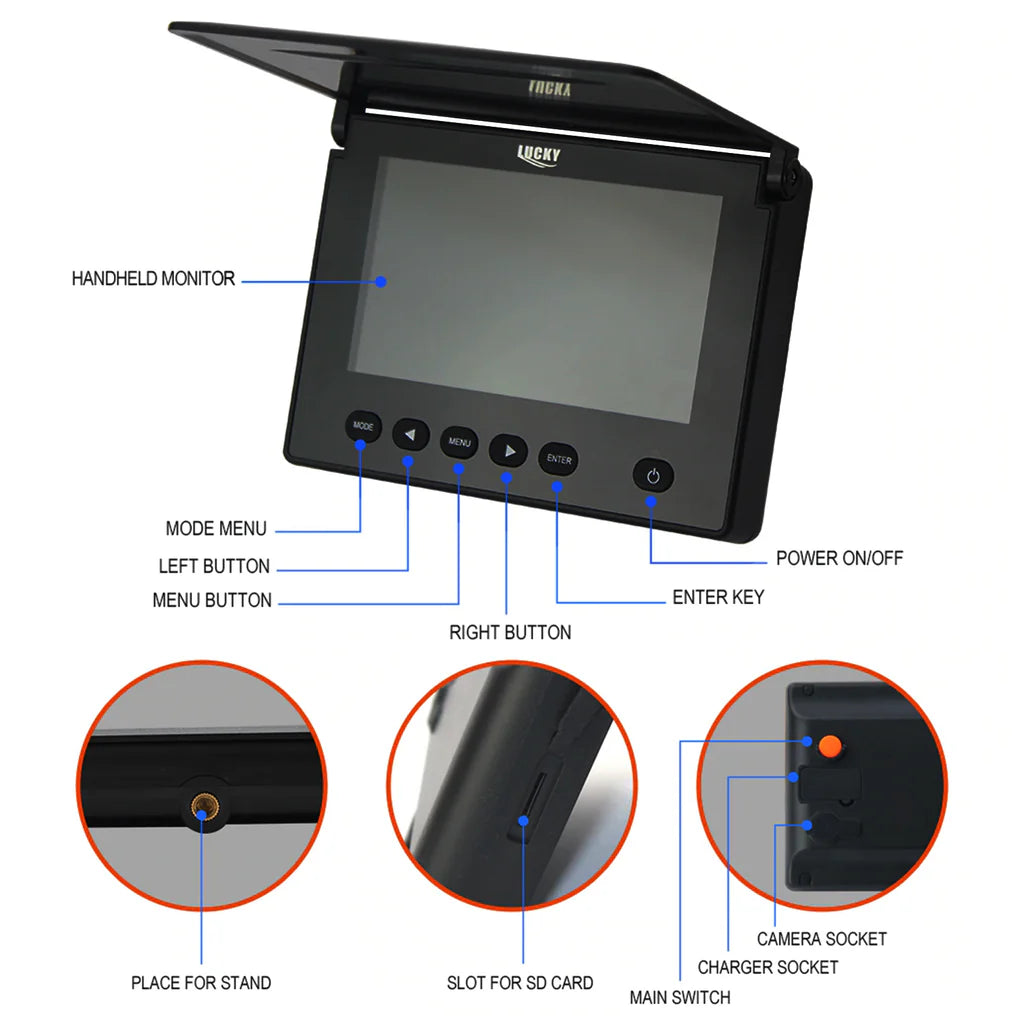

- 4.3-inch HD TFT LCD monitor with integrated sun visor
- 120° wide-angle underwater camera

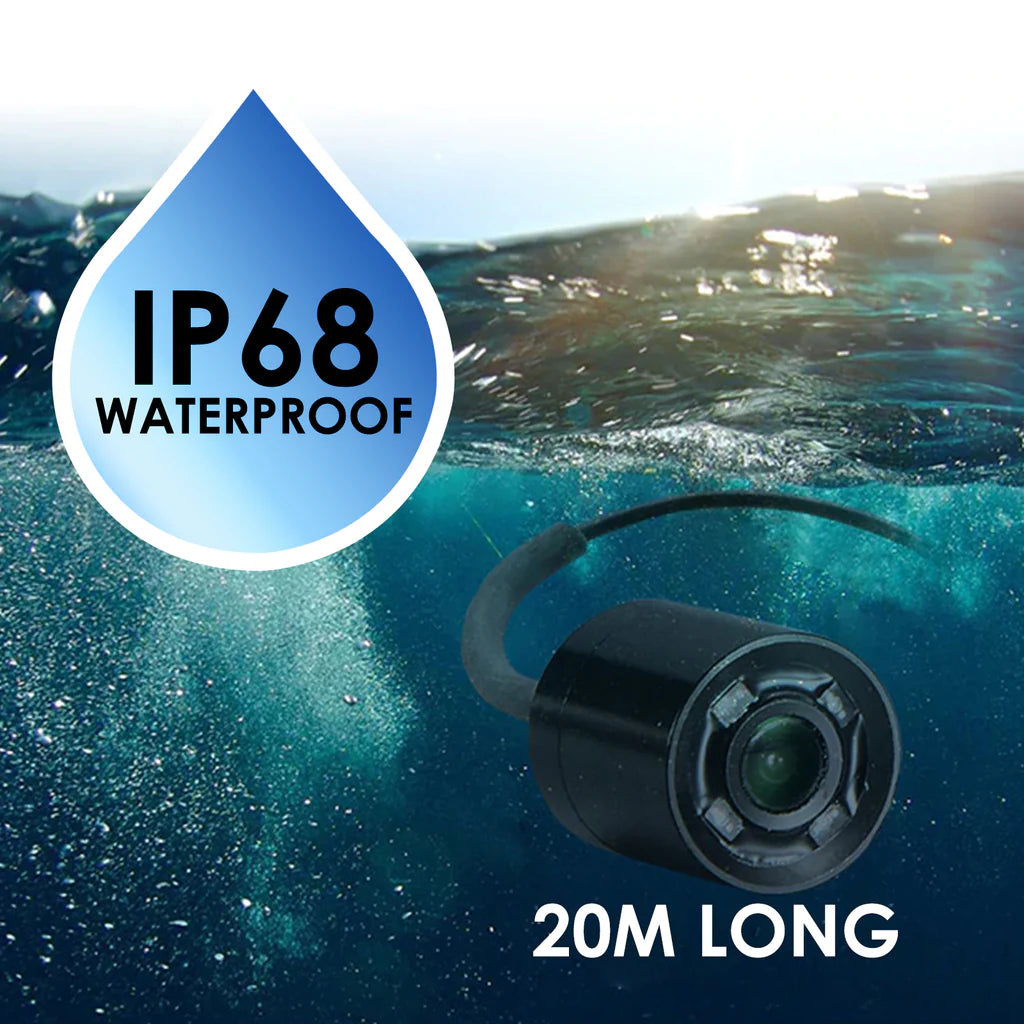

- IP68 waterproof camera
- 4 infrared LED lights for enhanced low-light visibility
- Records video and captures photos
- Supports SD/TF memory cards up to 16GB (memory card not included)
- Playback videos and images directly on the monitor
- USB connection for transferring files to a computer
- Durable 20 m (65.6 ft) high-tensile cable
- Cable withstands over 15 kg (33 lbs) of pulling force
- Rechargeable 4000mAh lithium battery
- Up to 6 hours of operating time

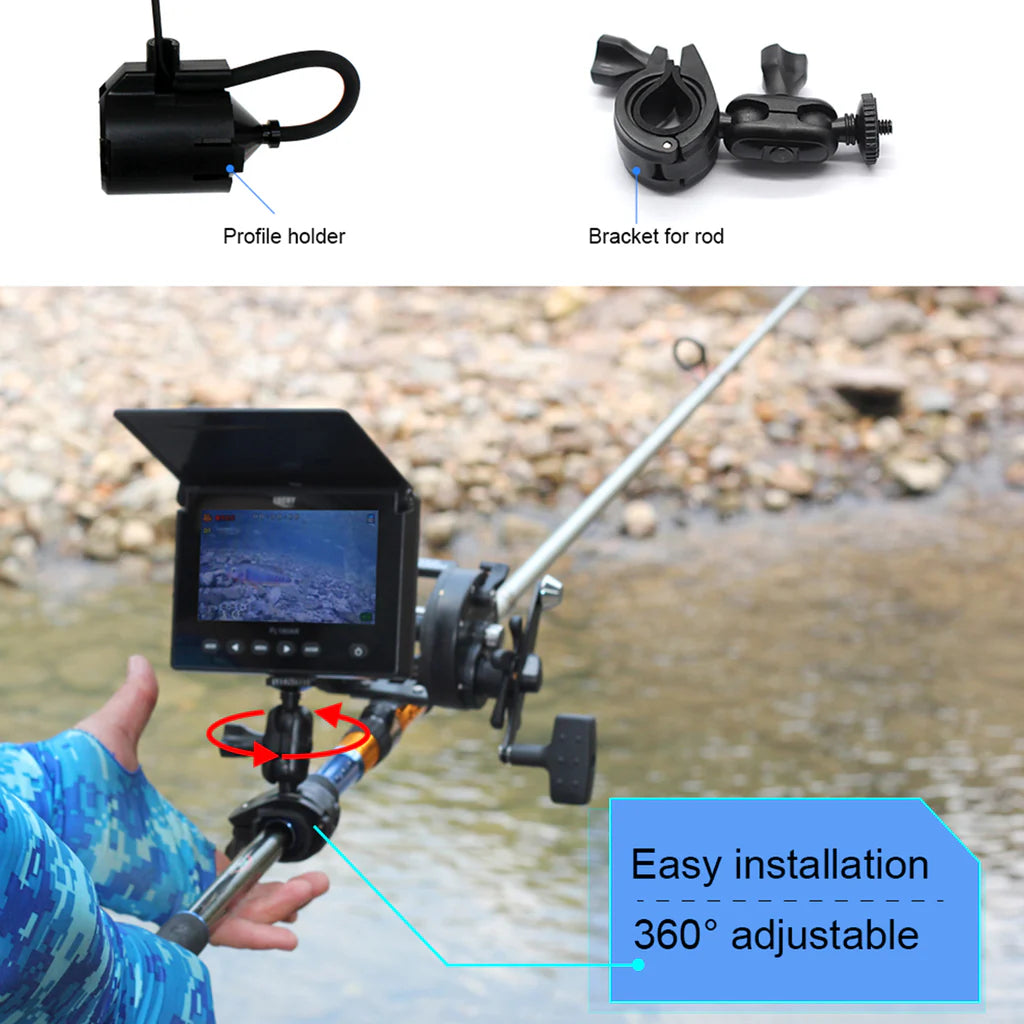

- 360° adjustable mounting system

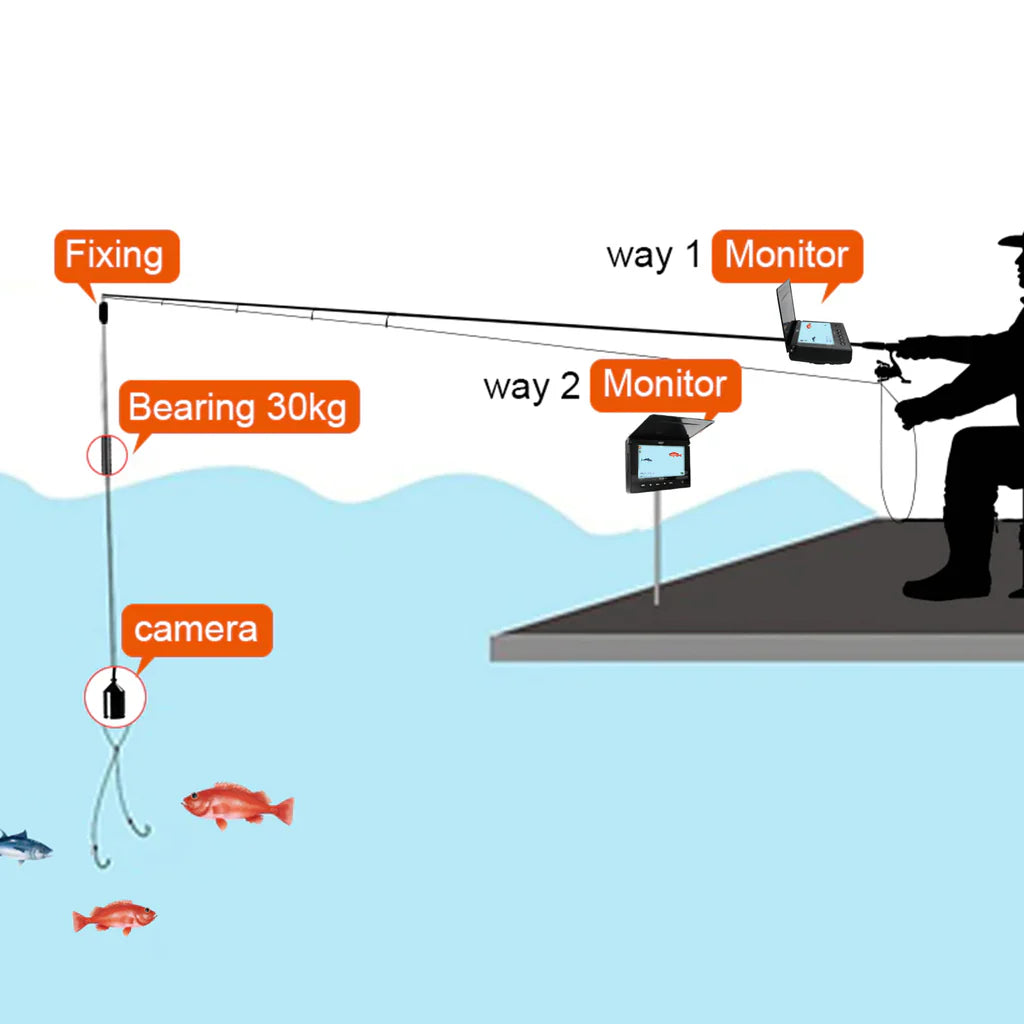

- Includes rod mounting bracket and lateral detection bracket
- Supports 9 display languages
Specifications
| Feature | Specification |
|---|---|
| Model | FF-180AR |
| Display | 4.3" HD TFT LCD |
| Display Resolution | 480 × 272 Pixels |
| Camera Viewing Angle | 120° |
| Camera Resolution | 420 TVL |
| Image Sensor | 1/4" CMOS (300,000 Pixels) |
| Camera Pixels | 720(H) × 480(V) |
| System | NTSC |
| AGC | Auto |
| White Balance | Auto |
| Minimum Illumination | 0.1 Lux |
| Infrared Lighting | 4 IR LEDs |
| Waterproof Rating | IP68 |
| Cable Length | 20 m (65.6 ft) |
| Memory Support | SD/TF Card (Up to 16GB) |
| Battery Capacity | 4000mAh Rechargeable Lithium |
| Operating Time | Up to 6 Hours |
| Charging Time | Approximately 4 Hours |
| Charging Input | 5V / 1A |
| Operating Temperature | 14°F–122°F (-10°C–50°C) |

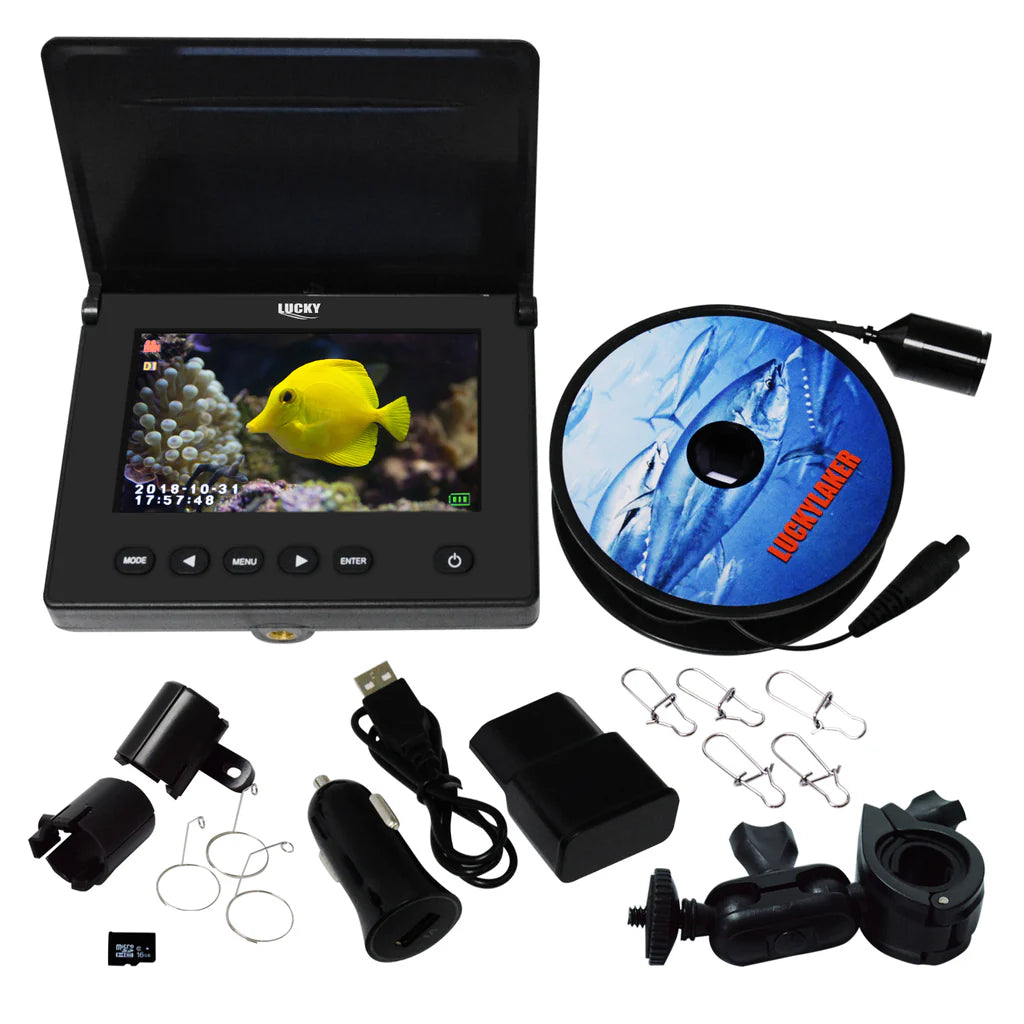

Package Includes
- 1 × 4.3" LCD Monitor
- 1 × Underwater Camera with 20 m Cable
- 1 × Lateral Detection Bracket Set
- 1 × Fishing Rod Mounting Bracket
- 1 × USB Charging Cable
- 1 × English User Manual
- Standard Factory Packaging
