Description

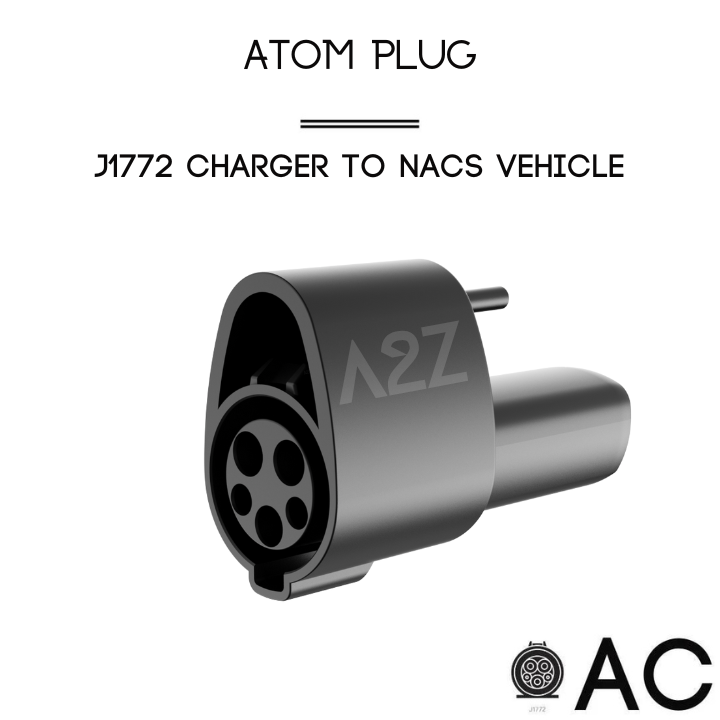

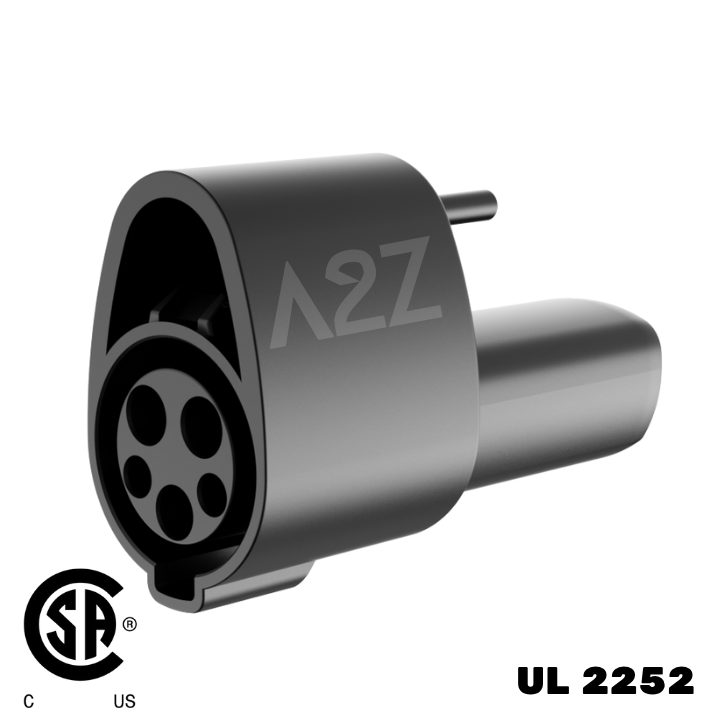

The Atom Plug is an AC charging adapter designed to connect SAE J1772 chargers to NACS-equipped vehicles. Built to the J3400/1 NACS standard clearance, it fits NACS charge ports regardless of vehicle brand or model, enabling convenient Level 1 and Level 2 charging with a compact and portable design.
Features:
-
Product Type: J1772 charger to NACS vehicle AC adapter
-
Brand: A2Z EV
-
Model: Atom Plug
-
Charging Type: AC Level 1 and Level 2 charging
-
Standard Compliance: J3400/1 NACS standard clearance
-
Vehicle Compatibility: Tesla Model S, 3, X, Y; 2026 Kia EV3, EV5, EV6, EV9 with NACS inlet; 2025–2026 Hyundai Ioniq 5 and Ioniq 6 with NACS inlet; 2025 Lucid Gravity; 2026 Rivian R1S and R1T
-
Charging Access: Compatible with SAE J1772 charging stations
-
Design: Compact and portable adapter
-
Locking Mechanism: Integrated locking pin prevents accidental or voluntary disconnection
-
Ease of Use: Connect adapter to J1772 charger, then connect to NACS vehicle
-
Ingress Protection: Suitable for indoor and outdoor charging
-
Assembly: Partially assembled and tested in Canada
Specifications:
-
Rated Current and Voltage: 240V AC, 50–60Hz, 80A maximum
-
Operating Temperature: -22°F to 122°F (-30°C to 50°C)
-
Degree of Protection: IP54
-
Certifications: CSA certified 80259177
-
Warranty: 12-month warranty against manufacturing defects only
-
Warranty Exclusions: Does not cover misuse, mishandling, negligence, accidents, or modifications
