Description

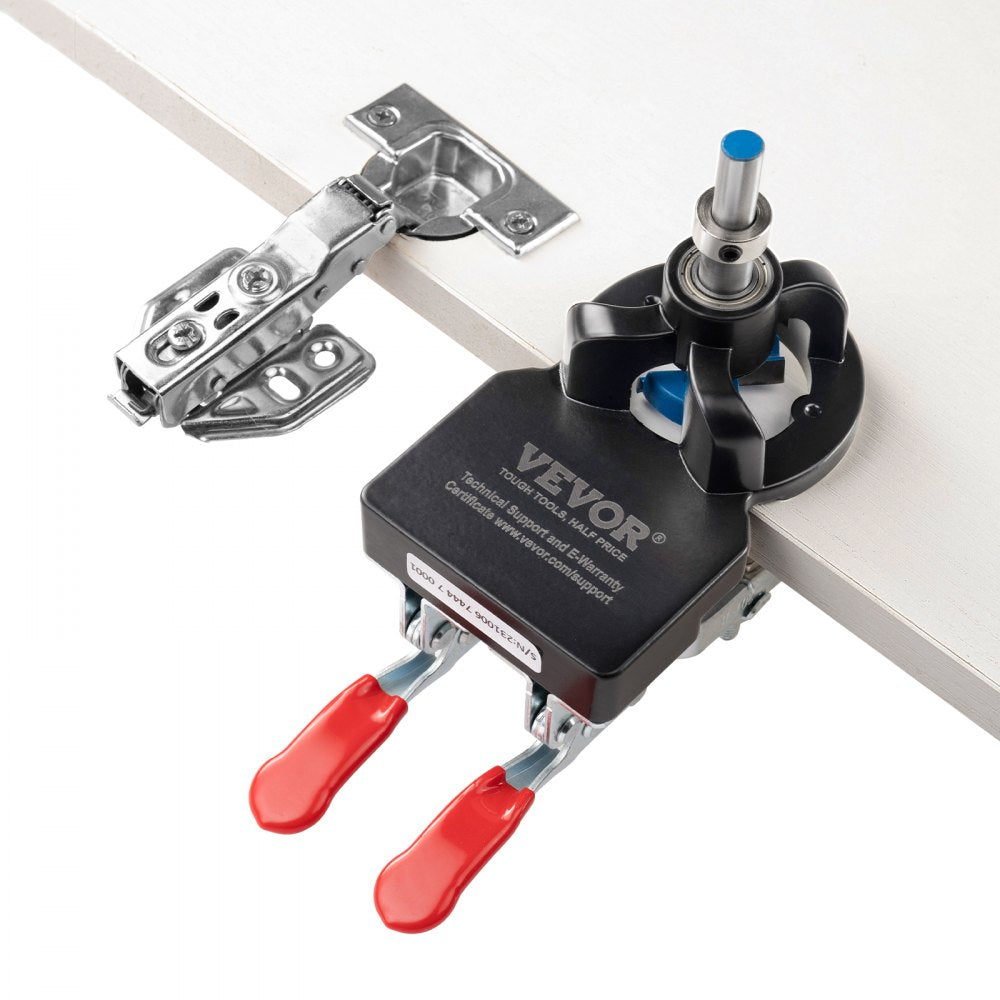

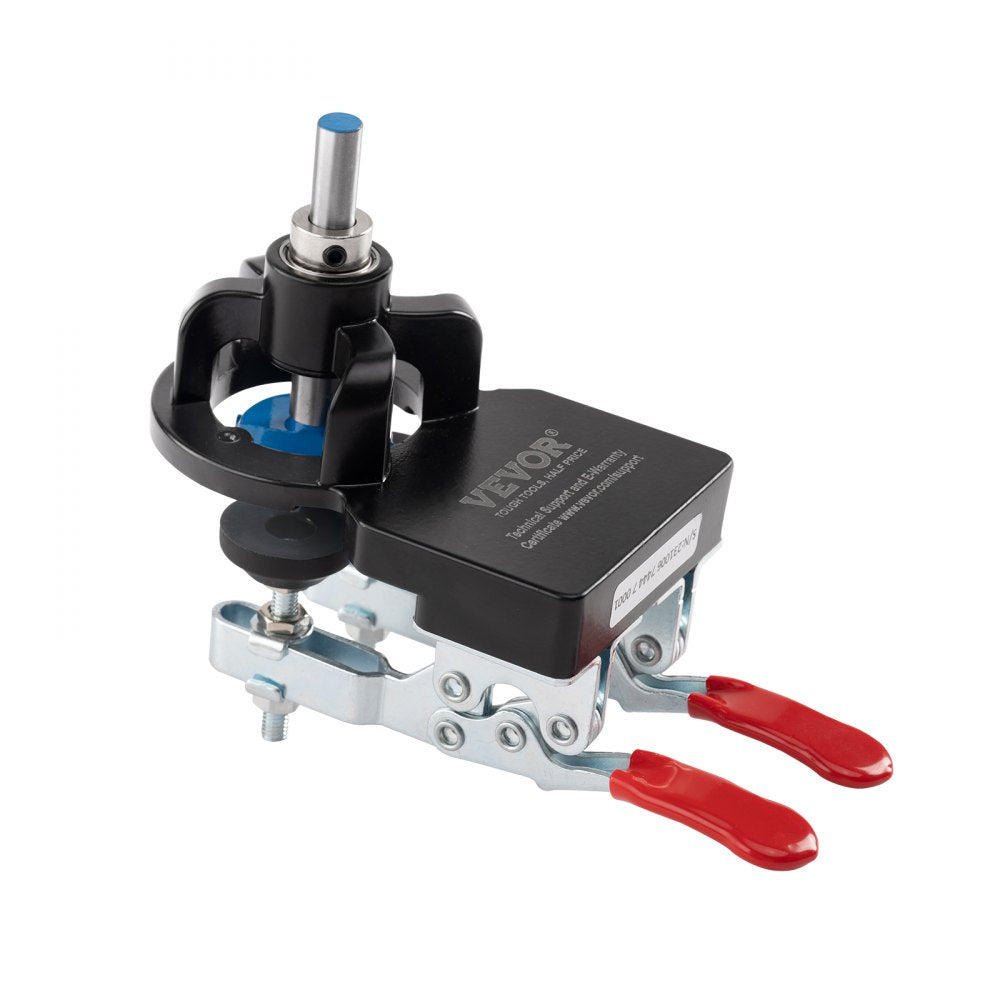

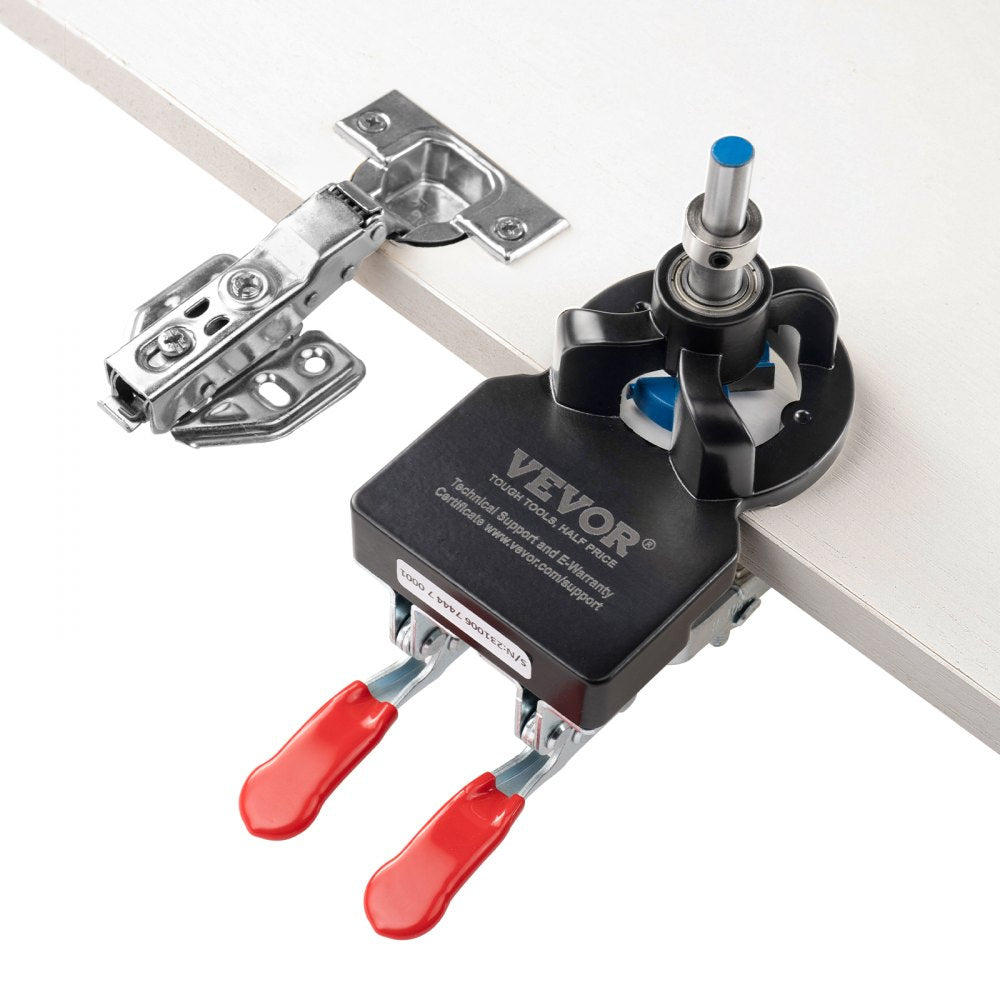

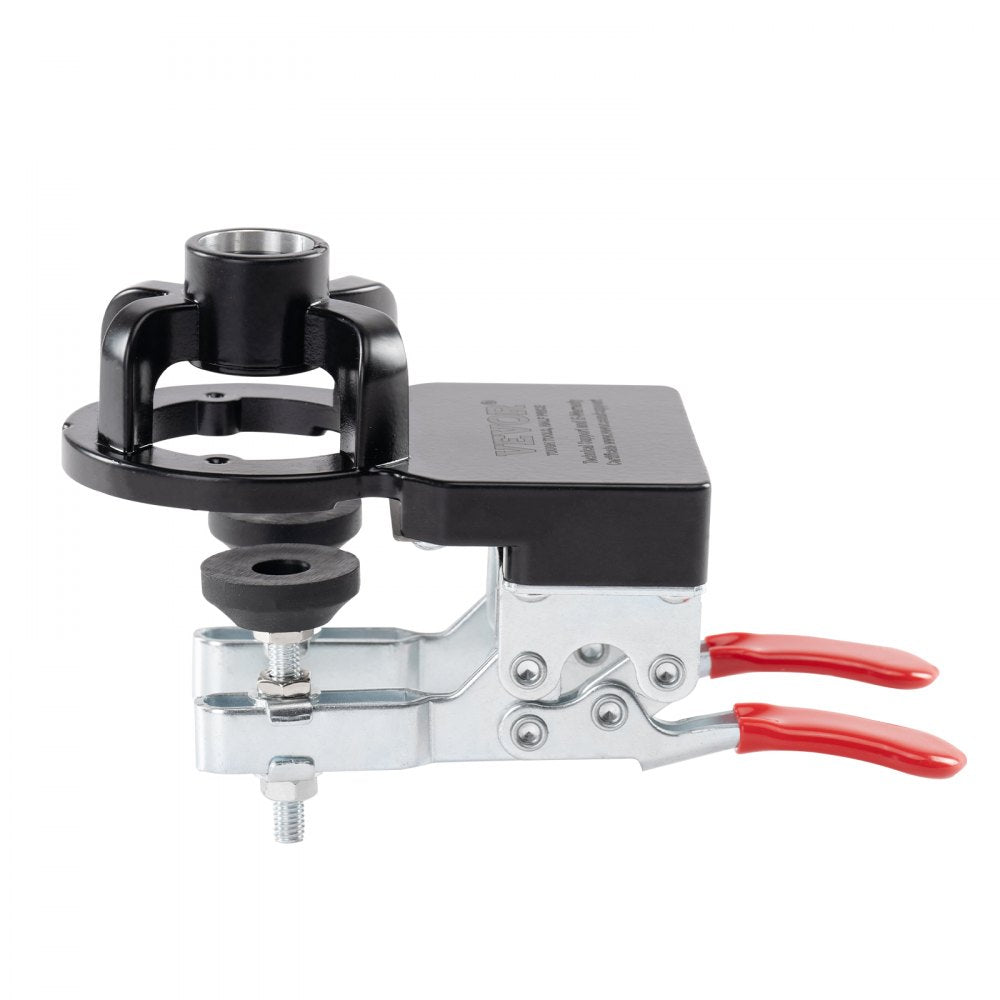

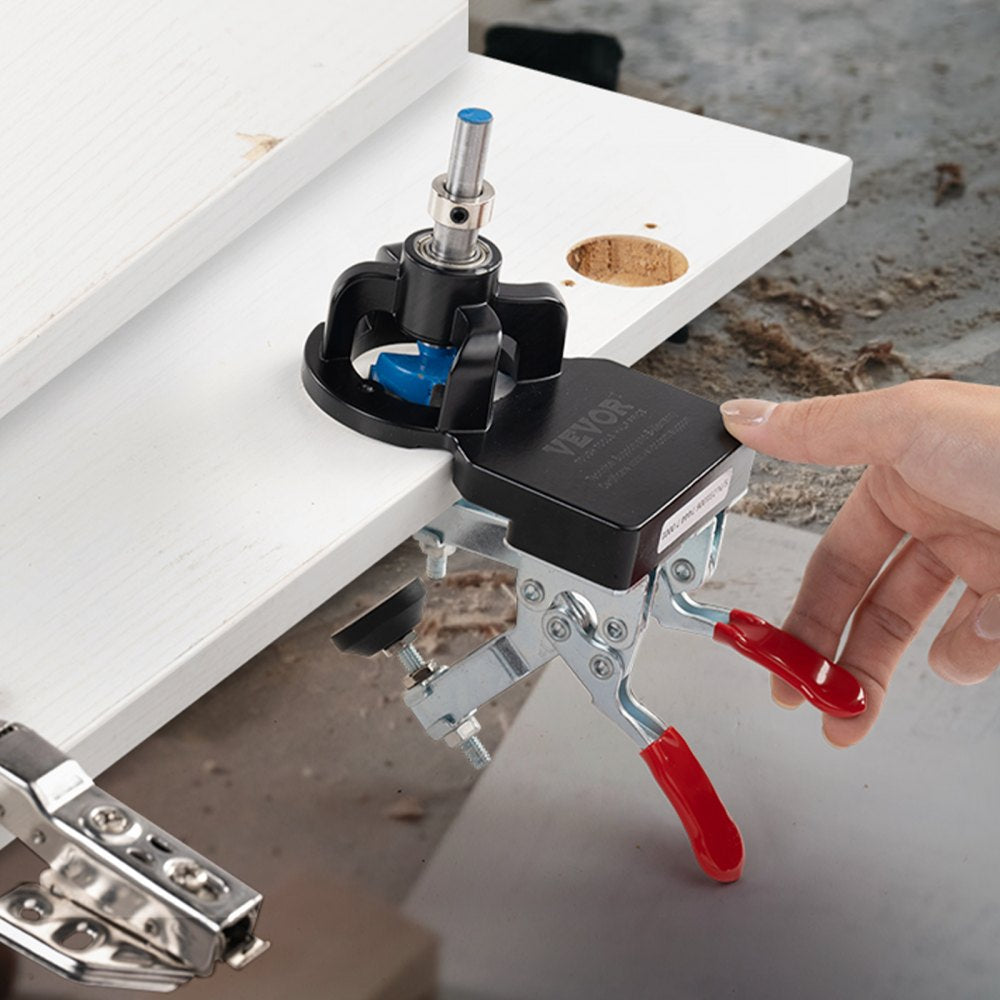

The VEVOR 35 mm Concealed Door Hinge Jig is a precision woodworking tool designed for accurate and efficient mounting of concealed cabinet hinges. Made from durable aluminum alloy with steel components, this jig features an adjustable hole spacing system and dual clamp fixation to securely hold workpieces in place. Its edge sealing groove design ensures clean, precise drilling every time. Suitable for standard 35mm (1.38 inch) hinges, this jig simplifies hinge installation for doors and cabinets with fast setup and reliable performance.
Features
-

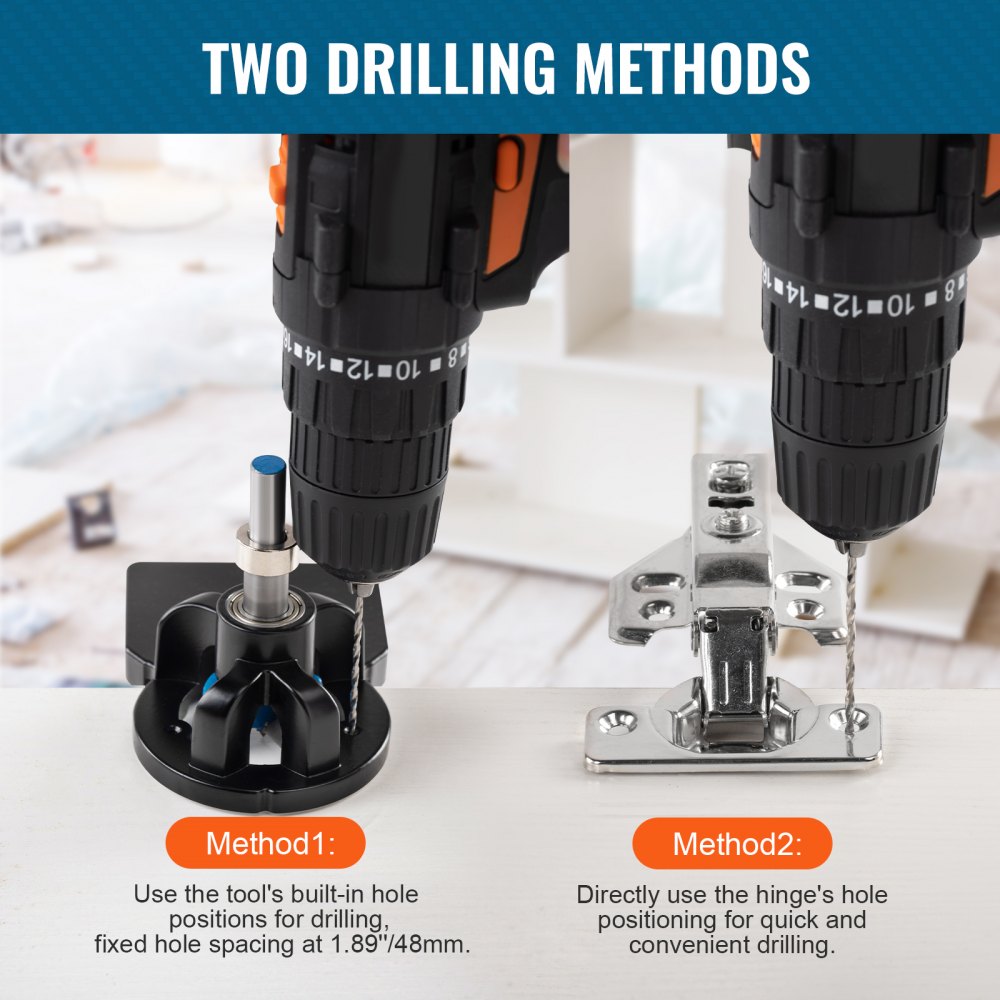

Multifunctional Hinge Hole Opener: Designed for precise and repeatable hinge hole drilling
-
Adjustable Hole Spacing: Customizable settings to fit various hinge placements
-

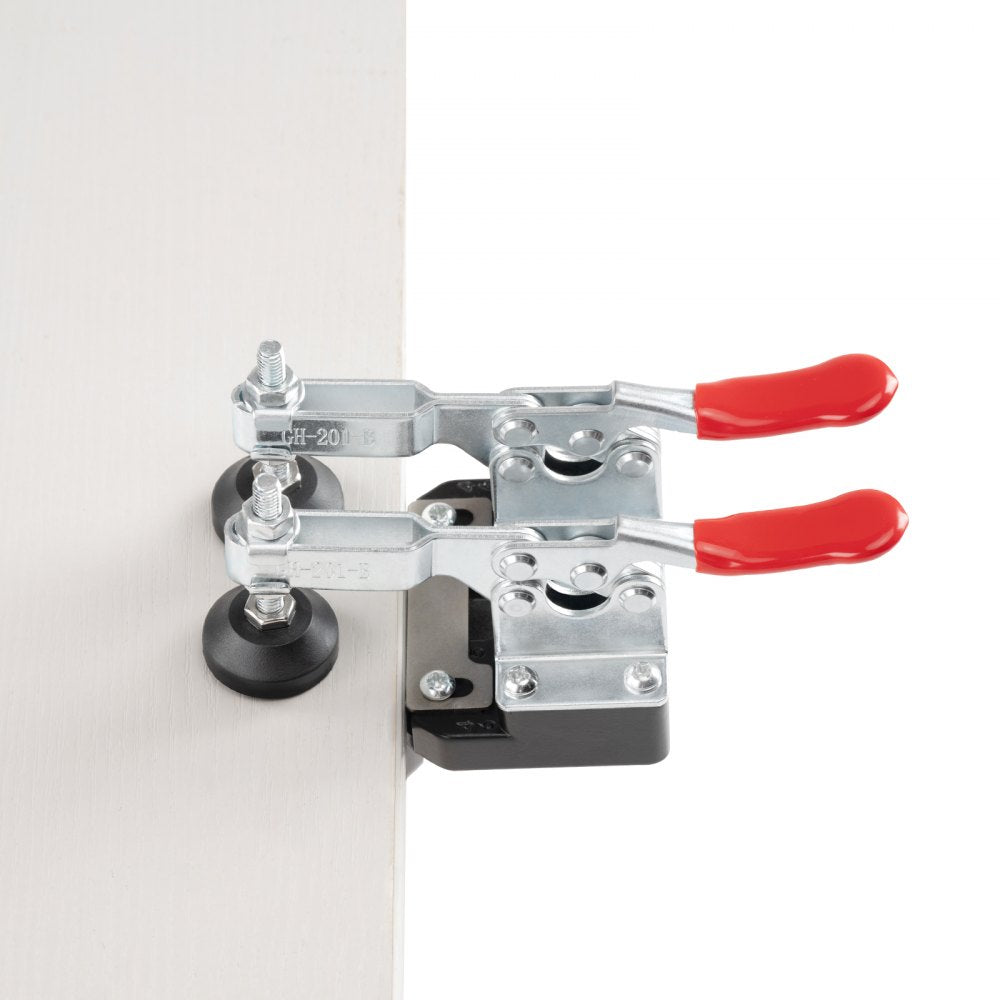

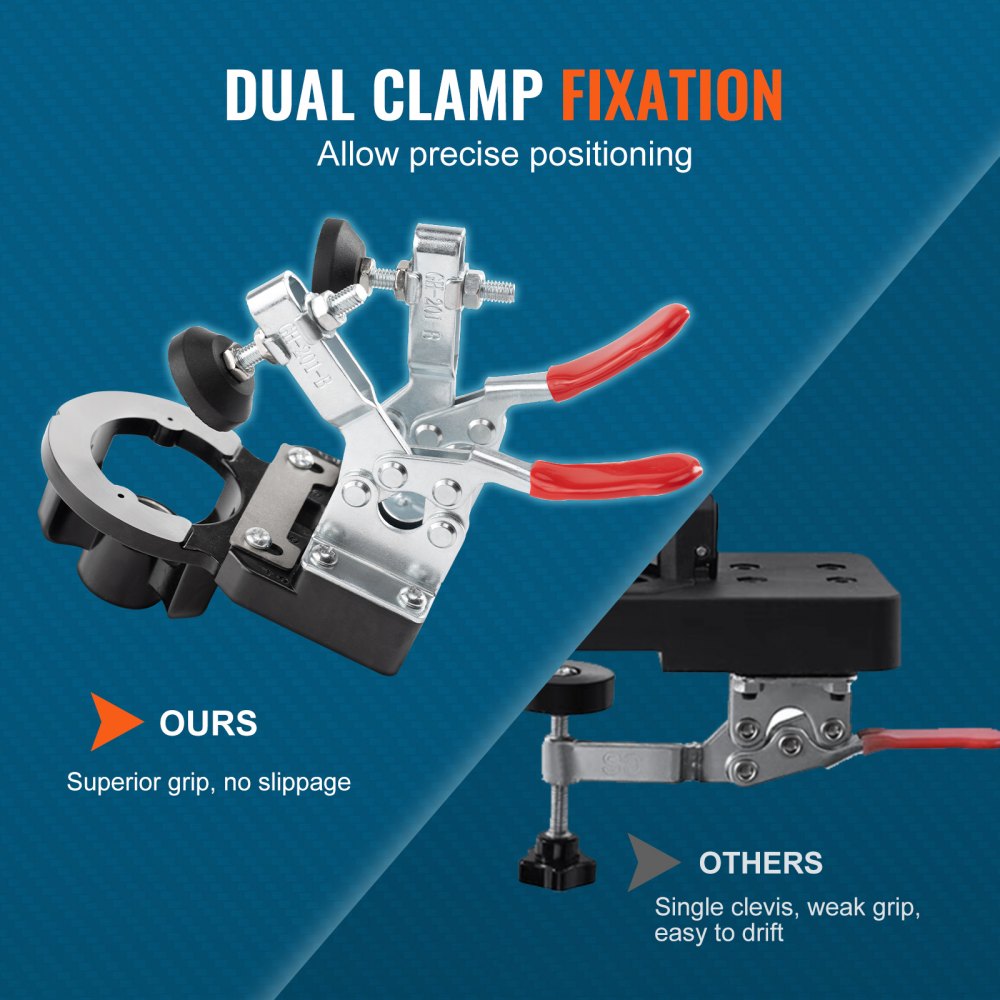

Dual Clamp Fixation: Strong clamping mechanism for stable and secure positioning during drilling
-

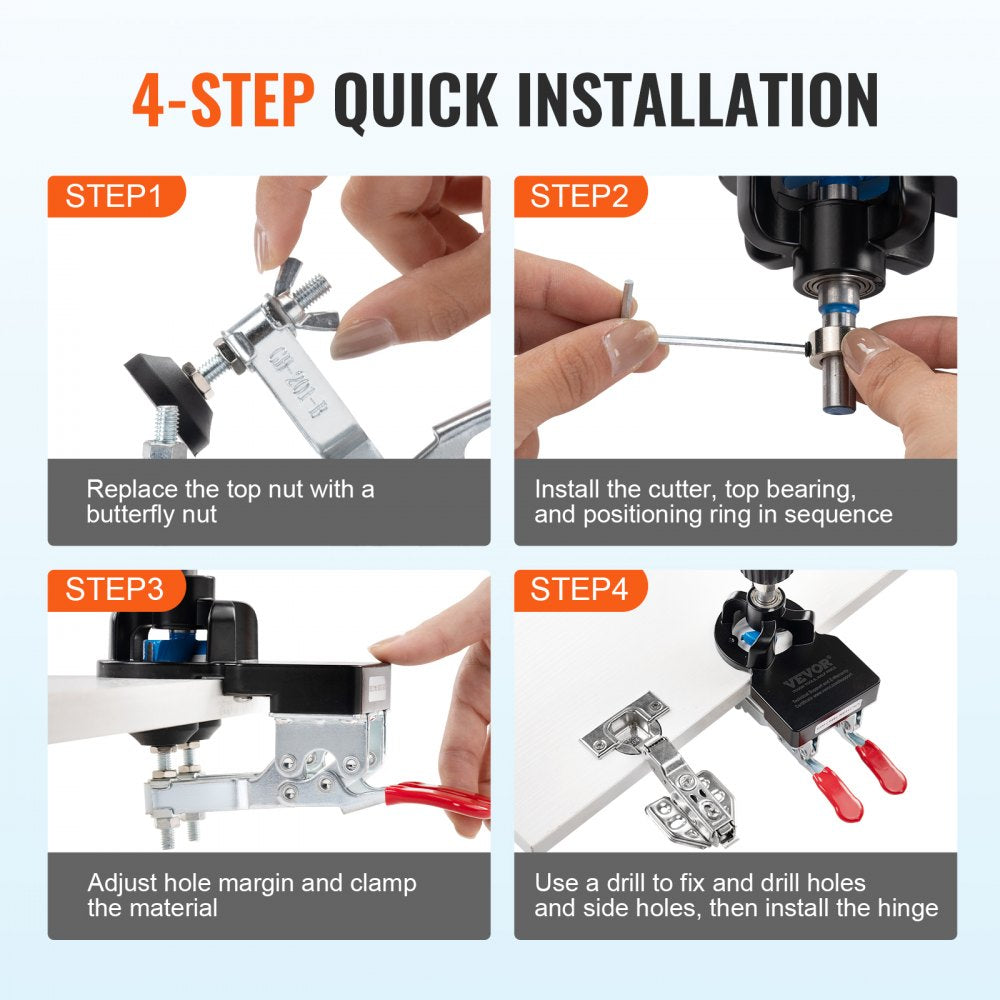

Simple and Fast Installation: Easy to use and adjust, speeding up your woodworking tasks
-
Fits Standard 35mm (1.38") Hinges: Compatible with most concealed cabinet hinges
-
Edge Sealing Groove Design: Ensures clean drilling and prevents material damage

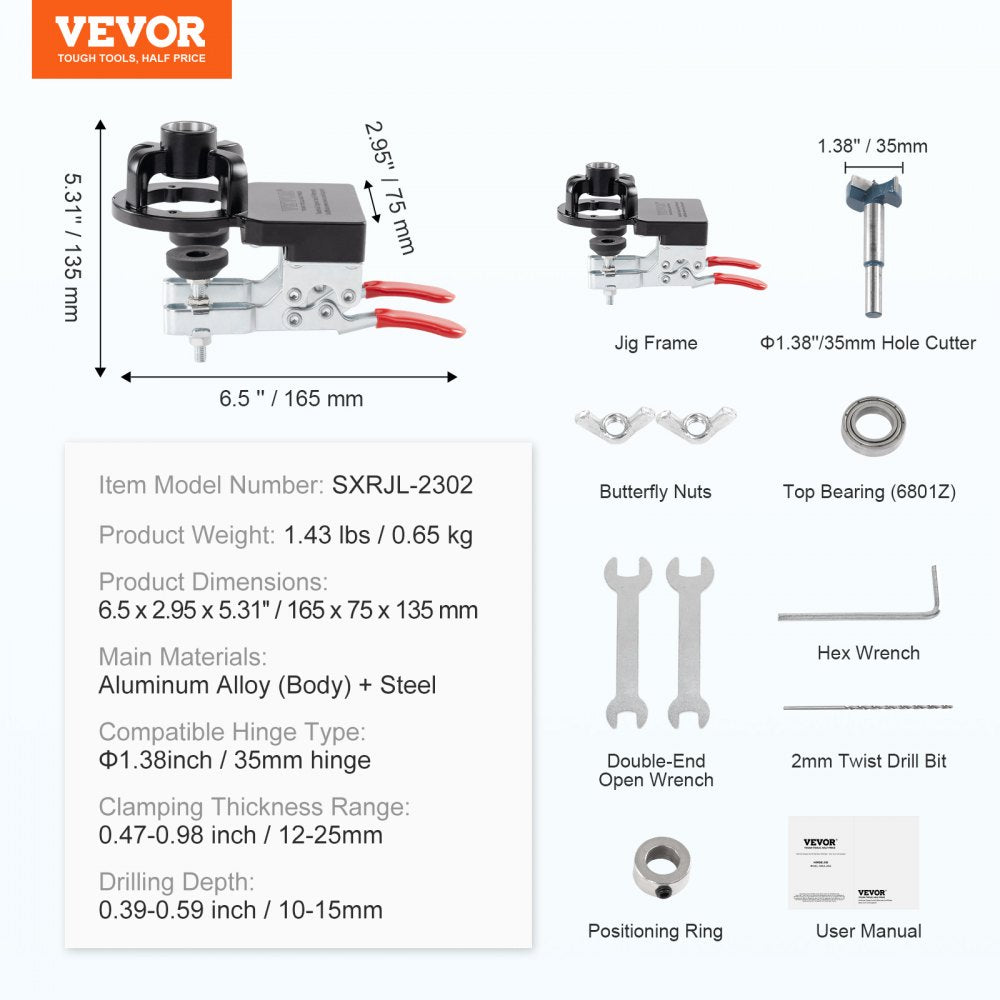

Specifications
-
Item Model Number: SXRJL-2302
-

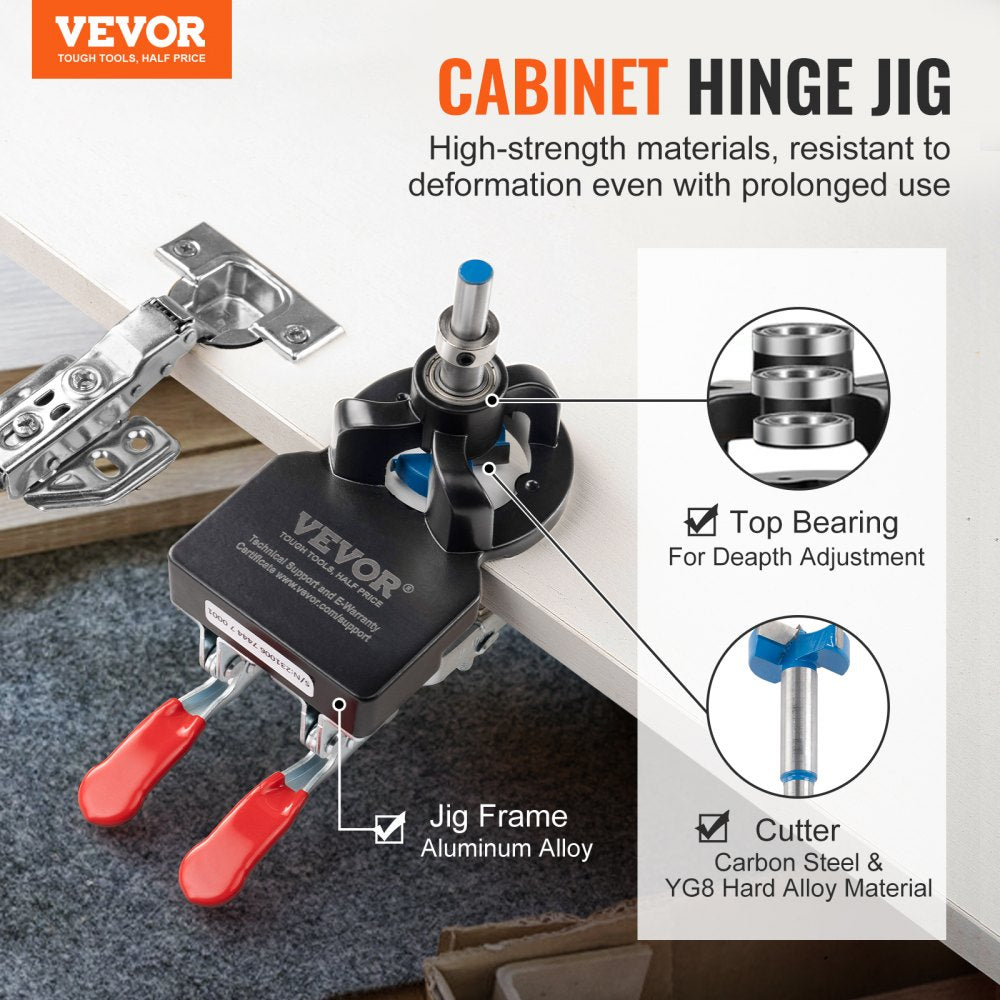

Main Materials: Aluminum Alloy (body) + Steel
-
Compatible Hinge Type: 1.38 inch / 35 mm hinge
-

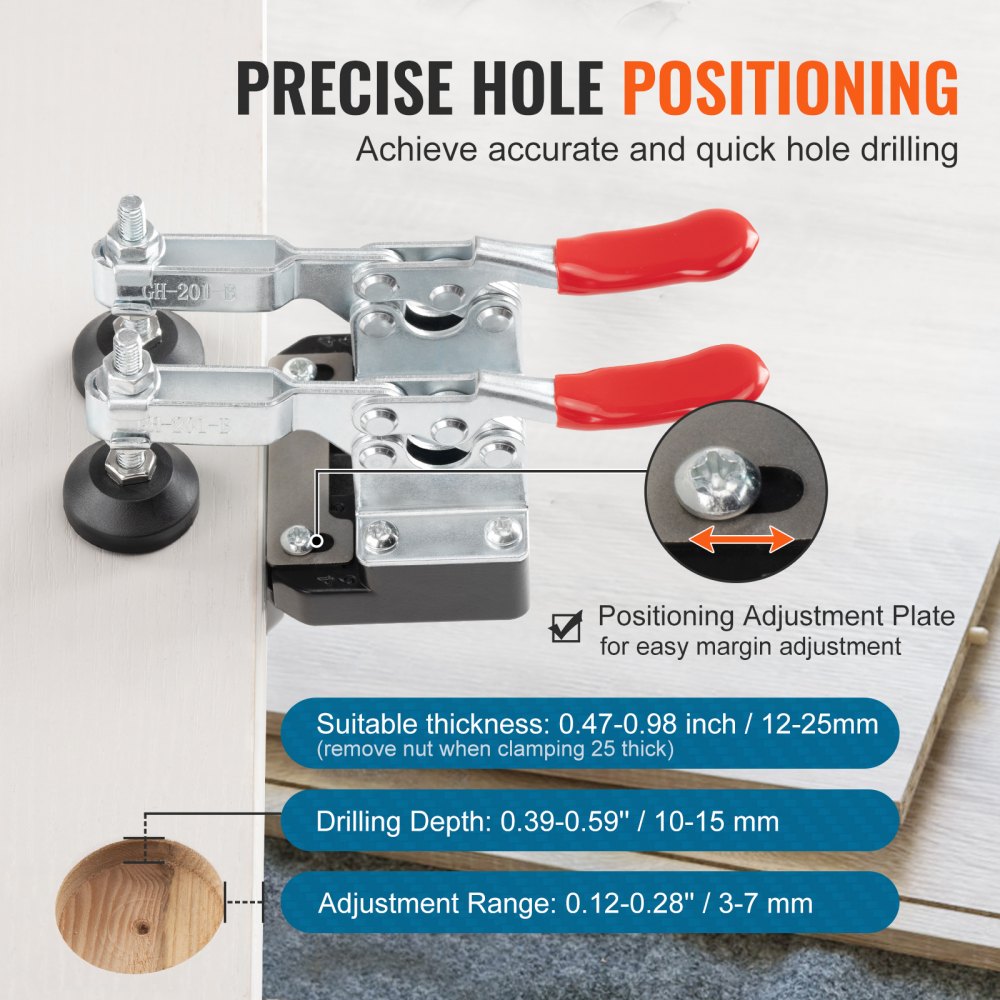

Drilling Depth: 0.39–0.59 inch / 10–15 mm
-
Clamping Thickness Range: 0.47–0.98 inch / 12–25 mm
-
Product Dimensions: 6.50 x 2.95 x 5.31 inch / 165 x 75 x 135 mm
-
Product Weight: 1.43 lbs / 0.65 kg
