Description

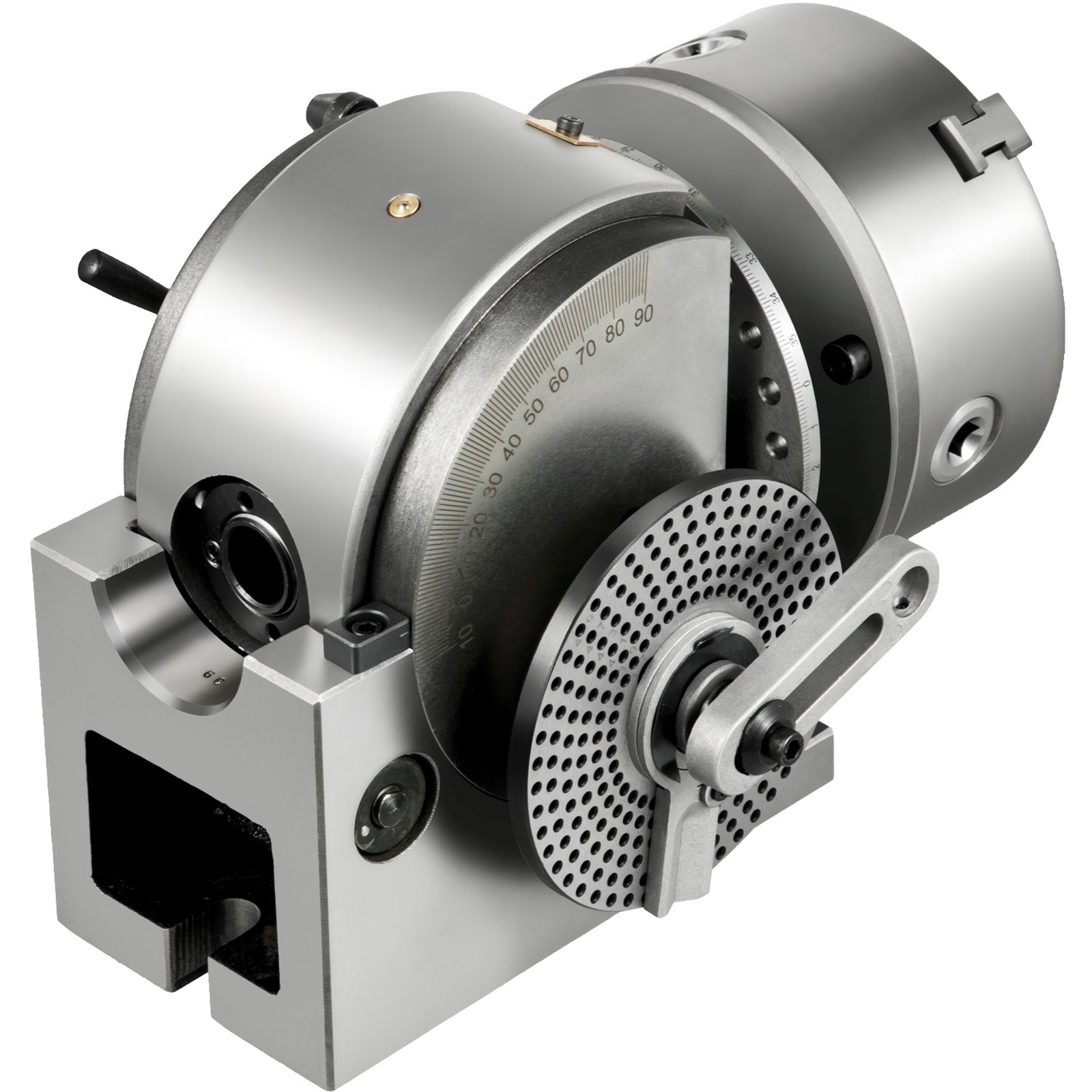

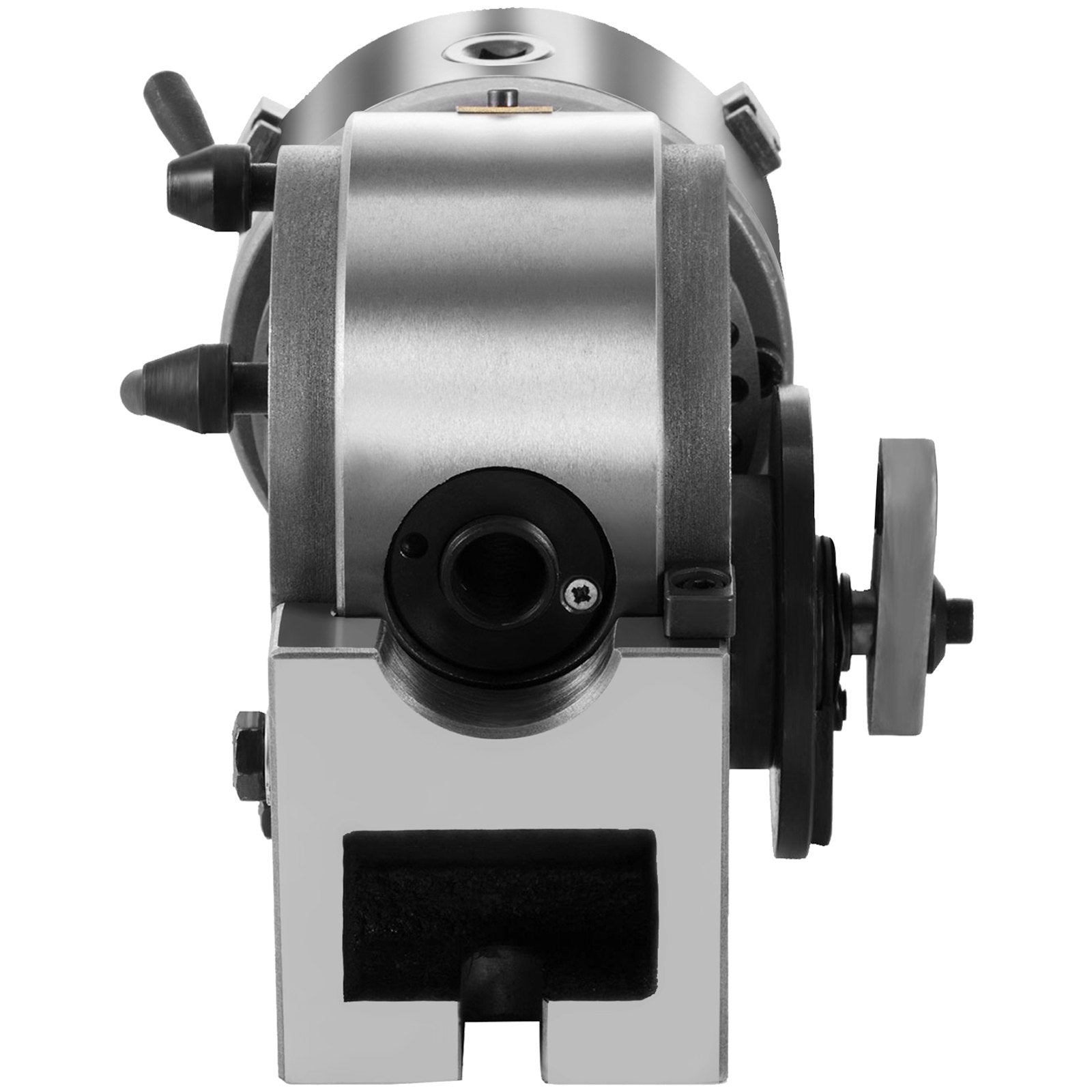

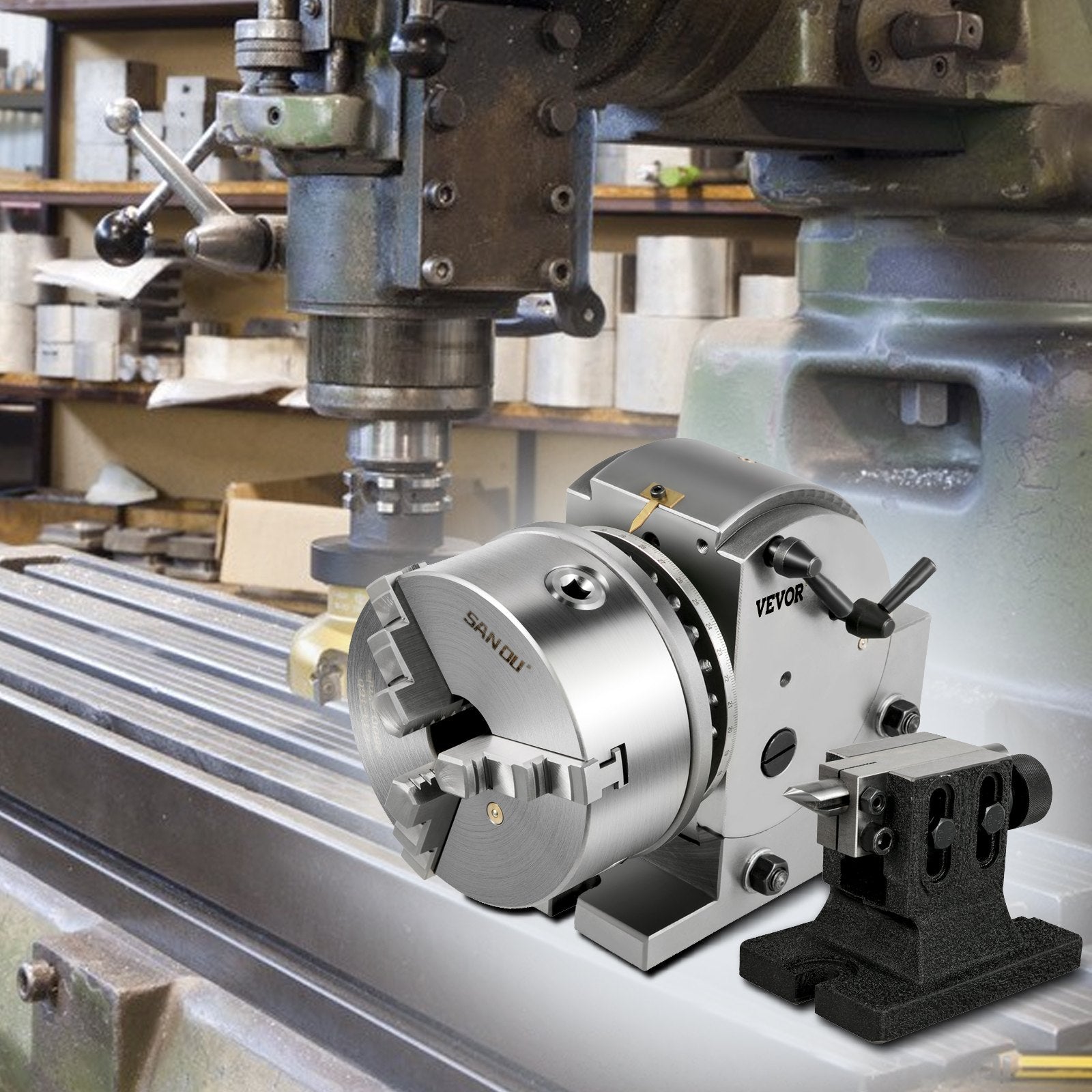

The VEVOR BS-1 Dividing Head Set is a precision-engineered, semi-universal indexing solution ideal for milling, drilling, and grinding tasks. Designed for high-performance and durability, this set features a 6" 3-jaw chuck, MT3 adjustable tailstock, and three universal indexing plates, all built to meet the rigorous demands of machinists and metalworkers. The headstock adjusts from 0° to 90°, enabling angular machining with ease, while the 1:40 reduction ratio allows for accurate dividing. Whether you're working on gear cutting or complex pattern creation, this set provides versatile functionality and unmatched accuracy.
Features
-

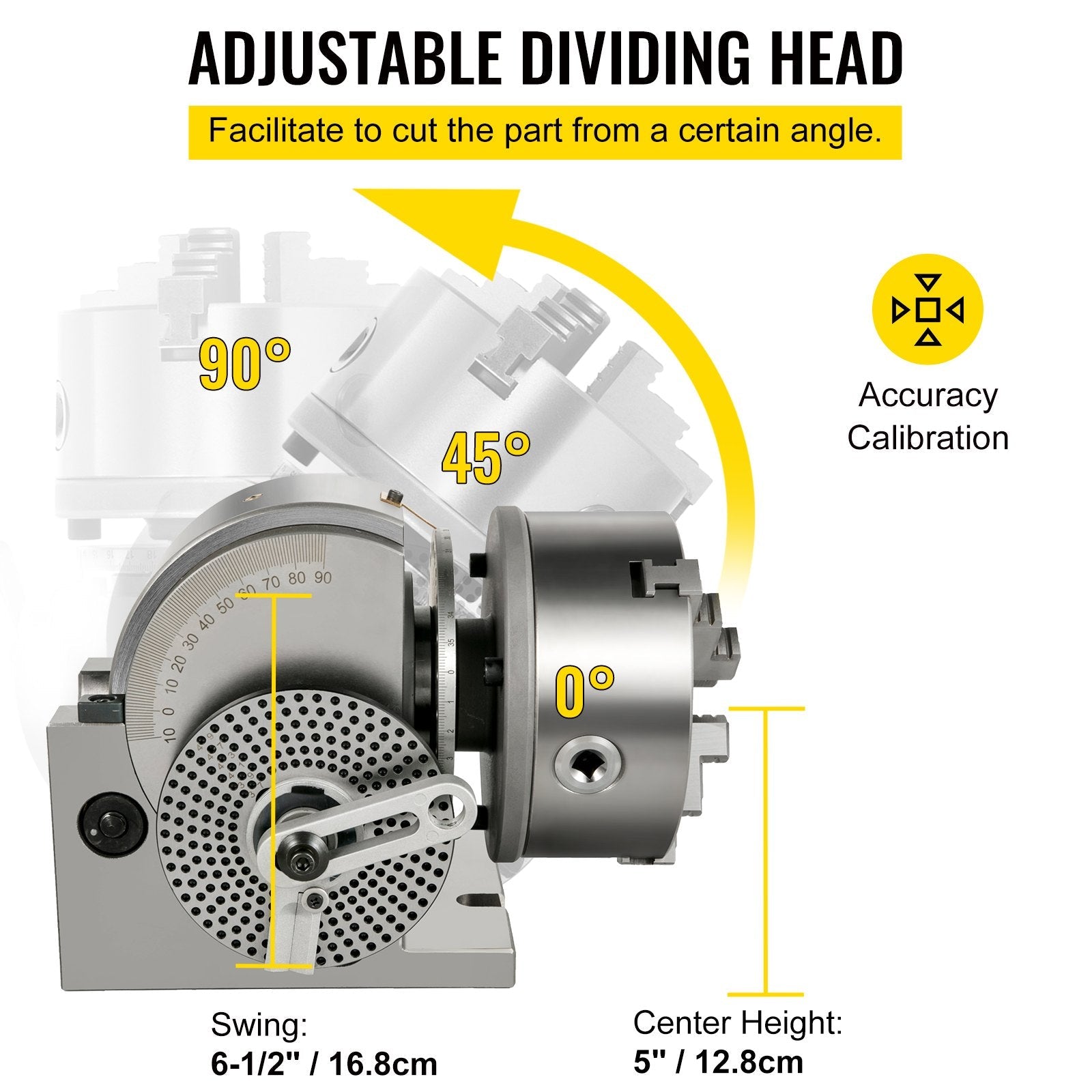

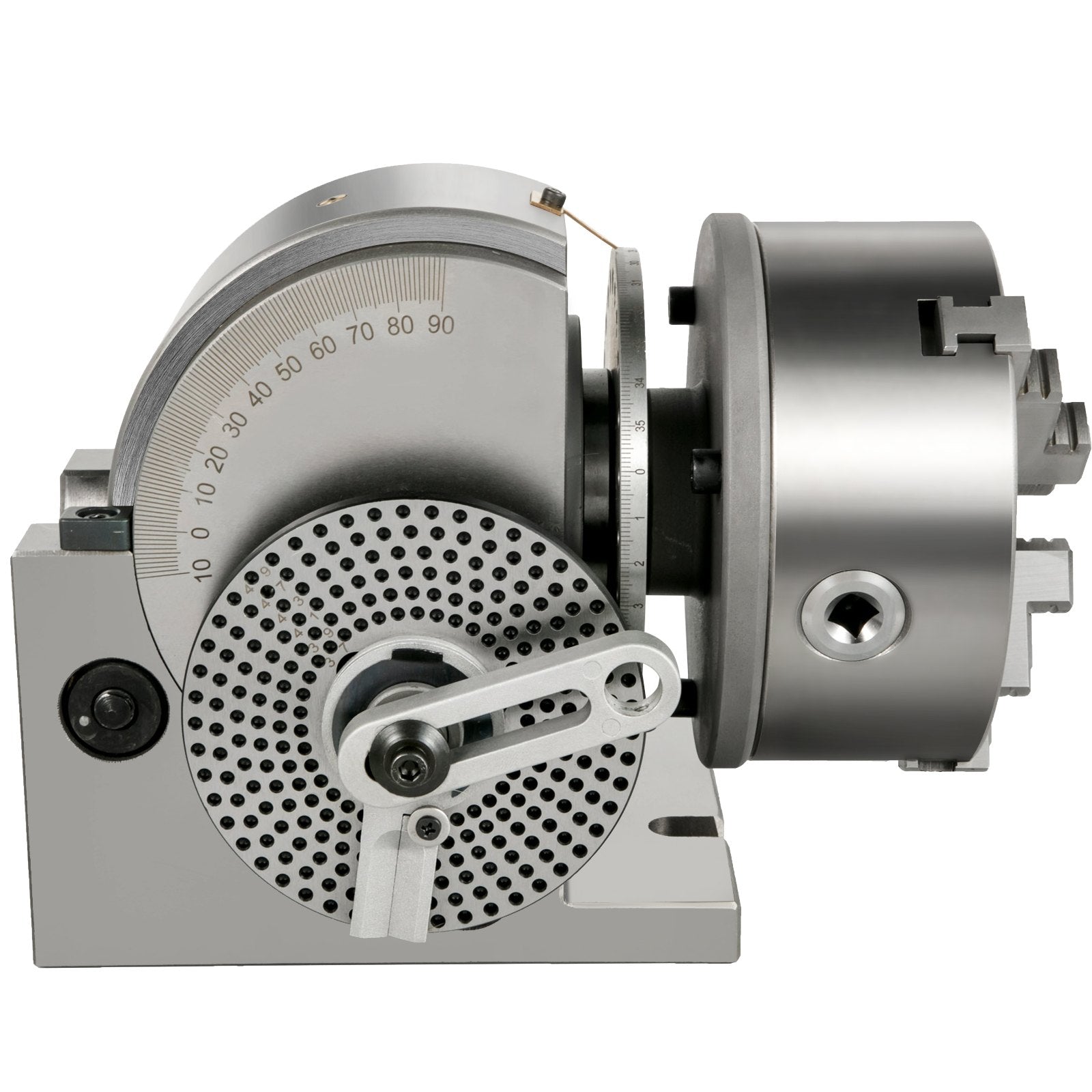

Adjustable 0°–90° Headstock: Allows for angular positioning, expanding machining versatility for complex operations
-
Quick-Dividing Design: 1:40 reduction ratio enables precise divisions and repeatable indexing
-

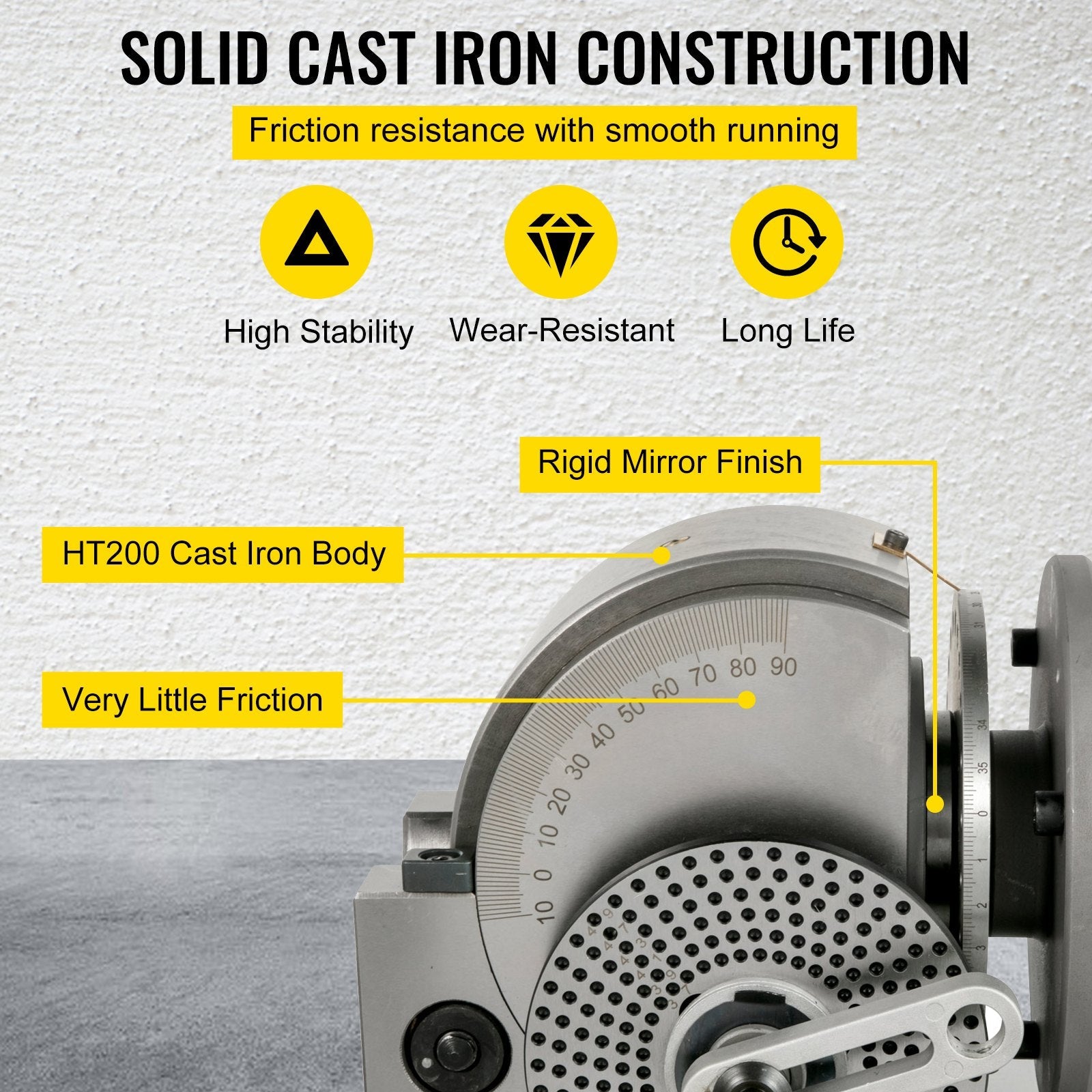

Heavy-Duty Construction: Rugged, precision-machined components for long-lasting durability and high accuracy
-

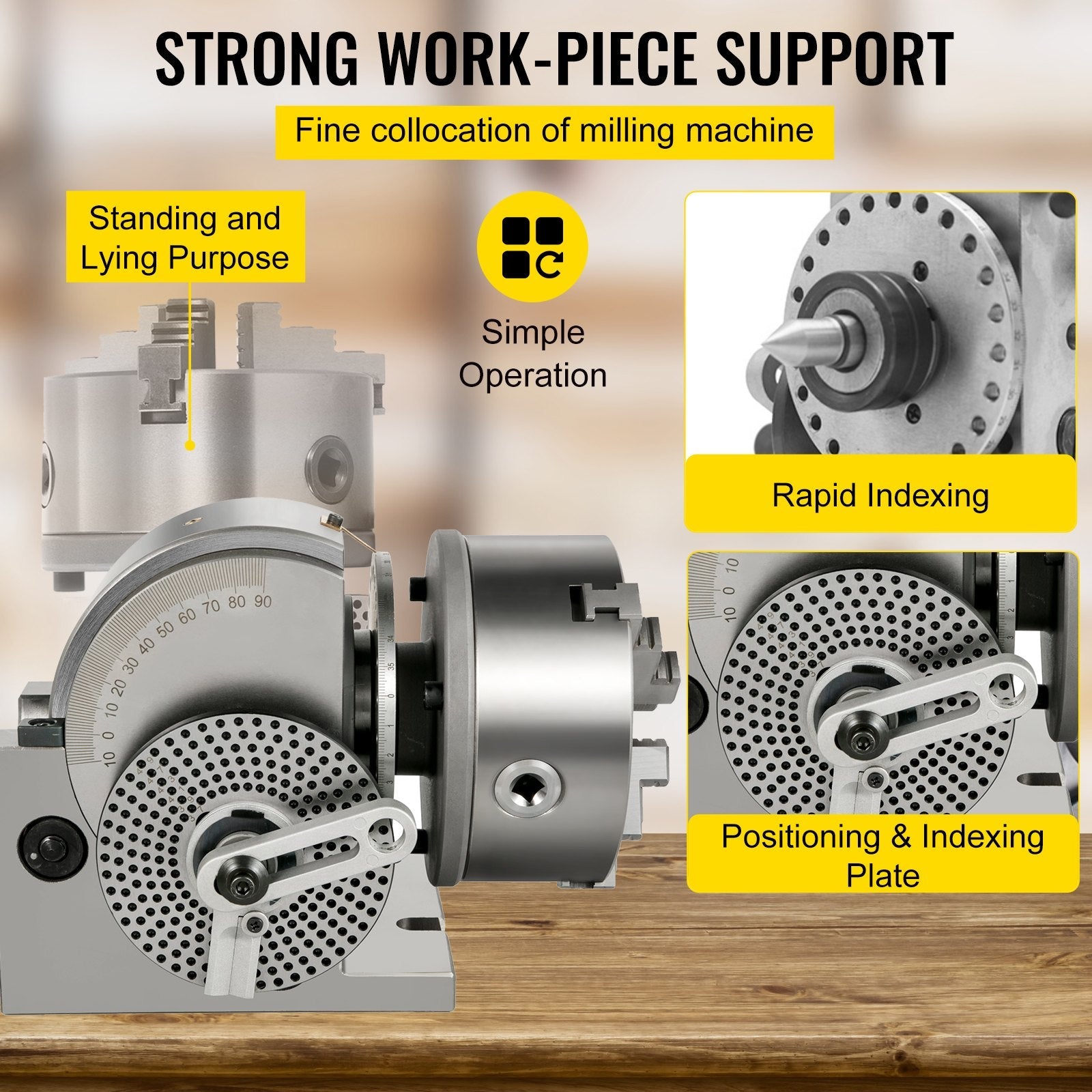

MT3 Adjustable Tailstock: Matches headstock height and supports long workpieces during milling or drilling
-

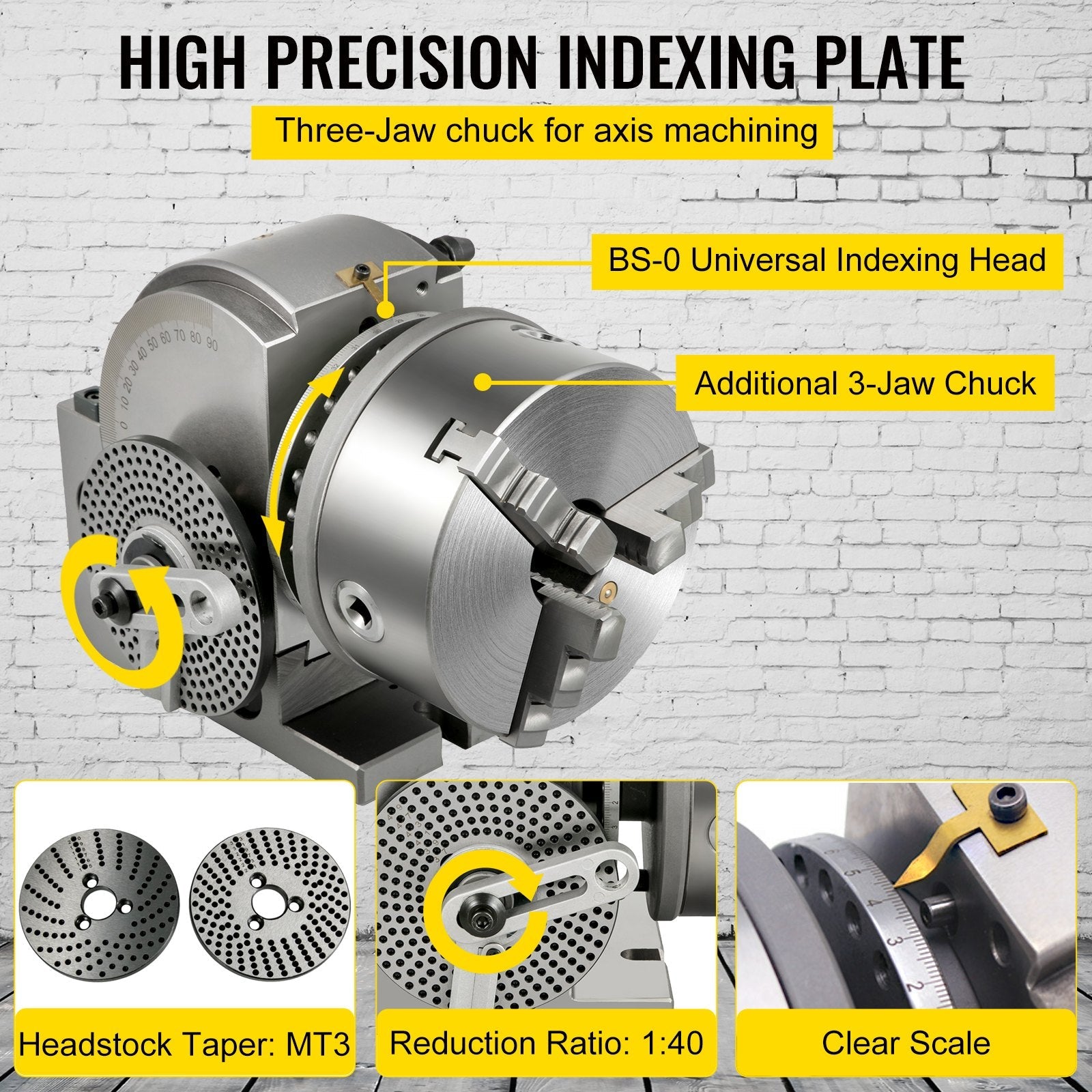

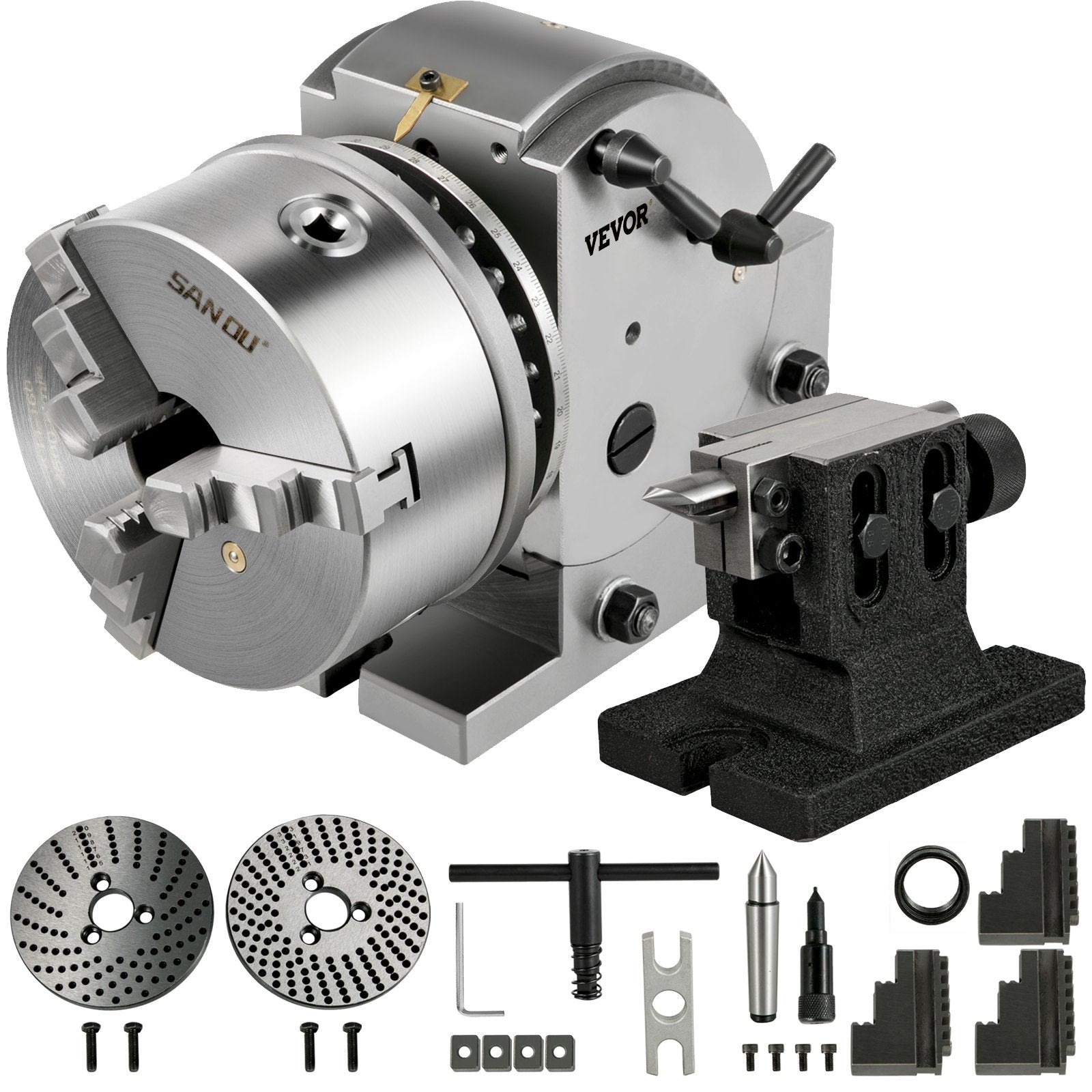

Includes 3 Universal Dividing Plates: Facilitates various dividing operations to suit multiple machining requirements
-

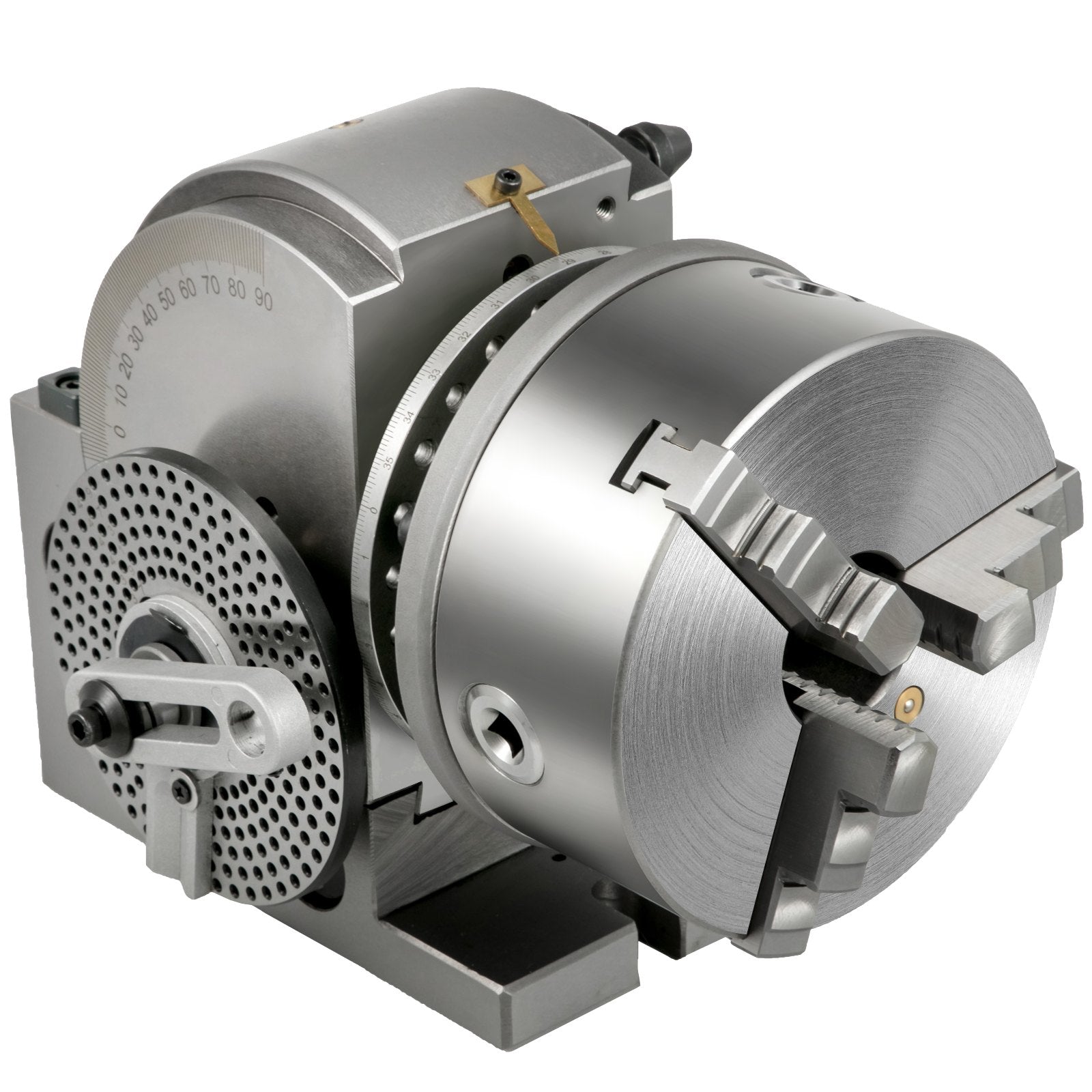

6" 3-Jaw Chuck: Securely holds workpieces with excellent concentricity and clamping force
-

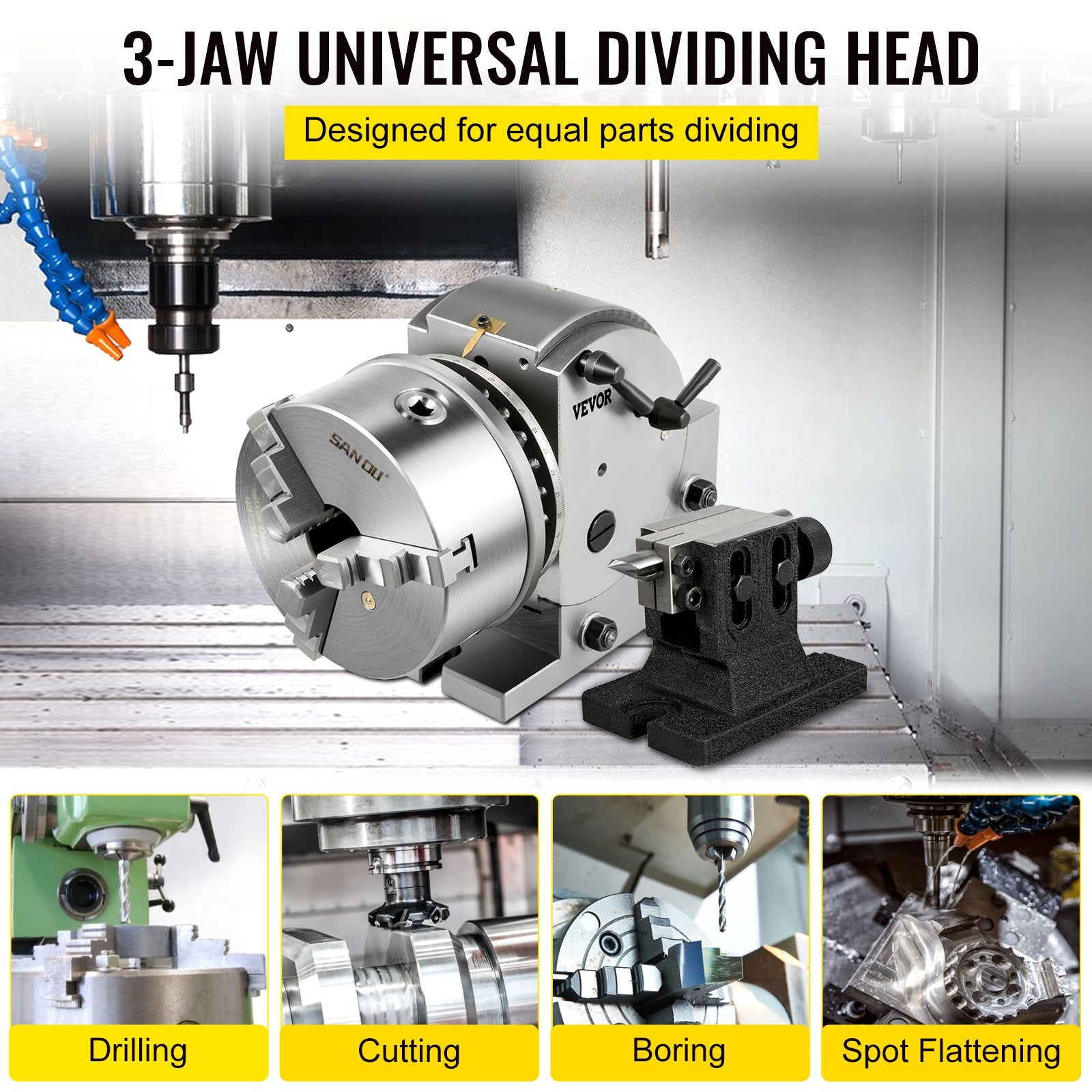

Wide Application: Ideal for use in milling, grinding, drilling, gear cutting, and other metalworking tasks
Specification
-
Spindle Speed: 2500 RPM
-
Reduction Ratio: 1:40
-
Center Height: 5" / 12.8 cm
-
Swing: 6-1/2" / 16.8 cm
-
Chuck Diameter: 6" / 16 cm
-
Headstock Dimensions: 4.4" x 7.9" x 11.8" / 11.3 x 20.2 x 21.9 cm
-
Tailstock Dimensions: 4.5" x 6.6" x 5.2" / 11.5 x 17 x 13.4 cm
-
Tailstock Taper: MT3
-
Net Weight: 77 lbs / 35 kg
