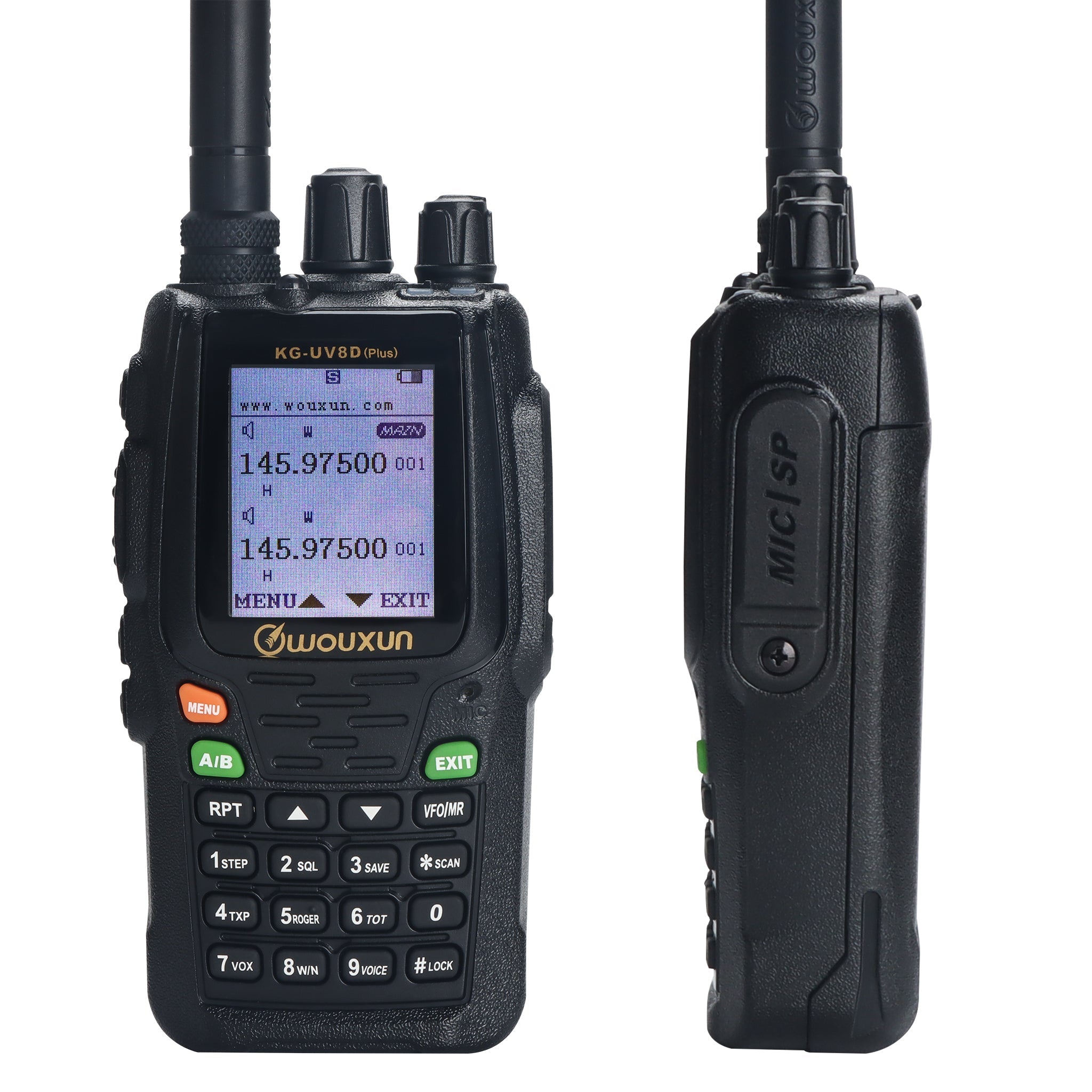

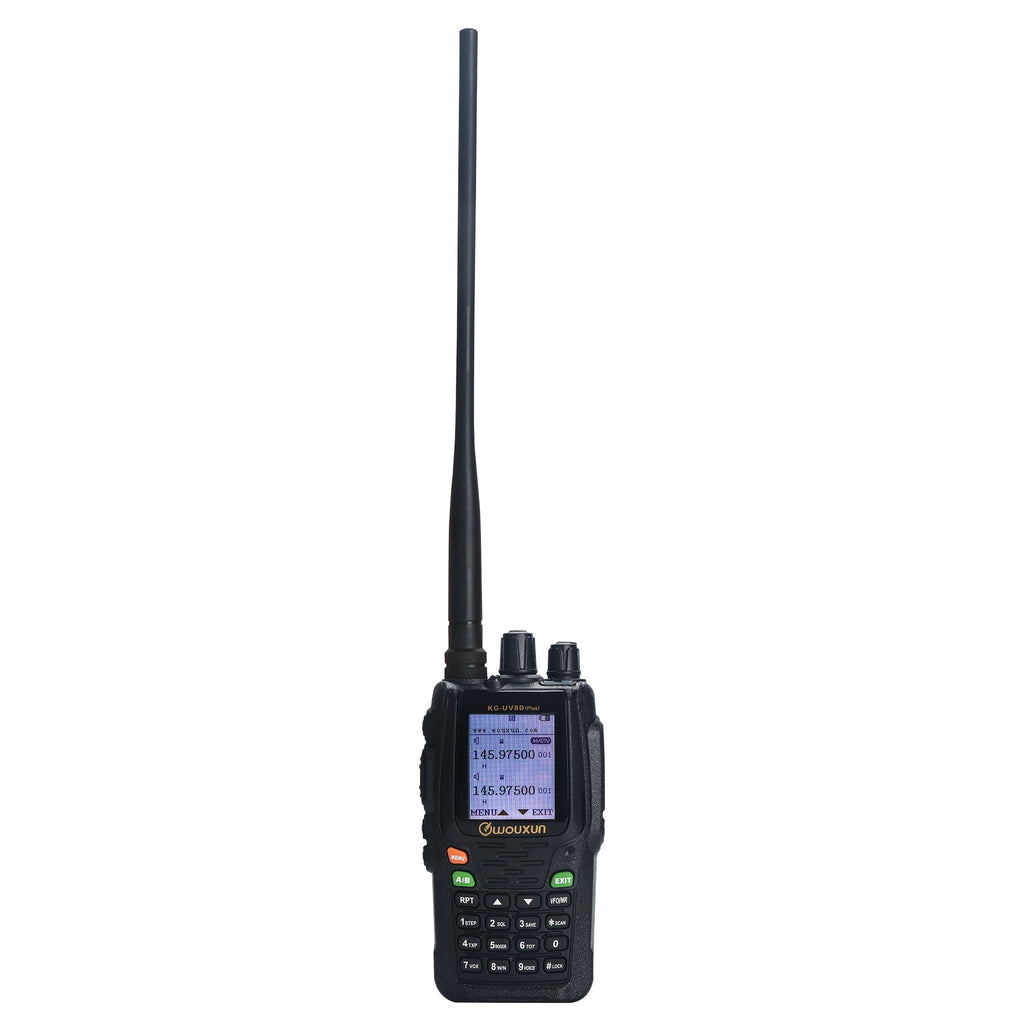

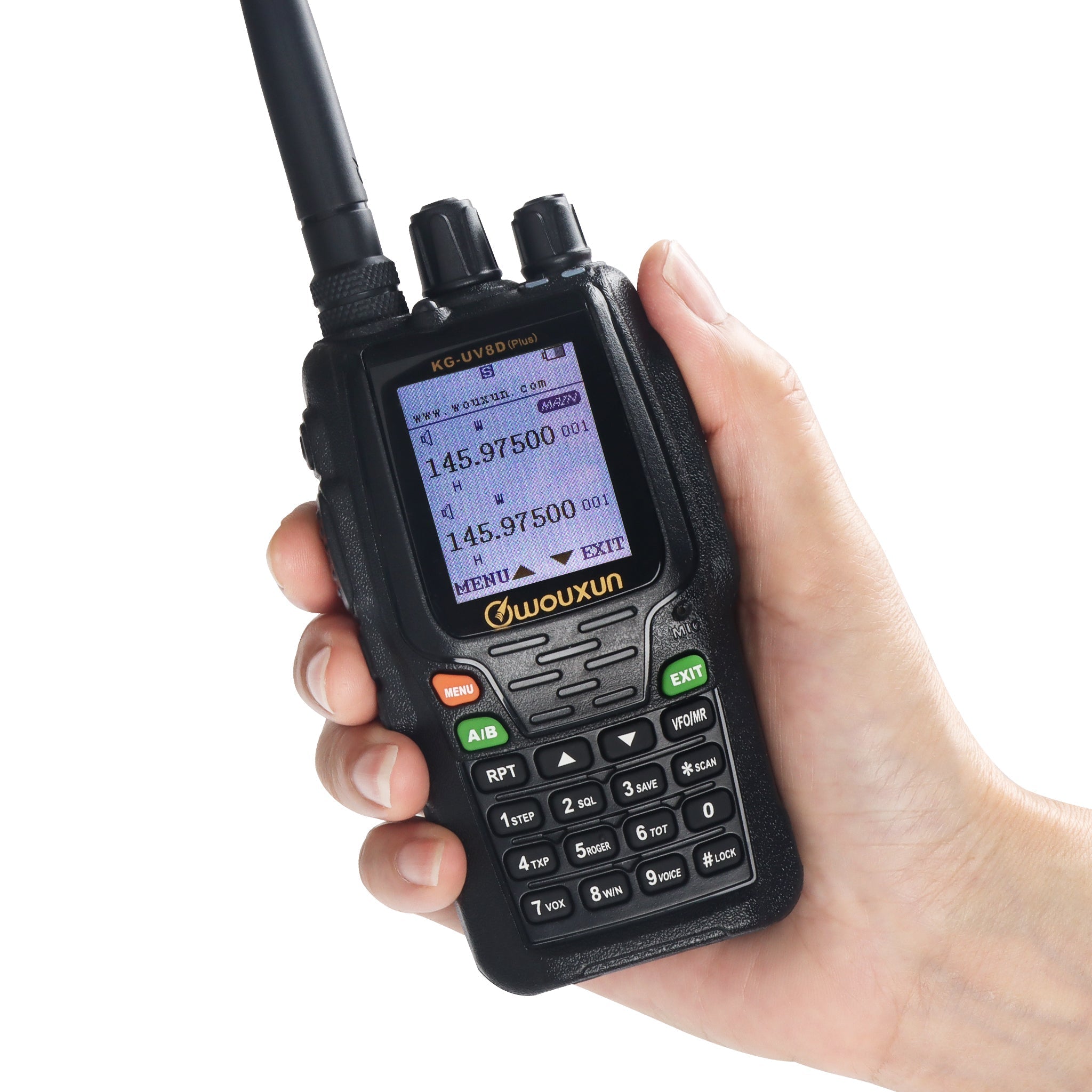

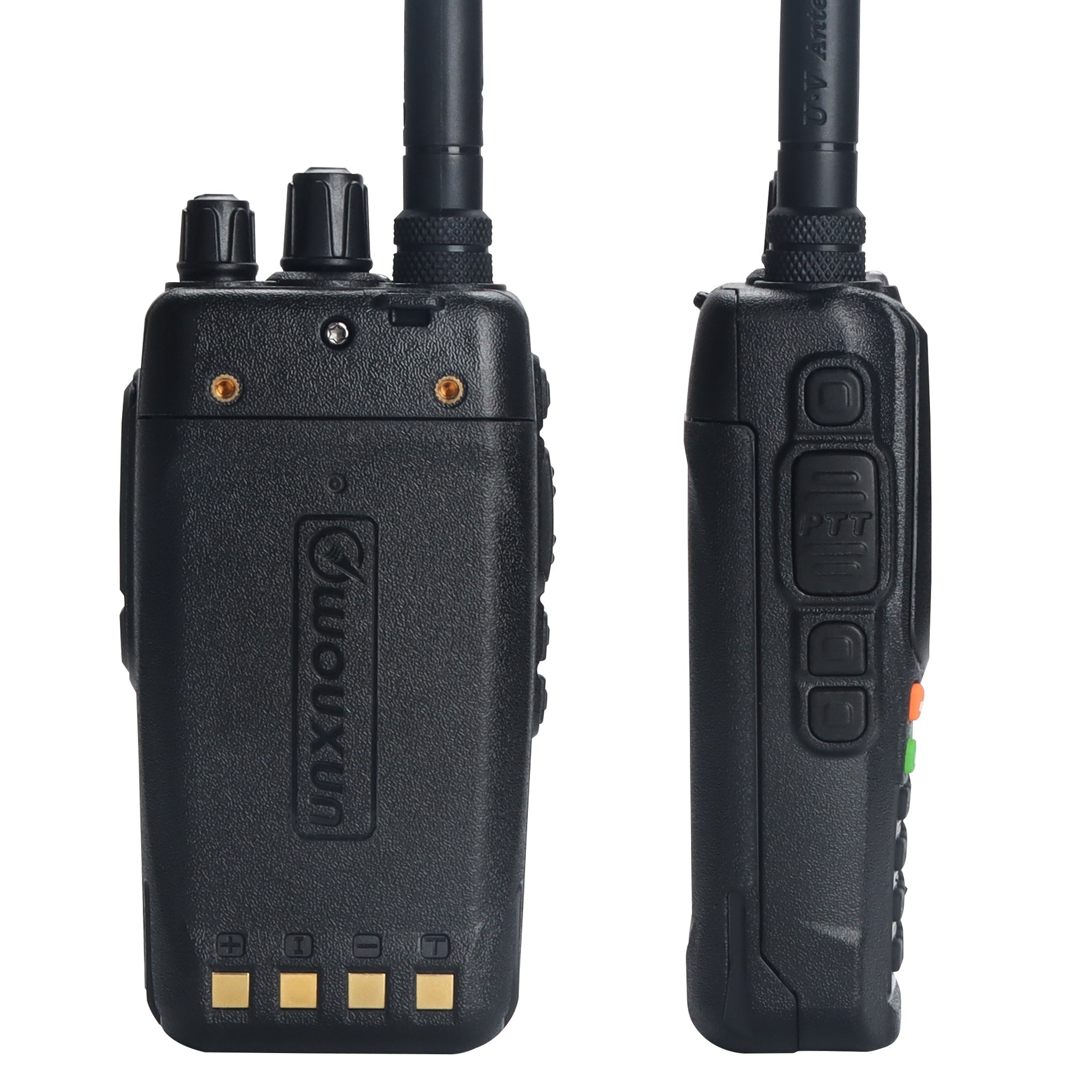

Wouxun KG-UV8D(Plus) Dual Band Amateur Ham Radio with Voice Encryption – 144–148 & 430–450 MHz VHF/UHF Two-Way Transceiver

Experience secure, high-performance communication with the Wouxun KG-UV8D(Plus) Dual Band Amateur Radio, designed for licensed ham radio operators. This advanced transceiver supports VHF/UHF 144–148 MHz & 430–450 MHz transmission, offering crystal-clear two-way FM voice communication. With built-in voice encryption, cross-band repeater functionality, and duplex operation, it ensures reliable and private connections even in demanding environments. Equipped with a large color screen, customizable side keys, and 999 memory channels, the KG-UV8D(Plus) combines power, precision, and flexibility for amateur radio enthusiasts who demand the best.

Features:

• Dual Band Operation: Transmit on 144–148 MHz (VHF) & 430–450 MHz (UHF); receive 136–174 MHz & 400–470 MHz.

• Voice Encryption: Secures your conversations with password-protected encryption for enhanced privacy.

• Duplex & Dual Receive Mode: TX on one area while RX simultaneously on another frequency or band.

• Cross-Band Repeater Function: Programmable frequency offset and direction (UHF↔VHF).

• Wide/Narrow Bandwidth Selection: Choose between 25KHz or 12.5KHz for optimal performance.

• 999 Memory Channels: Store and manage multiple frequencies for quick access.

• DTMF Encoding & Decoding: Supports all, group, and selective calling options.

• Customizable Interface: Editable power-on message, assignable side keys, and adjustable backlight.

• Additional Functions: VOX, SOS, FM radio (20 presets), flashlight, priority scan, stopwatch, and remote alarm.

• Multilingual Support: Chinese/English voice and display options.

Specifications:

• Model: Wouxun KG-UV8D(Plus)

• Frequency Range (Tx/Rx): 144–148 MHz / 430–450 MHz

• Receive Only Range: 136–174 MHz / 400–470 MHz

• Number of Channels: 999

• Modulation Type: FM (11K0F3E / 16K0F3E)

• Bandwidth: Wide (25KHz) / Narrow (12.5KHz)

• Repeater Mode: Cross-band VHF↔UHF supported

• Display: Large color LCD screen

• Voice Guide: Chinese/English

• Functions: DTMF, VOX, SOS, CTCSS/DCS, compander, encryption, flashlight

• Power Output: High / Medium / Low selectable

• Frequency Stability: ±1ppm

• Memory Channels: 999

• Operating Voltage: Standard Li-ion battery pack

• Working Temperature: -20°C ~ +60°C

• Antenna Impedance: 50Ω

• Dimensions: Approx. 115 × 60 × 37.5 mm

• Weight: Approx. 234g

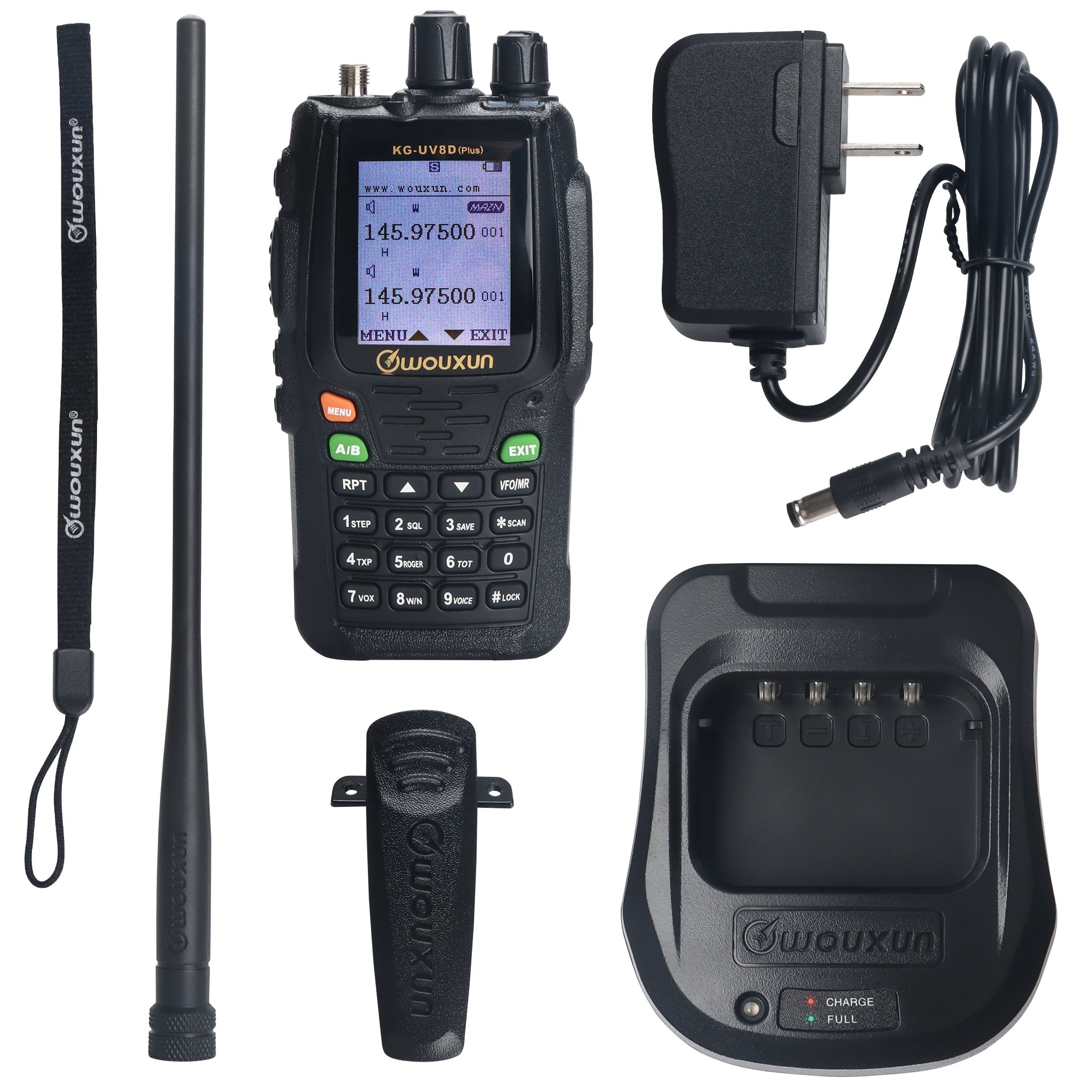

Package Includes:

• 1 × Wouxun KG-UV8D(Plus) Dual Band Radio

• 1 × Li-ion Battery Pack

• 1 × Antenna

• 1 × Charger Base

• 1 × Belt Clip

• 1 × Hand Strap

• 1 × User Manual
