Description

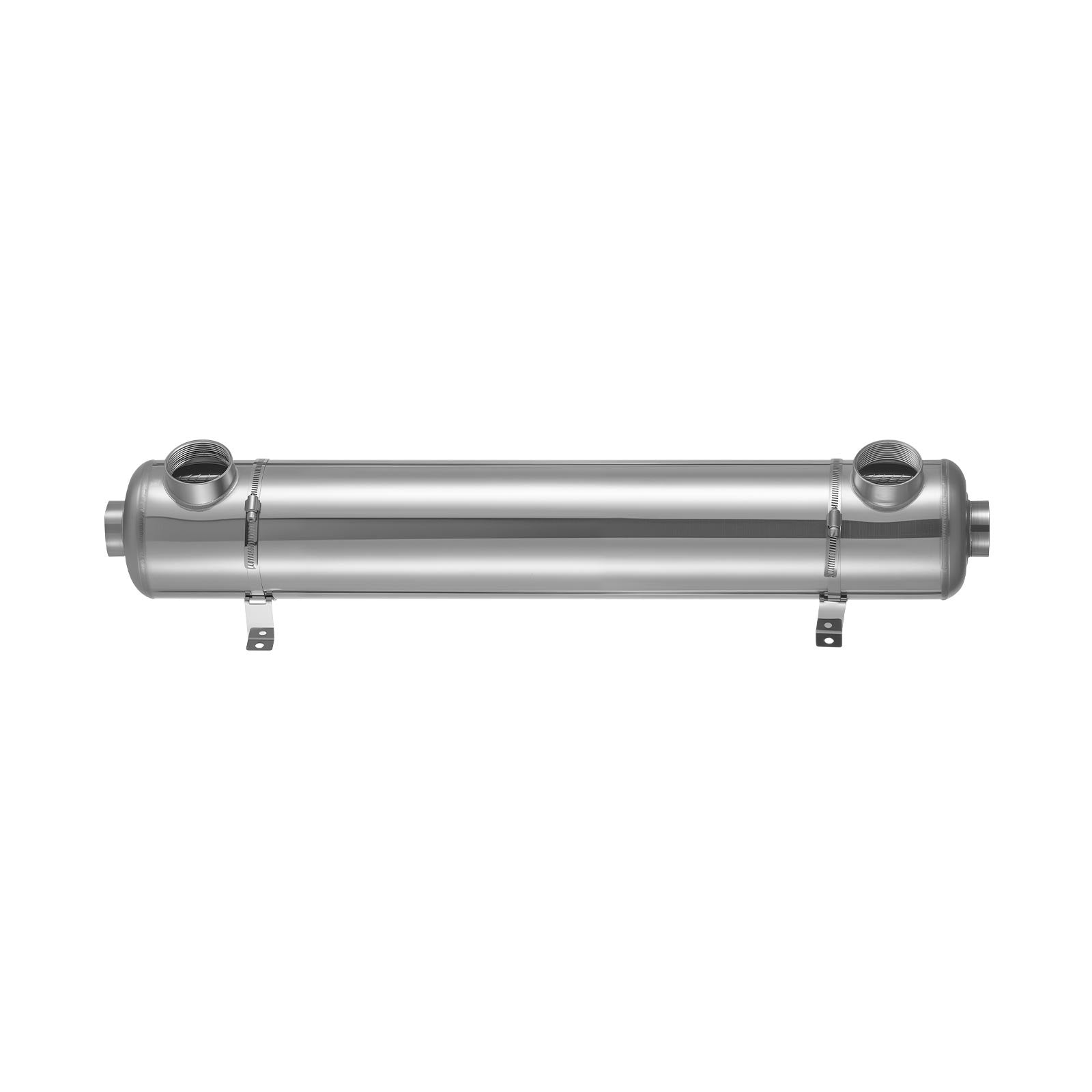

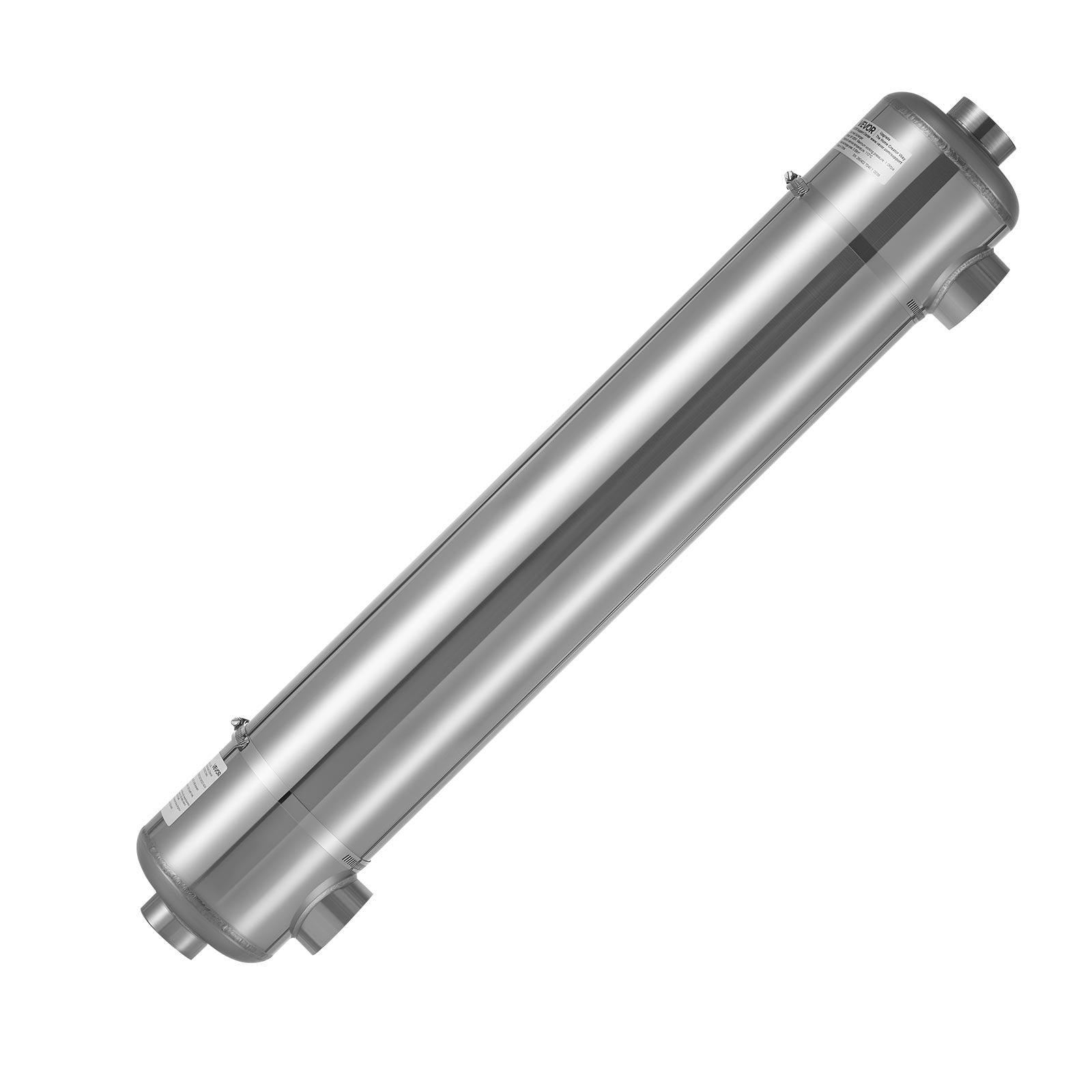

Efficiently heat your swimming pool, spa, or hot tub with this high-performance 360K BTU pool heat exchanger. Designed with durable 316L stainless steel construction and advanced heat transfer technology, it delivers reliable temperature control for residential and commercial water heating applications.
Key Features:

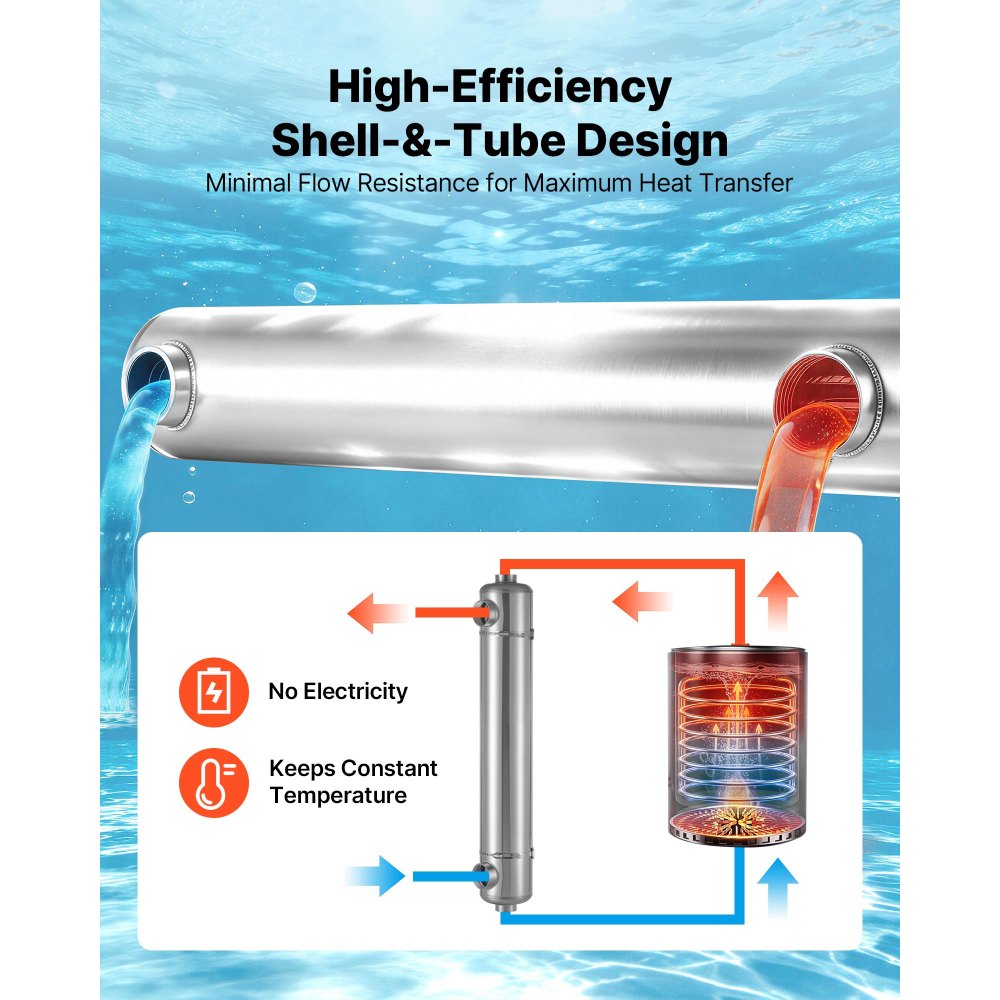

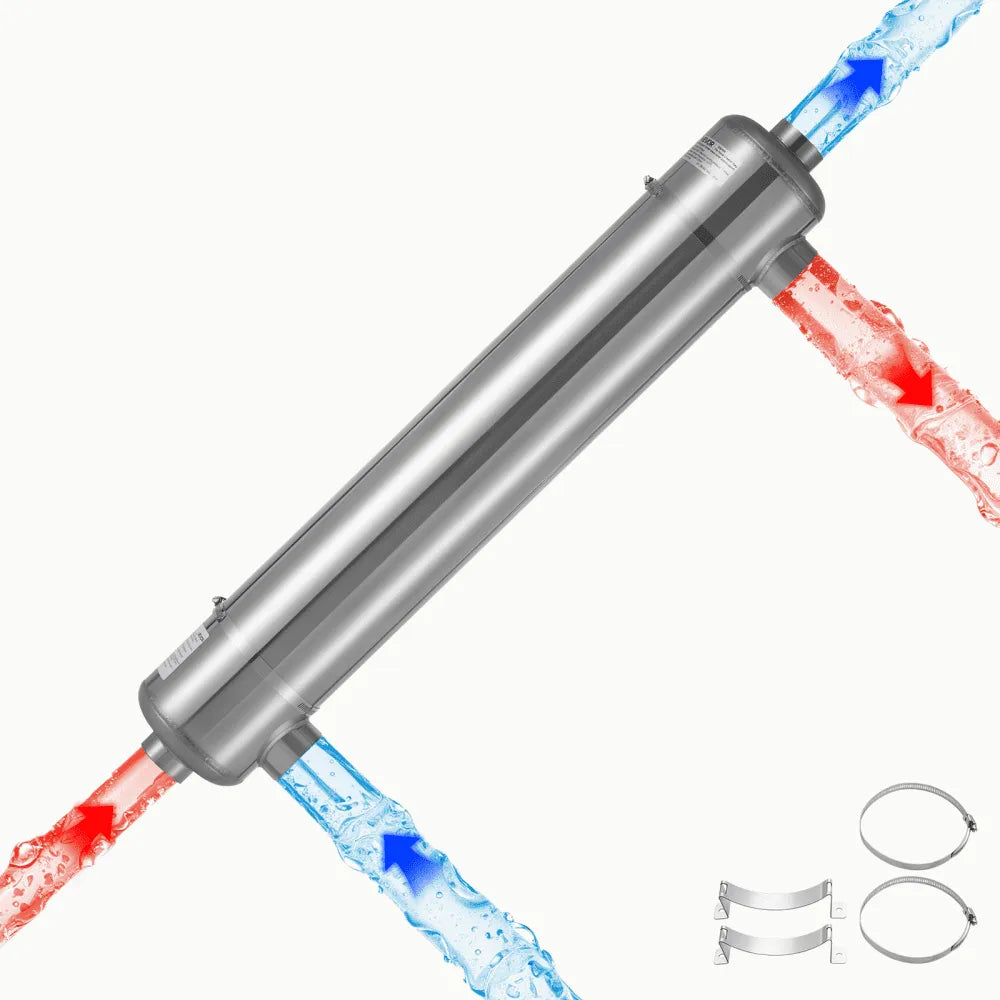

- High-Efficiency Heating: Delivers up to 360,000 BTU/h of heating power with efficient water-to-water heat transfer for fast and consistent pool heating performance.
- Premium 316L Stainless Steel: Built with corrosion-resistant 316L stainless steel tubing for long-lasting durability in humid, indoor, and outdoor environments.

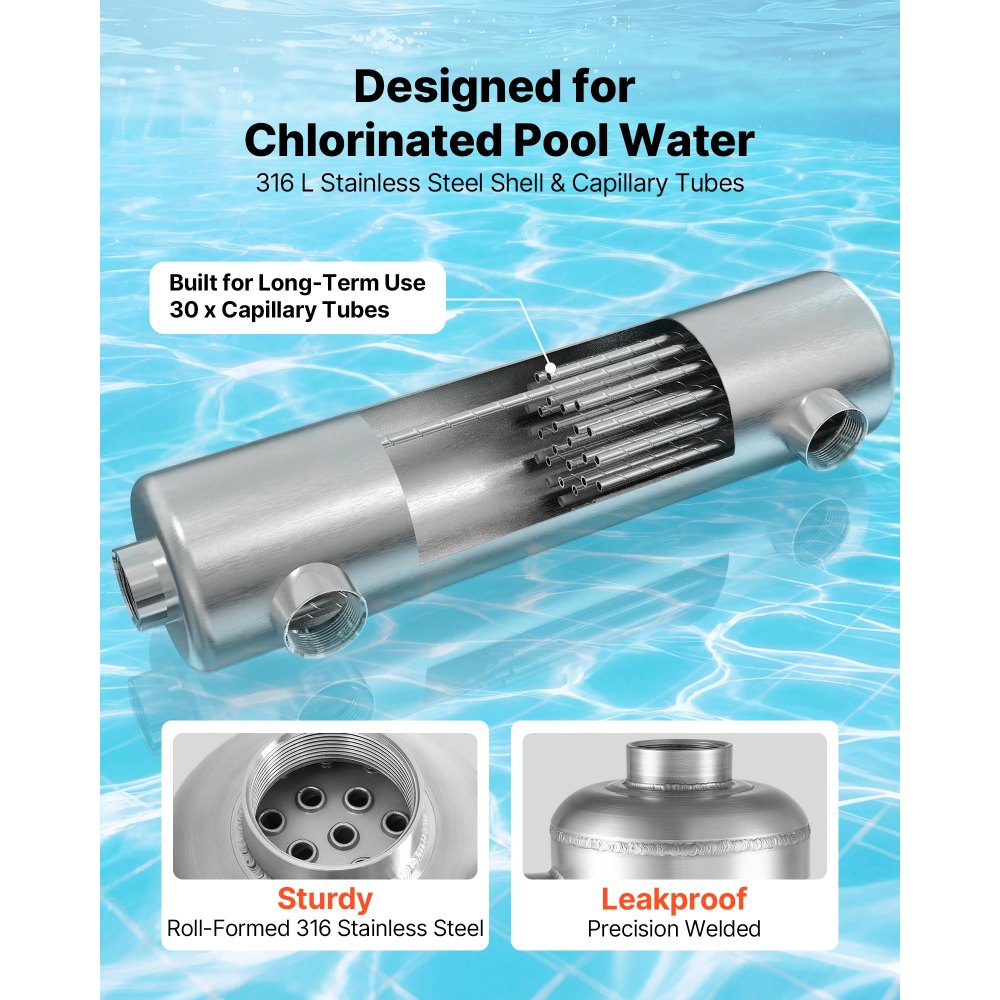

- Large Heat Transfer Surface: Features 30 capillary tubes and a 7.4 ft² heat exchange area for improved thermal efficiency and reliable heat distribution.
- Leakproof Construction: Manufactured using high-pressure vacuum brazing technology and thoroughly leak tested for dependable long-term operation.
- Wide Temperature Range: Operates in temperatures from -18℉ to 230℉ (-28℃ to 110℃), making it suitable for a variety of heating systems.
- Versatile Applications: Ideal for swimming pools, spas, hot tubs, aquaculture systems, and water treatment setups requiring efficient temperature control.
Specifications:
- Material: 316L Stainless Steel
- Color: Silver
- Heat Capacity: 360K BTU/h
- Heat Exchange Area: 7.4 ft² / 0.69 m²
- Number of Tubes: 30
- Operating Temperature: -28℃ to 110℃ / -18℉ to 230℉
- Port Connection: Tube Side
- Net Weight: 17.6 lbs / 8.0 kg
- Dimensions: 5.2 x 6.0 x 32.8 in / 133 x 153 x 832 mm
