Product Description

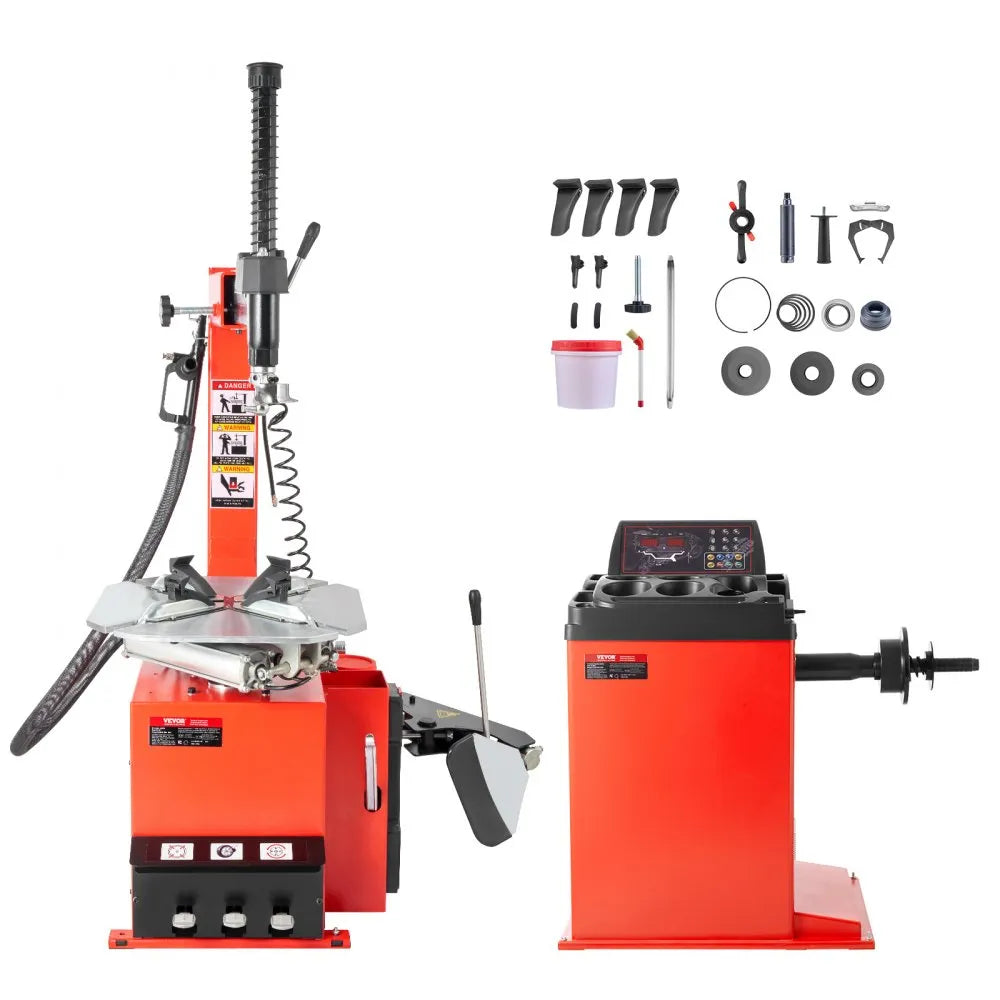

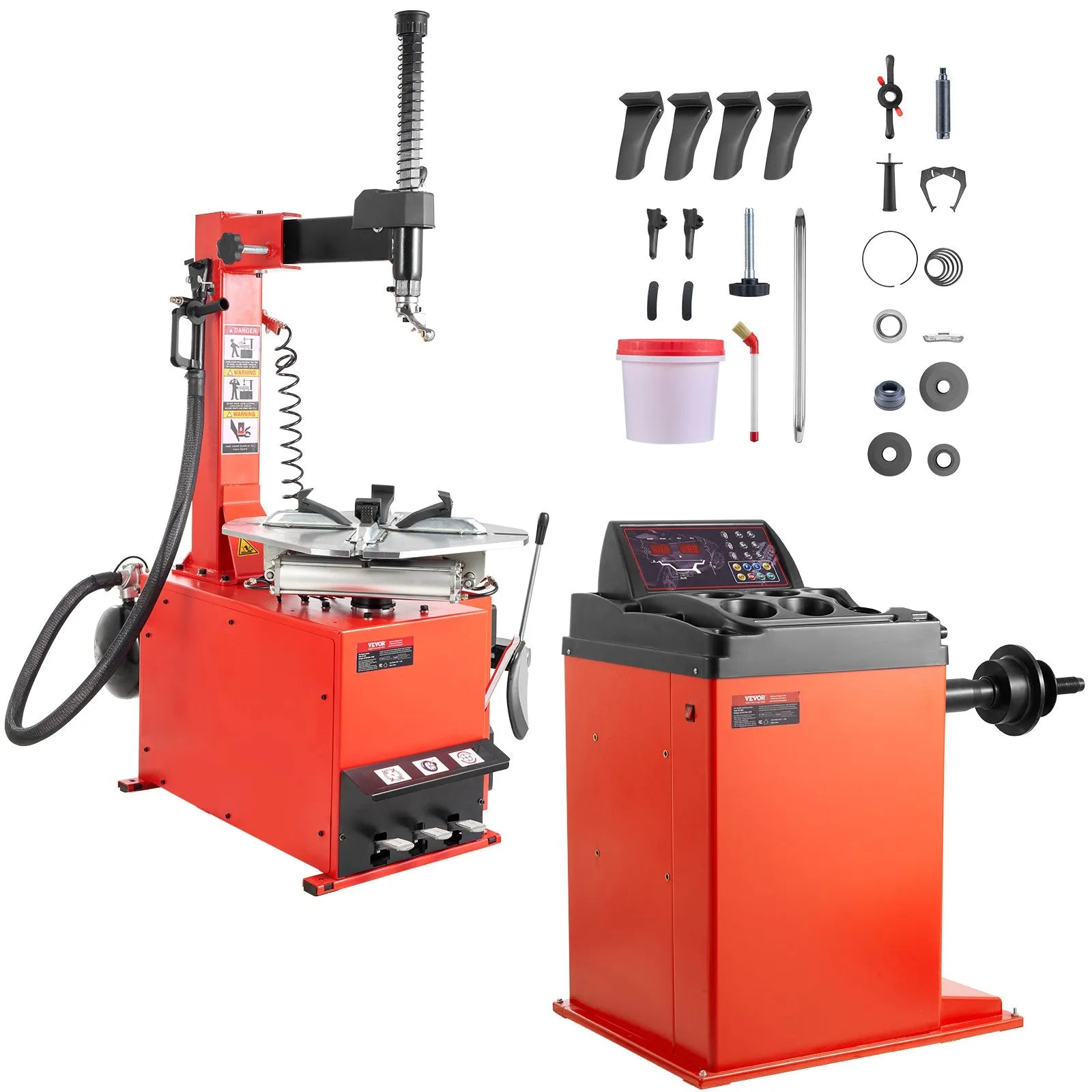

Take your garage or automotive workspace to the next level with this electric tire changer and wheel balancer, designed for mounting, removing, inflating, and balancing tires on a wide range of passenger vehicles.
Powered by a 1.5 HP tire changer motor, the machine provides strong and consistent power for everyday tire service. The integrated 1.0 MPa inflation tank and pressure gauge allow you to connect your own air compressor for convenient tire mounting, dismounting, and inflation.
The machine accommodates a wide range of tire and rim sizes, making it suitable for sedans, SUVs, pickup trucks, and other passenger vehicles.

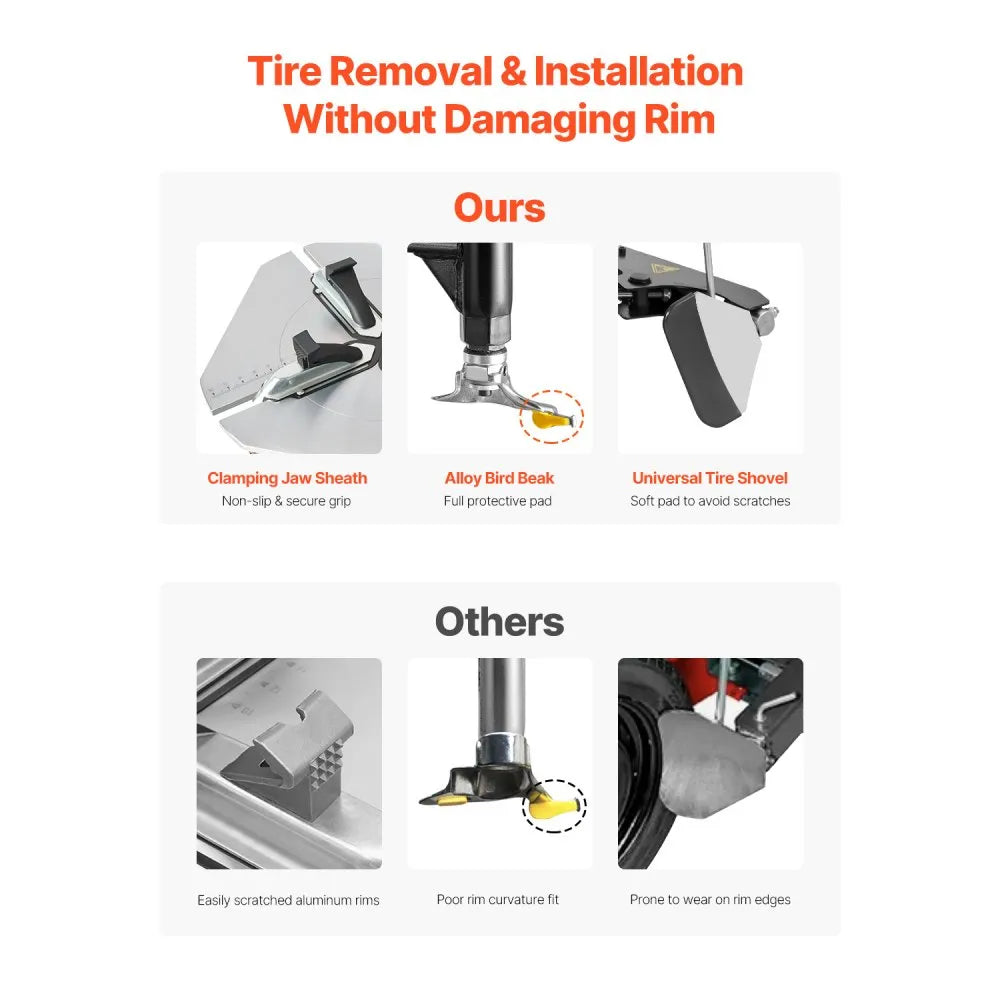

The upgraded chuck jaw covers help increase grip while protecting wheel rims, while the padded universal tire shovel and bird-beak design help reduce the risk of damage to tires and rims.

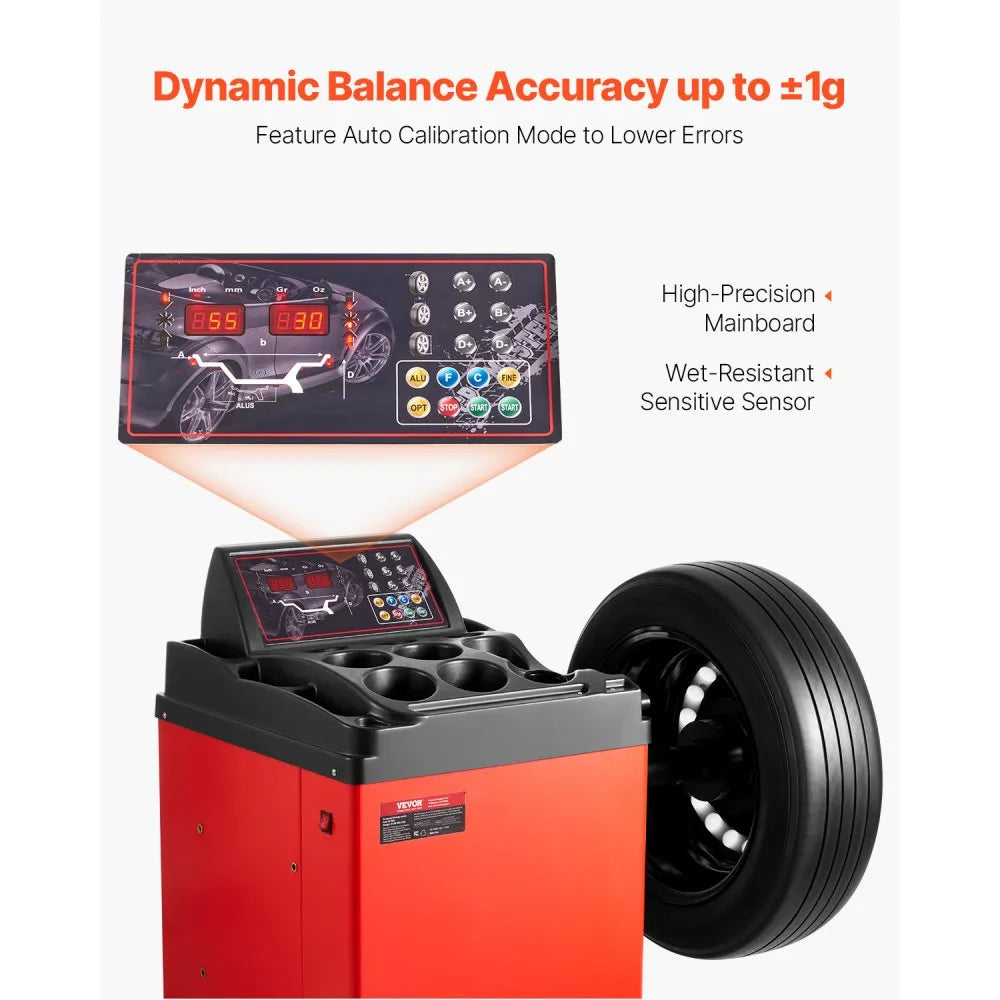

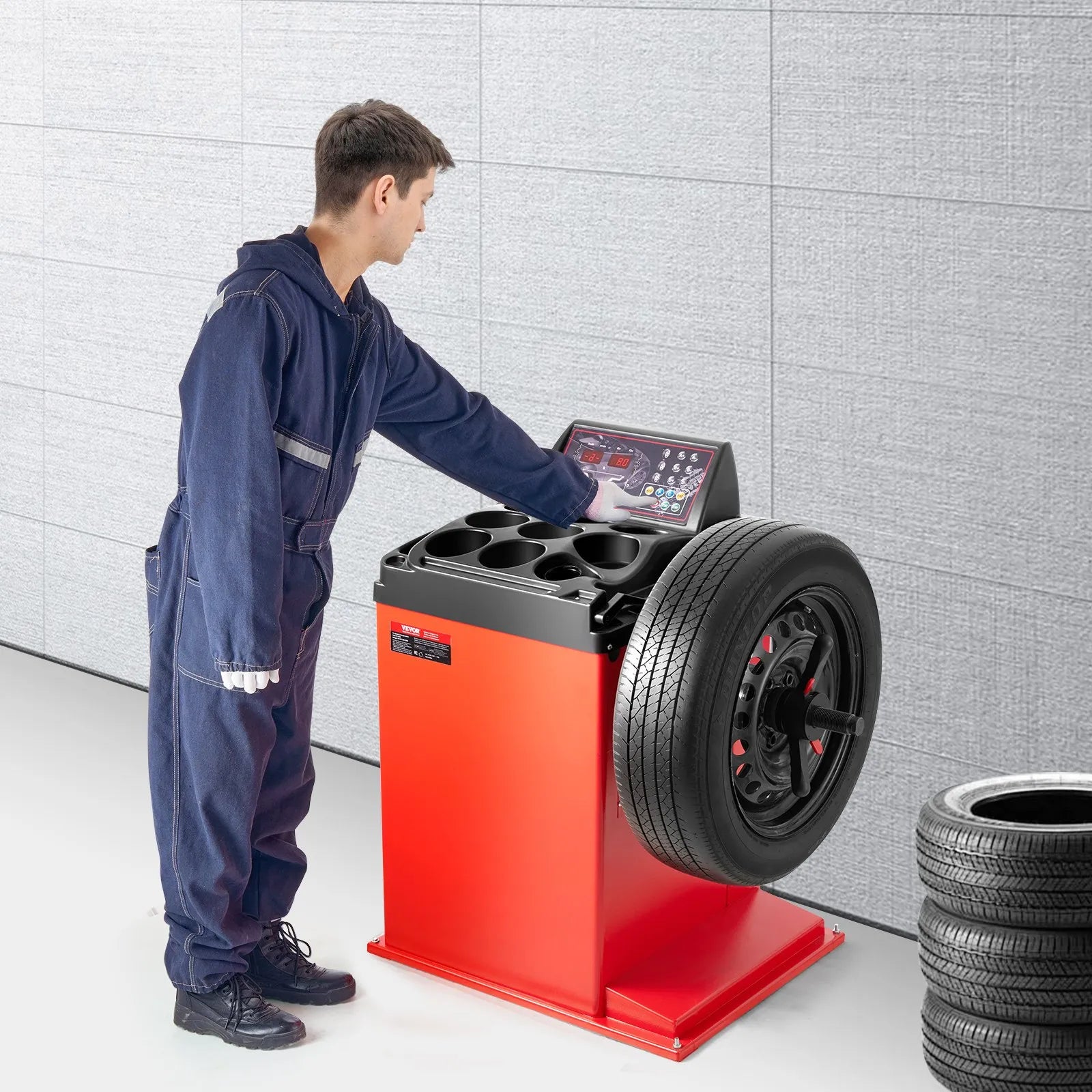

The included tire balancer features a 0.3 HP motor and precision measurement system capable of ±1g accuracy. A sealed sensor and precision algorithm board help provide reliable balancing measurements, while the included calipers and retractable measuring tape make setup and adjustments easier.
Constructed from heavy-duty steel, the equipment is designed for demanding garage and automotive environments.
Key Features
- 2-in-1 Garage Equipment: Combines an electric tire changer with a wheel balancing machine.
- Powerful 1.5 HP Motor: Provides strong, consistent power for tire mounting and removal.
- 0.3 HP Balancer Motor: Designed for accurate wheel balancing.
- Wide Tire Compatibility: Accommodates a variety of passenger vehicle tire sizes.
- Large Tire Capacity: Handles tires up to 37.8" in outer diameter.
- Rim Compatibility: Supports outer rim diameters from 12" to 24.4".
- Tire Width: Supports tire widths from 3" to 13".
- Maximum Tire Weight: Up to 155 lbs.
- ±1g Balancing Accuracy: Precision measurement system helps provide accurate balancing adjustments.
- Auto Calibration Mode: Simplifies the wheel balancing process.
- Protective Chuck Covers: Help improve grip while protecting wheel rims.
- Padded Tire Tools: Designed to help reduce potential damage to tires and rims.

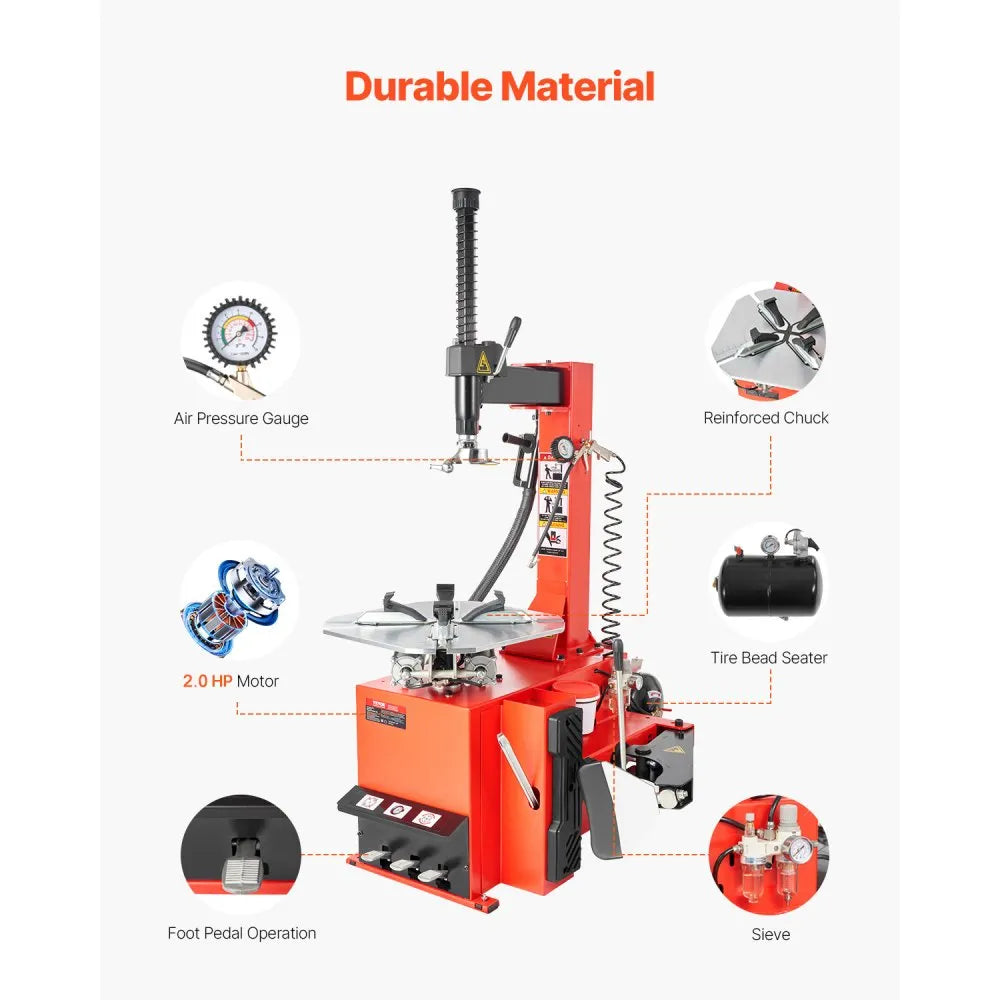

- Heavy-Duty Construction: Thickened steel body and 45# steel chuck provide durability.
- Inflation Tank: Includes a 1.0 MPa inflation tank and pressure gauge.
- Measuring Tools Included: Includes calipers and retractable measuring tape.
- 120V Operation: Designed for AC 120V, 60Hz power.
Tire Compatibility

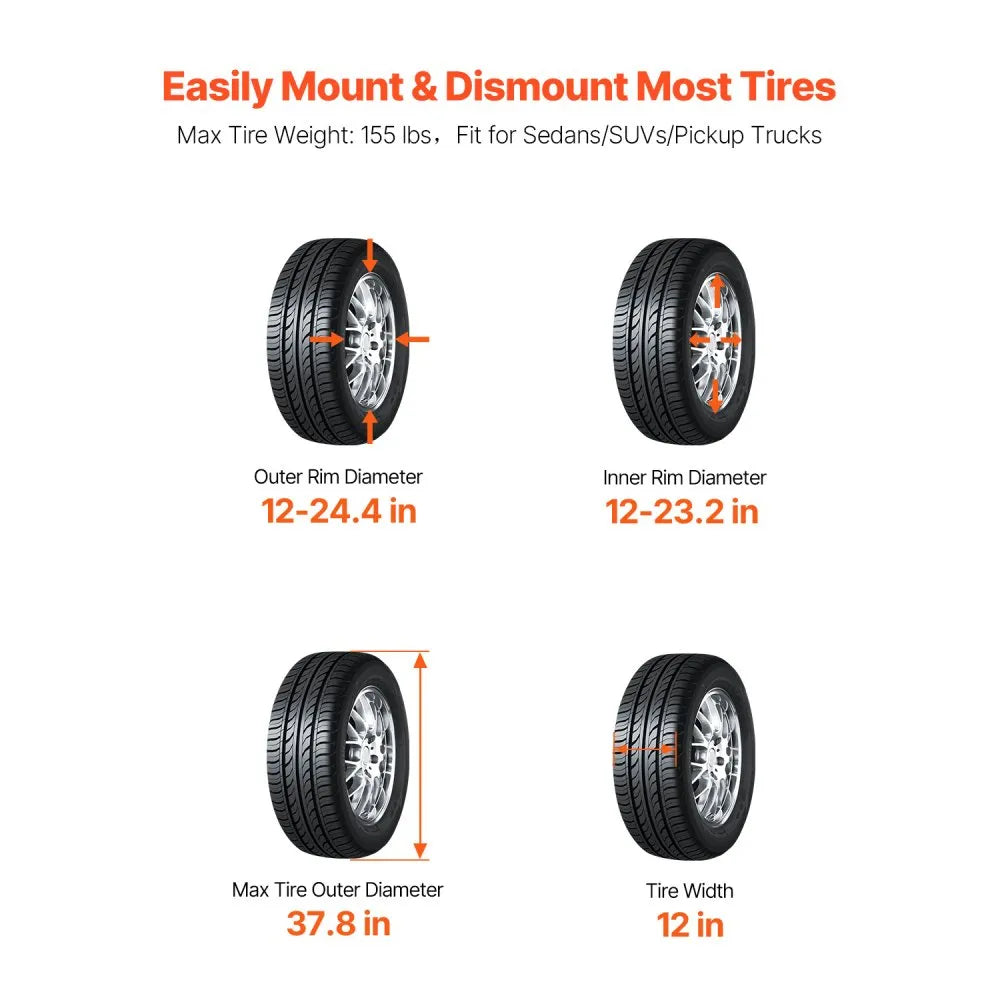

| Specification | Capacity |
|---|---|
| Outer Rim Diameter | 12"–24.4" |
| Inner Rim Diameter | 12"–23.2" |
| Maximum Tire Diameter | 37.8" |
| Tire Width | 3"–13" |
| Maximum Tire Weight | 155 lbs / 70.4 kg |
Specifications
| Specification | Details |
|---|---|
| Model | KC-502 / KC-9803 |
| Voltage | AC 120V |
| Frequency | 60Hz |
| Tire Changer Motor | 1.5 HP |
| Tire Balancer Motor | 0.3 HP |
| Tire Changer Dimensions | 47.2" × 35.4" × 69.7" |
| Balancer Dimensions | 42.5" × 27.6" × 40.2" |
| Net Weight | 449.7 lbs / 204 kg |
| Inflation Tank | 1.0 MPa |
| Balancing Accuracy | ±1g |
| Calibration | Auto calibration mode |
