Description

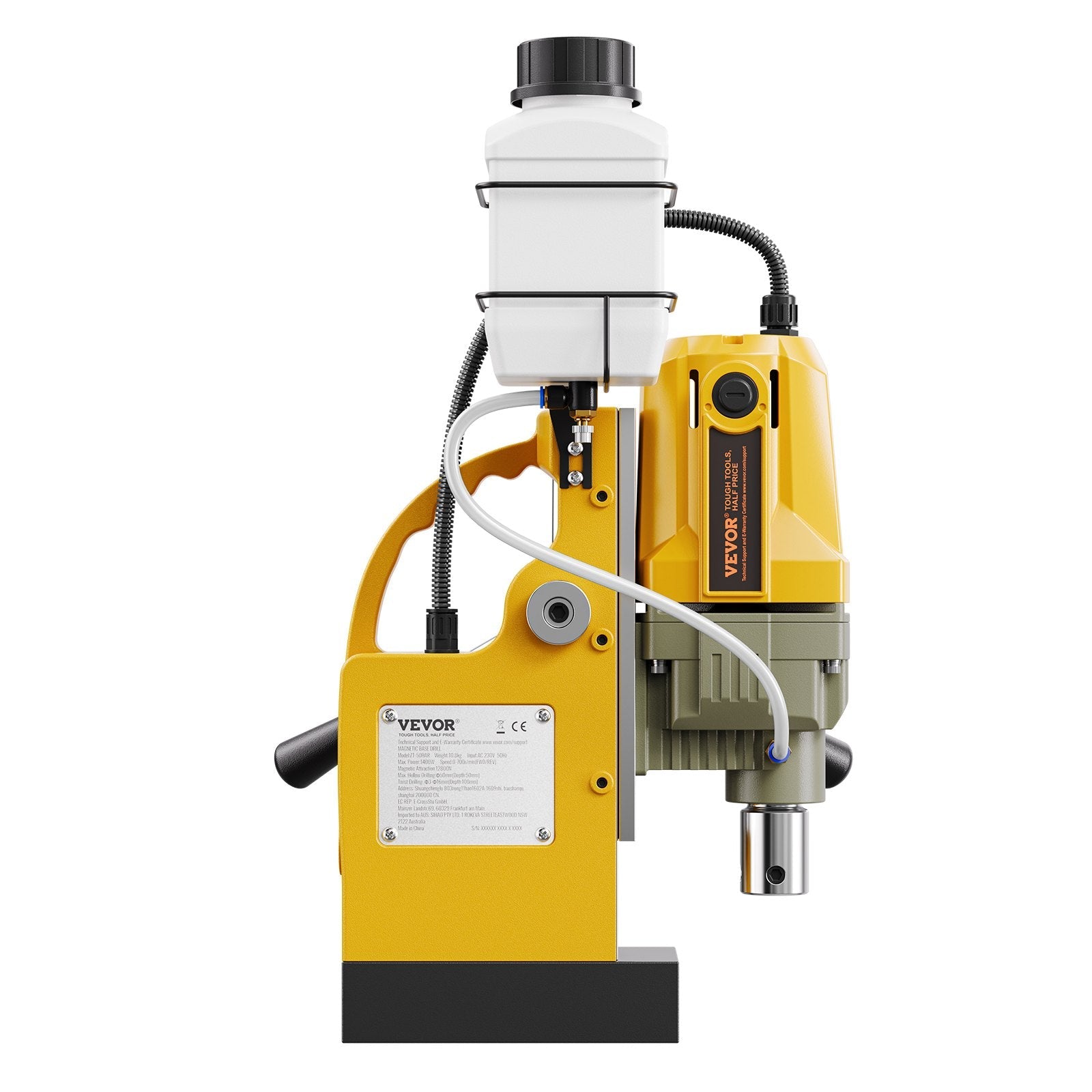

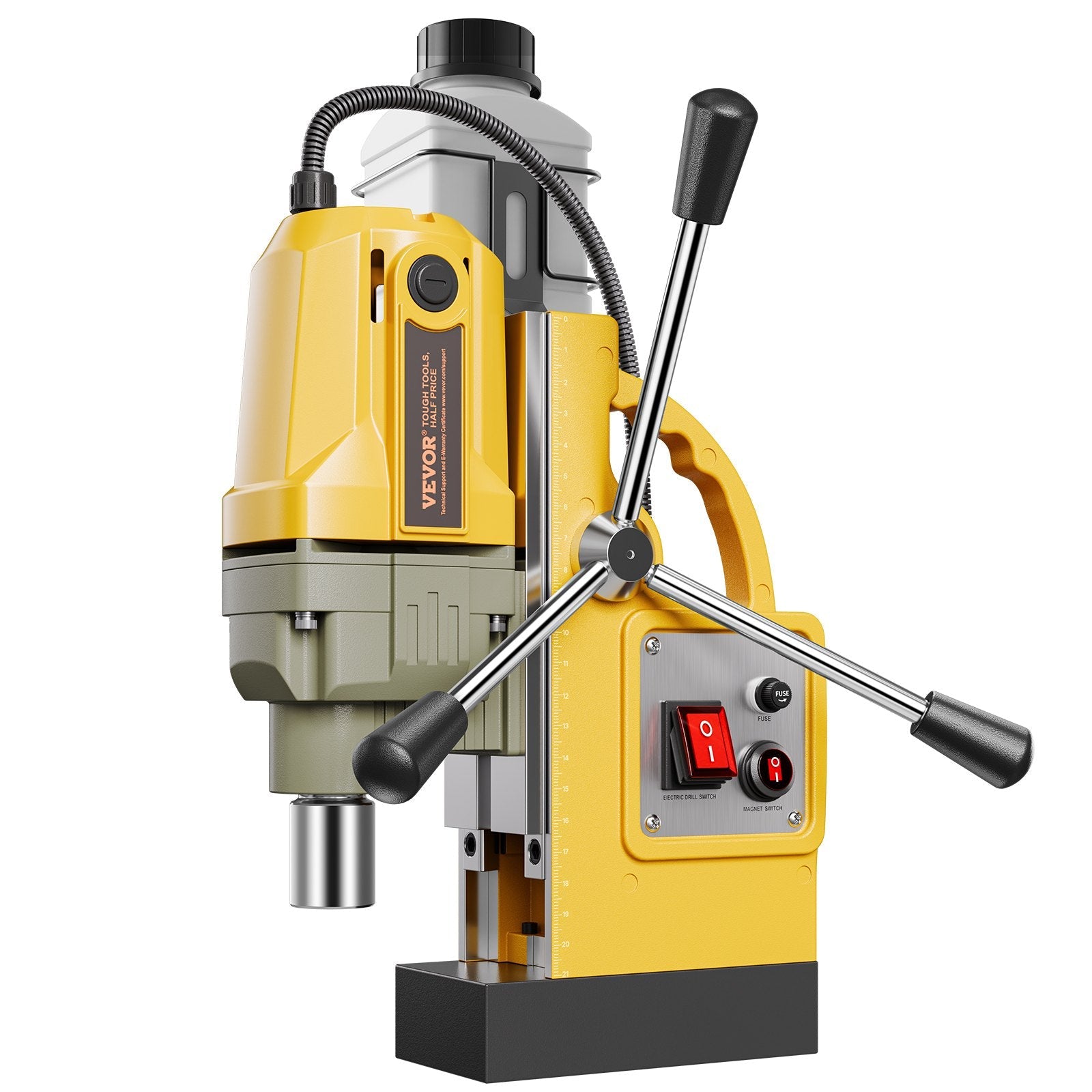

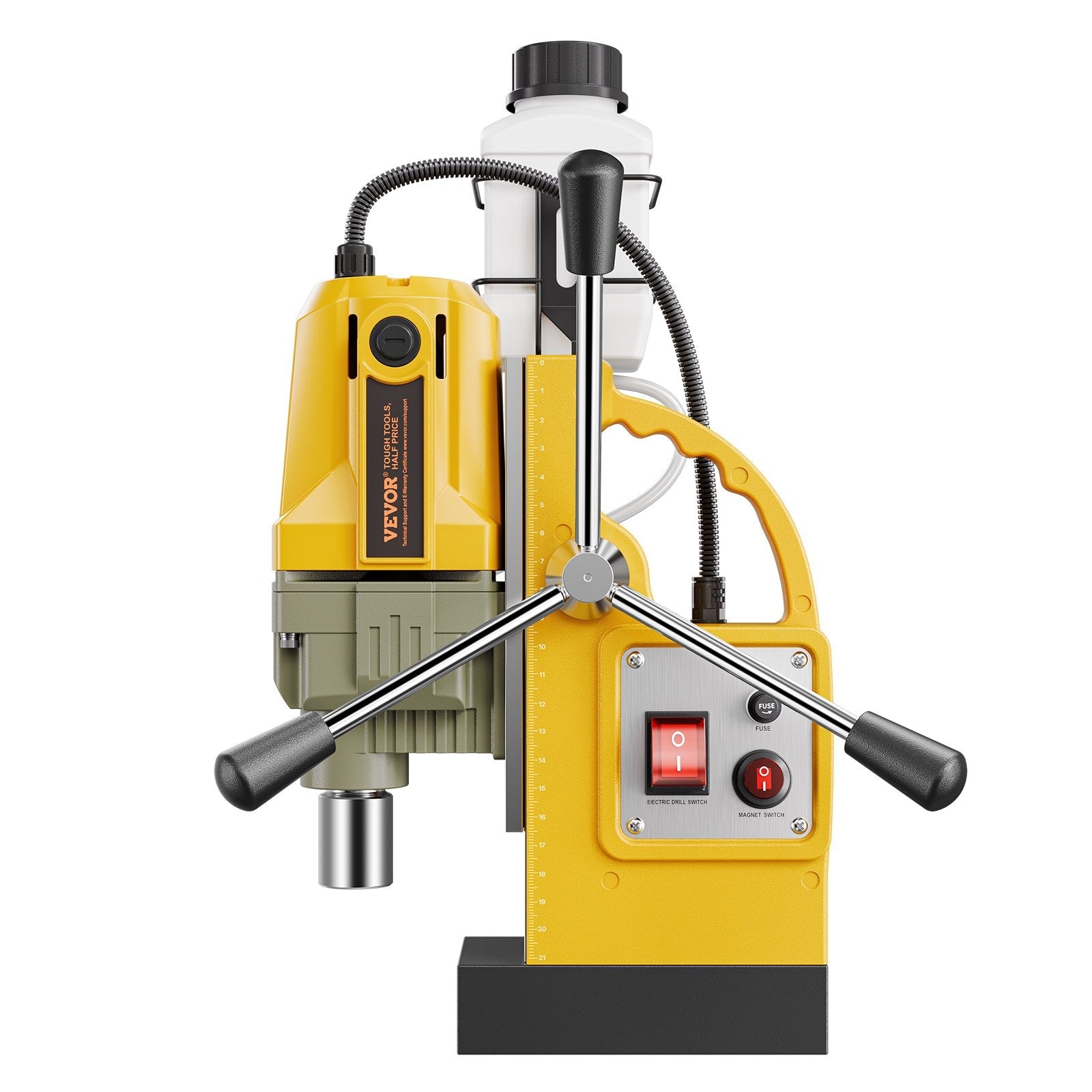

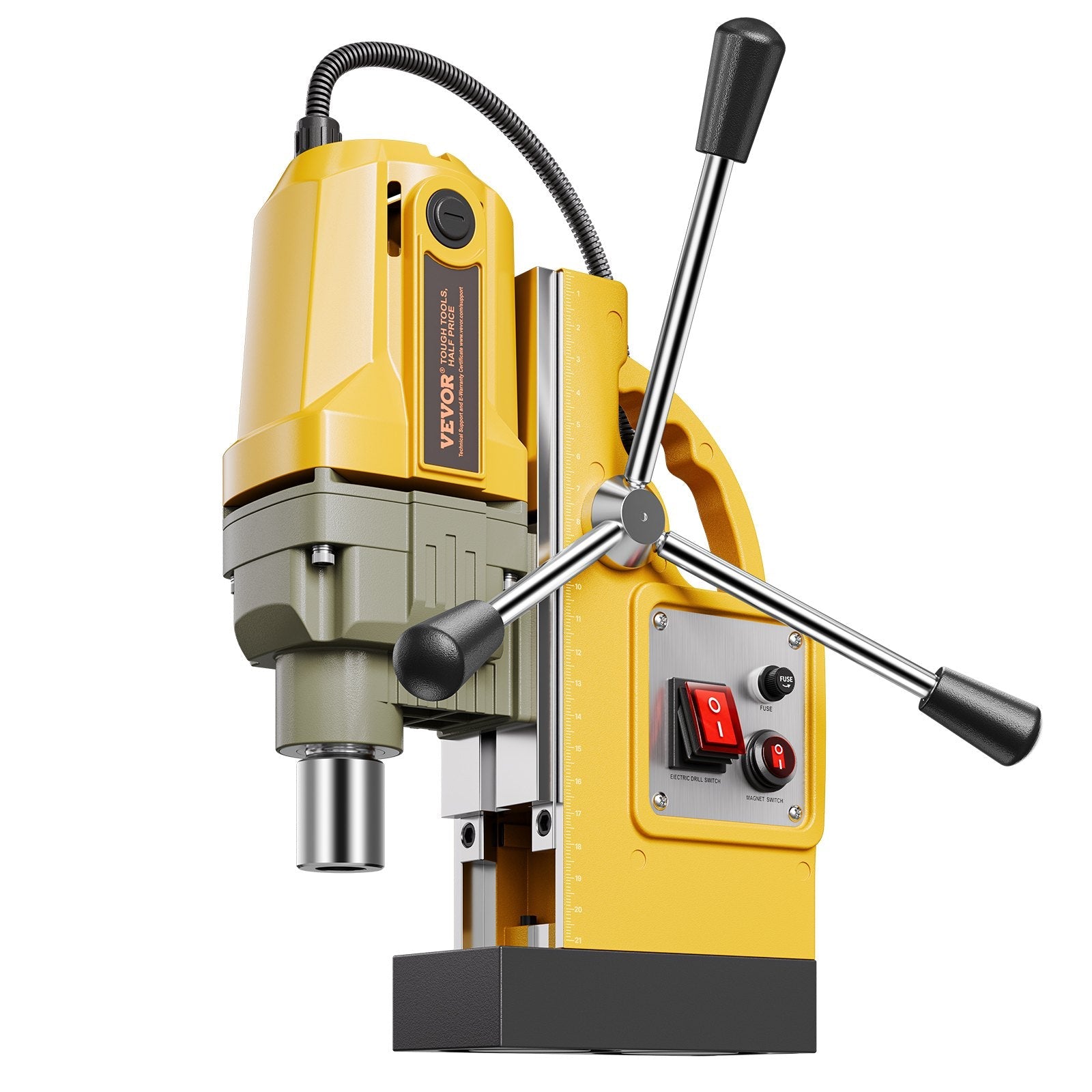

The VEVOR Magnetic Drill Press ZT-40HA is a powerhouse tool built for high-precision and heavy-duty metalworking. With a robust 1400W motor and 2810 lbf (12,500 N) of magnetic adhesion, this mag drill locks securely onto steel surfaces—ensuring superior stability for both vertical and horizontal drilling. Capable of boring up to 1.6 inches (40 mm) in diameter with coring drills and up to 0.6 inches (16 mm) with twist drills, it delivers unmatched versatility and control. A precise depth scale, 6.3-inch travel distance, and durable dovetail guide rails provide smooth, accurate performance job after job. Whether you're working in a fabrication shop or out in the field, this magnetic drill combines power, portability, and precision for the toughest drilling tasks.
Features
-
High-Powered Motor: 1400W of industrial-grade performance for heavy-duty drilling applications
-

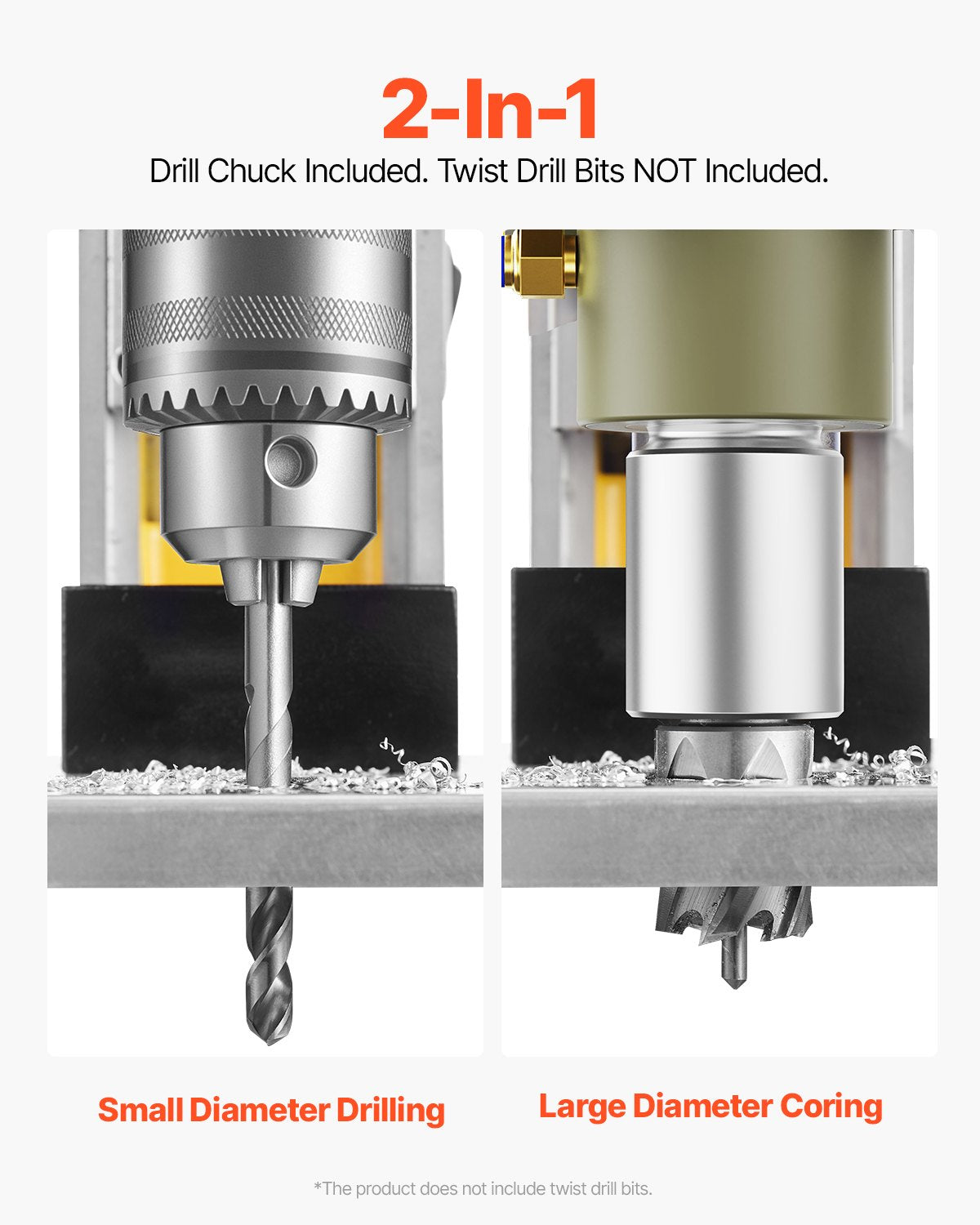

Dual Drill Compatibility: Supports coring drills (up to 1.6 in / 40 mm) and twist drills (up to 0.6 in / 16 mm)
-
Magnetic Base Strength: 2810 lbf (12,500 N) adhesion for stable operation on steel surfaces
-
Precision Control: Integrated depth scale and 6.3 in travel distance ensure drilling accuracy
-
Quick Tool Changes: Standard 3/4 in (19.05 mm) Weldon shank for universal tool compatibility
-

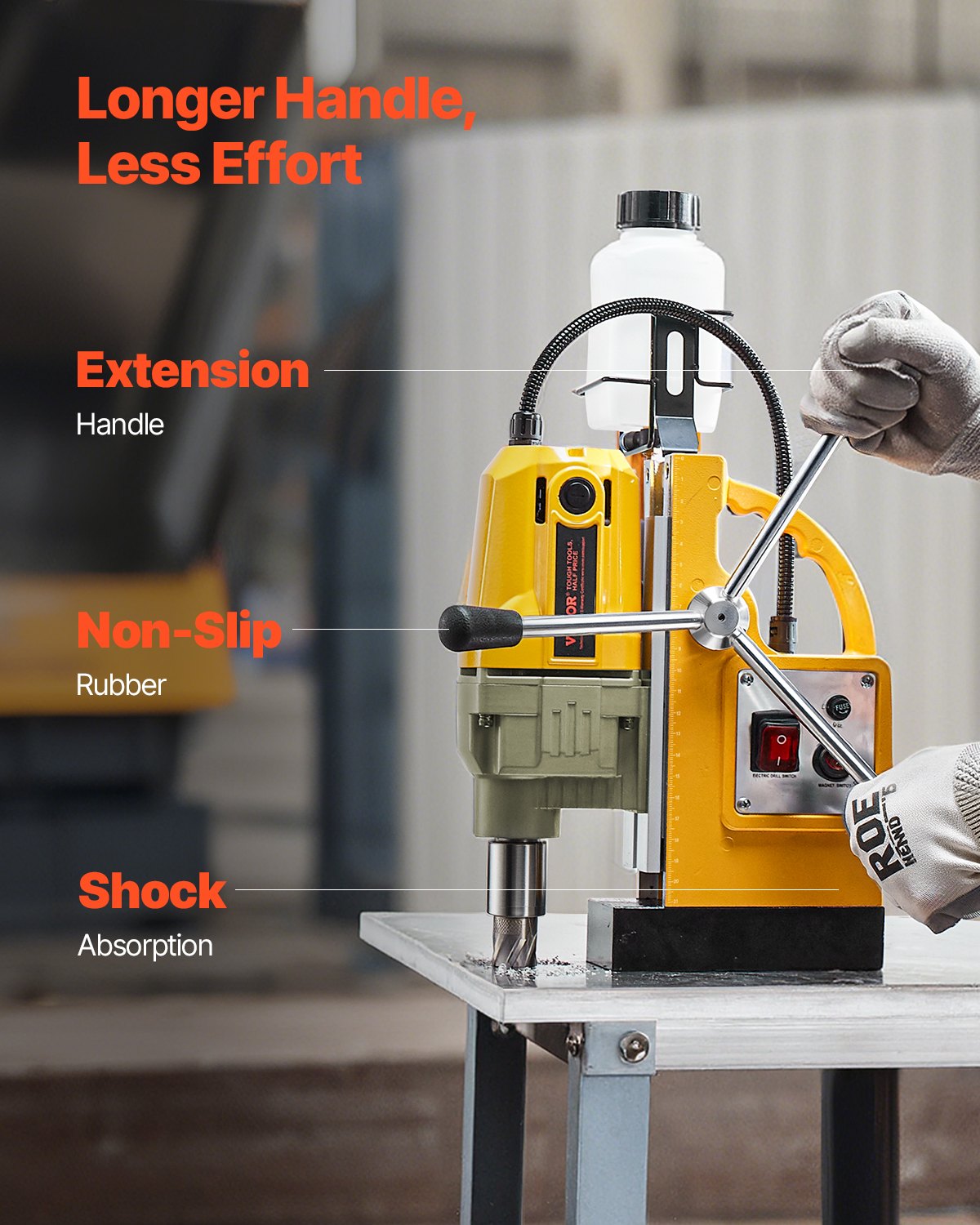

Smooth Movement: Dovetail guide rails provide long-lasting precision and smooth feed action
-
Versatile Use: Ideal for workshops, construction sites, and fabrication facilities
-
Compact & Portable: Built for durability without sacrificing mobility

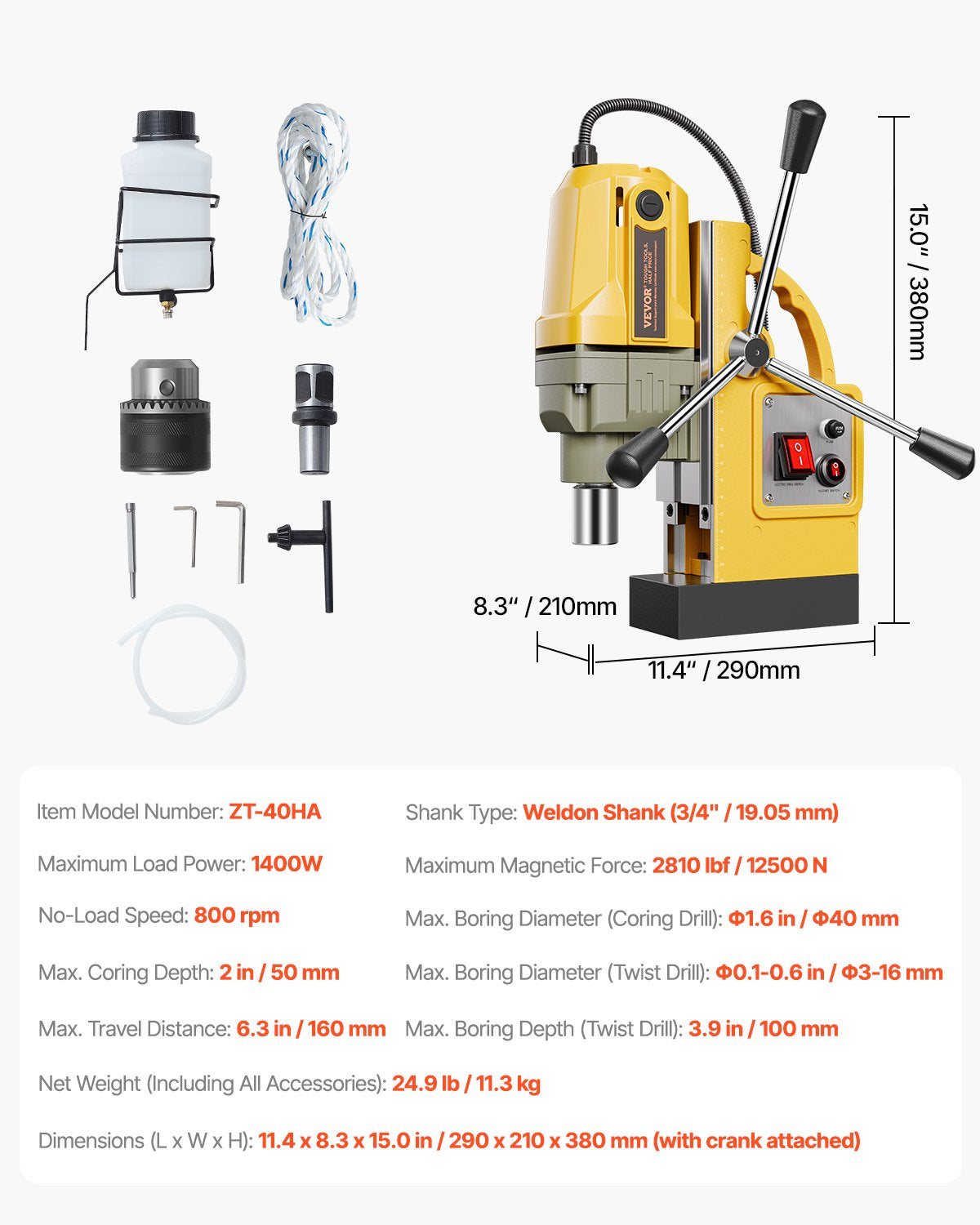

Specifications
-
Motor Power: 1400W
-
Max Coring Diameter: 1.6 in / 40 mm
-
Twist Drill Diameter Range: 0.1–0.6 in / 3–16 mm
-
Max Drilling Depth: 2 in (coring), 3.9 in (twist drill)
-
Travel Distance: 6.3 in
-
Magnetic Adhesion: 2810 lbf / 12,500 N
-
Shank Type: Weldon 3/4 in / 19.05 mm
-
No-Load Speed: 800 RPM
-
Net Weight: 24.9 lb / 11.3 kg
-
Model Number: ZT-40HA
