Description
Product Description

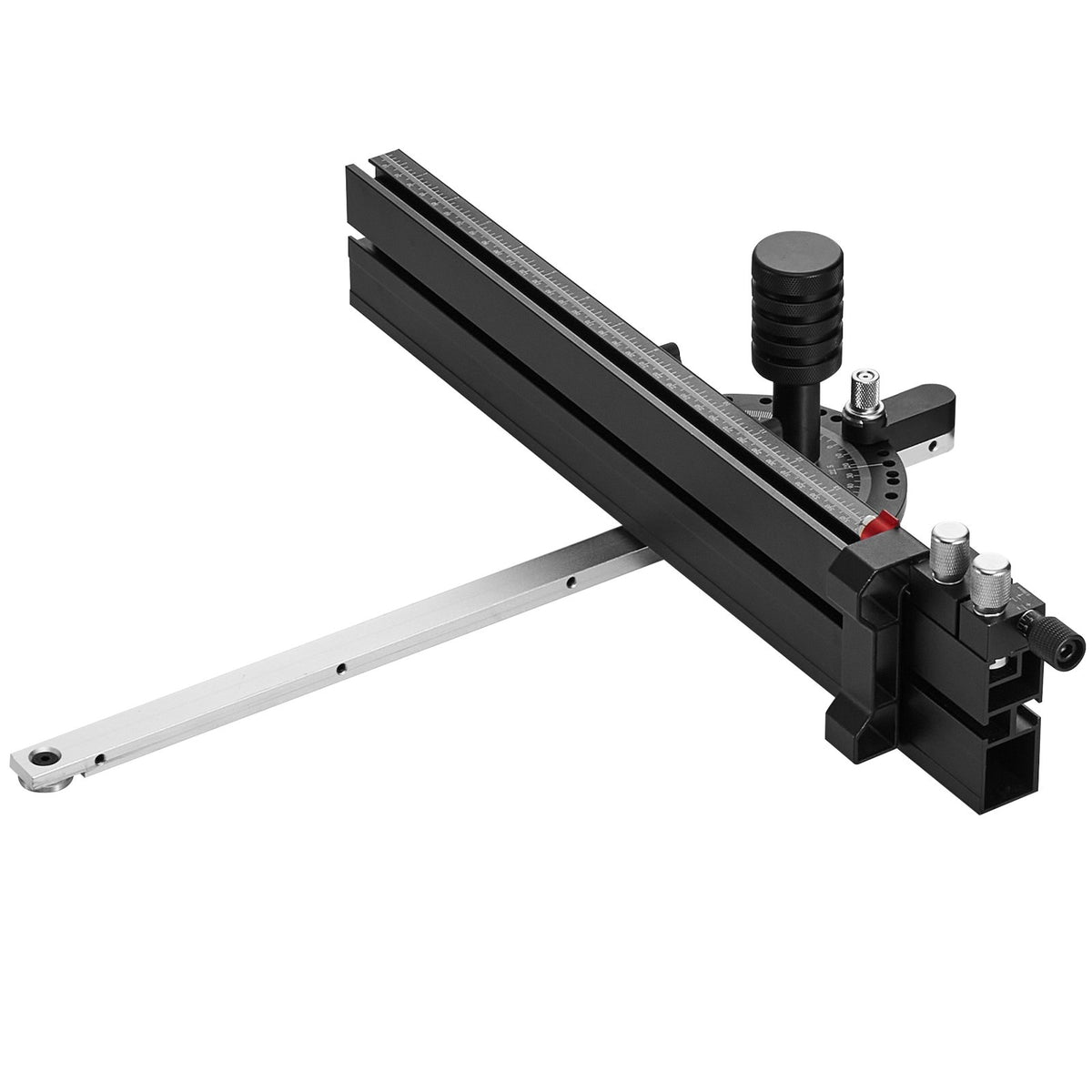

Achieve accurate, consistent angle cuts with this Precision Table Saw Miter Gauge, designed for woodworking enthusiasts, DIY projects, and professional workshop applications. Featuring a durable aluminum alloy head, an adjustable steel miter bar, and 15 positive angle stops, this precision tool helps you make repeatable cuts with greater control.

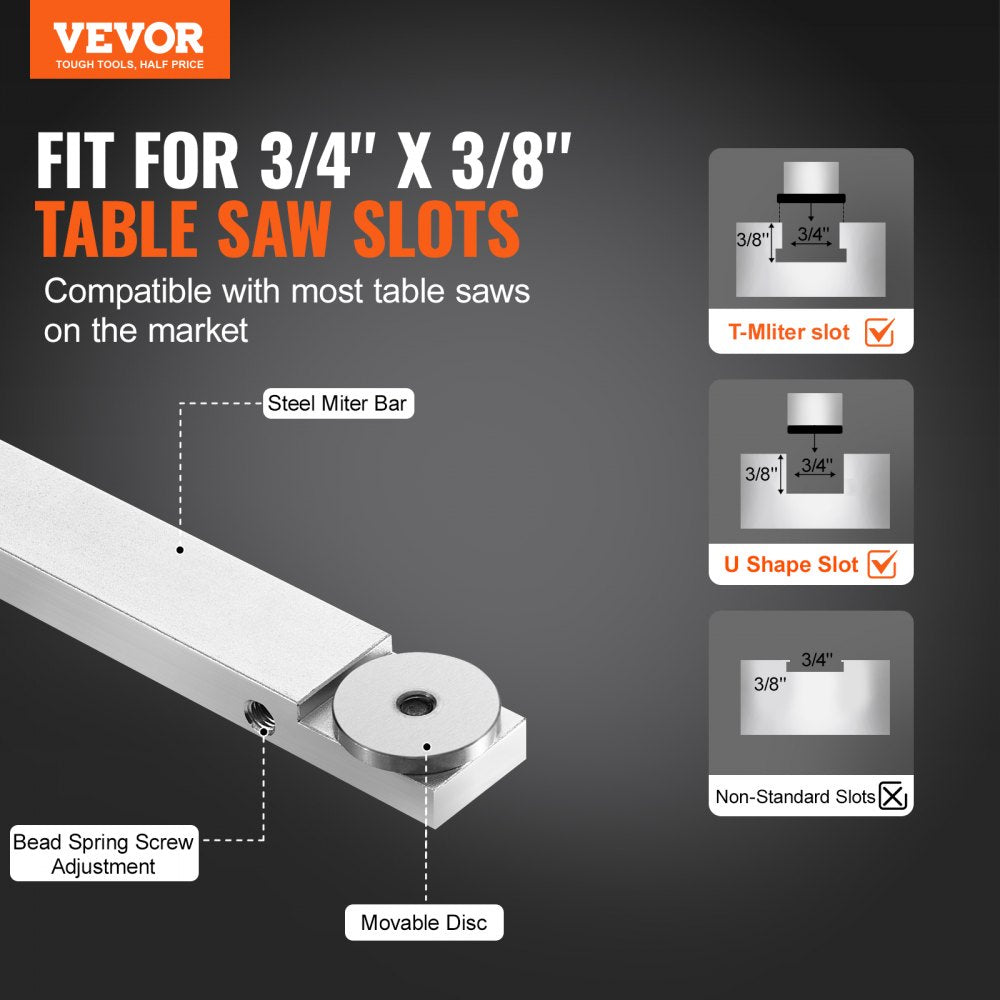

The miter gauge is designed to fit most standard table saw slots measuring 3/4" × 3/8" (19 × 10 mm). Its removable disc allows compatibility with both T-shaped and U-shaped slots of the specified dimensions. Always measure your table saw's slot before purchasing to ensure a proper fit.
With 15 preset angle positions ranging from -67.5° to 90° and up to 67.5° in the opposite direction, this gauge accommodates a variety of common woodworking angles. The laser-engraved scale makes angle settings easy to read, while the fine-adjustment mechanism supports precise manual adjustments for more specialized cuts.
The adjustable spring-loaded plunger helps reduce unwanted movement within the miter slot. If the fit is too loose, you can adjust the plunger using the included hex wrench to improve stability and sliding performance.
Constructed from durable aluminum alloy with a steel miter bar, this gauge is designed for dependable workshop use. Its textured metal handle provides a secure grip, and the partially assembled design helps simplify setup.
Whether you're building furniture, crafting cabinetry, or completing detailed woodworking projects, this precision miter gauge is a practical addition to your table saw accessories.
Key Features

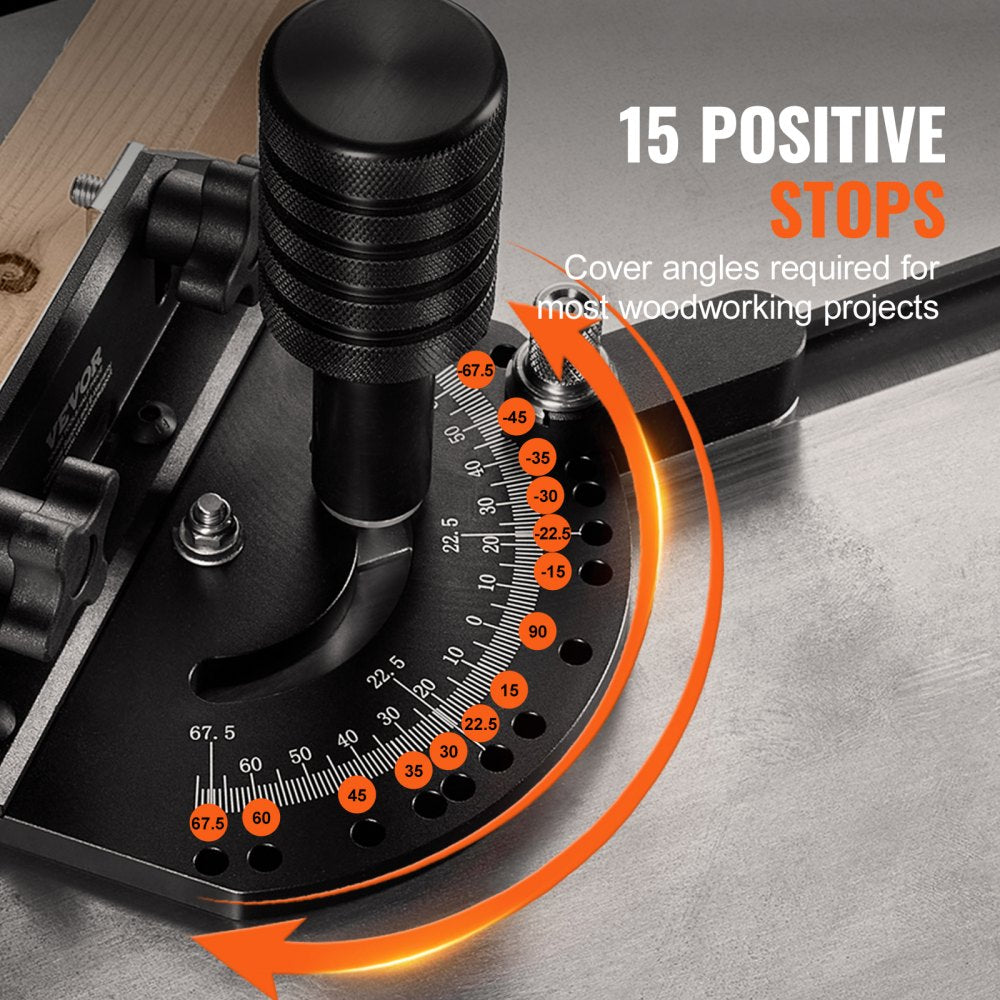

- 15 Positive Angle Stops: Provides preset positions for common woodworking angles, including 15°, 22.5°, 30°, 35°, 45°, 60°, 67.5°, and 90°, with corresponding negative angles.
- Precision Angle Adjustment: Designed to help produce accurate, repeatable angle cuts for woodworking projects.
- Durable Aluminum Alloy Head: Offers a sturdy construction designed to resist deformation during normal use.
- Standard Miter Slot Compatibility: Designed for table saw slots measuring 3/4" × 3/8" (19 × 10 mm).
- Removable Disc: Supports compatibility with specified T-shaped and U-shaped miter slots.
- Adjustable Spring-Loaded Plunger: Helps improve the fit of the miter bar within the table saw slot.

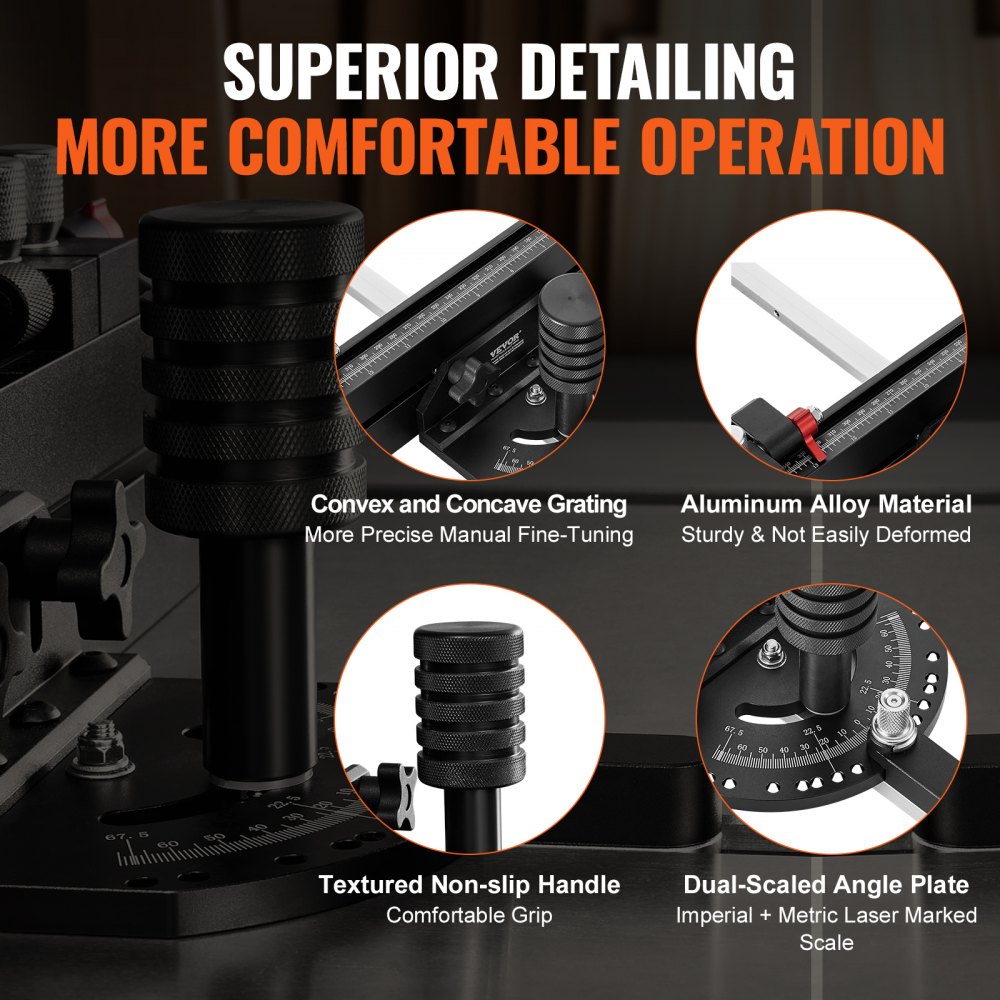

- Fine-Tuning Mechanism: Features a grating and adjustment screws for manual micro-adjustments.
- Laser-Engraved Scale: Provides clearly marked angle measurements for convenient adjustments.

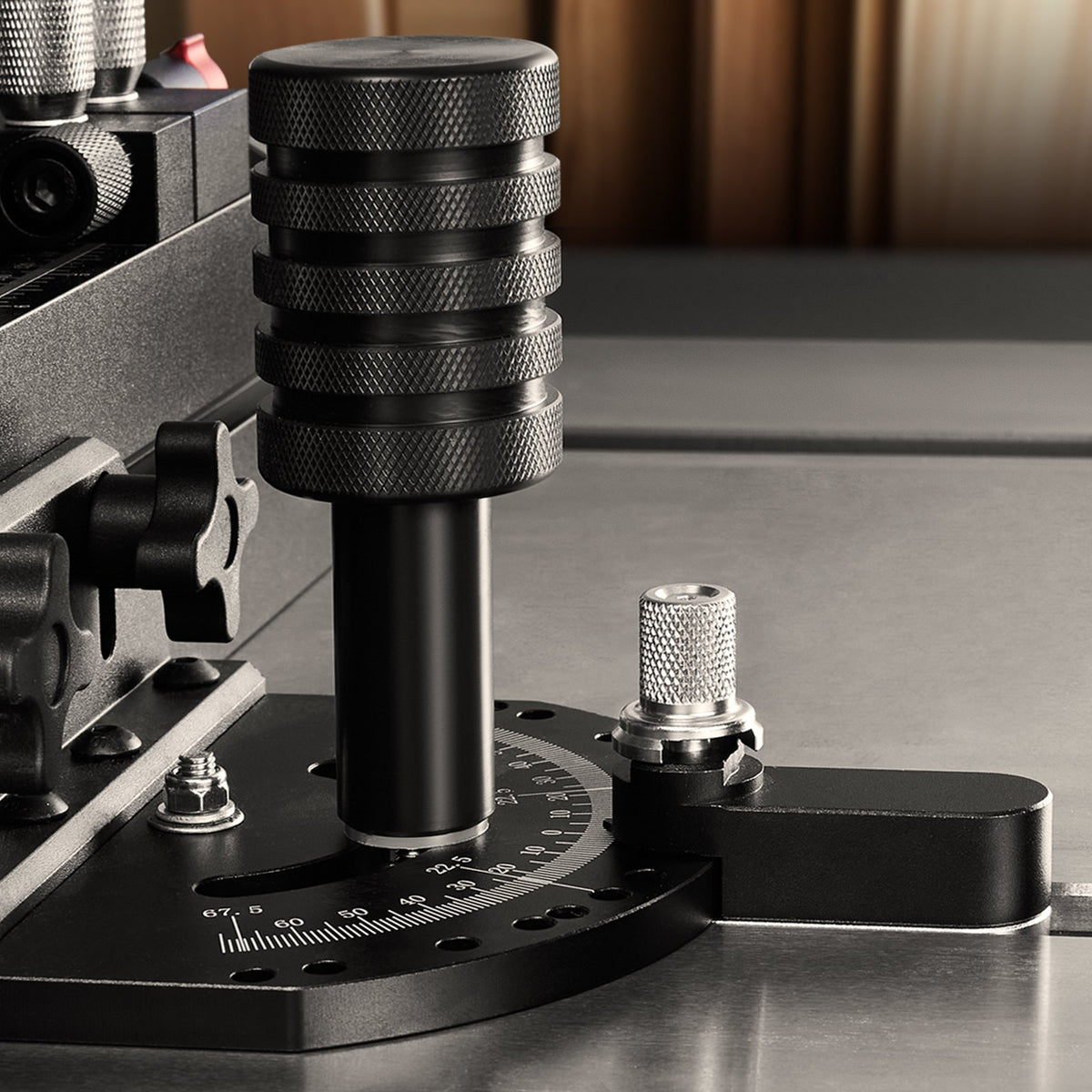

- Textured Metal Handle: Offers a secure grip during positioning and adjustment.

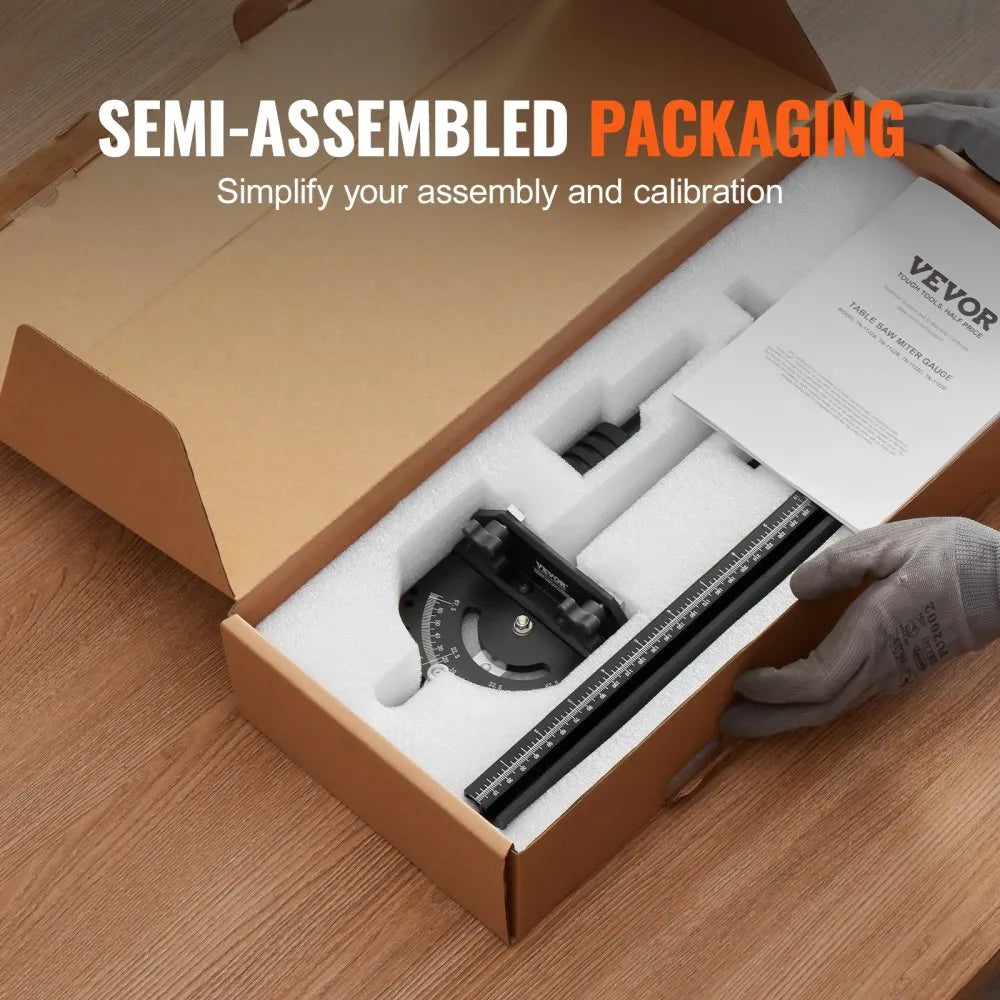

- Partially Assembled Design: Reduces initial setup work.
- Versatile Woodworking Tool: Suitable for furniture making, cabinetry, trim work, and other woodworking projects.
Specifications
- Product Type: Precision Table Saw Miter Gauge
- Model Number: TN-1122B
- Main Material: Aluminum Alloy
- Miter Bar Material: Steel
- Number of Positive Stops: 15
- Preset Angles: -67.5°, -60°, -45°, -35°, -30°, -22.5°, -15°, 15°, 22.5°, 30°, 35°, 45°, 60°, 67.5°, 90°
- Compatible Miter Slot Size: 0.75" × 0.375"
- Metric Slot Size: 19 × 10 mm
- Grating Length: 18 inches, as stated in the product title
- Adjustment Mechanism: Spring-loaded plunger with fine-adjustment screws
- Angle Scale: Laser-engraved
- Disc: Removable
- Product Dimensions: 17.7 × 21.7 × 4.7 inches
- Metric Dimensions: 450 × 550 × 120 mm
- Net Weight: 3.6 lbs (1.61 kg)
- Assembly: Partially assembled

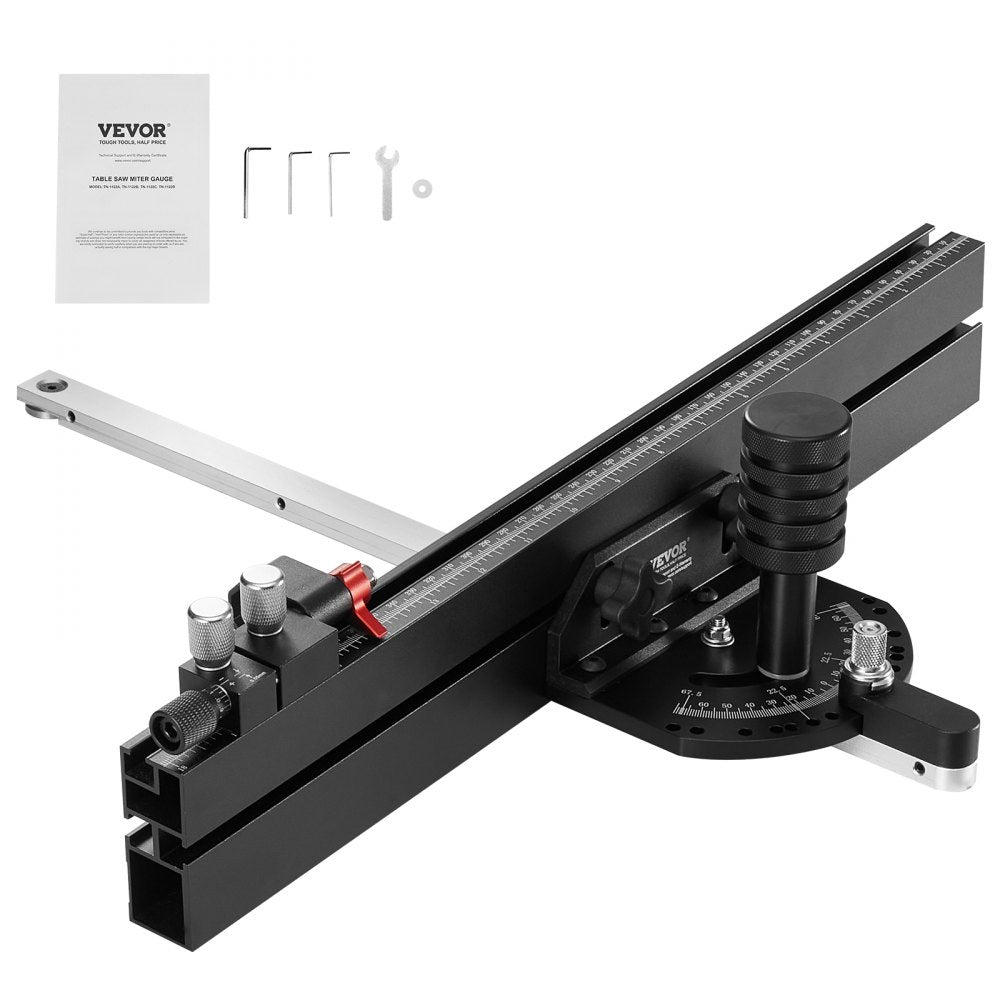

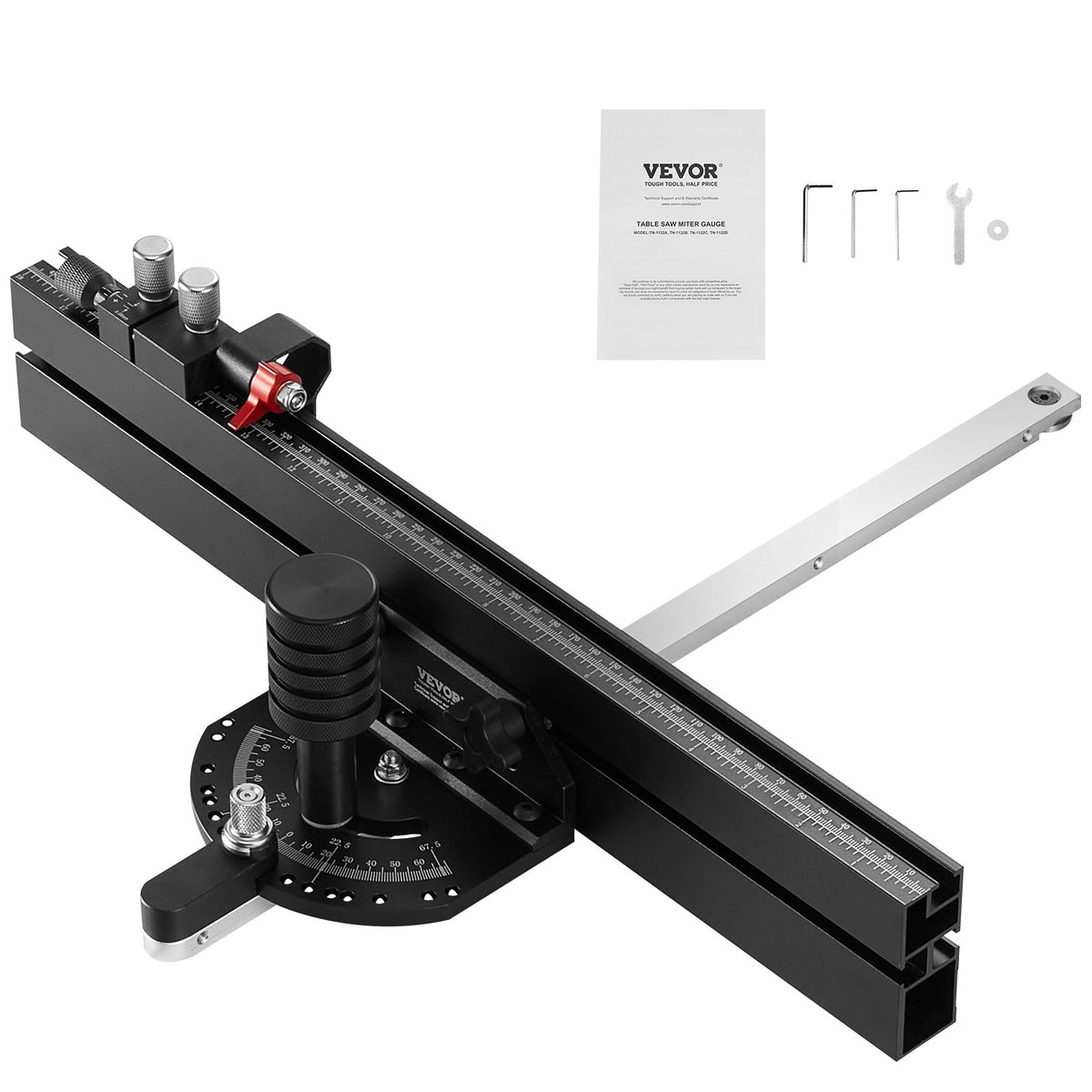

Package Includes
- 1 × Precision Table Saw Miter Gauge
- 1 × Removable Disc
- 1 × Hex Wrench
