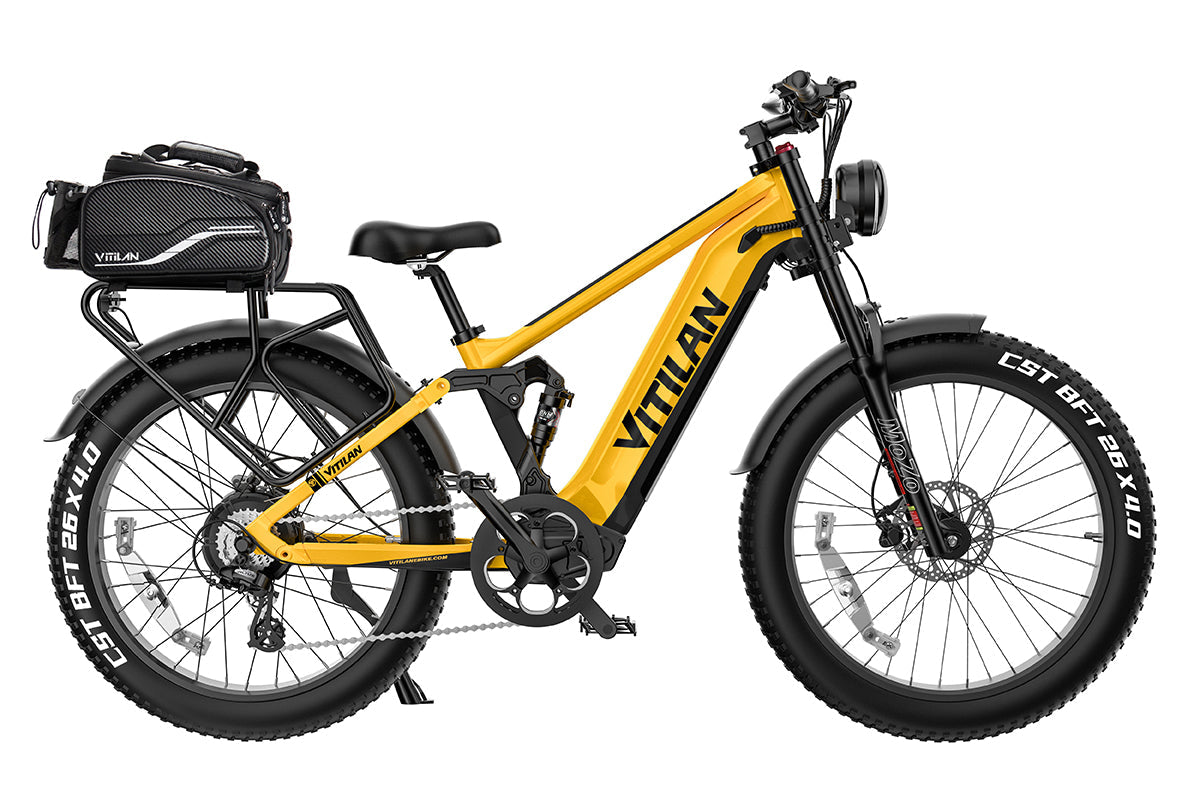

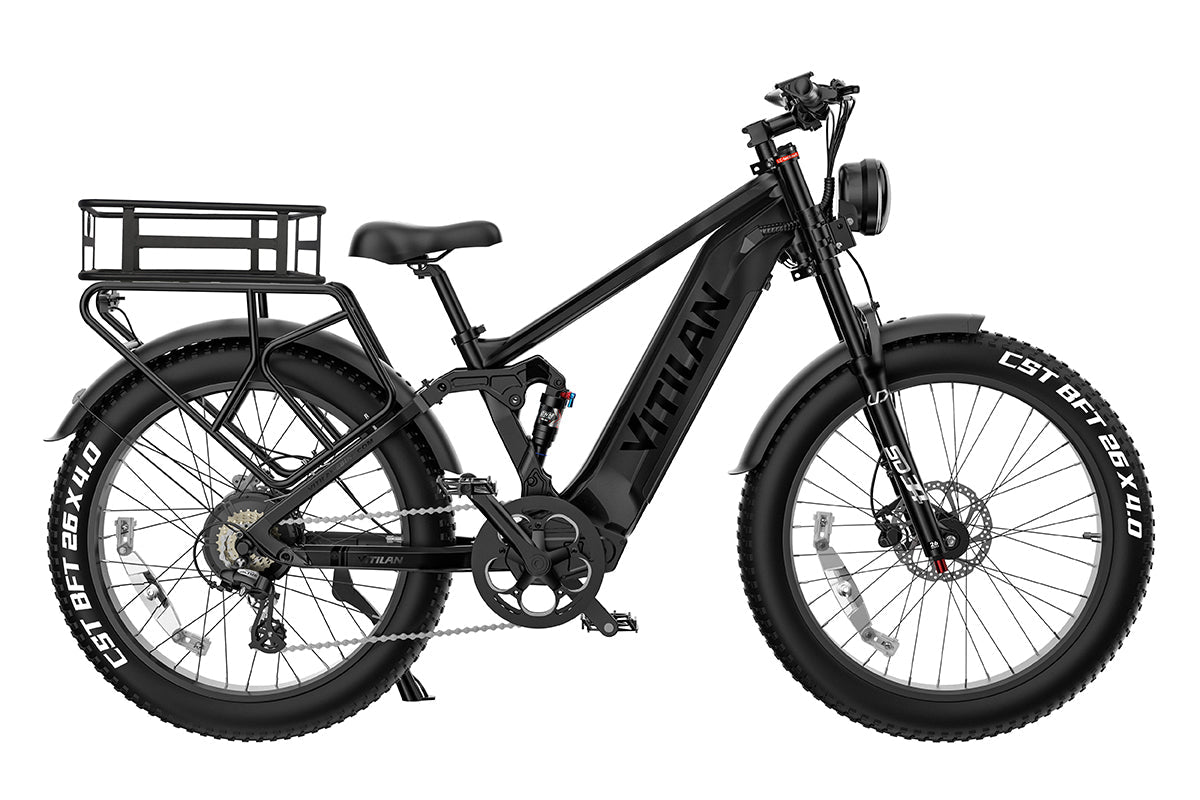

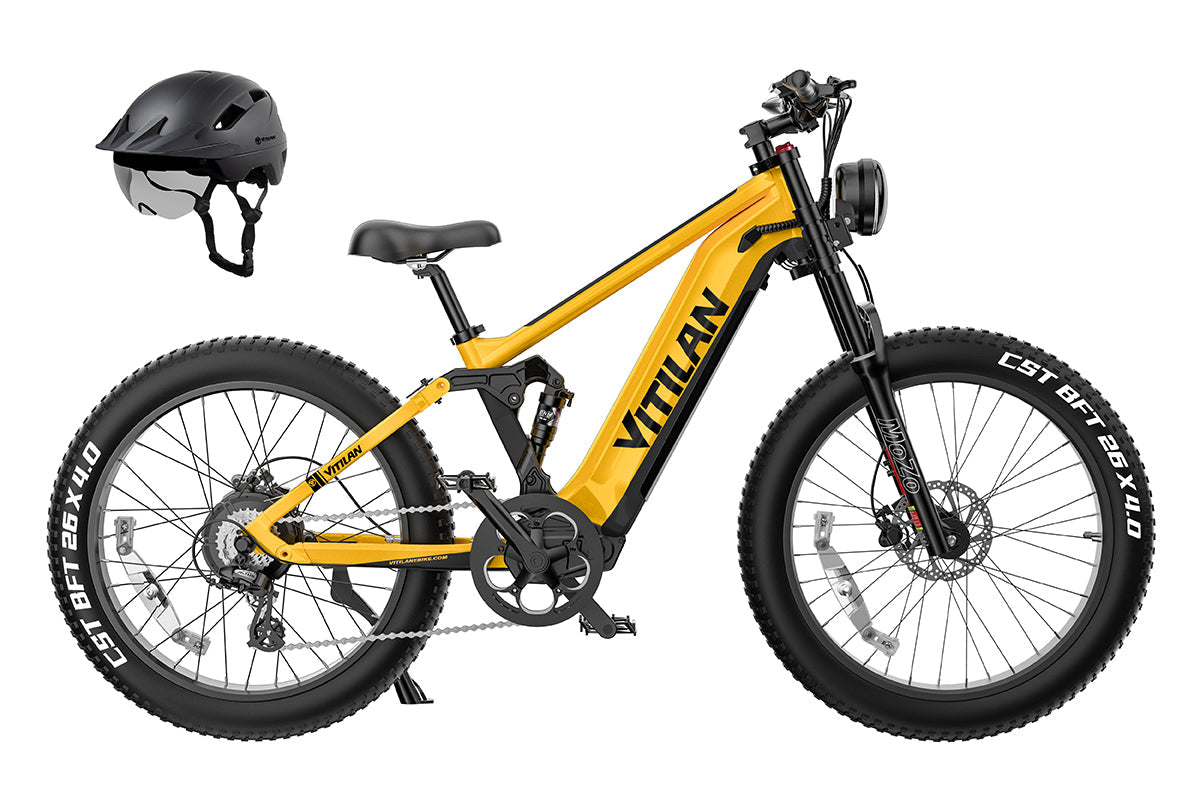

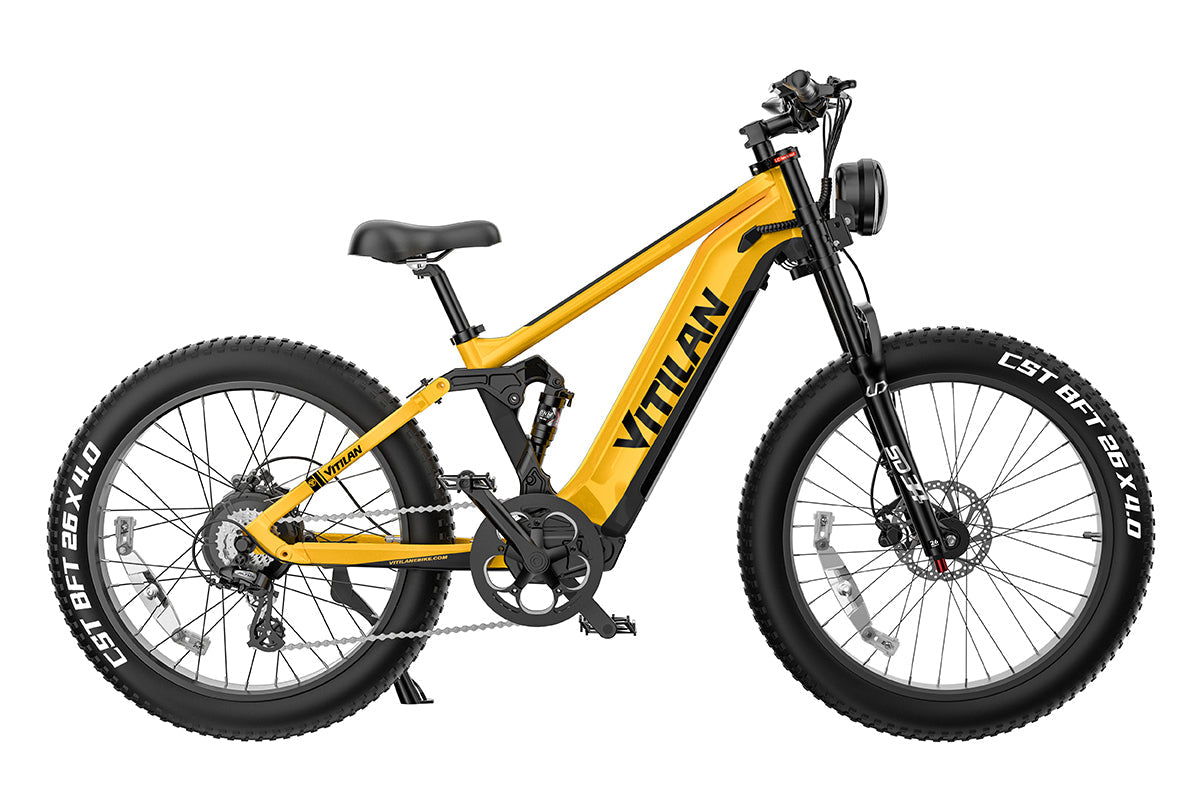

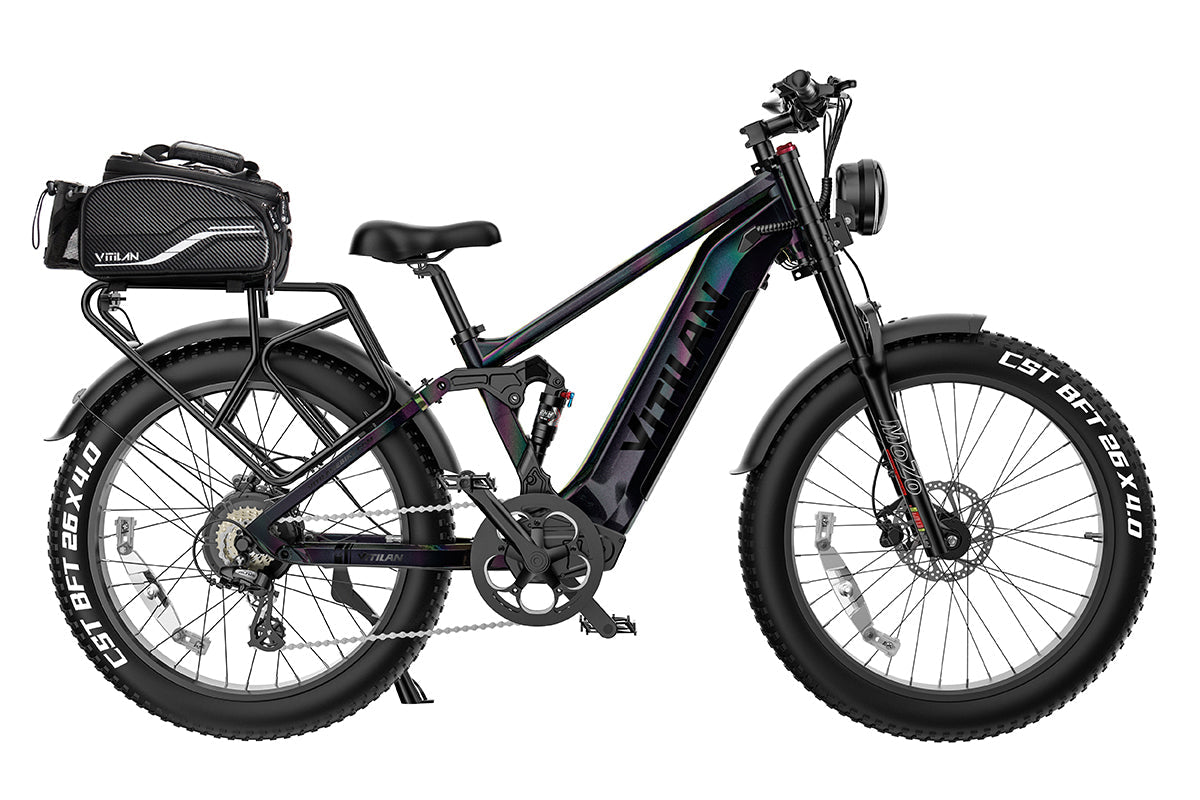

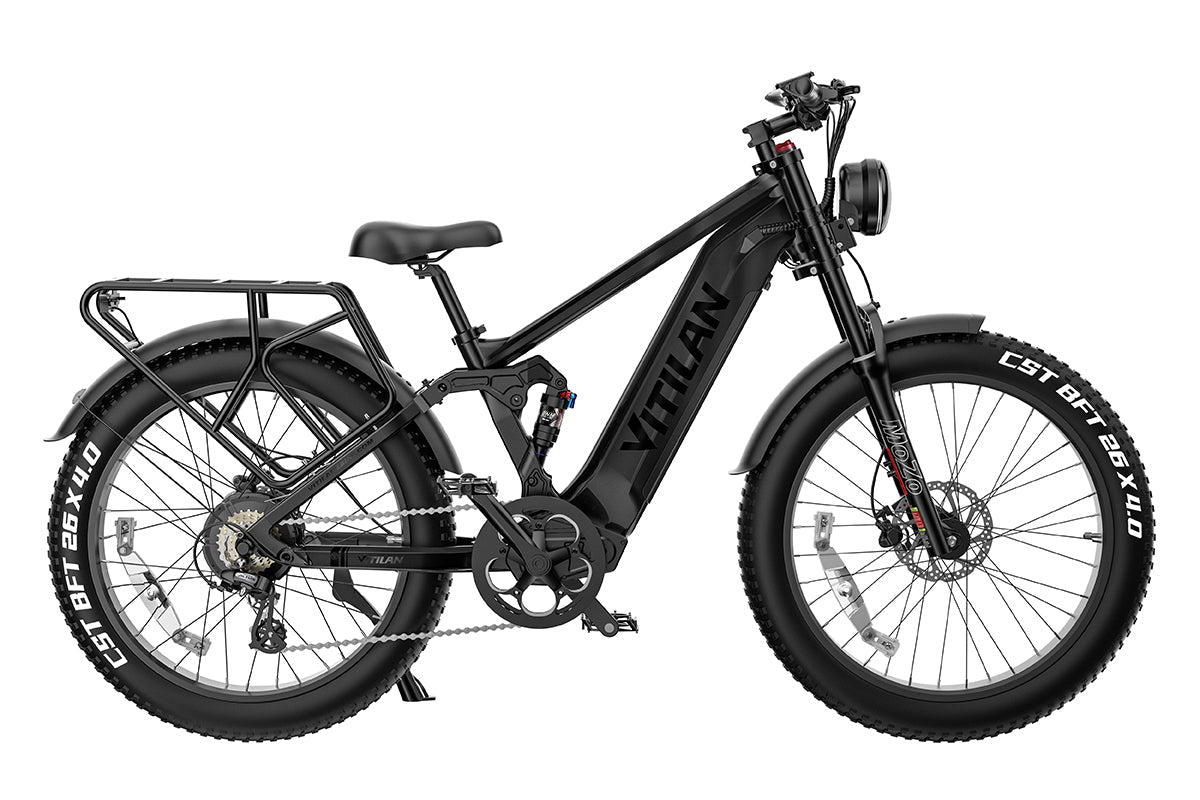

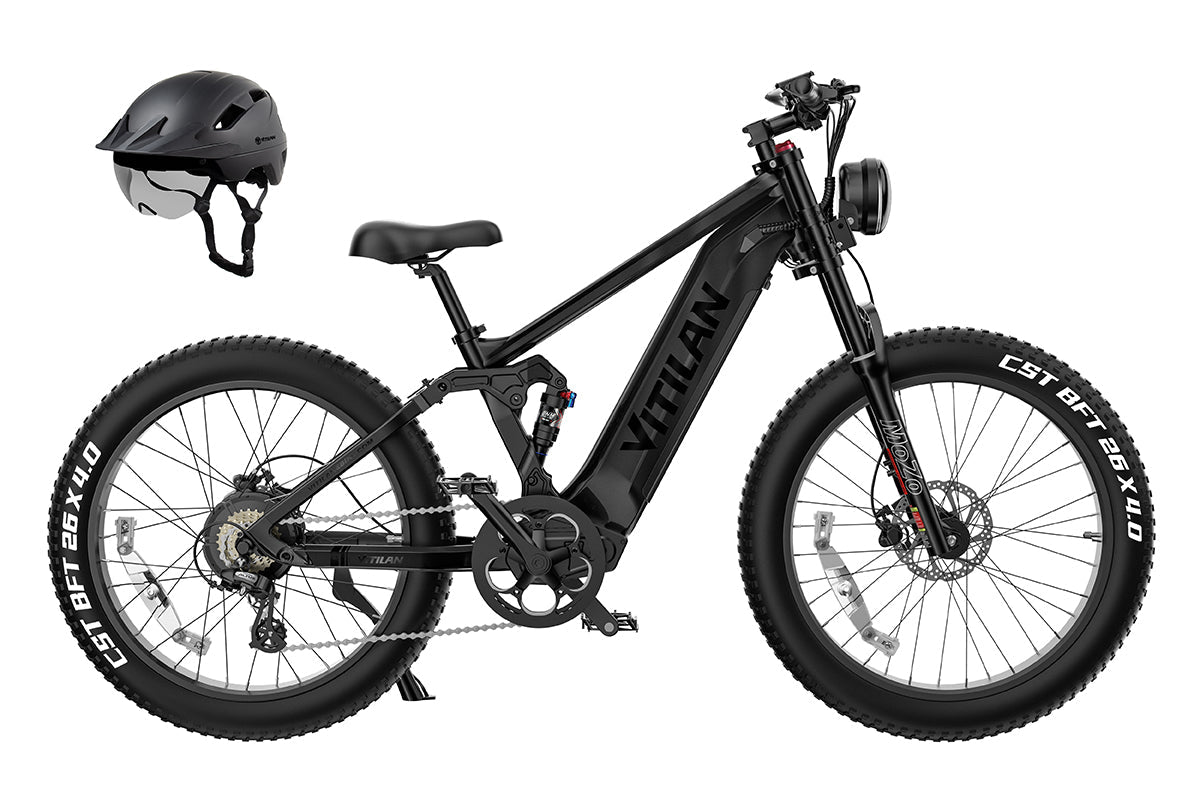

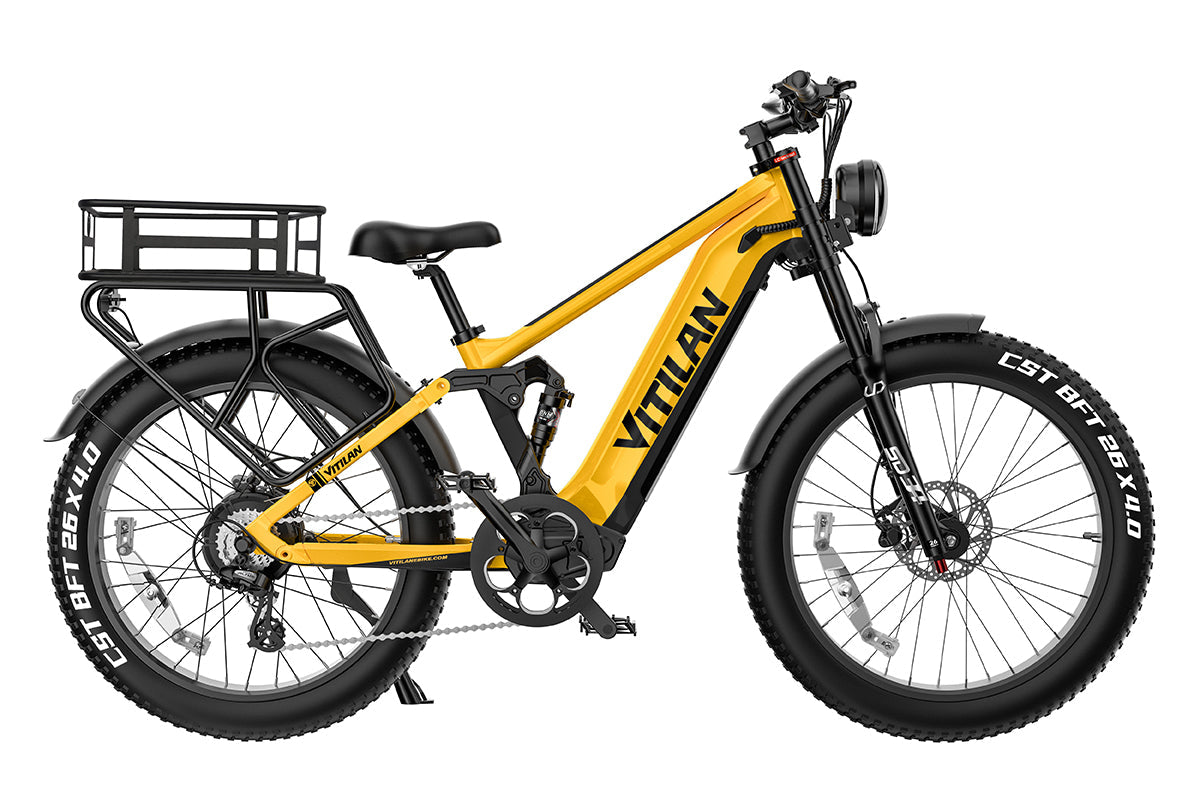

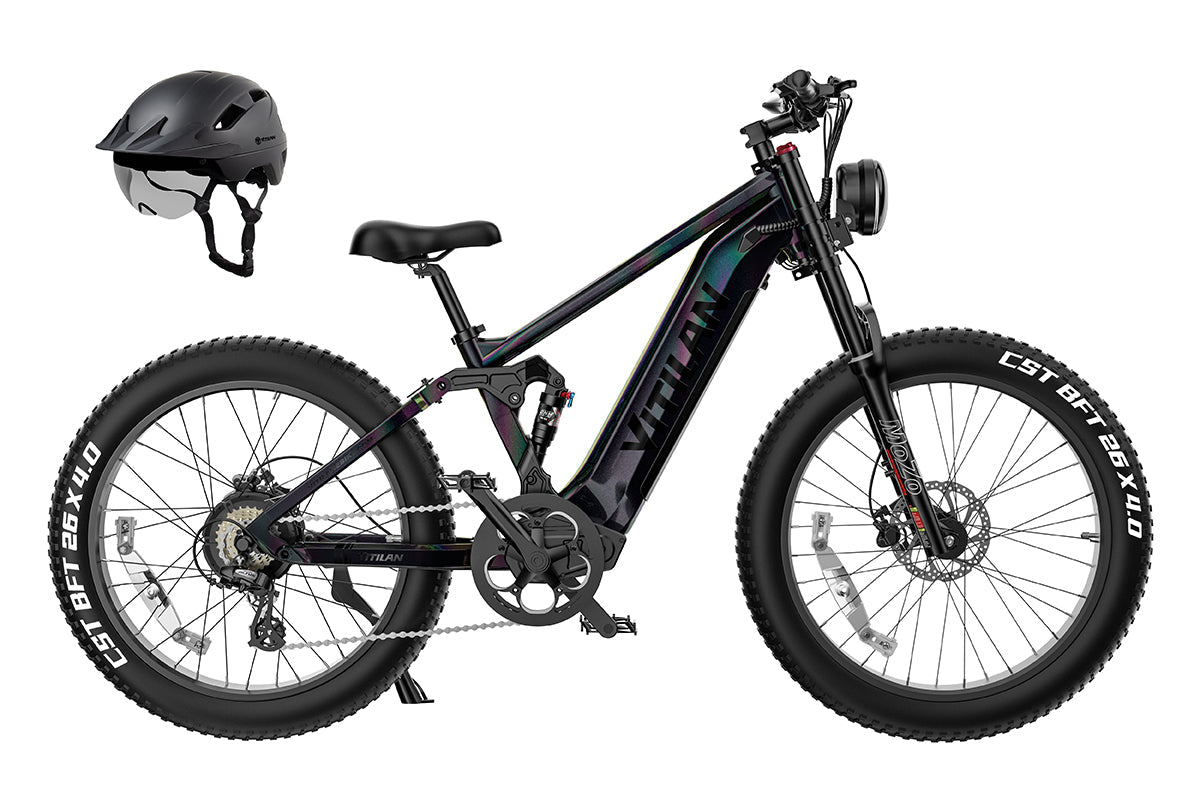

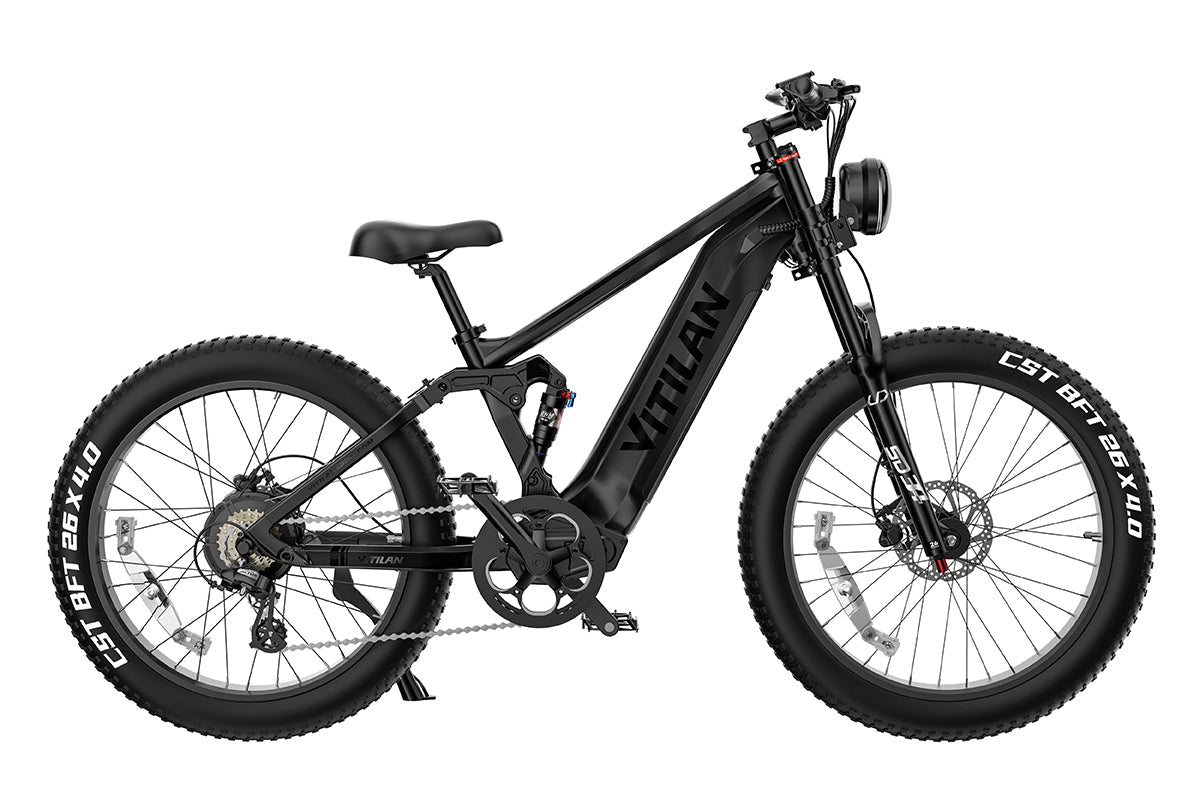

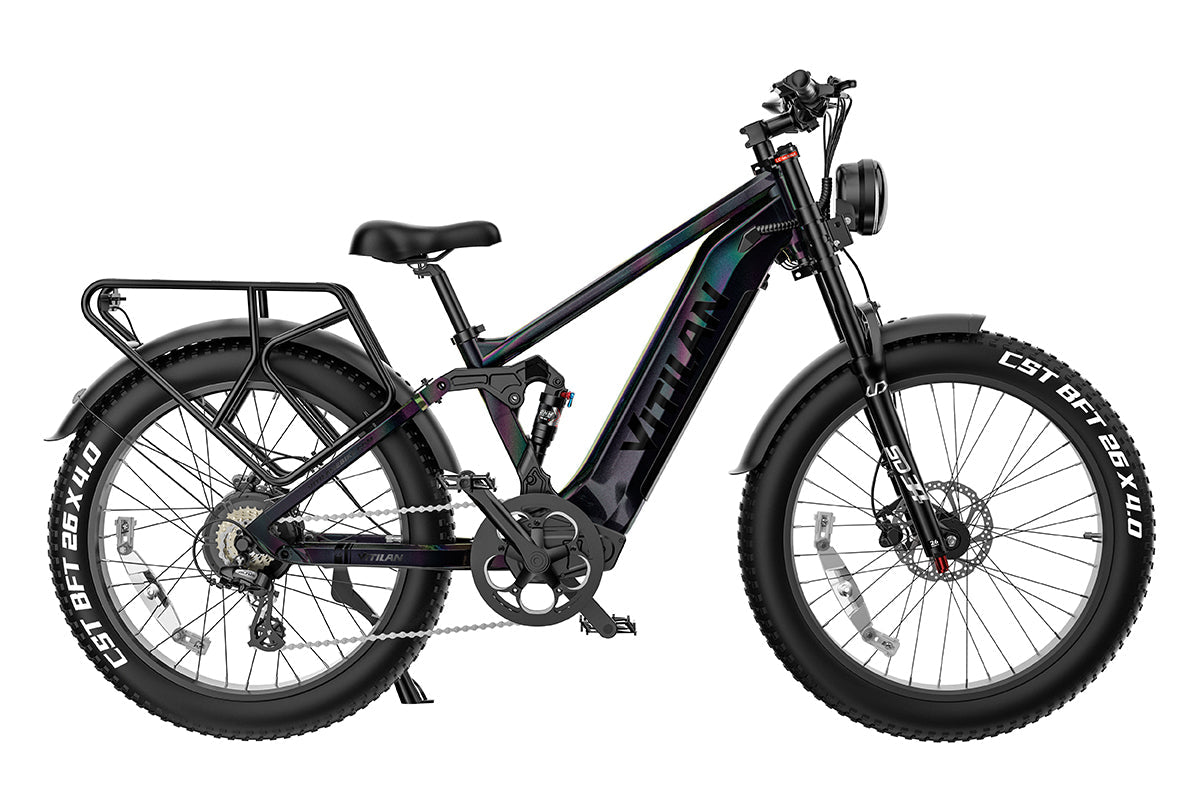

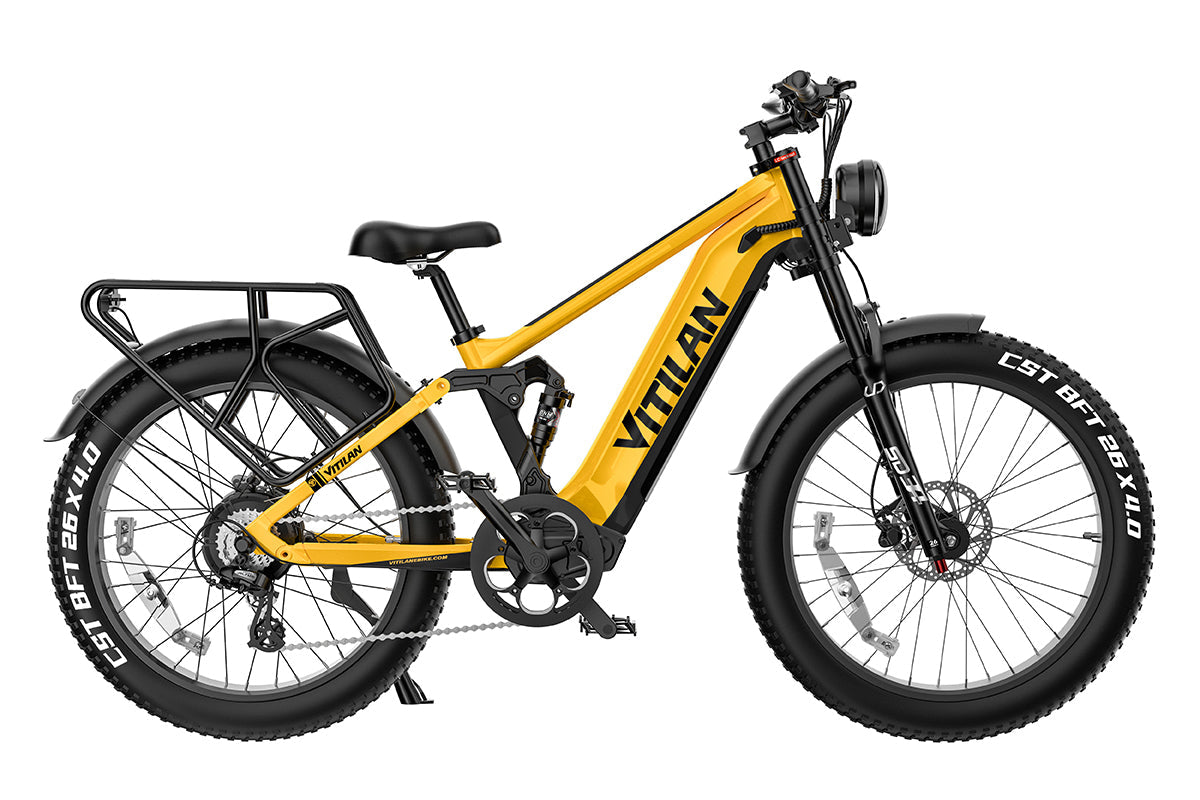

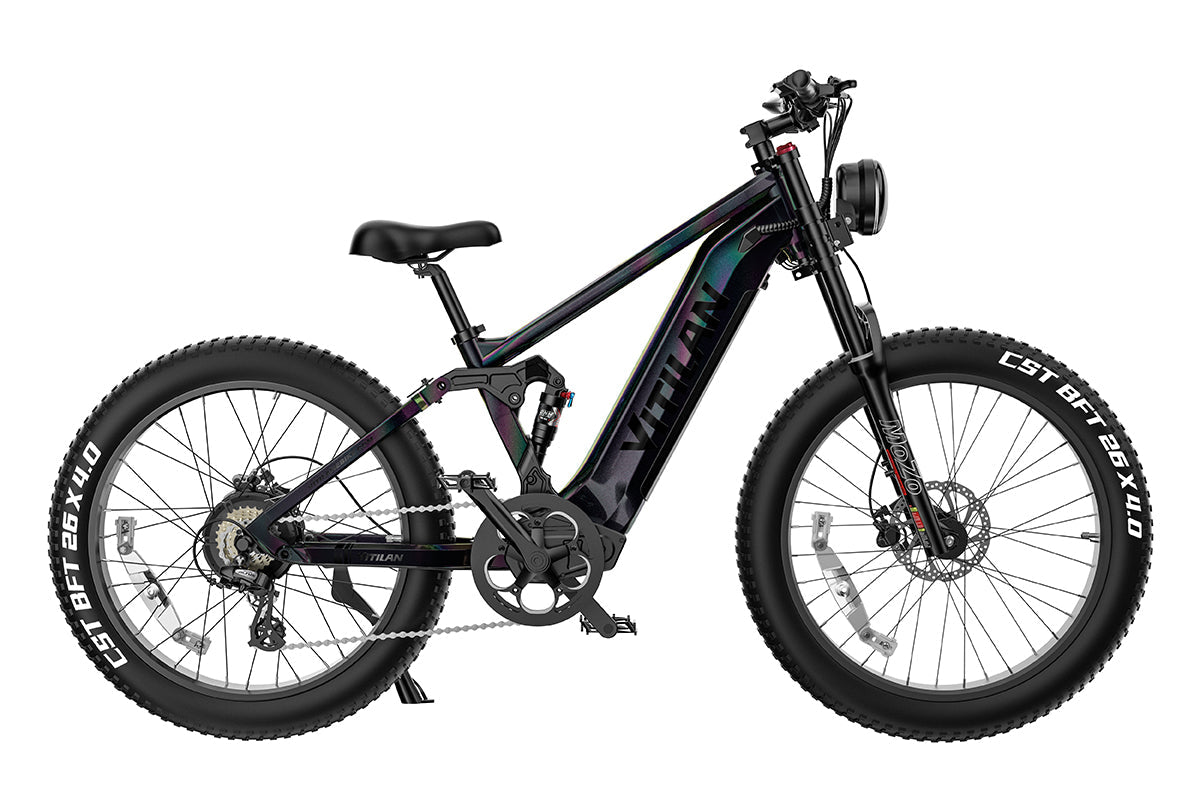

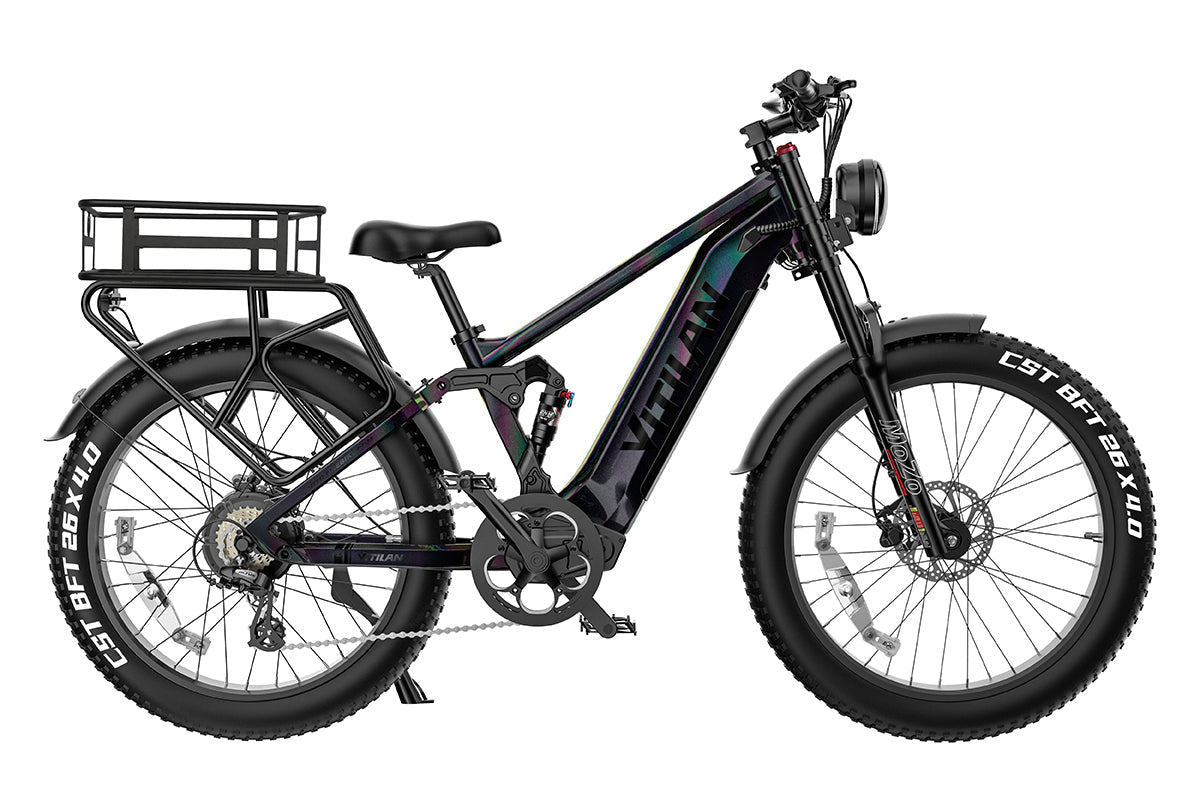

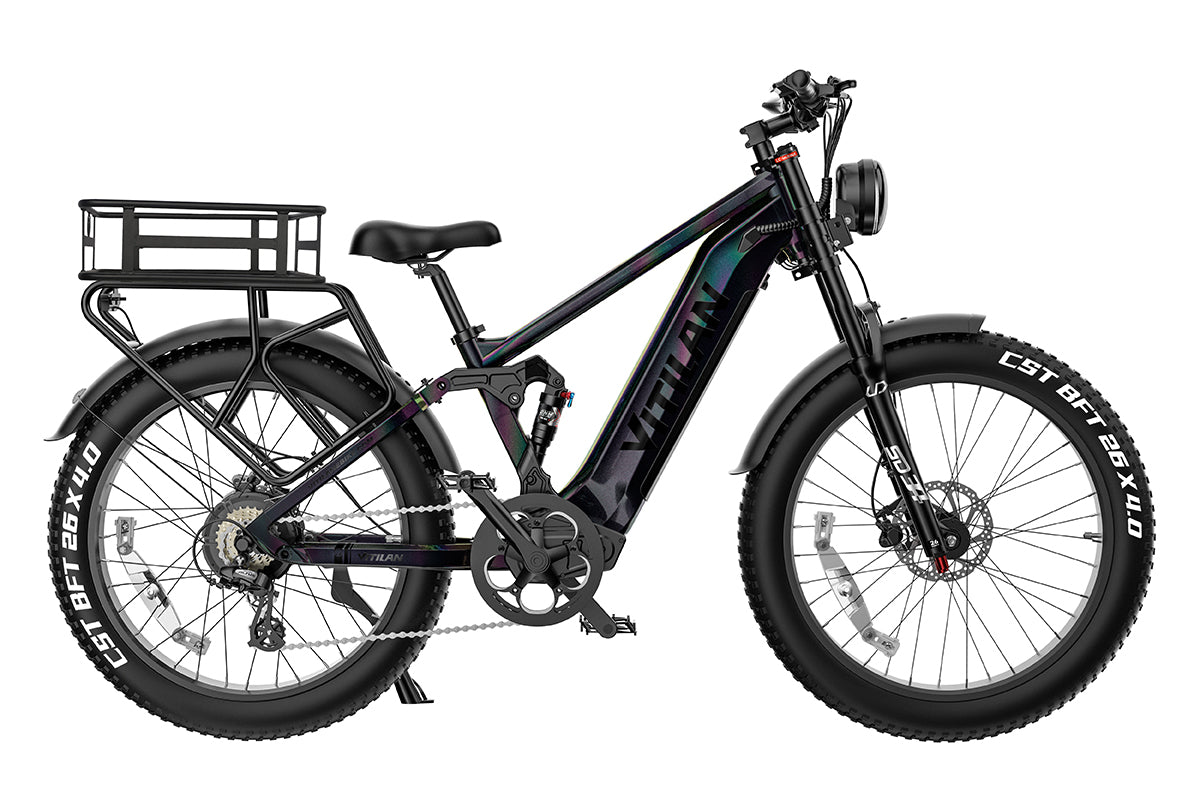

T7 Full Suspension Mountain E-bike
Regular price $2,849.00The T7 Full Suspension Mountain E-bike is built for thrill-seekers and adventurers, offering a powerful ride across rugged terrains. With a robust full suspension system, this e-bike ensures a smooth and controlled ride on steep trails and rocky paths. Its high-performance motor and long-lasting battery deliver exceptional power and range, while the durable frame and advanced design make it a reliable choice for mountain biking enthusiasts.
SAM-SUNG Lithium Battery
T7 is Equipped with a removable battery by SAM-SUNG, Safer than ordinary batteries on the market, can store more electricity, and has a longer service life span. The 48V 20Ah battery makes T7 a powerful long-range electric bike.
T7PRO is upgraded on the basis of T7, configured with a 52V 20AH Samsung battery, the battery capacity is upgraded to 1040Wh, which improves the speed and guarantees the range at the same time.
960/1040 Wh
Battery Capacity
3.0A Charger
Quick Charge
60-80 Miles
Range
powerful motors with Bafang
750W Bafang Motor
750W Bafang Motor Makes You Climbing Like Riding on Flat Ground. The powerful motor can reach a peak power of 1200W and torque of 80 Nm, even at 30 degrees uphill, it’ll provide a smooth, effortless riding experience.
80 Nm
Torque
1200W
Peak Powers
28MPH
Max Throttle Speed
Smooth riding experience
MOZO 60mm Trave Dual Crown Fork
The T7 features MOZO 26'' hydraulic dual suspension forks with 60mm fork carriers and a motorcycle style double shoulder design for a stunning look. Takes you over rough roads with ease.
Full Suspension System for Ebike
The T7 and T7PRO utilize manually adjustable dampened forks and a four-link mechanism for high-strength suspension throughout the bike. The multi-link suspension configuration allows for a combined dissipation of forces, enabling the T7 to withstand load capacities of up to 330 pounds. It provides a stable and comfortable ride whether you're traveling over snowy terrain, rough surfaces, or mountain trails.
DNM air suspension
The rear suspension of the T7 Series utilizes DNM AO-8RC three-stage adjustable locking pneumatic shocks, which absorbs the bumps while riding on beach, gravel roads, or forest trails. This is a great fit for recreational riders who love to ride on mixed terrain.
TFT true color display
Monitoring and setting up your real-time speed; recording your riding mileage; adjusting 1-5 levels of the pedal assist; displaying your battery remaining; turning on/off your headlight and rear light; USB Charging function can be used to power the dying cell phone, providing other setting functions according to your demand.
Safety Lighting System
Incredible LED headlight with 600 lumens center beam illuminates your every journey.
Shimano 8-Speed Gear Shift System
1-8 level shift gears, allowing you to switch freely on the flat road or steep hills, reducing pedaling and you still are able to ride faster and easier. Shimano 8-speed rear derailleur adjusts your gear effectively and helps you across varied terrains wherever you go.
TEKTRO Dual Piston Hydraulic Brake
Need to hit the brakes? Our hydraulic disc brakes (180mm) are your trusty sidekick when it comes to smooth & reliable stopping power. Say goodbye to skidding and hello to controlled stops every time.
Four-Link Structure
The T7 series is equipped with a four-link suspension system that drives all of the movement of the e-bike through a central four-link structure.
Puncture-Proof Tires
The T7 series is equipped with a four-link suspension system that drives all of the movement of the e-bike through a central four-link structure.
Soft Bike Seat
Vitilan bike seats are ergonomically designed to fit your body. They are shaped to match your riding position and will free you from strain and fatigue caused by long rides.
Pedal Assist & Throttle
Twist throttle releases your thumbs, making it easier to control your speed and ride more safely. You can choose the level of assistance you need, whether you want a gentle nudge or a more powerful boost.
For more information
Comparison of Upgrades
| Comparison | T7 | T7 Pro |
|---|---|---|
| Price | $2449 CAD | $2849 CAD |
| Battery | SAM-SUNG Li-ion 48V 20Ah | SAM-SUNG Li-ion 52V 20Ah |
| Ranger | 60-80 Miles Range Per Charge (Estimate) | 60-80 Miles Range Per Charge (Estimate) |
| Charging Time | 4-6 hours | 4-6 hours |
| Display | TFT True Color Display | TFT True Color Display |
| Motor | Bafang 750W | Bafang 1000W |
| Max Speed | 28 MPH | 35 MPH |
| Gears | 8-Speed Shimano | 8-Speed Shimano |
| Suspension | Dual Suspension | Dual Suspension |
| Foldable | No | No |
| Battery Charger | 54.6V, 3.0A | 58.8V, 3.0A |
| Brakes | 180mm Hydraulic Disc Brake | 180mm Hydraulic Disc Brake |
| Tire | 26x4.0” | 26x4.0” |
| Peak Power | 1200W | 1600W |
| Front Fork | MOZO 60mm Hydraulic Dual Suspension Forks | UDING 105mm Air Dual Suspension Forks |
| Controller | 48V / 25A | 52V/ 30A |
| IP Level | IPX6 | IPX6 |
| Net Weight | 84.5 LBS | 85.5 LBS |
| Gross Weight | 96.5 LBS | 97.5 LBS |
| Package Dimensions | 61.8''*14.1''*33.8'' | 61.8''*14.1''*33.8'' |
Specification:
- Motor Hub:
T7: 48V, 750W (peak 1200W) Bafang Motor, max torque 80Nm
T7PRO: 52V 1000W(peak 1600W), max torque 80Nm
- Battery:
T7: 48V, 20Ah, 960Wh SAM-SUNG Li-ion Battery
T7 PRO: 52V, 20Ah, 1040Wh SAM-SUNG Li-ion Battery
- Charger:
T7: 54.6V, 3.0A, Operates on 110V-240V AC, 50-60Hz
T7PRO: 58.8V, 3.0A, Operates on 110V-240V AC, 50-60Hz
- Display: With Fahrenheit temperature display, with Lishui controller Adjustable steering gear shift Adjustable cruise control
- Throttle Assist: Half twist throttle
- Headlight: High output integrated LED, IPX6
- Pedal Assist Range: 80 Miles
- Throttle Range: 60 Miles
- Pedal Assist: 1-5 Level, Cadence Sensor
- Charging Time: 0-80% 4 Hours, 0-100% 6 Hours
Framesets
- Frame: Aluminum alloy, fully integrated & lockable down tube battery
- Brake: TEKTRO 180mm front and rear Hydraulic disc brakes
- Rims: Aluminum alloy, 36H
- IP Level: IPX6
- Fork:
T7: MOZO Hydraulic suspension with 26'' Dual Shock Forks, with Lock-out with 60MM travel
T7PRO: UDING air dual suspension forks with a 105MM fork
- Tire: CST 26x4.0”, puncture-resistant liner
- Shift Lever: Shimano SL-M315, 8-Speed, thumb shifter
- Chainrings: 53T
- Chain: KMC X8 Anti-Rust Chain
- Crankset: Aluminum alloy, 26"*4.0 170mm
- Seat Post: Aluminum alloy, 250mm x 33.9mm, quick release clamp
- Pedals: full aluminum mountain bike pedals (with pegs)
Weight & Speed
- Package Dimensions: 61.8''*14.1''*33.8''
- Max Load: 330lbs
- Package Weight: 96.5 LBS
- T7 Weight: 84.5 LBS
- Max Speed:
T7: 28MPH
T7PRO: 35MPH
Size:
- 1 Total Length: 76.83''
- 2 Handlebar Height: 45.7''
- 3 Minimum Seat Height: 32.7''
- 4 Maximum Seat Height: 36.84''
- 5 Top tube length: 23.62''
- 6 Frame to Ground Height: 9.84''
- 7 Handlebar length: 26.77''
- 8 Head tube length: 3.74''
- 9 Wheelbase: 47.24
- Recommended Height: 5'4''-6'8''
