Description

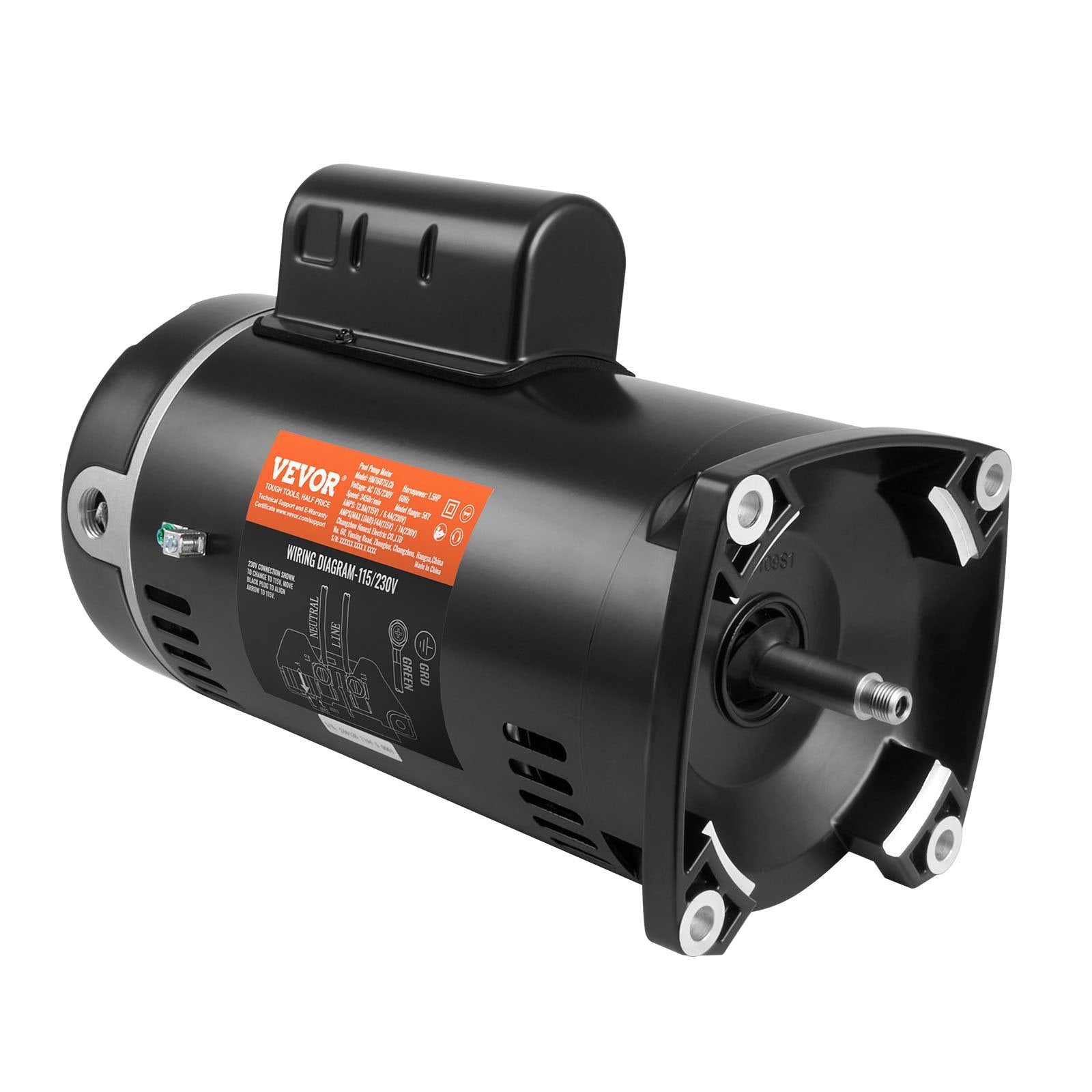

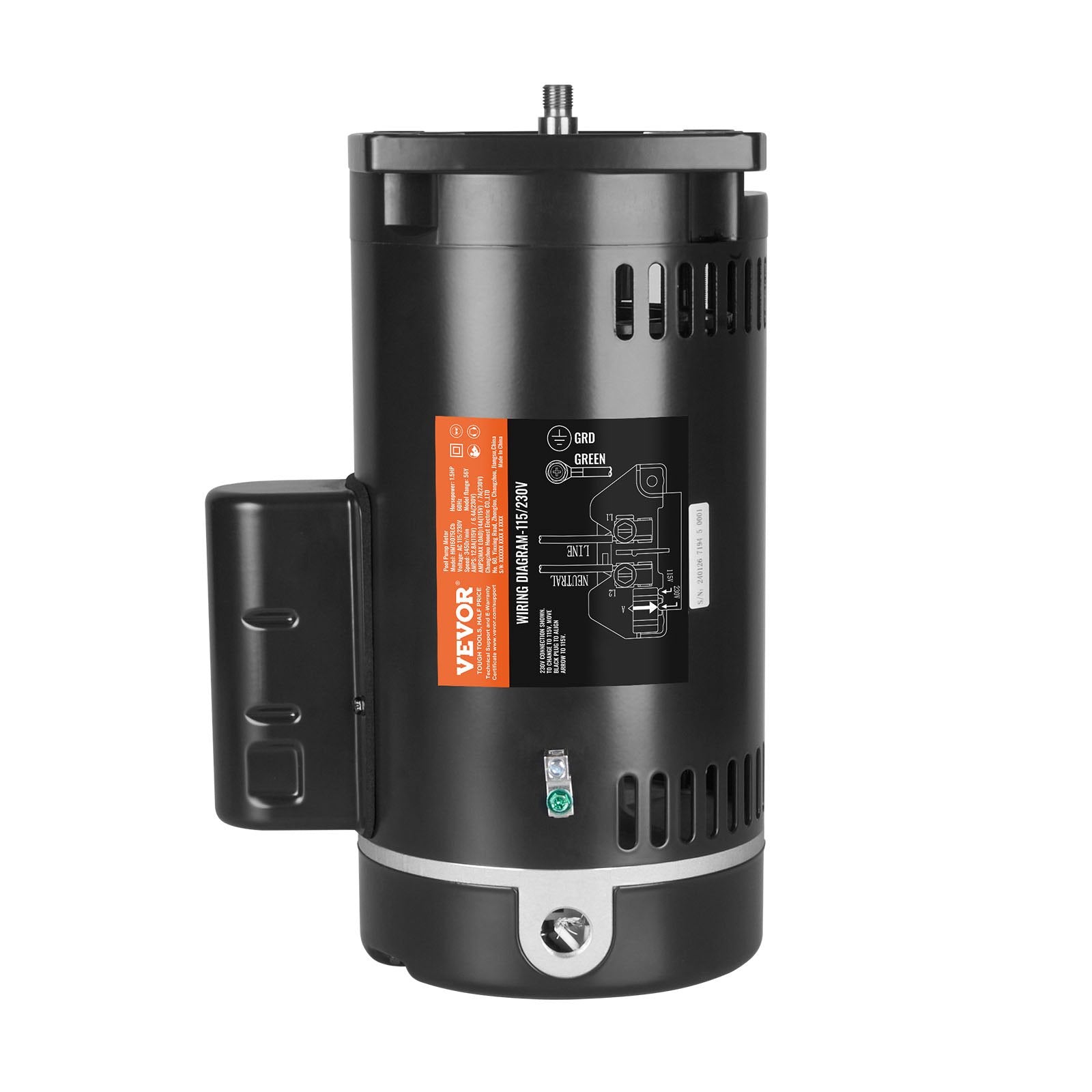

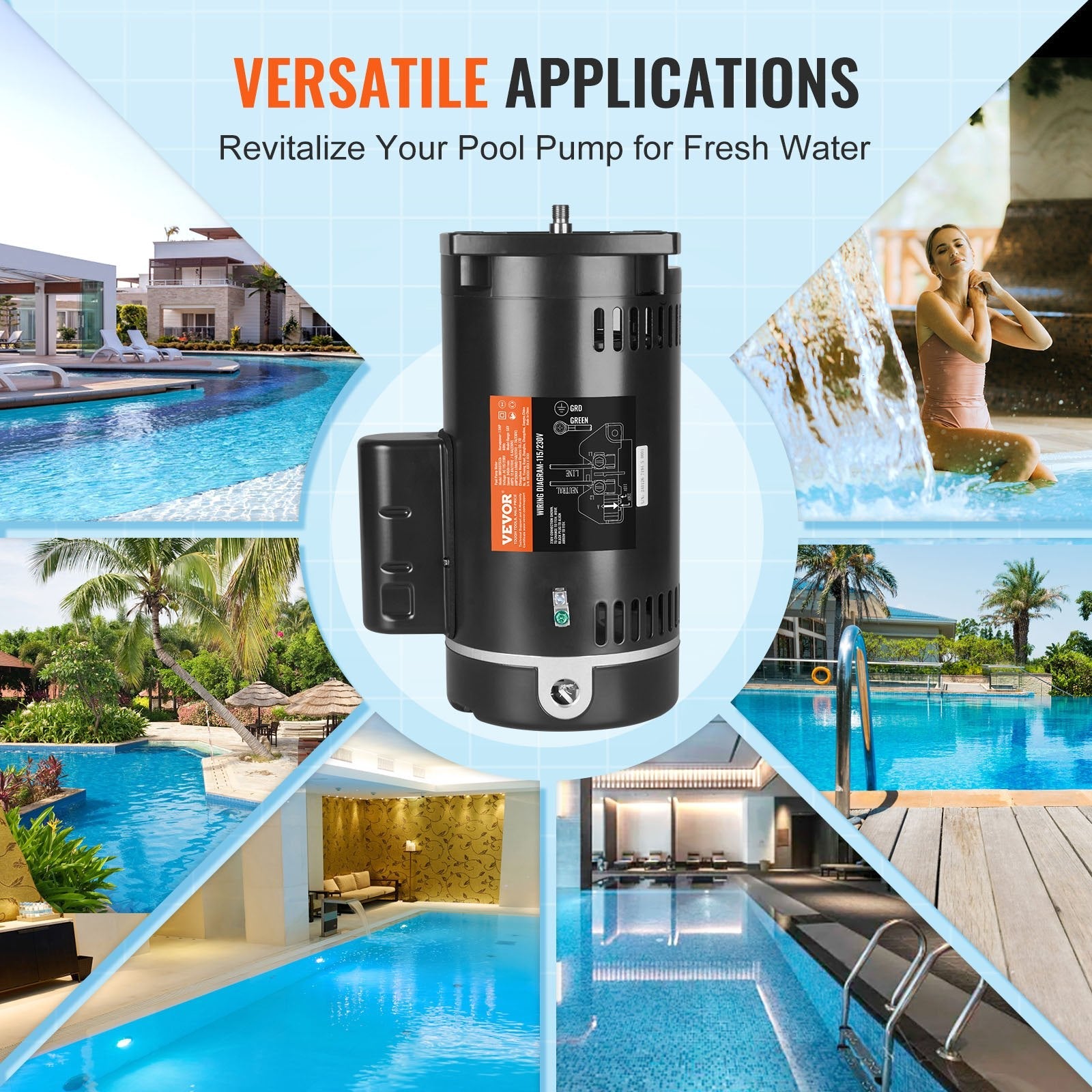

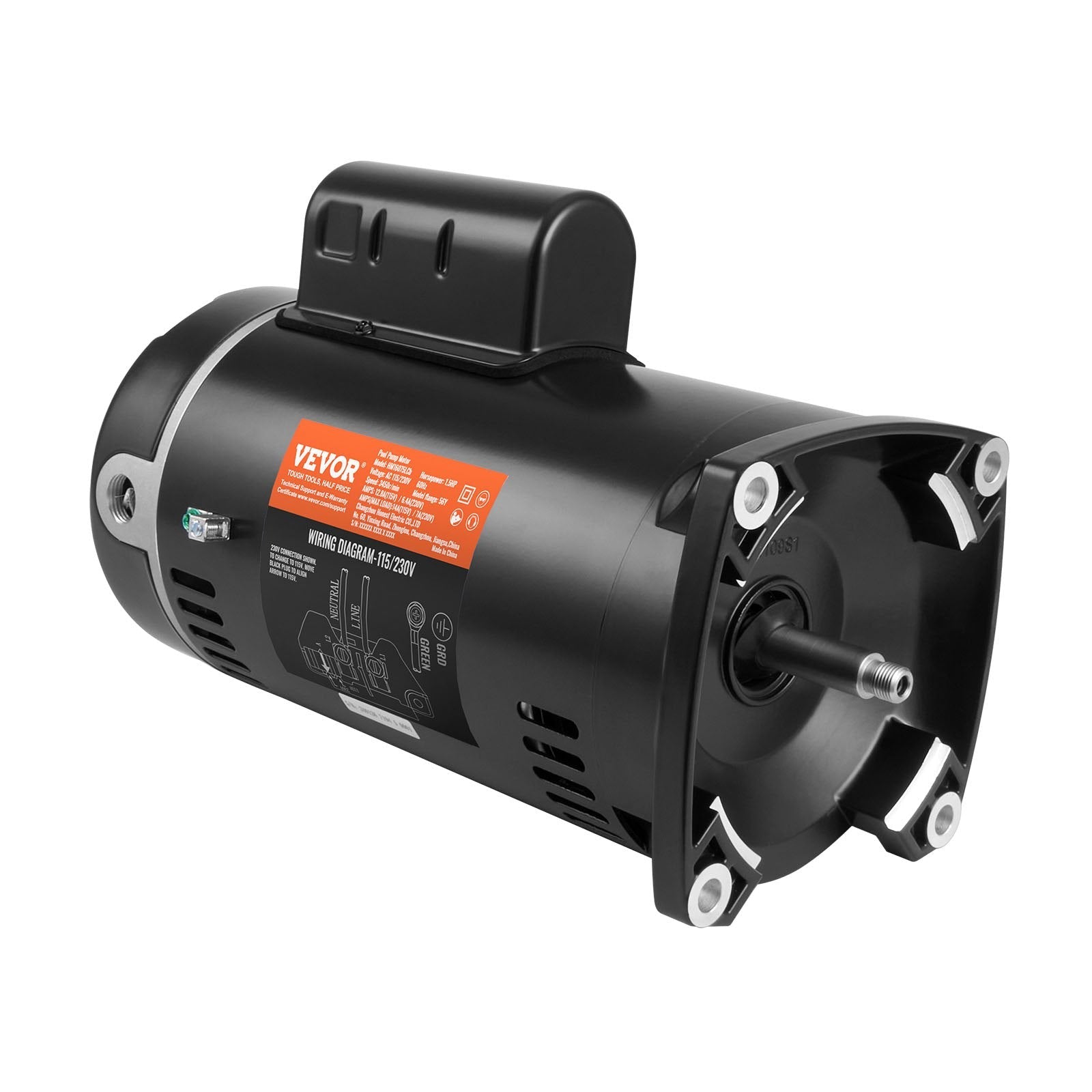

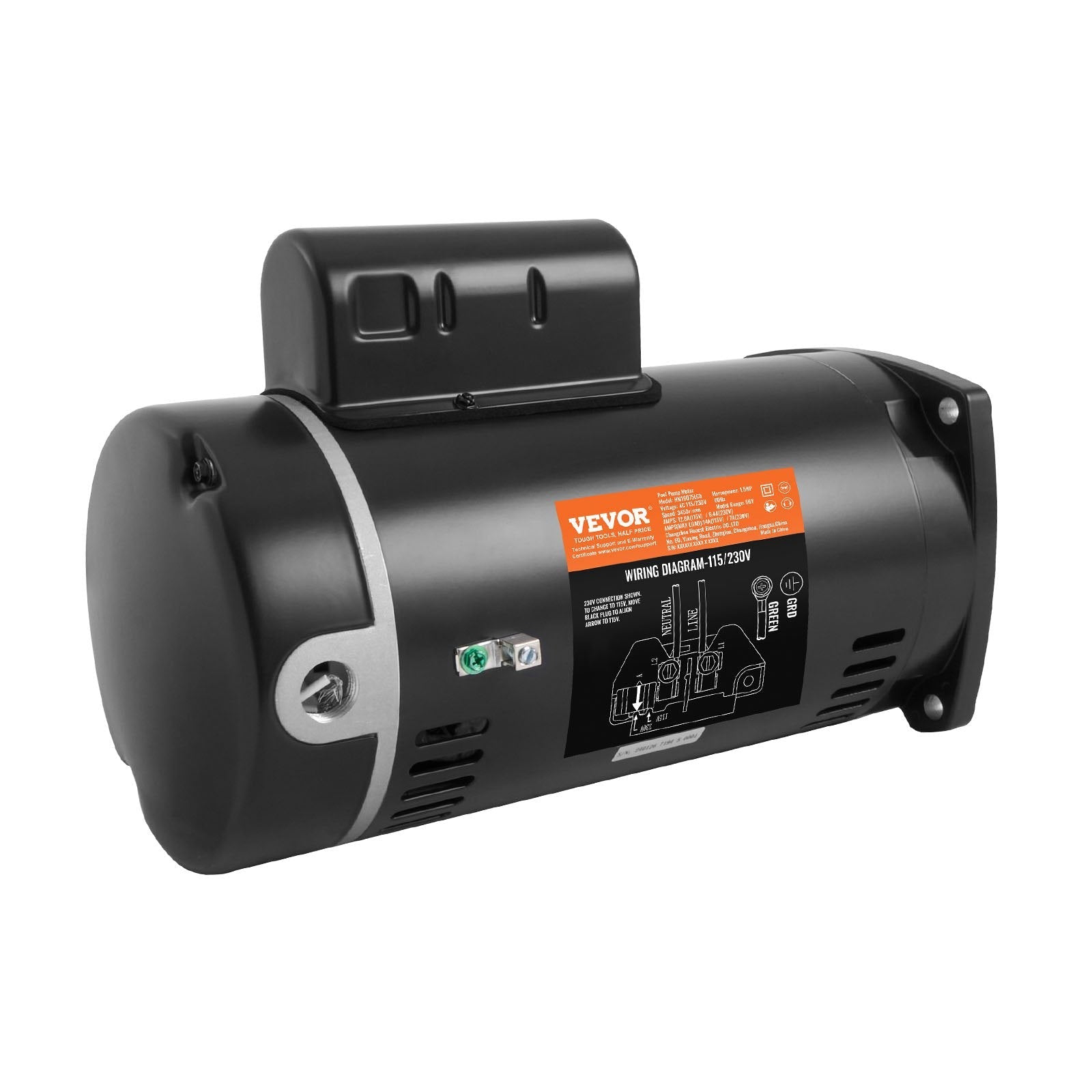

The VEVOR 1.5 HP Pool Pump Motor with 56Y square flange is designed for powerful, quiet, and reliable operation in residential or commercial pool systems. With dual voltage support (115V/230V), a 3450 RPM high-speed motor, and a 90μF/250V capacitor, this motor delivers dependable water circulation and energy-efficient performance. Its compact design and square flange make installation straightforward, especially for replacing most standard spa and pool pump motors. Built with high-quality materials and engineered for longevity, it's ideal for both in-ground and above-ground pools, spas, and hot tubs.
Features
-

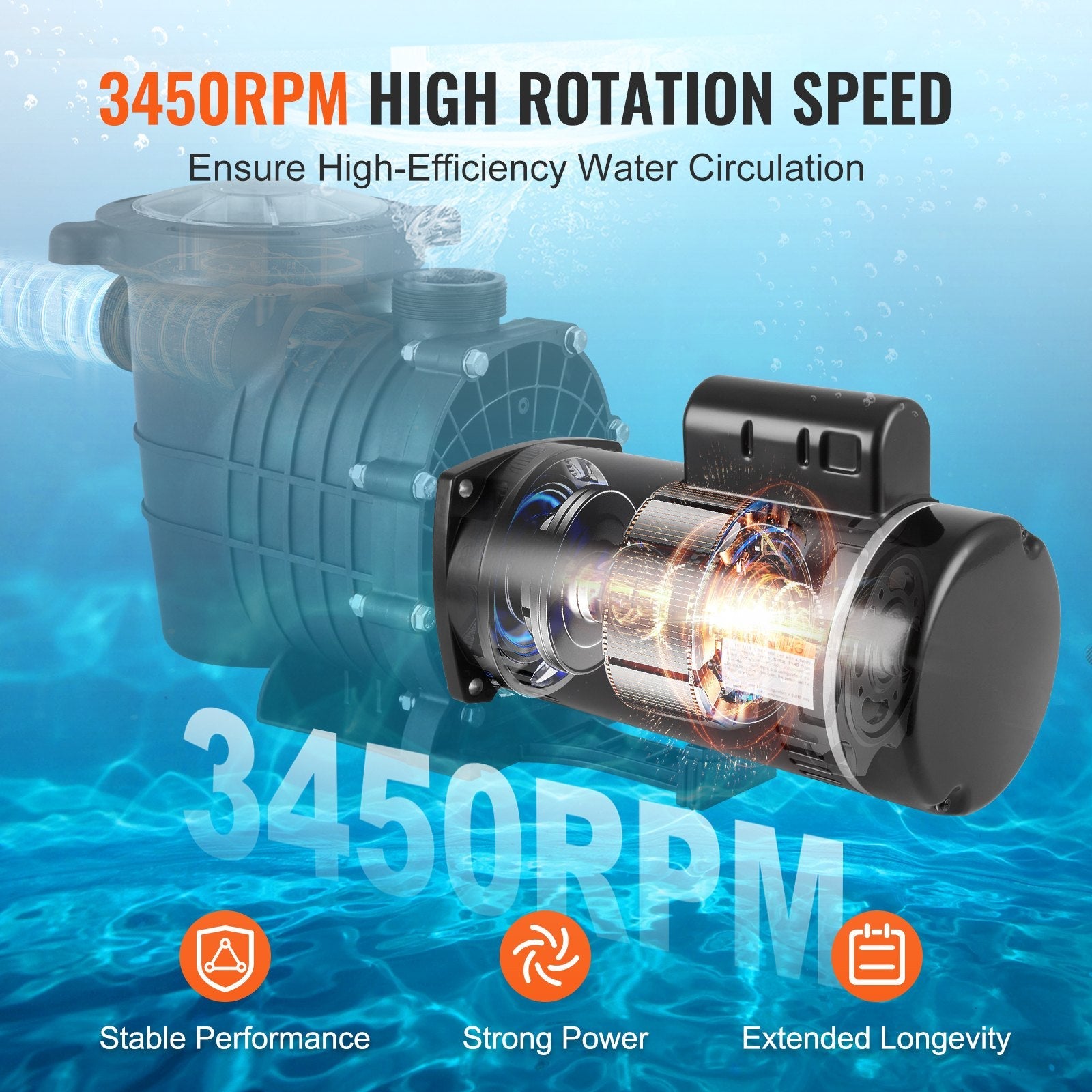

High-Speed Output: 3450 RPM motor ensures fast, efficient water movement.
-

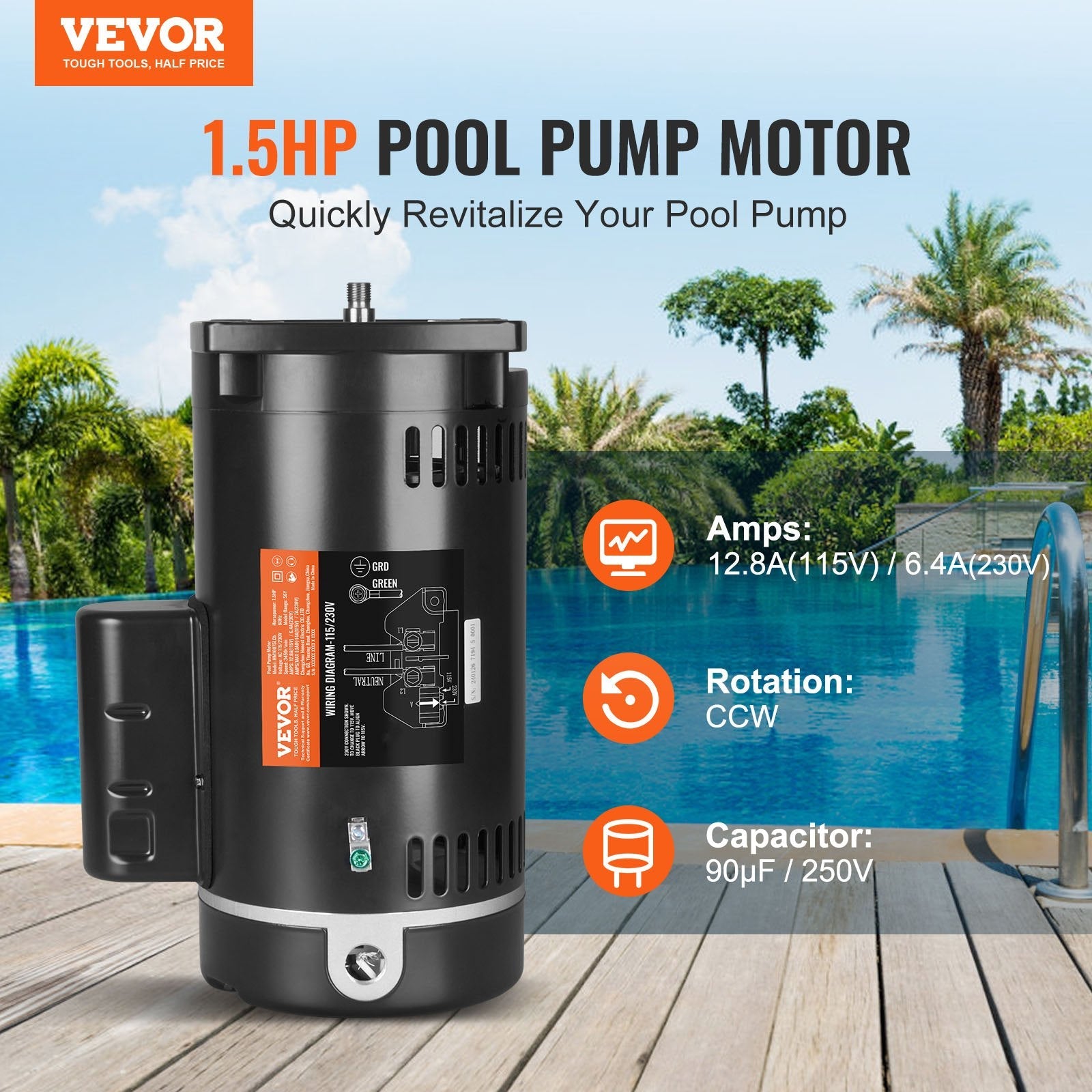

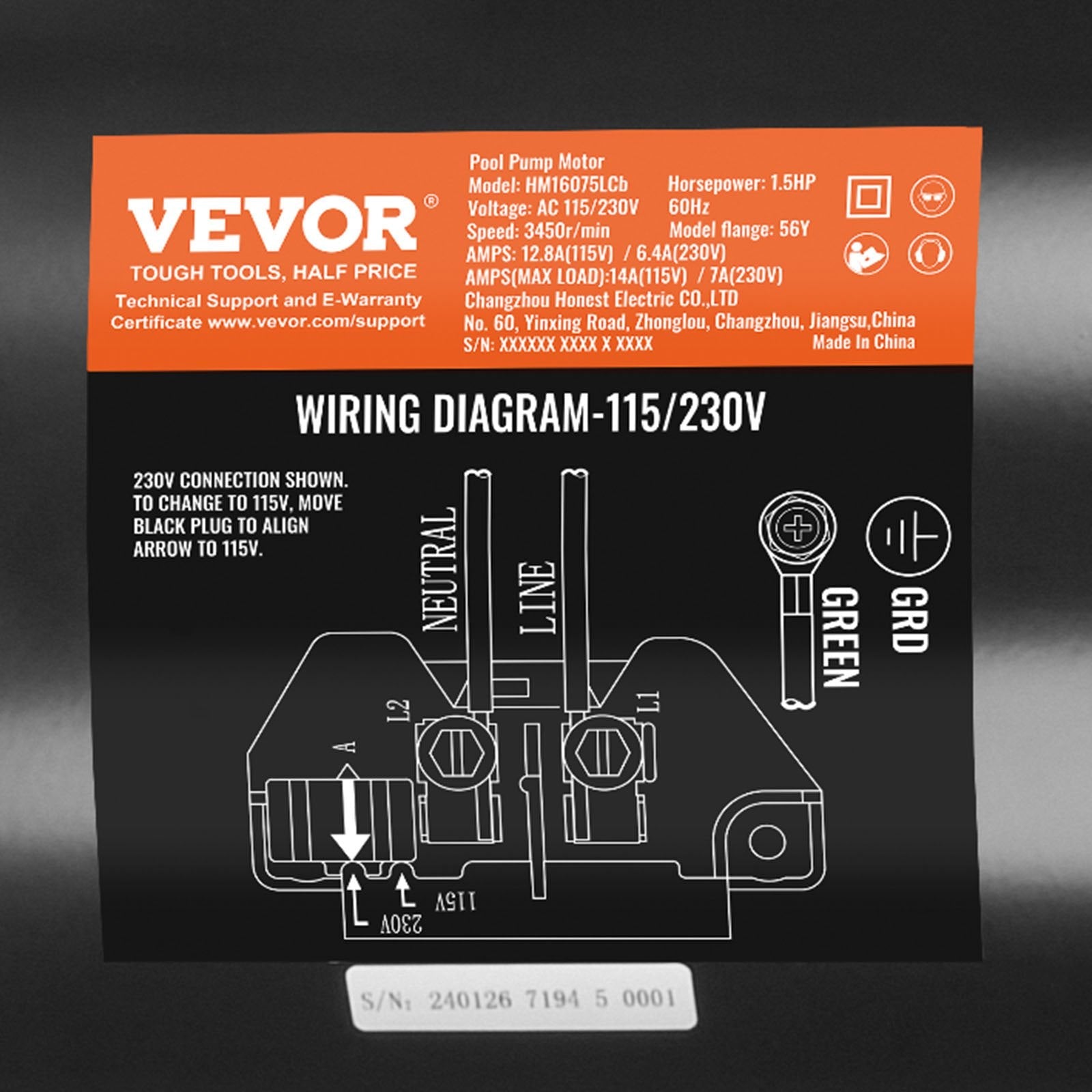

1.5 HP Dual Voltage Motor: Operates on either 115V (12.8A) or 230V (6.4A) power.
-

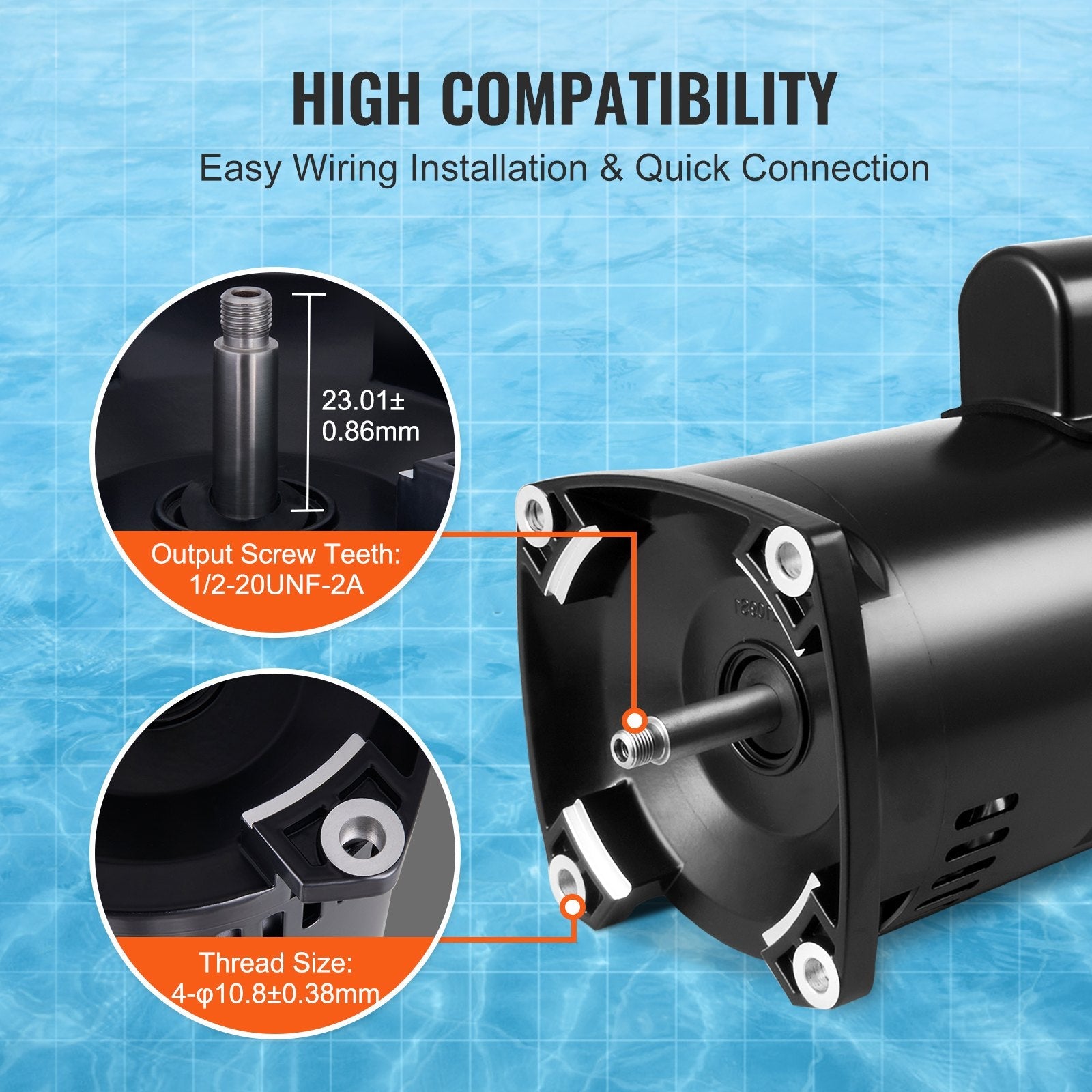

56Y Square Flange Frame: Designed for compatibility with common pool pump brands.
-
Quiet Operation: Runs at a noise level of ≤70 dB to maintain a peaceful environment.
-
Durable & Stable: Built to withstand demanding pool conditions with stable, long-term performance.
-
Smooth Start-Up: Includes a 90μF/250V capacitor for quick and reliable startup.
-
Easy Replacement: Ideal for replacing existing motors in spa or pool systems with minimal setup.
Specifications
-
Item Model Number: HM16075LCb
-
Horsepower: 1.5 HP
-
Voltage: 115V (12.8A) / 230V (6.4A)
-
Max Current: 14A (115V) / 7A (230V)
-
No-Load Speed: 3450 RPM
-
Noise Level: ≤70 dB
-
Service Factor: 1.1
-
Frame Type: 56Y Square Flange
-
Rotation: CCW (Counter-Clockwise)
-
Capacitor: 90μF / 250V
-

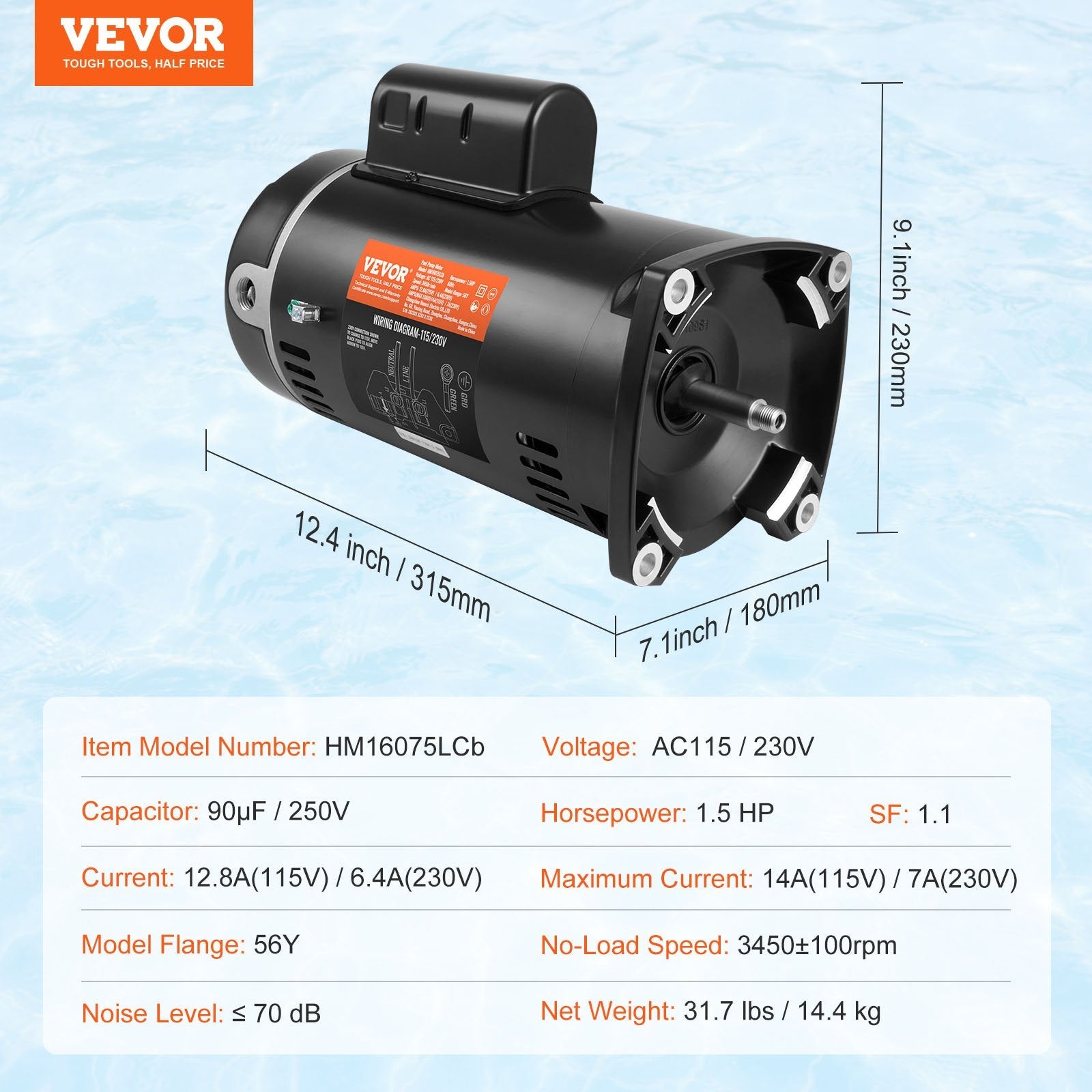

Product Dimensions: 12.4 x 7.1 x 9.1 in / 315 x 180 x 230 mm
