Description

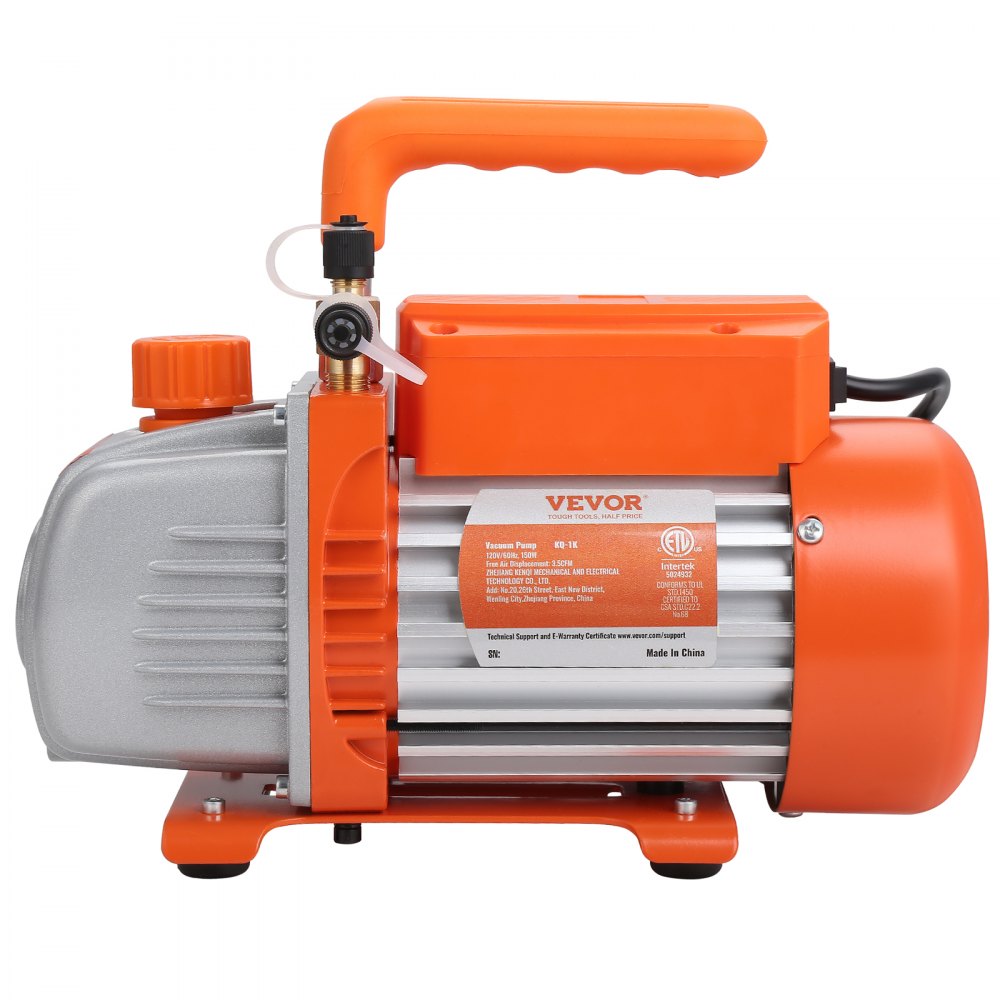

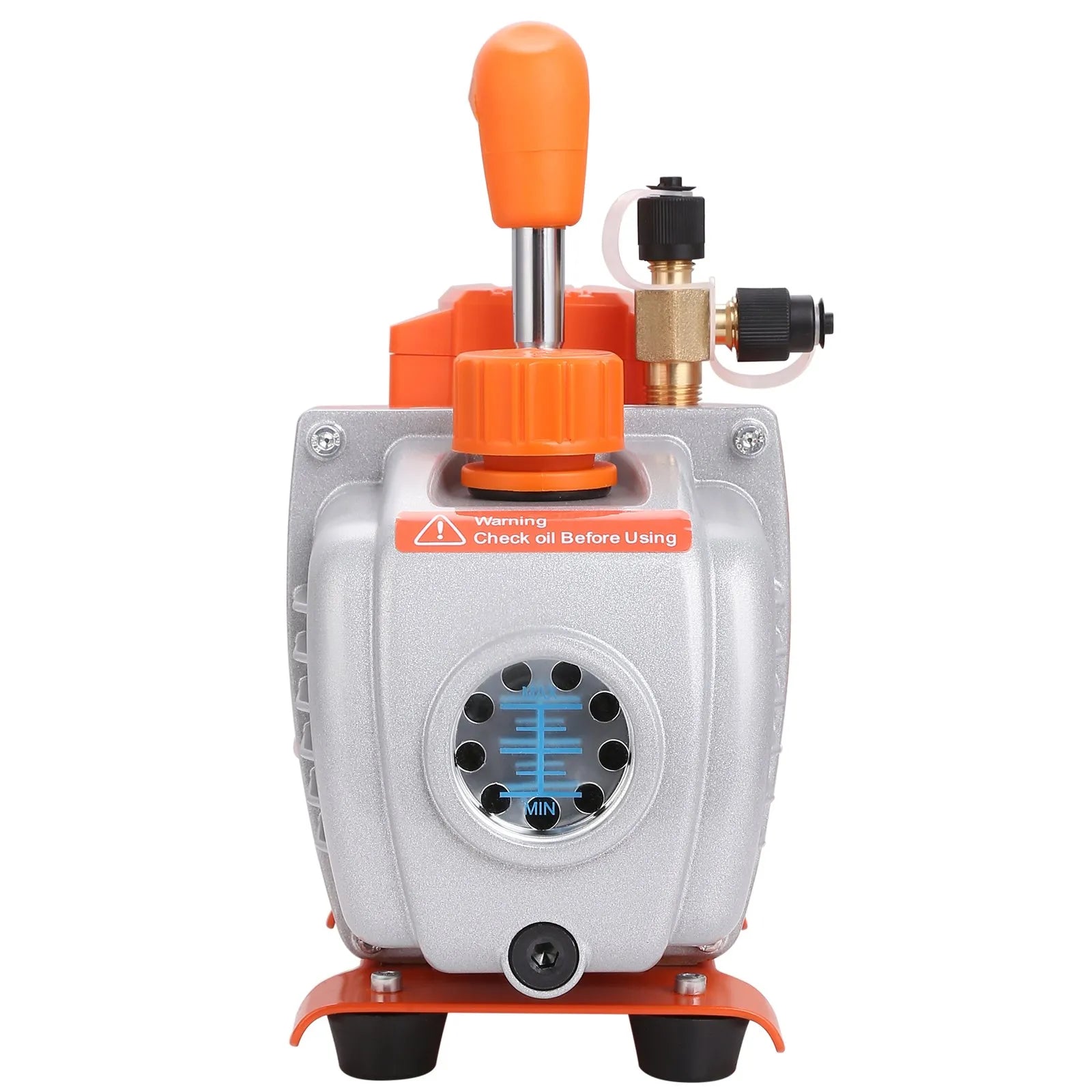

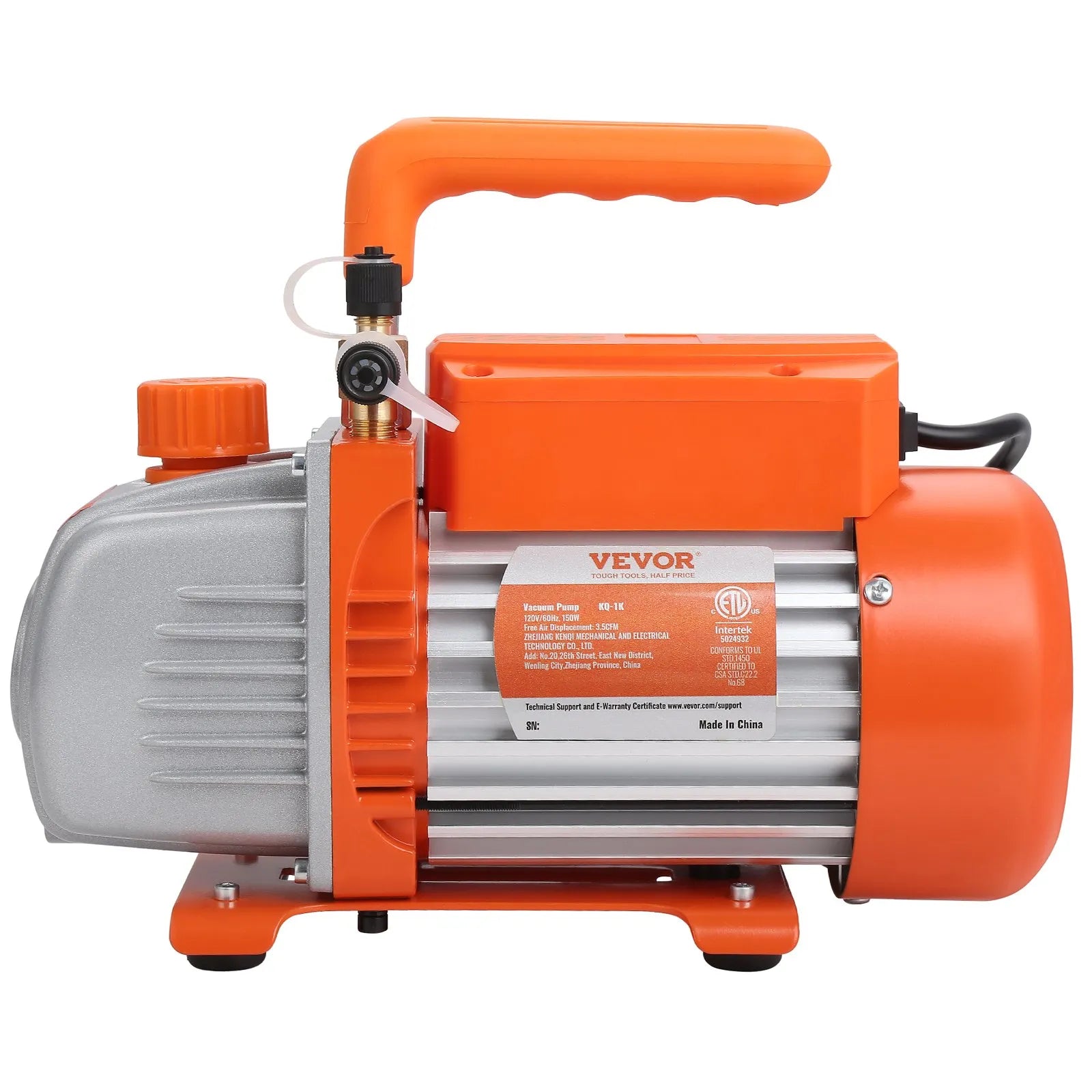

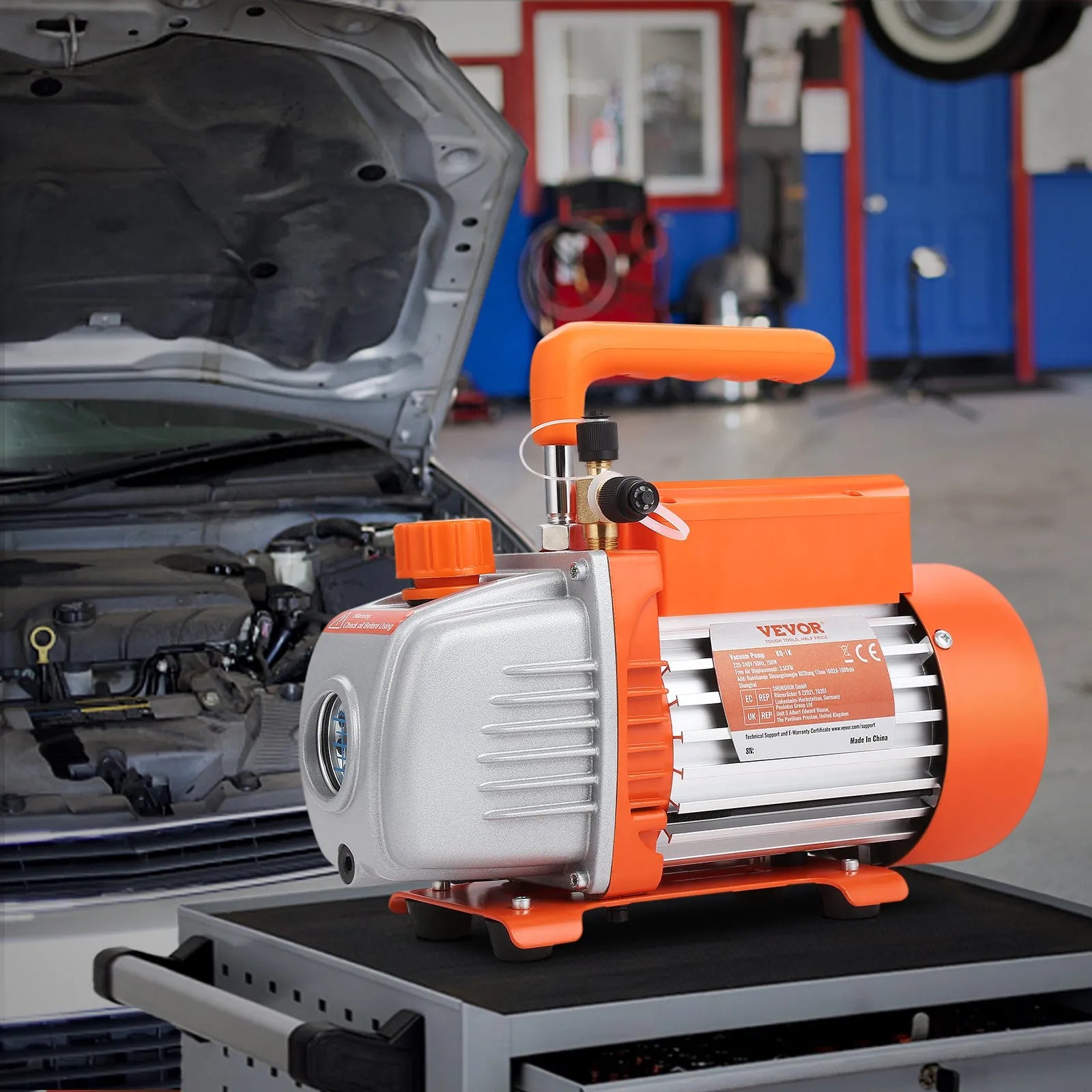

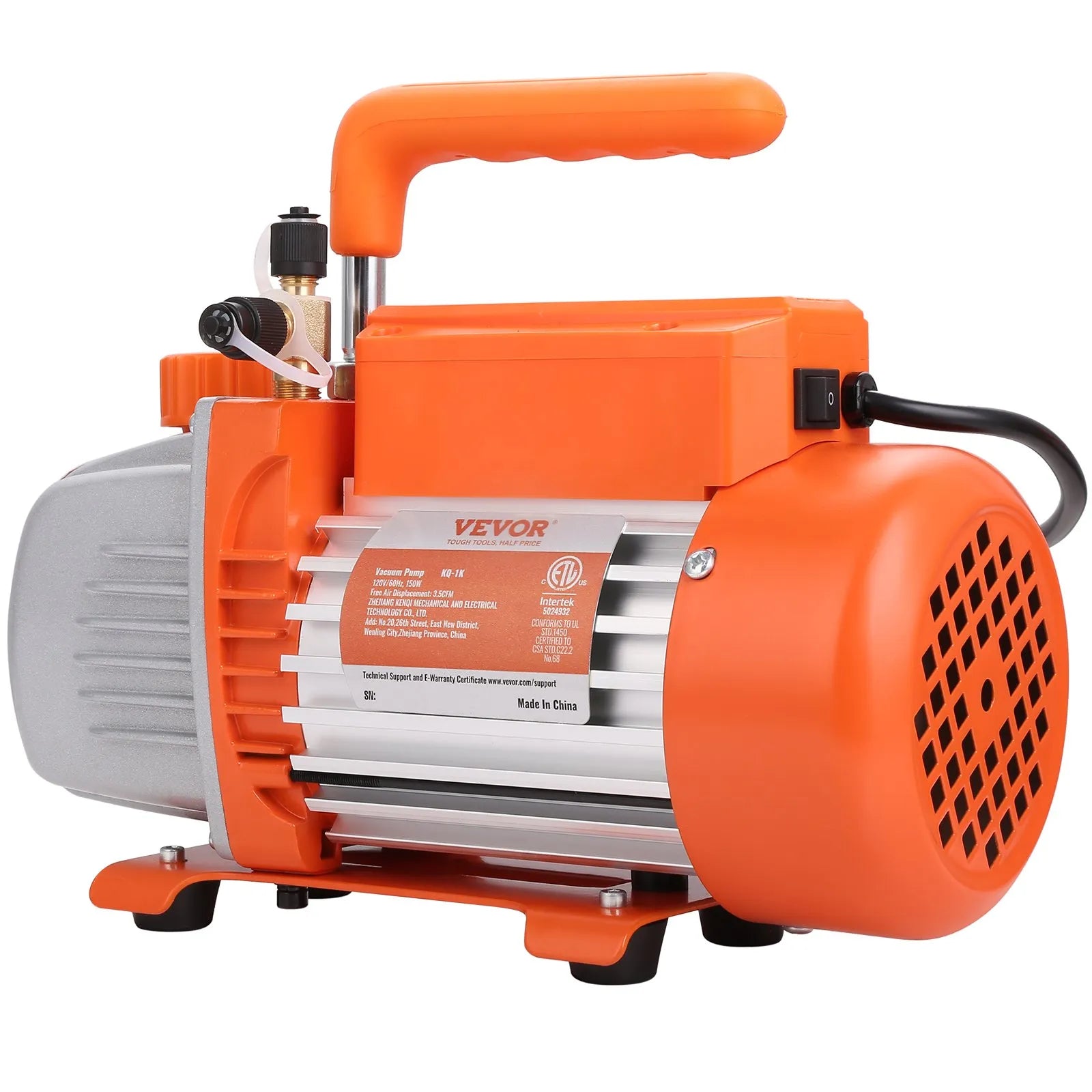

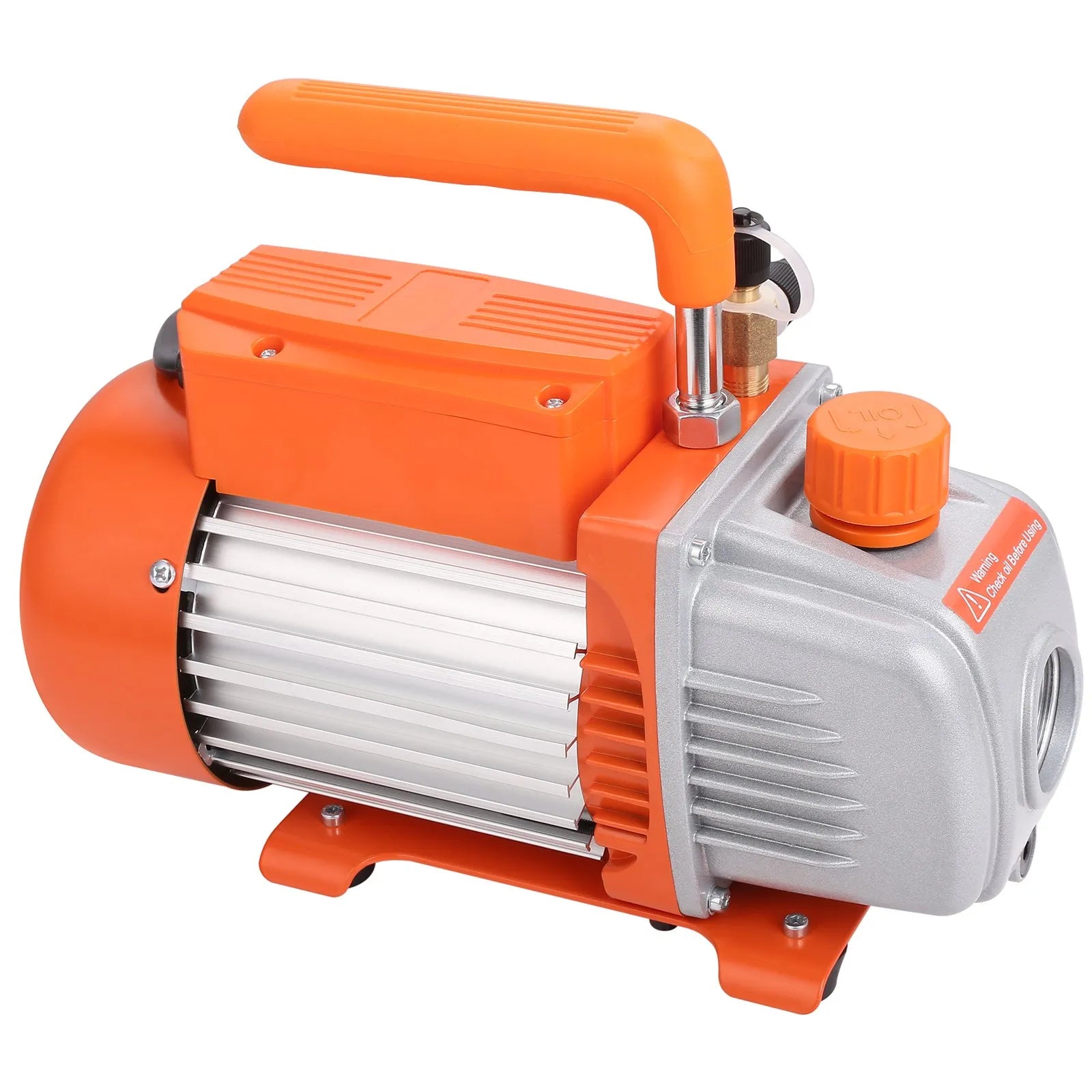

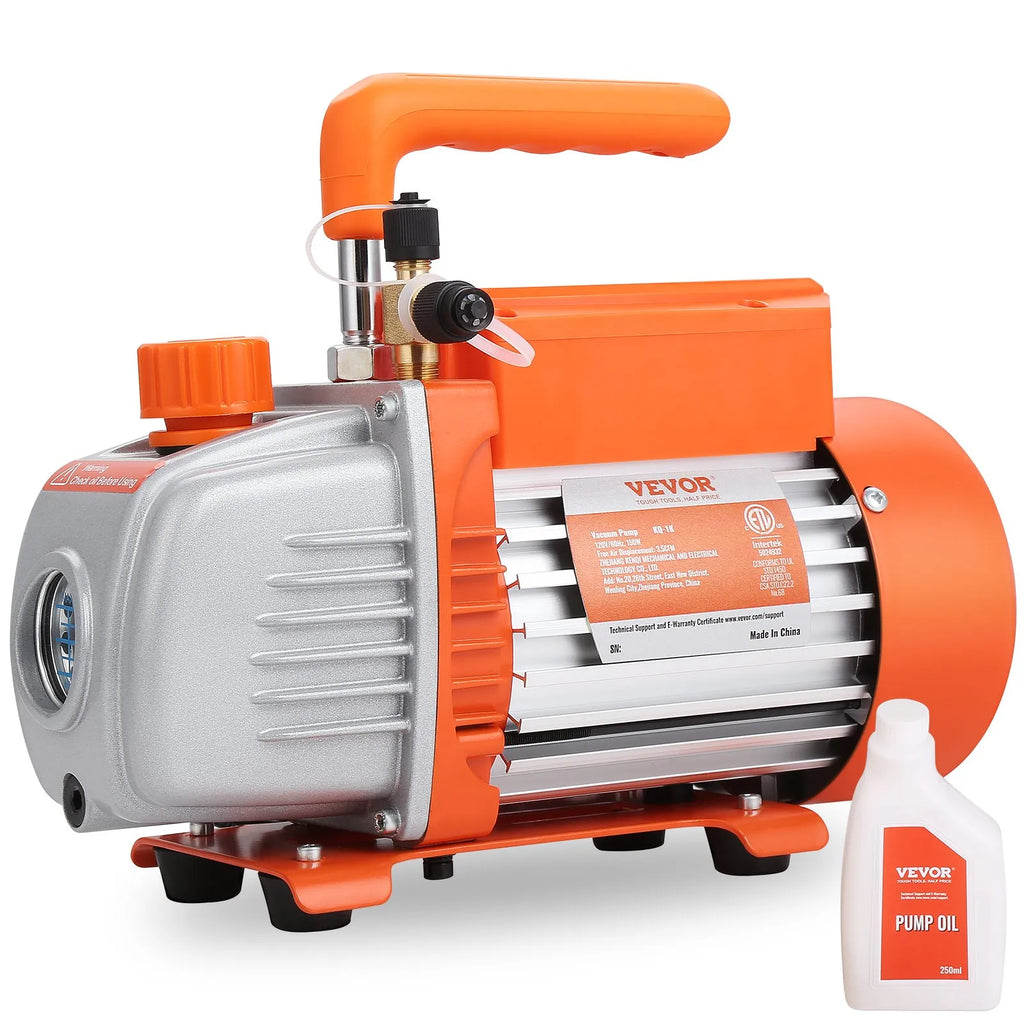

The VEVOR 1/5 HP Single Stage Vacuum Pump delivers reliable and efficient performance for HVAC system repair, refrigeration maintenance, and resin degassing. Featuring a 3.5 CFM air displacement and a durable pure copper motor, this vacuum pump achieves a deep vacuum of up to 40 microns. Its compact and lightweight design, coupled with rapid heat dissipation and dual inlet fittings (1/4" SAE and 1/2" ACME), ensures compatibility and convenience across a wide range of applications.
Features
-
Reliable Vacuum Performance: 3.5 CFM free air displacement for efficient vacuum creation
-

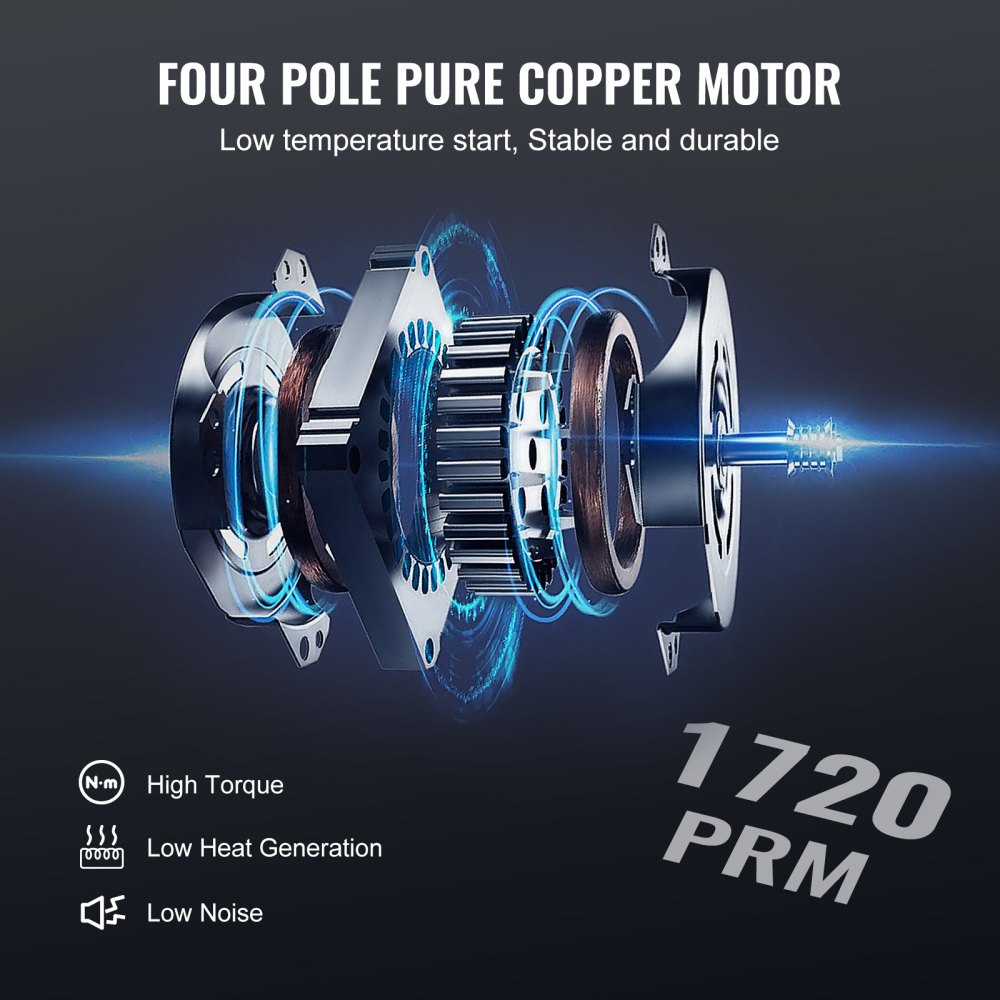

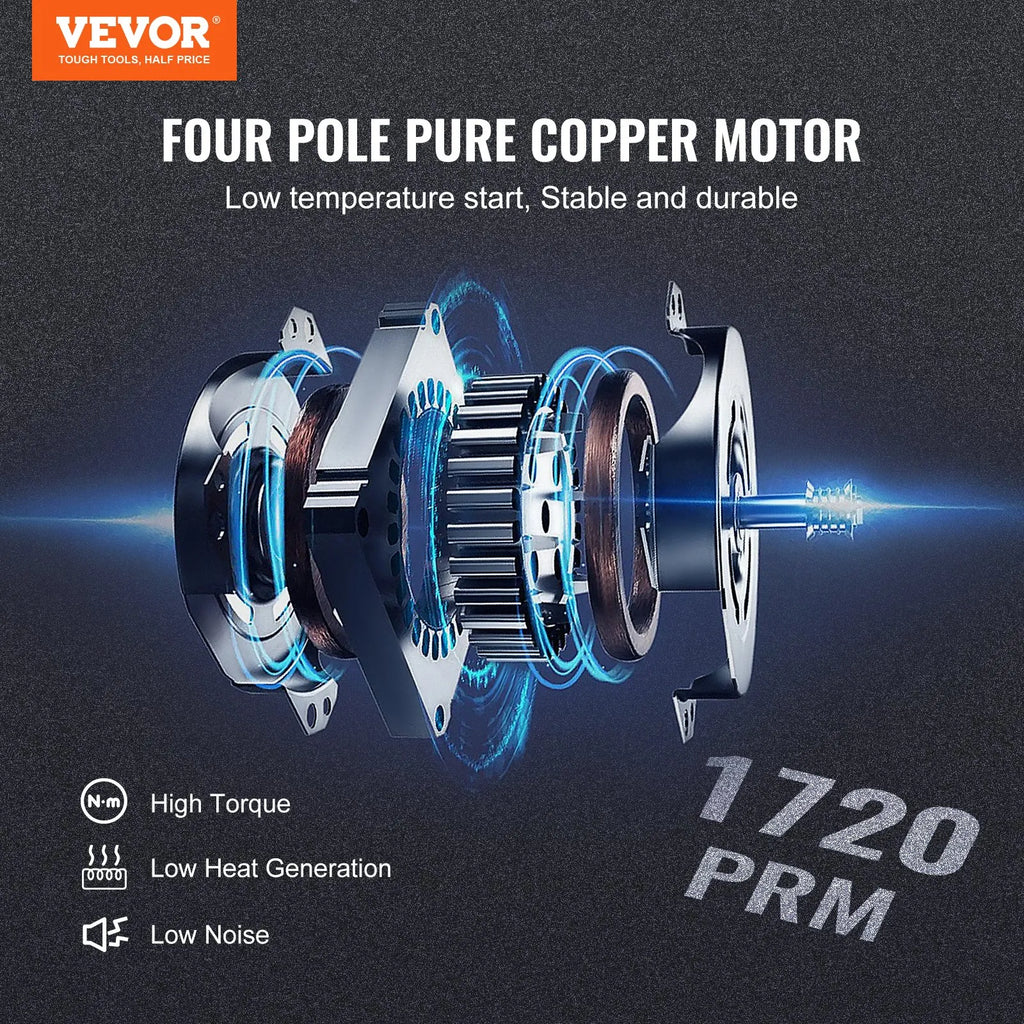

Durable Copper Motor: Provides stable power and long service life
-

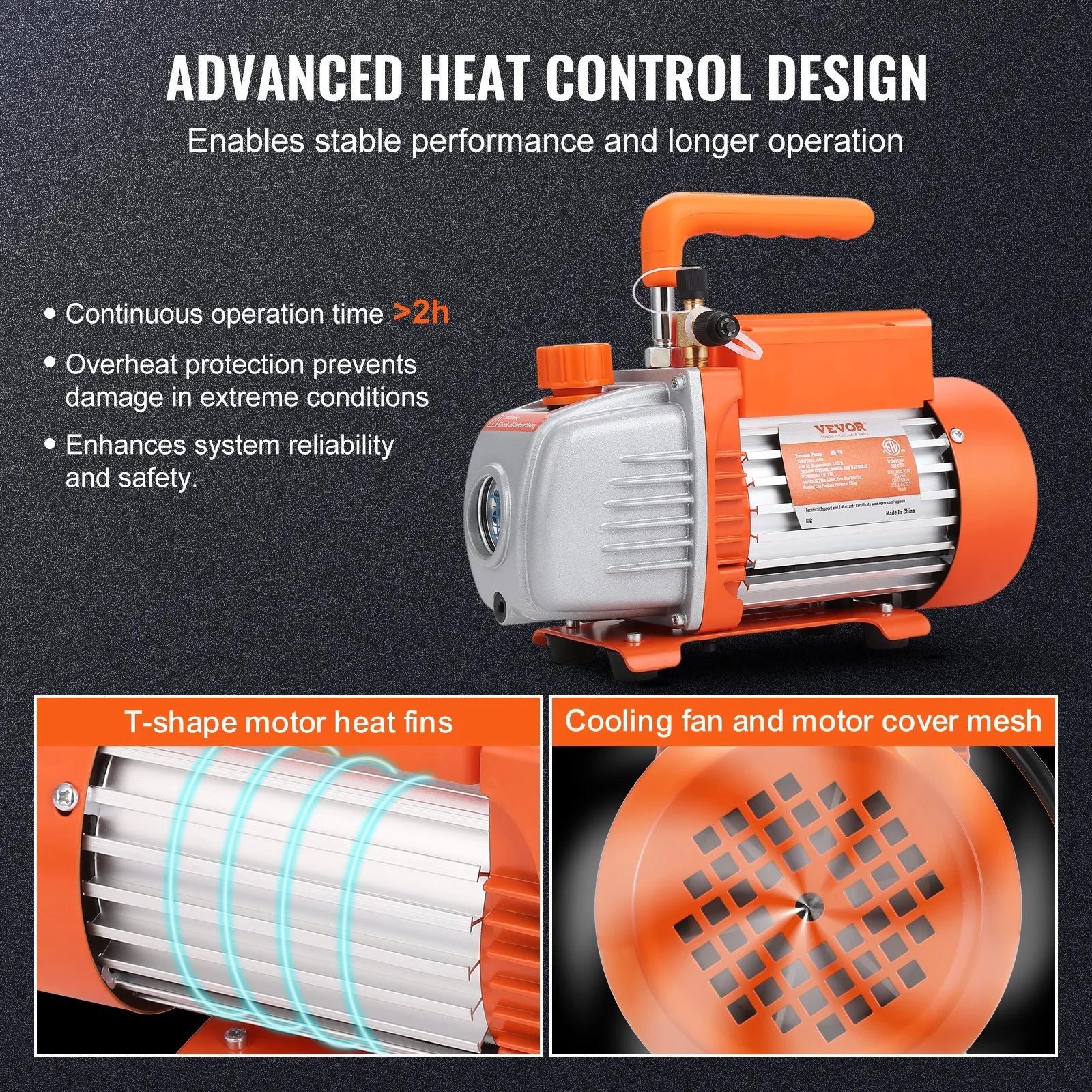

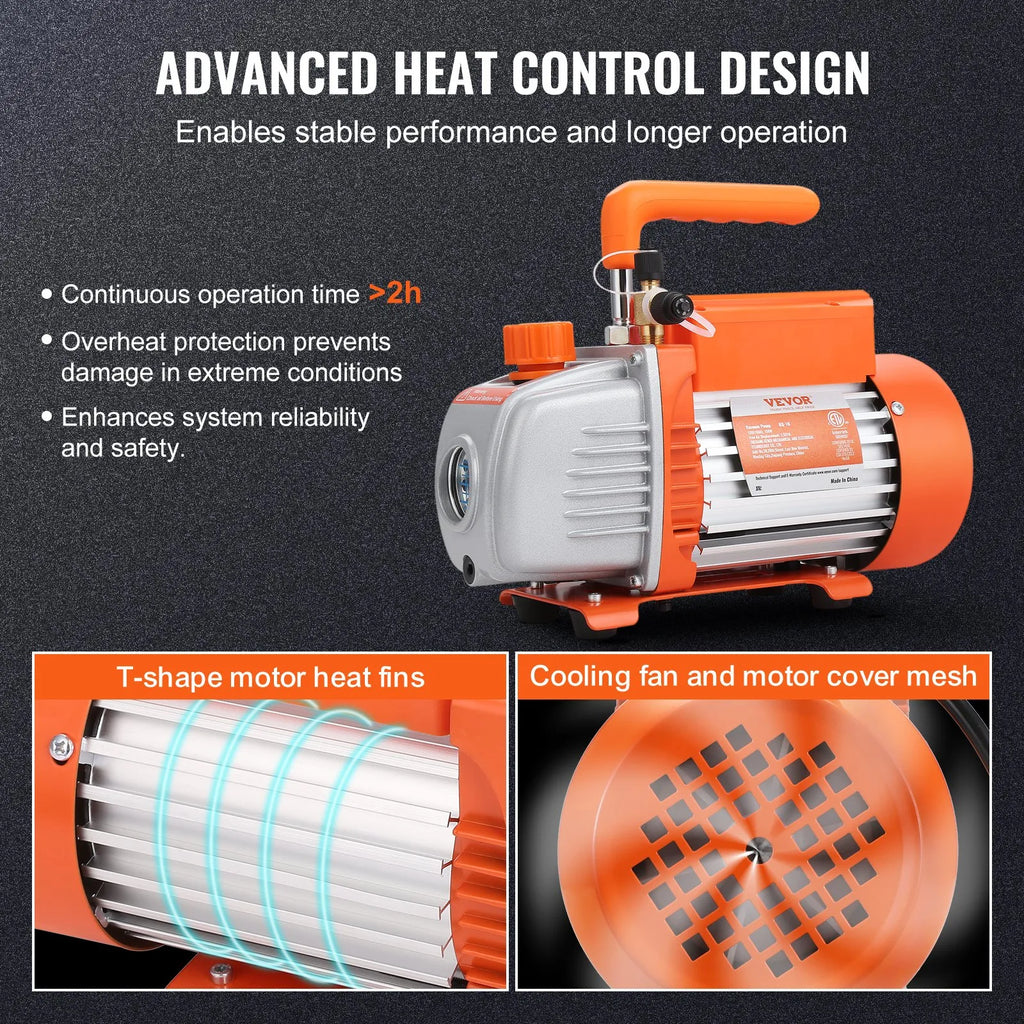

Fast Heat Dissipation: Built-in cooling fan prevents overheating during extended use
-

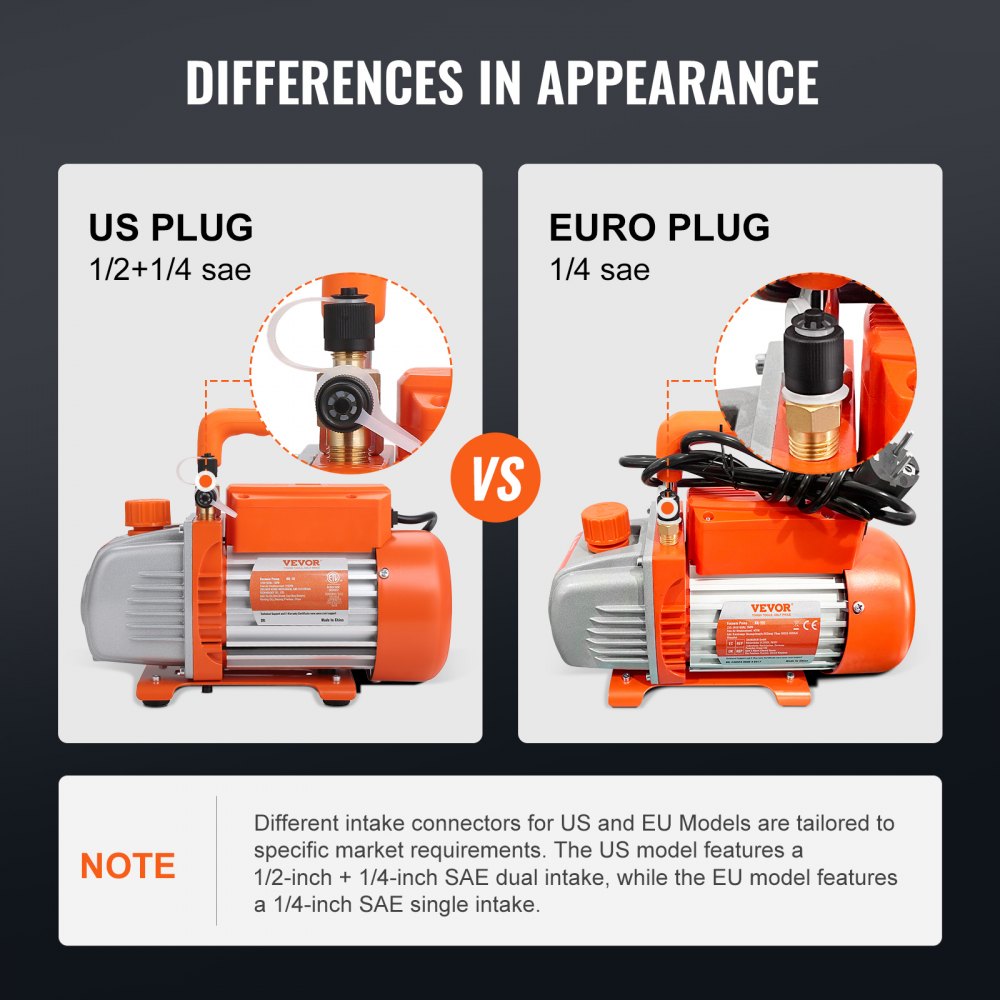

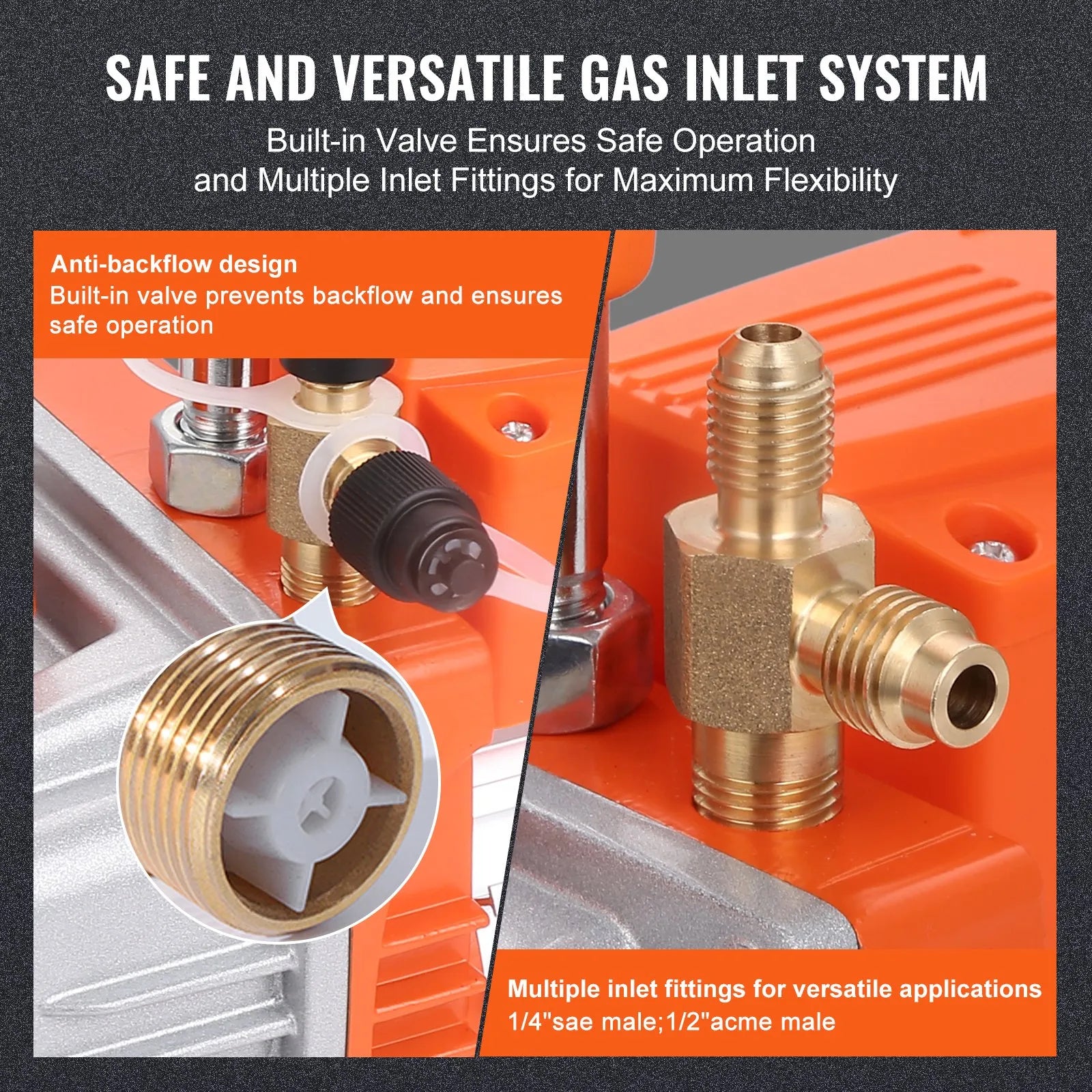

Universal Compatibility: Equipped with 1/4" SAE and 1/2" ACME male inlets
-
Compact & Portable: Lightweight design ideal for on-site and workshop use
-

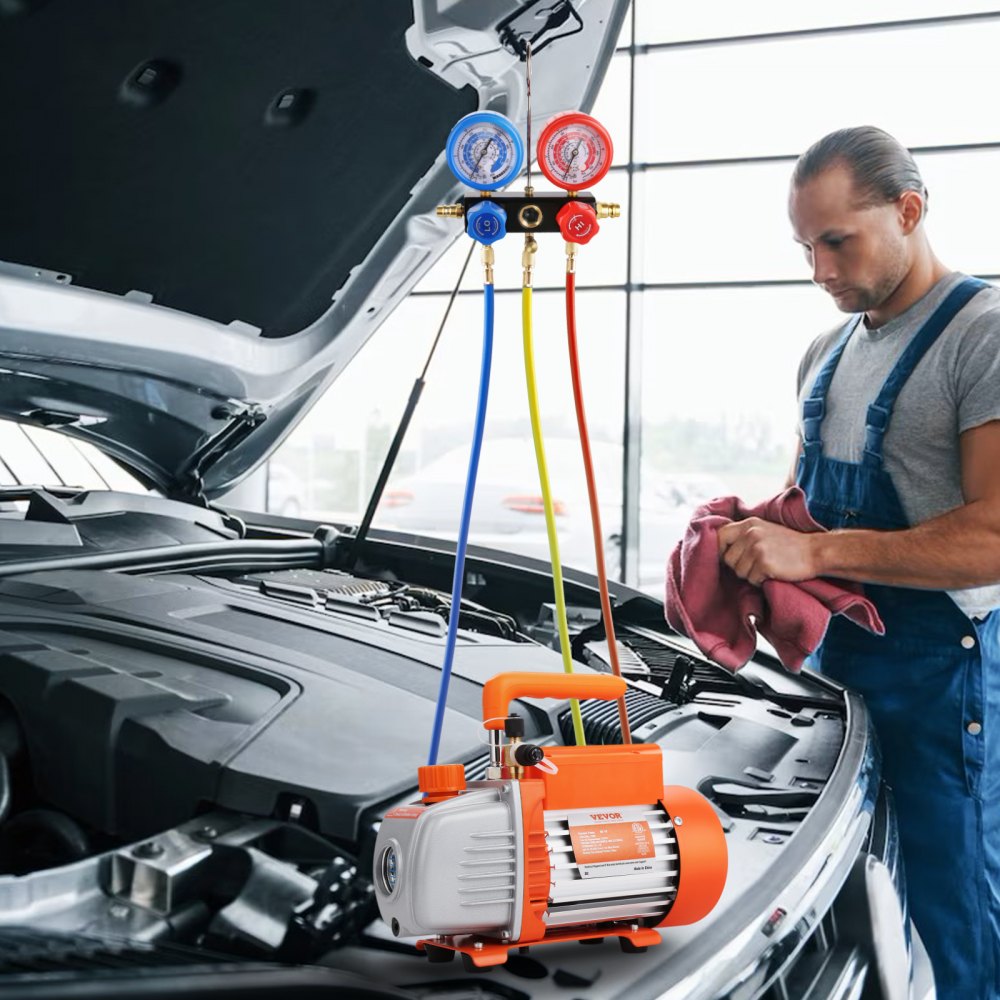

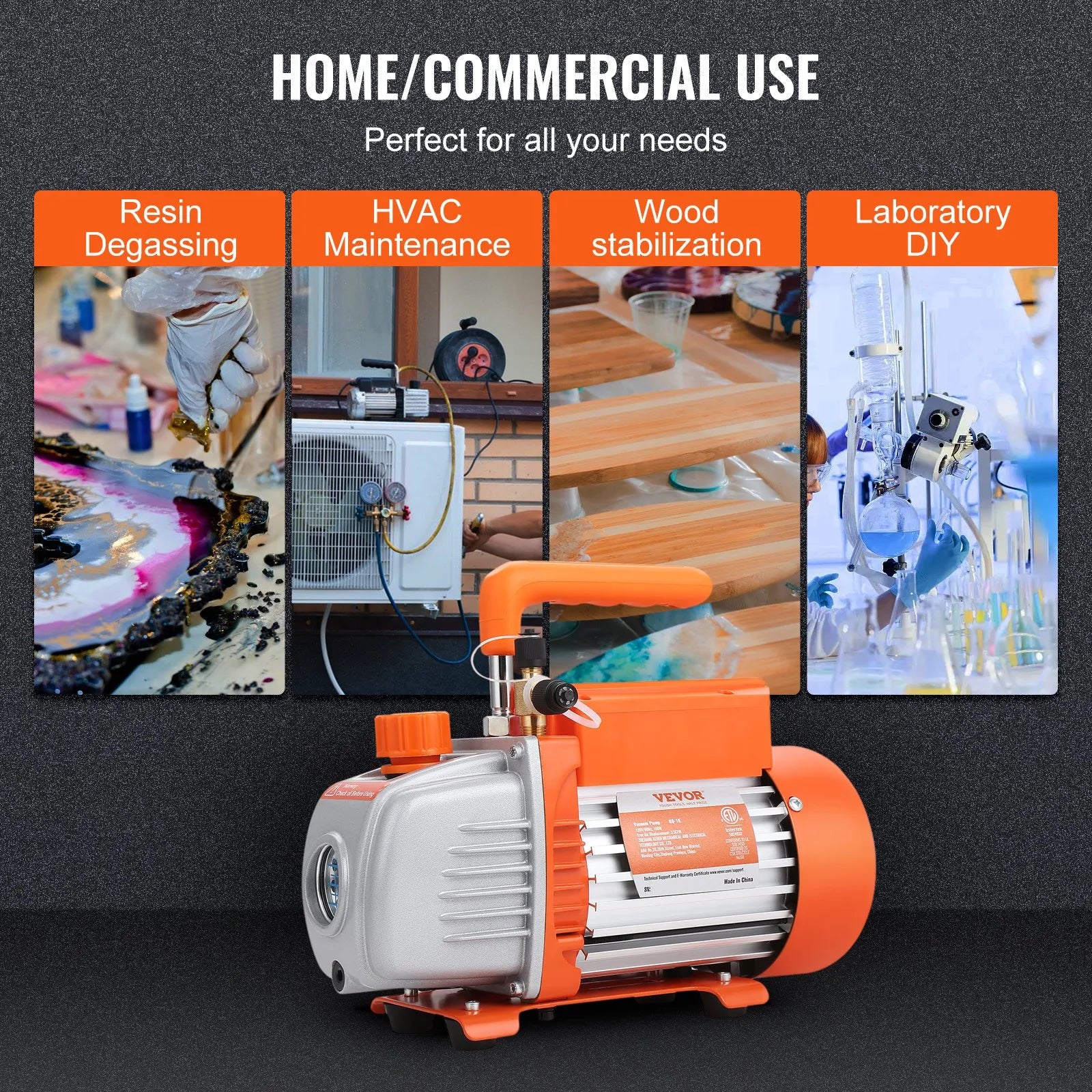

Versatile Applications: Perfect for HVAC repair, refrigeration, air conditioning servicing, and resin degassing
Specifications
-
Model Number: TW-1K
-
Power: 150W (1/5 HP)
-
Voltage/Frequency: 120V / 60 Hz
-
Speed: 1720 RPM
-
Free Air Displacement: 3.5 CFM
-
Ultimate Vacuum: 40 microns
-
Intake Fittings: 1/4" SAE male & 1/2" ACME male
-
Oil Capacity: 250 ml
-

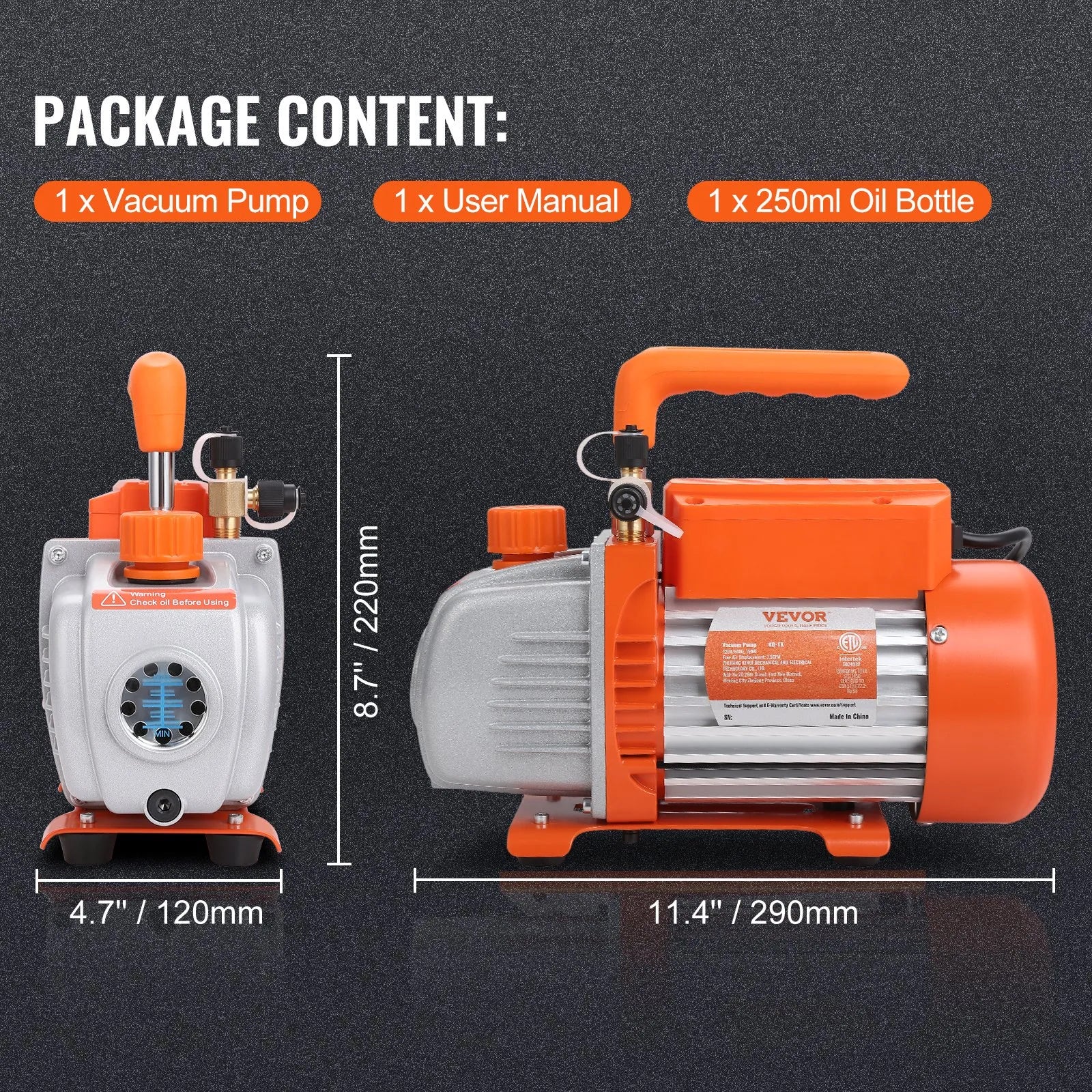

Product Dimensions: 11.4 x 4.7 x 8.7 in / 290 x 120 x 220 mm
-
Net Weight: 15.2 lbs / 6.9 kg
