Description

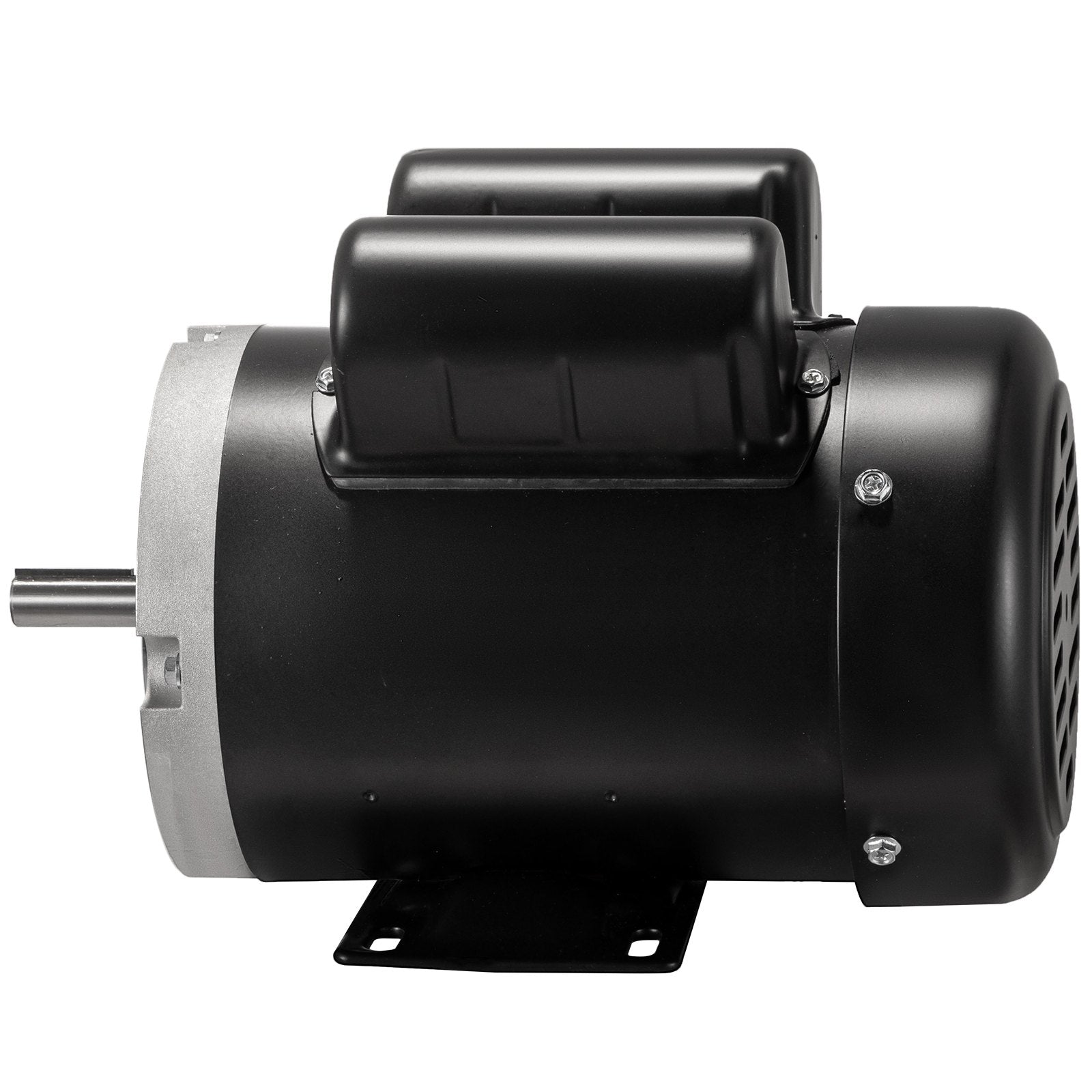

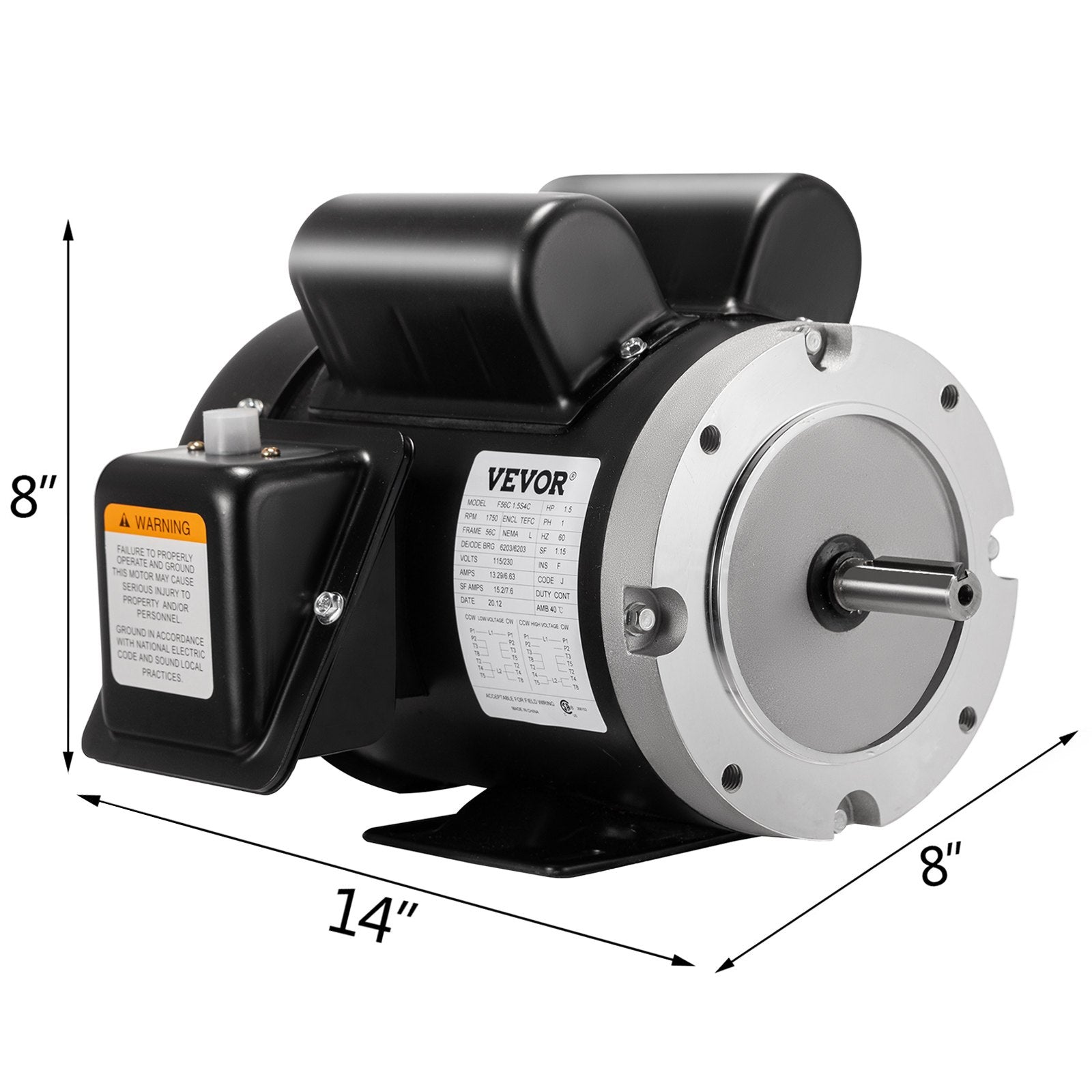

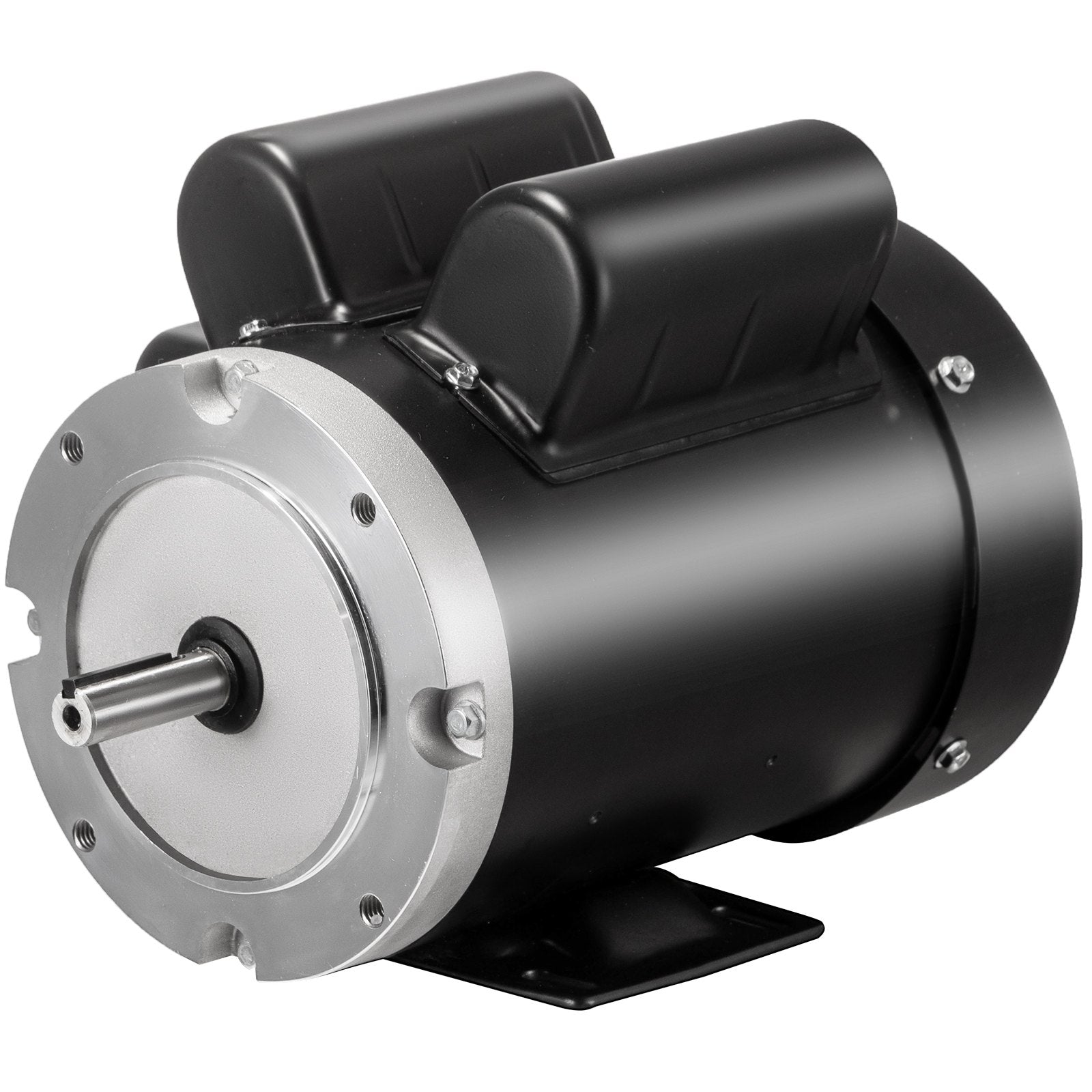

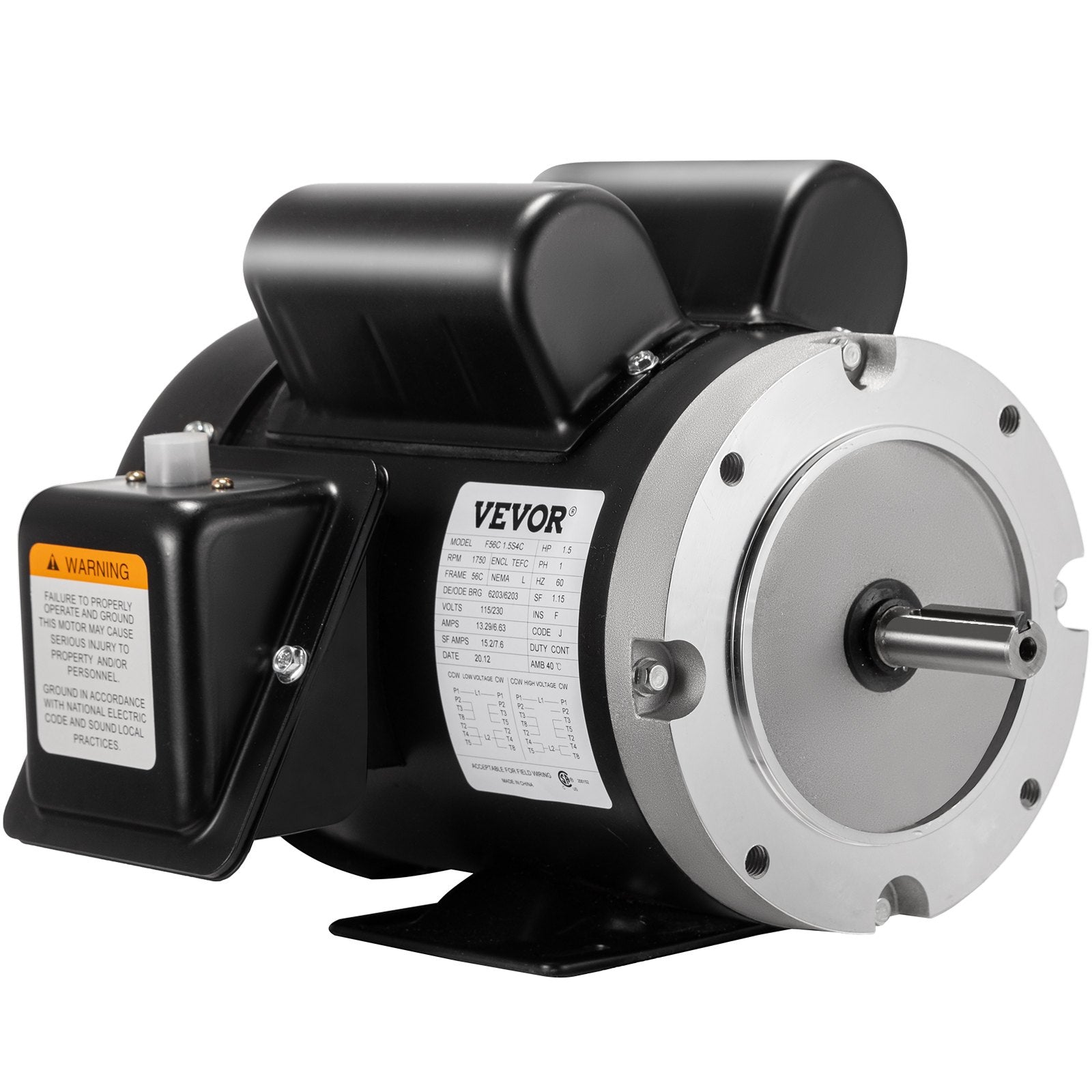

The VEVOR 115V/230V Electric Motor is a high-performance, rugged motor designed for a wide range of applications, including the powering of water pumps. With a 1.5 HP rating and 1725 RPM (rated speed), this single-phase motor offers reliable, efficient operation. Featuring a fully enclosed fan and rigid mounting bracket, it ensures durability and stability even in demanding conditions. The motor's reversible rotation allows for flexible use, while the 5/8-inch keyed shaft and 56C frame make it easy to integrate into existing setups. Ideal for both commercial and residential uses, this electric motor is built for continuous duty and long-term performance.
Features
-

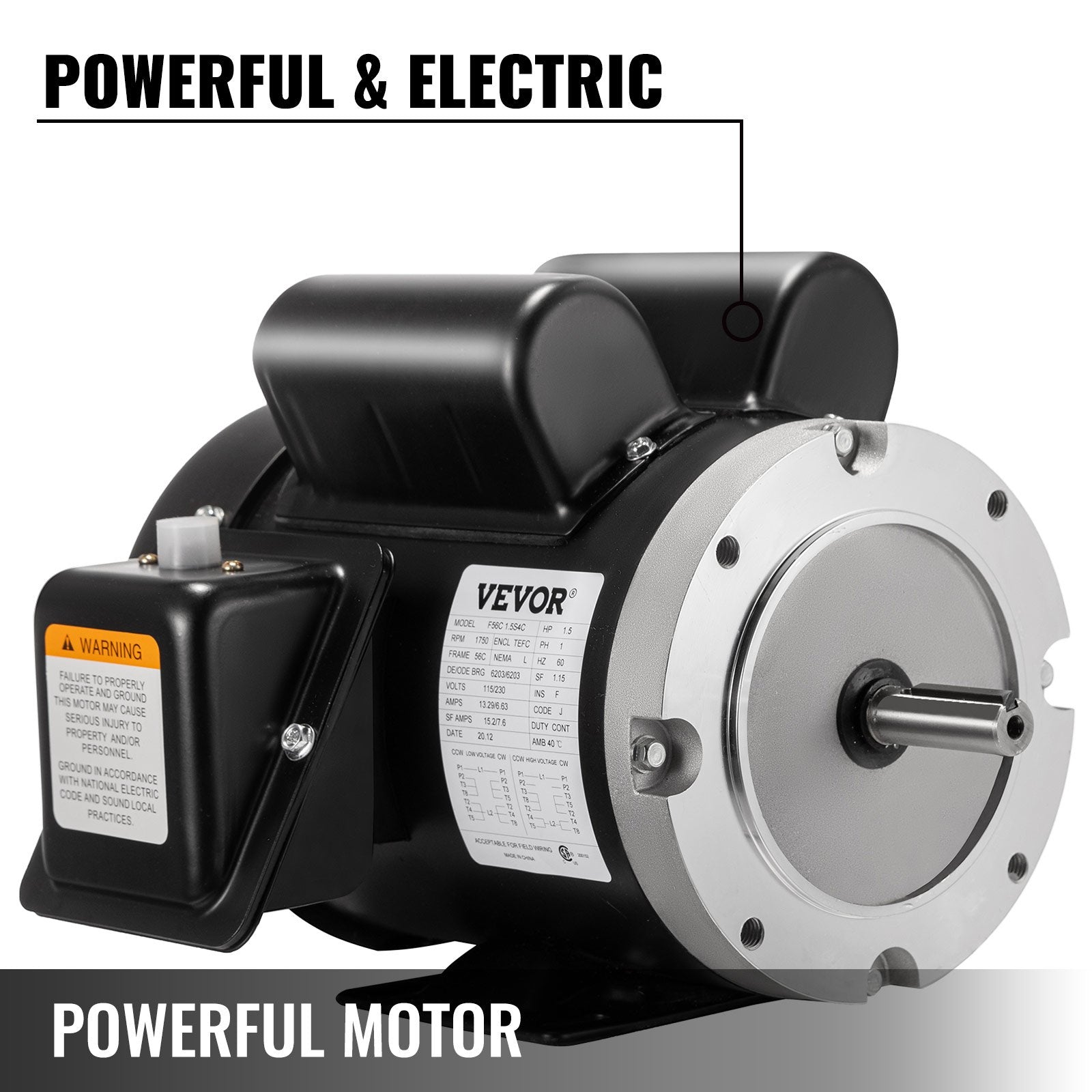

High-Performance Motor: Designed for efficient, reliable performance with a 1.5 HP rating and 1750 RPM for high-speed operation.
-

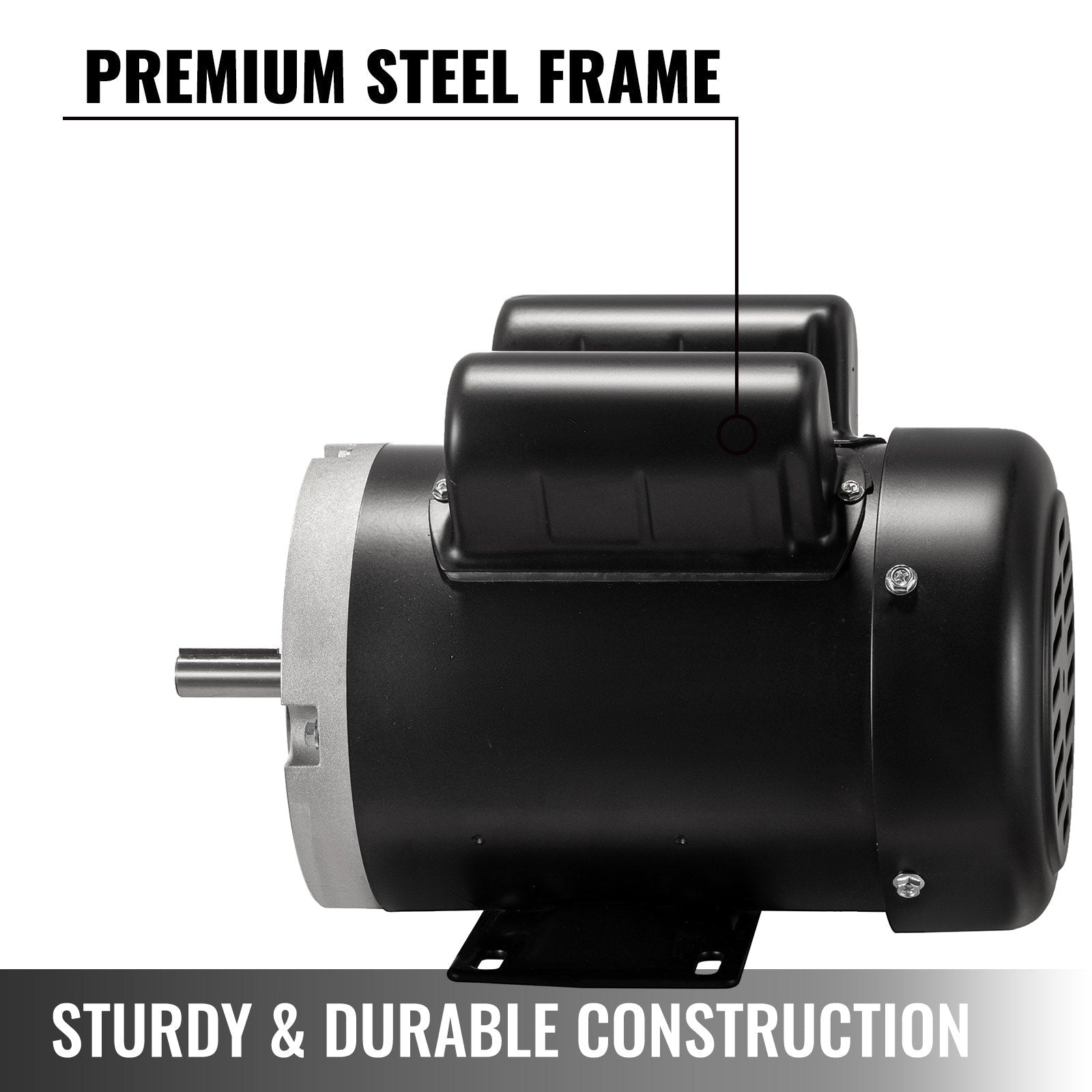

Rugged & Durable Construction: Built to last with high-quality materials and a fully enclosed fan for added protection.
-

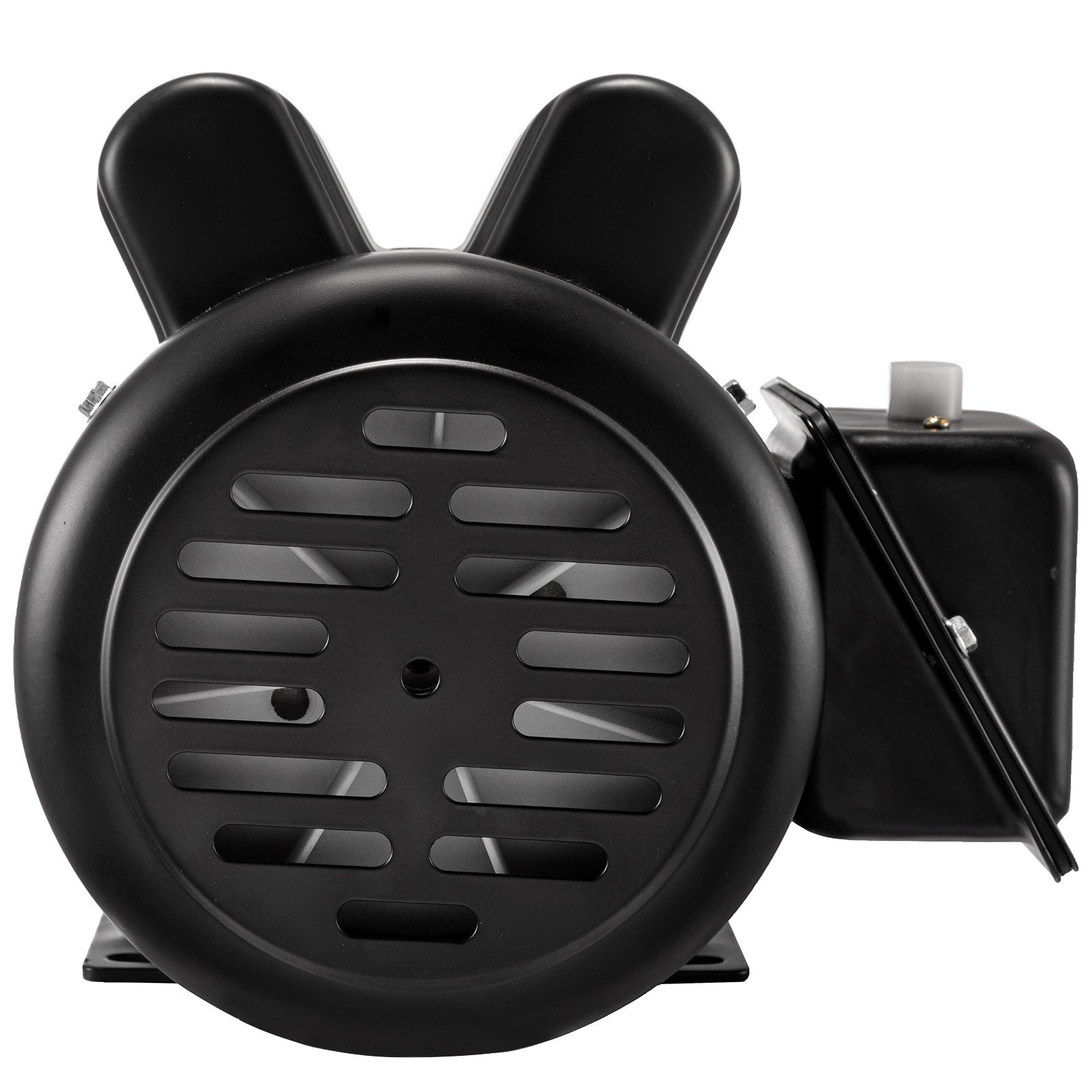

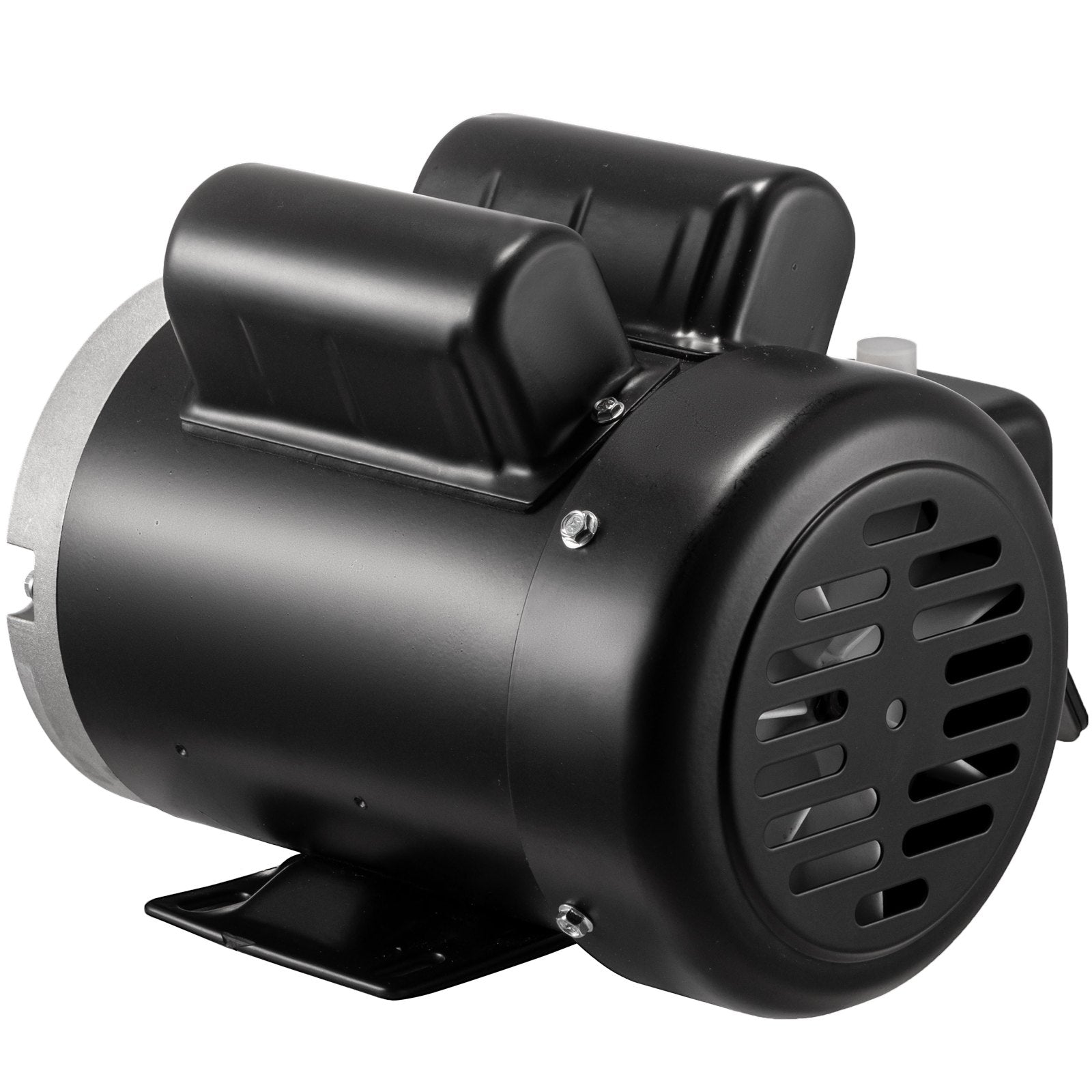

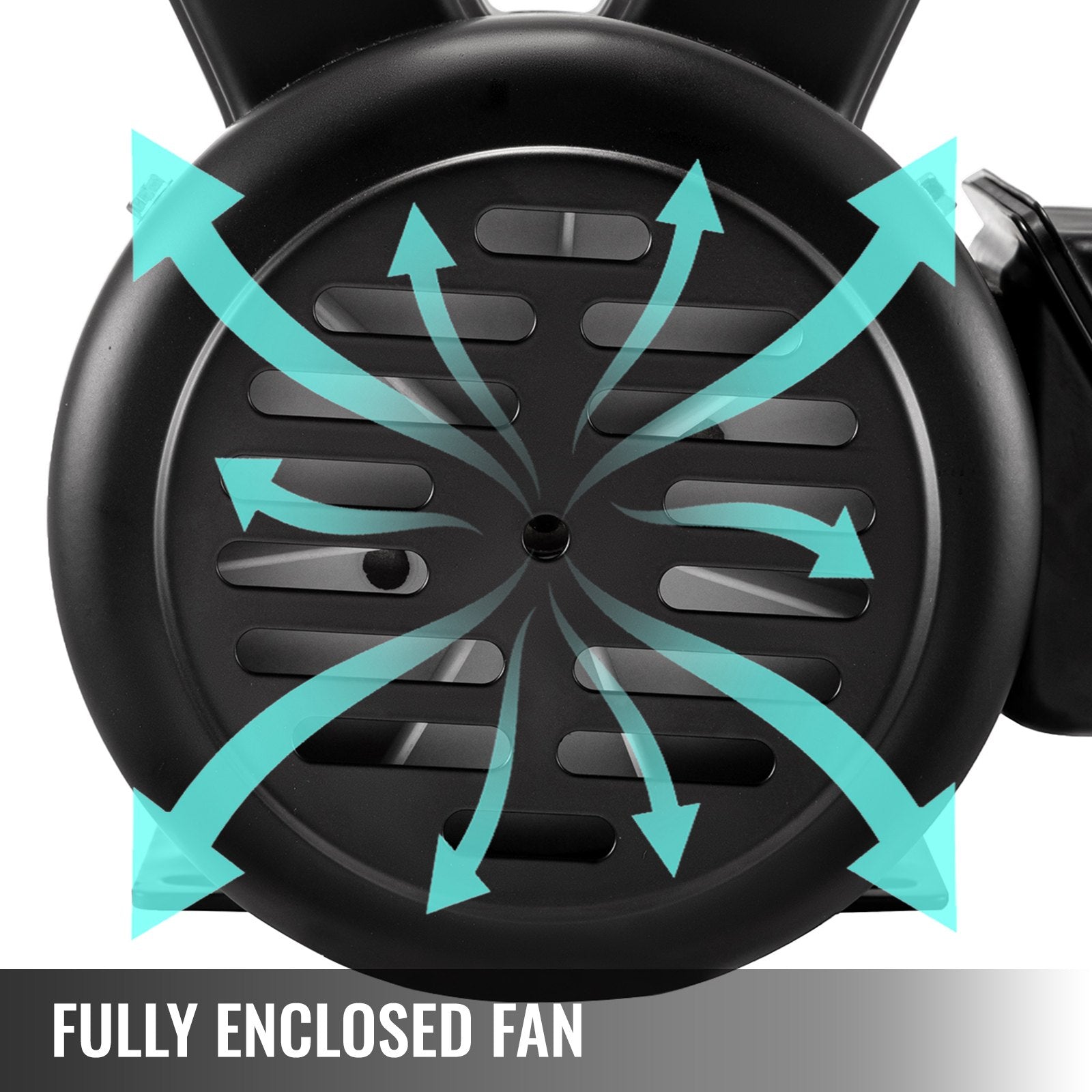

Fully Enclosed Fan: Protects the motor from dust and debris while improving overall performance.
-

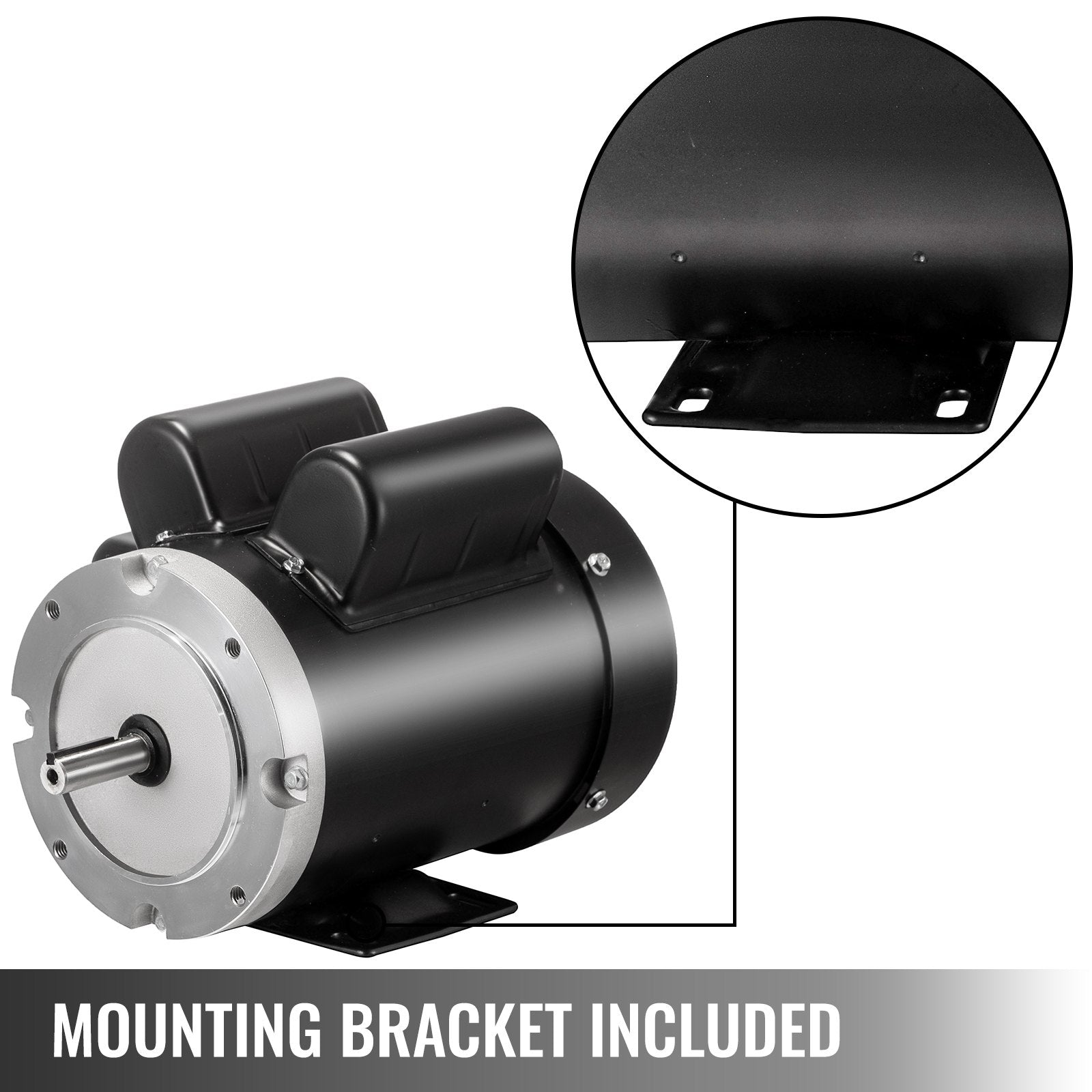

Rigid Mounting Bracket: Ensures secure mounting and stability during use, enhancing the motor's reliability.
-
Reversible Rotation: CW and CCW rotation options allow for flexibility in application.
-
Wide Application: Suitable for various industrial, commercial, and residential uses, especially water pumps.
Specification
-
Full Load Amps: 13.29A (115V) / 6.63A (230V)
-
Frame: 56C Frame
-
Phase: Single Phase, 4 Pole
-
SF Amps: 15.2A (115V) / 7.6A (230V)
-

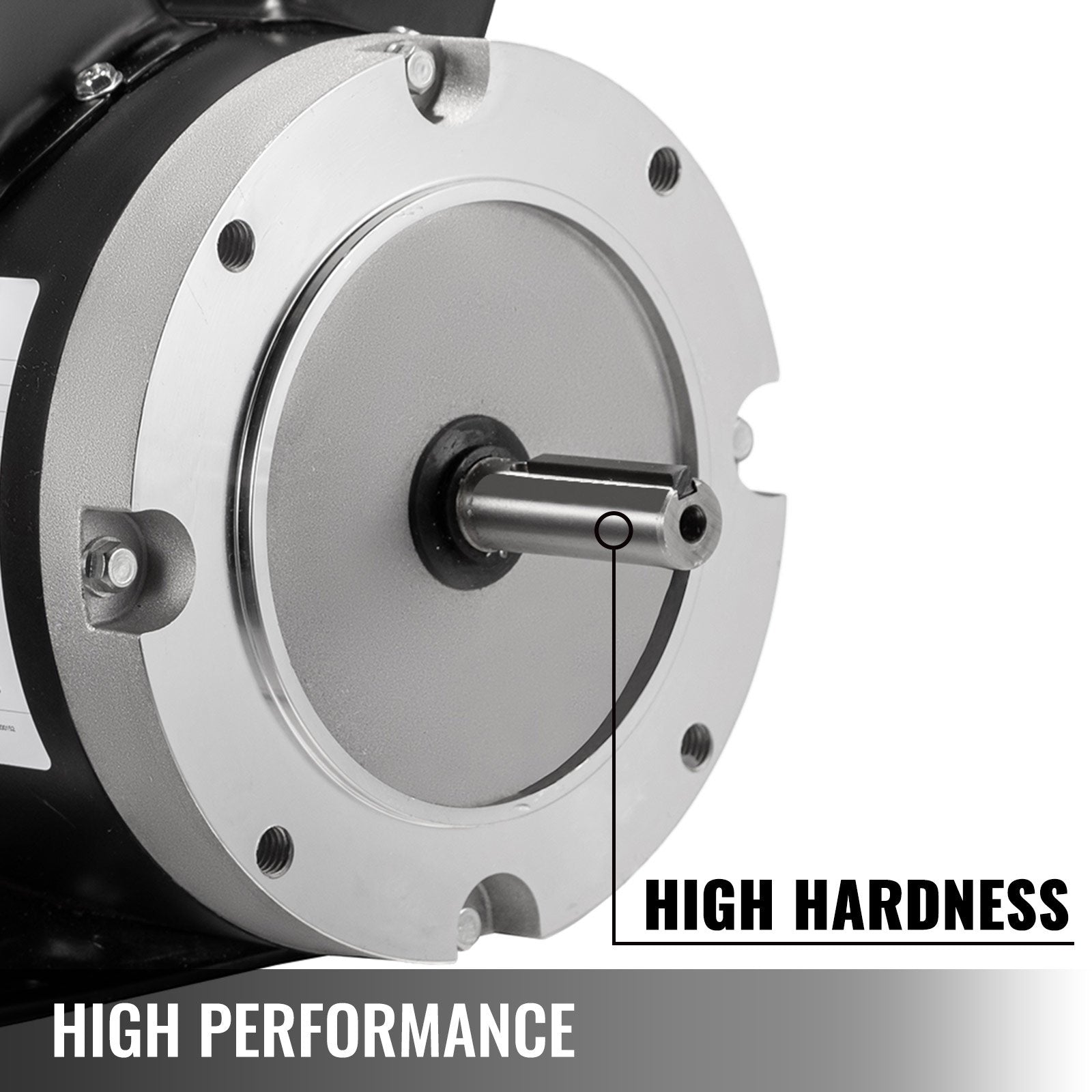

Shaft Diameter: 5/8 in (1.6 cm) Keyed Shaft
-
Shaft Length: 1.875 in (4.8 cm)
-
Insulation Class: F
-
Rotation: CW - CCW (Reversible)
-
NEMA: L
-
Synchronous Speed: 1800 RPM
-
Rated Speed: 1750 RPM
-
Horsepower: 1.5 HP
-
Duty: Continuous (CONT)
-
Voltage: 115/230V
-
Service Factor: 1.15
-
Model: F56C 1.5S4C
-
Frequency: 60 Hz
-
Max. Ambient Temperature: 104°F/40°C
-
Enclosure Type (ENC): TEFC (Totally Enclosed Fan Cooled)
