Description

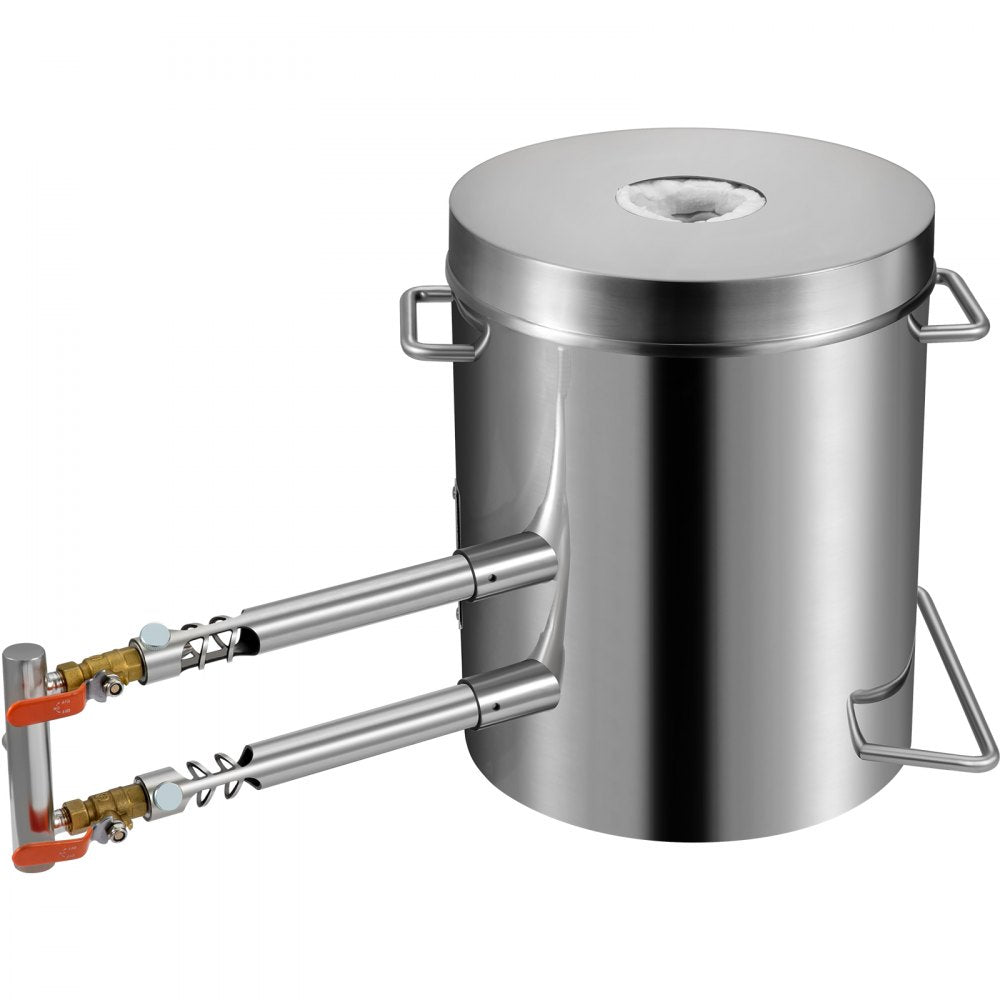

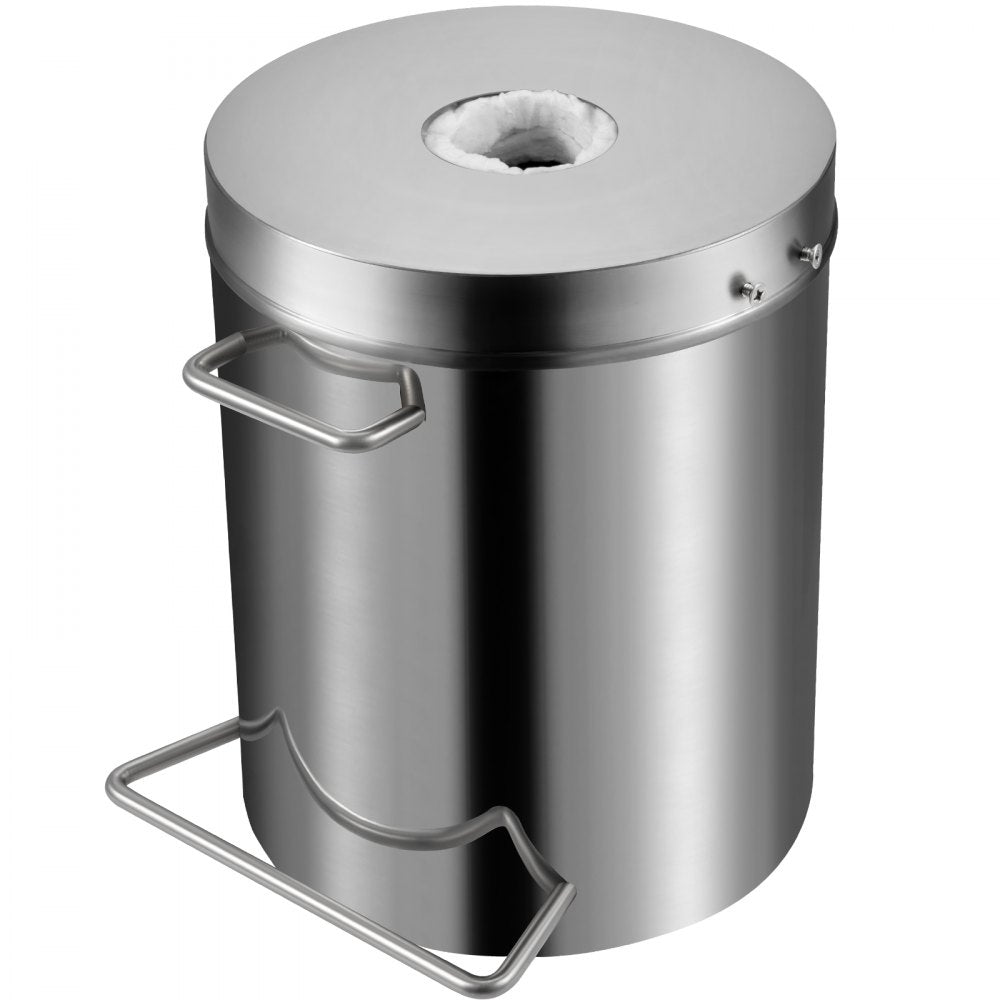

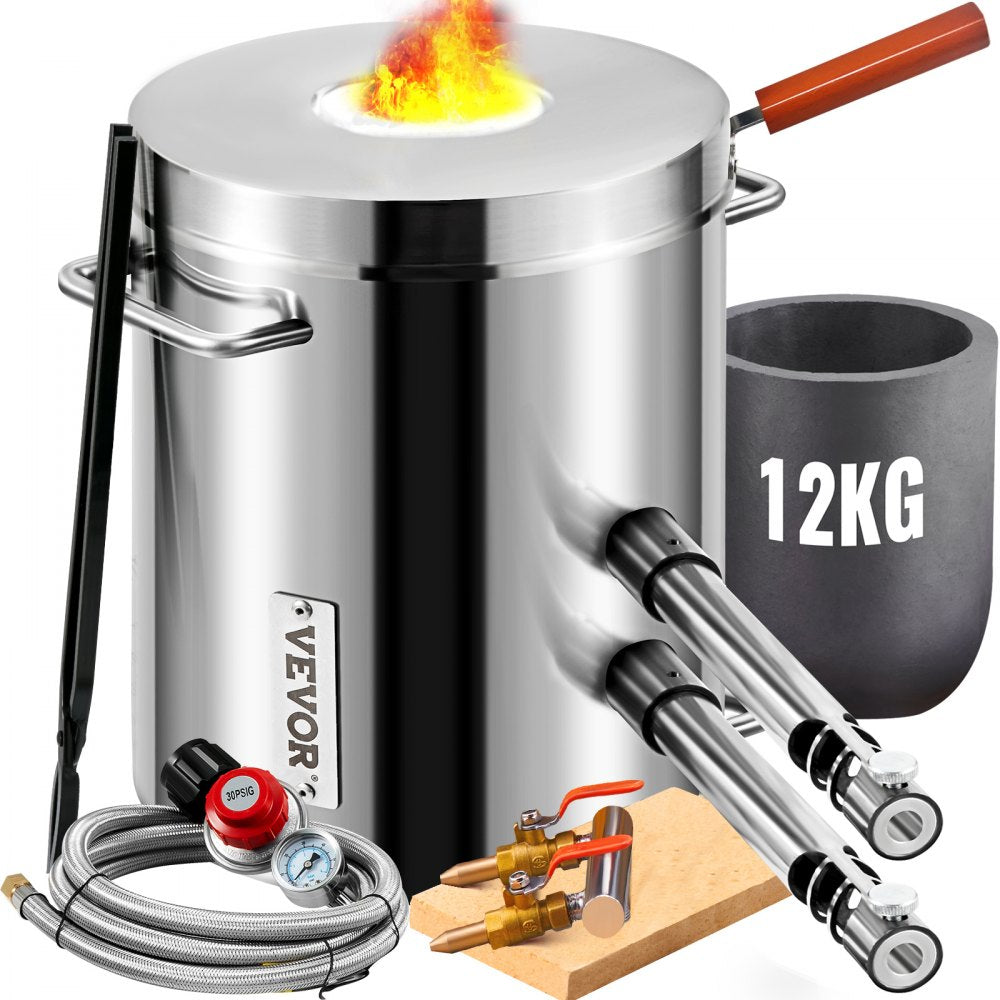

The VEVOR 12KG Propane Smelting Furnace Kit is designed for efficient metal melting and forging. Featuring a high-quality stainless steel body, this double-burner furnace operates at a maximum temperature of 2700°F (1482°C), making it perfect for melting copper, aluminum, gold, silver, and other scrap metals. The kit includes a 12KG graphite crucible, pre-installed key accessories, and a convenient cover and handle, allowing you to get started right away. Ideal for hobbyists and professionals, this smelting furnace is a reliable tool for all your metalworking needs.
Features
-

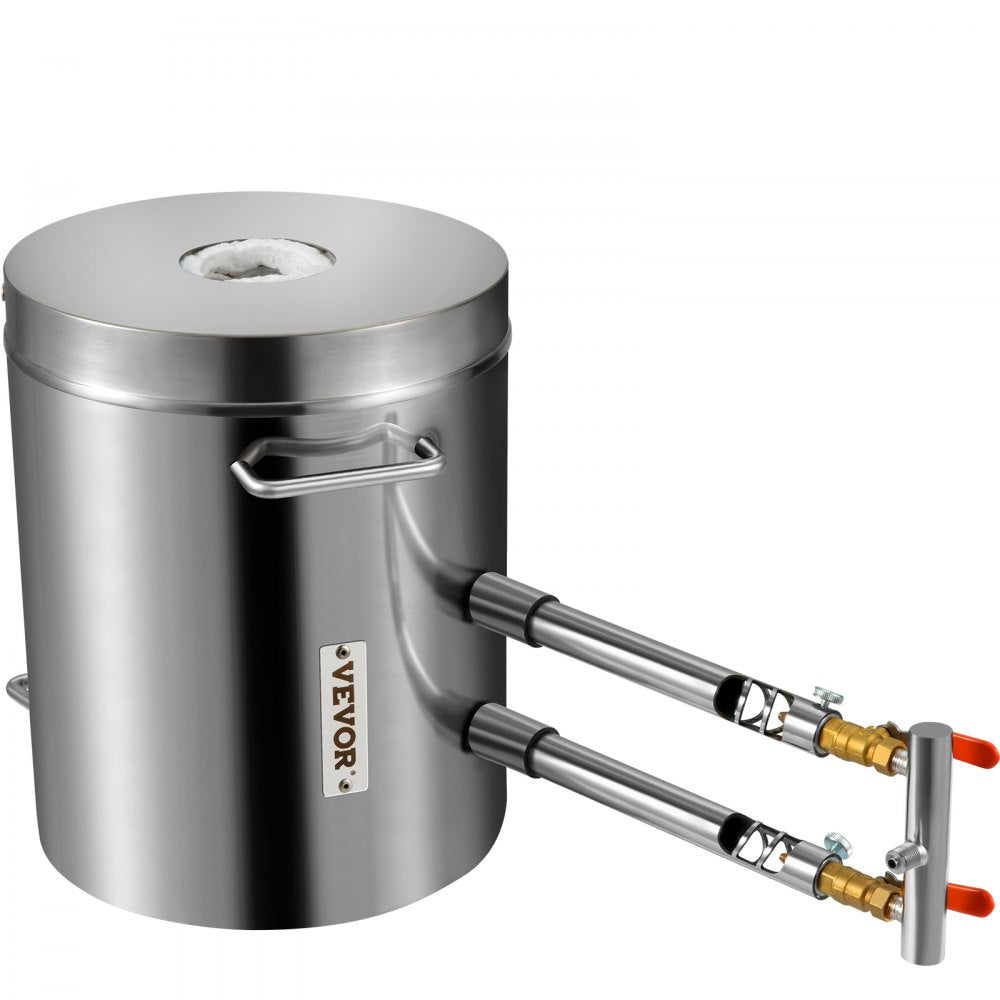

Powerful Double Burners: Equipped with two burners, ensuring even heat distribution and efficient melting of metals.
-
High-Temperature Capability: Reaches up to 2700°F (1482°C), allowing you to melt a variety of metals including copper, aluminum, and precious metals.
-
Premium Graphite Crucible: The 12KG graphite crucible can handle up to 26.5 lbs (12 kg) of molten metal, ensuring durability and longevity.
-

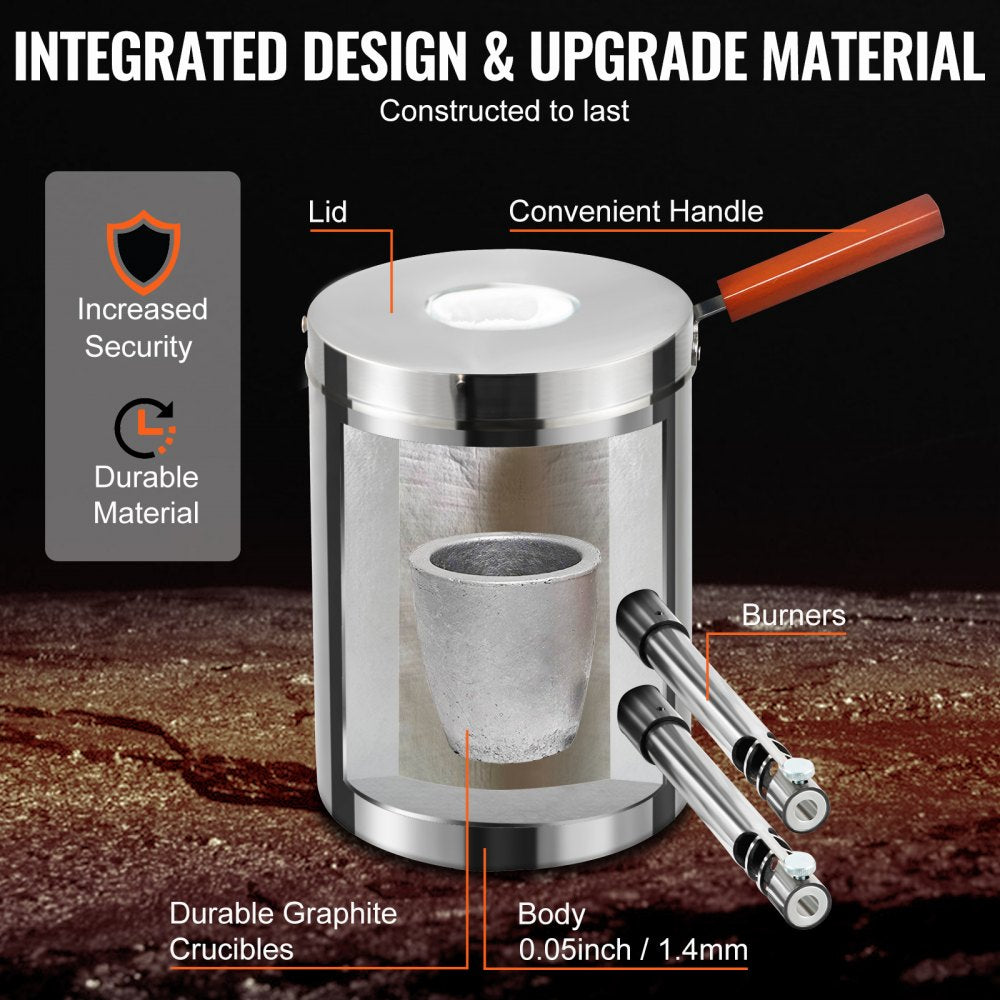

Stainless Steel Construction: The furnace body is made of high-quality stainless steel for increased strength and resistance to high temperatures.
-
Pre-installed Accessories: The key components are pre-installed for easy setup and immediate use, saving you time.
-
Convenient Design: Includes a reinforced joint for added durability, and a handle on the crucible for easy lifting and pouring.
-
Versatile Functionality: The furnace can be used for both melting and forging metals, offering a wide range of applications.
-

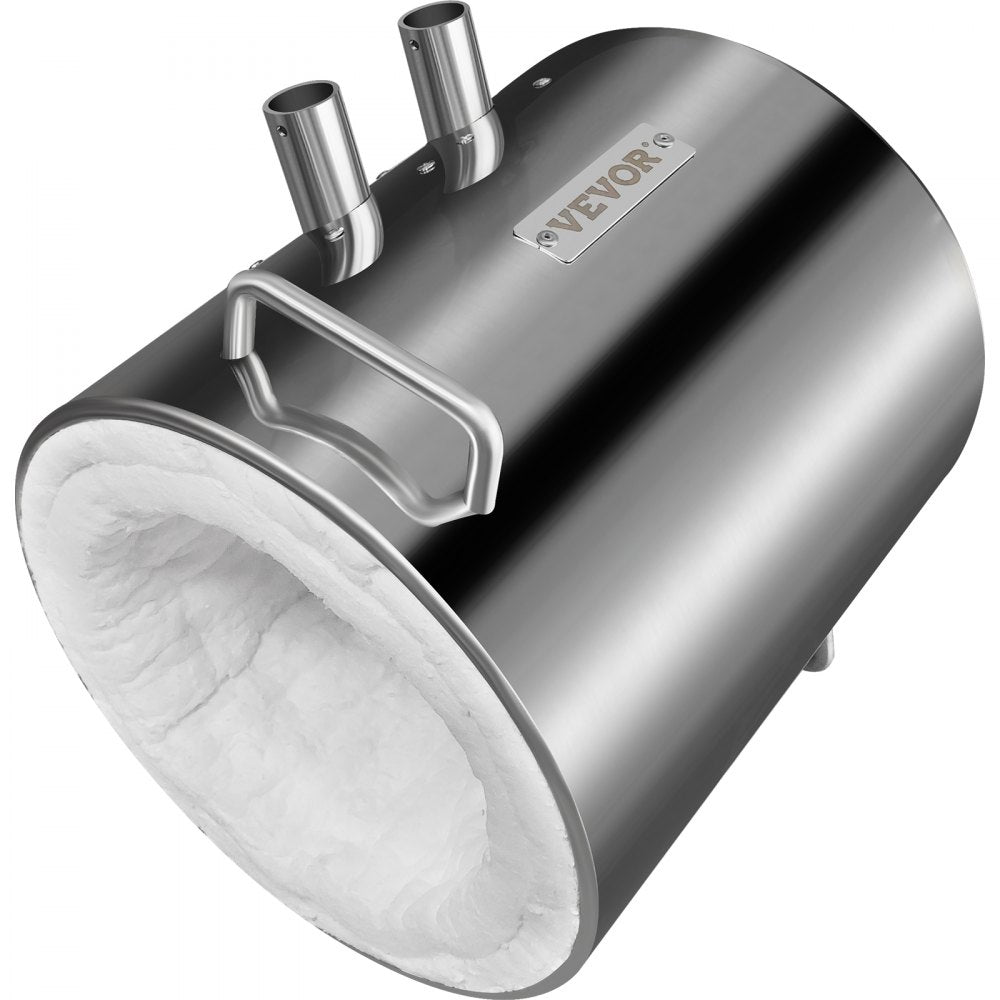

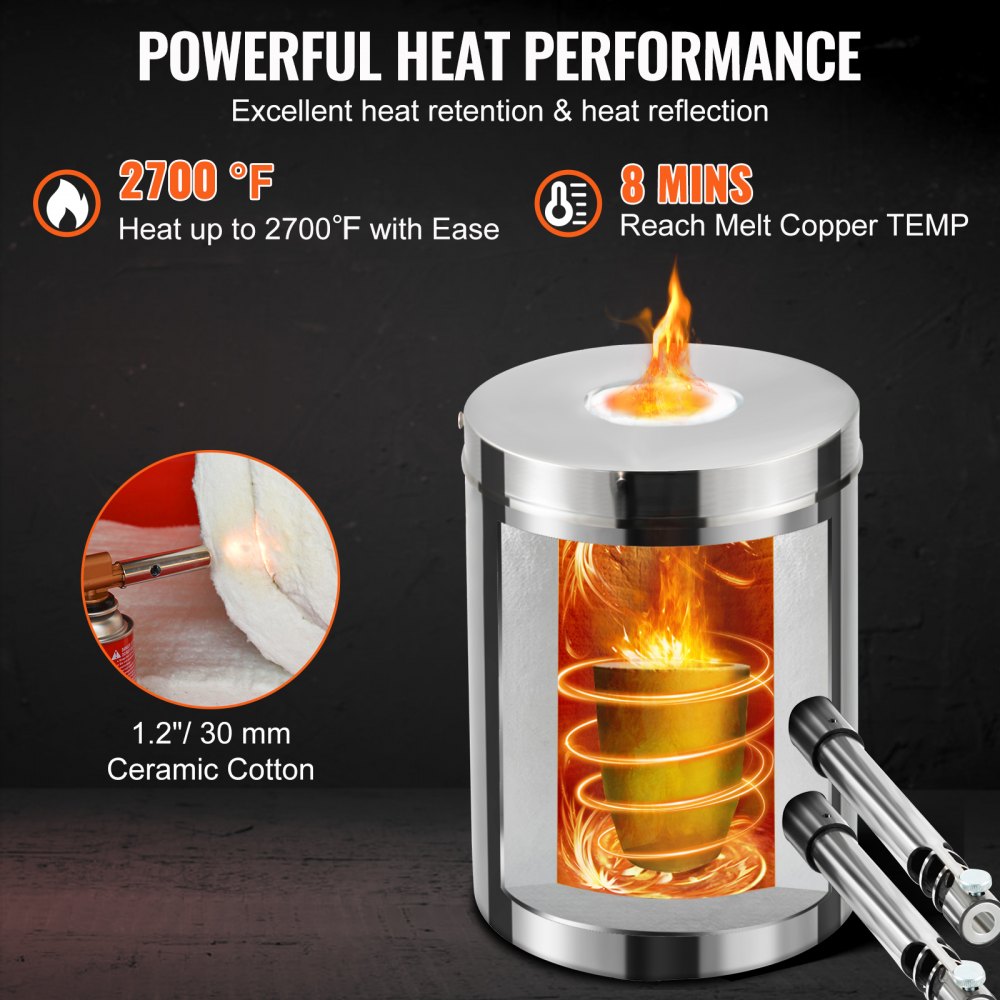

Efficient Insulation: The furnace is lined with 1.2-inch (30 mm) insulation cotton to retain heat and improve energy efficiency.

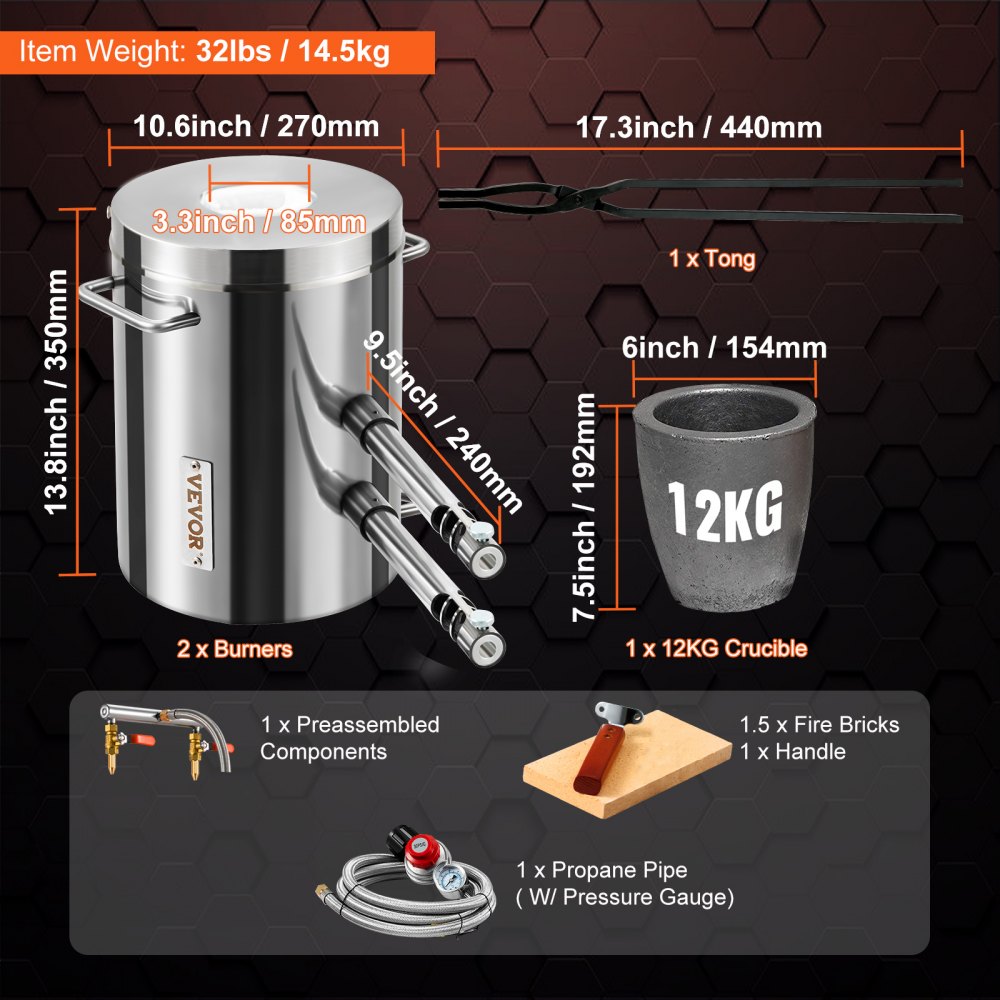

Specifications
-
Model: JHRJS12KG02A
-
Crucible Capacity: 26.5 lbs (12 kg)
-
Crucible Size: 6 x 7.5 inch (154 x 192 mm)
-
Burner Size: 1 x 9.5 inch (25 x 240 mm)
-
Furnace Size: 10.6 x 13.8 inch (270 x 350 mm)
-
Crucible Material: Graphite
-
Body Material: Stainless Steel
-
Insulation Thickness: 1.2 inch (30 mm)
-
Maximum Temperature: 2700°F (1482°C)
-

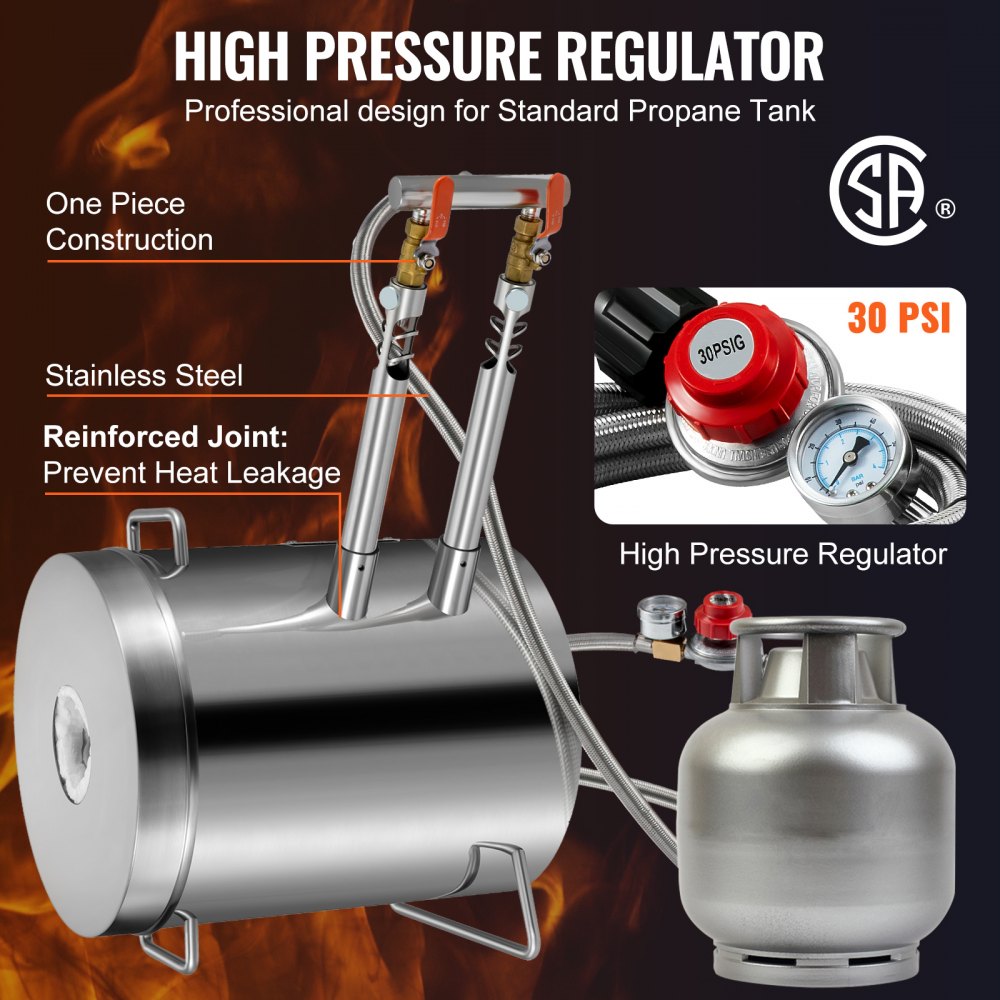

Maximum Pressure: 30 PSI
-
Tong Size: 17.3 inch (440 mm)
-
Wall Thickness: 0.05 inch (1.4 mm)
-
Product Weight: 32 lbs (14.5 kg)
-
Top Hole Diameter: 3.3 inch (85 mm)
