Description

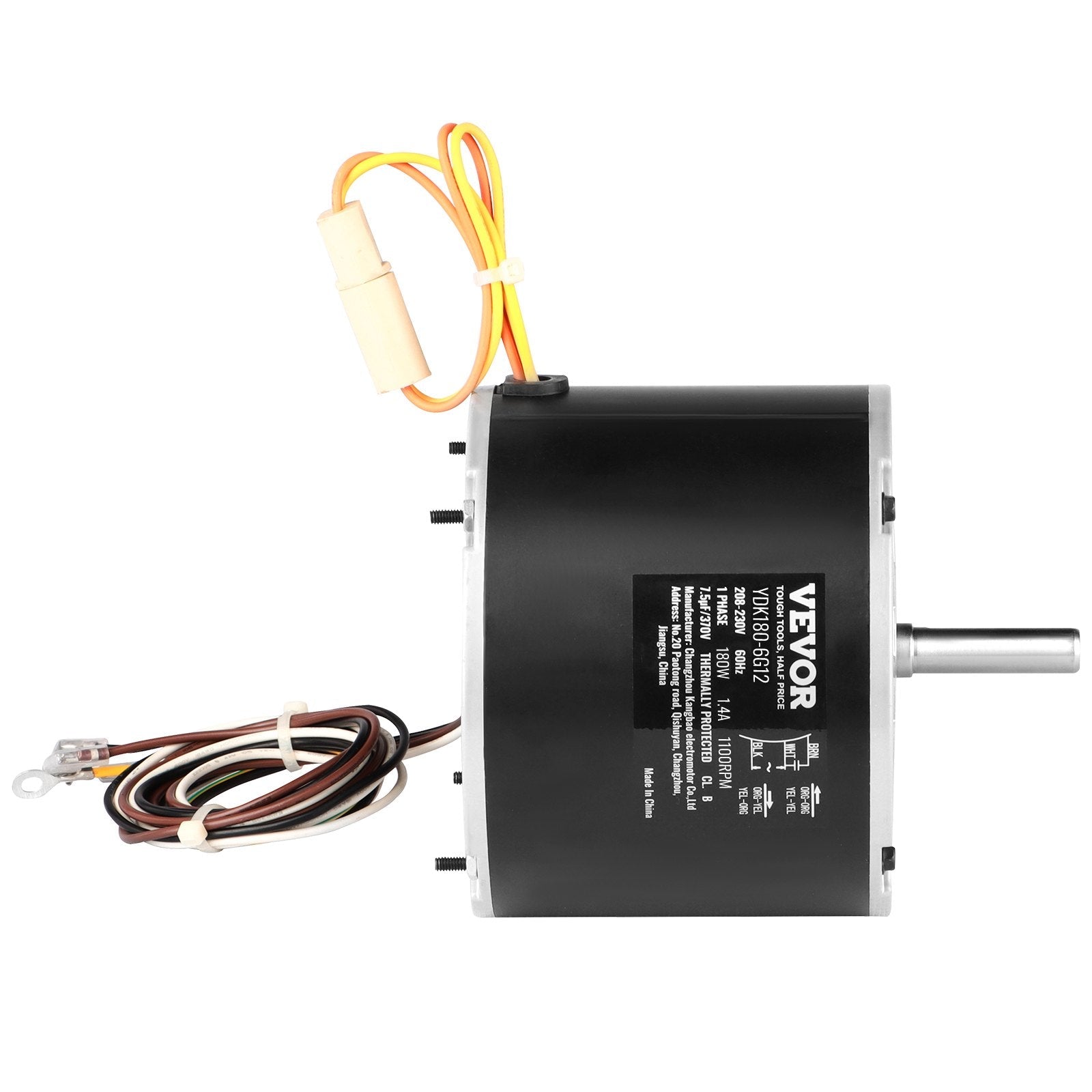

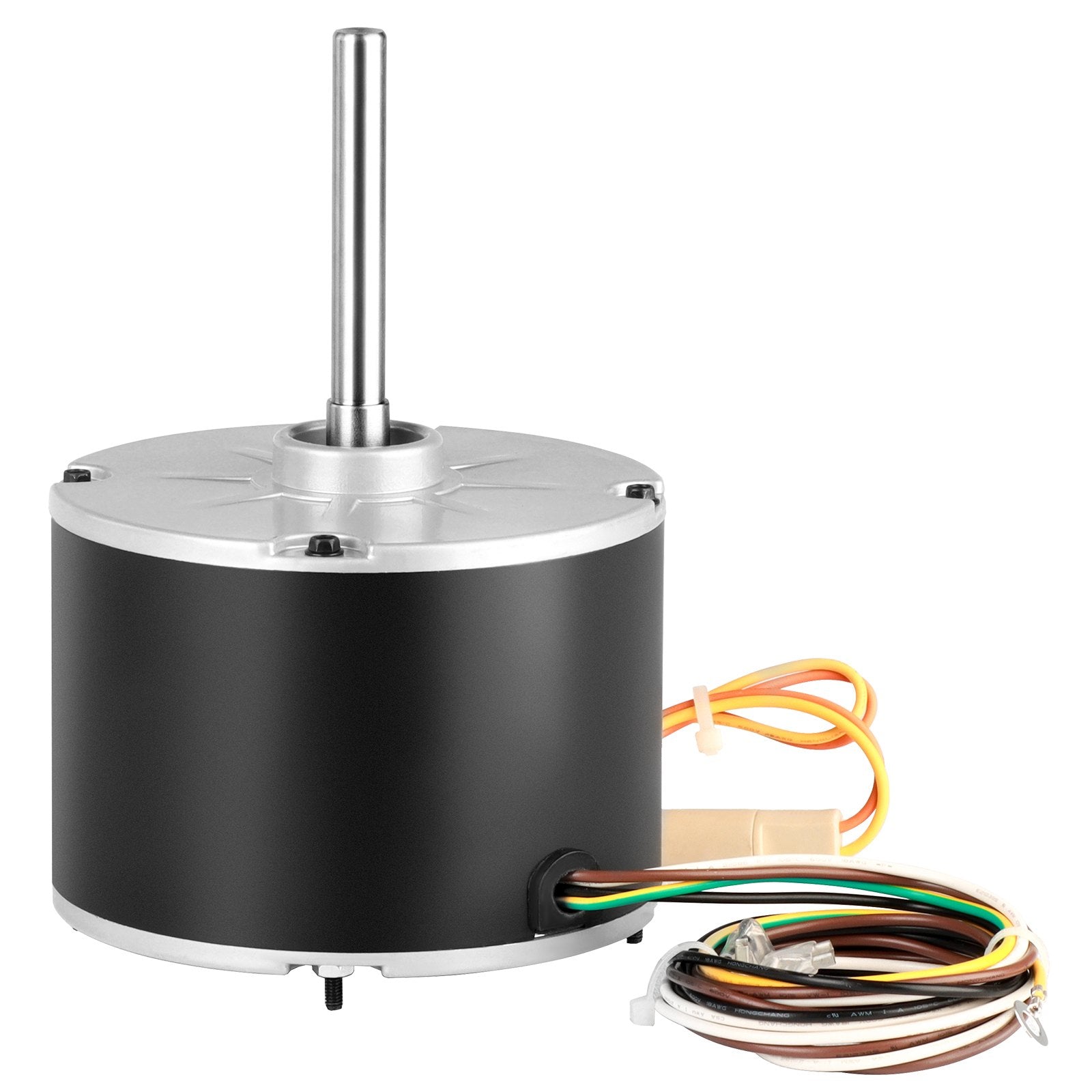

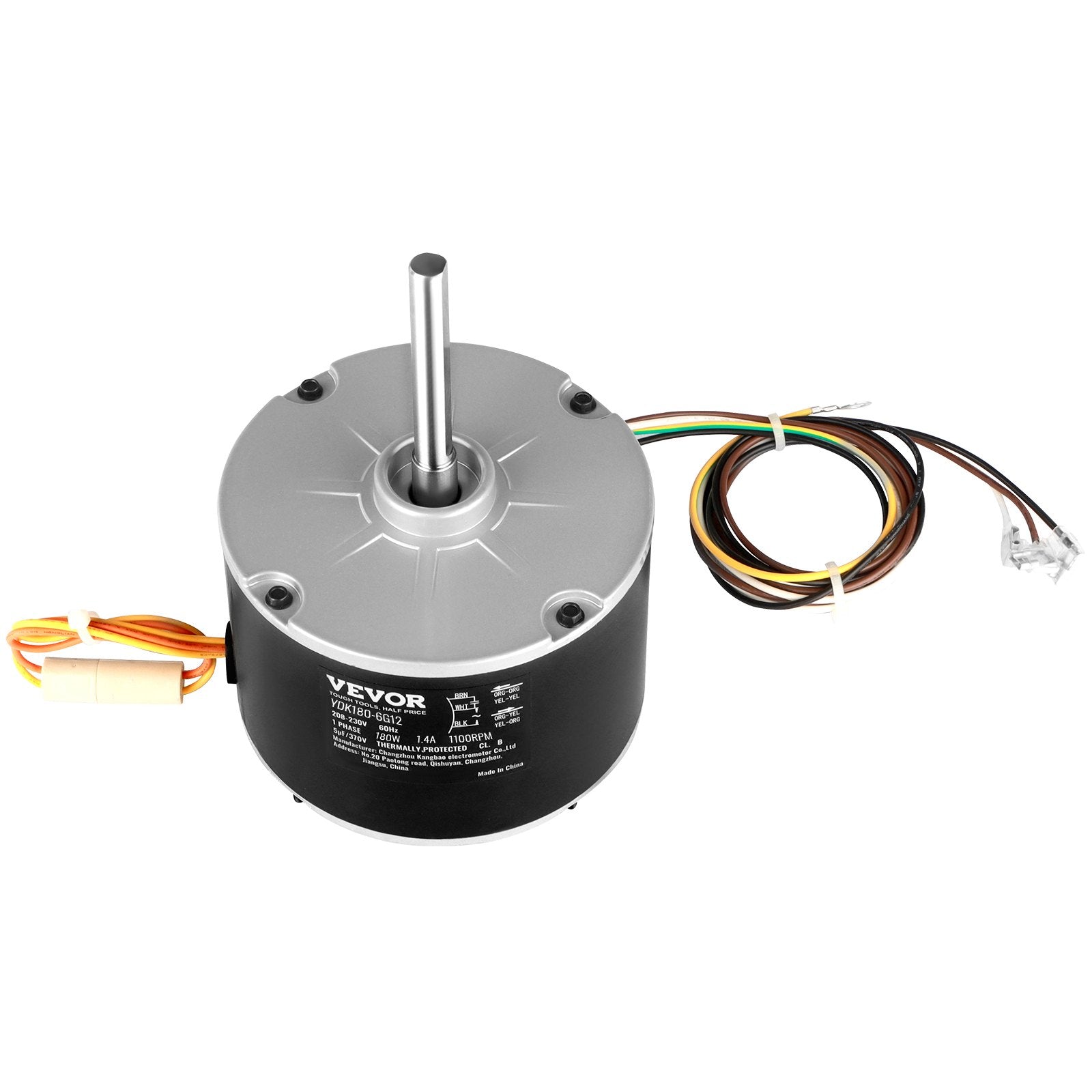

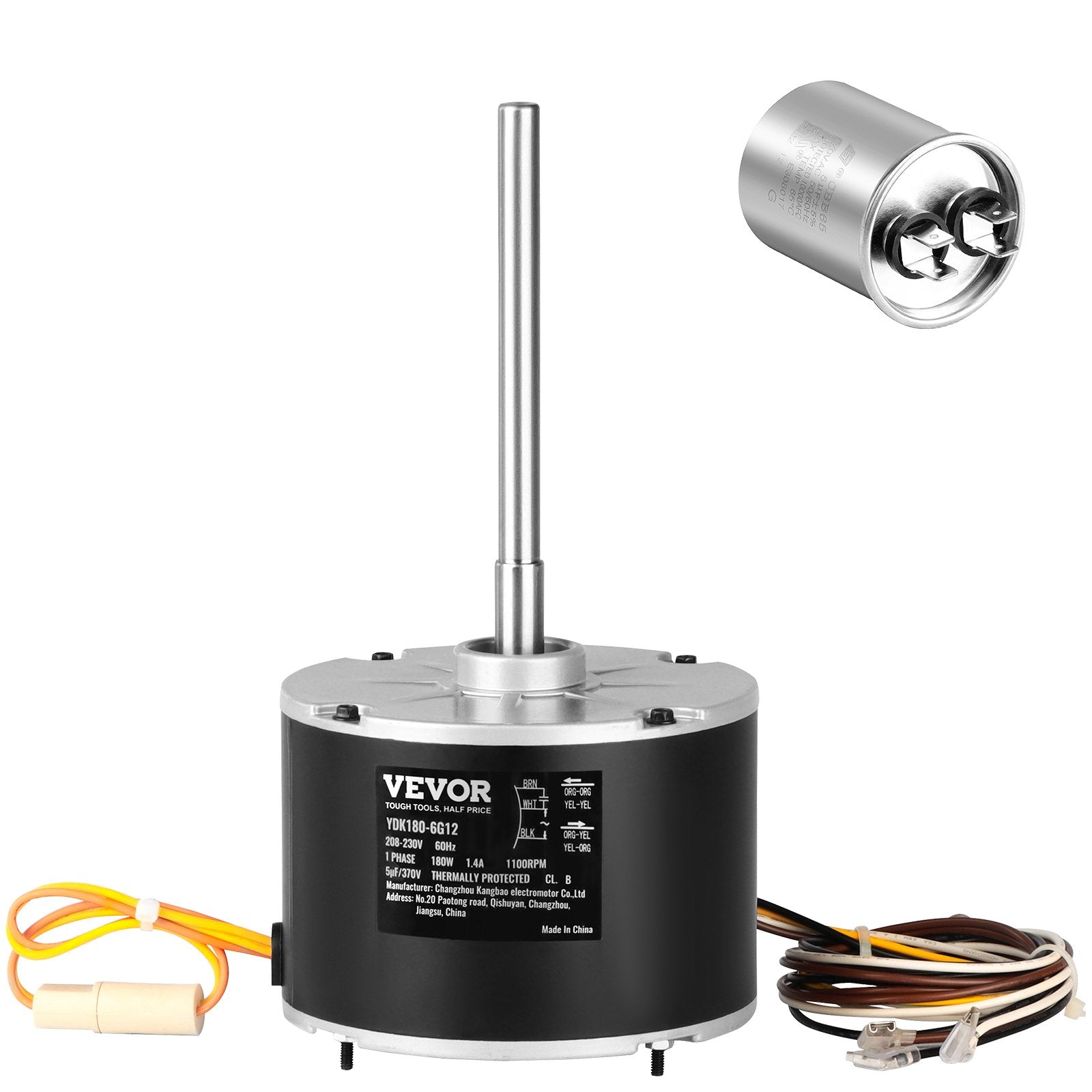

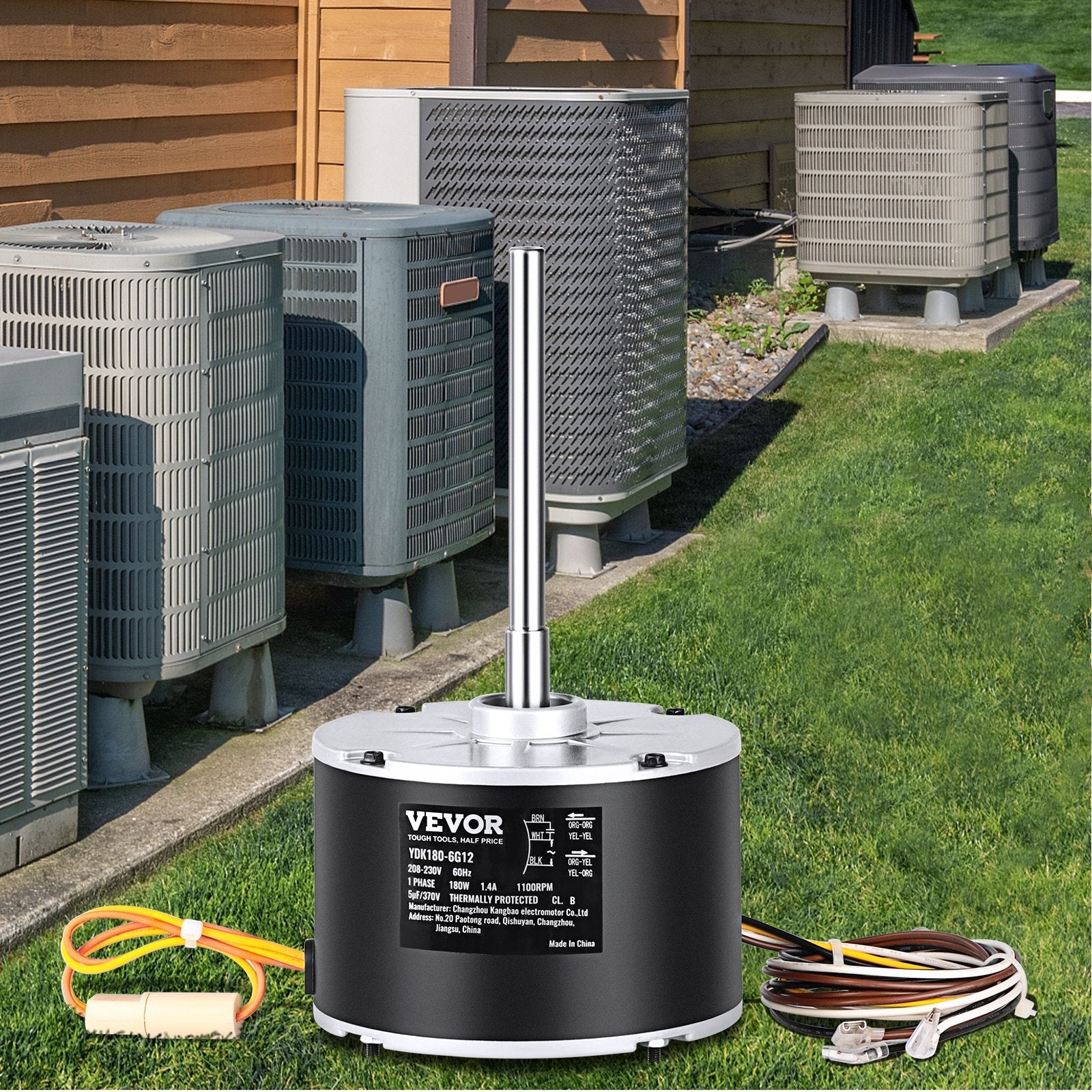

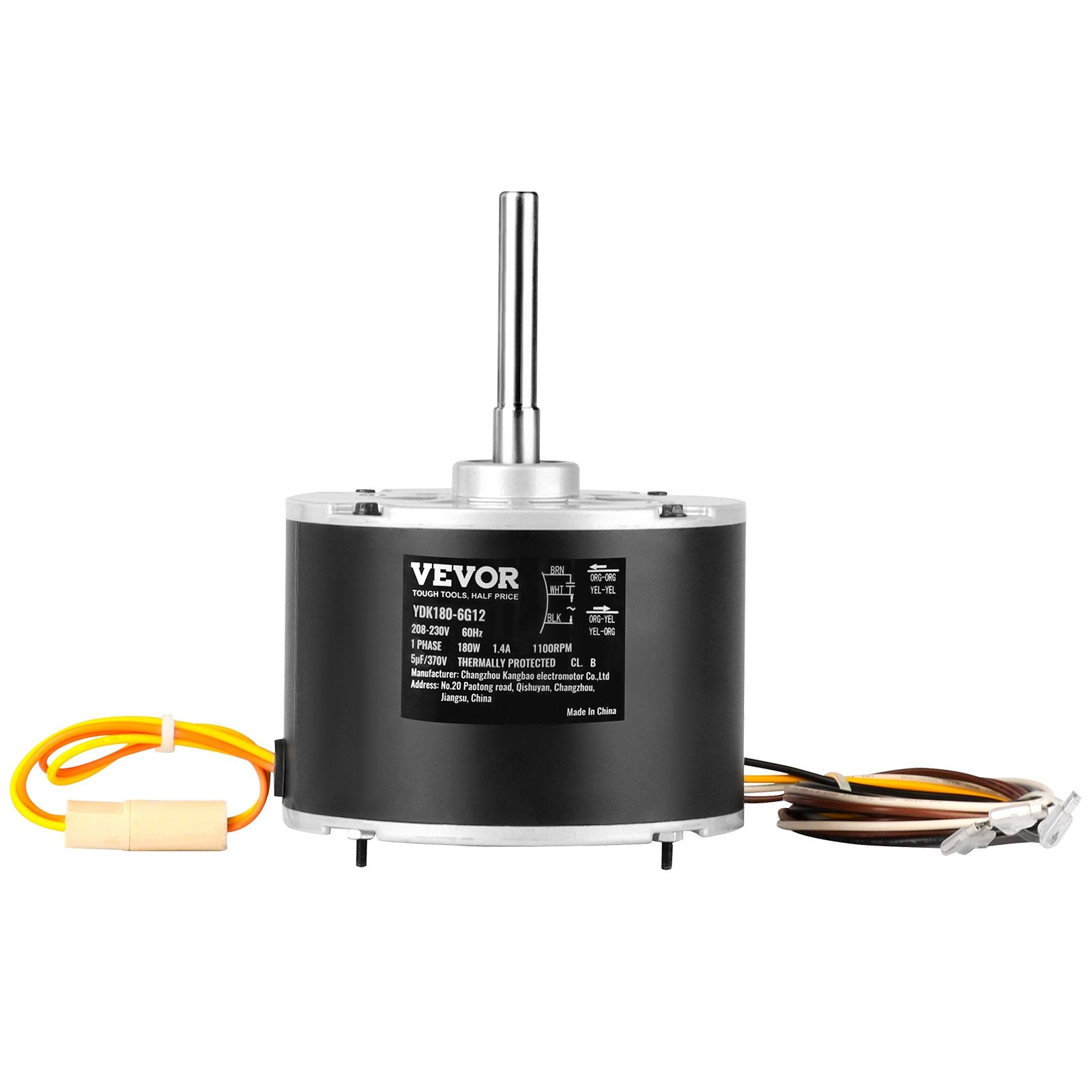

The VEVOR Condenser Fan Motor is a high-performance, OEM-standard replacement designed for reliable cooling system operation. Compatible with models 5KCP39EGS070S and 5KCP39EGY823S, this 1/4 HP motor delivers efficient 1100 RPM performance on 208–230V. Engineered with an explosion-proof CBB65 5μF/370V capacitor, reversible rotation, and overheat protection, it ensures safe and stable operation in demanding environments. With an extended power cable and low-noise design, this motor offers a durable and user-friendly upgrade for HVAC condenser units.
Features
-
Flawless Performance: Delivers a smooth 1100 RPM with 1/4 HP power, suitable for most HVAC systems
-

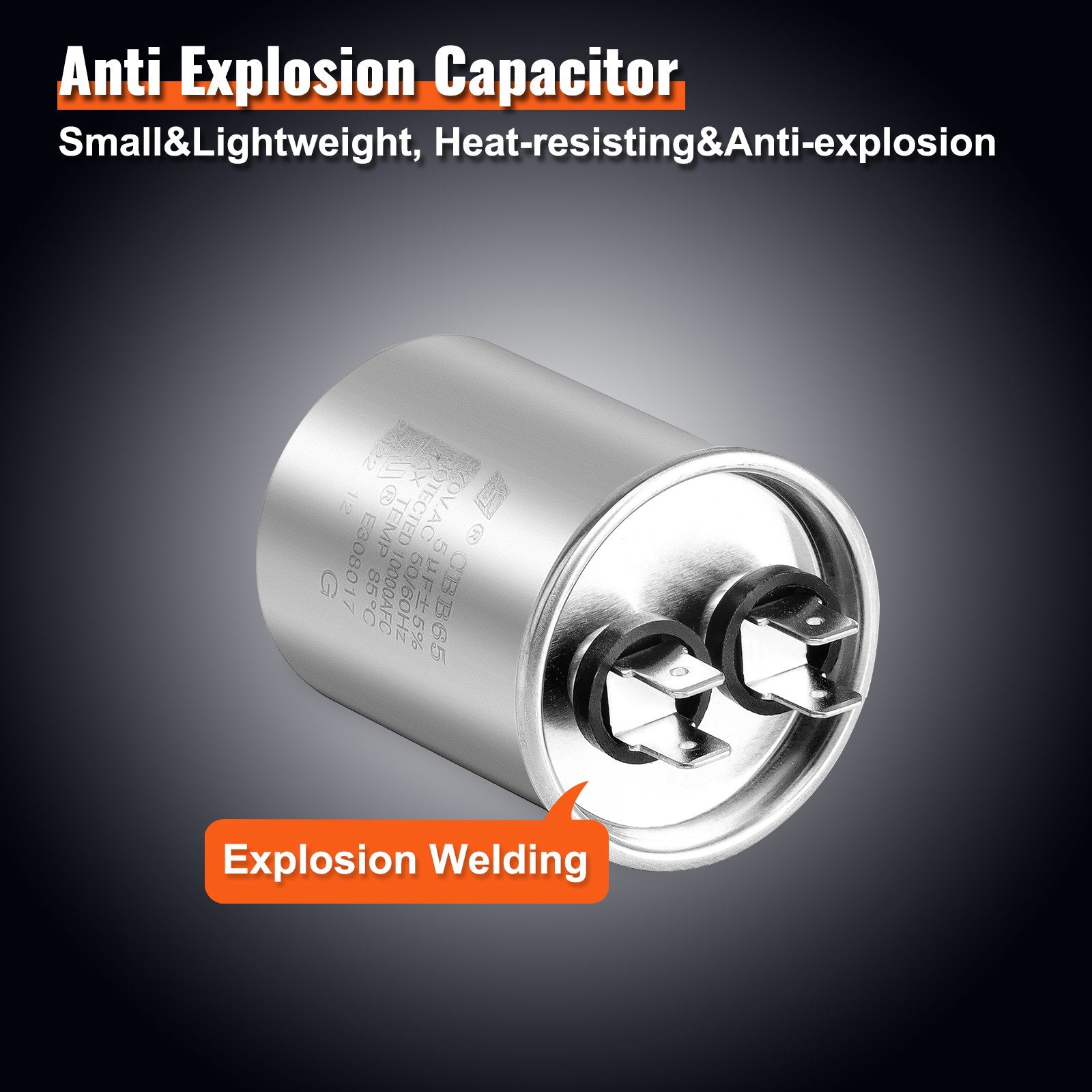

Explosion-Proof Capacitor: Includes a high-quality CBB65 5μF/370V capacitor for safety and reliability
-

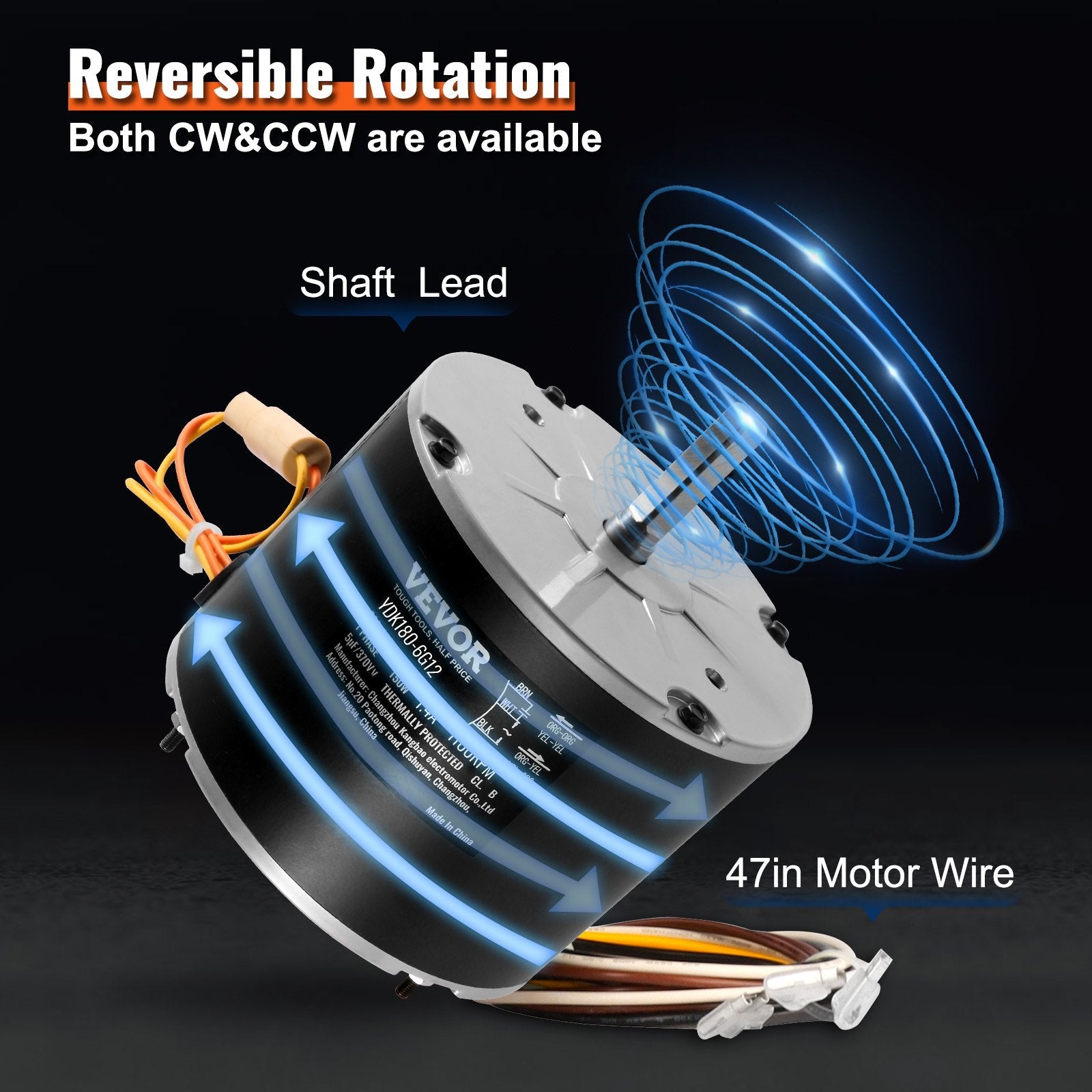

Reversible Rotation: Offers clockwise and counterclockwise rotation options to match various system requirements
-

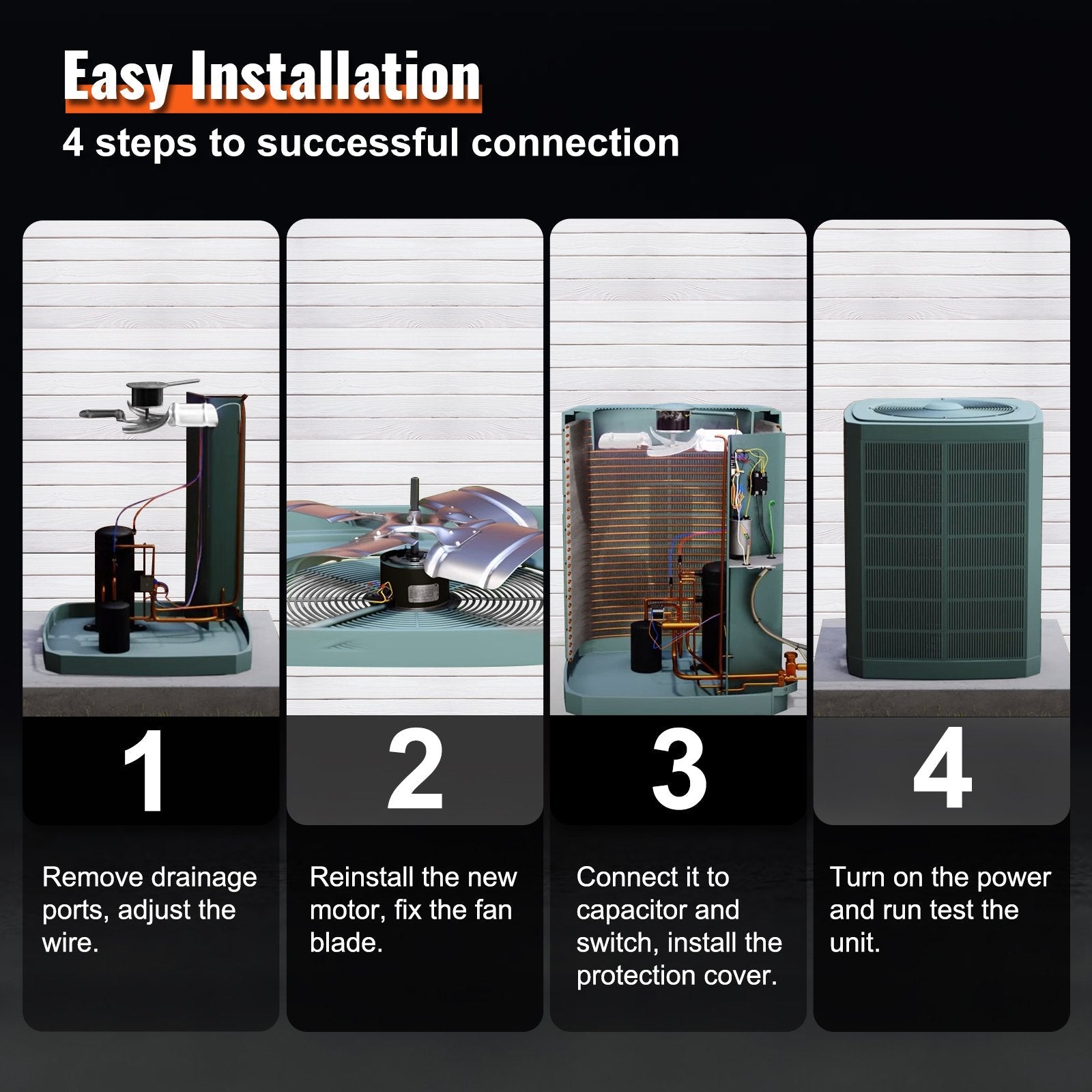

Extended Cable: Comes with a longer power cable for flexible installation
-
Overheat Protection: Built-in thermal protection prevents motor damage and ensures longevity
-
Low-Noise Design: Operates quietly, reducing noise levels during HVAC system use
Specification
-

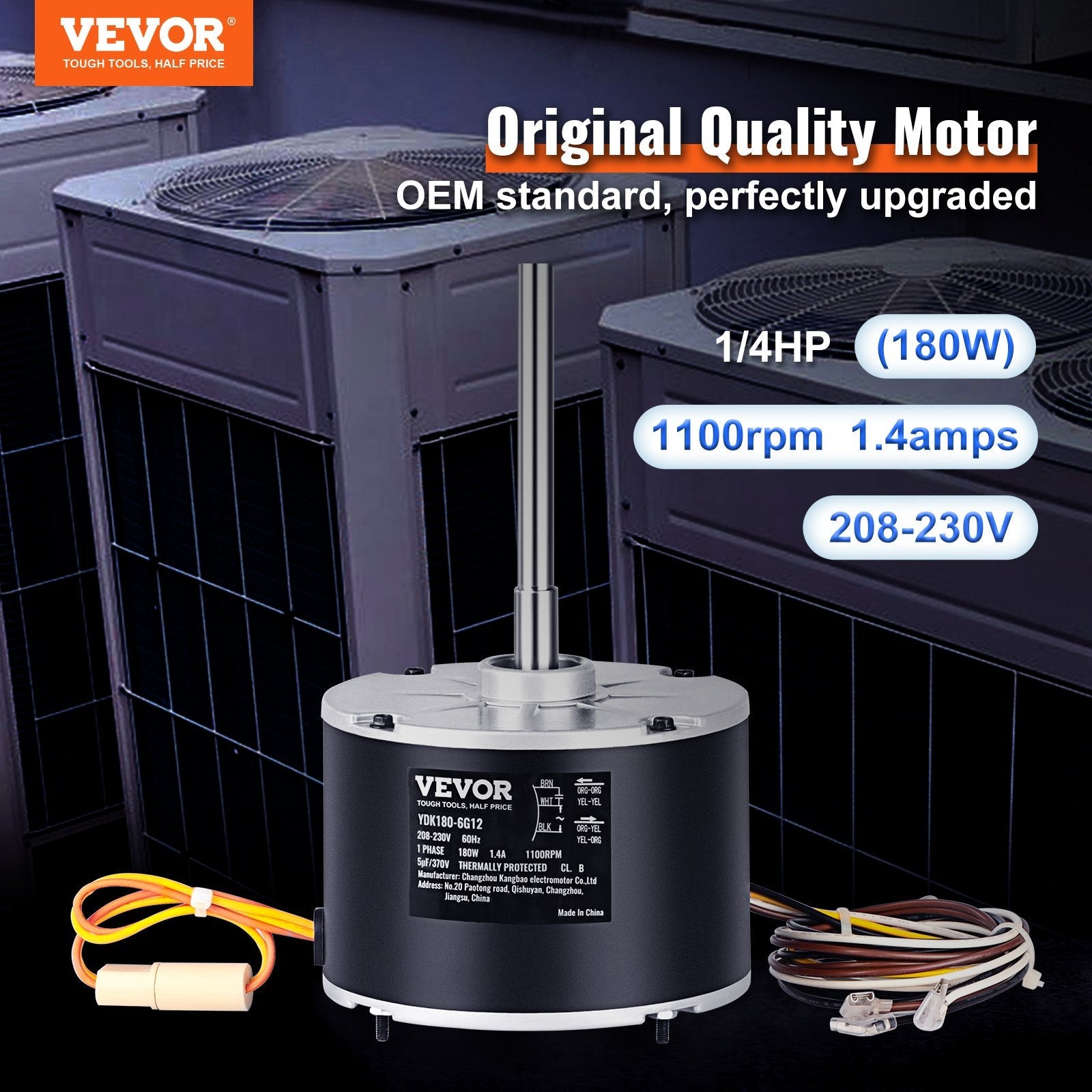

Rotational Speed: 1100 RPM
-
Horsepower: 1/4 HP
-
Voltage: 208–230V
-
Current: 1.4A
-
Power: 180W
-
Frequency: 60Hz
-

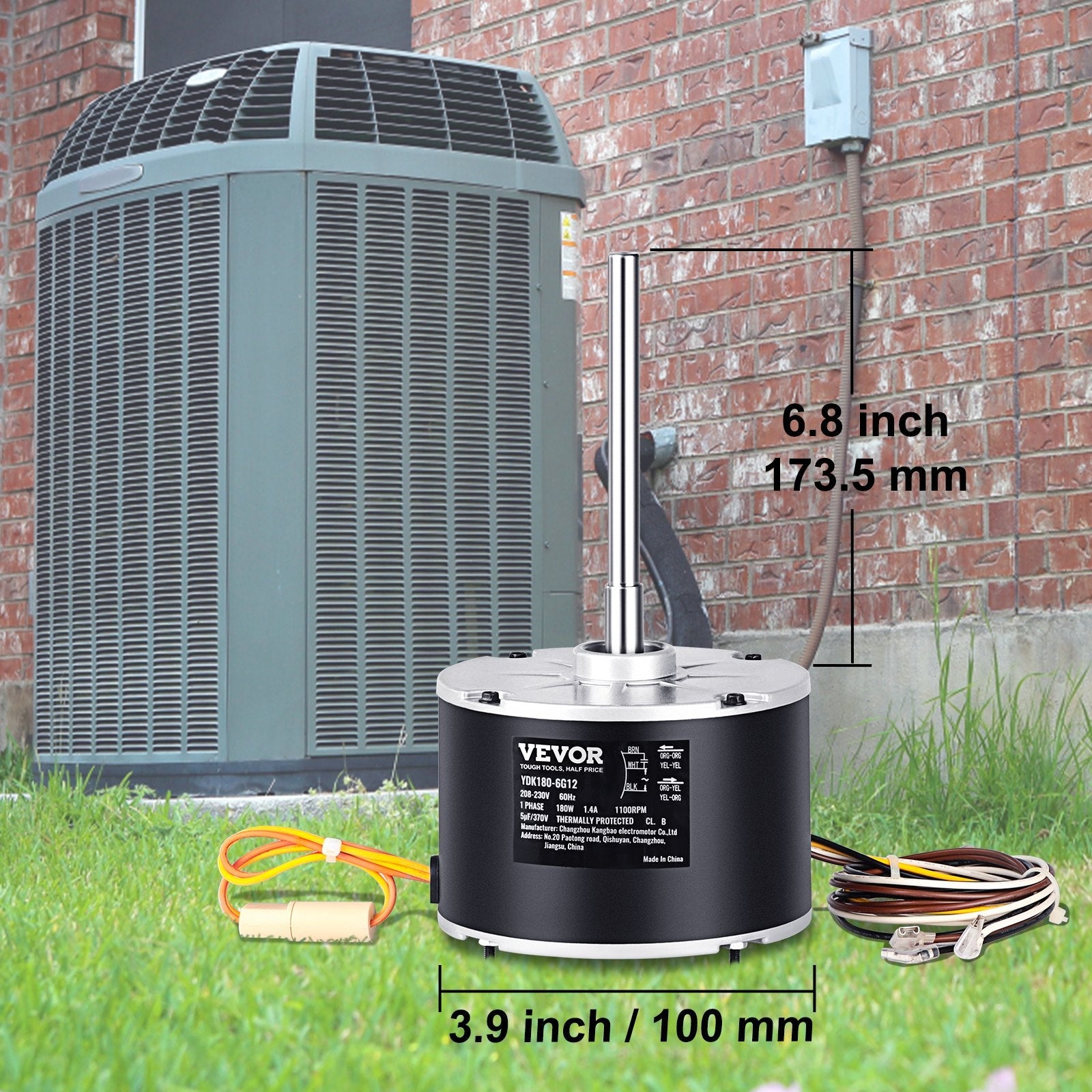

Shaft Diameter: 0.5 in / 12.7 mm
-
Stud Pattern: 5.2 in x 5.2 in / 132 mm x 132 mm
-
Product Weight: 11.4 lbs / 5 kg
-
Package Size: 13.4 x 7.5 x 7.1 in / 340 x 190 x 180 mm
