Description

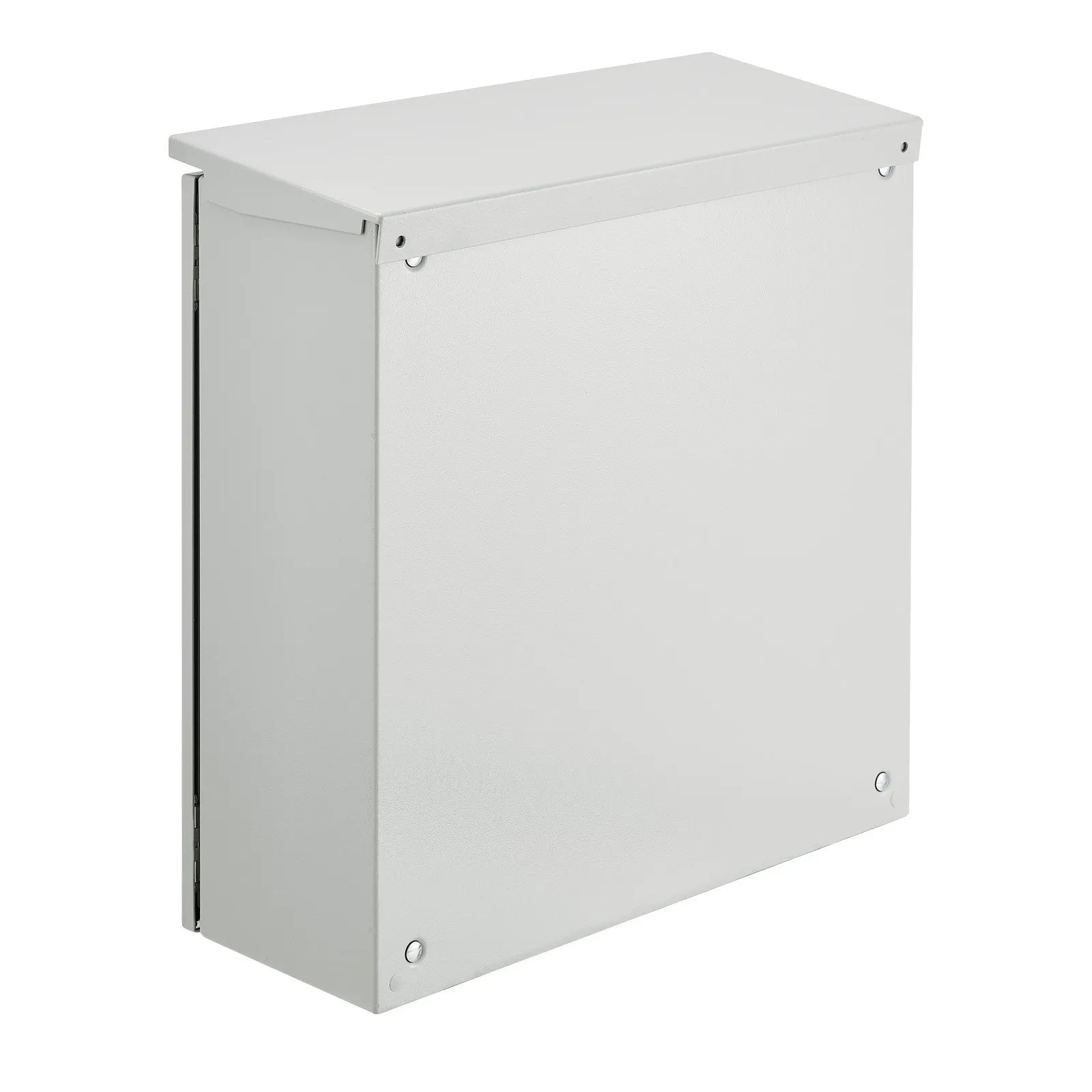

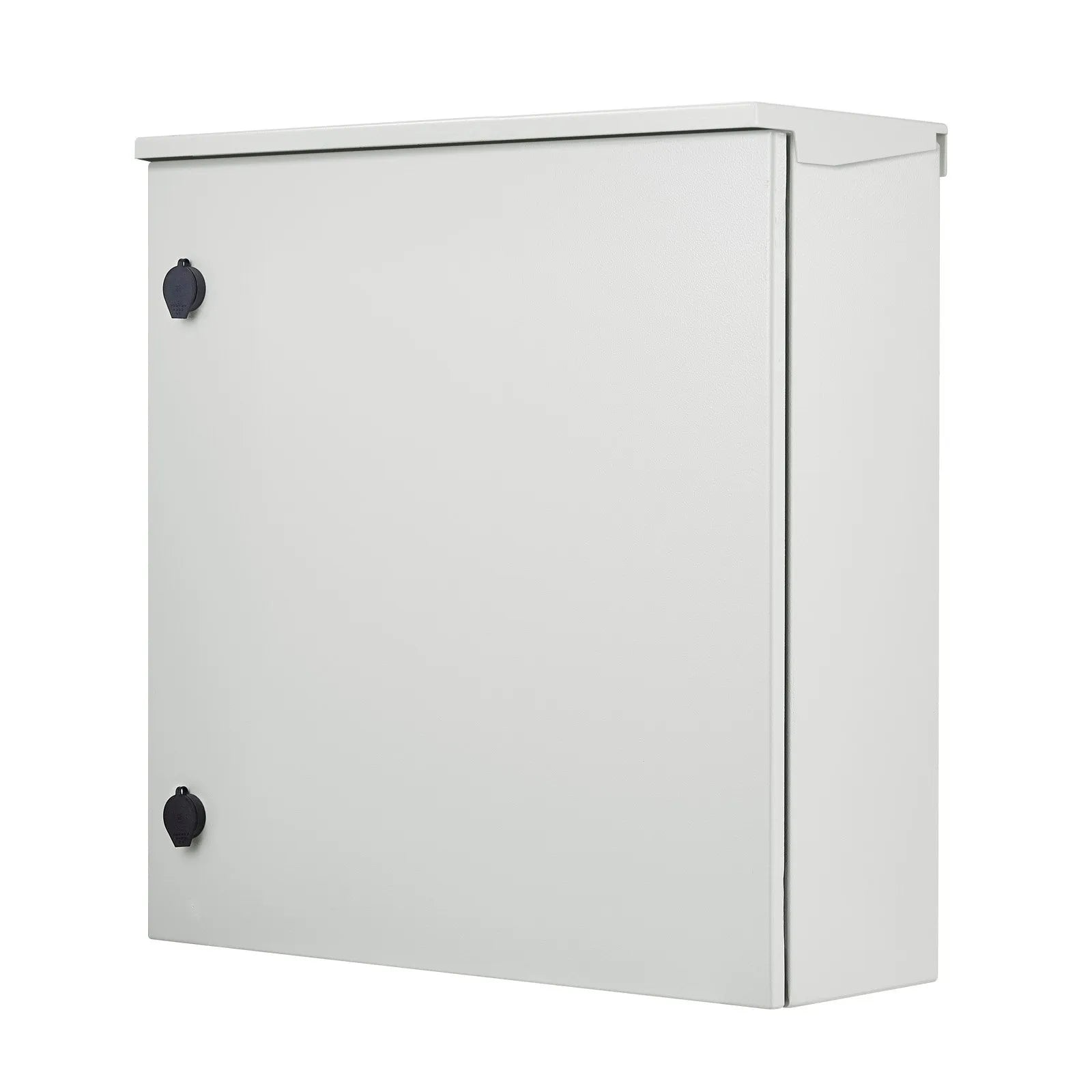

The VEVOR Electrical Enclosure provides a durable and secure solution for protecting sensitive electrical components in both indoor and outdoor environments. Constructed from premium cold-rolled carbon steel with a powder-coated finish, this enclosure is tested to UL standards and rated NEMA 4, offering IP65 waterproof and dustproof protection. Equipped with a hinged design and secure lock, it ensures safety and convenient access. Its thoughtful design, including a rain hood and pre-drilled mounting holes, allows easy installation while maintaining reliable protection against harsh weather conditions.
Key Features
-
Made from premium cold-rolled carbon steel for superior durability
-
IP65 protection against water and dust ingress
-

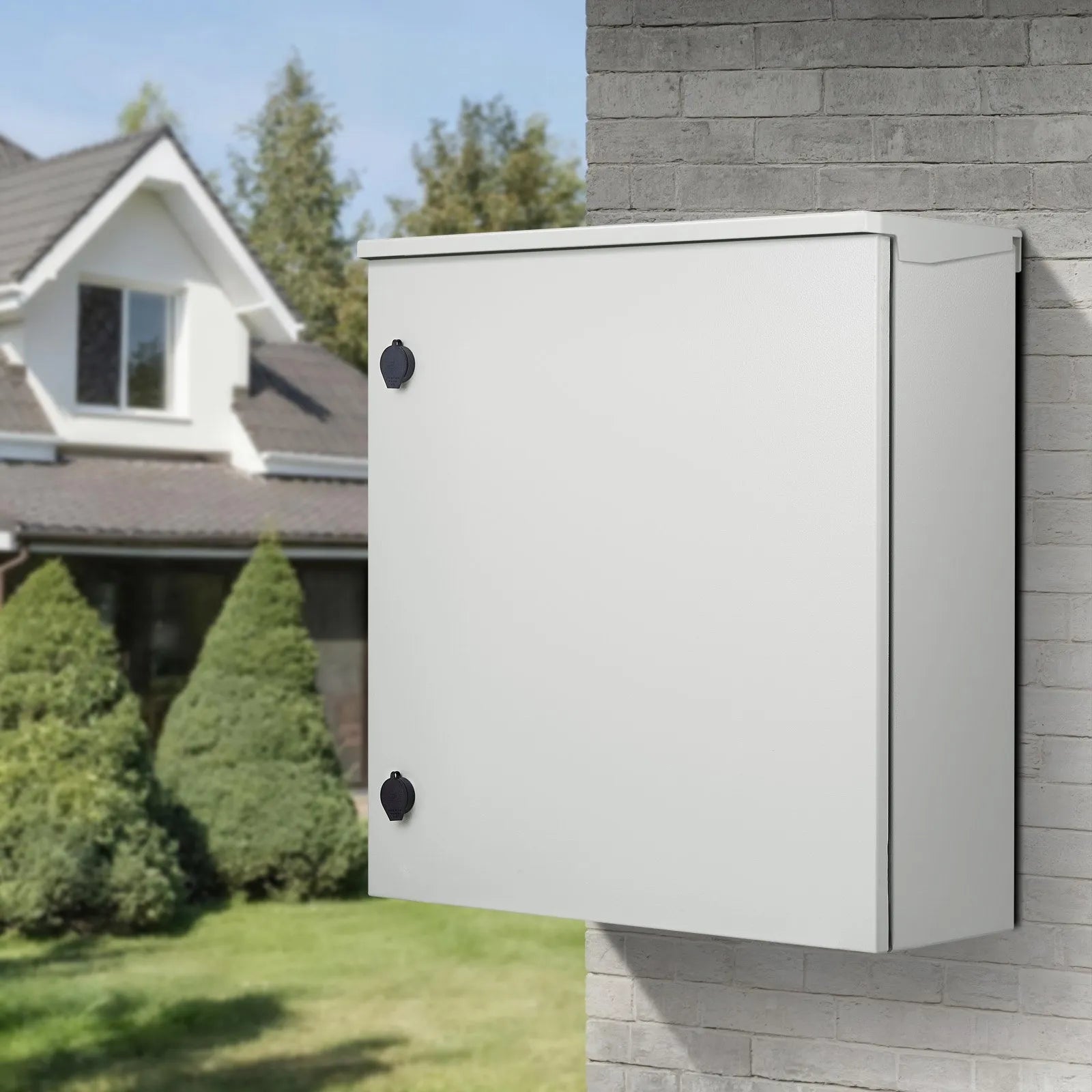

UL-tested and NEMA 4 rated for outdoor and indoor applications
-

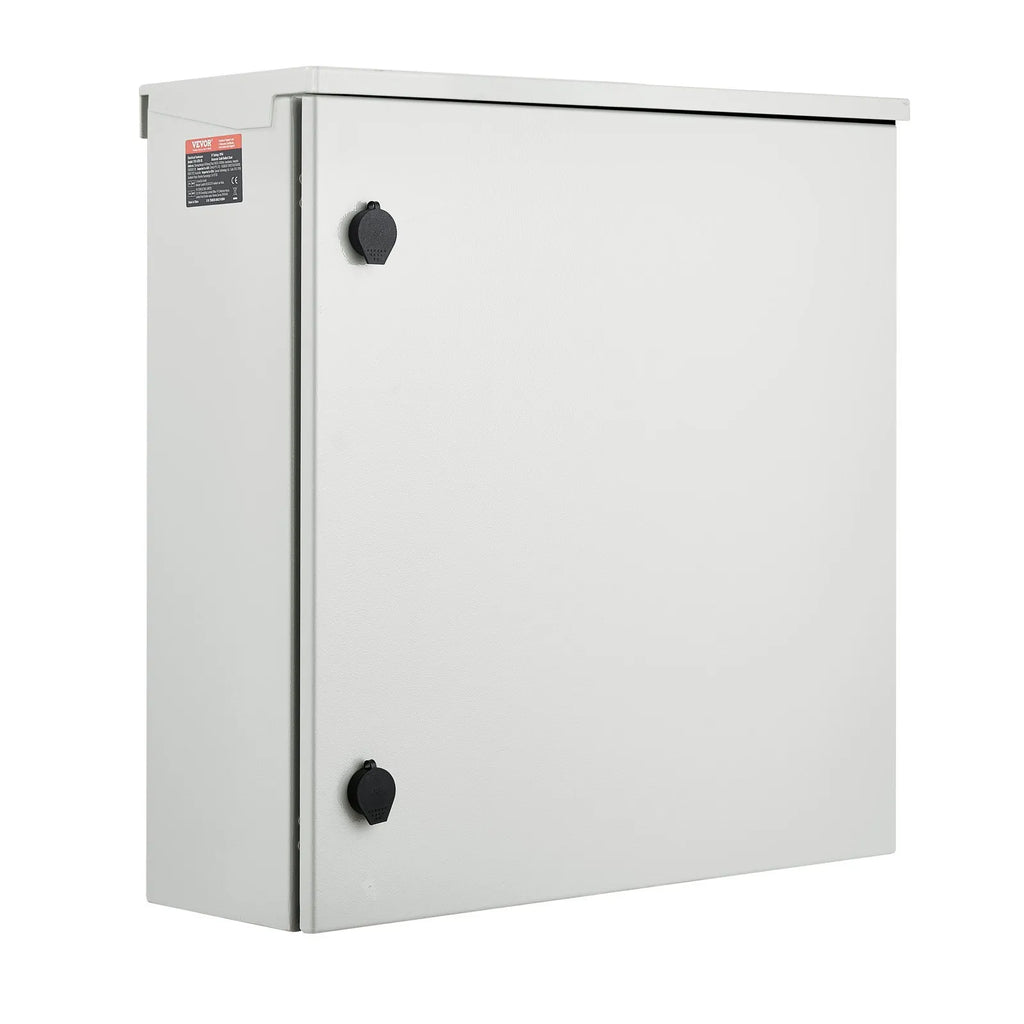

Hinged door with lock for secure access
-
Powder-coated finish with surface pickling and passivization for corrosion resistance
-

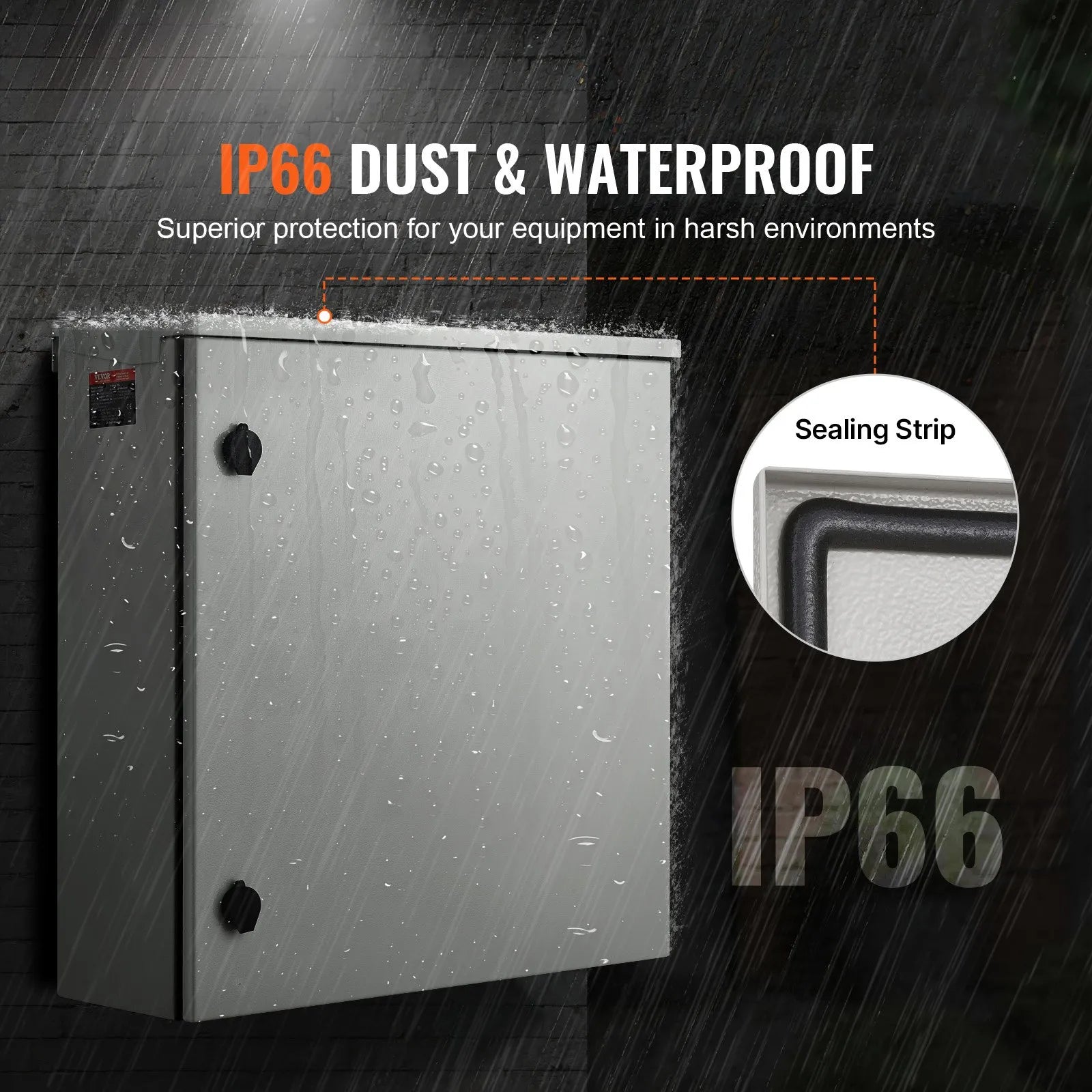

Seamless foam/nylon gasket for airtight sealing
-
Rain hood design prevents water accumulation
-

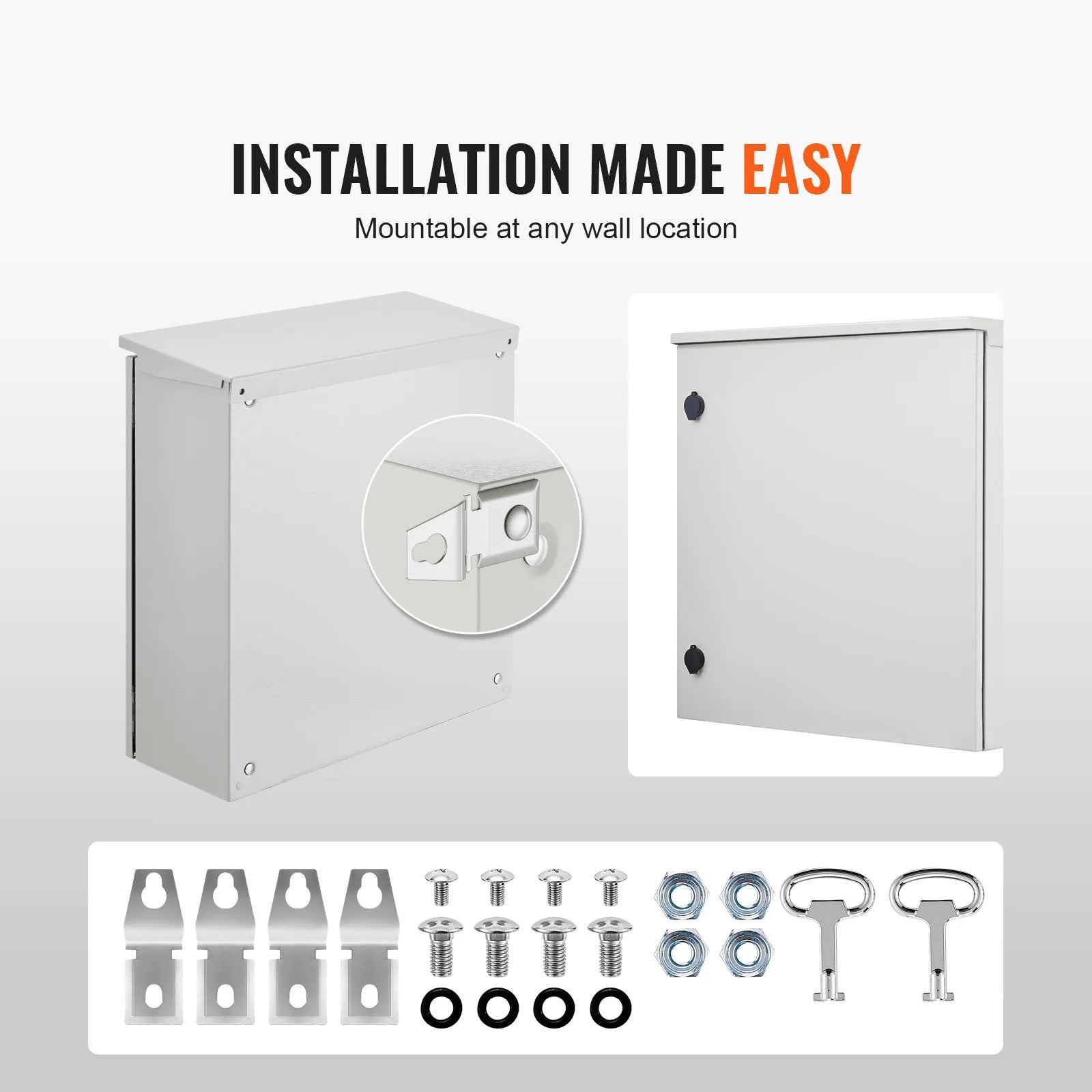

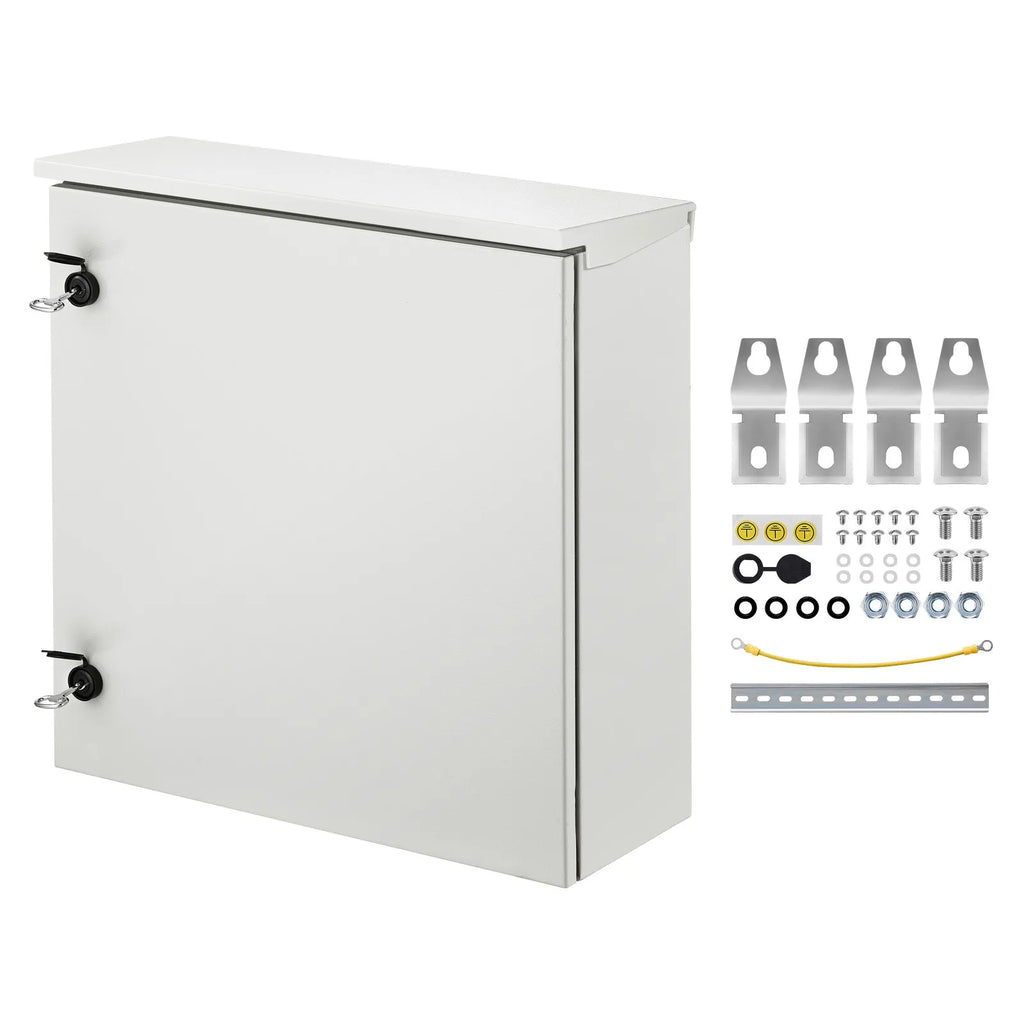

Pre-drilled mounting holes for effortless installation
-
Wide ambient temperature range: -40 to 122°F / -40 to 55°C
-

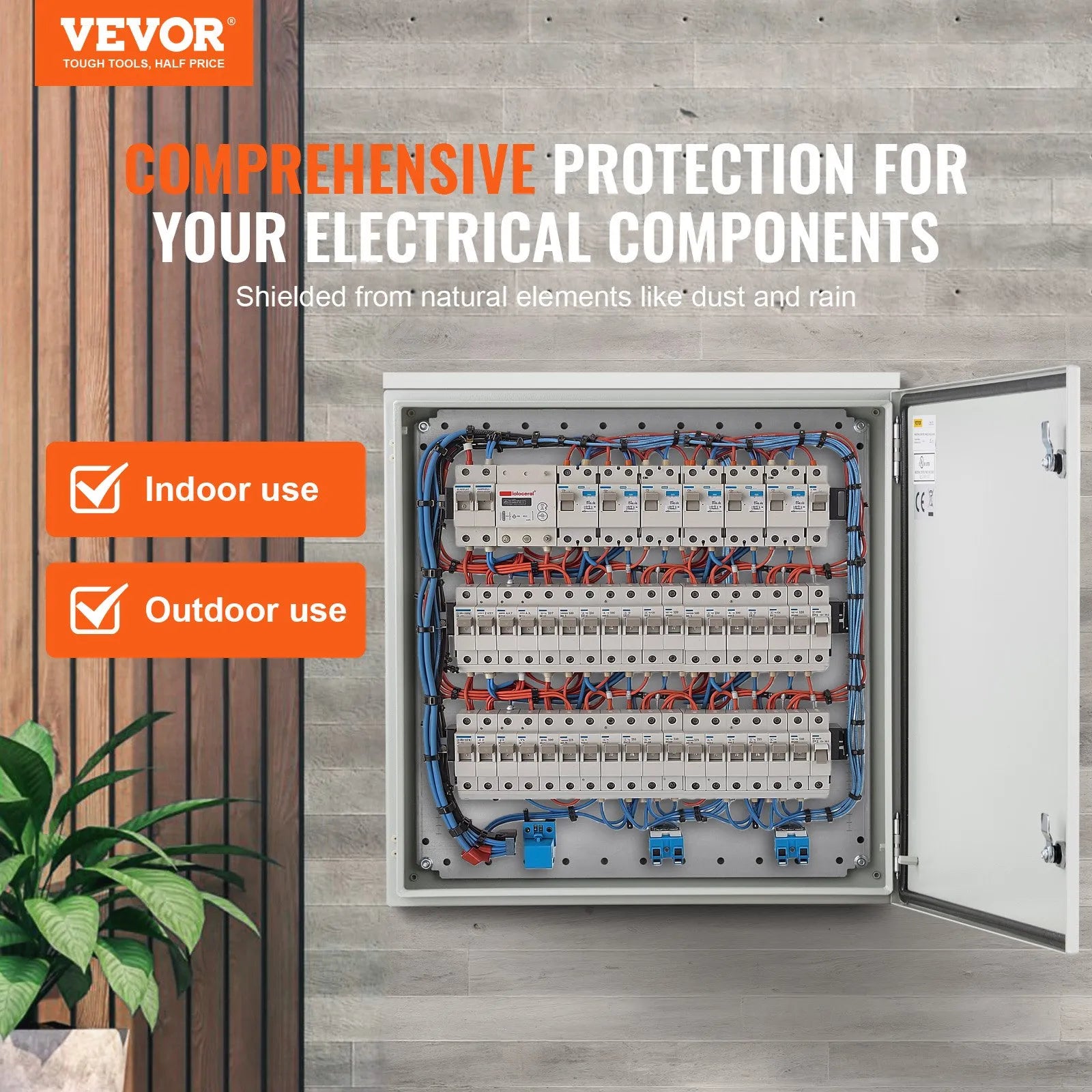

Extensive application in industrial, commercial, and residential settings
Specifications
-
Product Type: Industrial > Electrical Supplies > Enclosures
-
Model Number: ST6620
-

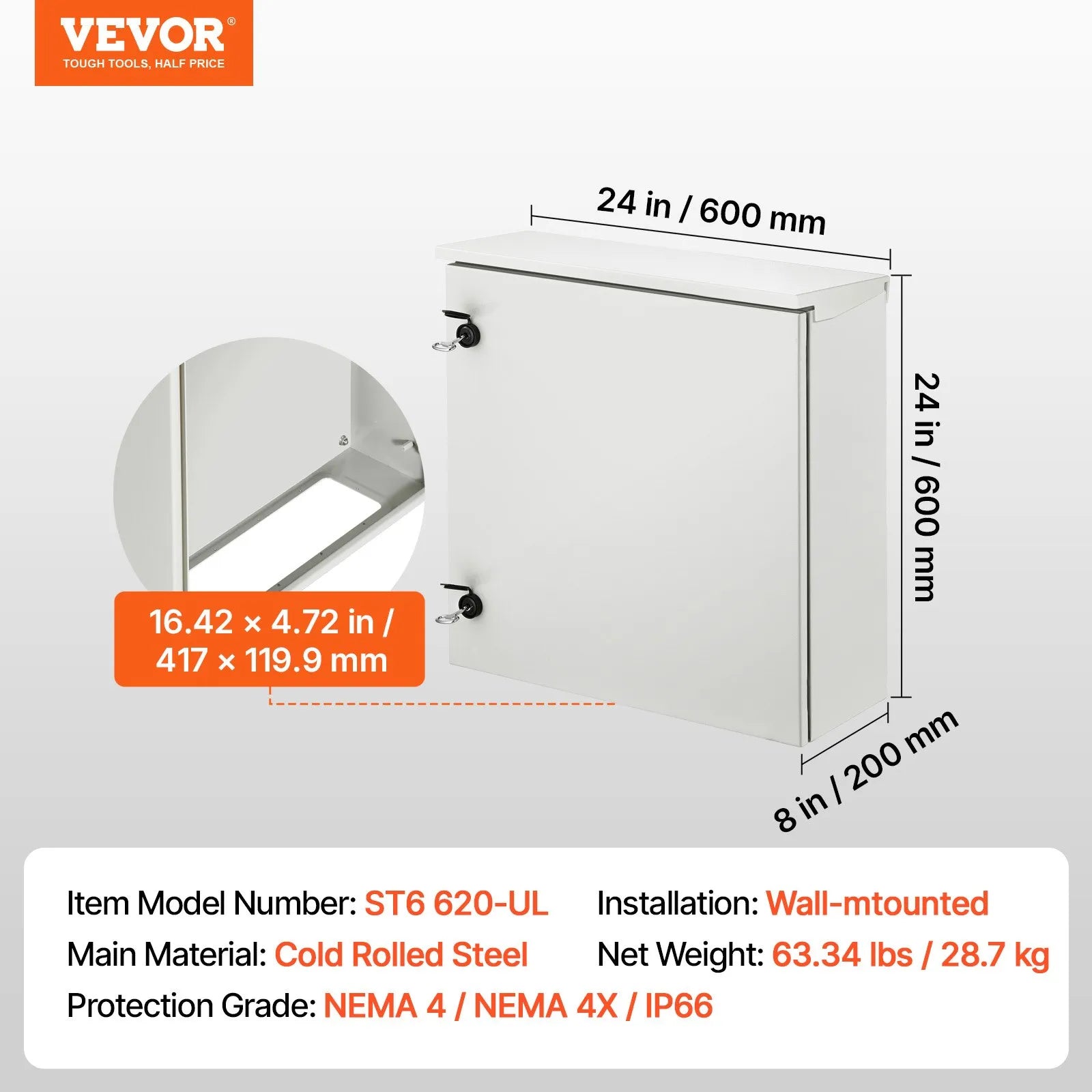

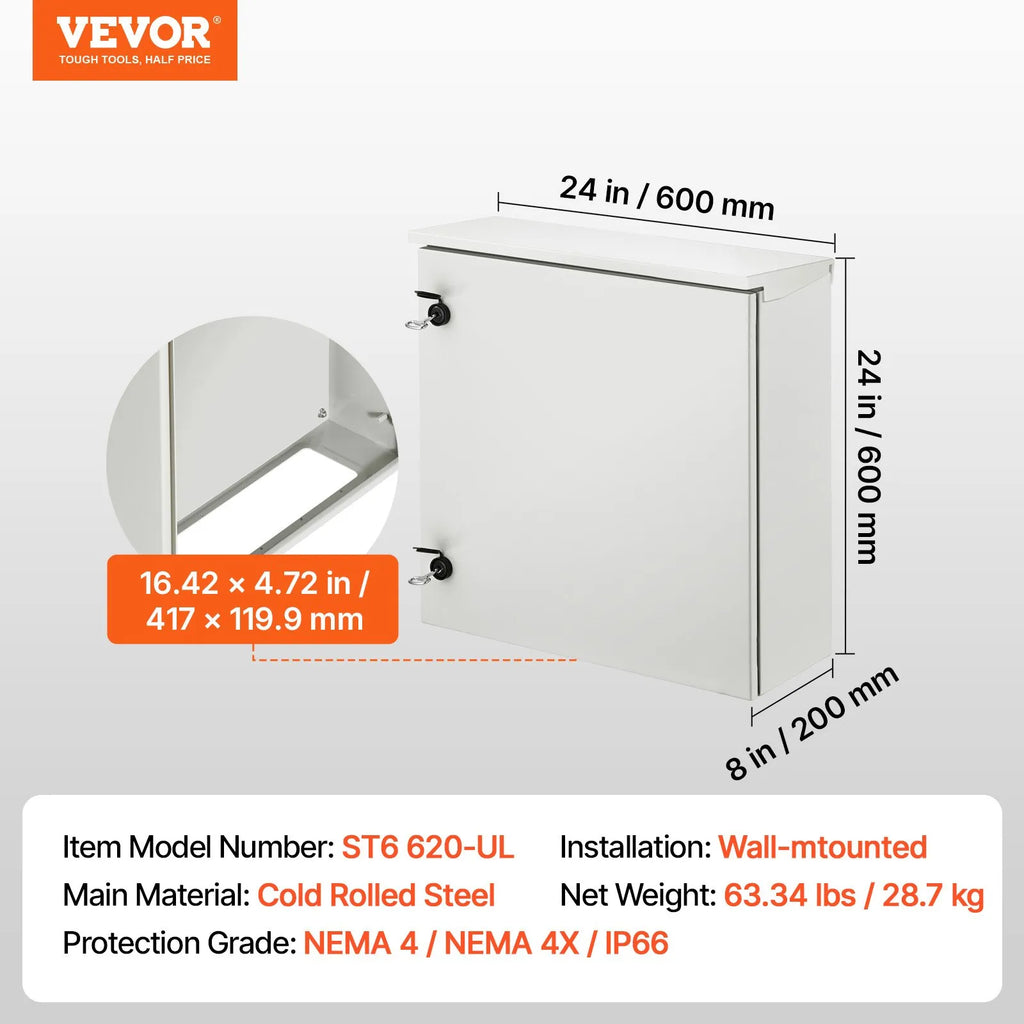

Outer Dimensions (H x W x D): 24 x 24 x 8 in / 60 x 60 x 20 cm
-
Inner Dimensions (H x W x D): 23.5 x 23.5 x 7 in / 59.7 x 59.7 x 17.7 cm
-
Body Material: 0.06 in / 0.15 cm Cold-Rolled Carbon Steel
-

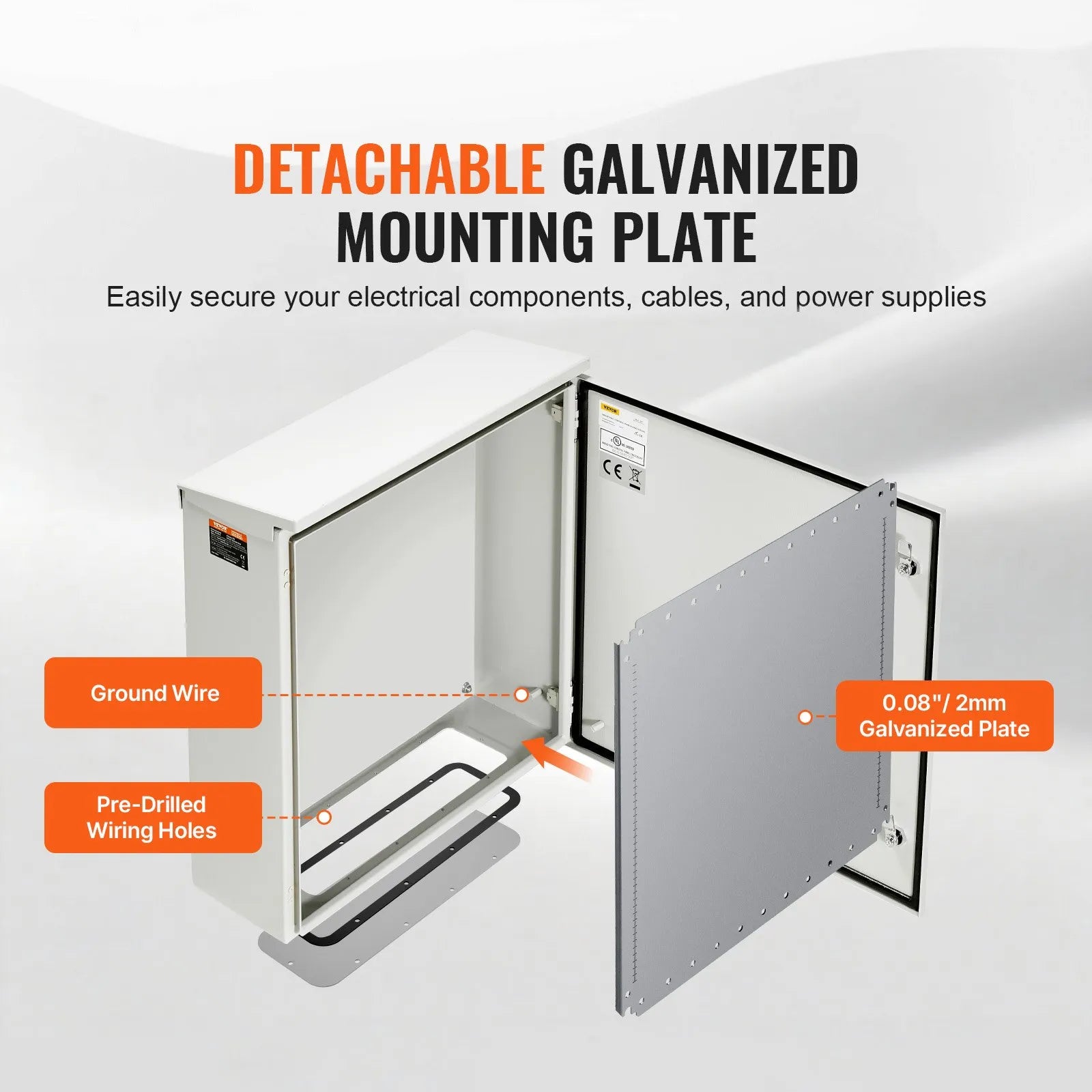

Inner Plate: 0.06 in / 0.15 cm Galvanized Steel
-

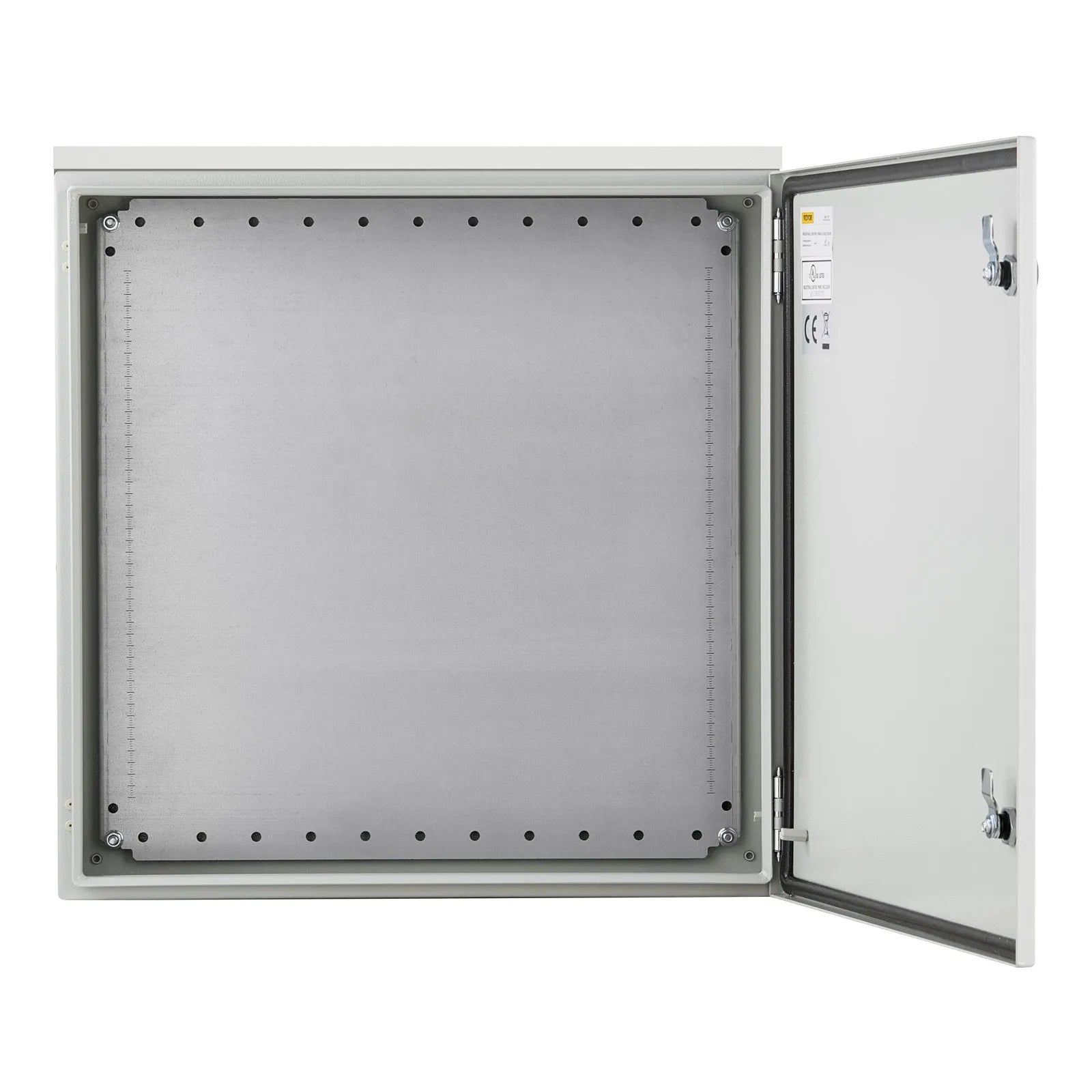

Galvanized Backplate Dimensions (H x W): 22.2 x 22 in / 56.5 x 55 cm
-
Protection Grade: IP65, IK10
-
Ratings: NEMA Type 4
-
Gasket Material: Seamless Foam/Nylon (with washer or plug)
-
Ambient Temperature: -40 to 122°F / -40 to 55°C
-
Mounting Hole Diameter: 0.35 in / 0.9 cm
-

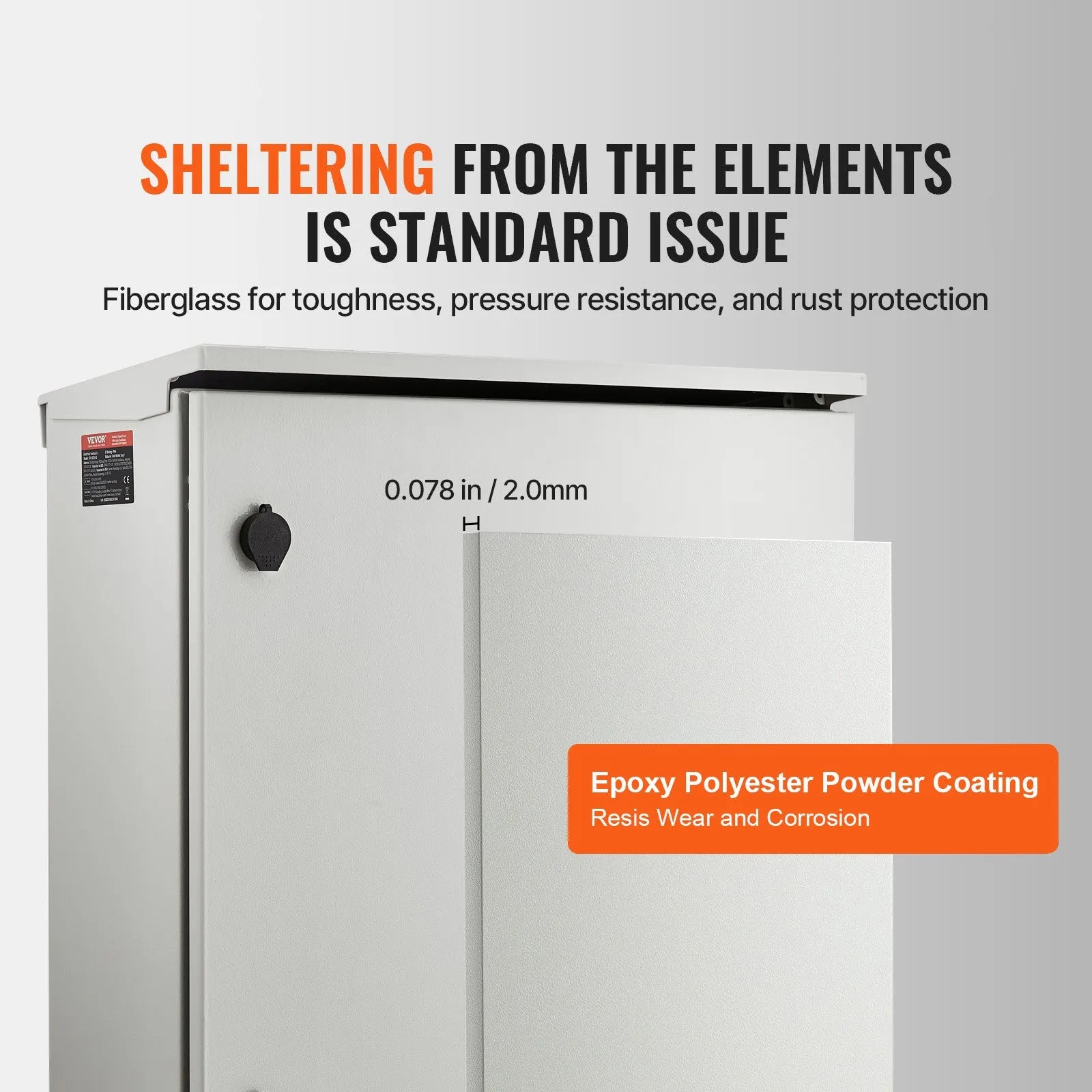

Finish: Powder Coating (surface pickling and passivization)
-
Color: RAL 7035 (White Gray)
-
Net Weight: 55.56 lbs / 25.2 kg
