Description

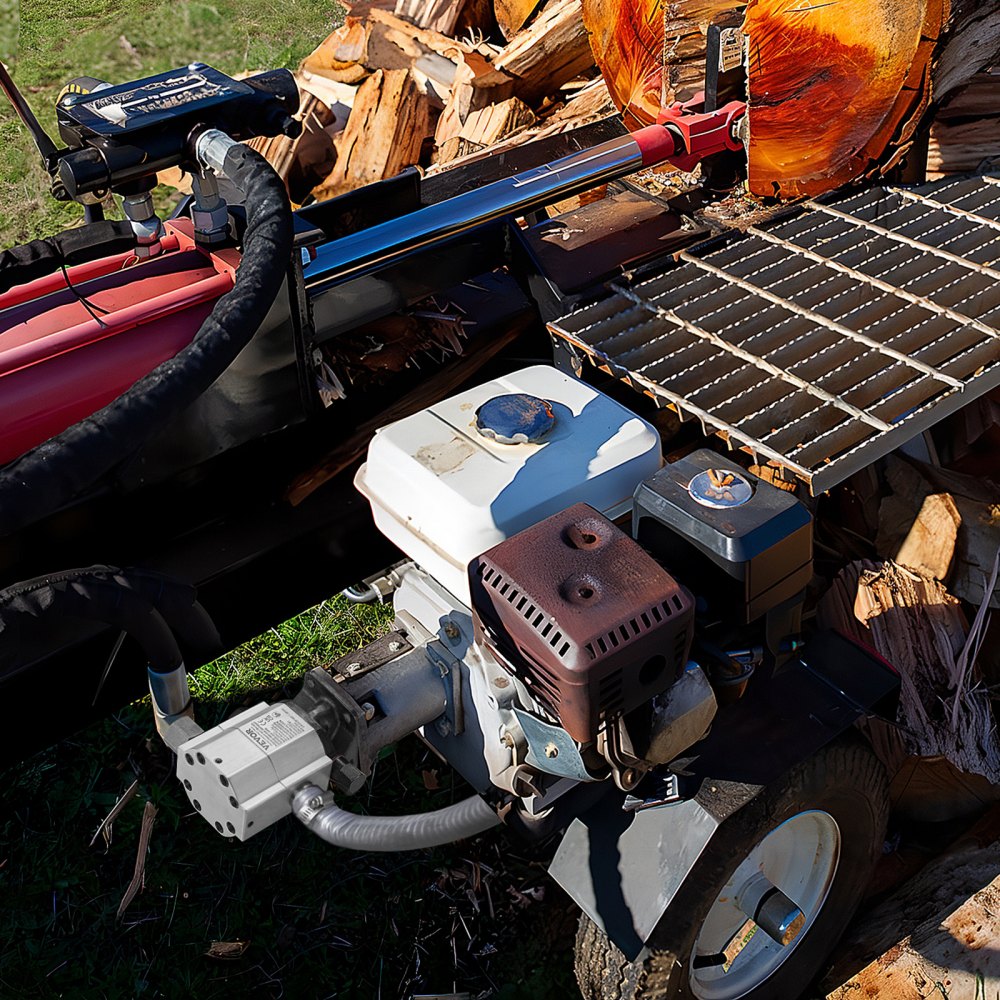

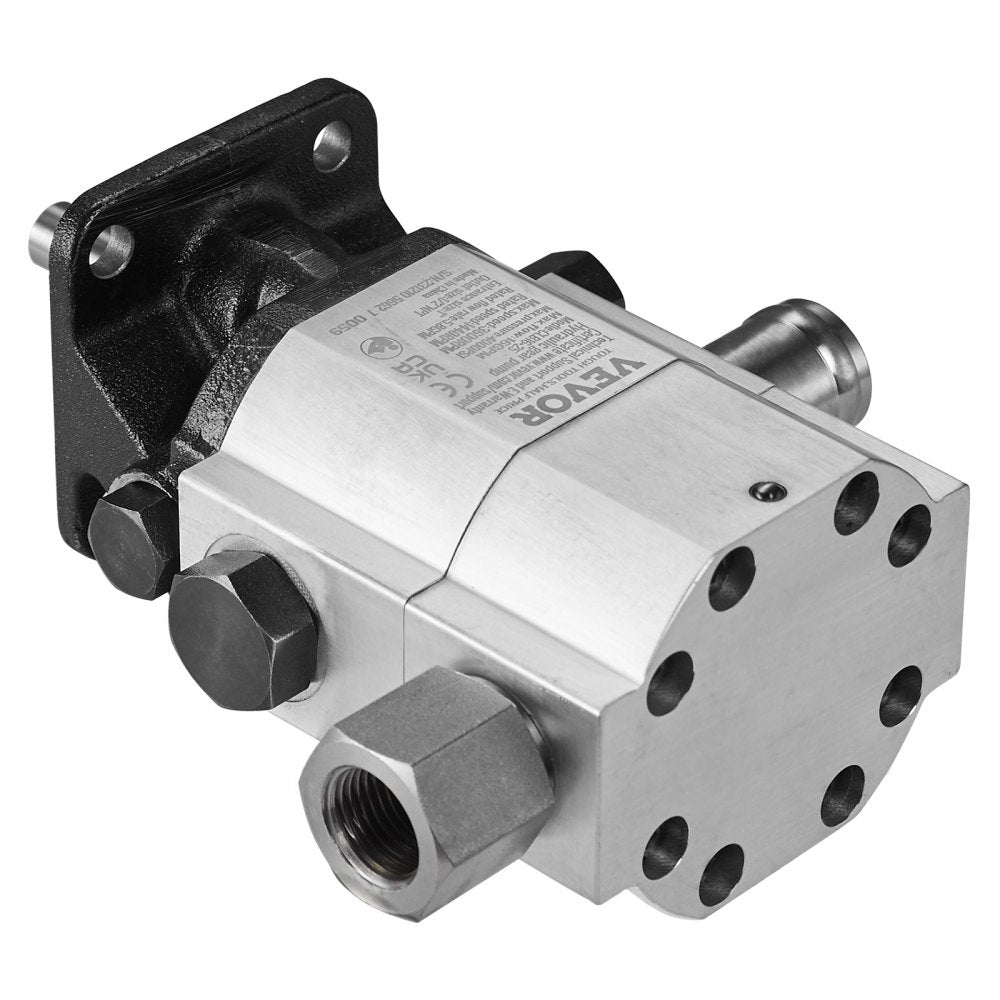

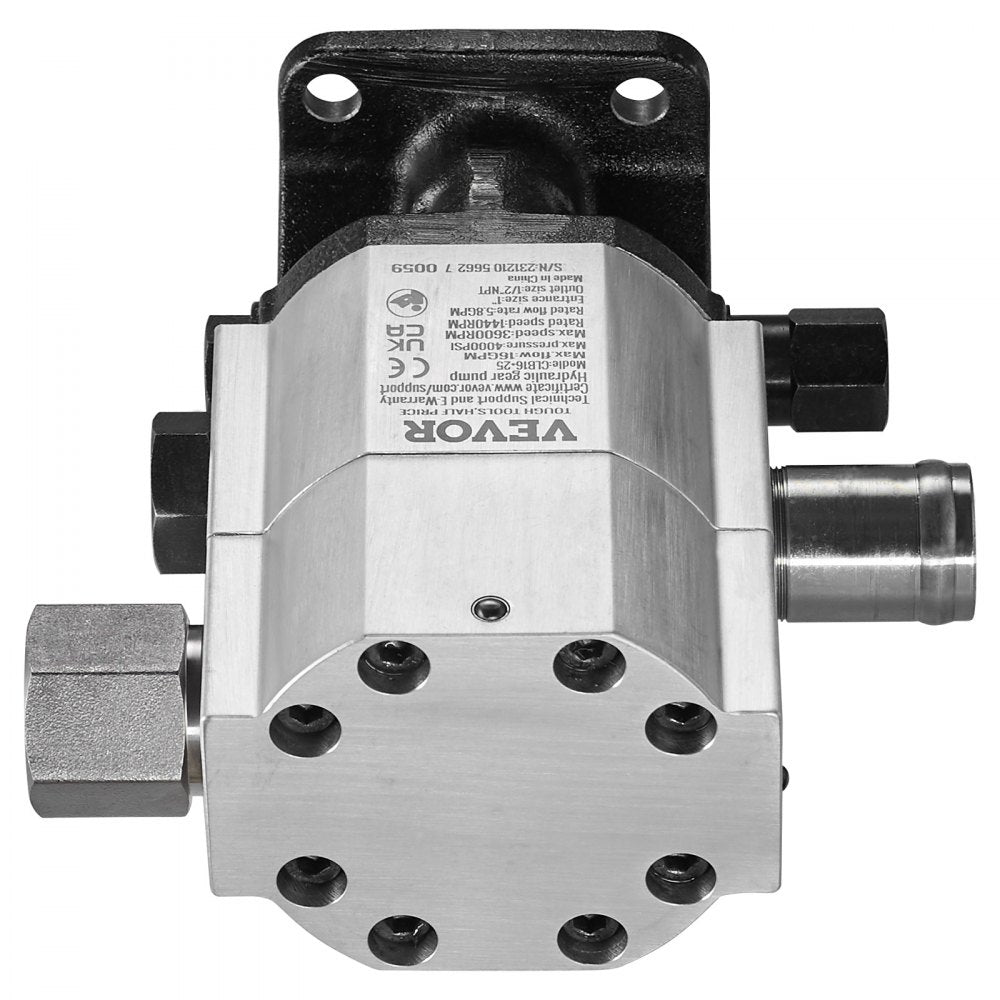

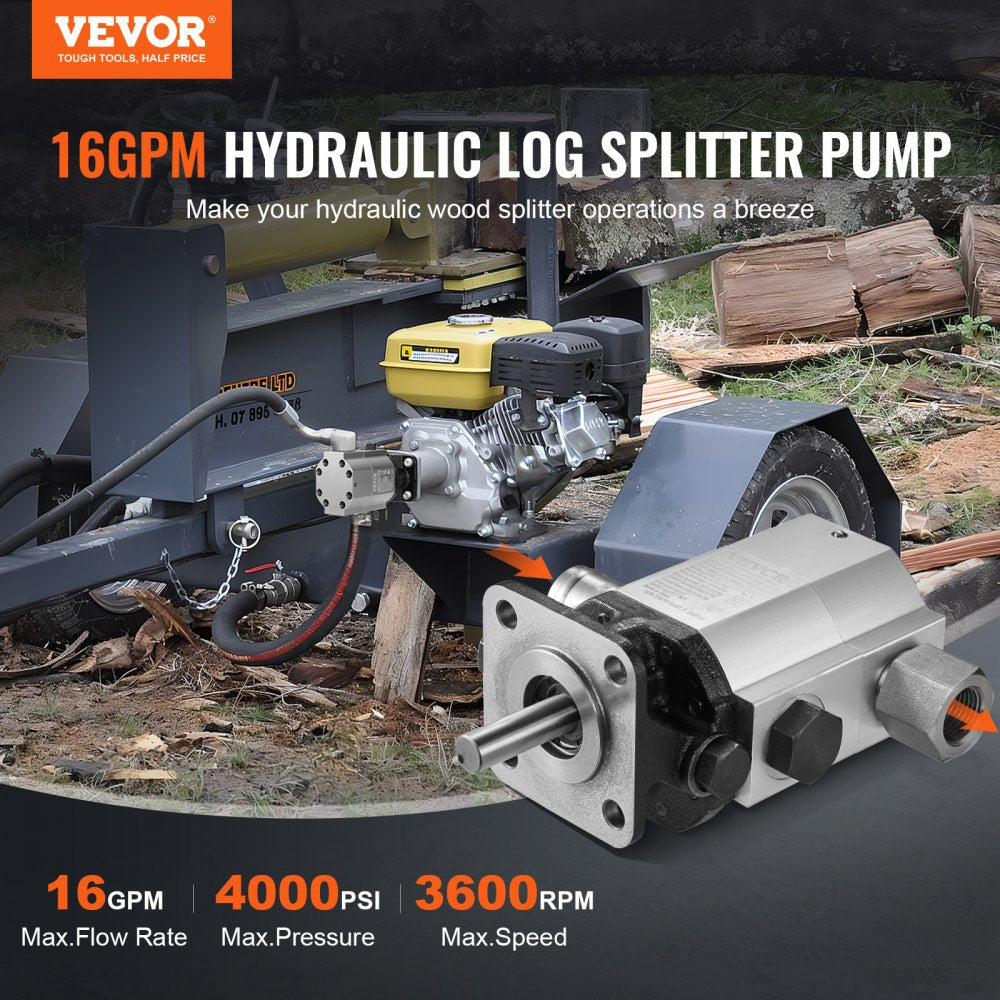

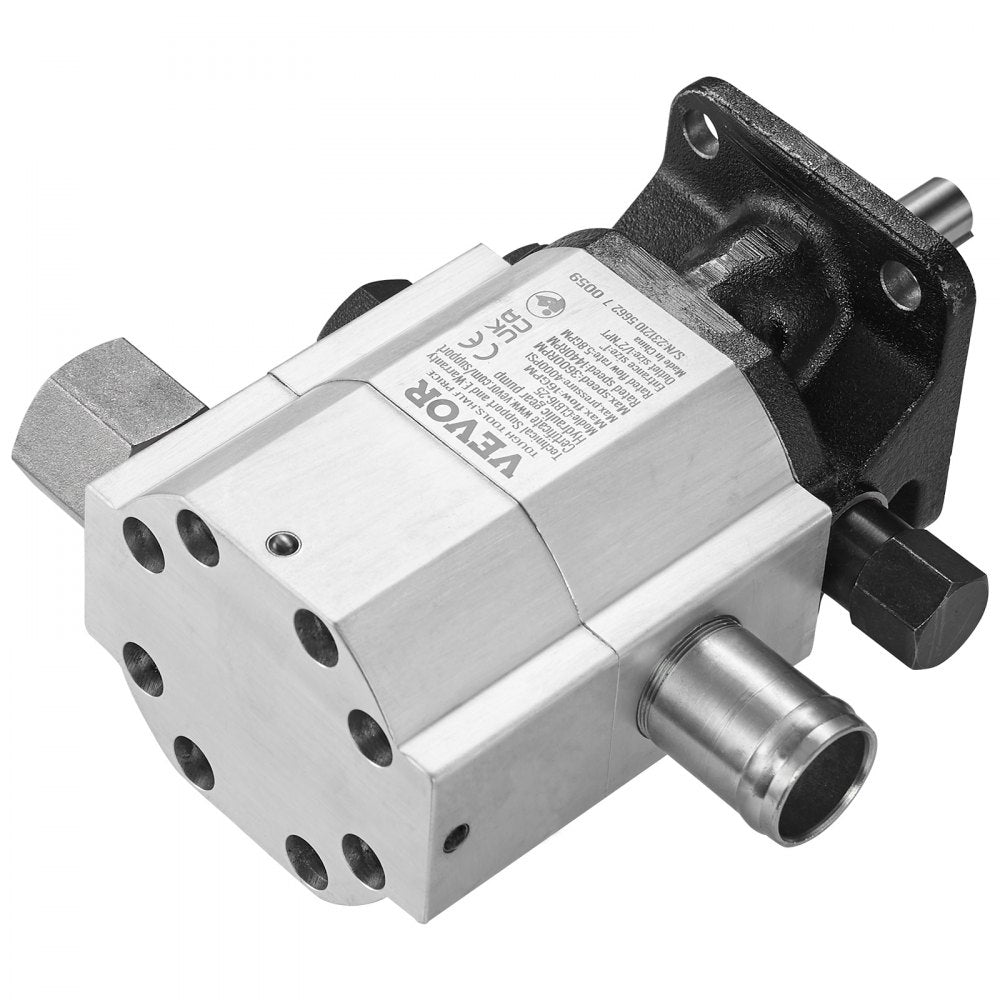

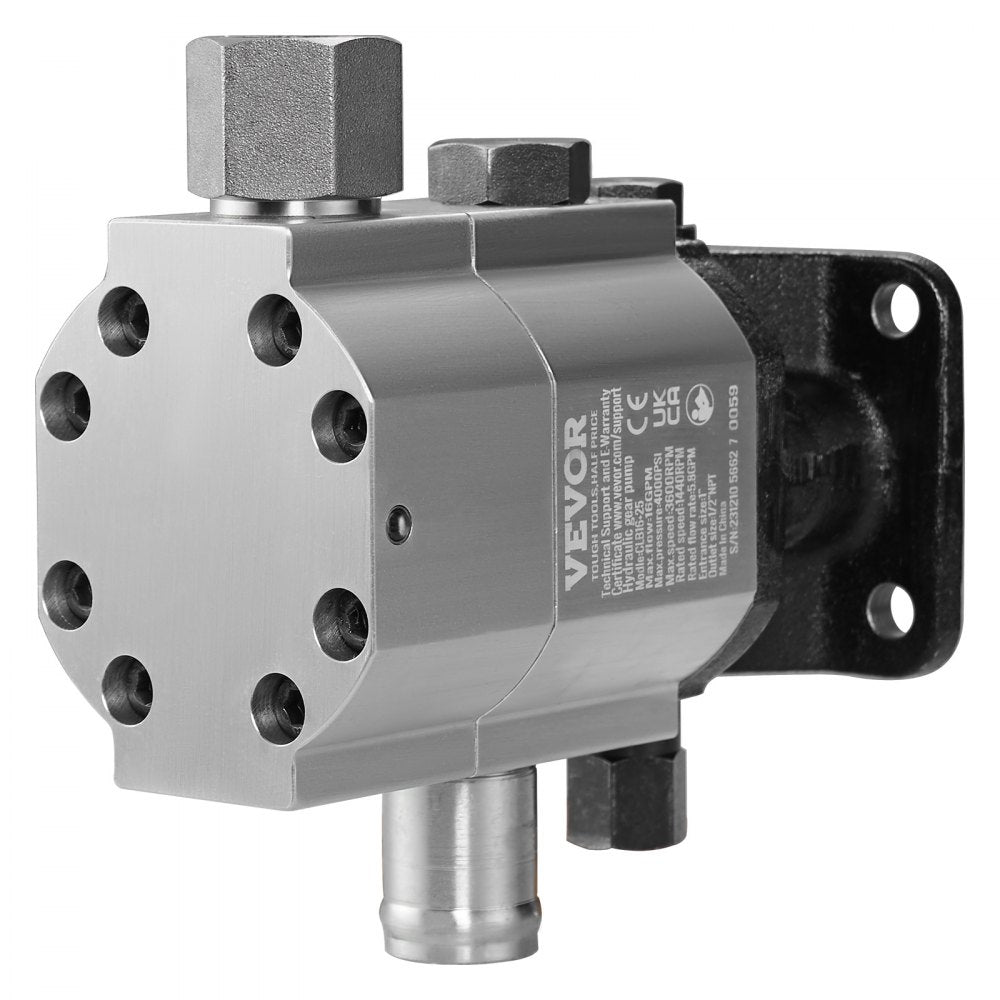

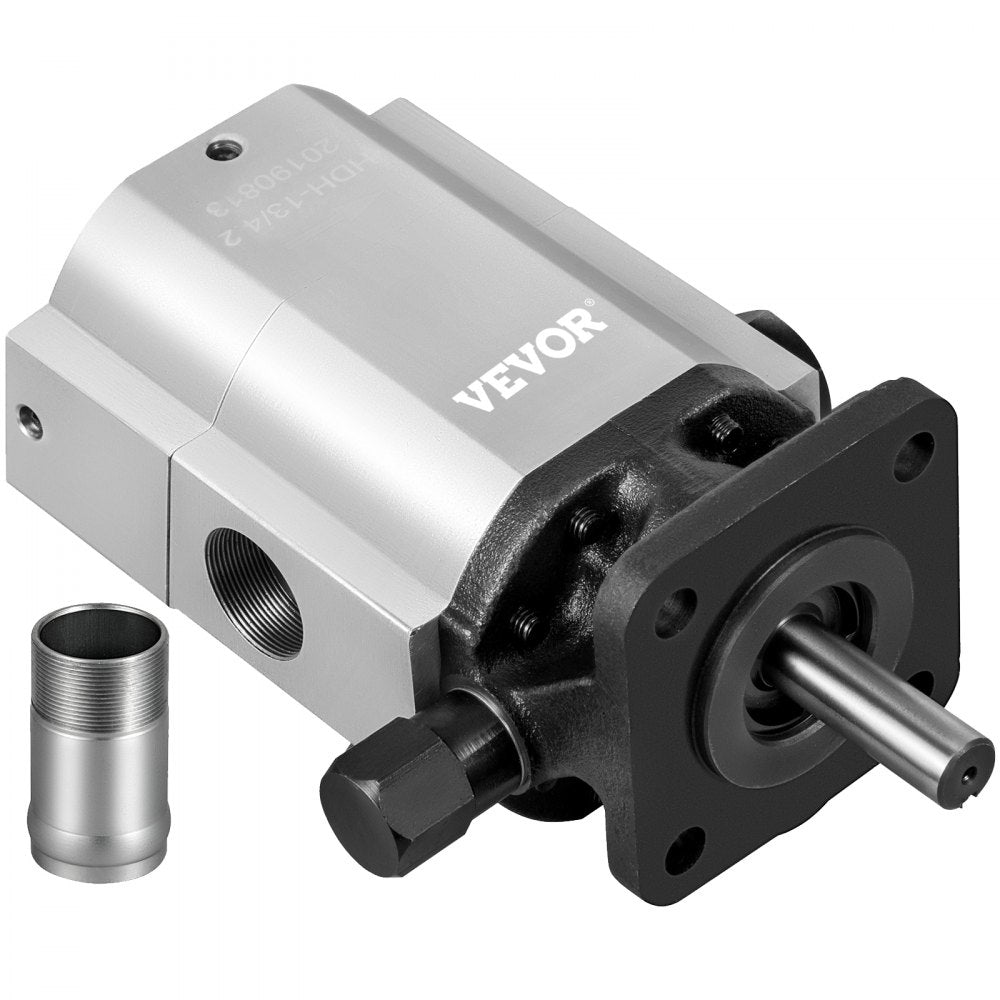

The VEVOR Hydraulic Log Splitter Pump is a powerful, 2-stage, 16 GPM pump designed for efficient wood splitting. With a maximum pressure of 4000 PSI, this hydraulic gear pump is built for use with small engine mounting log splitters and snowplows. It features a robust aluminum construction, low noise operation, and easy installation. The pump’s first stage offers 13 GPM at 650 PSI, while the second stage provides 3.5 GPM at 2500 PSI, ensuring outstanding performance for your hydraulic applications.
Features
-
Outstanding Performance: Delivers up to 16 GPM flow and a maximum pressure of 4000 PSI for efficient splitting.
-
High Precision Design: Crafted with attention to detail for smooth operation and long-term durability.
-

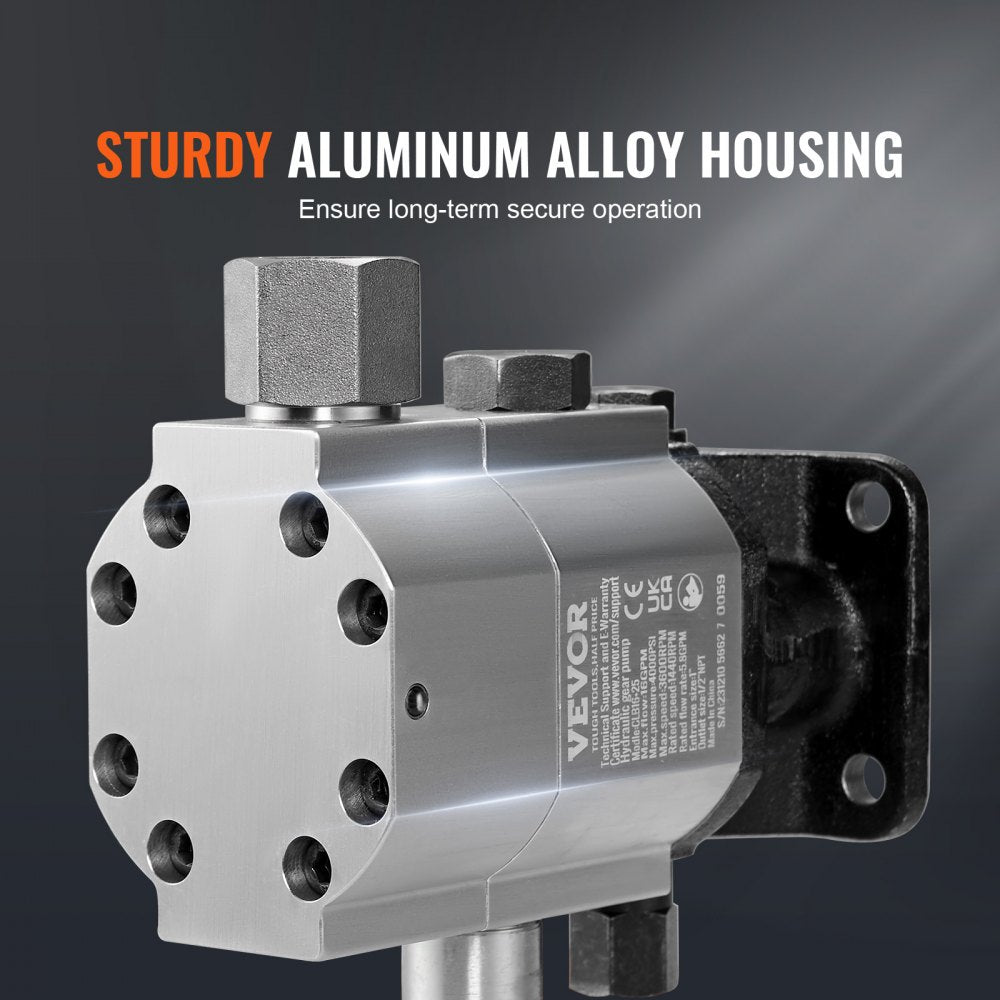

Robust Materials: Constructed with high-quality aluminum for strength and reliability in heavy-duty use.
-
Easy Installation: Mounting is straightforward, with detailed instructions and comprehensive accessories included.
-
Comprehensive Accessories: Includes everything you need for easy setup and operation.
-

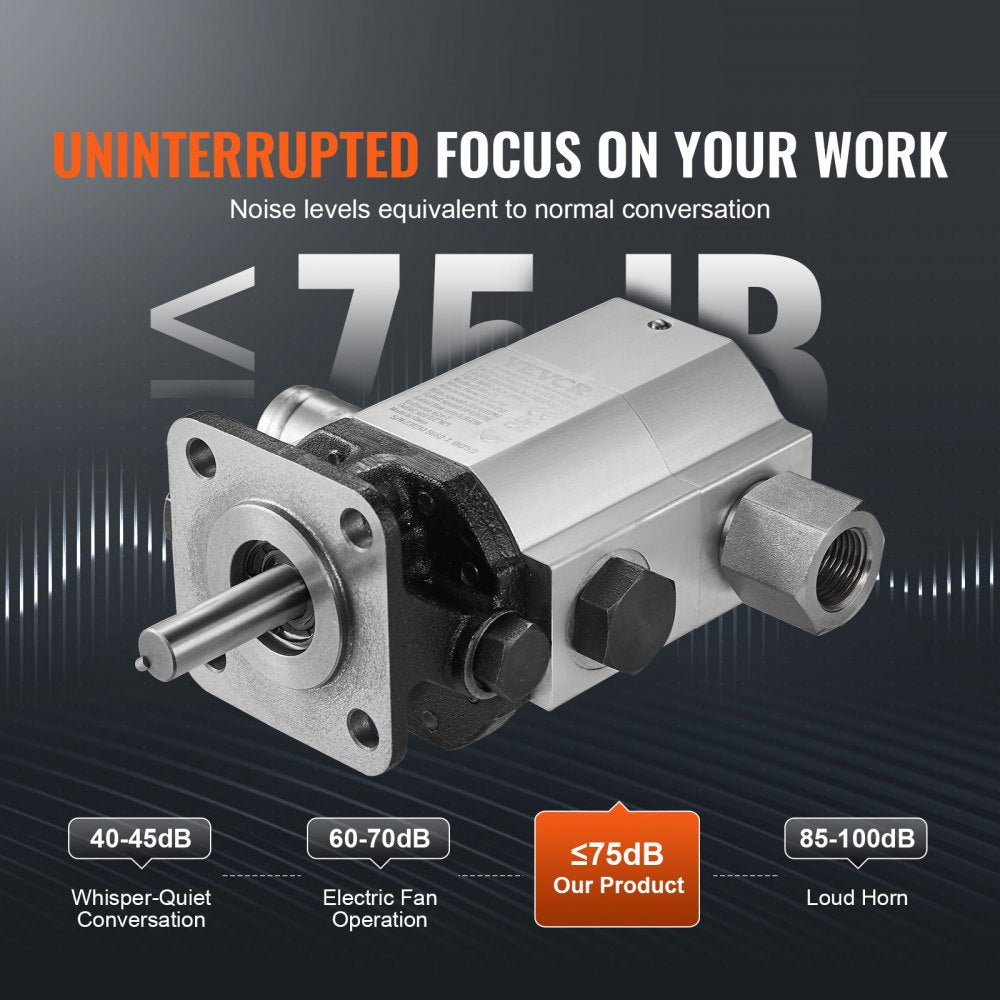

Low Noise Operation: Designed for quieter operation, ideal for residential or noise-sensitive environments.
-
Rotation: Clockwise rotation for compatibility with most hydraulic systems.

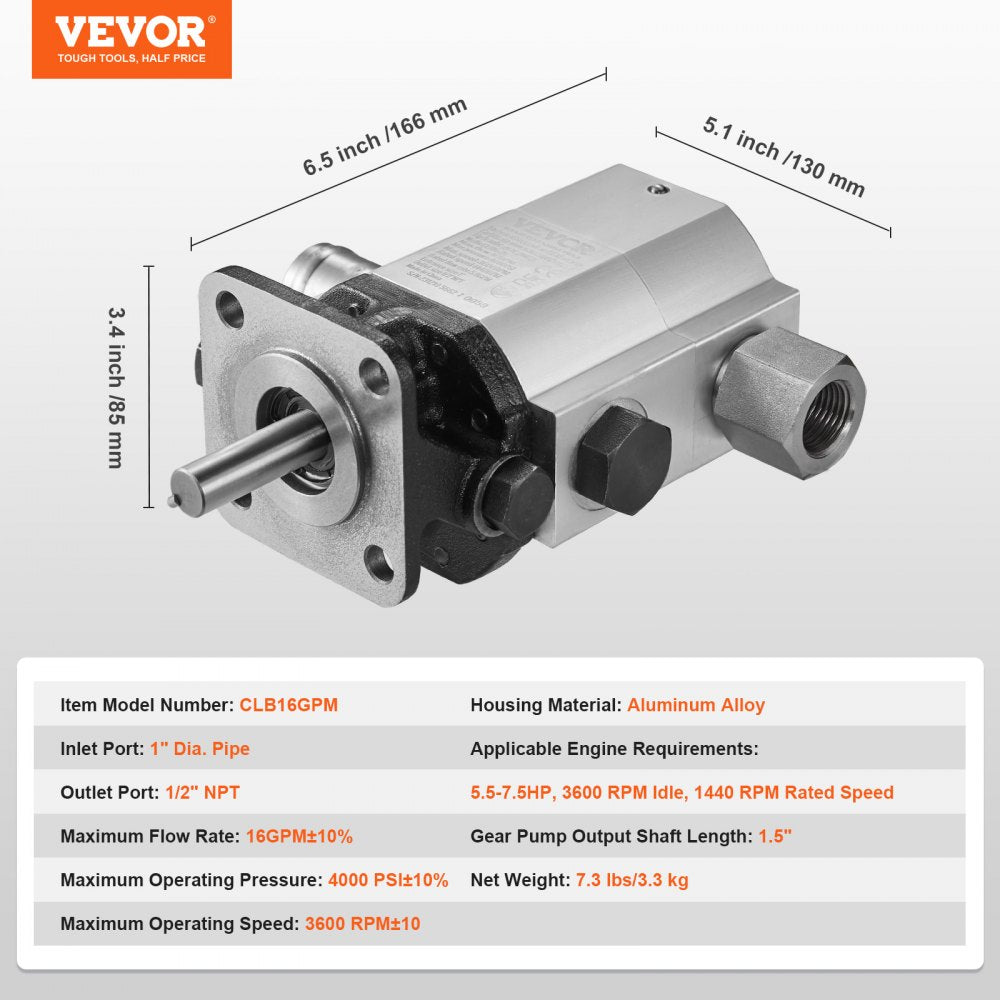

Specification
-
Maximum Pressure: 4000 PSI
-

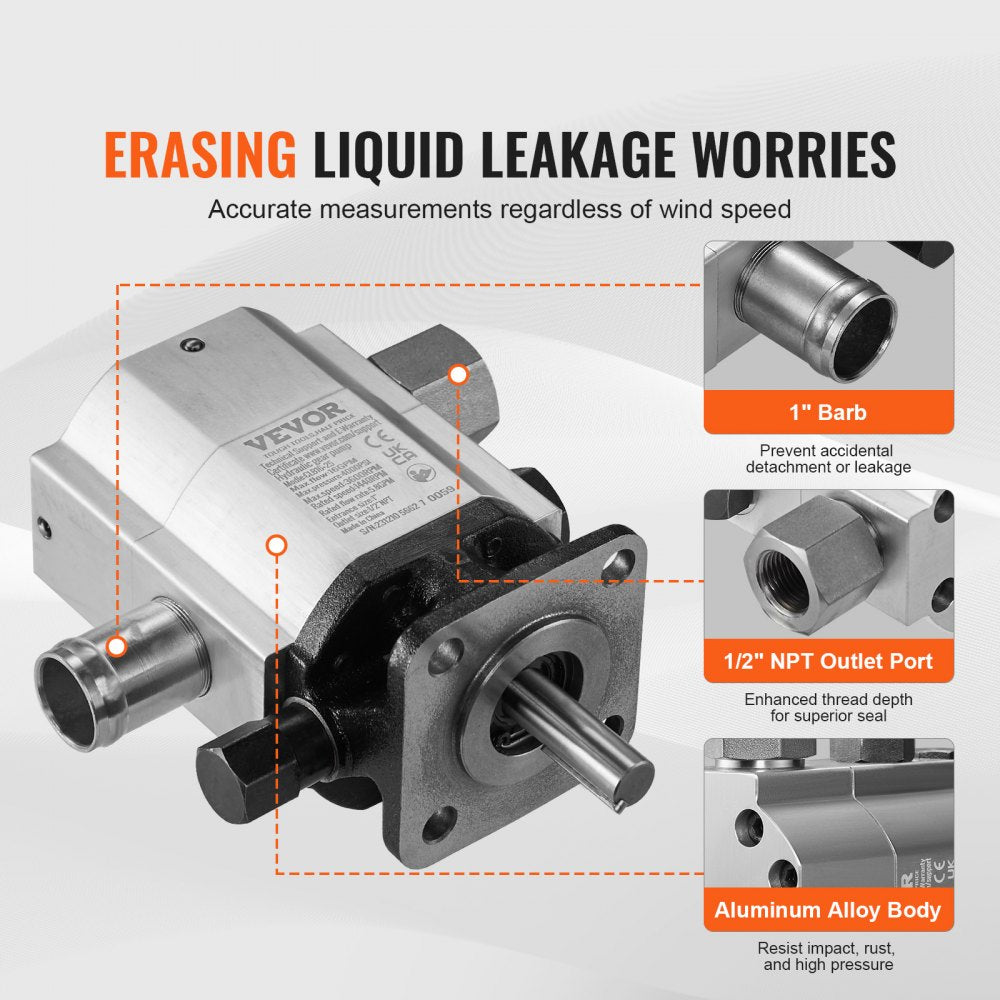

Inlet Port: 1"
-
Outlet Port: 1/2" NPT
-
First Stage: 13 GPM @ 650 PSI
-
Second Stage: 3.5 GPM @ 2500 PSI
-
Rotation: Clockwise
-
Mounting Hole Diameter: 0.344"
-
Bolt Circle: 2.83"
-
Woodruff Key: 1/8"
-
Mounting Holes: 4 holes, spaced 2" on center
-
Dimensions (L x W): 7-1/4" L with shaft, 3" across body
-
Minimum Engine: Requires 8 HP or larger gas engine, direct drive only, horizontal shaft
-
For Use With: Open center hydraulic systems only
