Description

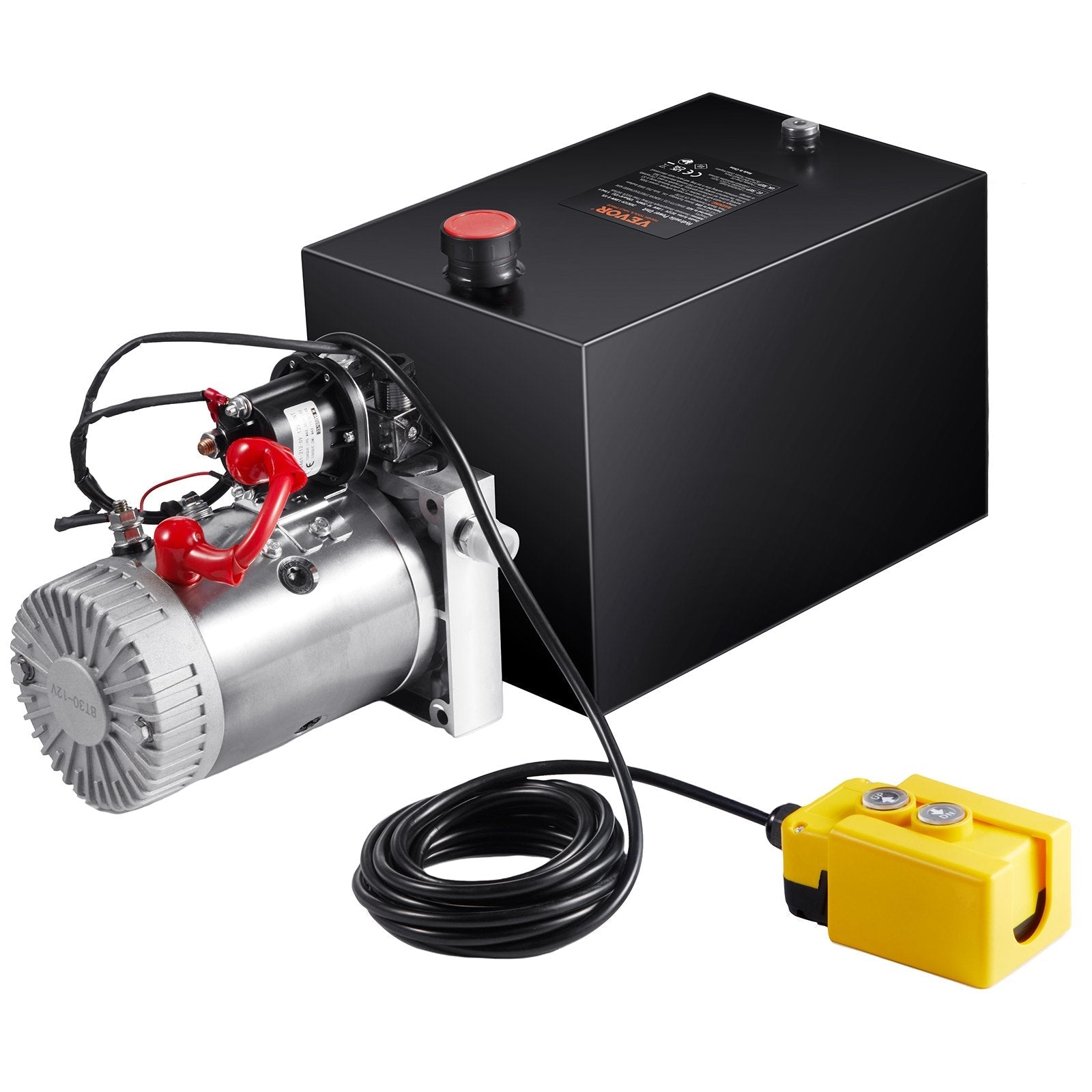

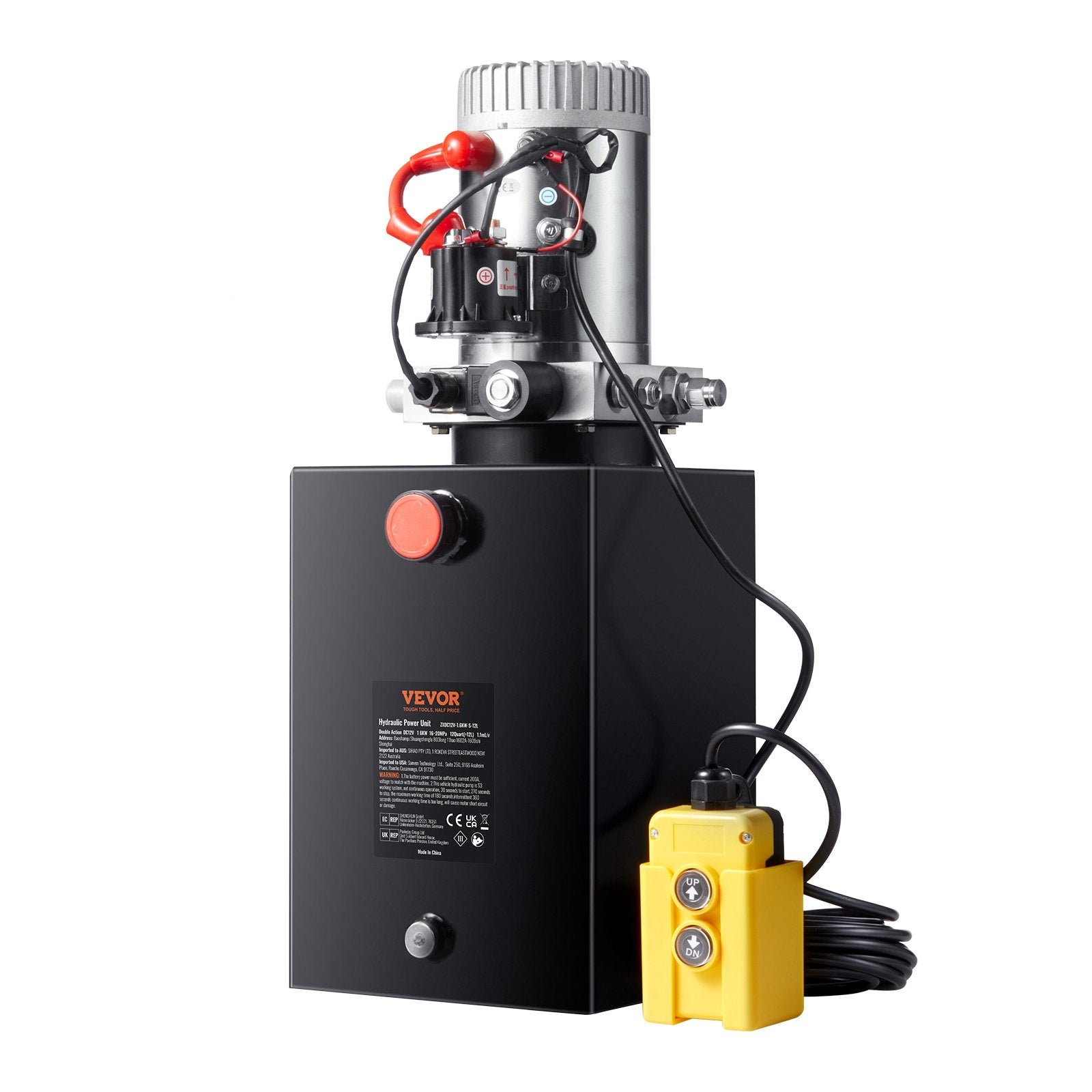

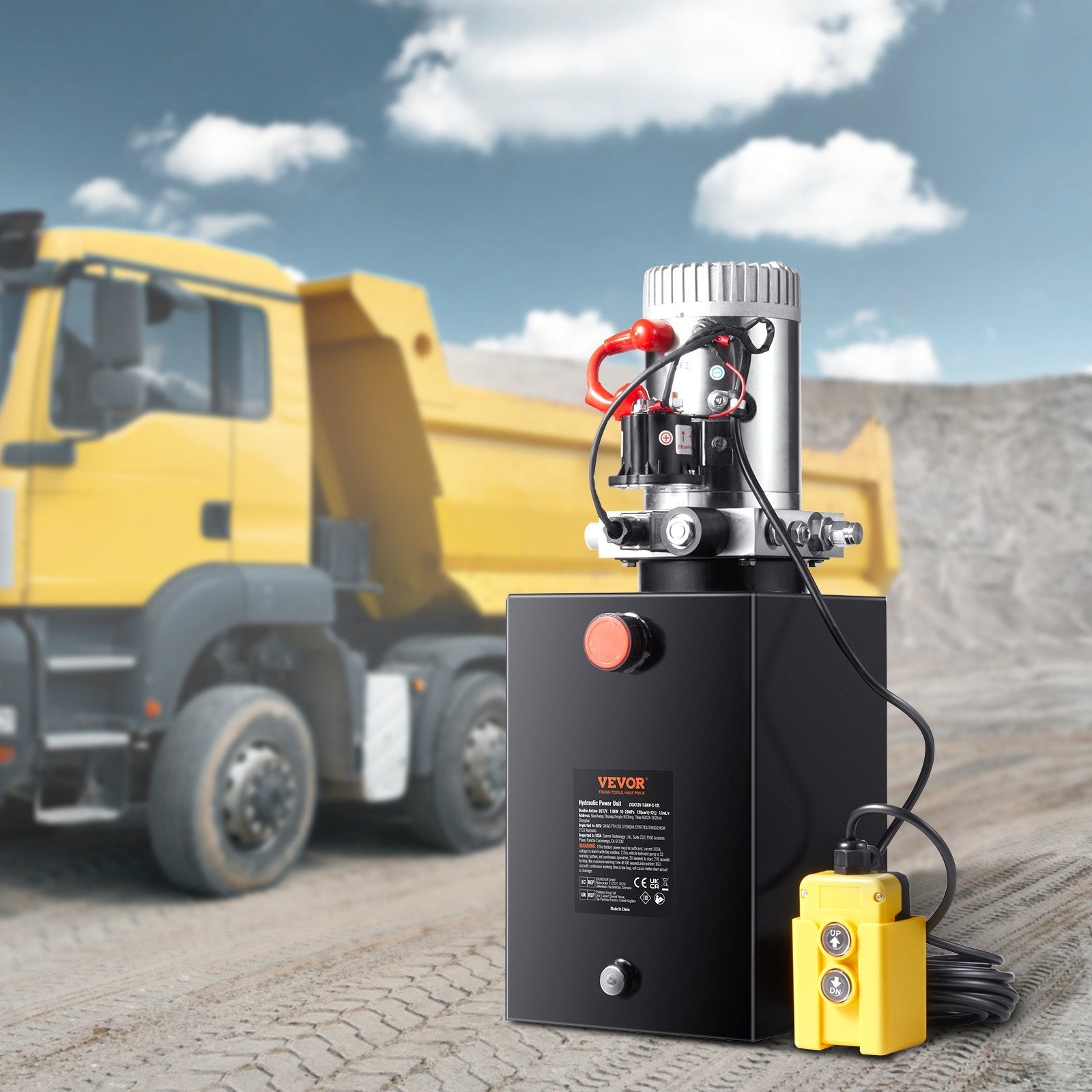

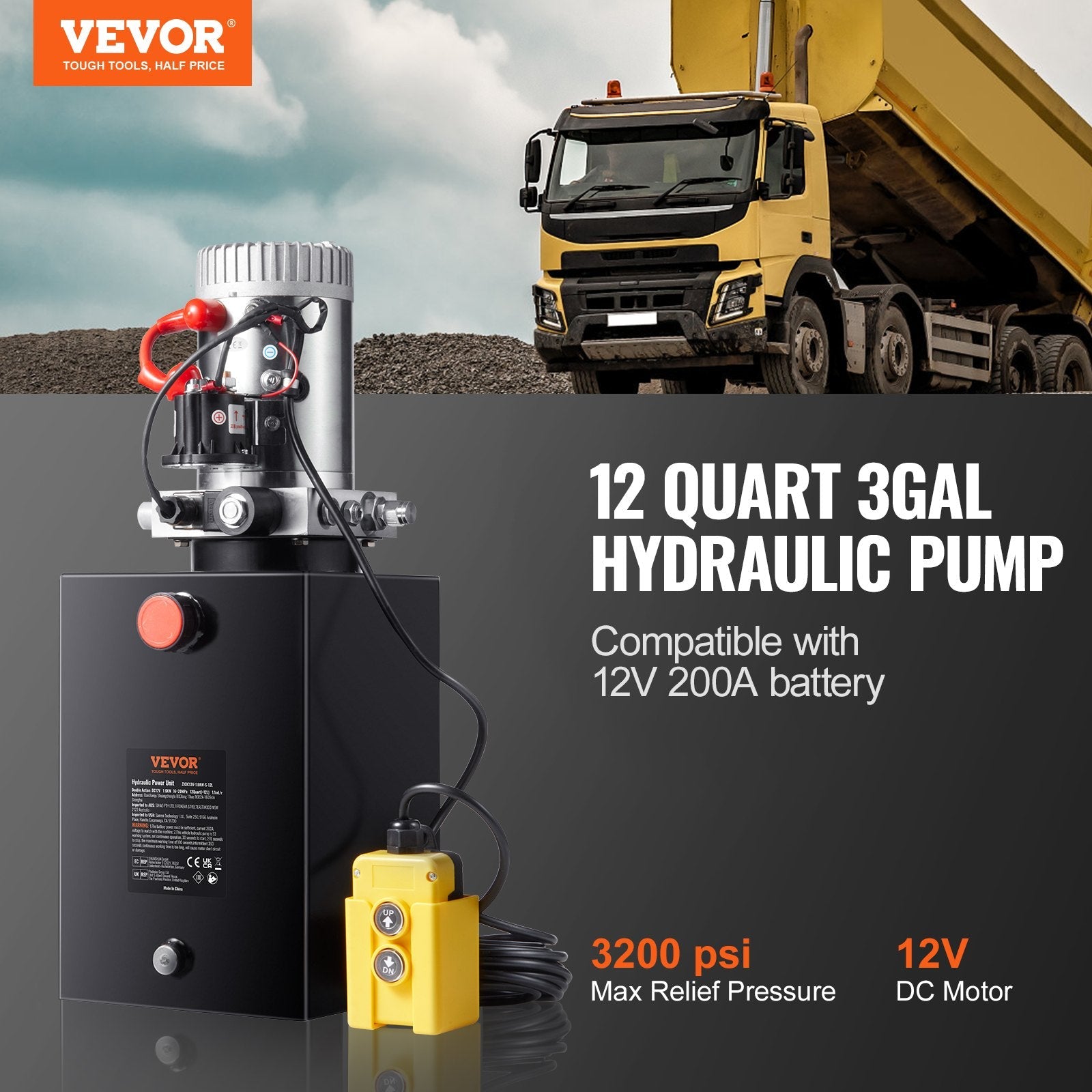

Power your dump trailers and lifting systems with ease using the VEVOR 12 Quart Hydraulic Pump. This single-acting unit delivers 0.91 GPM at 3200 PSI max pressure, offering strong, steady performance for heavy-duty hydraulic tasks. Designed for durability and quick setup, it's ideal for dump trailers, car lifts, and agricultural machinery.
Features:
-

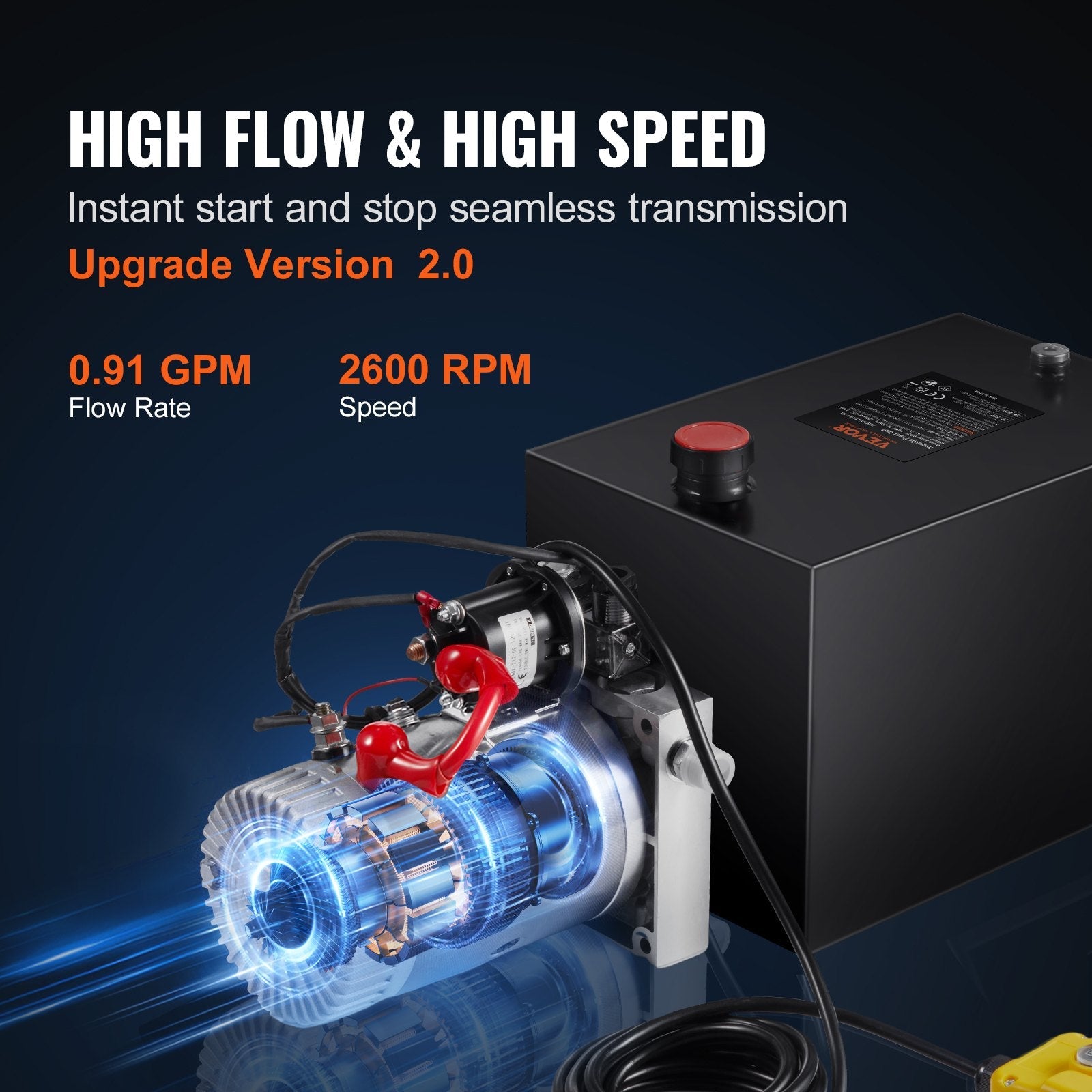

Heavy-Duty Performance: Max pressure of 3200 PSI and 0.91 GPM flow for powerful hydraulic lift support.
-
Durable Build: Constructed from premium GC01 steel for long-term reliability under load.
-
Simple Operation: Single-acting design optimized for controlled lifting; returns via gravity.
-
Compact Power: 1.6 kW motor with 2600 RPM ensures efficient fluid movement.
-

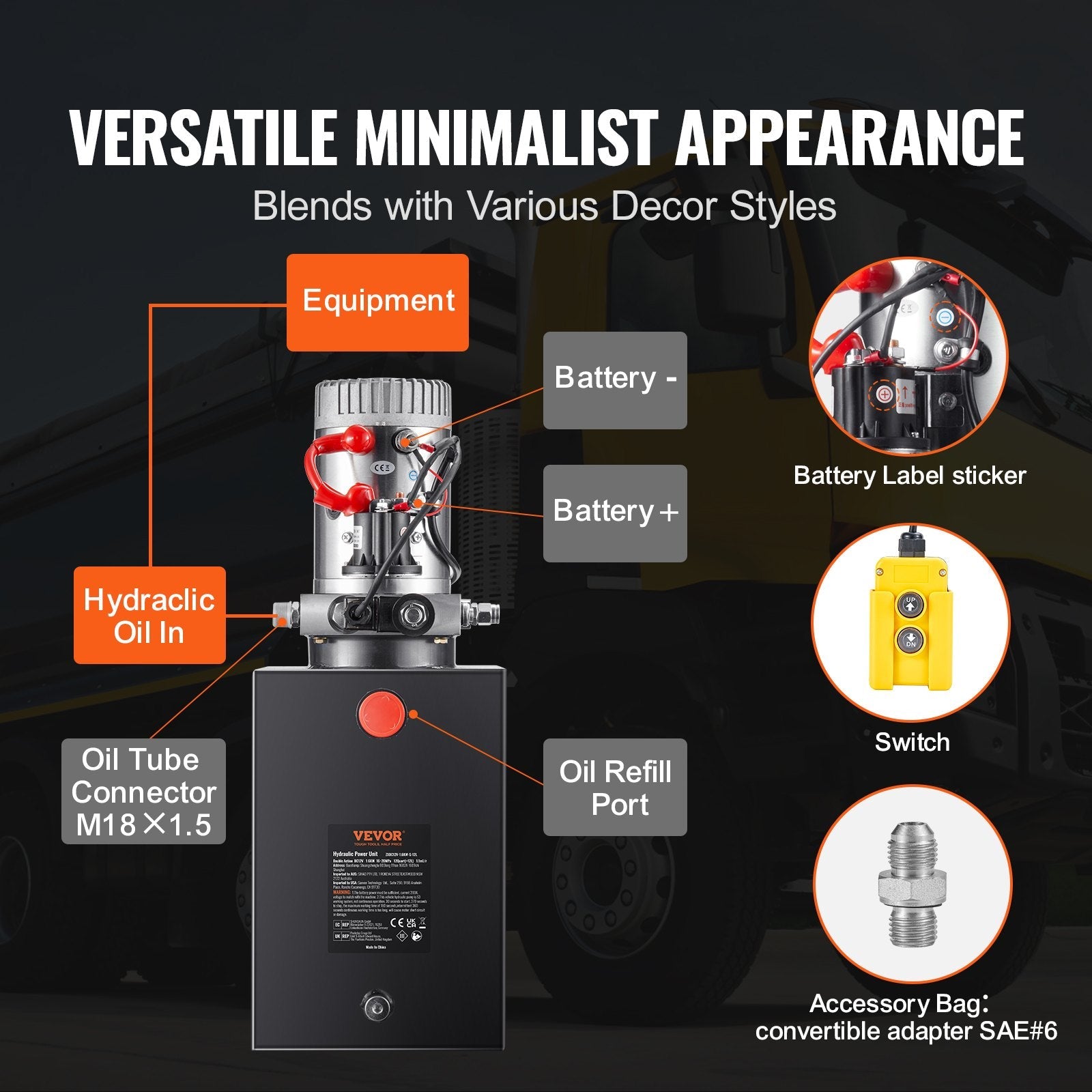

Quick Installation: Pre-wired and ready for integration with your existing system.
-
Enhanced Safety: Includes a built-in relief valve to prevent overpressure.

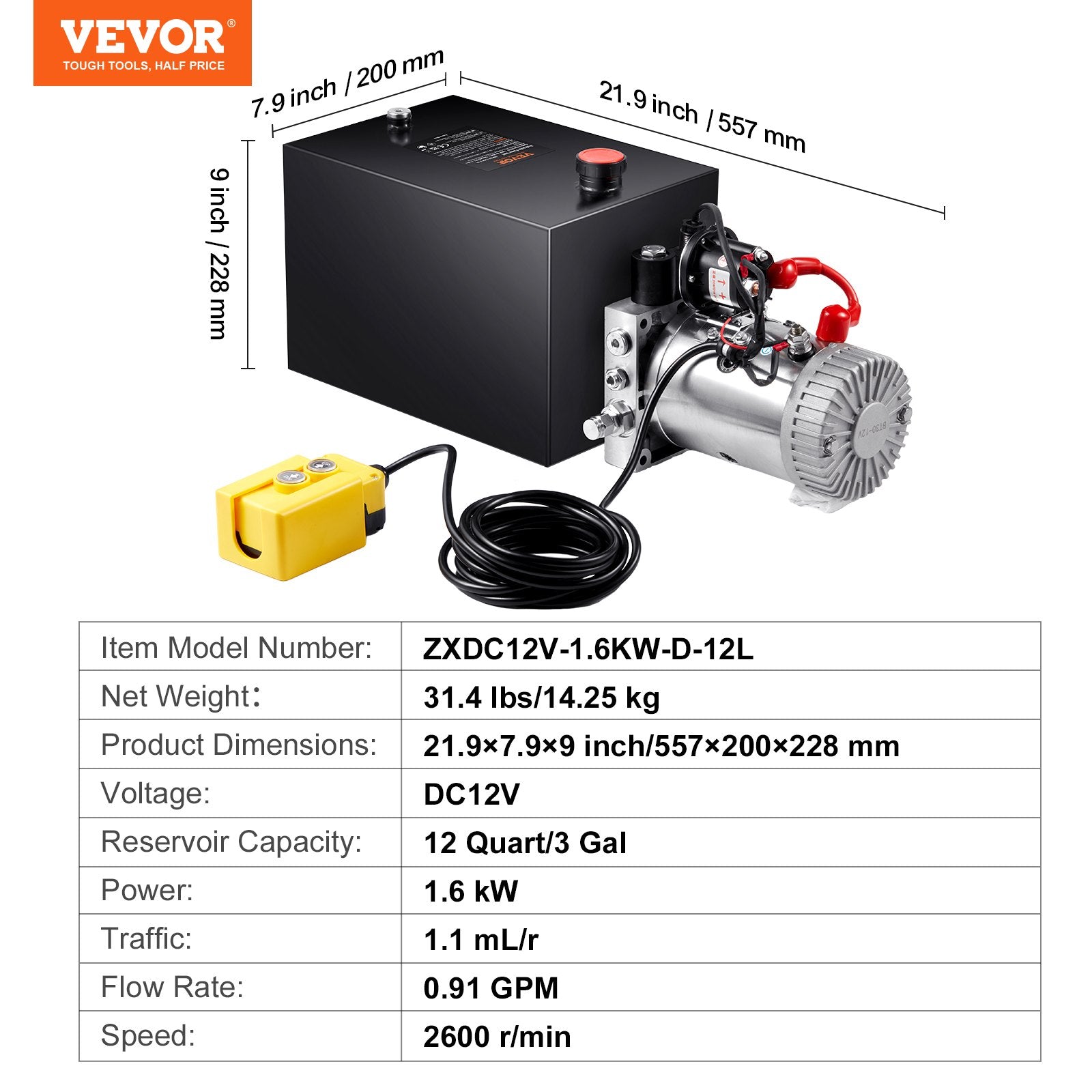

Specifications:
-
Model Number: ZXDC12V-1.6KW-D-12L
-
Type: Single-Acting
-
Power: 1.6 kW
-
Voltage: DC 12V
-
Flow Rate: 0.91 GPM (3.45 L/min)
-
Traffic (Displacement): 1.1 mL/r
-
Rotating Speed: 2600 RPM
-
Reservoir Capacity: 12 Quart / 3 Gal
-
Max Relief Pressure: 3200 PSI
-
Material: Steel (GC01)
-
Product Dimensions: 21.9 × 7.9 × 9 in / 557 × 200 × 228 mm
-
Net Weight: 31.4 lbs / 14.25 kg
