Description

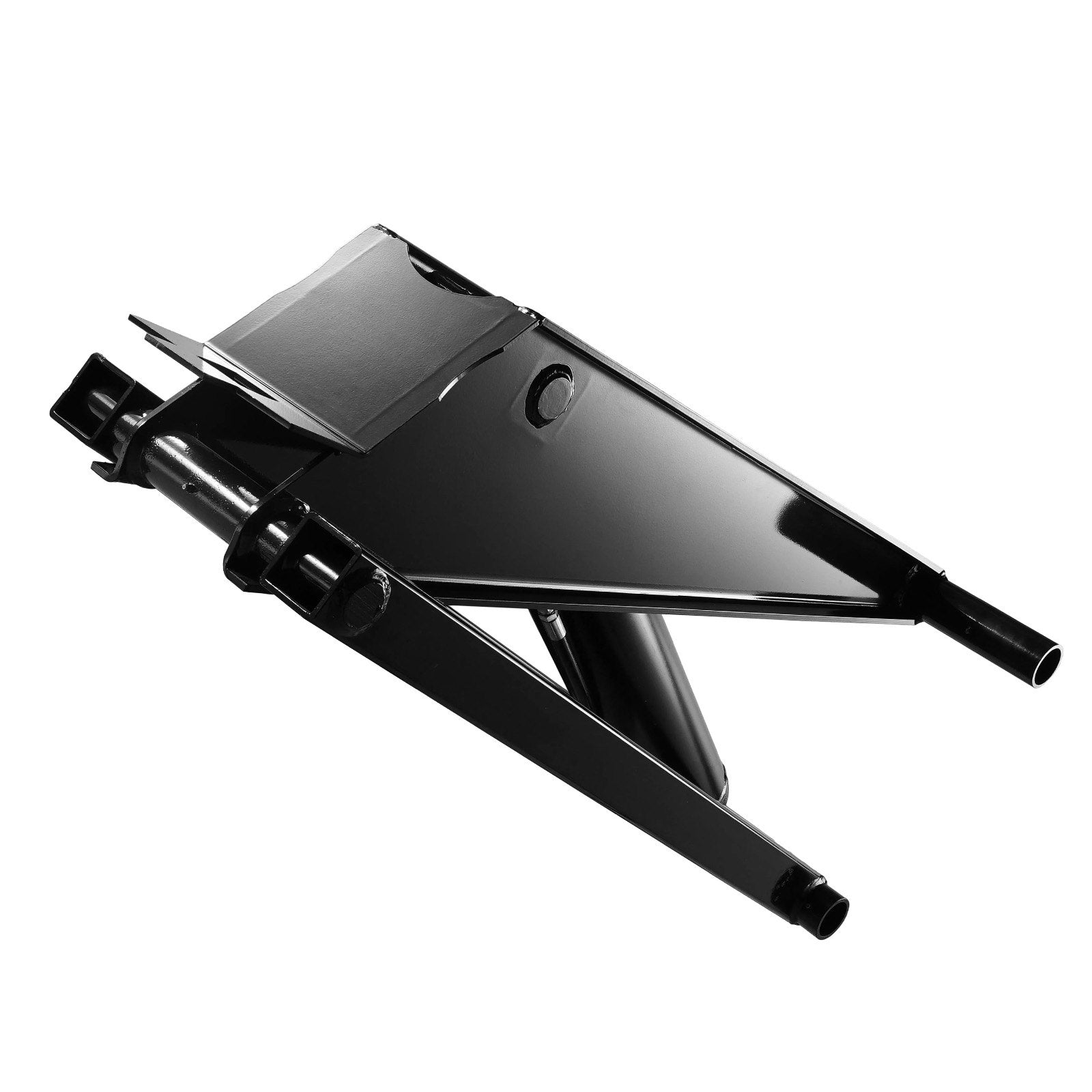

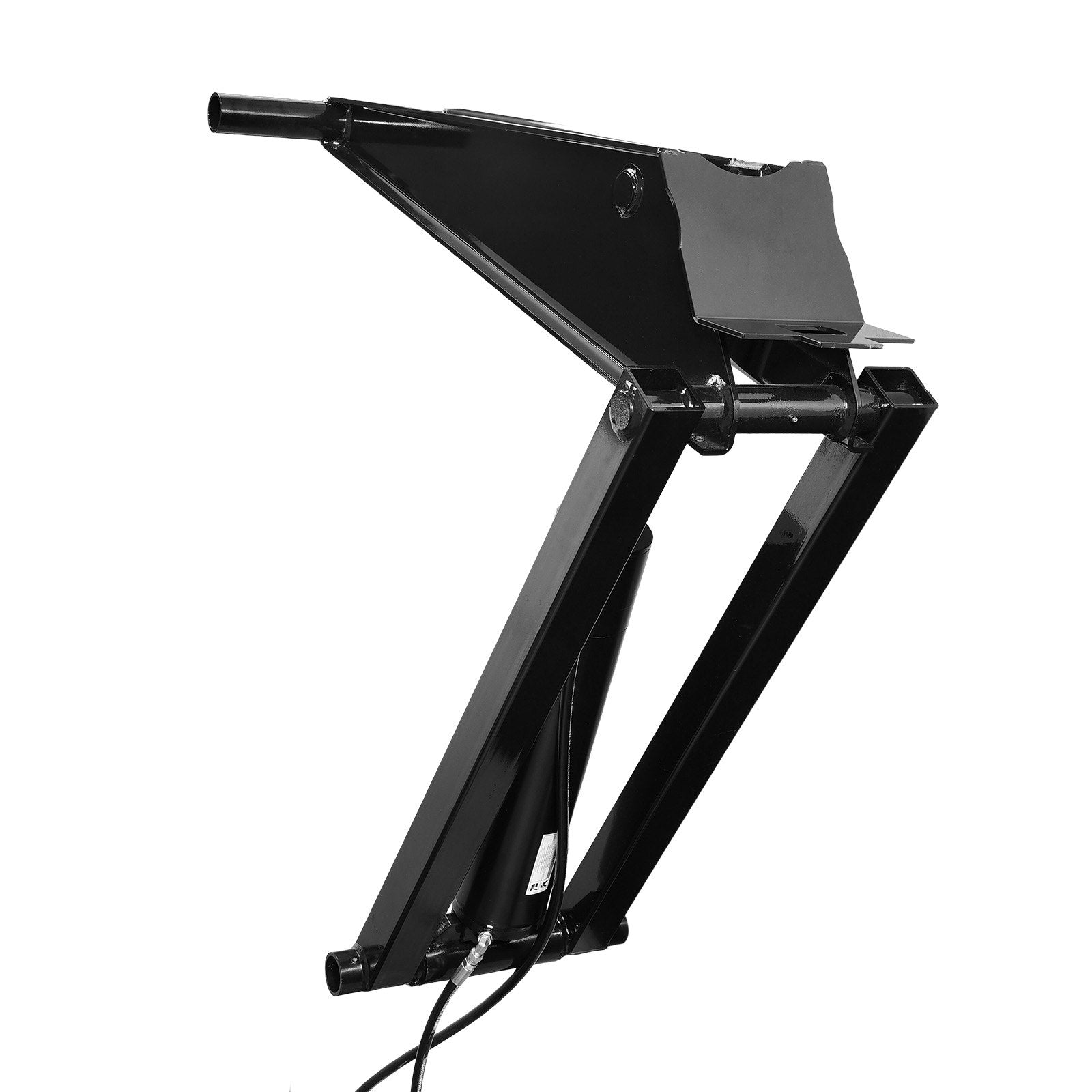

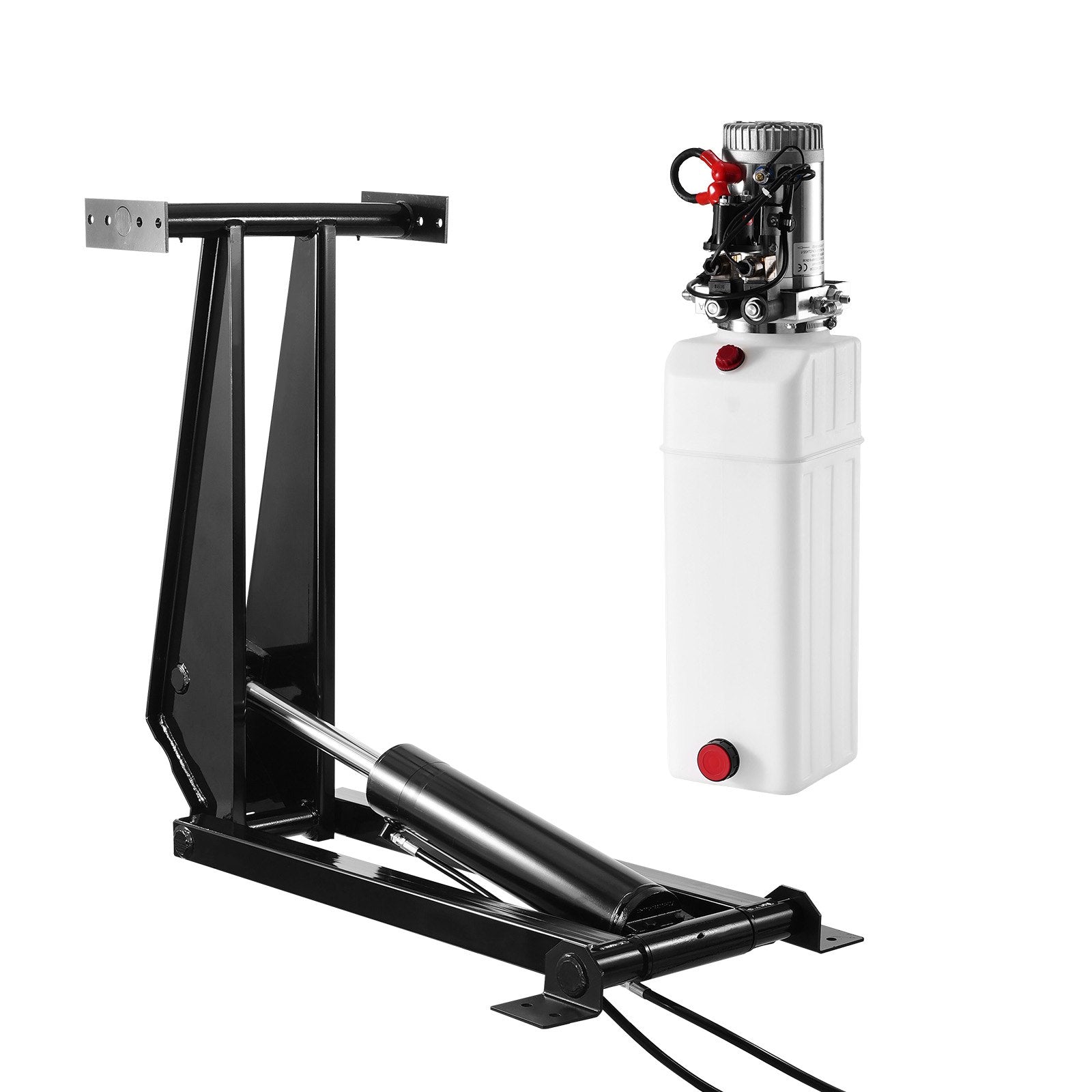

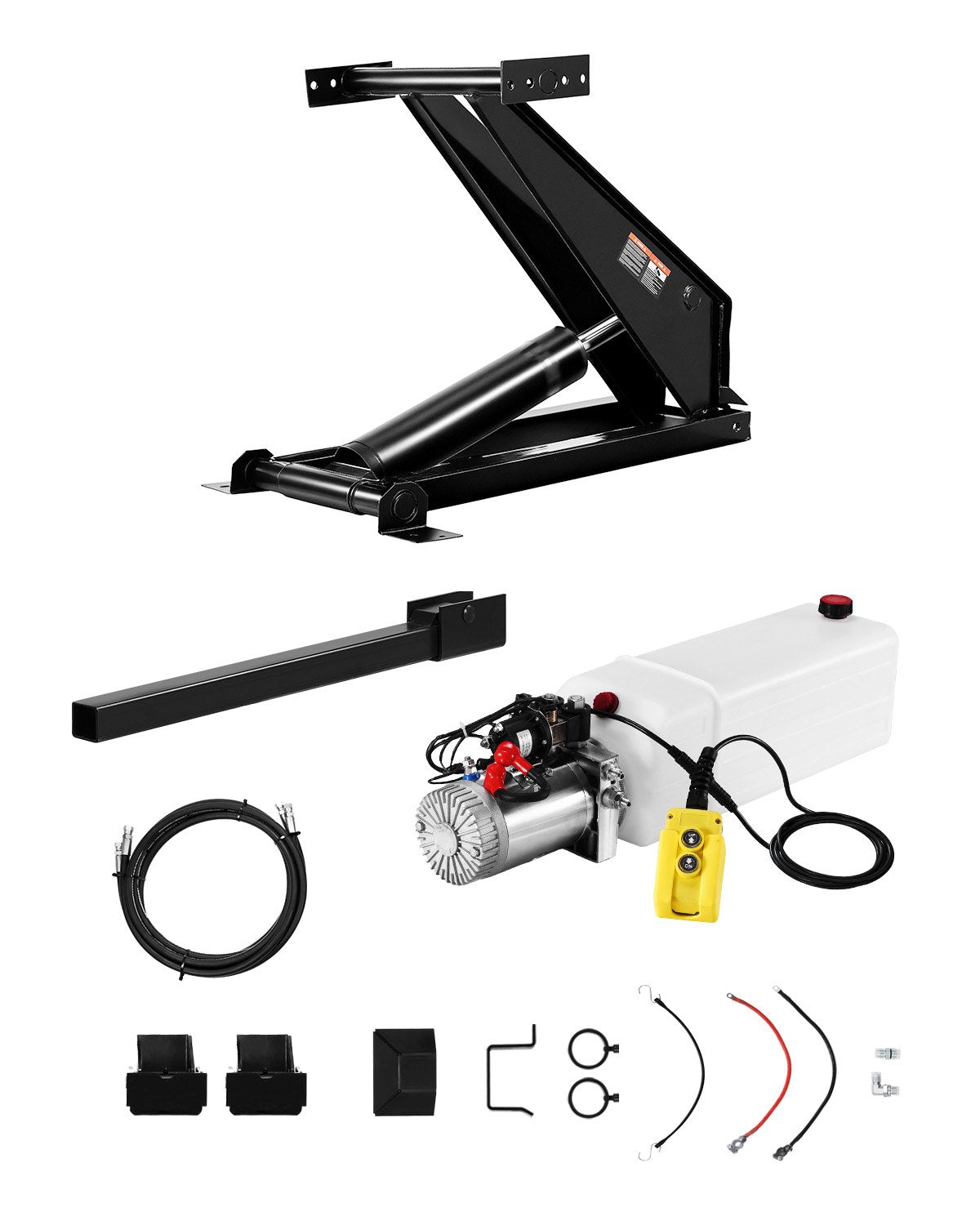

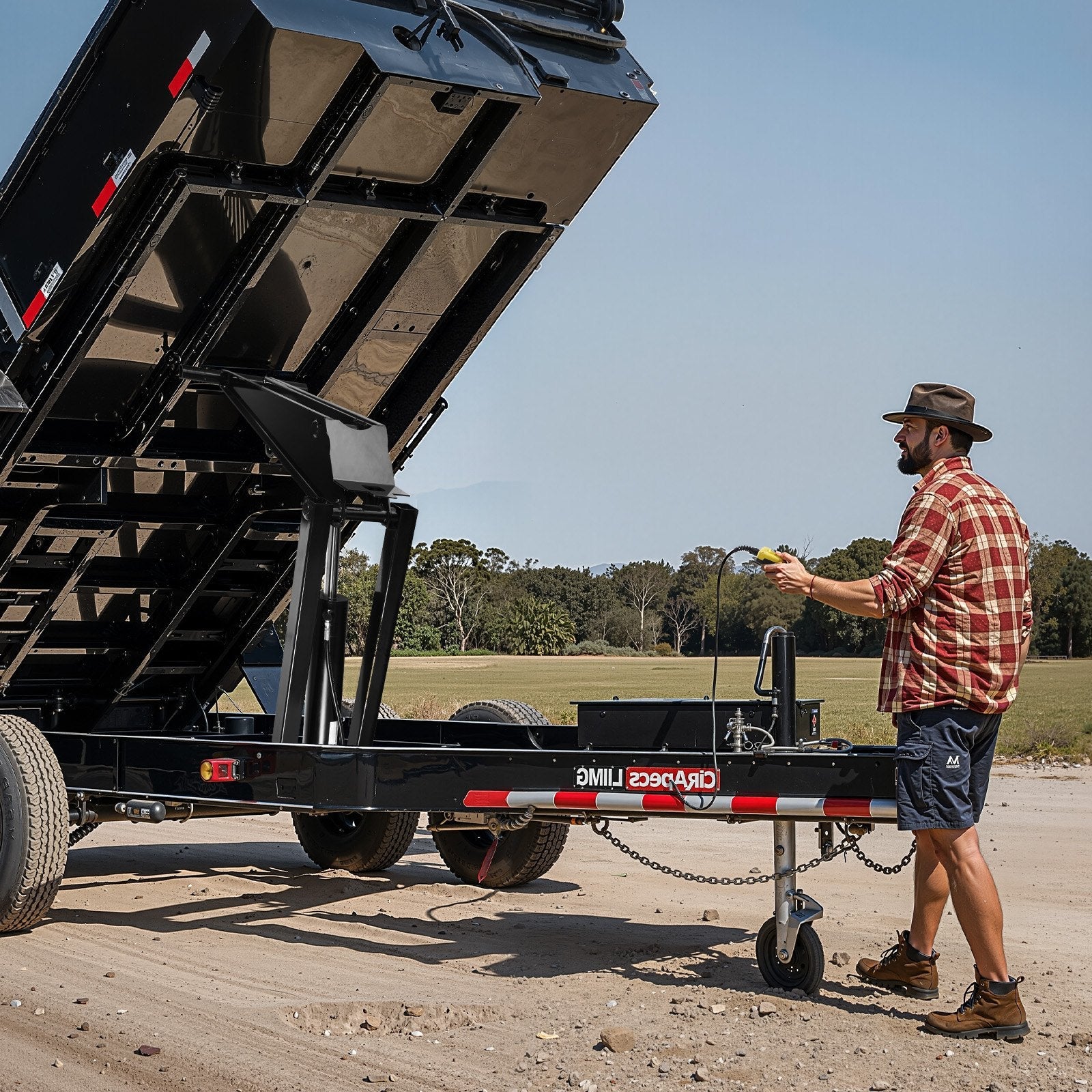

The VEVOR Hydraulic Scissor Hoist Kit is specifically designed for large dump trailers, providing efficient lifting and dumping solutions. With a maximum load capacity of 8 tons (17,600 lbs), this hydraulic lift kit ensures safe, reliable, and durable operation. The double-acting pump prevents the dangers associated with unloading without lifting, offering smooth and controlled movements. This kit is equipped with a sturdy, easy-to-maintain steel body and a user-friendly system that’s ideal for both professional and personal trailer use. Perfect for enhancing the efficiency of dump trailers with a recommended dumping angle of 45° and a maximum body tilt of 120°.
Features
-

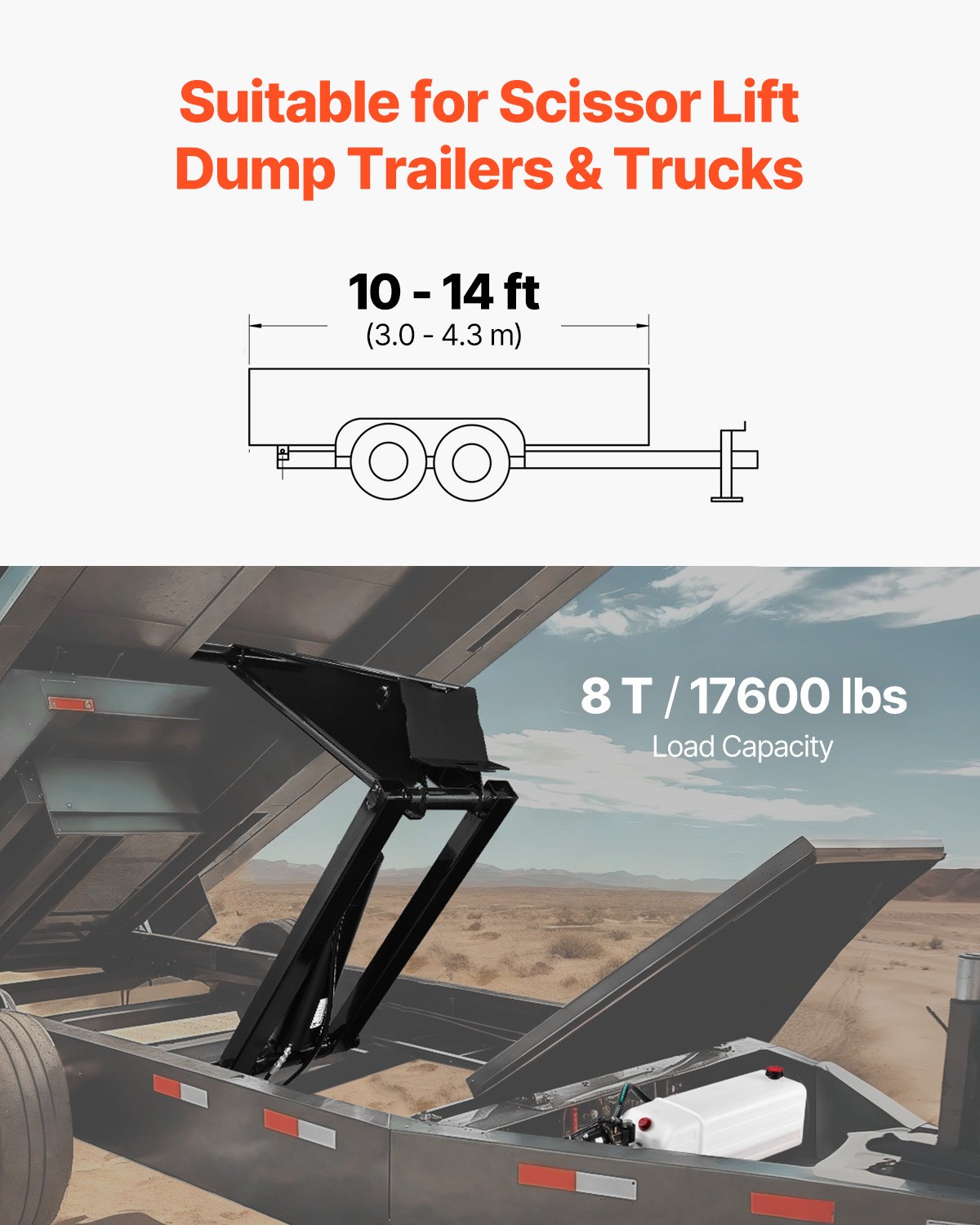

Custom for Large Dump Trailers: Designed specifically for trailers ranging from 10 to 14 feet in length, offering optimal lifting power.
-

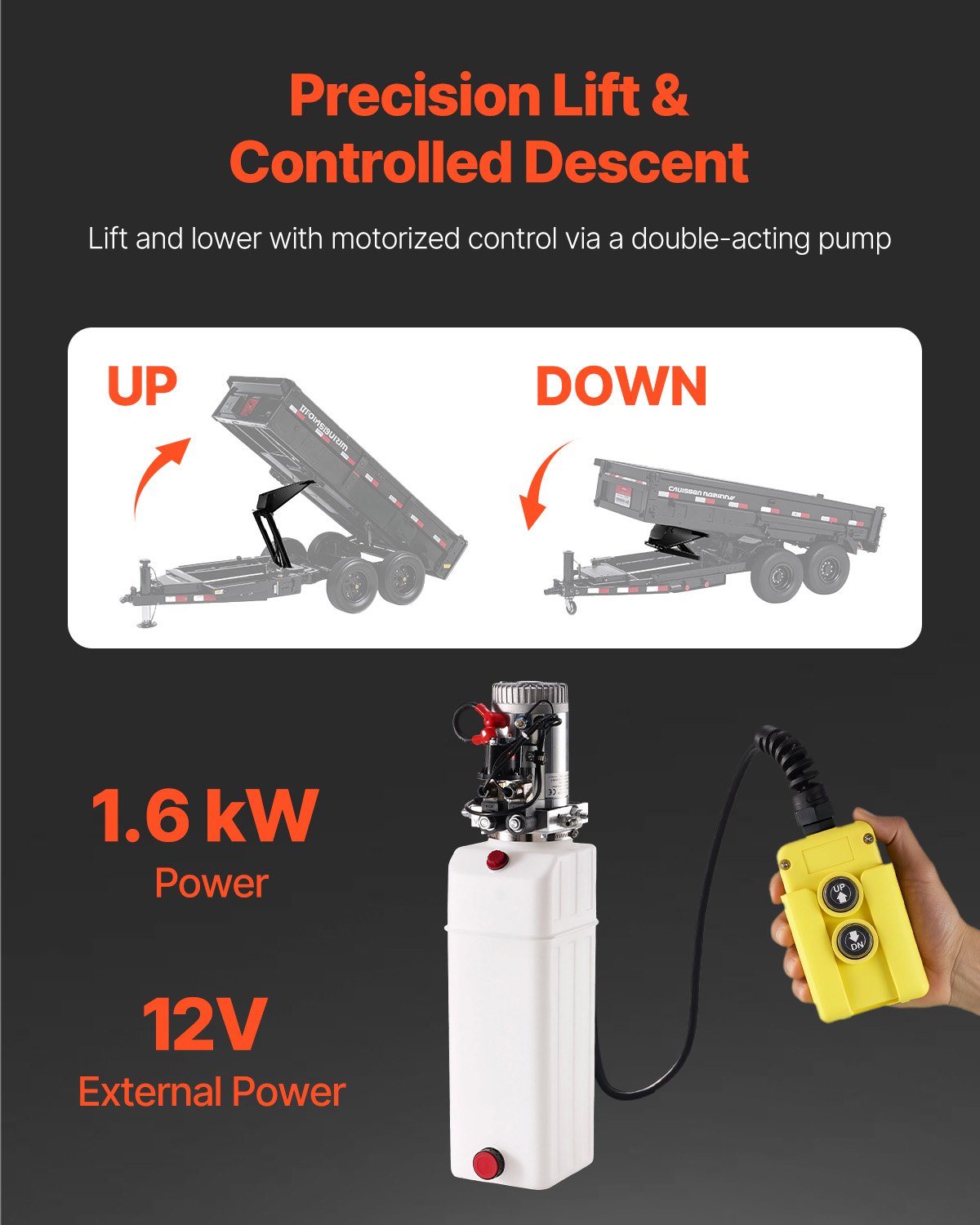

Double-Acting Pump: Enables more controlled lifting and dumping action, ensuring smoother operation.
-

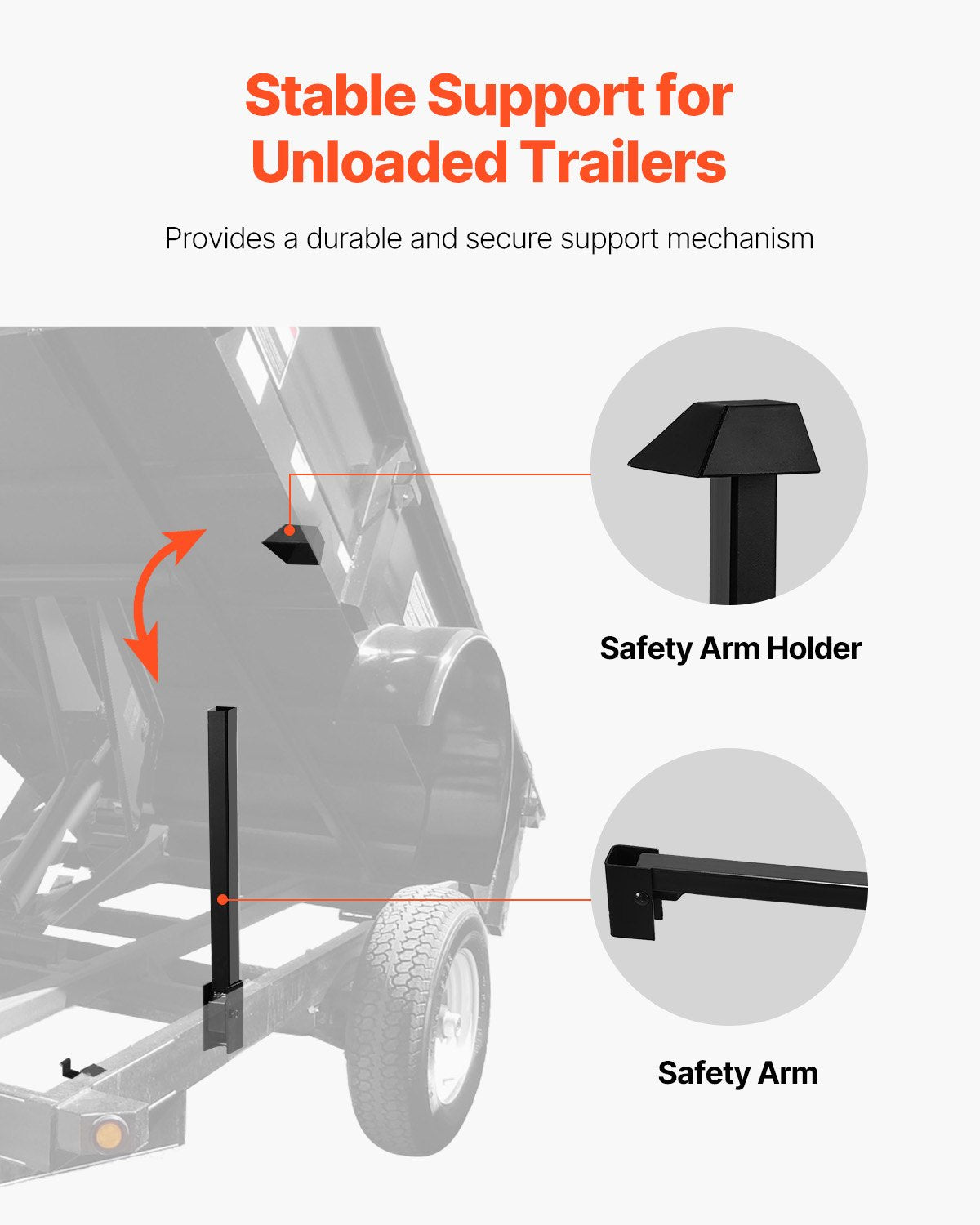

Avoid the Dangers of Unloaded Lifting: Prevents instability by managing lifting and dumping effectively even when the trailer is unloaded.
-

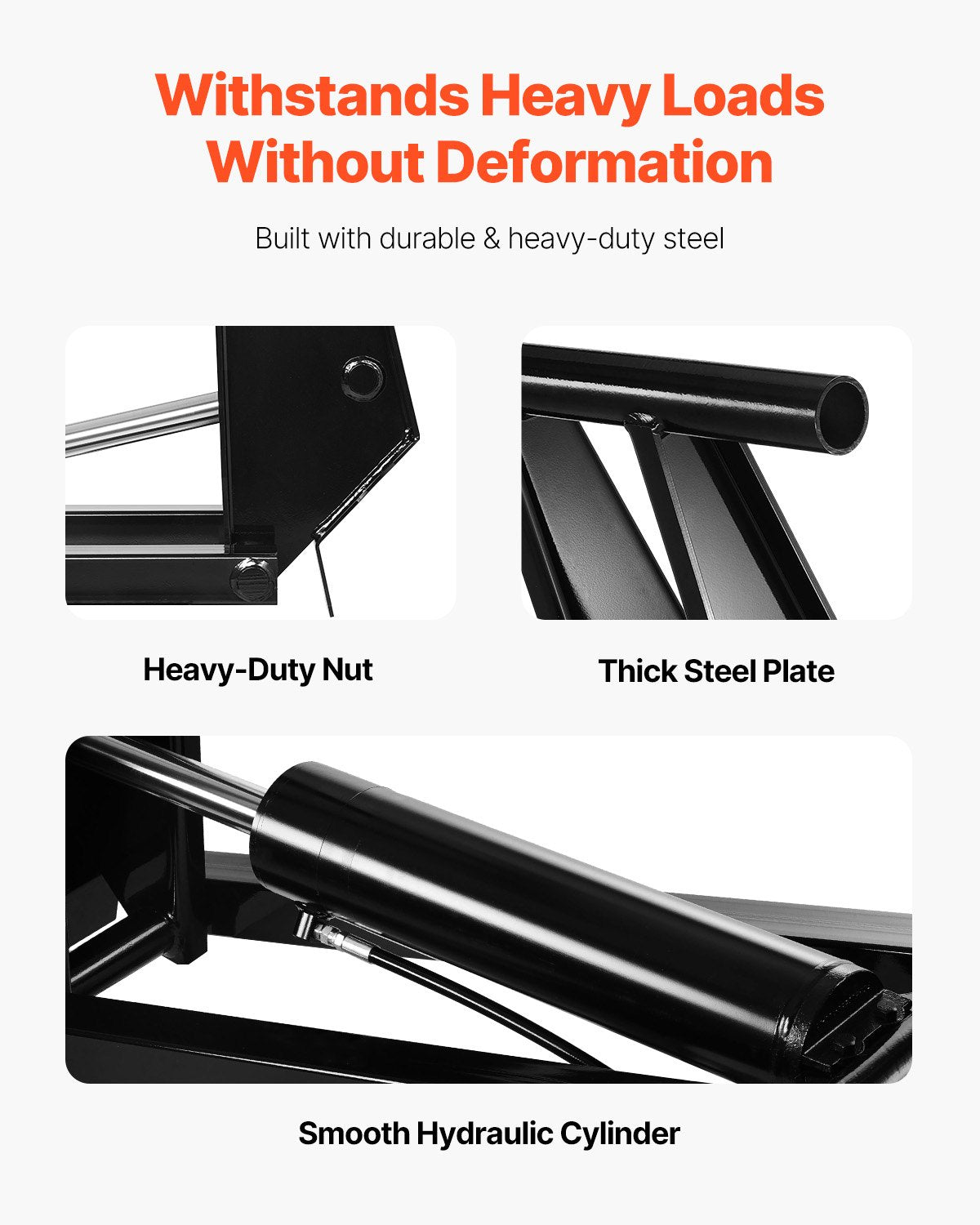

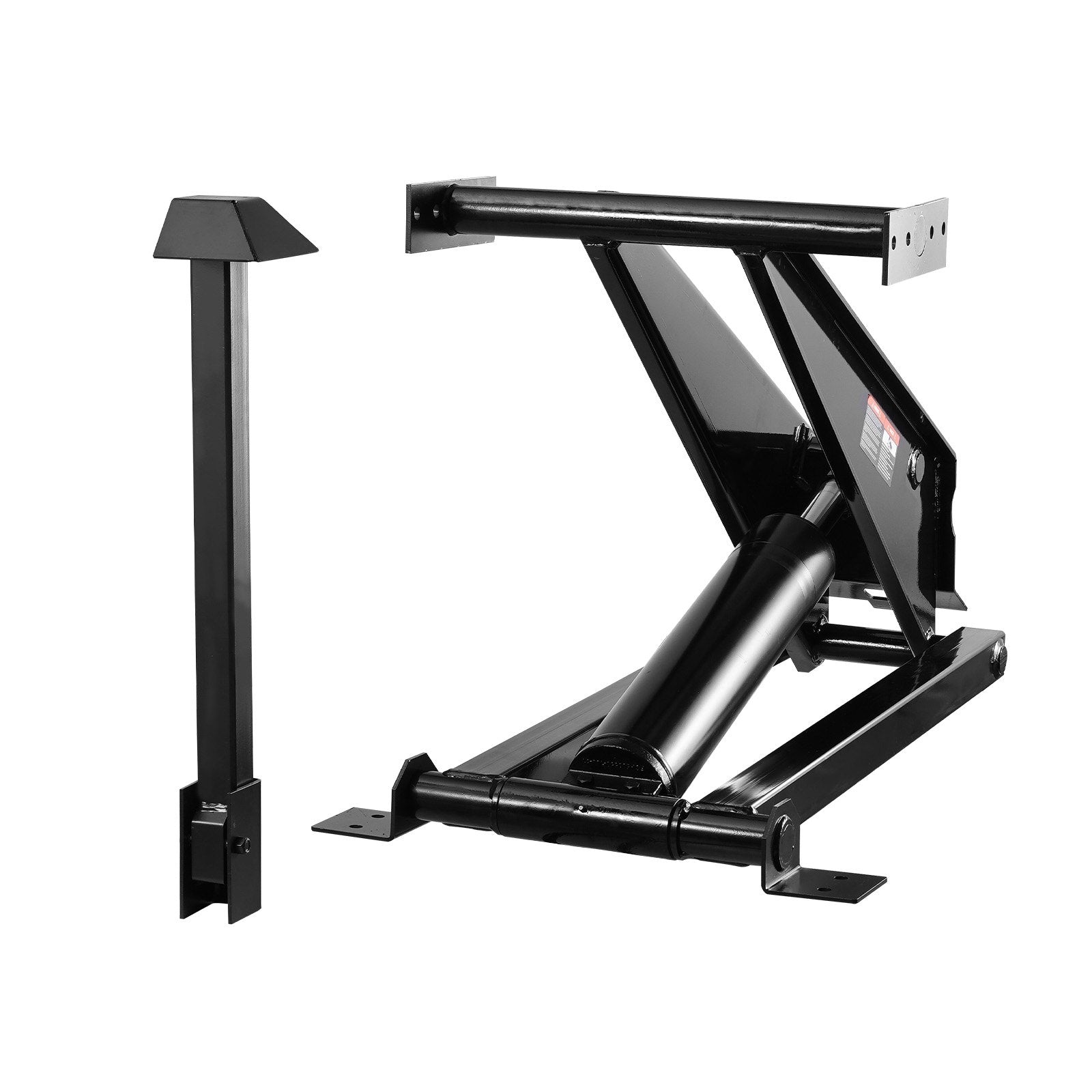

Sturdy and Durable: Built with a heavy-duty steel main body plate and PP plastic oil tank for enhanced durability.
-
Versatile Applications: Ideal for both professional and personal use with dump trailers.
-
Easy Maintenance: Features a user-friendly design with straightforward maintenance procedures for long-lasting reliability.

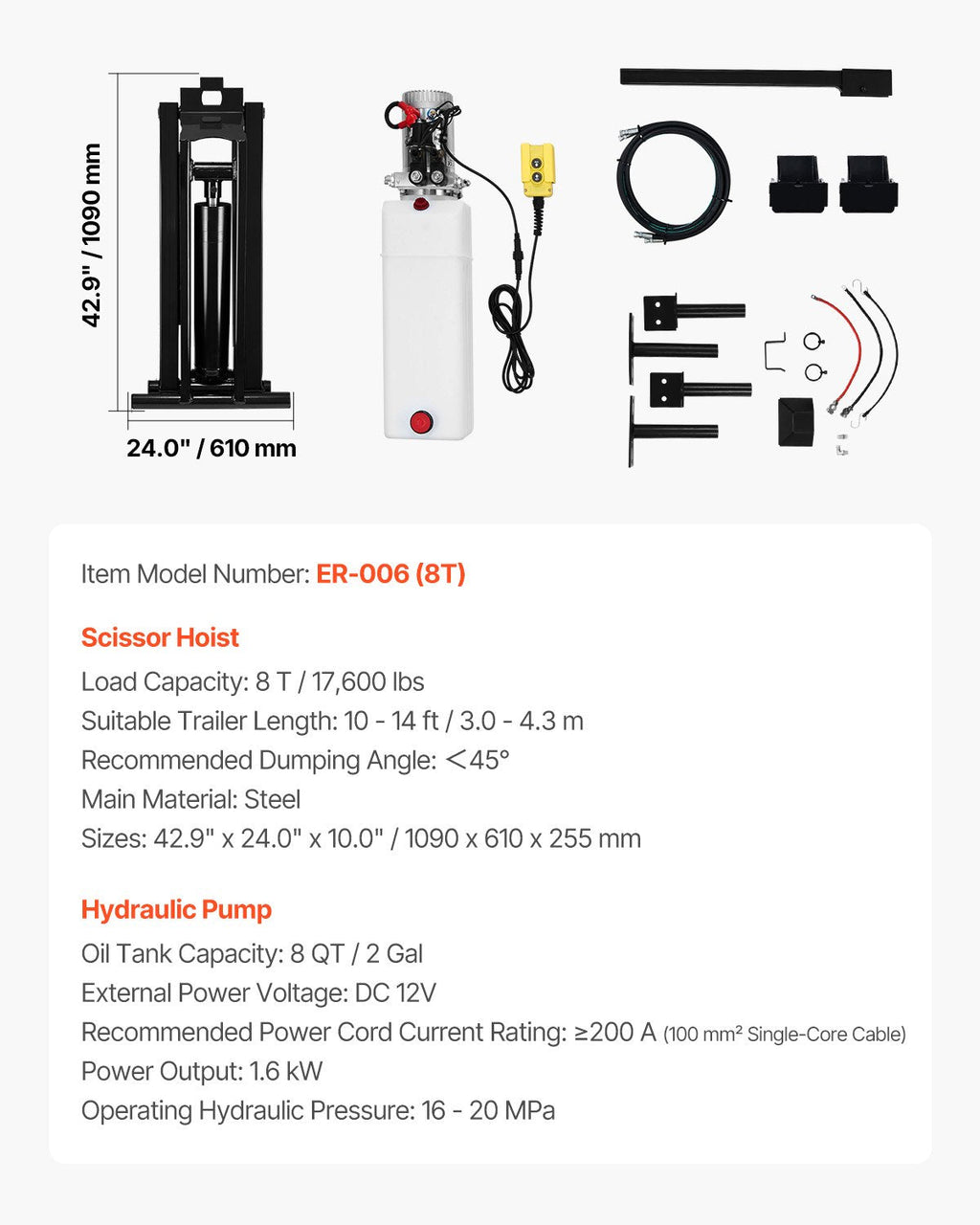

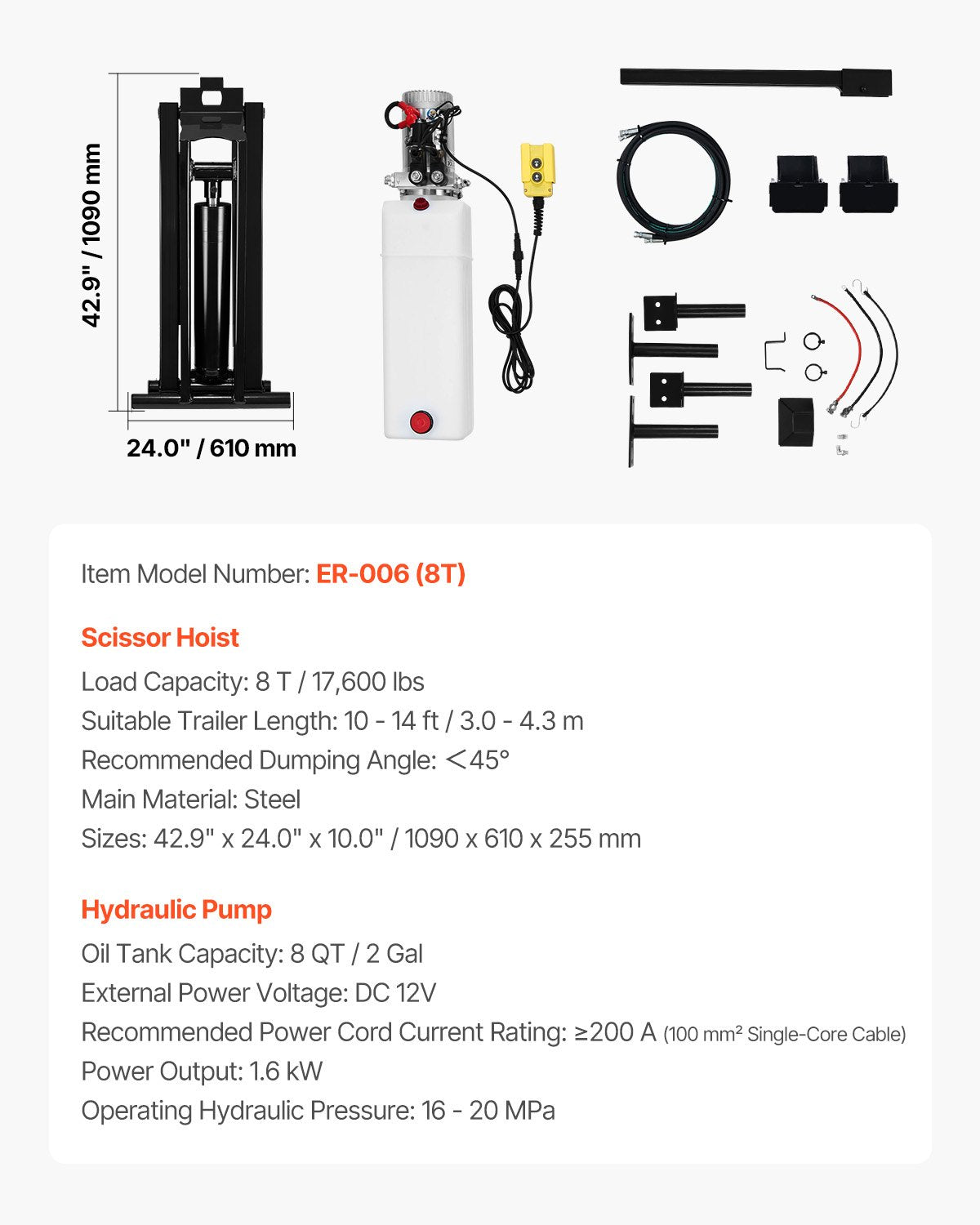

Specifications
-
Recommended Dumping Angle: 45°
-
Maximum Body Tilt Angle: 120°
-
Hydraulic Oil Tank Capacity: 8 QT / 7.6 L
-
Maximum Release Pressure: 3200 PSI / 22 MPa
-
Main Body Plate Thickness: 0.3" / 8 mm
-
Suitable Trailer Length: 10 - 14 ft
-
Power Output: 1.6 kW
-
Flow Rate: 1.45 GPM
-
Product Sizes: 42.9" x 24.0" x 10.0" / 1090 x 610 x 255 mm
-
Load Capacity: 8 T / 17,600 lbs
-

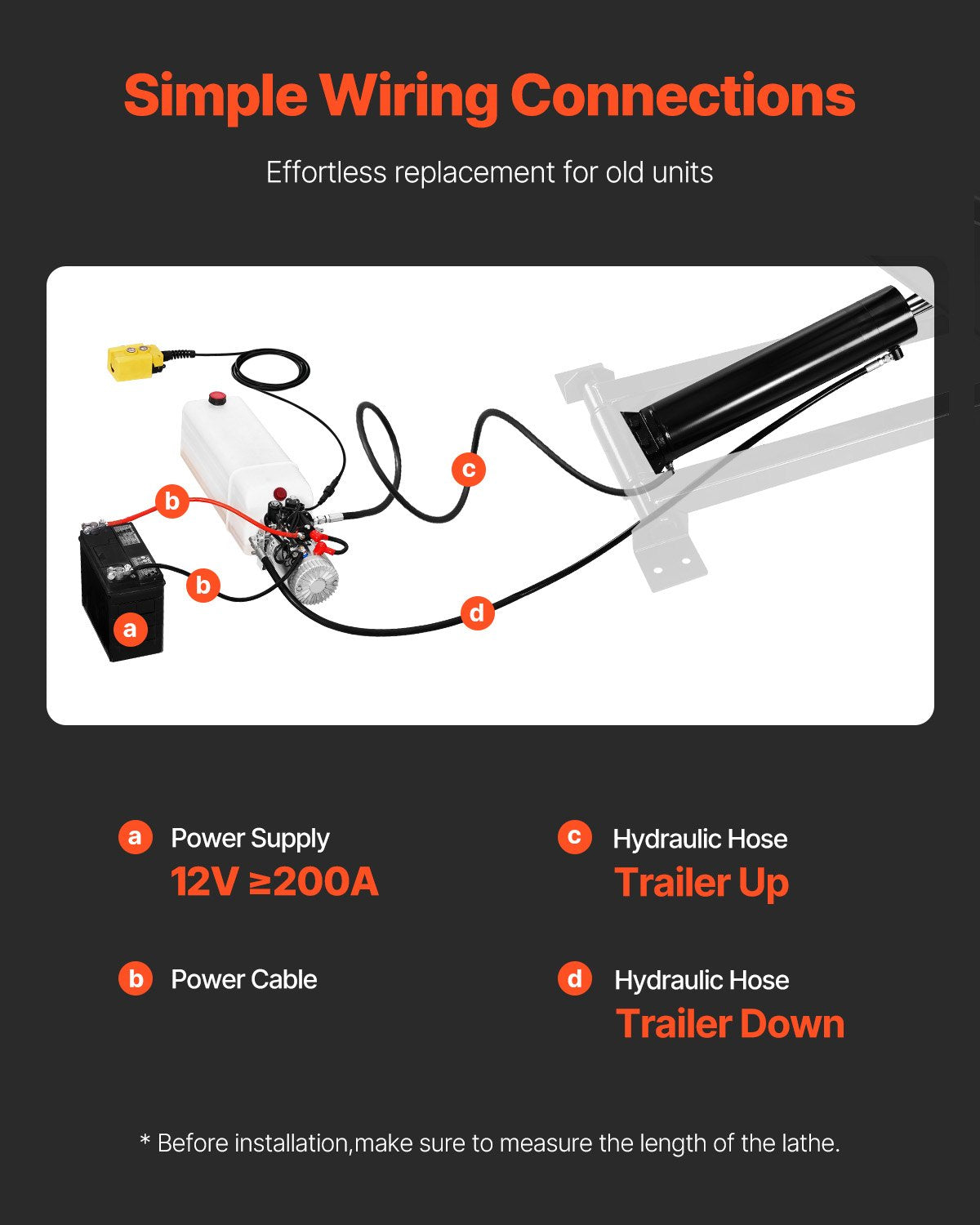

External Power Voltage: DC 12V
-
Item Model Number: ER-006 (8T)
-
User-Provided Power Cable Capacity: 200 A (Single-core Cable of 100 mm²)
-
Net Weight: 335.1 lbs / 152 kg
-
Main Material: Steel
-
Operating Hydraulic Pressure: 16 - 20 MPa
