Description

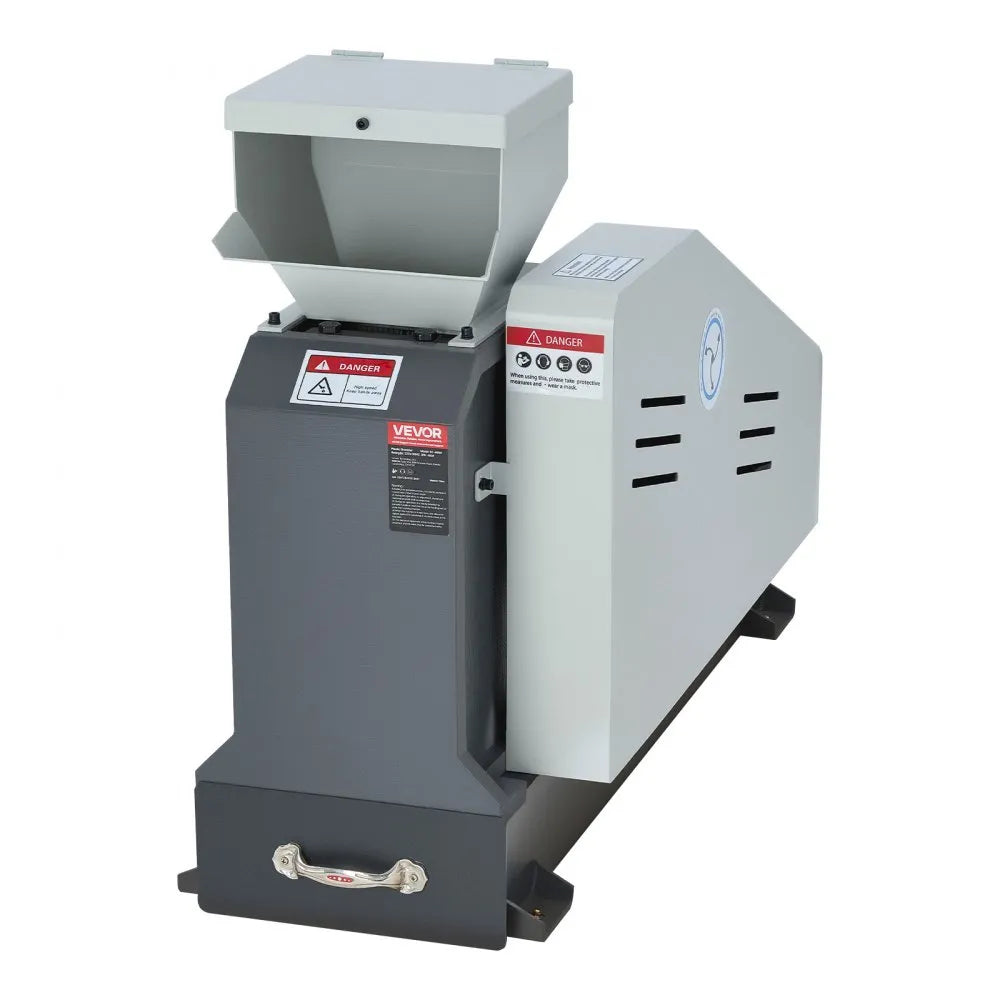

Efficiently crush rocks, ores, and other hard materials with the VEVOR Jaw Crusher Machine. Designed for high performance and durability, this electric rock crusher features a powerful 4KW copper motor, adjustable particle size, and a dust-proof design for safe, precise, and high-capacity crushing. Ideal for mining, laboratory, construction, and recycling applications.
Key Features:
-
Crush Various Rocks: Suitable for rocks under 4.7 in (120 mm), including hard or sticky materials. Handles calcite, talc, quartz, kaolin, diabase, gangue, shale, basalt, iron ore, quartz sand, calcium carbonate, and bentonite.
-

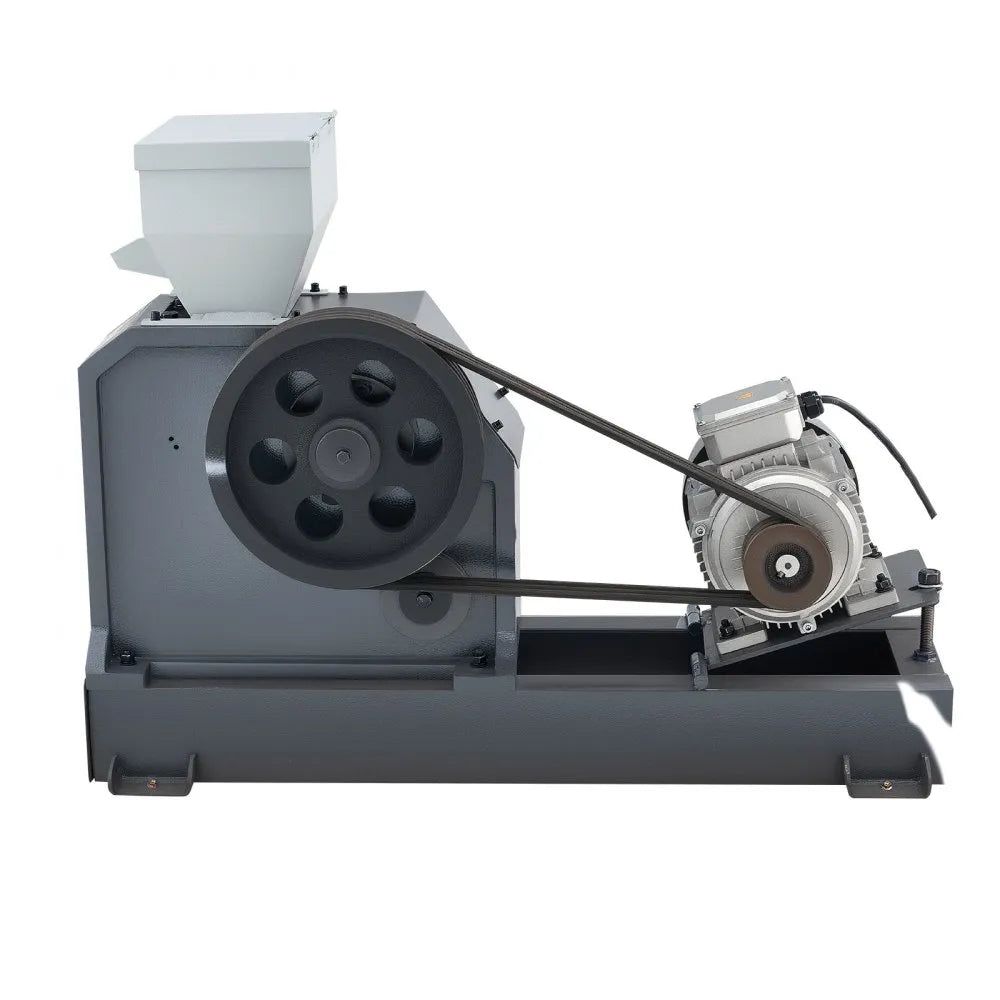

High-Efficiency Crushing: Equipped with a 4KW pure copper motor, delivering 1740 RPM for fast and powerful crushing. Achieves a crushing capacity of 500–3000 kg/h, producing fine and uniform particles.
-

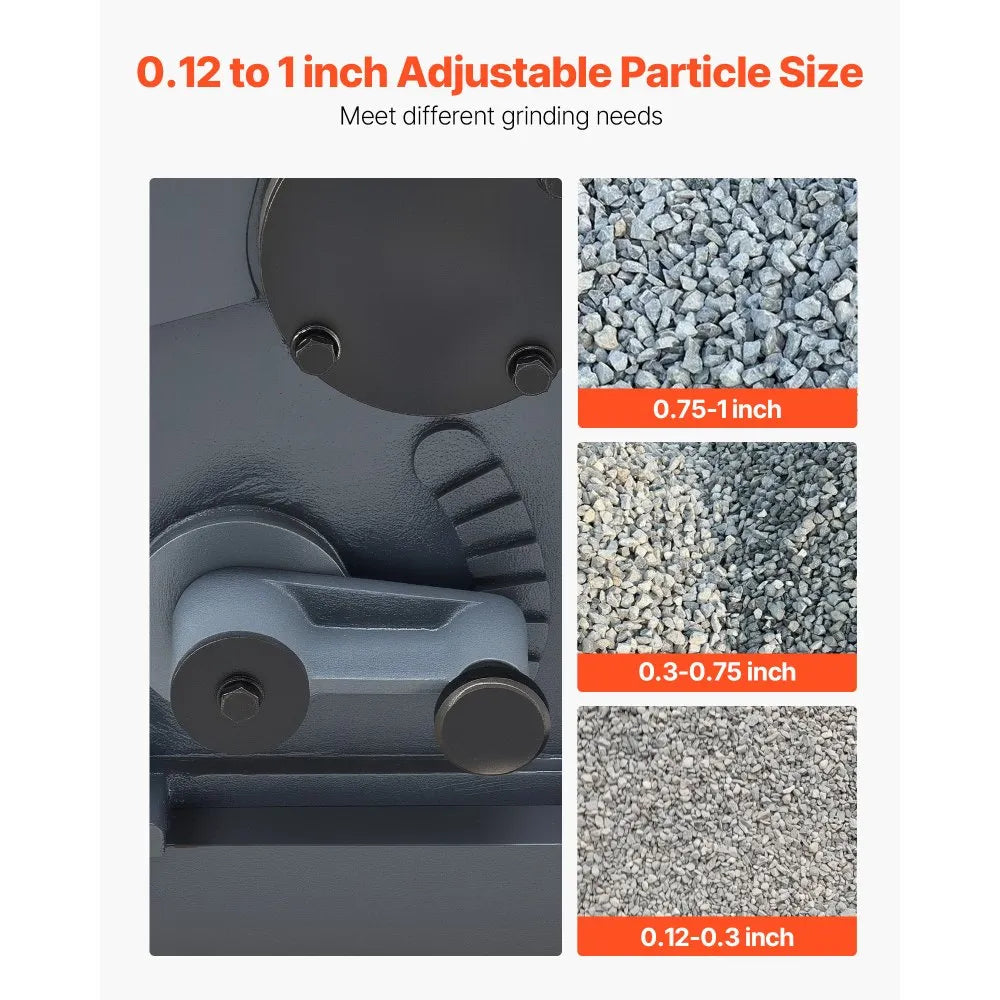

Adjustable Particle Size: Adjustable discharge settings allow control over output size from 0.12 to 1 in (3–25 mm), providing coarse fragments or fine sand without secondary screening.
-

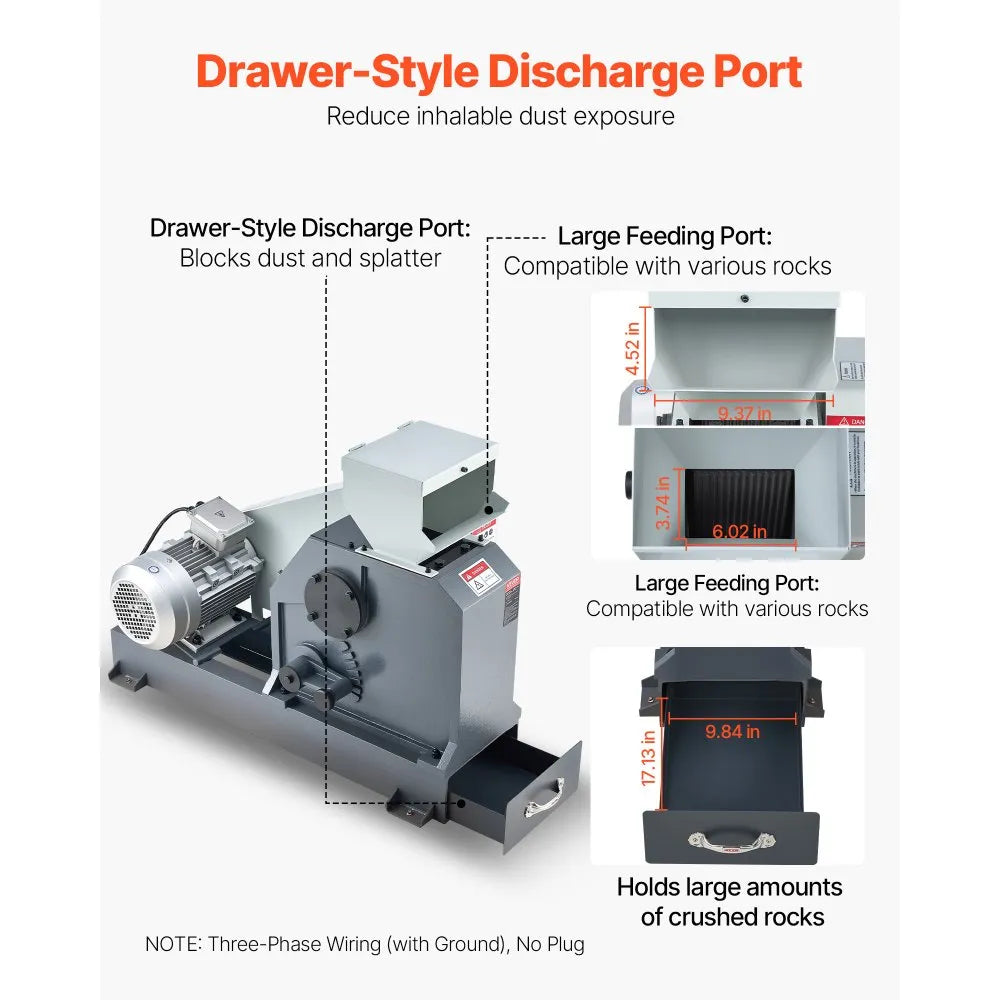

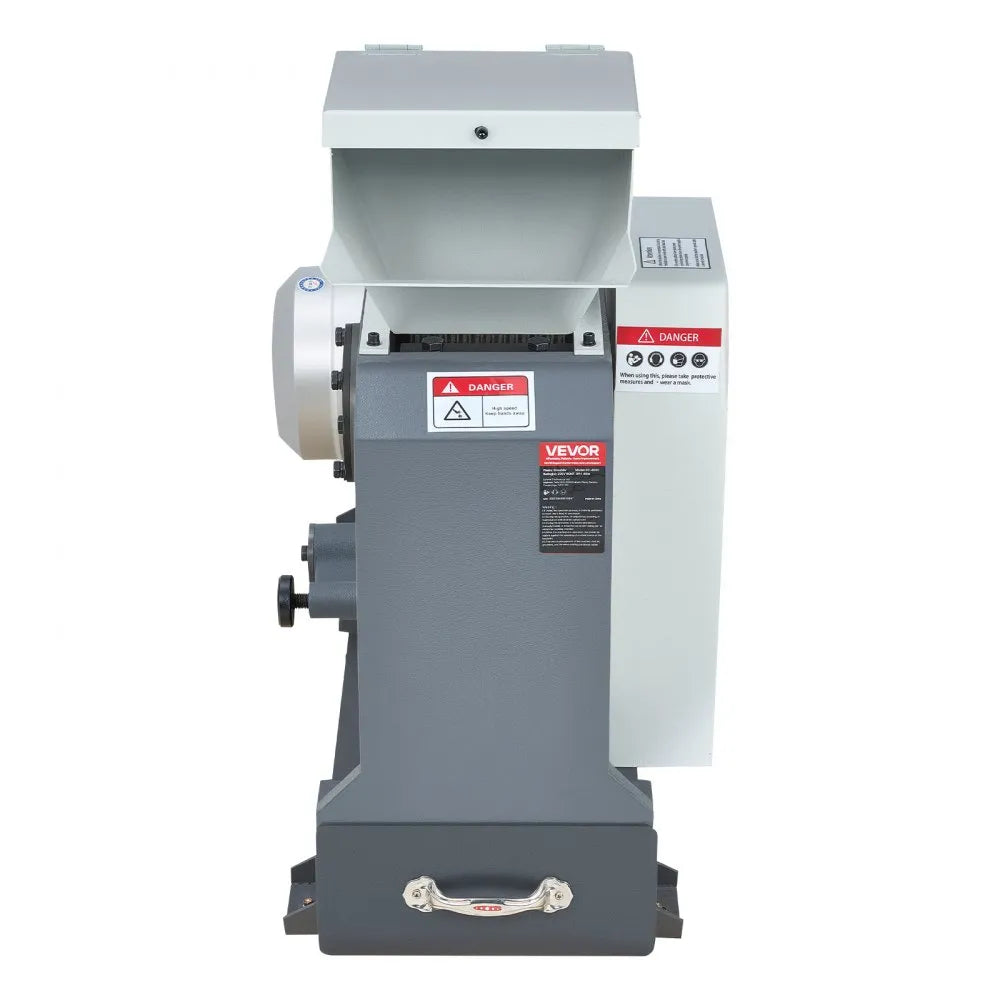

Dust-Proof Design: Features a drawer-style discharge port with a dust lid to minimize debris and dust splashing during operation, improving safety and reducing inhalation risks.
-

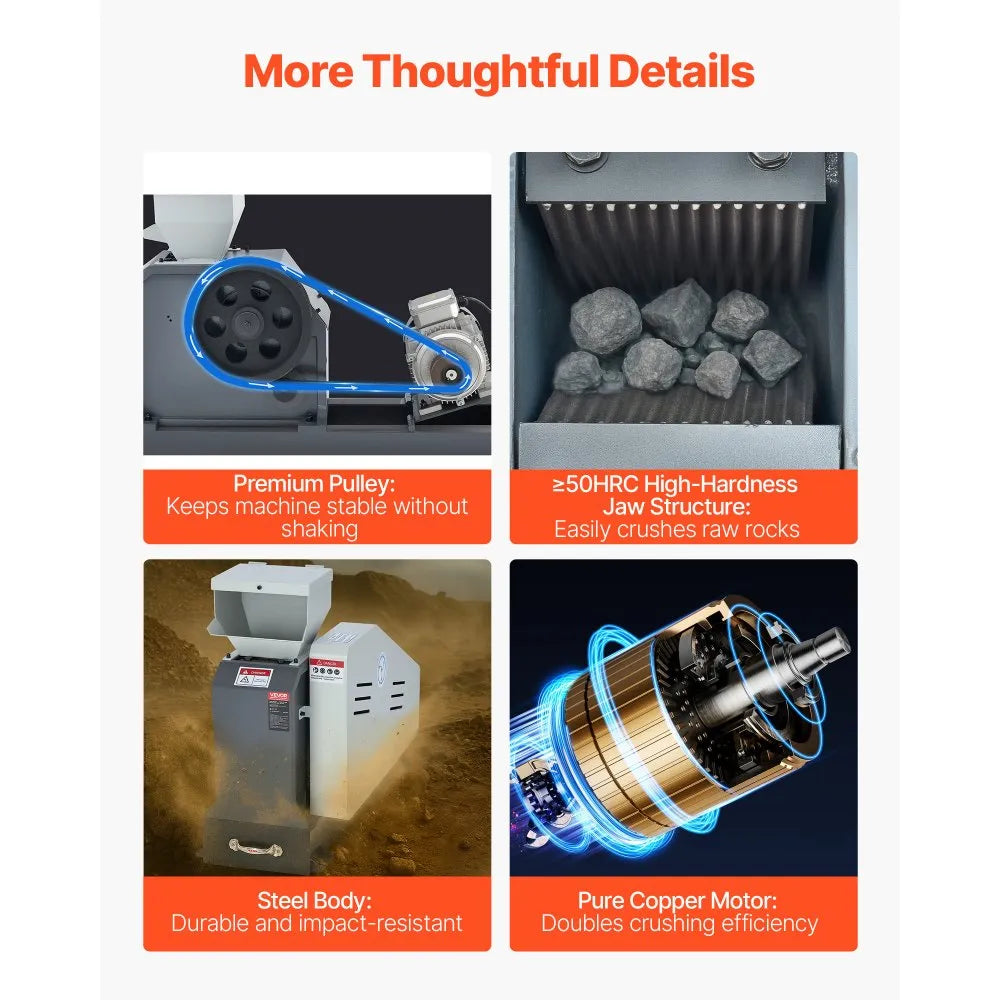

Durable & Thoughtful Design: Jaw plate made of ≥50HRC high-manganese steel for long service life. Sturdy cast iron body ensures stability without shaking, while the pure copper motor provides lasting power for continuous operation.
Specifications:
-
Item Model Number: EC-4000
-
Item Dimensions (L × W × H): 41.34 × 16.73 × 25.98 in / 1050 × 425 × 660 mm
-
Item Material:
-
Body: Cast Iron
-
Jaw Plate: High Manganese Steel
-
Motor: Copper + Silicon Steel
-
-
Color: Blue
-
Net Weight: 522.5 lbs / 237 kg
-
Rated Motor Power: 4 KW
-
No-Load Motor Speed: 1740 RPM
-
Input Power: AC 220V 60Hz 3PH
-
Crushing Capacity: 500–3000 kg/h
