Description

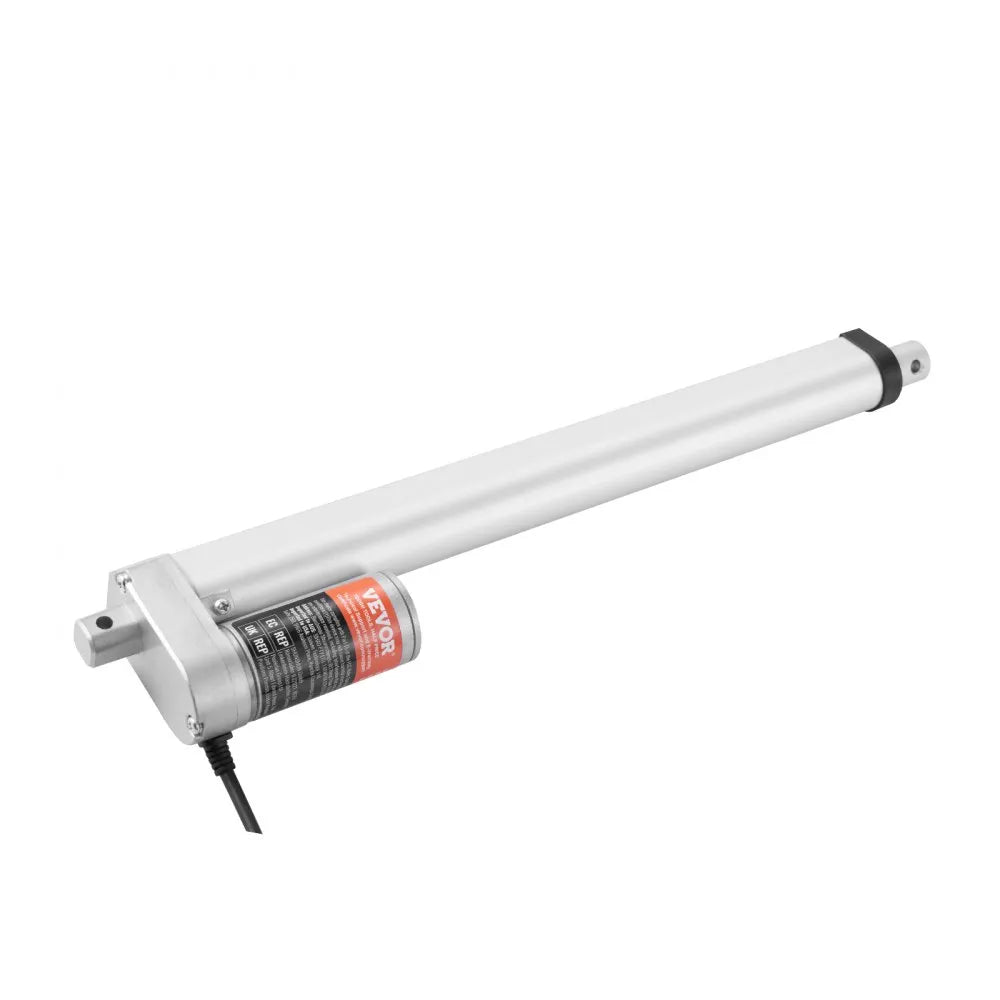

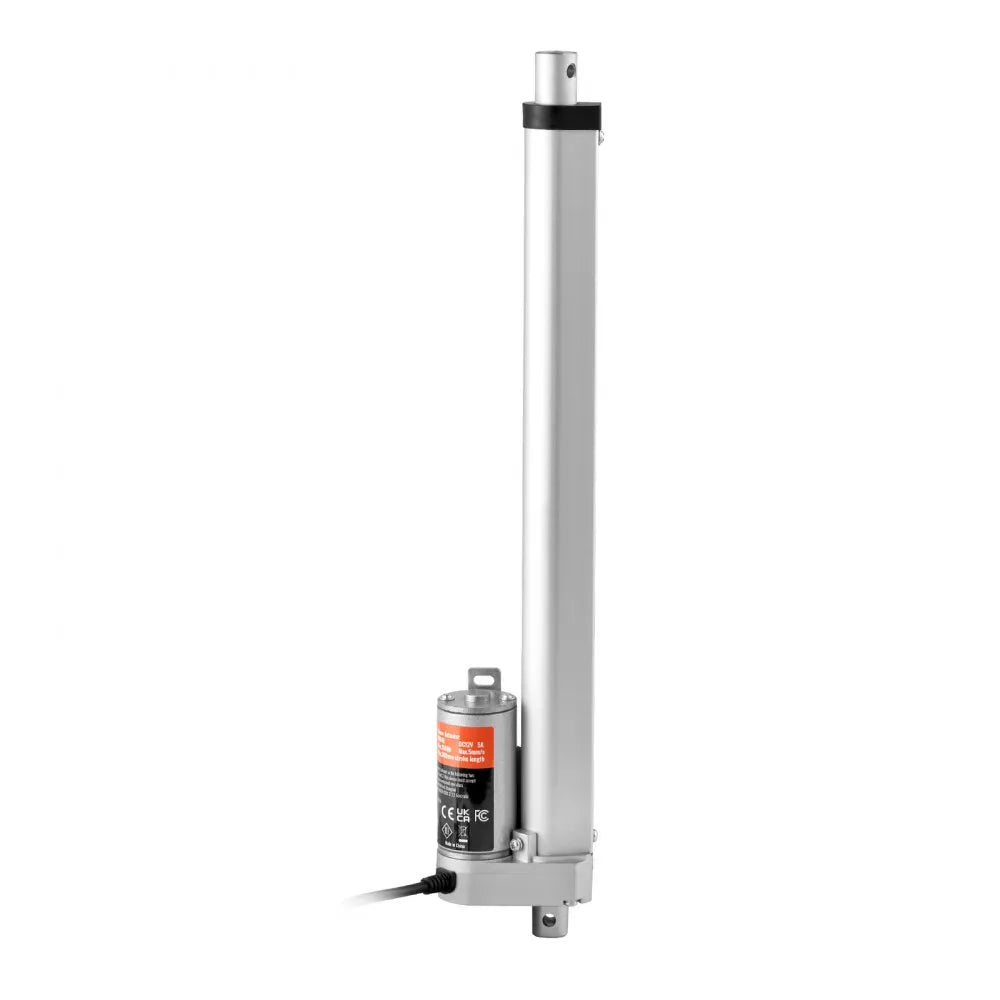

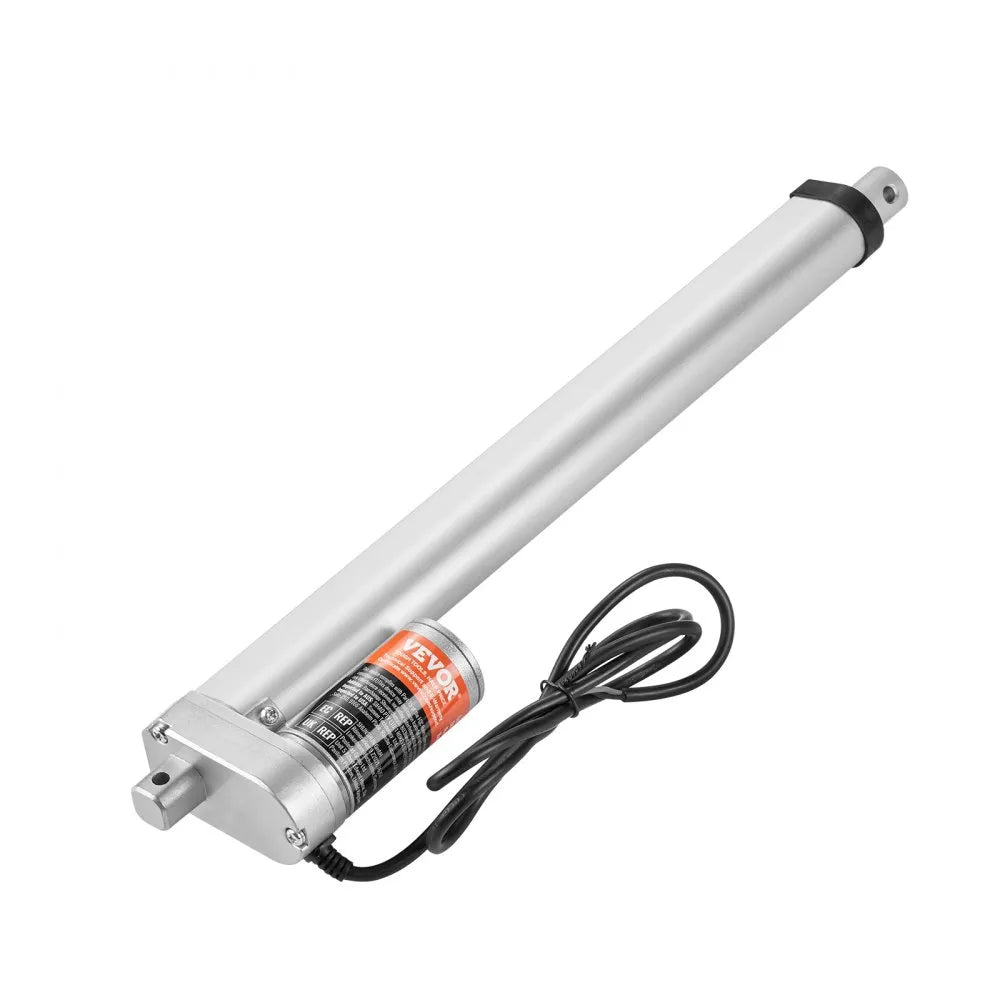

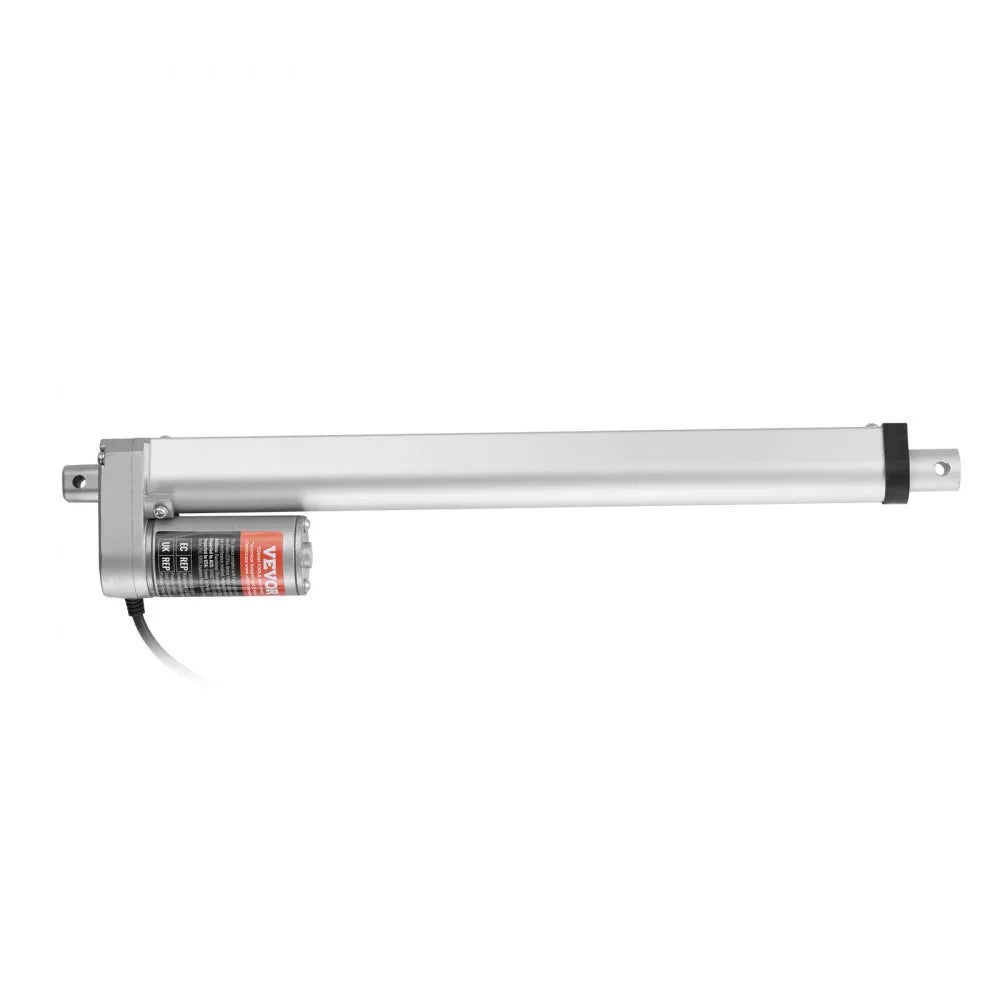

VEVOR Linear Actuator 12V 12 Inch High Speed is a compact and efficient linear motion device designed for fast and precise automation tasks. With a 1000N (220 lbs) load capacity and a high travel speed of over 0.55 in/s (14 mm/s), it delivers quicker movement compared to standard actuators. Built from durable aluminum alloy and rated IP54 for protection, it provides resistance against dust and water splashes. Operating quietly at ≤50dB, this actuator is ideal for light-duty automation projects such as electric doors, equipment adjustments, industrial systems, and mechanical applications. It includes a mounting bracket for simple installation.
Key Features:
-
High-Speed Operation (>0.55 in/s): Provides fast and responsive linear movement.
-
12-Inch Stroke Length: Offers extended travel for flexible automation setups.
-
1000N (220 lbs) Load Capacity: Suitable for light to medium-duty applications.
-

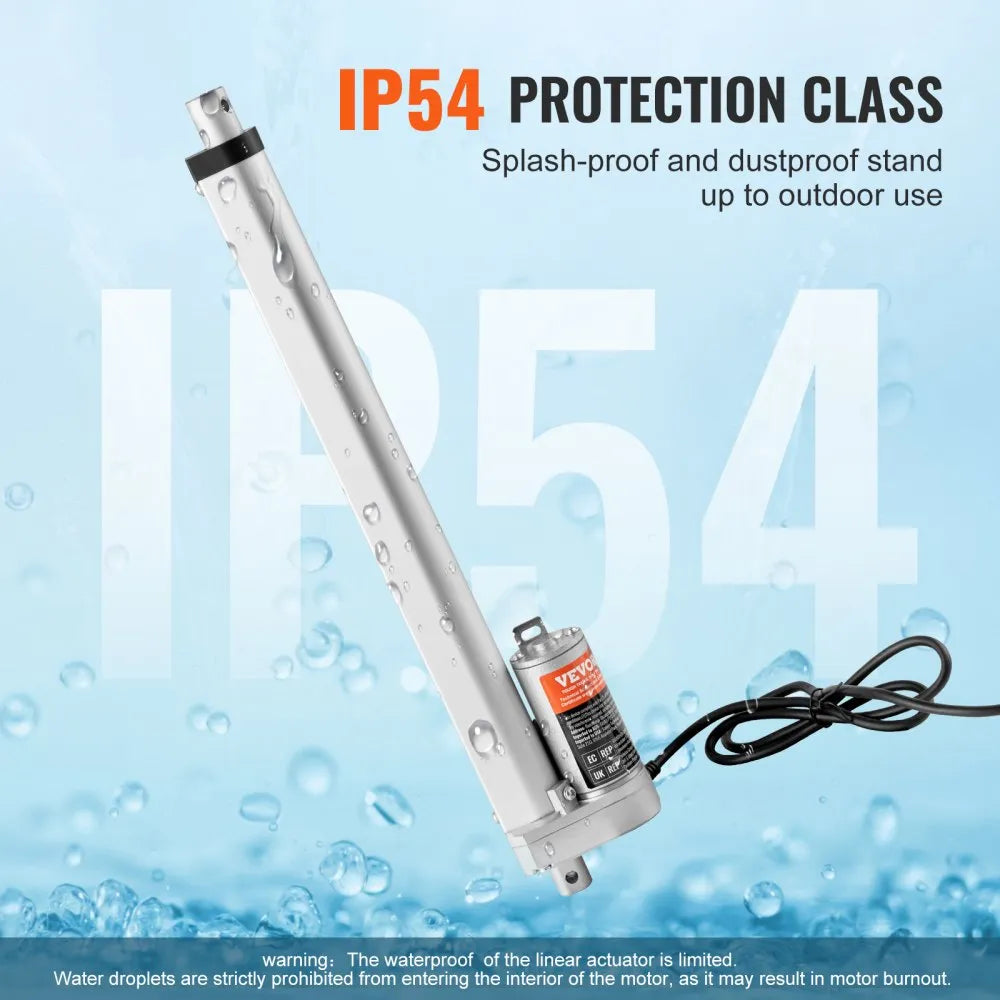

IP54 Protection Class: Guards against dust and water splashes.
-
Low Noise Performance (≤50dB): Ensures smooth and quiet operation.
-

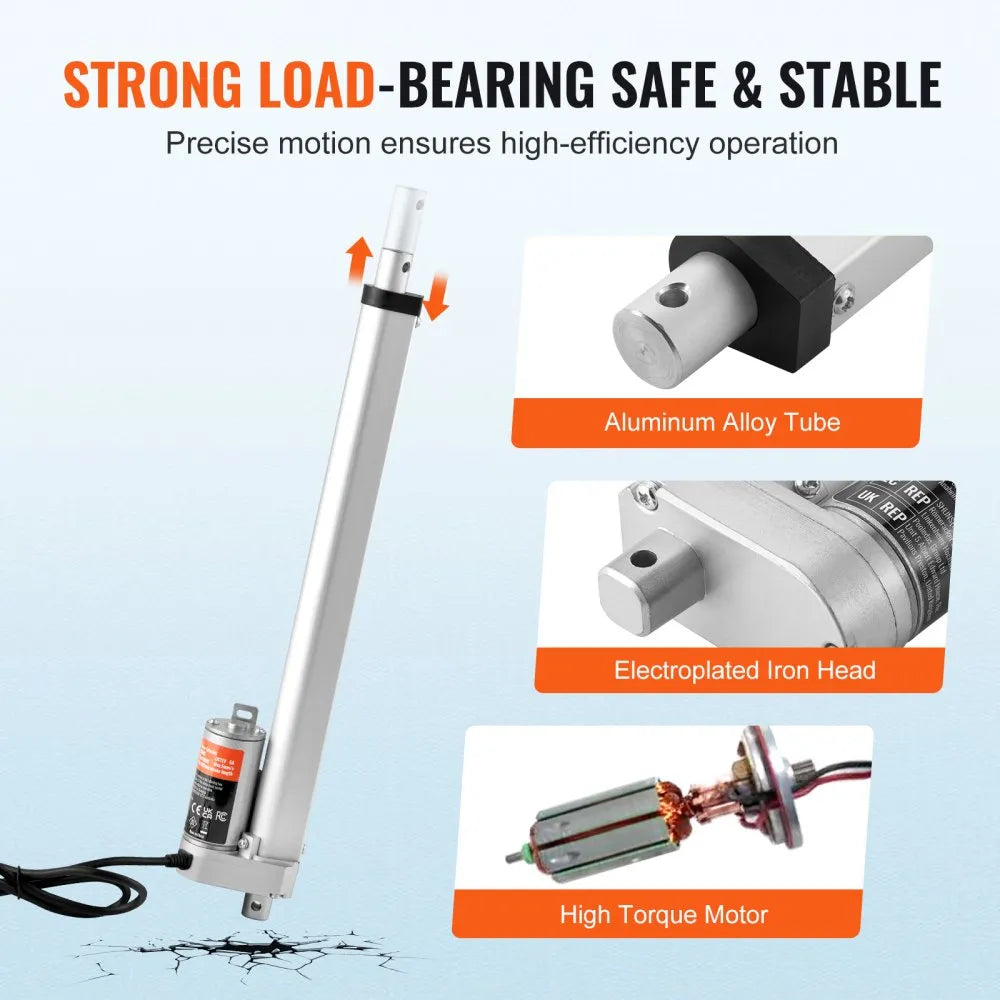

Durable Aluminum Alloy Build: Designed for reliability and long service life.
-

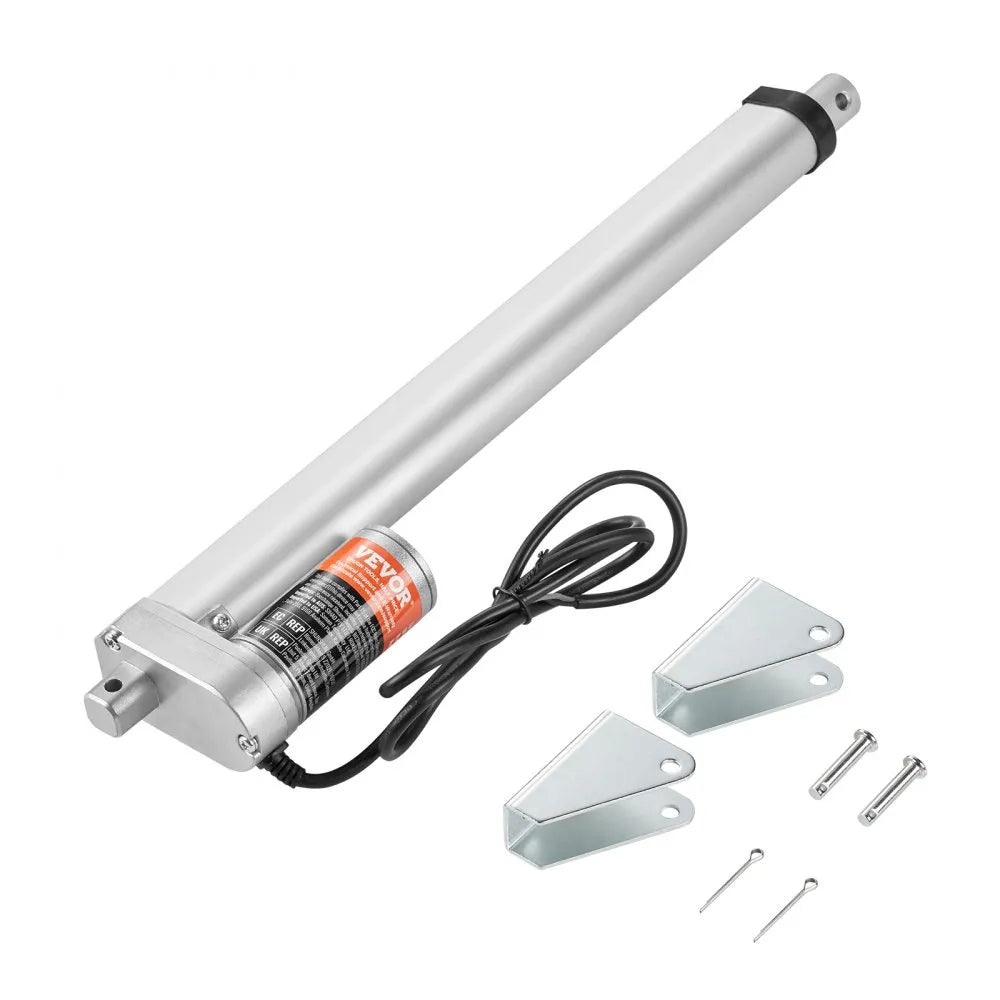

Easy Installation: Comes with mounting bracket for convenient setup.
-
Wide Applications: Suitable for electric doors, industrial machinery, and automation systems.

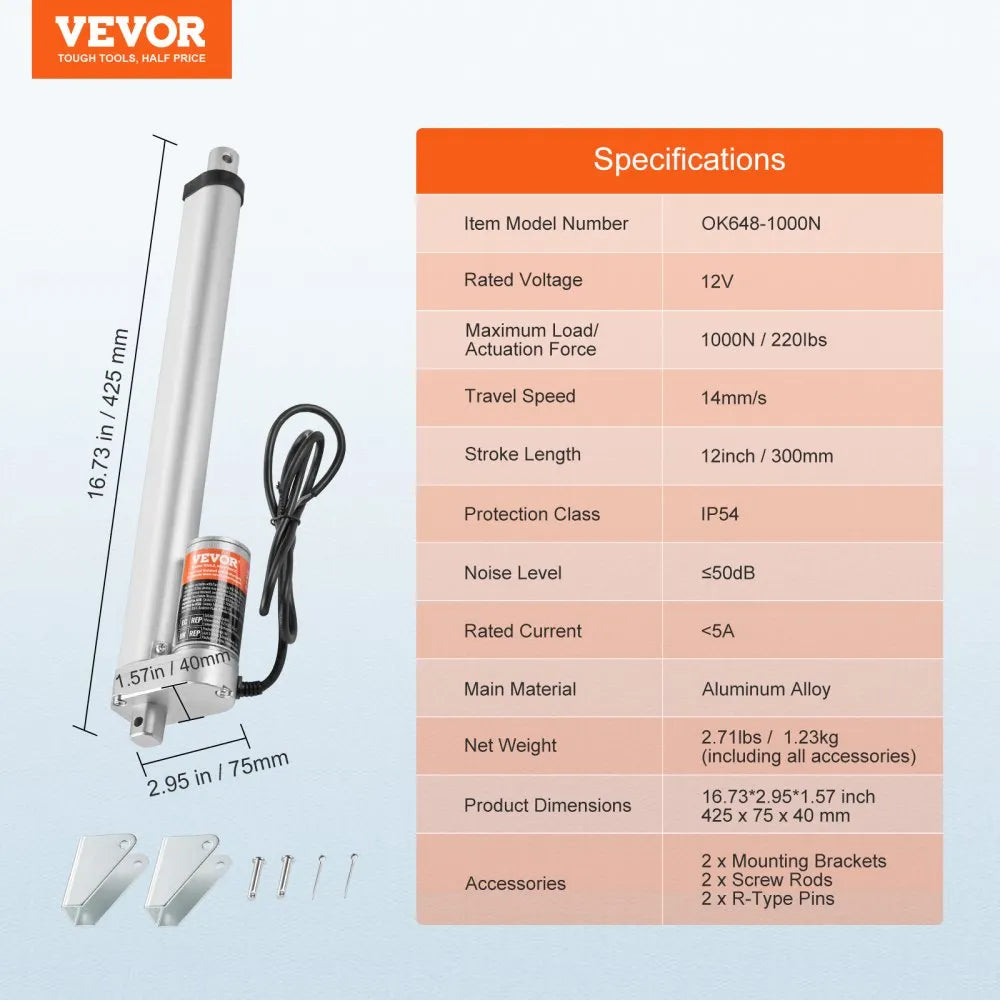

Specifications:
-
Product Type: Industrial & Scientific > Automation & Control > Linear Actuators
-
Item Model Number: OK648-100N
-

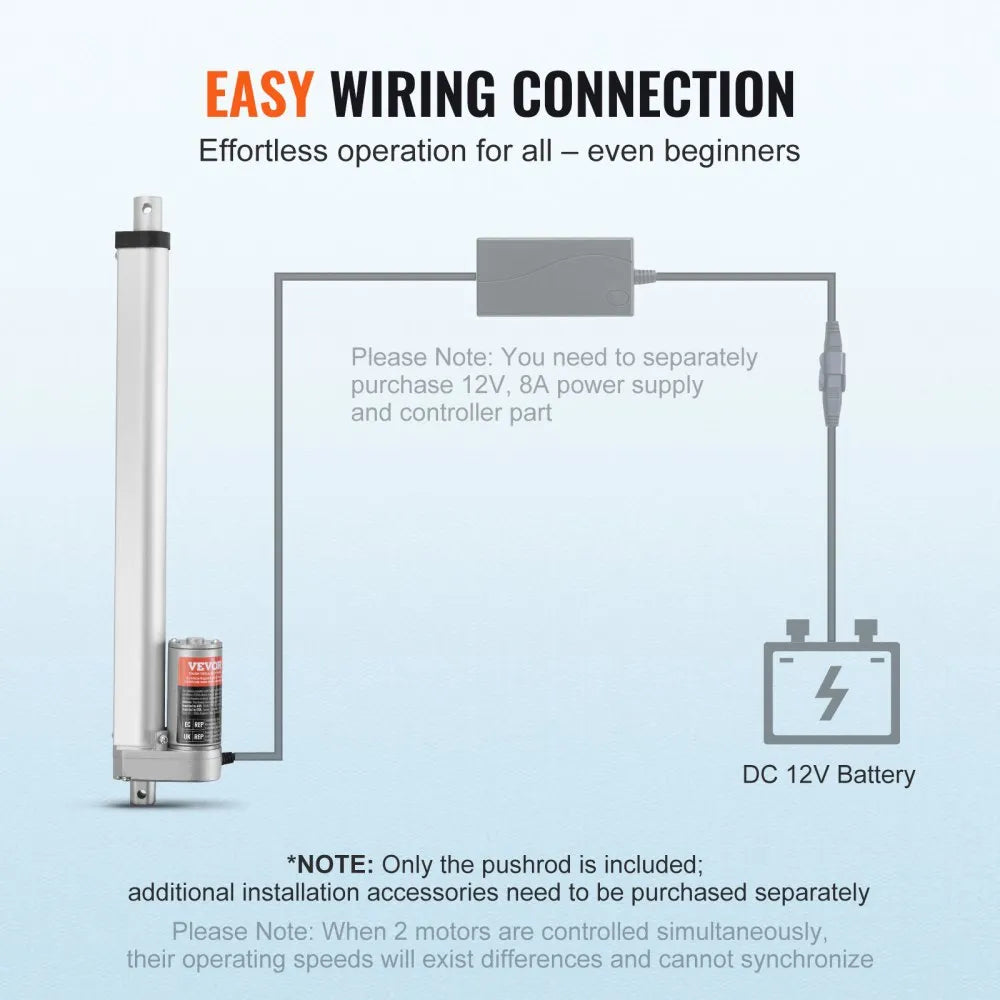

Rated Voltage: DC12V
-
Maximum Load / Actuation Force: 1000N
-

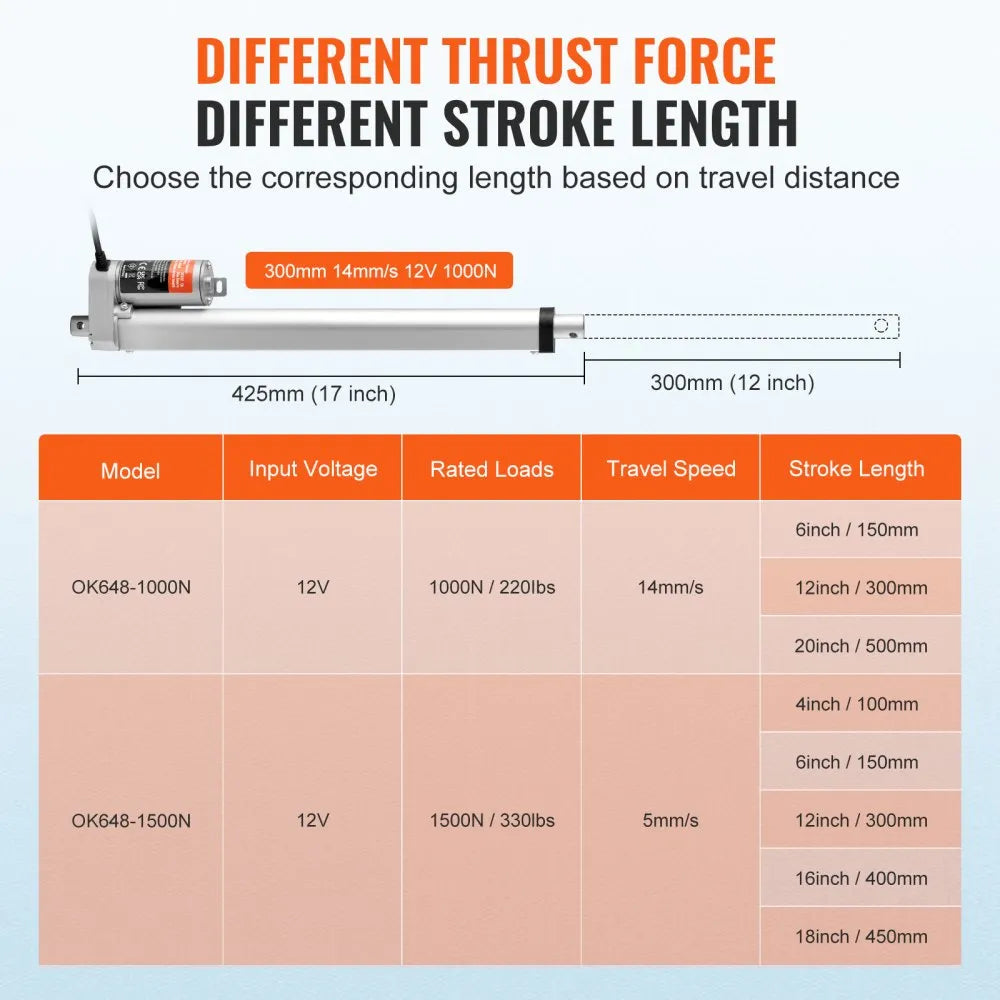

Stroke Length: 12 in / 300 mm
-
Travel Speed: >0.55 in/s / >14 mm/s
-
Rated Current: <5A
-
Protection Class: IP54
-
Noise Level: ≤50dB
-
Main Material: Aluminum Alloy
-
Product Dimensions: 16.73 x 2.95 x 1.57 in / 425 x 75 x 40 mm
-
Net Weight: 2.71 lbs / 1.23 kg (including all accessories)
-

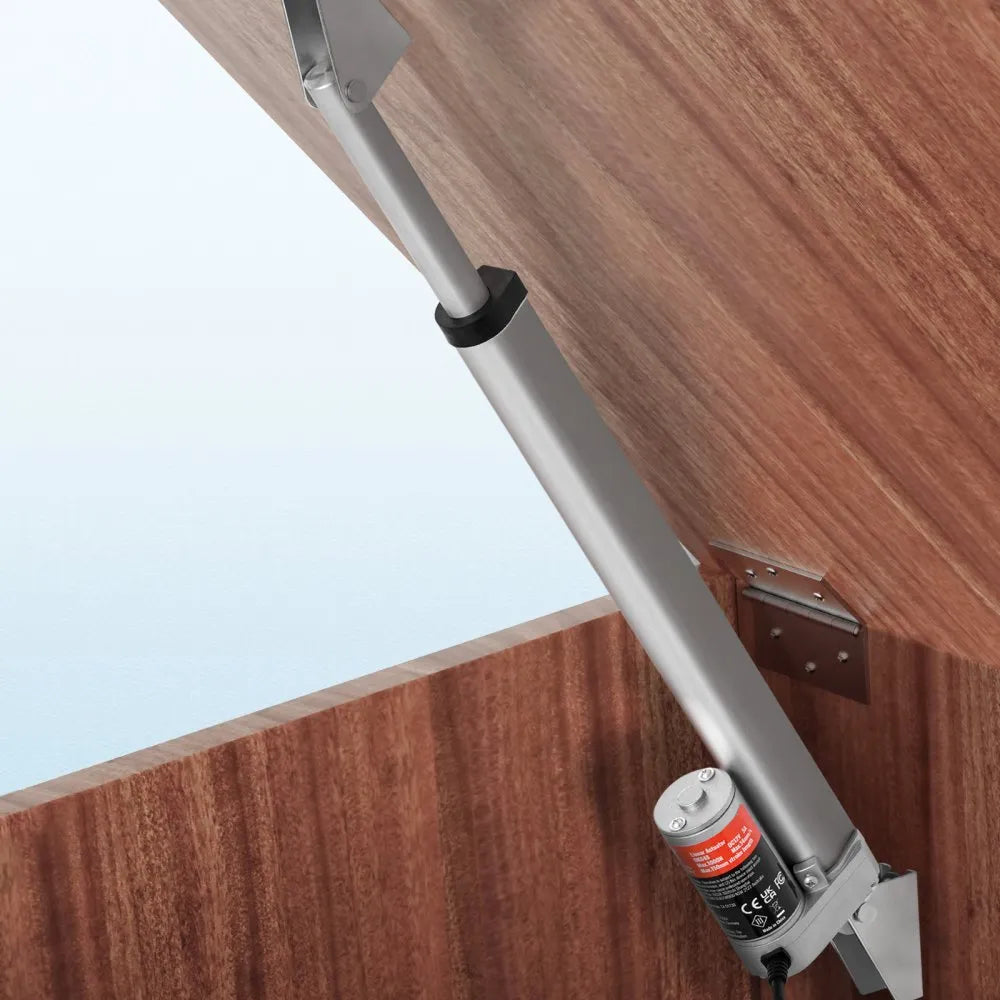

Application: Electric doors, machinery systems, industrial equipment, automation projects
-
Suitable For: Light to medium-duty linear motion tasks
