The VEVOR Recirculating Pump is an efficient and reliable solution for circulating water in electric water heater systems. Designed with a 93W motor and 110V power supply, this pump is built to boost water flow with three-speed control options for optimal performance. Featuring a stainless steel pump head, brass fittings, and carbon bearings, it ensures long-lasting durability and quiet operation. Easy to install, this pump is ideal for various applications, including water heating, heating systems, and circulation systems. With an impressive max flow rate of 10.5 GPM and maximum head lift of 20 ft, it is perfect for those seeking enhanced water circulation in their systems.
Features
-

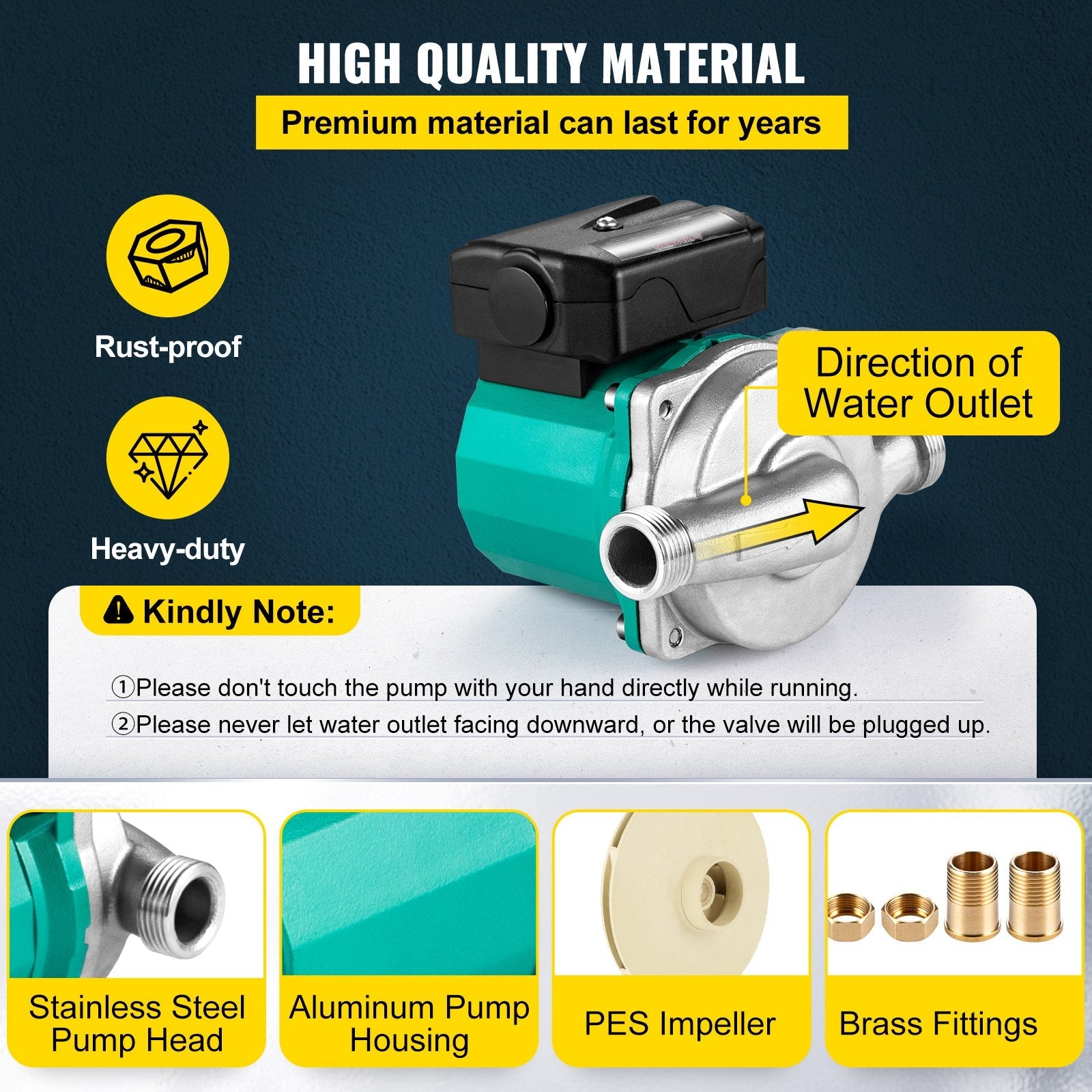

Heavy-duty Material: Crafted with durable materials such as stainless steel, brass, and aluminum for reliable and long-lasting performance
-
Boost Water Flow: Efficiently circulates water with a max flow rate of 10.5 GPM (40 L/min) for improved water heating or circulation
-

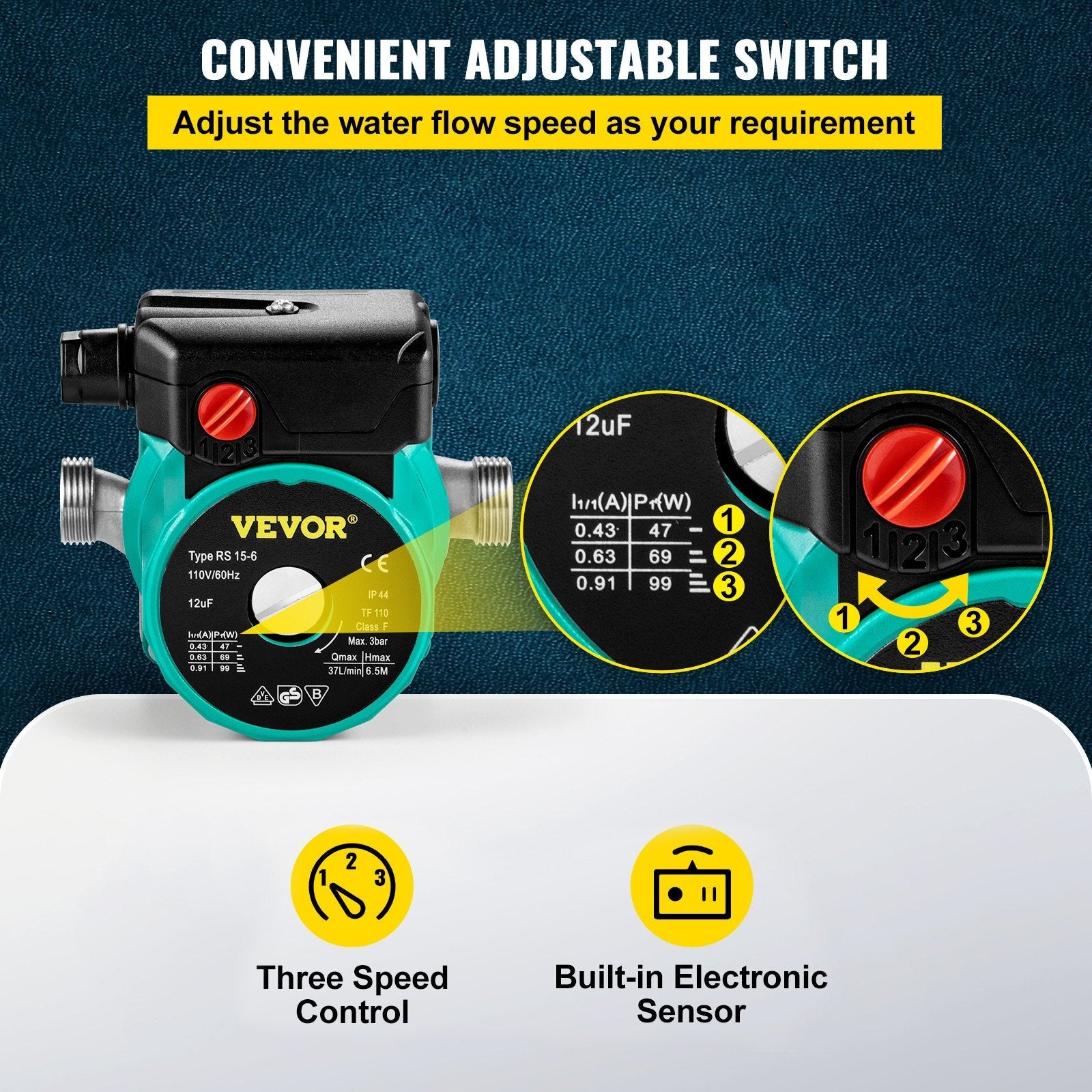

Three-Speed Control: Offers three-speed settings to adjust water flow according to the needs of your system
-
Quiet Operation: Operates at a low noise level of just 25 dB for a peaceful environment
-

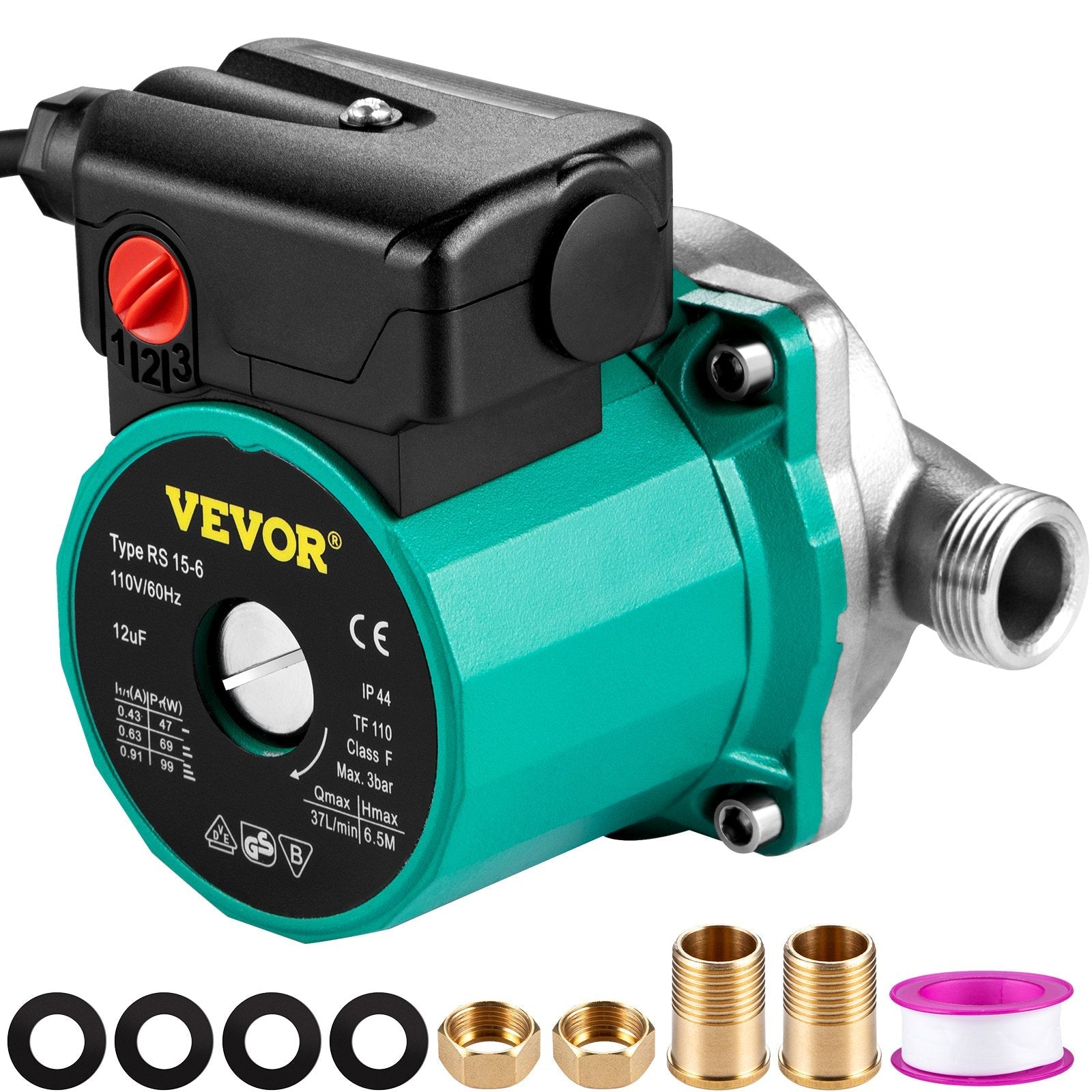

Effortless to Install: Includes easy-to-use NPT 3/4" brass fittings for simple installation
-
Various Applications: Ideal for electric water heater systems, heating systems, and other water circulation applications
Specification
-
Protection Level: IP44
-
Bearing Material: Carbon
-
Body Color: Green/Silver
-
Insulation Class: F
-
Impeller Material: PES
-
Max. Pressure: 10 Bar (145 Psi)
-

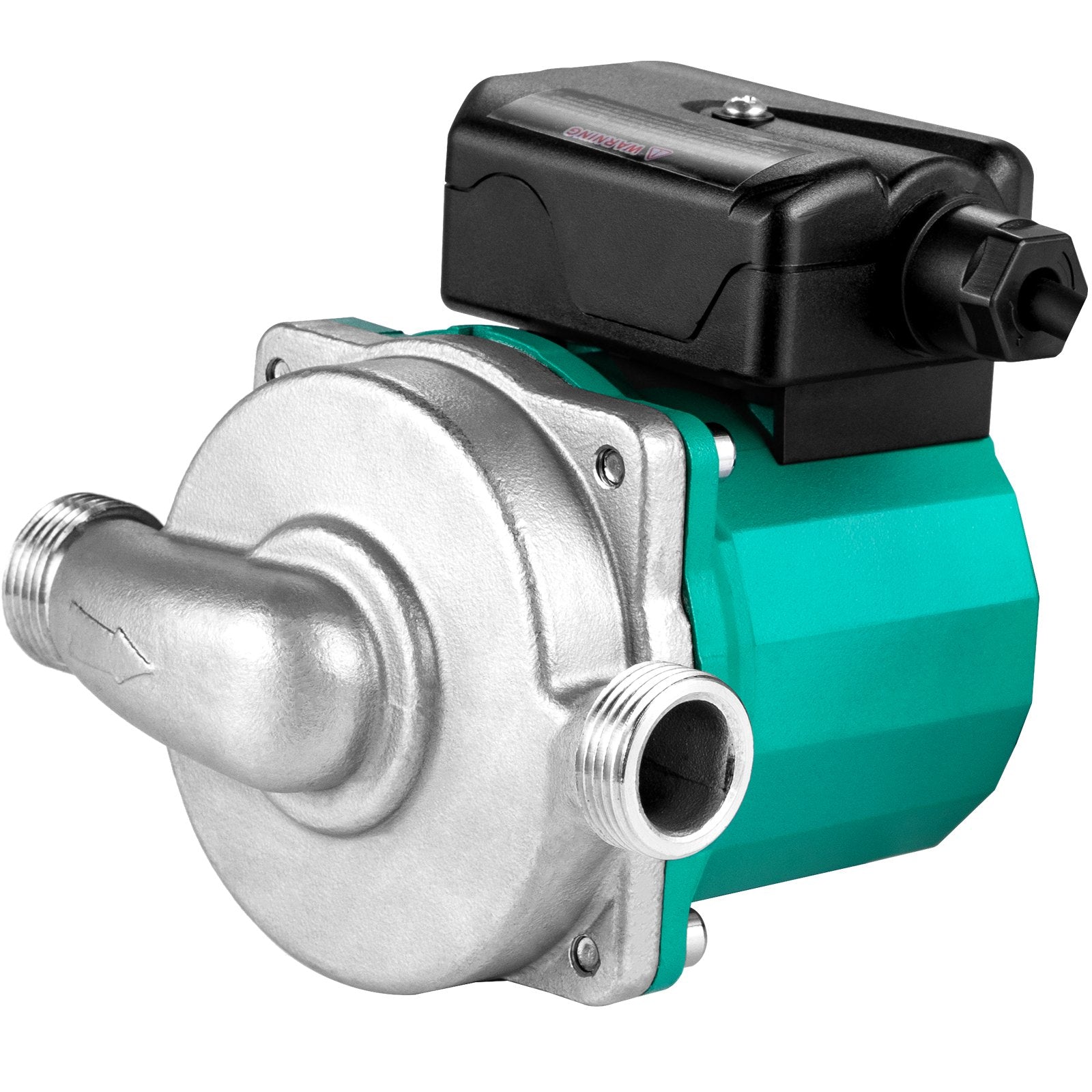

Pump Head: Stainless Steel
-

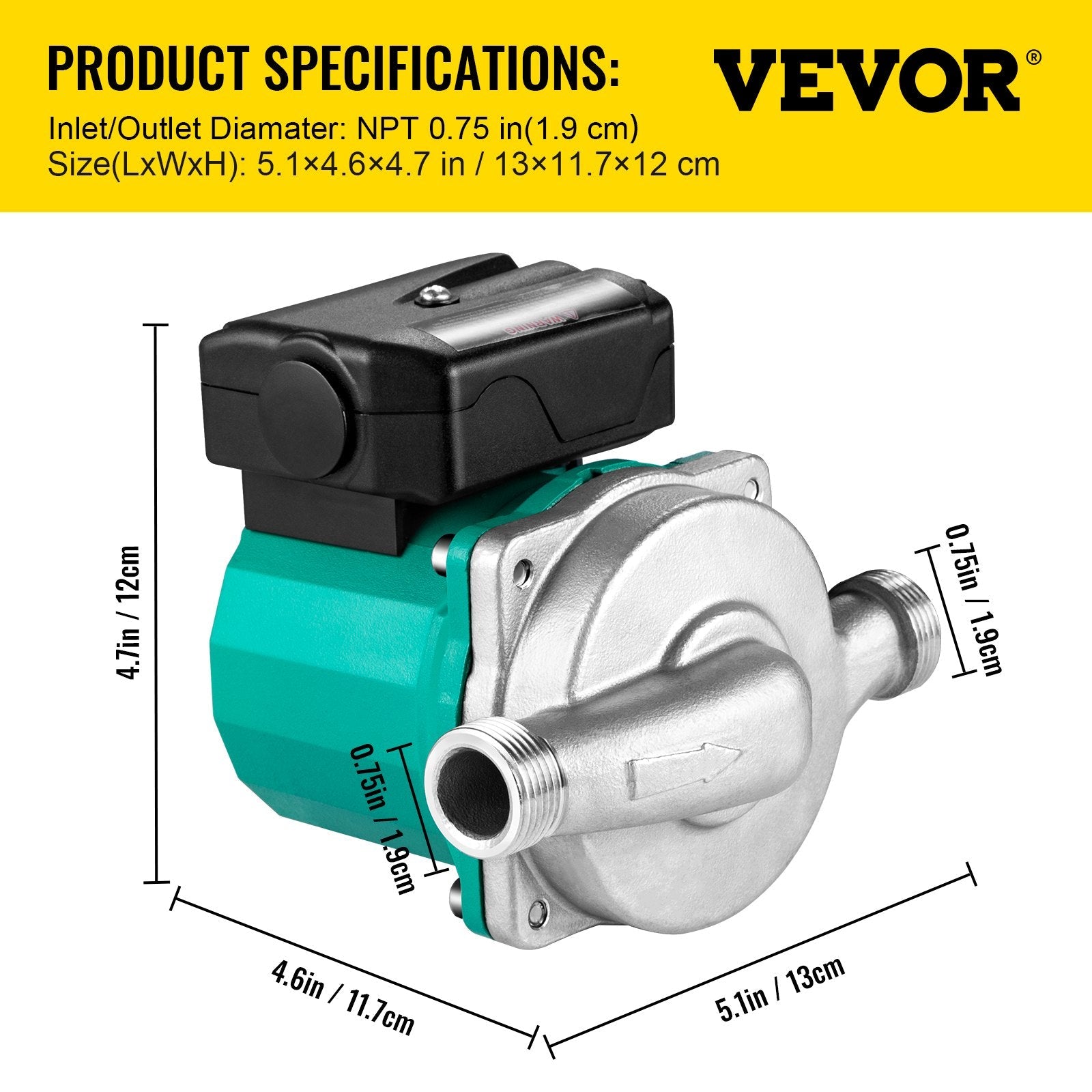

Product Size: 5.1 x 4.6 x 4.7 in (13 x 11.7 x 12 cm)
-
Pump Housing: Aluminum
-
Noise Level: 25 dB
-
Max. Head Lift: 20/16.5/10 ft (6/5/3 m)
-
Rated Pressure: 0.6 Bar (8.7 Psi)
-
Mounting Position: Shaft Horizontal
-
Ambient Temperature: 32–104°F (0–40°C)
-
Max. Flow Rate: 10.5/7.4/5.3 GPM (40/28/20 L/min)
-
Voltage: 110V/60Hz
-
Inlet/Outlet Dia.: NPT 3/4" (Brass adapter diameter 3/4 NPT to 1/2 NPT)
-

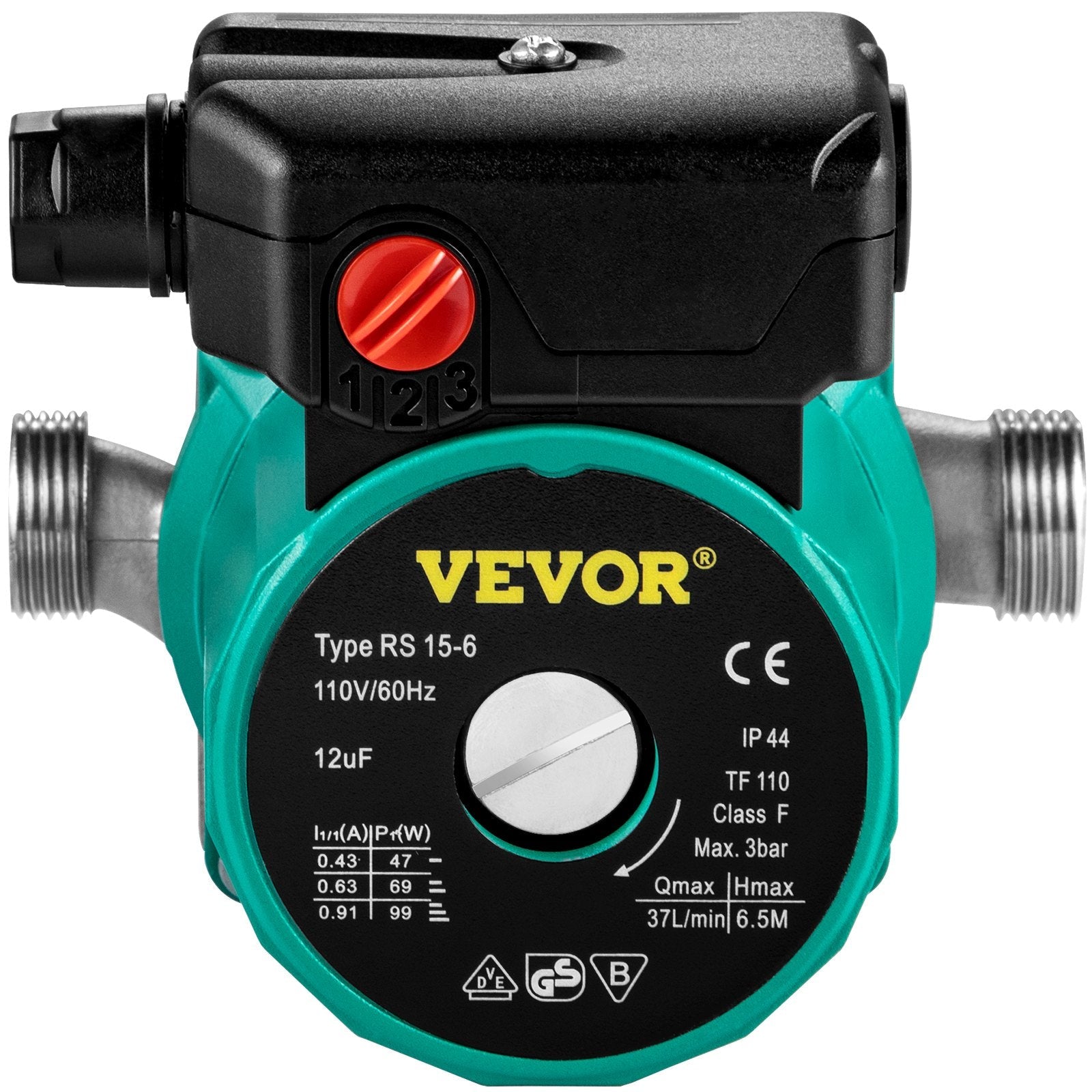

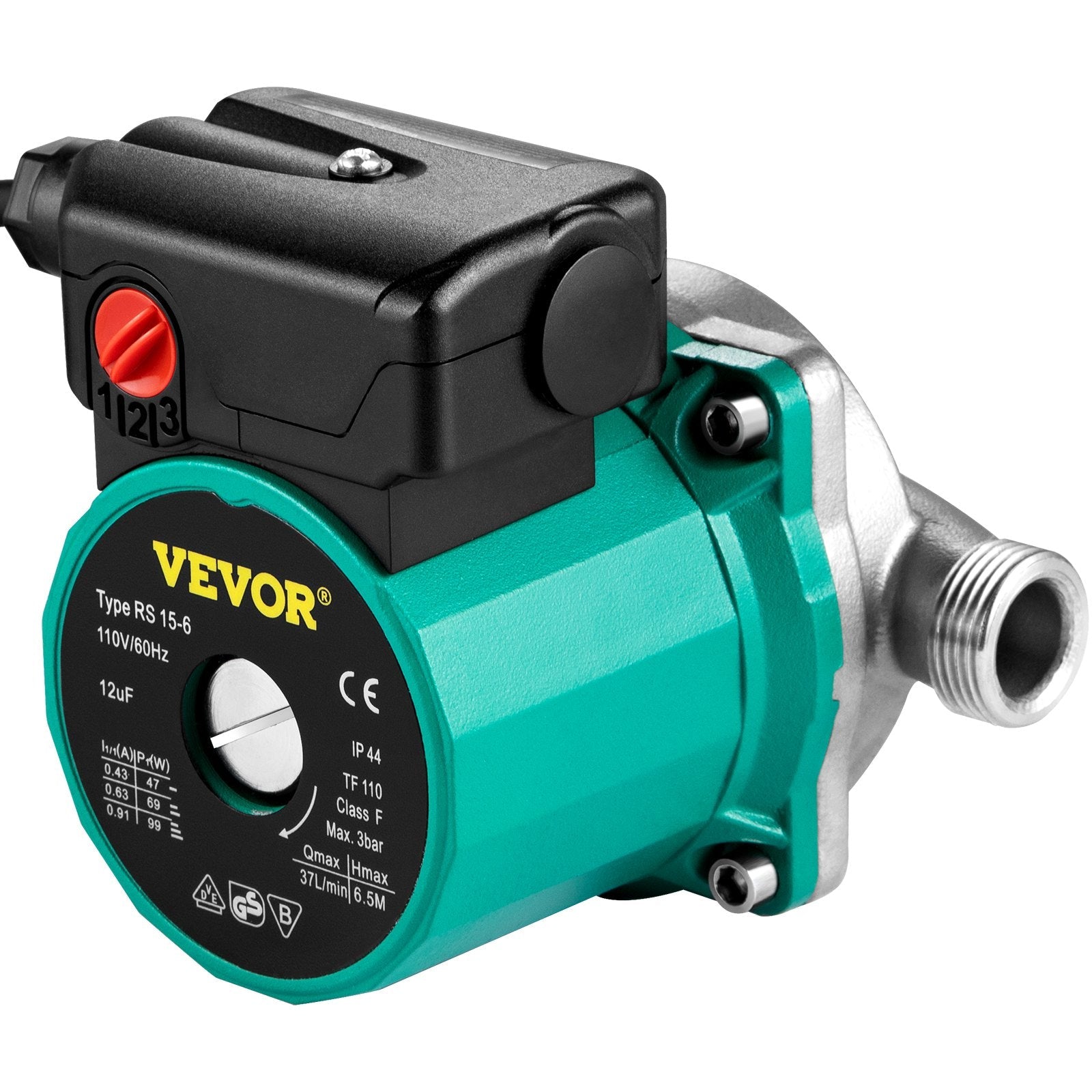

Model: VV-BXG-RS15 6SB
-
Shaft Material: Ceramic
-
Cable Length: 4 ft (1.25 m)
-
Liquid Temperature: 32–212°F (0–100°C)
-
Power: 93/67/46W
