Description

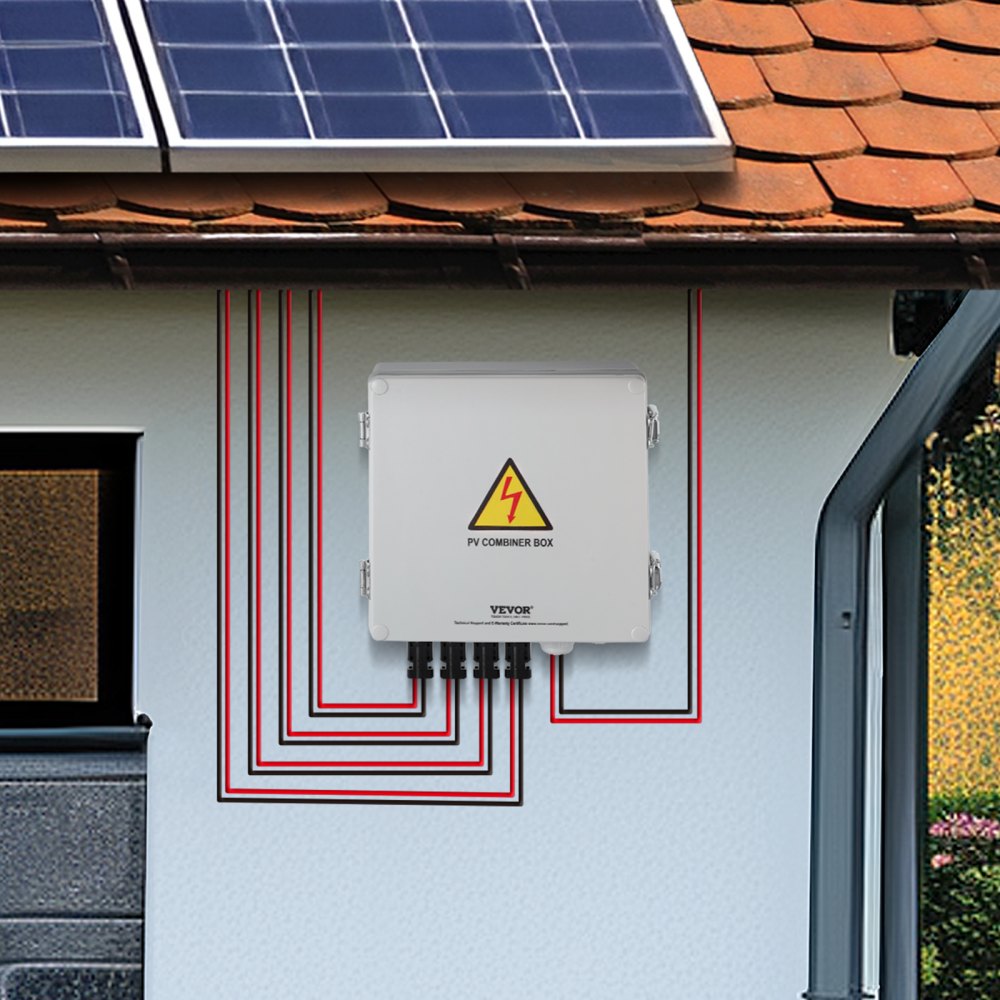

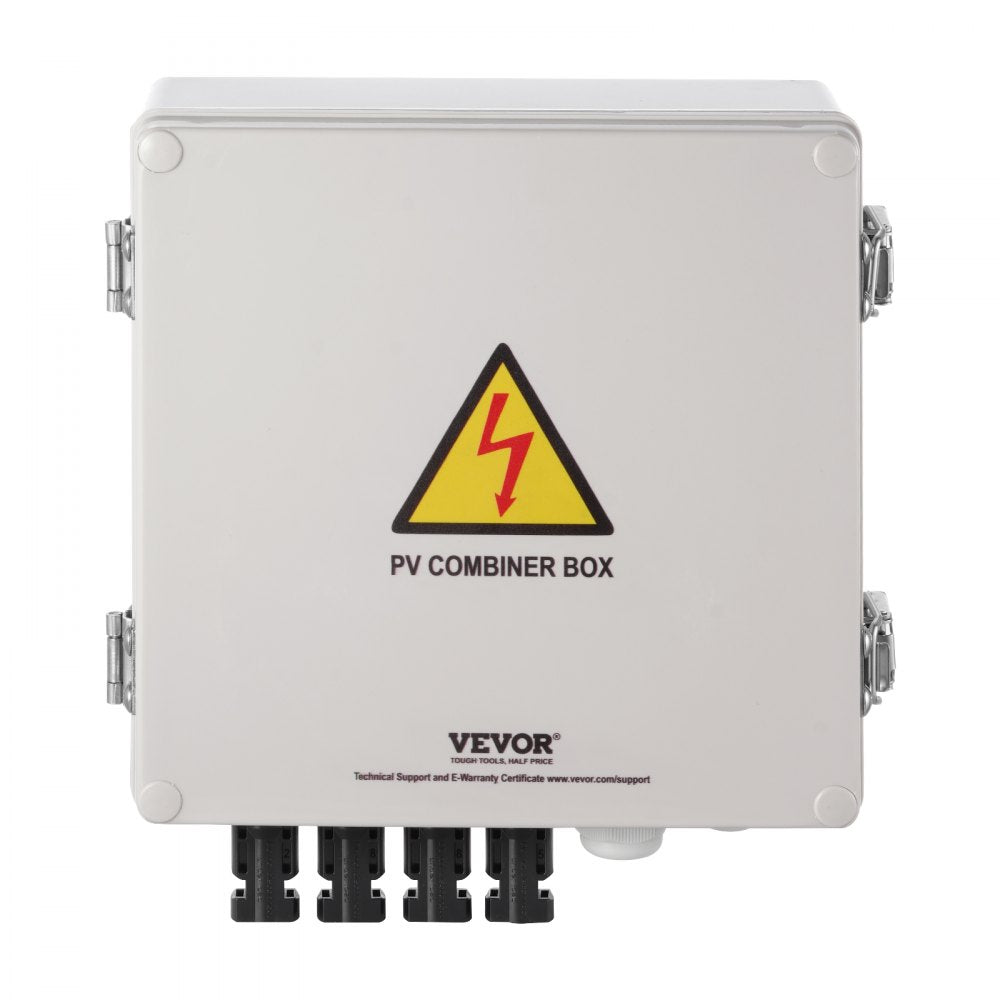

Ensure your solar power system operates efficiently and safely with the VEVOR 4-String Solar PV Combiner Box. Designed for residential and small commercial solar arrays, this combiner box consolidates up to 4 input strings into a single output while offering robust protection with 40KA surge arrestors, 63A circuit breakers, and 10A fuses. Its IP65-rated ABS enclosure resists water, dust, and UV exposure, making it ideal for outdoor installations. With an easy latch door and dual-color wiring, installation and maintenance are straightforward and hassle-free.
Features
-

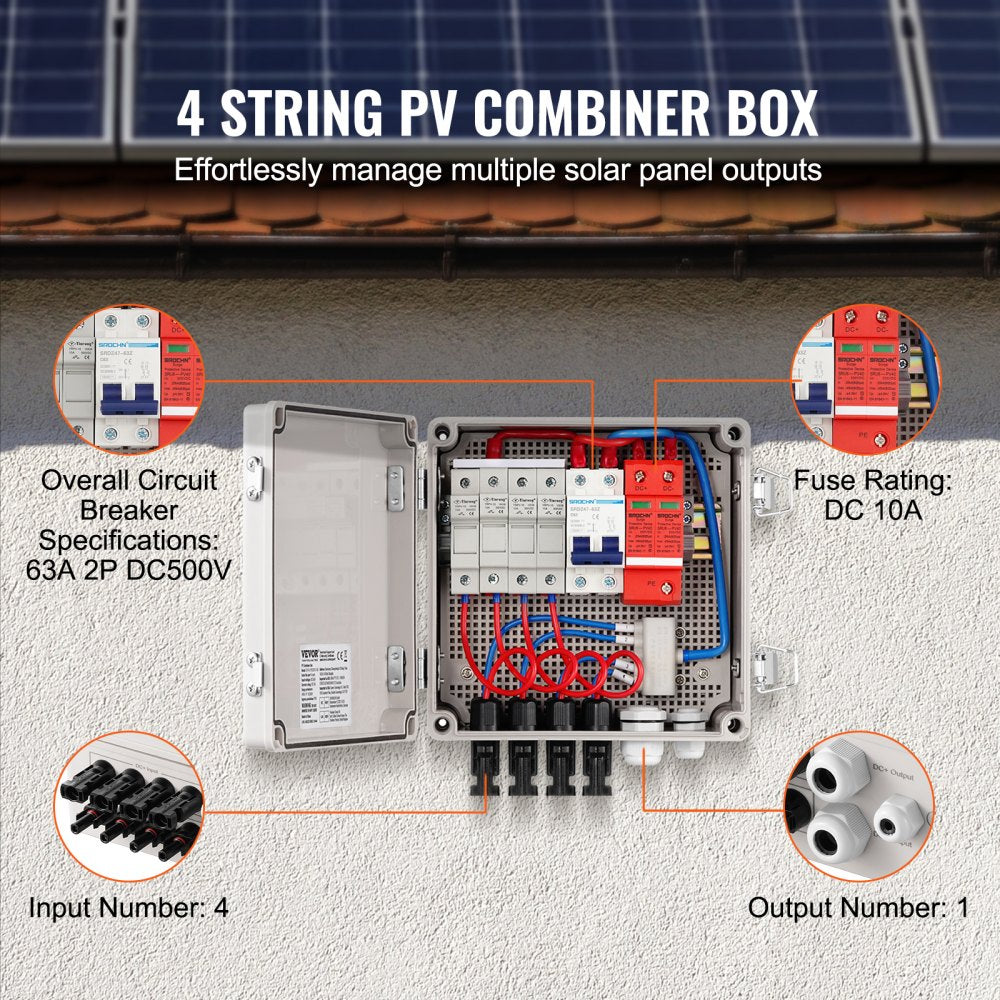

4-String Input: Combines up to 4 solar panel strings into one output, simplifying wiring and system layout.
-

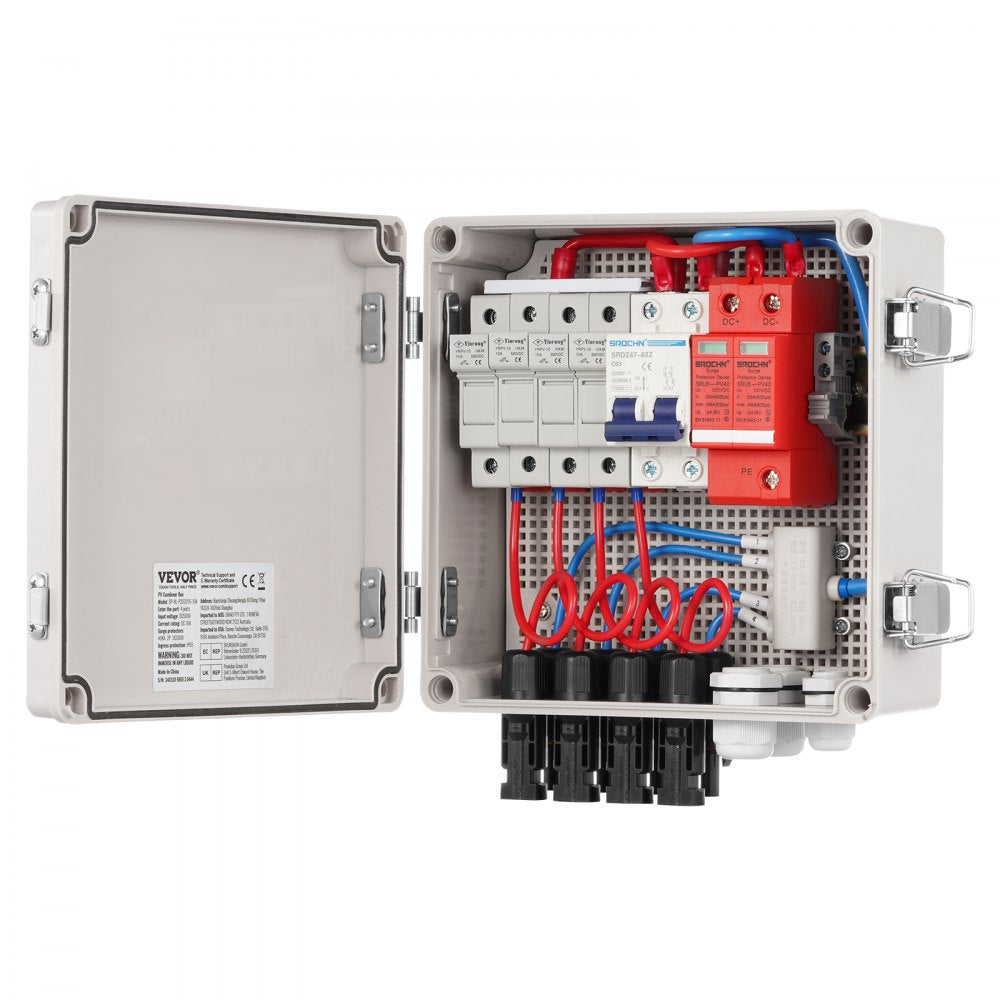

Multi-Layer Protection: Includes 10A fuses, 63A DC circuit breaker, and 40KA surge protector to guard against overcurrent, surges, and short circuits.
-

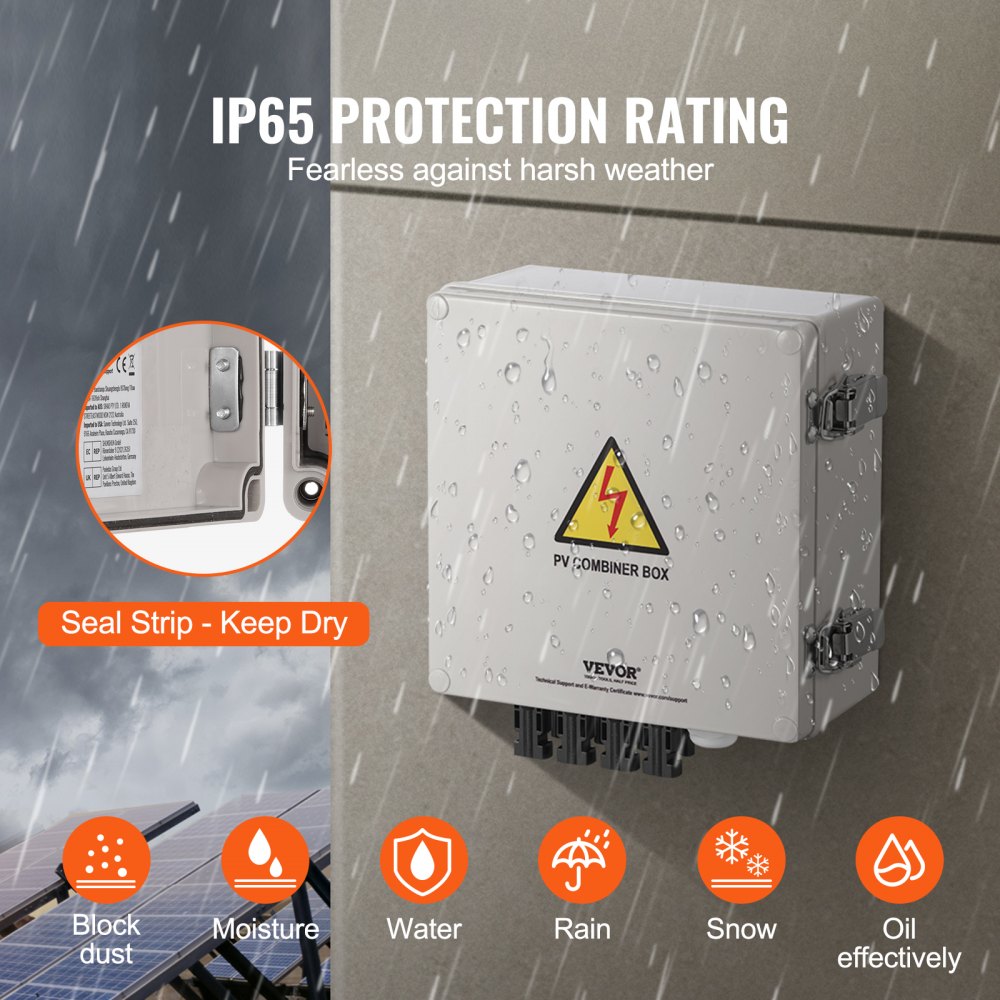

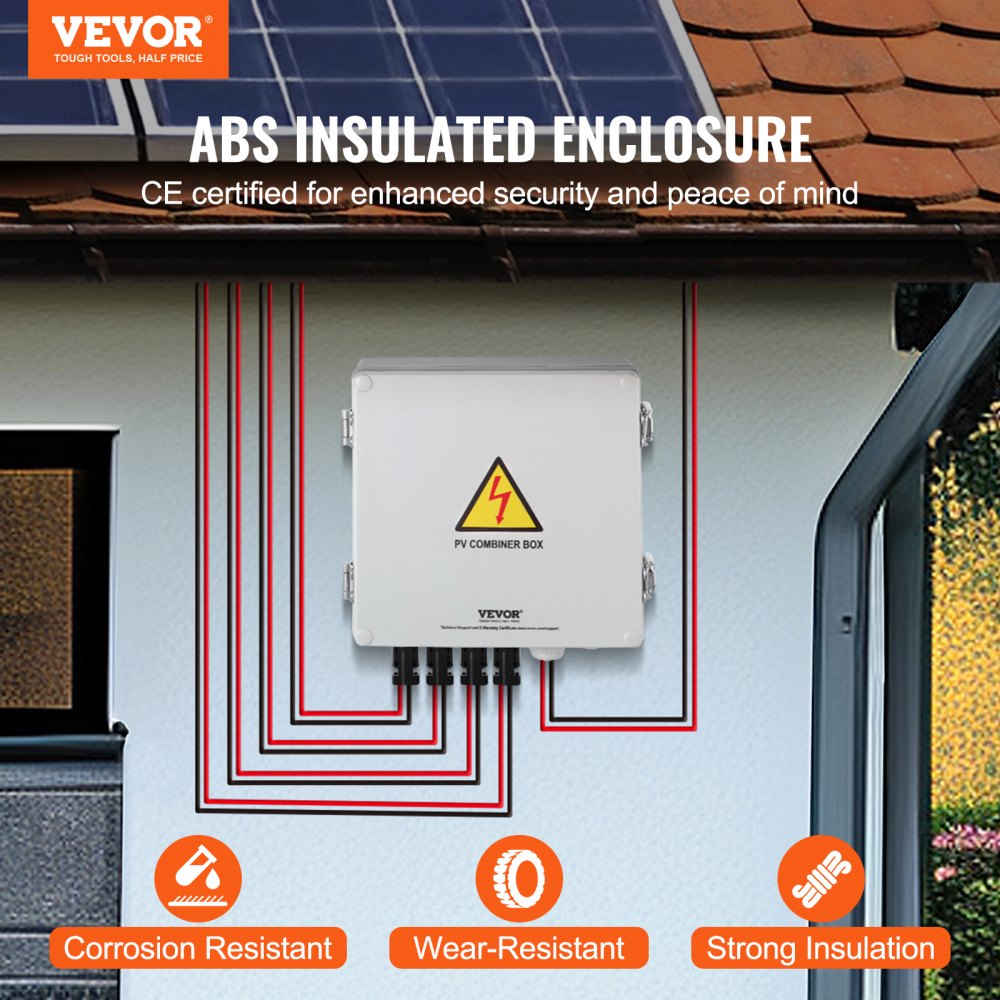

Durable IP65 Enclosure: ABS plastic case with PU sealing strip resists dust, water, and UV radiation for outdoor use.
-

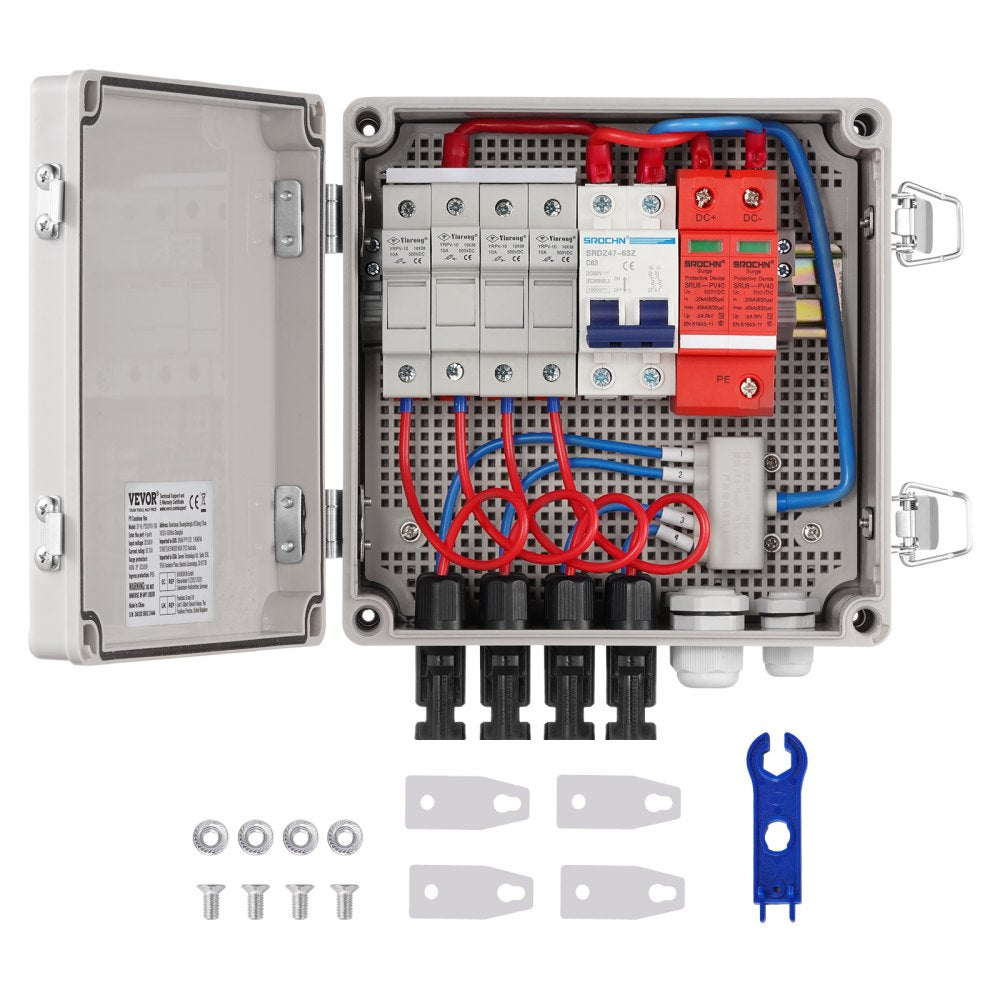

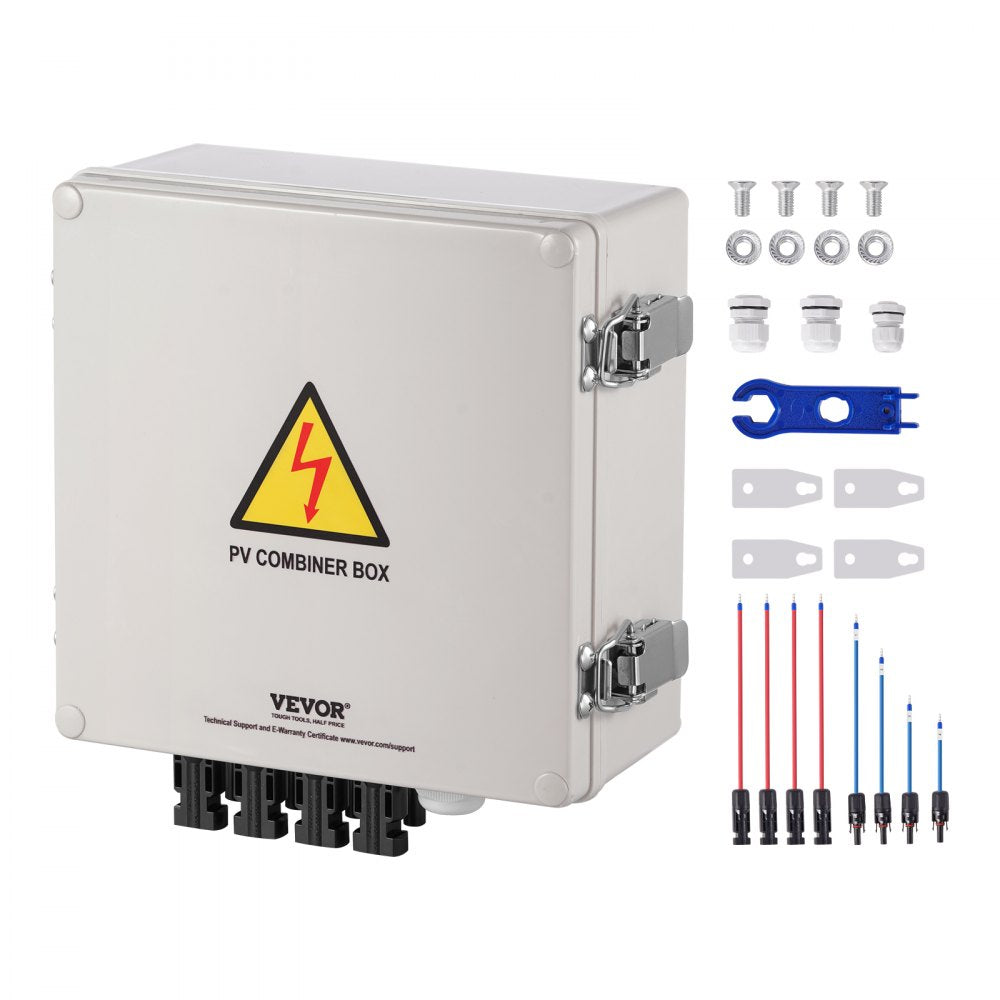

Effortless Installation: Detachable ABS mesh base and pre-installed components reduce setup time.
-

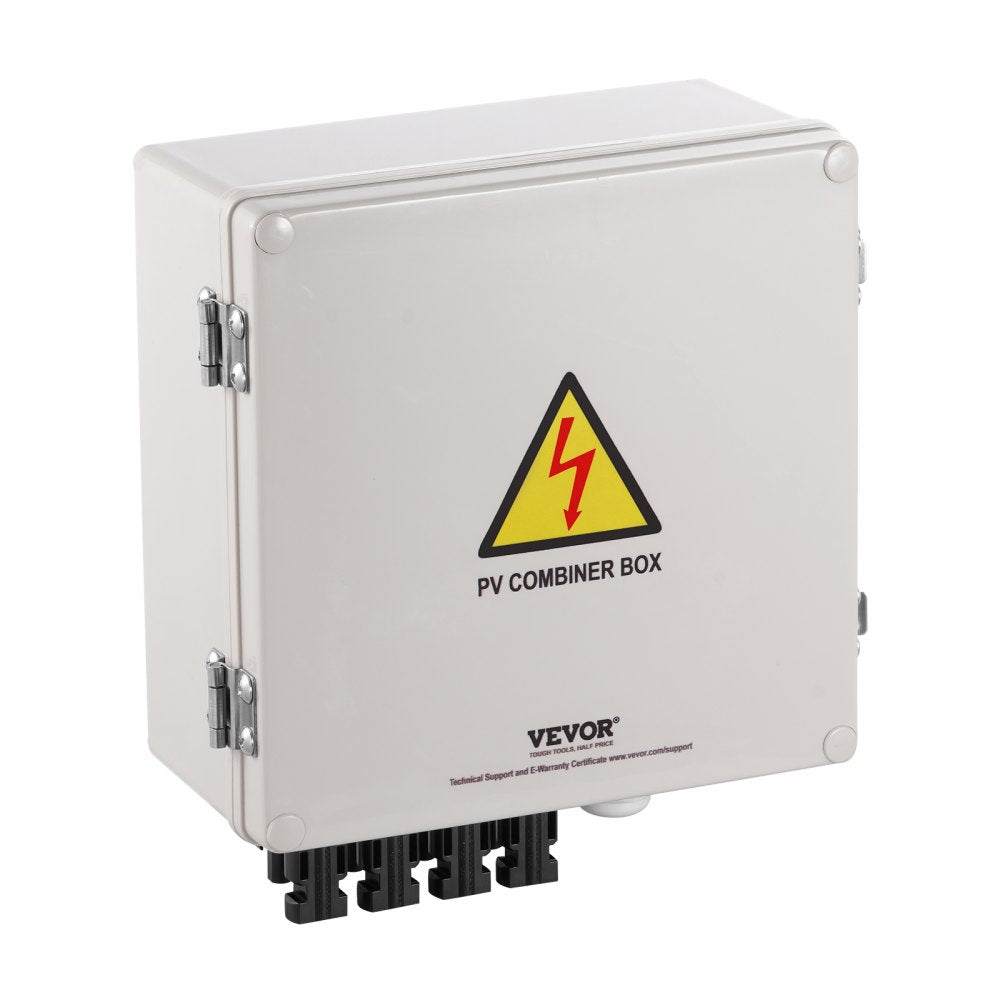

Secure Latch Opening: Easy-to-use latch door provides safe and fast access for maintenance.
-

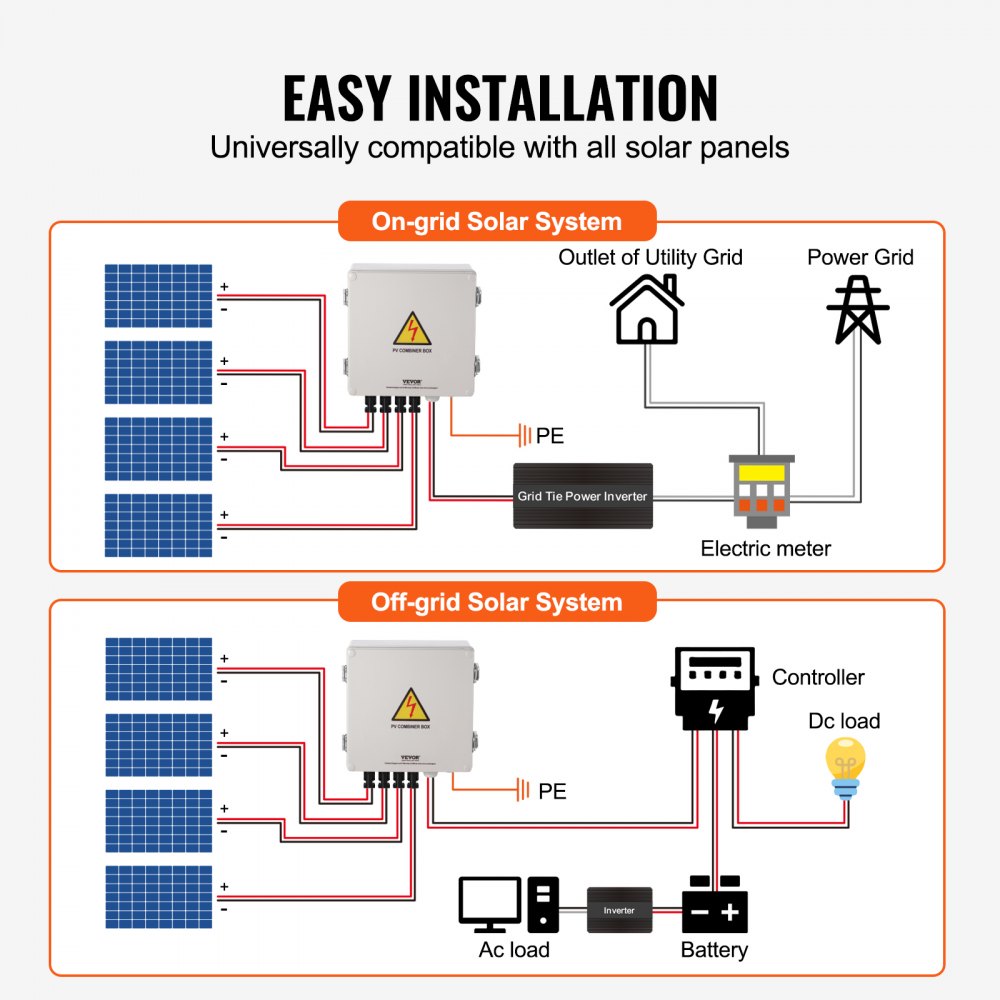

Versatile Applications: Perfect for home, RV, or off-grid solar systems up to 500V DC.

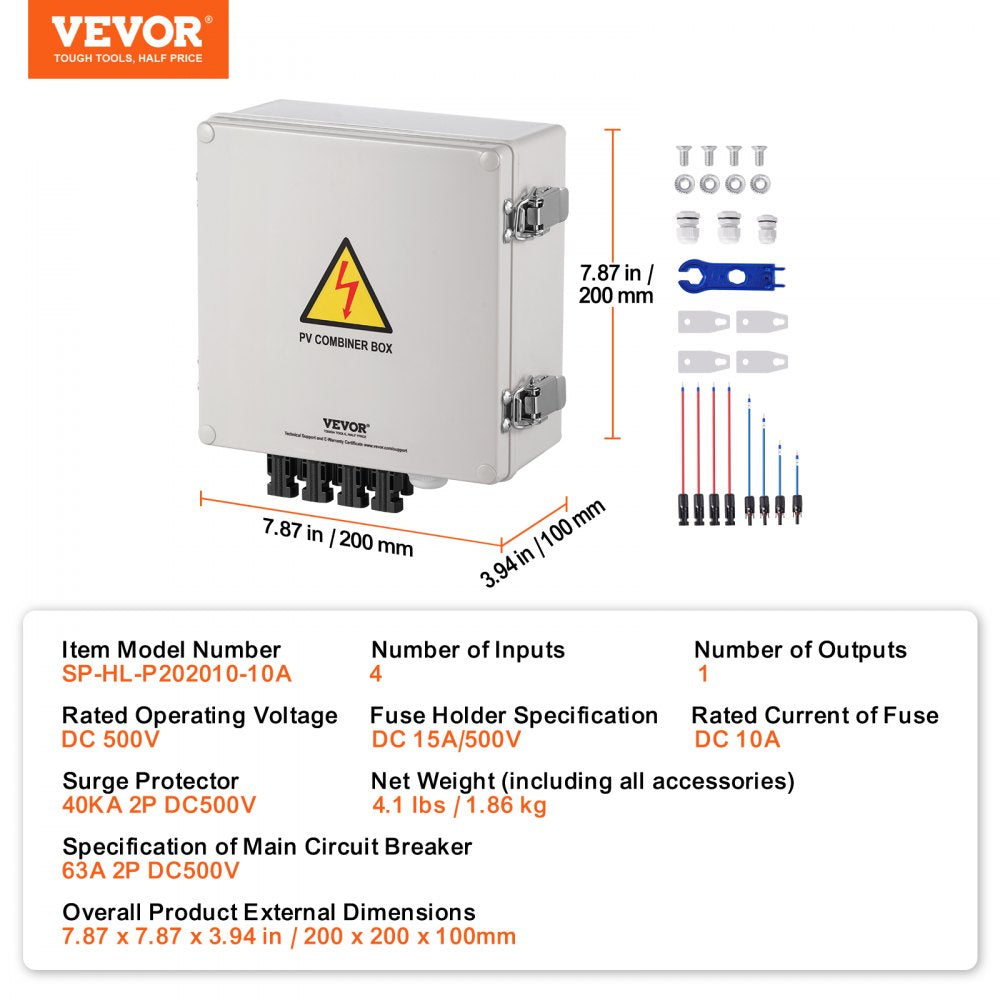

Specifications
-
Model Number: SP-HL-P202010-10A
-
Number of Inputs: 4
-
Number of Outputs: 1
-
Rated Operating Voltage: DC 500V
-
Rated Current of Fuse: DC 10A
-
Fuse Holder Specification: DC 15A/500V
-
Main Circuit Breaker: 63A 2P DC 500V
-

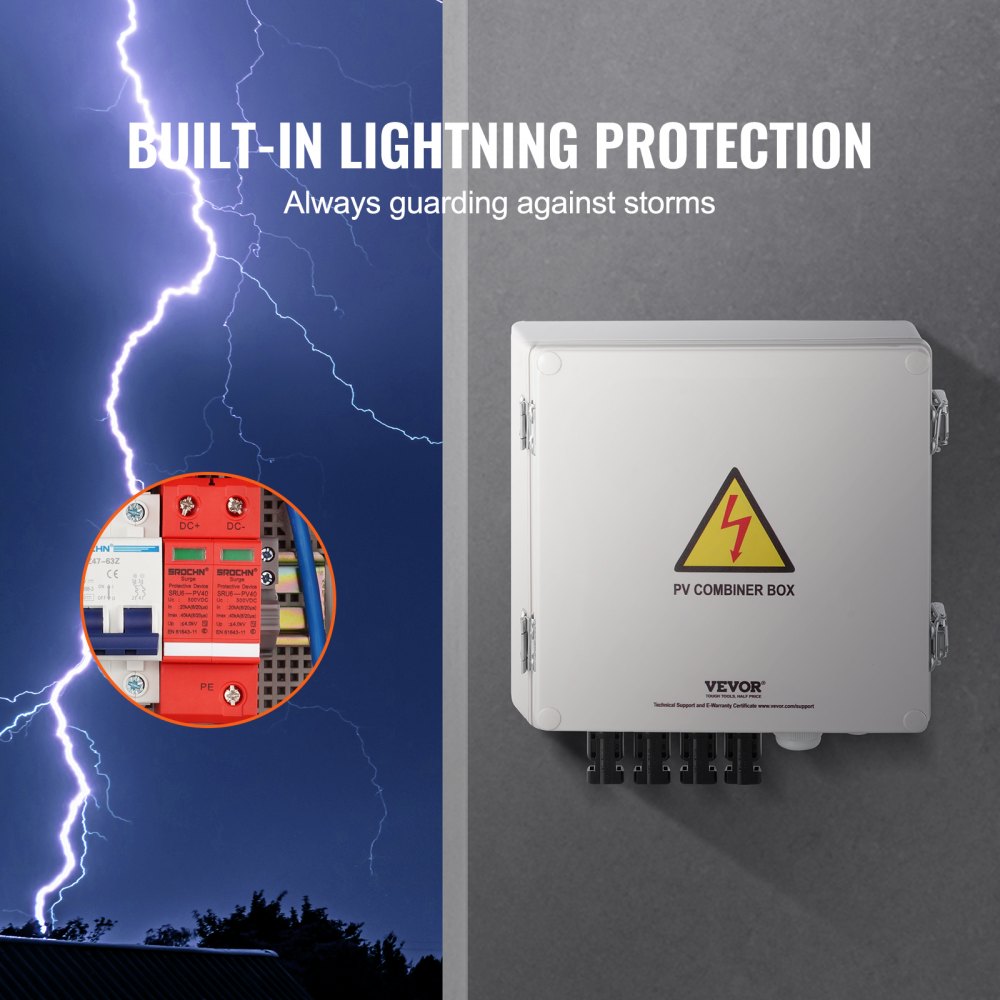

Surge Protector: 40KA 2P DC500V
-
Protection Rating: IP65
-
Enclosure Material: ABS plastic with RAL7035 grey-white finish
-
Sealing Strip: PU polyurethane foam
-
Mounting Plate: Detachable ABS mesh base
-
Door Opening Method: Latch
-
External Dimensions (L x W x H): 7.87 x 7.87 x 3.94 in / 200 x 200 x 100 mm
-
Net Weight: 4.1 lbs / 1.86 kg
