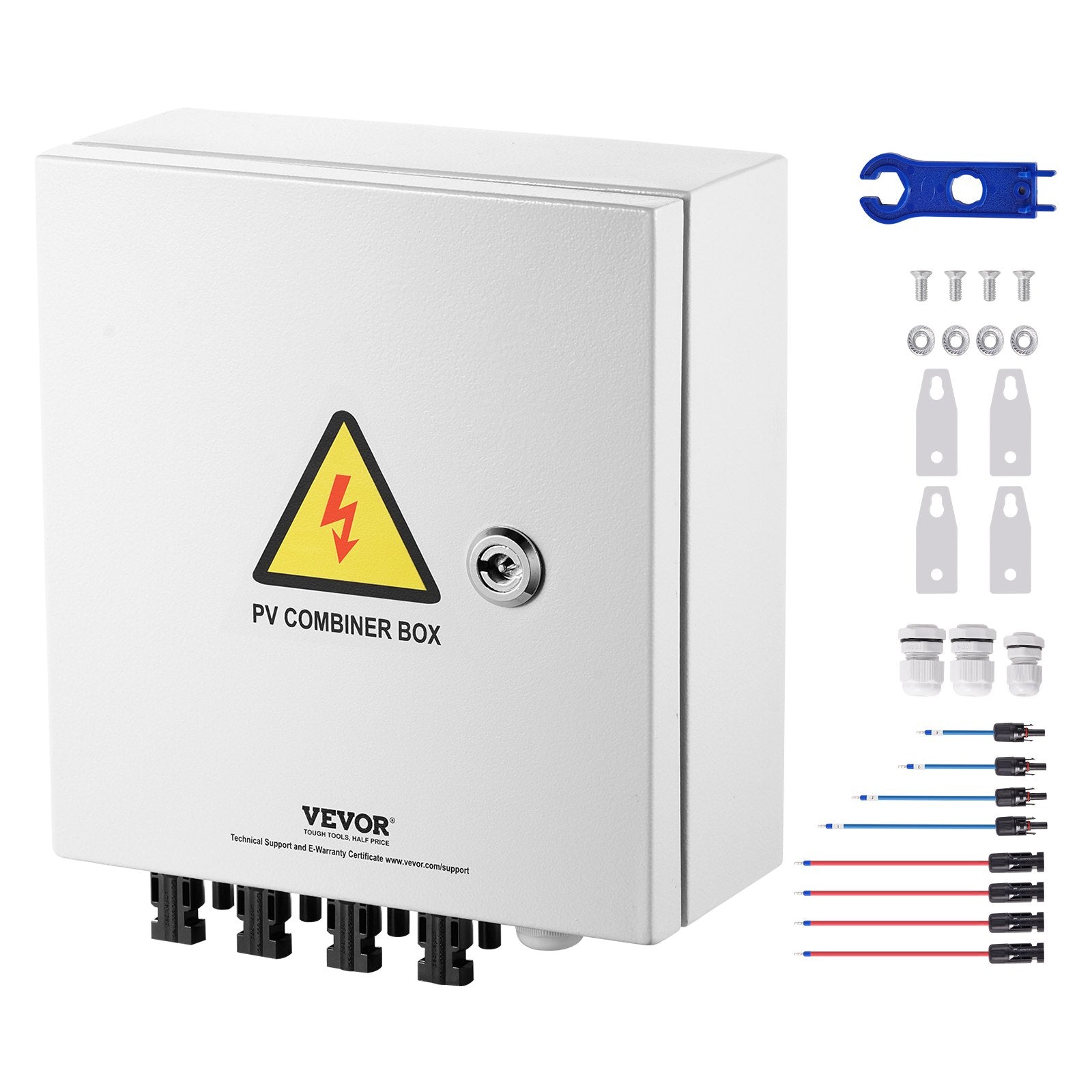

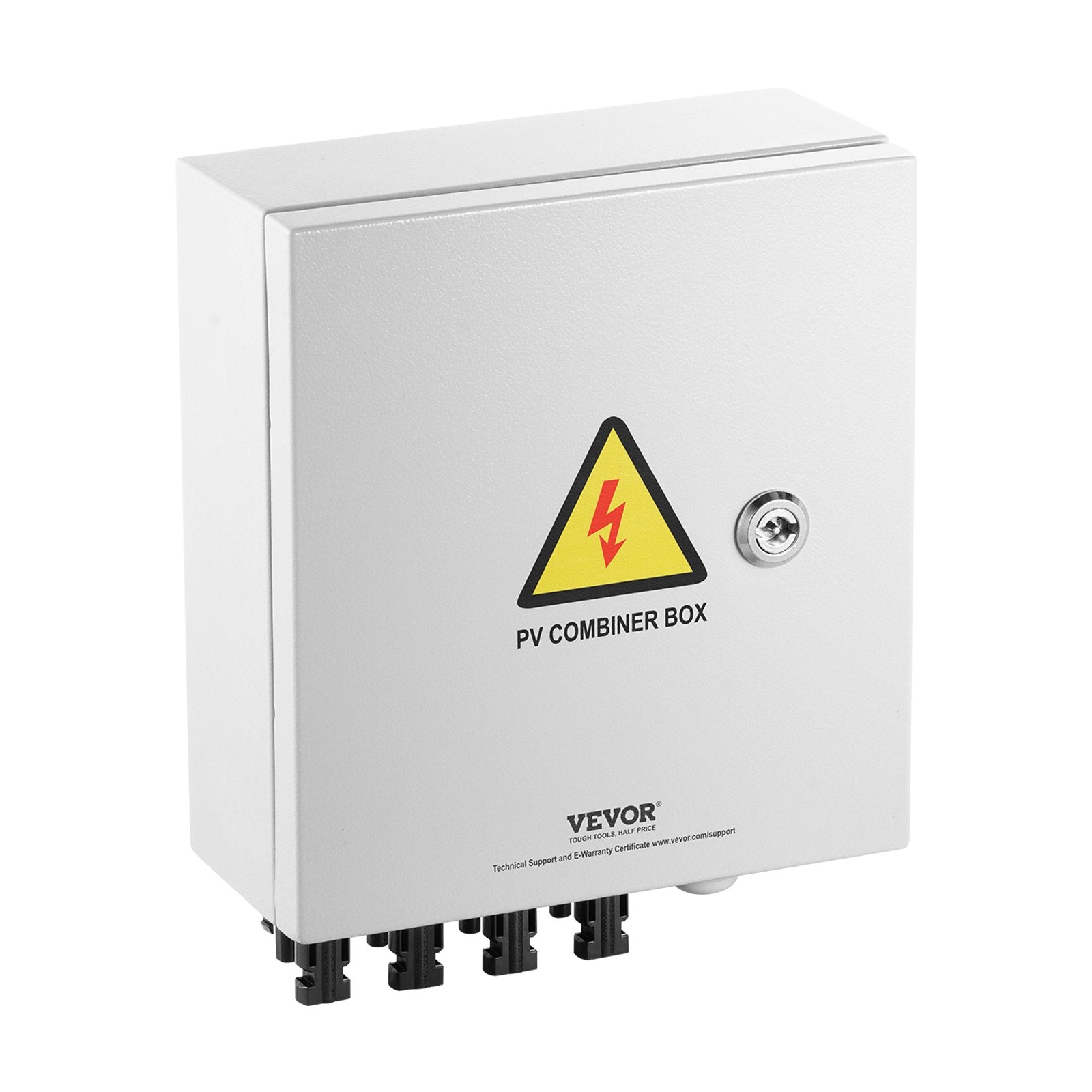

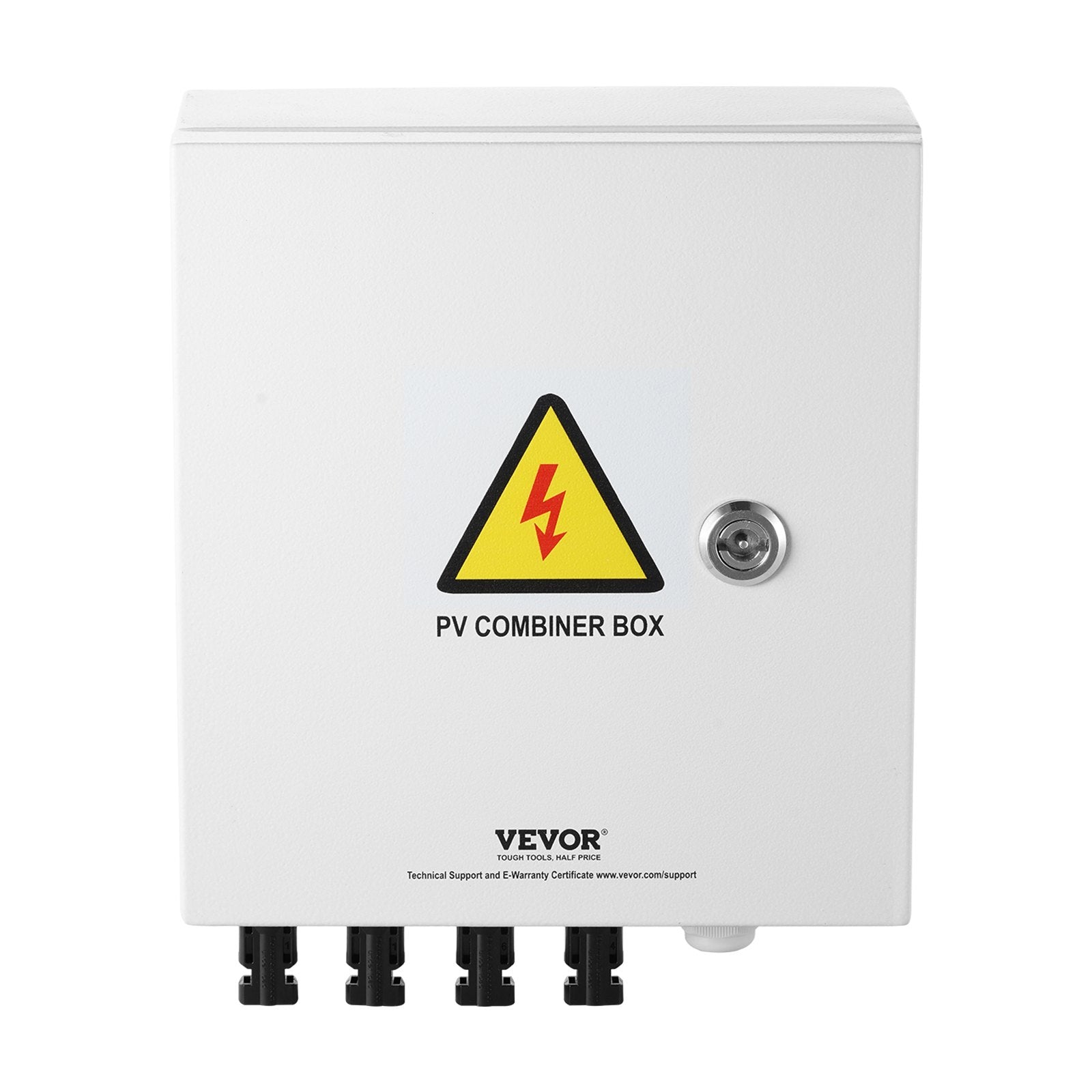

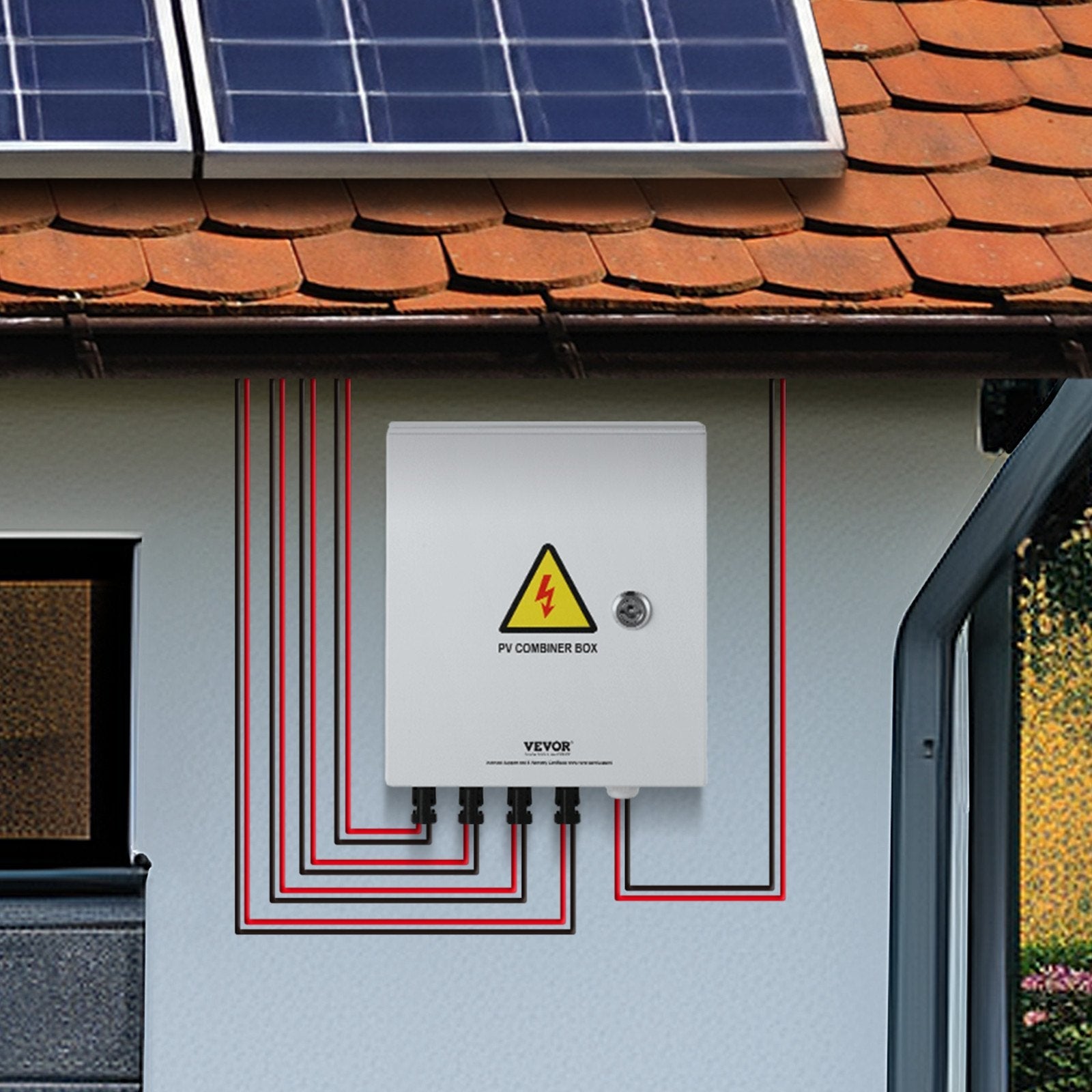

Enhance the safety and efficiency of your solar power system with the VEVOR Solar PV Combiner Box. This 4-string combiner box is designed for easy integration into solar panel systems, providing surge protection and reliable electrical management. With an IP65 protection rating and a durable steel case, it’s perfect for both residential and commercial solar setups. The box includes a rotary lock opening for secure access and comes with a detachable mounting plate for easy installation. Designed to withstand the harshest environments, it ensures safe and efficient energy conversion.
Features

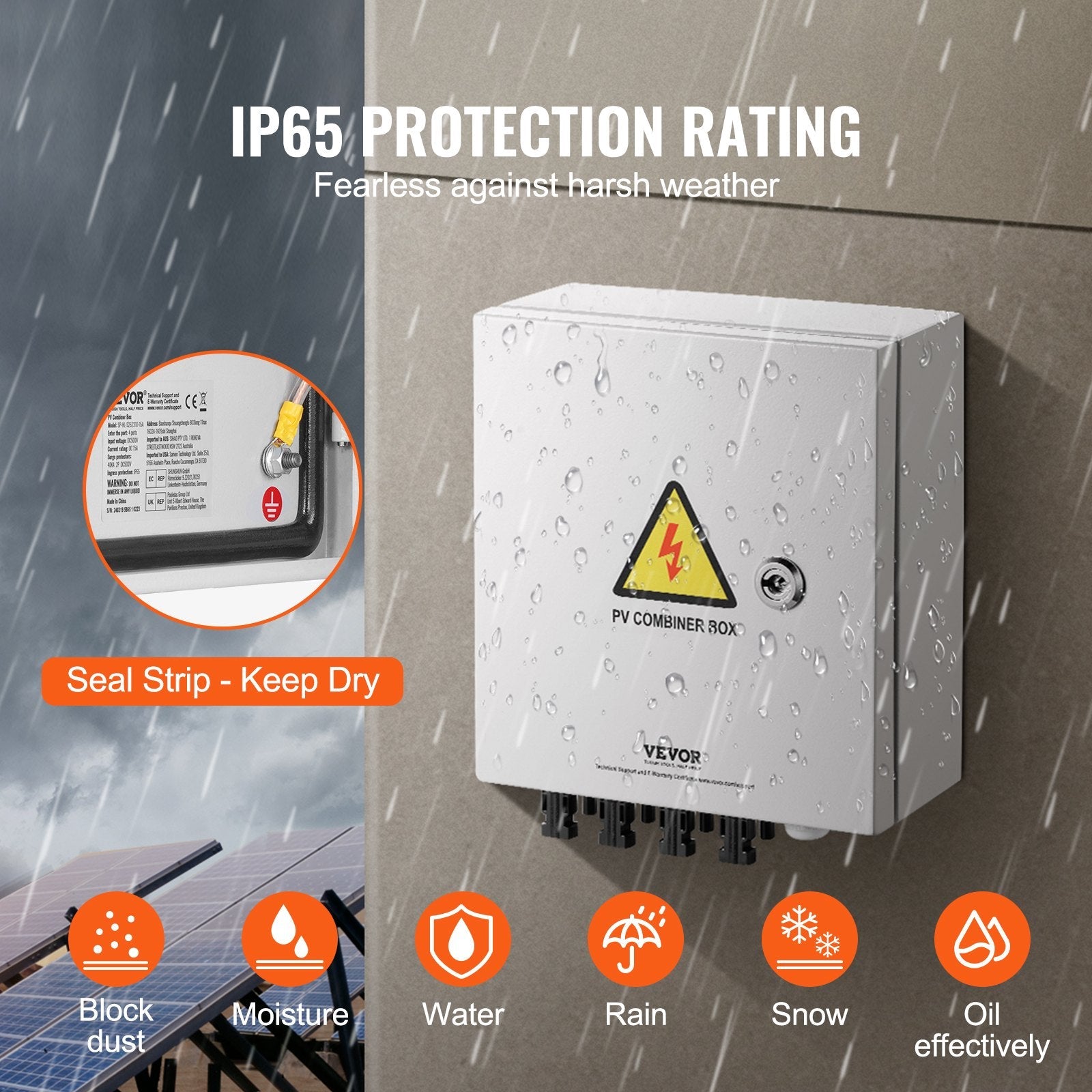

Reliable Protection: Features IP65 protection against dust and water, ensuring long-lasting durability and reliable performance in harsh environments.

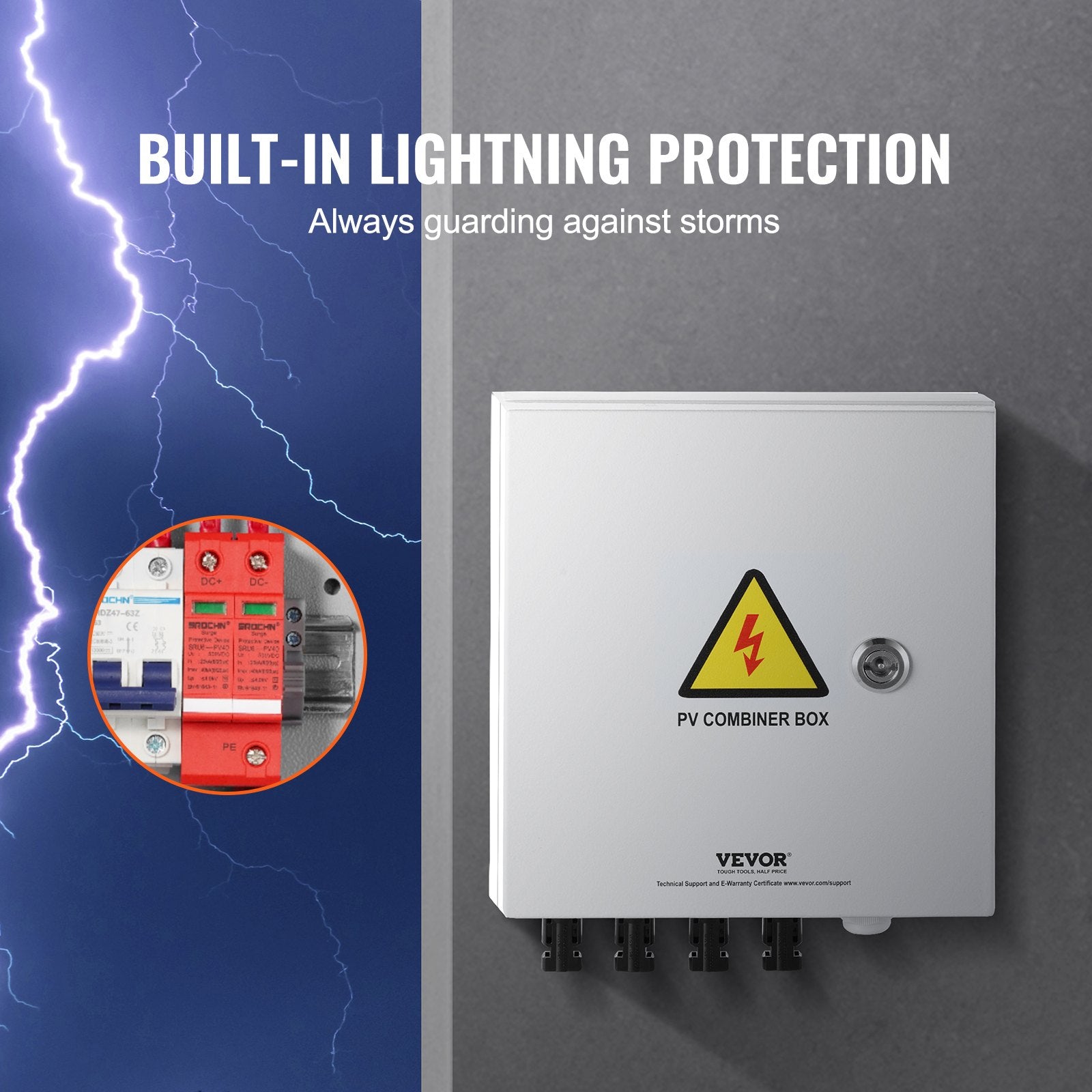

Surge Protection: Comes equipped with a 40KA 2P DC500V surge protector to safeguard your solar system from electrical surges.

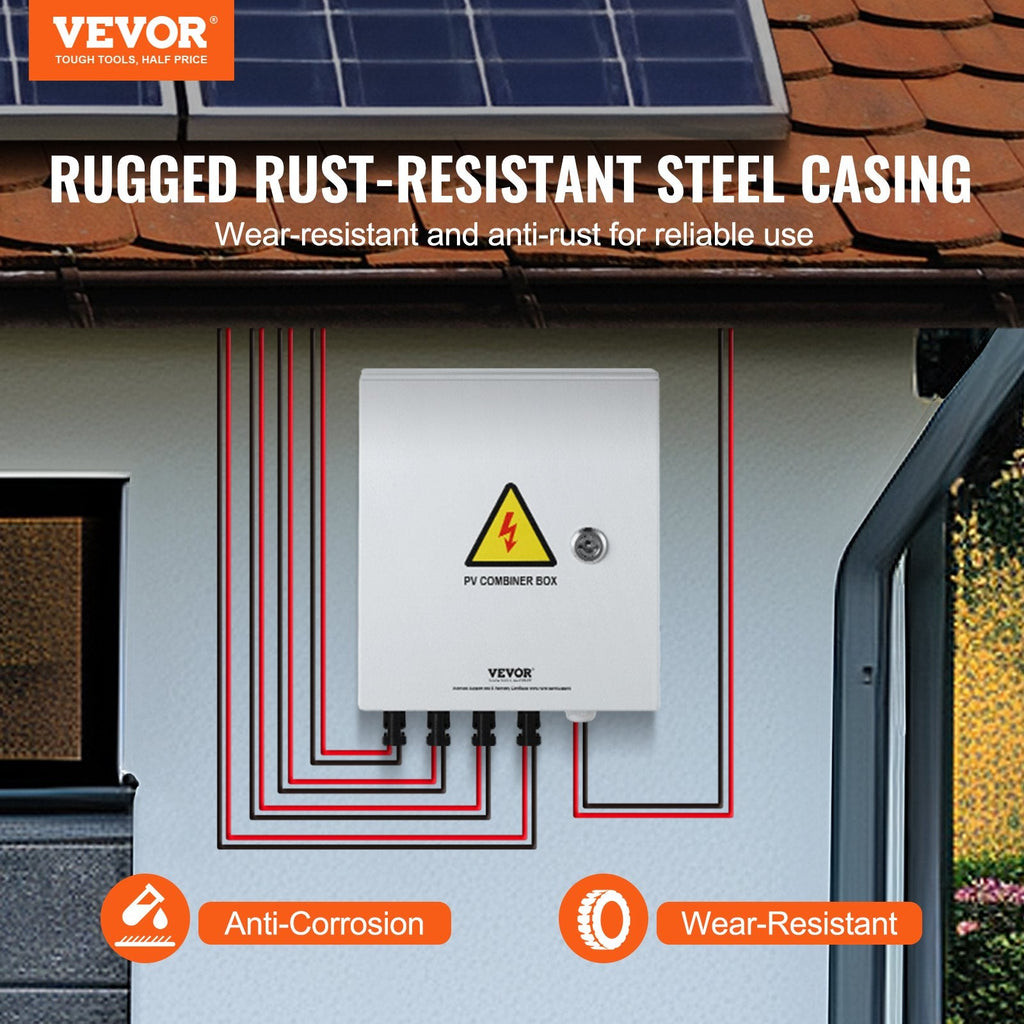

Heavy Duty Steel Case: Constructed with 0.8mm cold-rolled steel, featuring a RAL7035 grey-white powder-coated finish for enhanced durability.

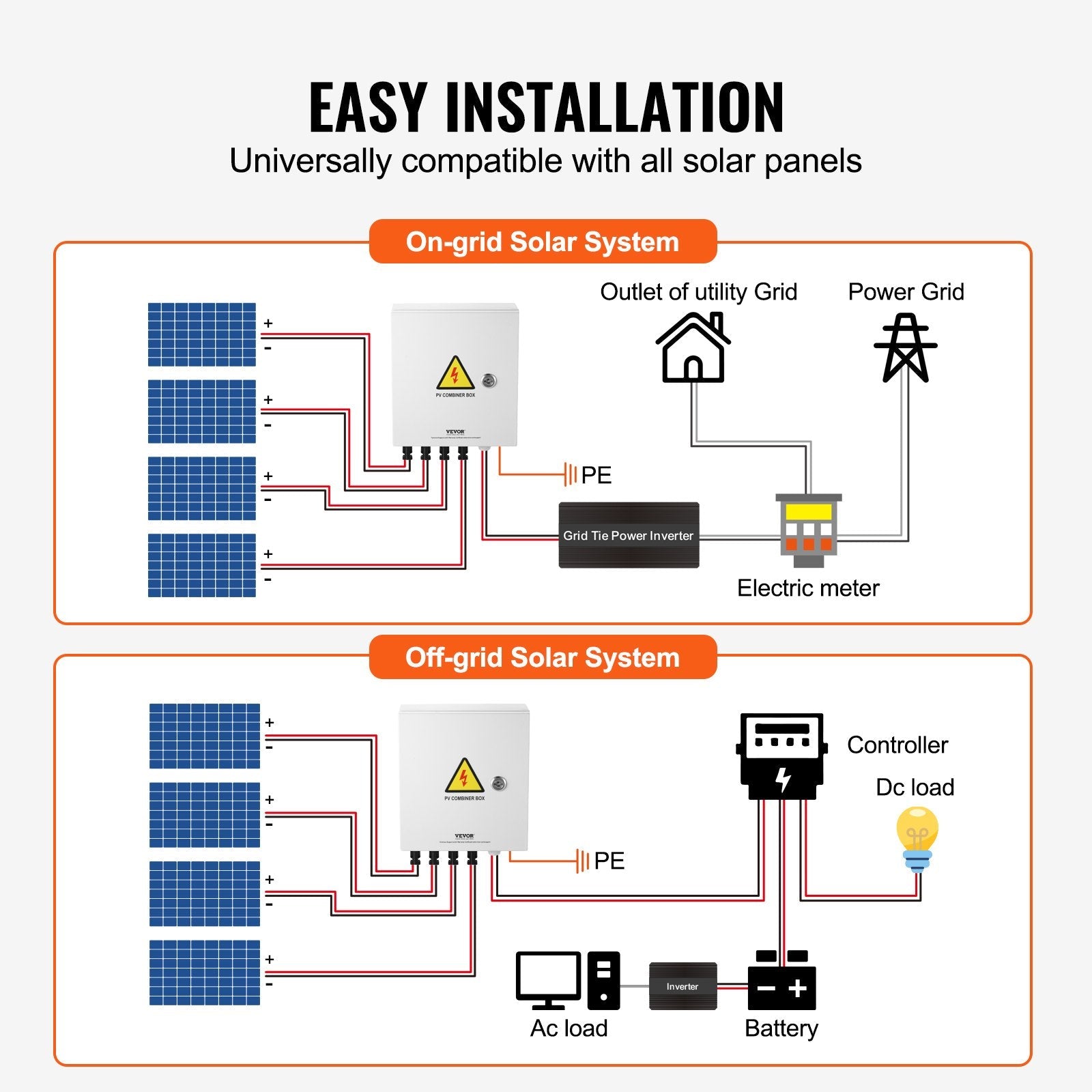

Easy Installation: Includes a detachable mounting plate for effortless installation in various solar panel setups.

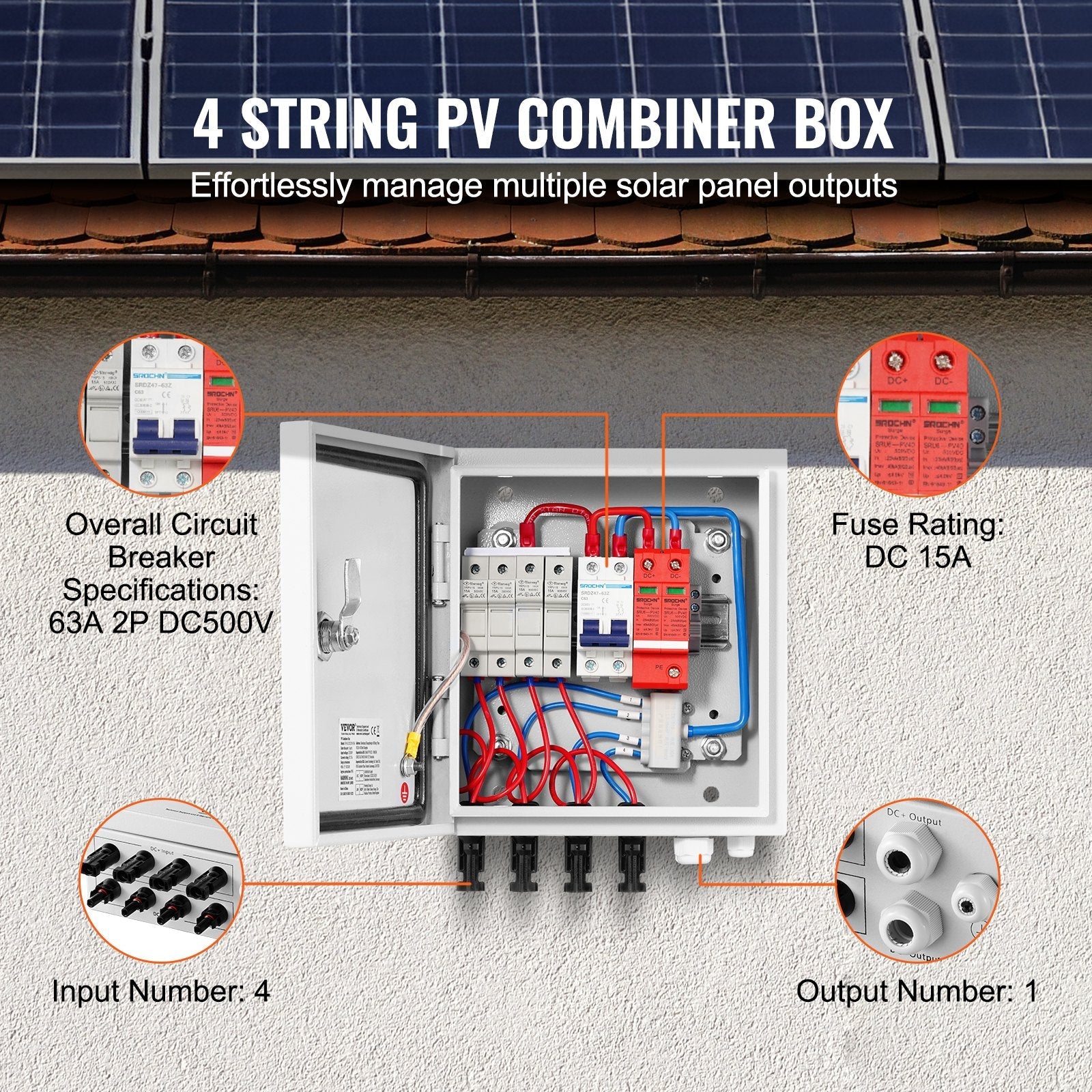

Multiple Inputs & Outputs: 4 input ports and 1 output port for optimal energy distribution, making it a versatile addition to your system.

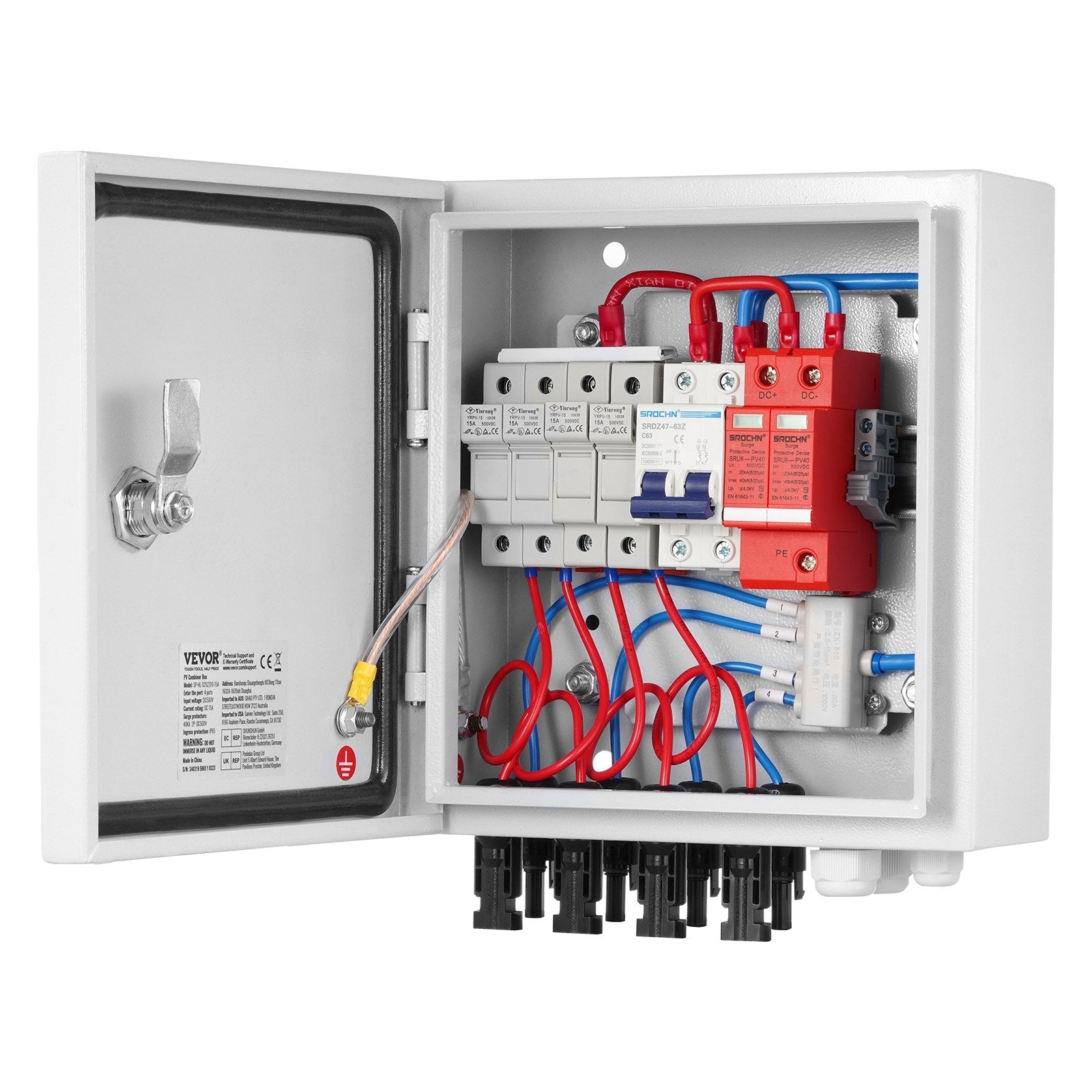

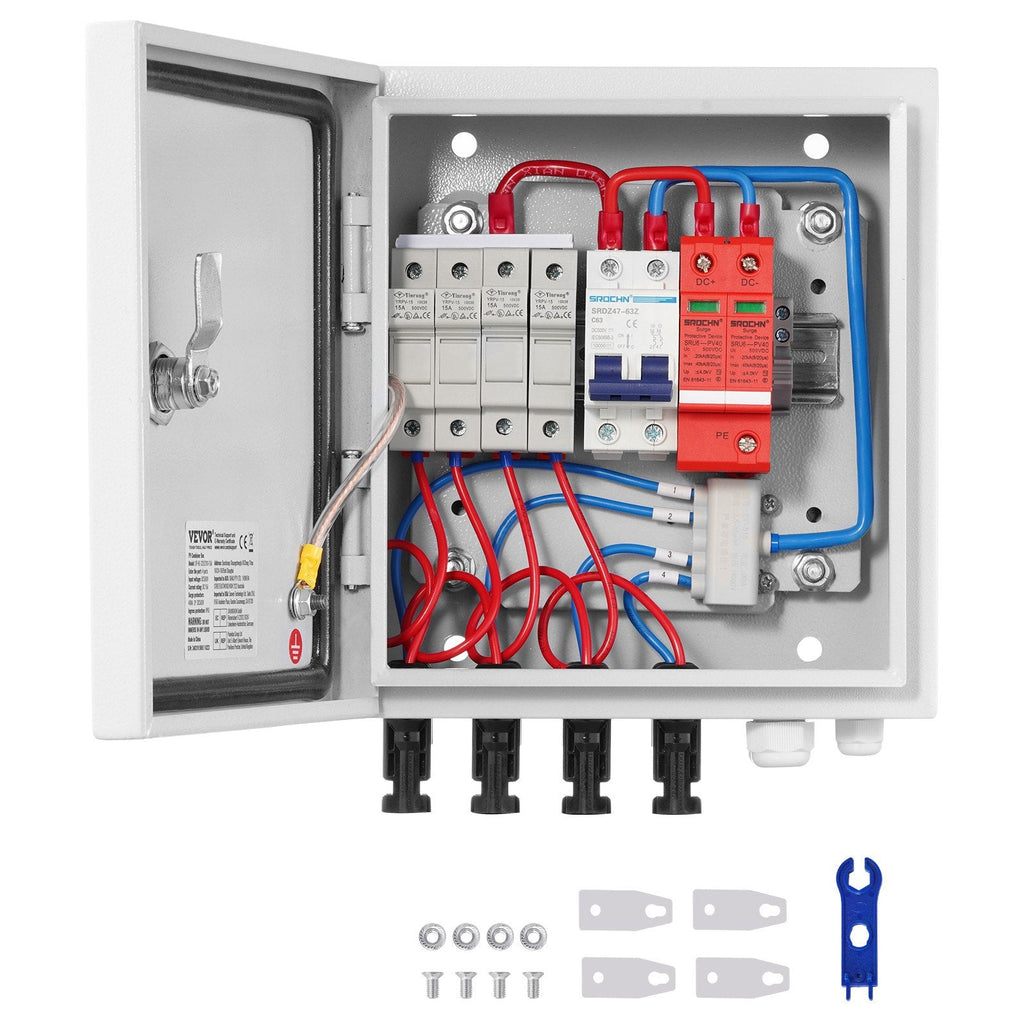

Efficient Circuit Protection: Equipped with a 63A 2P DC500V main circuit breaker and DC 15A/500V fuse holder for superior circuit protection.
Convenient Design: The rotary lock opening method ensures secure access while offering simple operation for routine maintenance.

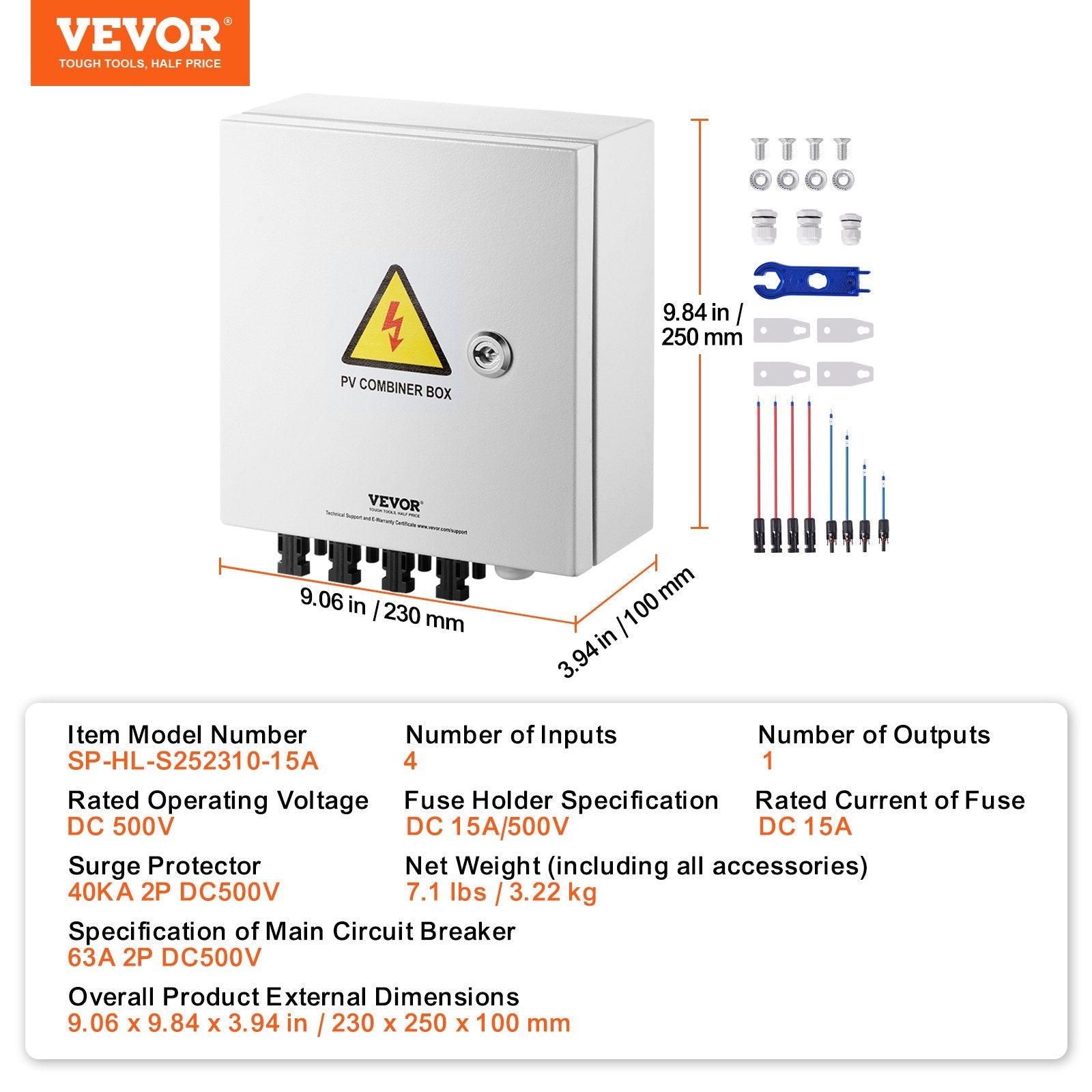

Specifications
Item Model Number: SP-HL-S252310-15A
Product Dimensions (L x W x H): 9.06 x 9.84 x 3.94 in / 230 x 250 x 100 mm
Rated Operating Voltage: DC 500V
Rated Current of Fuse: DC 15A
Rated Current of Main Circuit Breaker: 63A 2P DC500V
Protection Rating: IP65
Net Weight (including all accessories): 7.1 lbs / 3.22 kg
Material: 0.8 mm Cold Rolled Steel + RAL7035 Grey-White Coating
Door Opening Method: Rotary Lock Opening
Number of Inputs: 4
Number of Outputs: 1
Fuse Holder Specification: DC 15A/500V
Surge Protector: 40KA 2P DC500V
Sealing Strip: PU Polyurethane Foam Material (Black)
