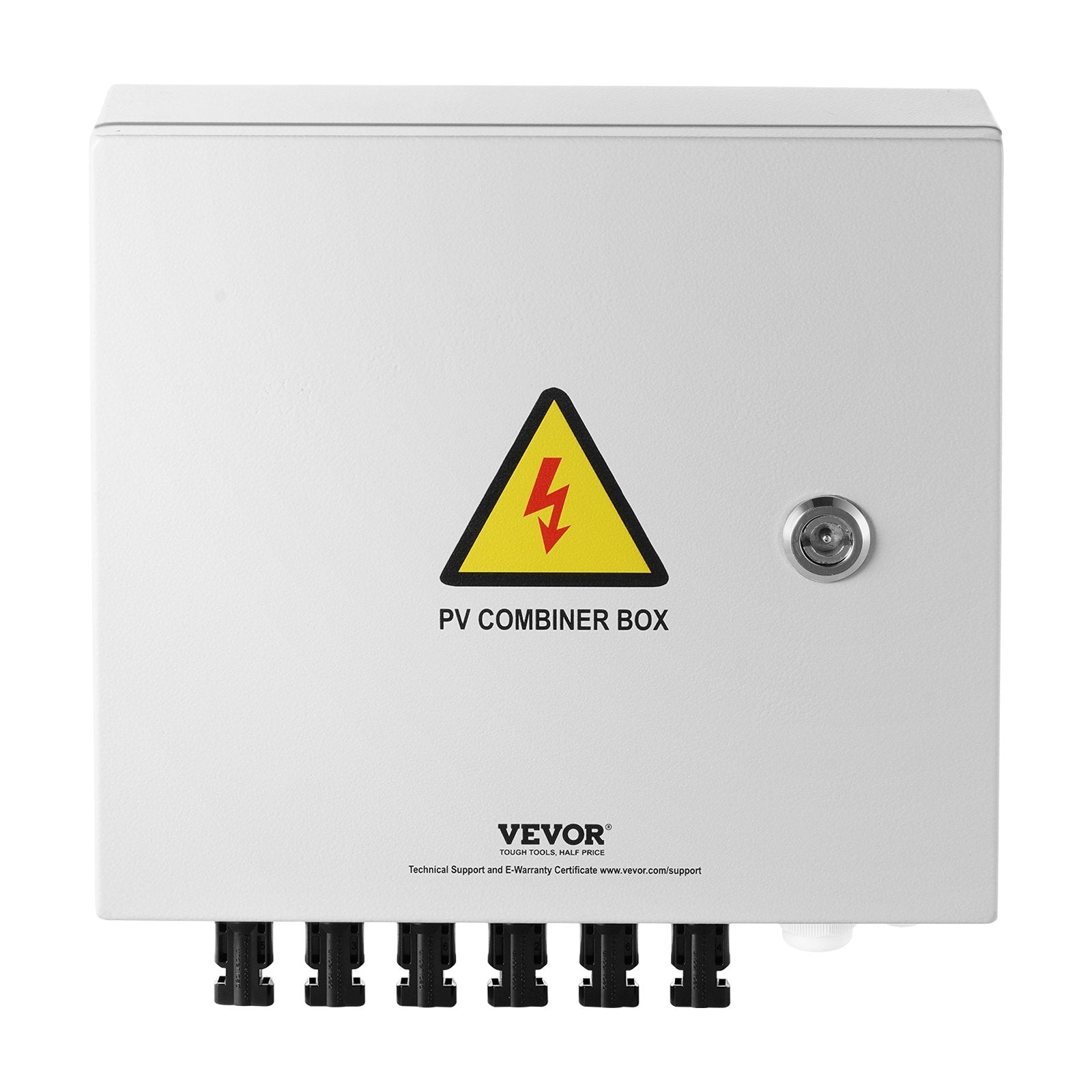

VEVOR Solar PV Combiner Box 6 String 10A for Solar Panel System Steel Case IP65
VEVOR Solar PV Combiner Box 6 String 10A for Solar Panel System Steel Case IP65
VEVOR Solar PV Combiner Box 6 String 10A for Solar Panel System Steel Case IP65
VEVOR Solar PV Combiner Box 6 String 10A for Solar Panel System Steel Case IP65
VEVOR Solar PV Combiner Box 6 String 10A for Solar Panel System Steel Case IP65
VEVOR Solar PV Combiner Box 6 String 10A for Solar Panel System Steel Case IP65
VEVOR Solar PV Combiner Box 6 String 10A for Solar Panel System Steel Case IP65
VEVOR Solar PV Combiner Box 6 String 10A for Solar Panel System Steel Case IP65
VEVOR Solar PV Combiner Box 6 String 10A for Solar Panel System Steel Case IP65
VEVOR Solar PV Combiner Box 6 String 10A for Solar Panel System Steel Case IP65
VEVOR Solar PV Combiner Box 6 String 10A for Solar Panel System Steel Case IP65
VEVOR Solar PV Combiner Box 6 String 10A for Solar Panel System Steel Case IP65

VEVOR Solar PV Combiner Box 6 String 10A for Solar Panel System Steel Case IP65

Regular price $150.52
/

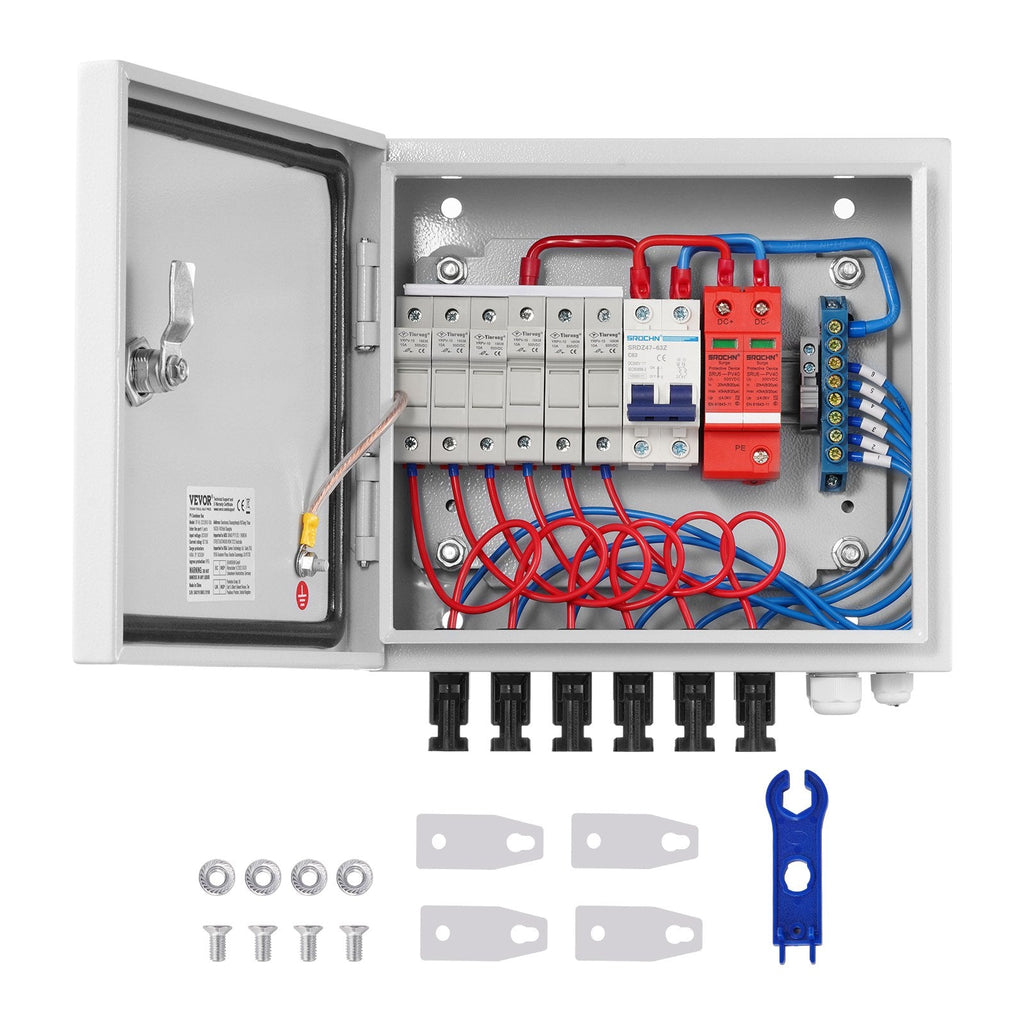

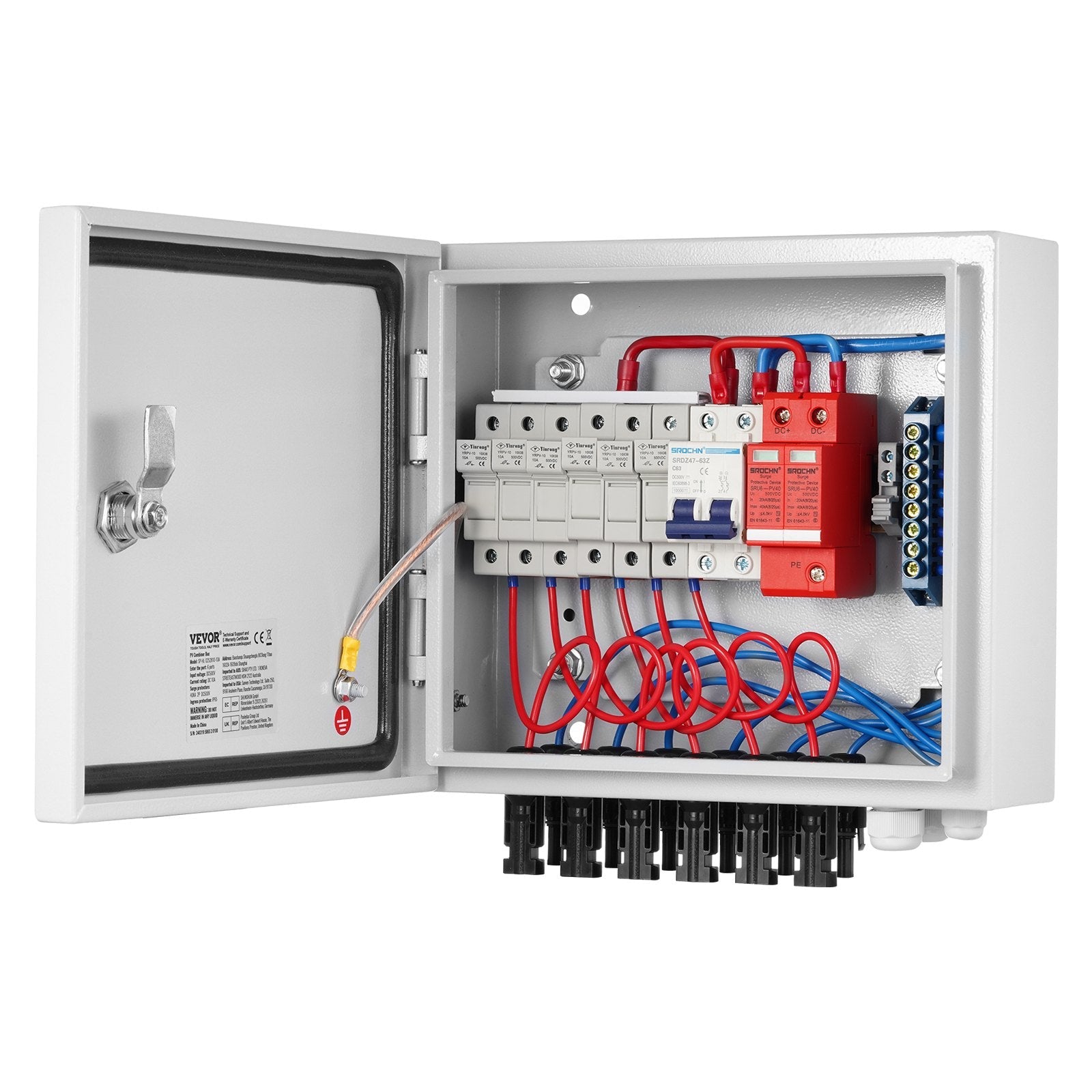

Enhance the safety and efficiency of your solar panel setup with the VEVOR 6-String Solar PV Combiner Box. Designed with robust protection features, this professional-grade unit combines up to six PV strings into one output, simplifying your solar system wiring. Built from durable 0.8 mm cold-rolled steel with an IP65 waterproof rating, this combiner box provides reliable performance in both residential and commercial applications. Featuring a surge protector, main circuit breaker, fuse holders, and rotary lock access, it offers multiple layers of safety and seamless maintenance.

Features

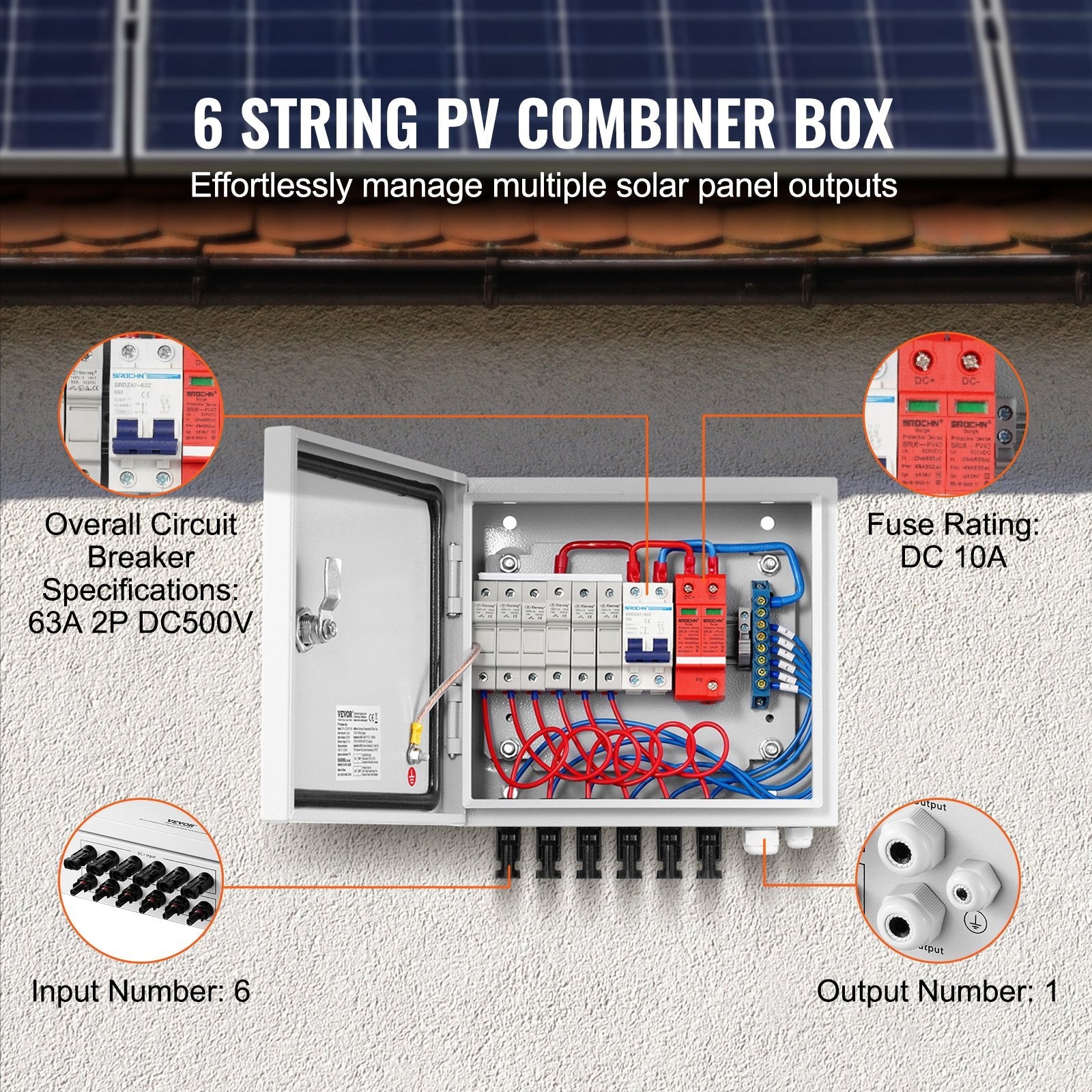

  • 6-String Combiner Capability: Connect up to 6 solar panel strings into a single DC output.

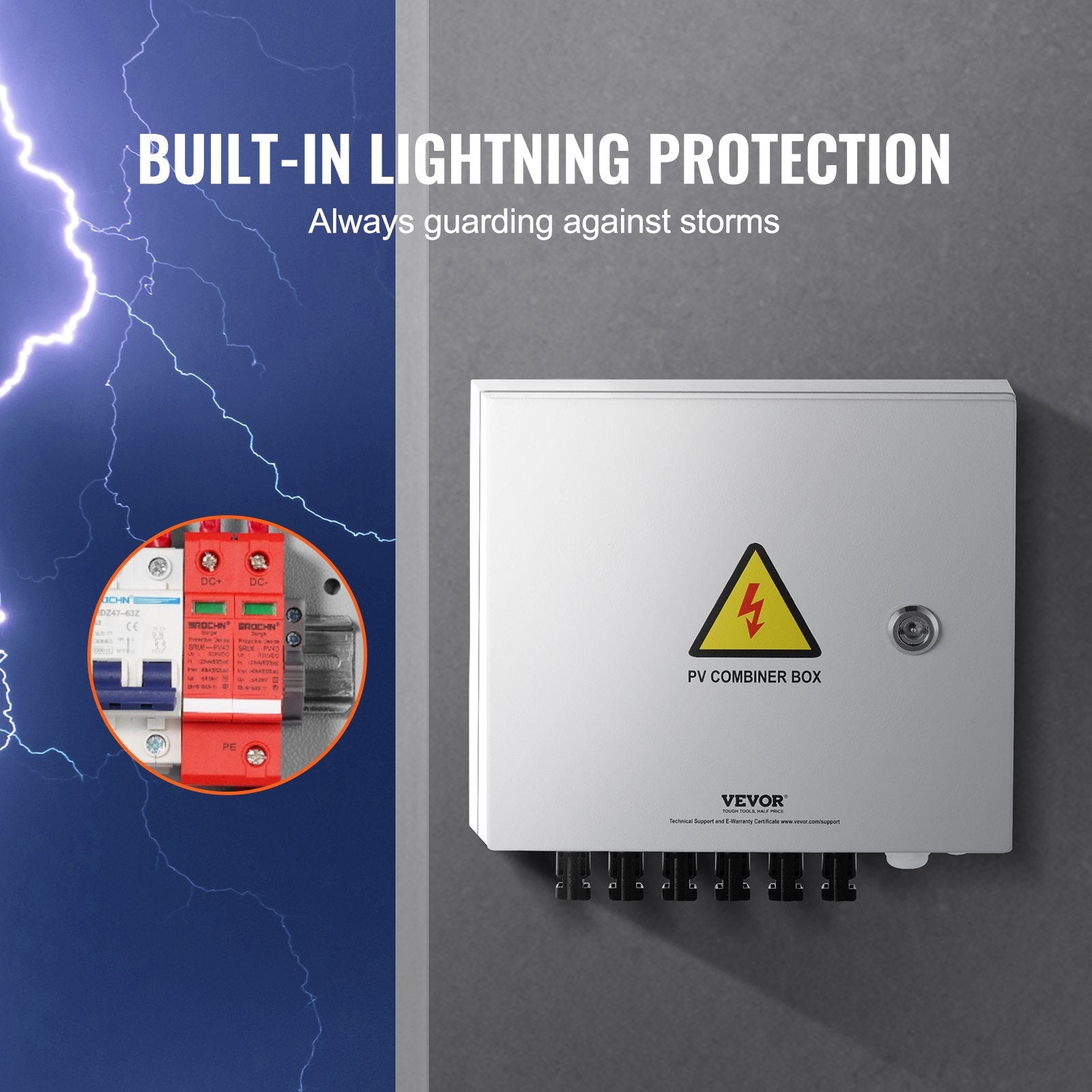

  • Enhanced Safety: Includes a 63A 2P DC500V main breaker, 40KA surge protector, and 10A DC fuses for comprehensive circuit protection.

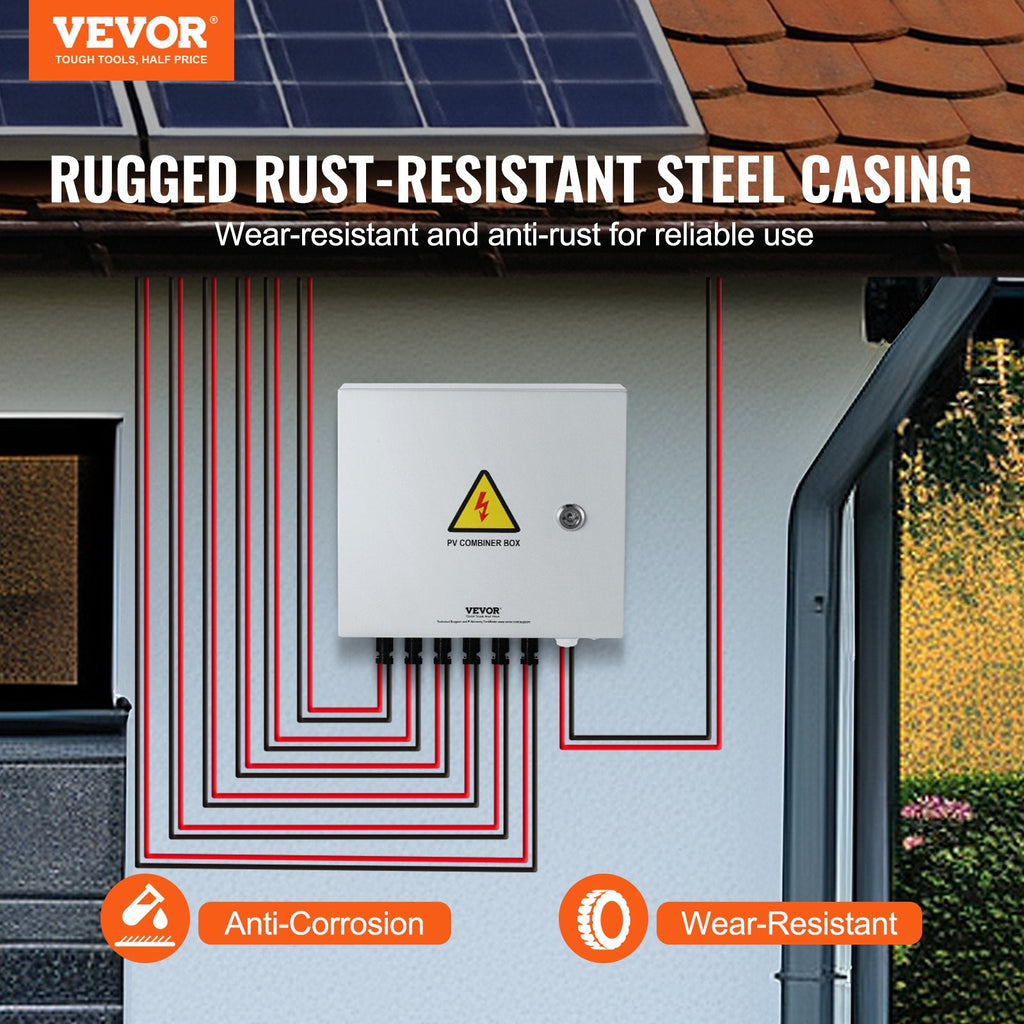

  • Durable Construction: Made with 0.8 mm cold-rolled steel and finished in RAL7035 grey-white coating for corrosion resistance.

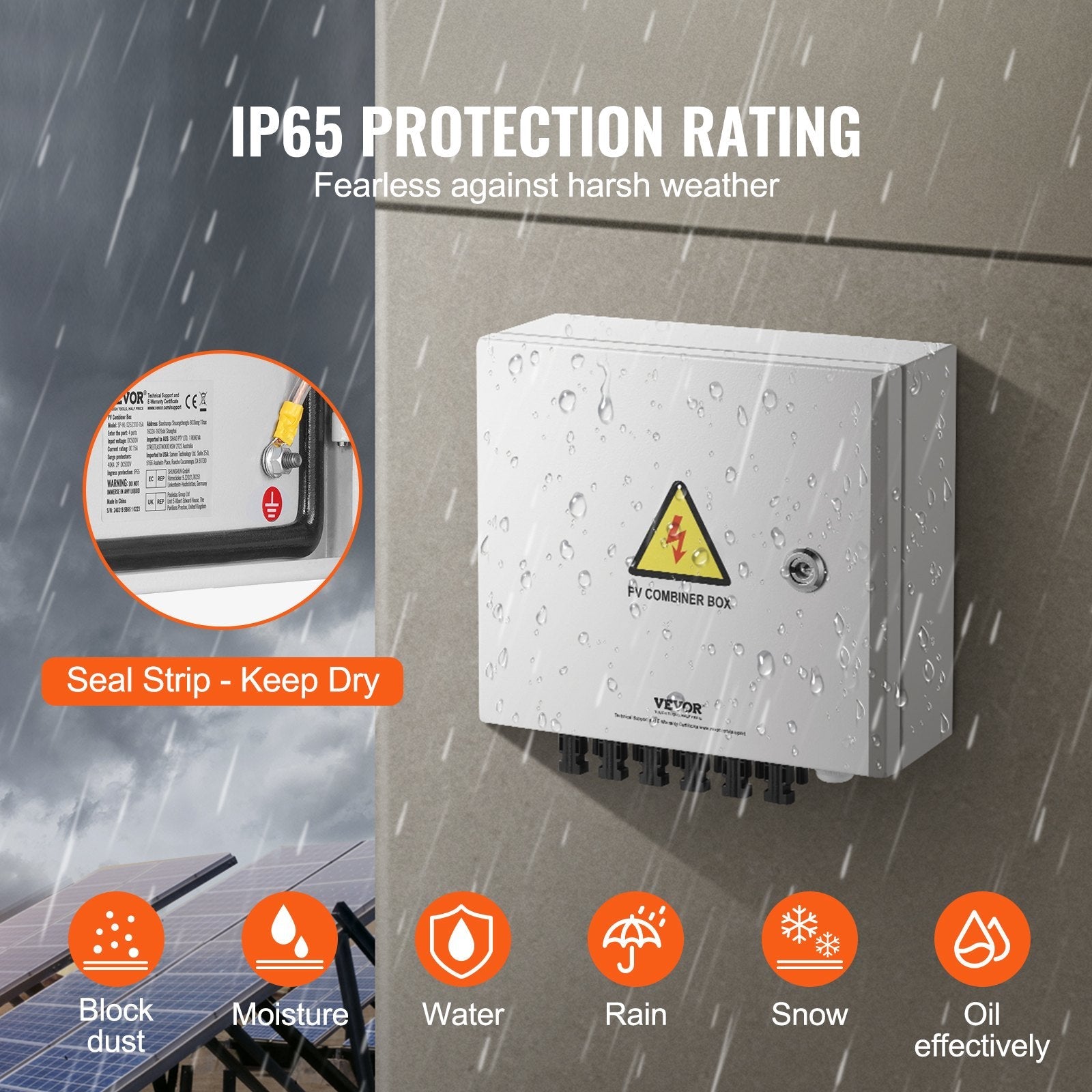

  • IP65 Waterproof Rating: Designed for outdoor use, offering excellent protection against dust and water ingress.

  • Rotary Lock & PU Sealing Strip: Ensures secure closure and superior environmental sealing.

  • Effortless Setup: Features a detachable powder-coated mounting plate for easy wall or surface installation.

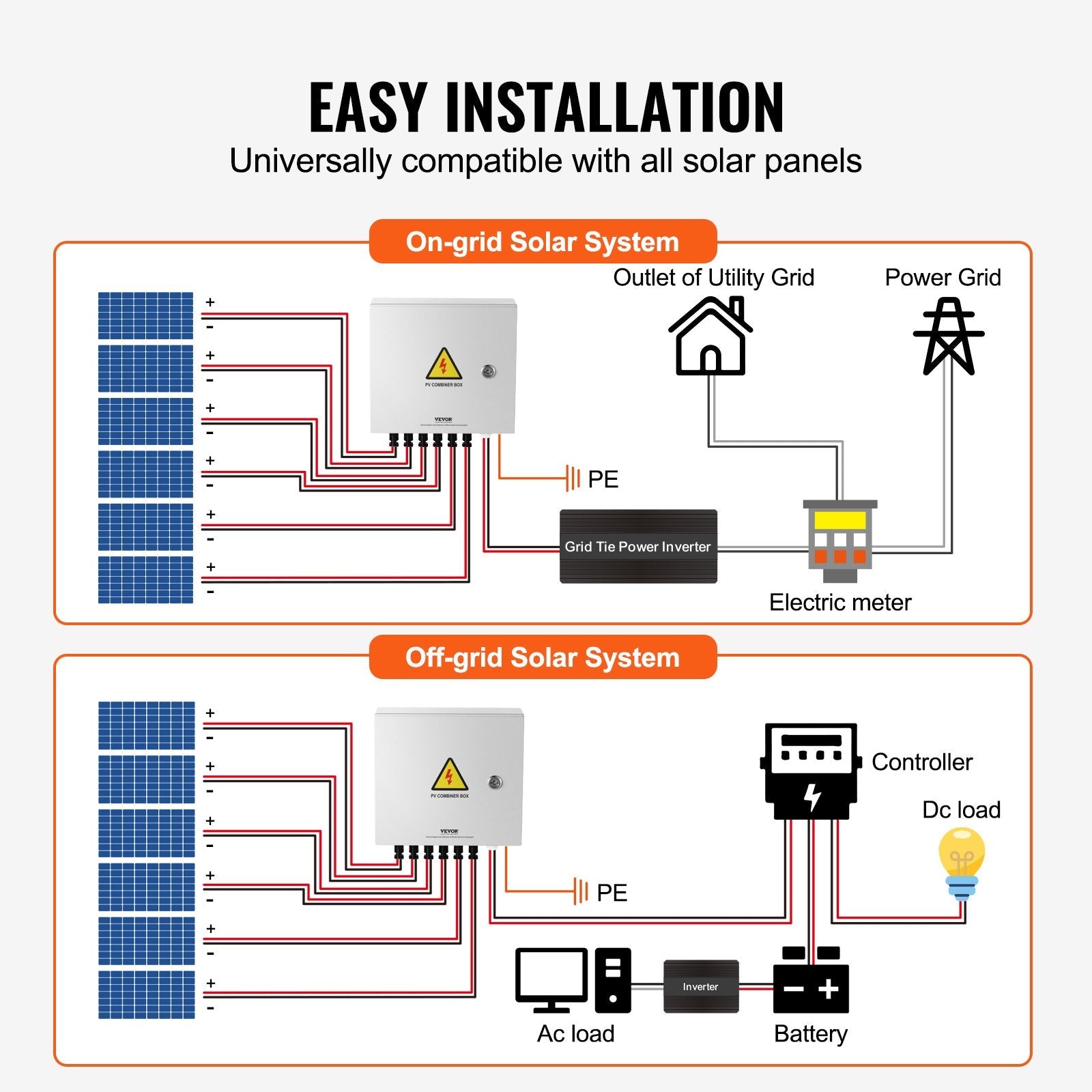

  • Wide Application: Suitable for residential rooftops, commercial systems, and off-grid solar installations.

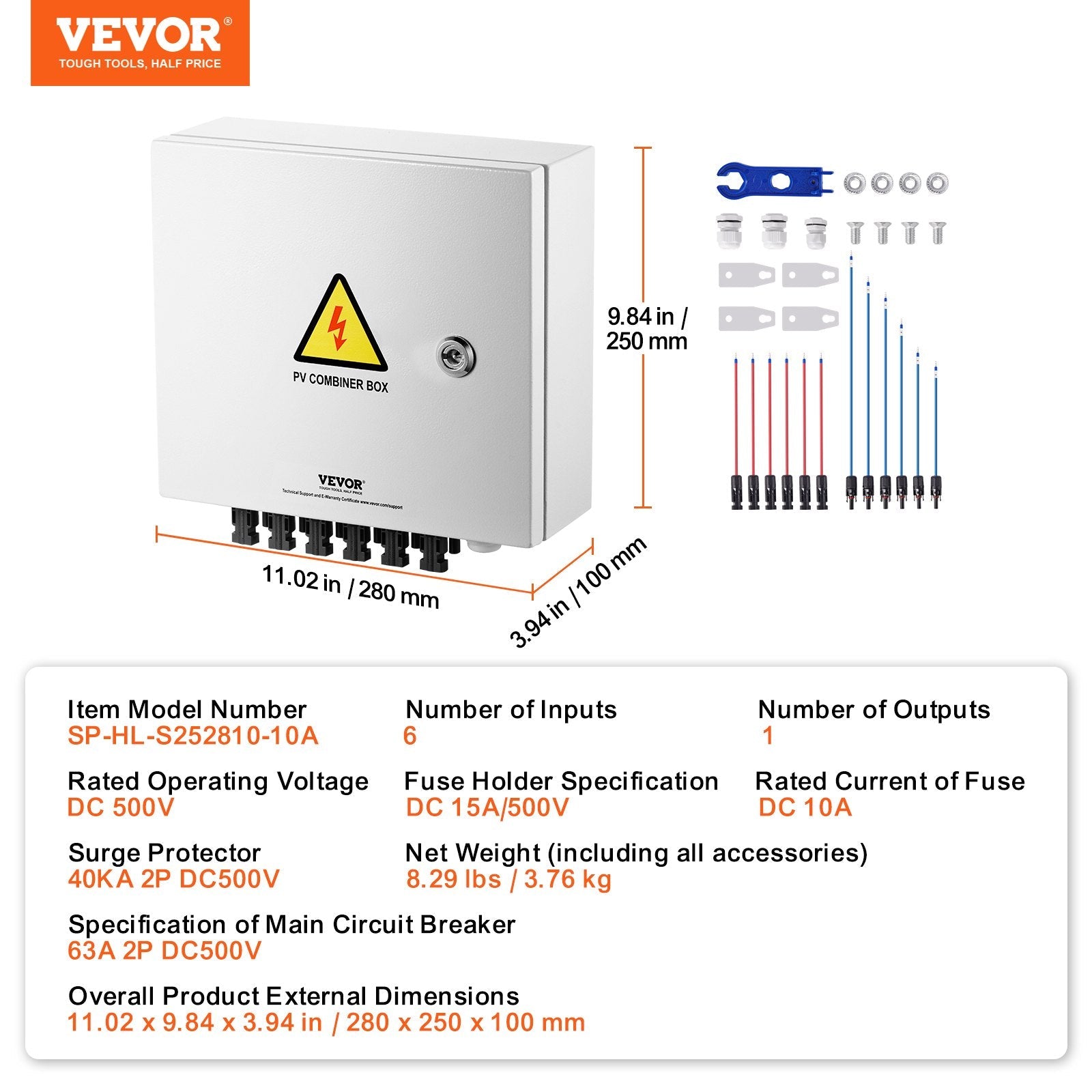

Specifications

  • Model Number: SP-HL-S252810-10A

  • Number of Inputs: 6

  • Number of Outputs: 1

  • Rated Voltage: DC 500V

  • Rated Fuse Current: DC 10A

  • Main Circuit Breaker: 63A 2P DC500V

  • Surge Protector: 40KA 2P DC500V

  • Fuse Holder Spec: DC 15A / 500V

  • Protection Level: IP65

  • Door Opening Method: Rotary Lock

  • Sealing Strip Material: PU Polyurethane Foam (Black)

  • Mounting Plate Material: Powder-Coated Cold-Rolled Steel

  • Main Material: Cold Rolled Steel, RAL7035 Coating

  • Net Weight: 8.29 lbs / 3.76 kg

  • Dimensions (L x W x H): 11.02 x 9.84 x 3.94 in / 280 x 250 x 100 mm
