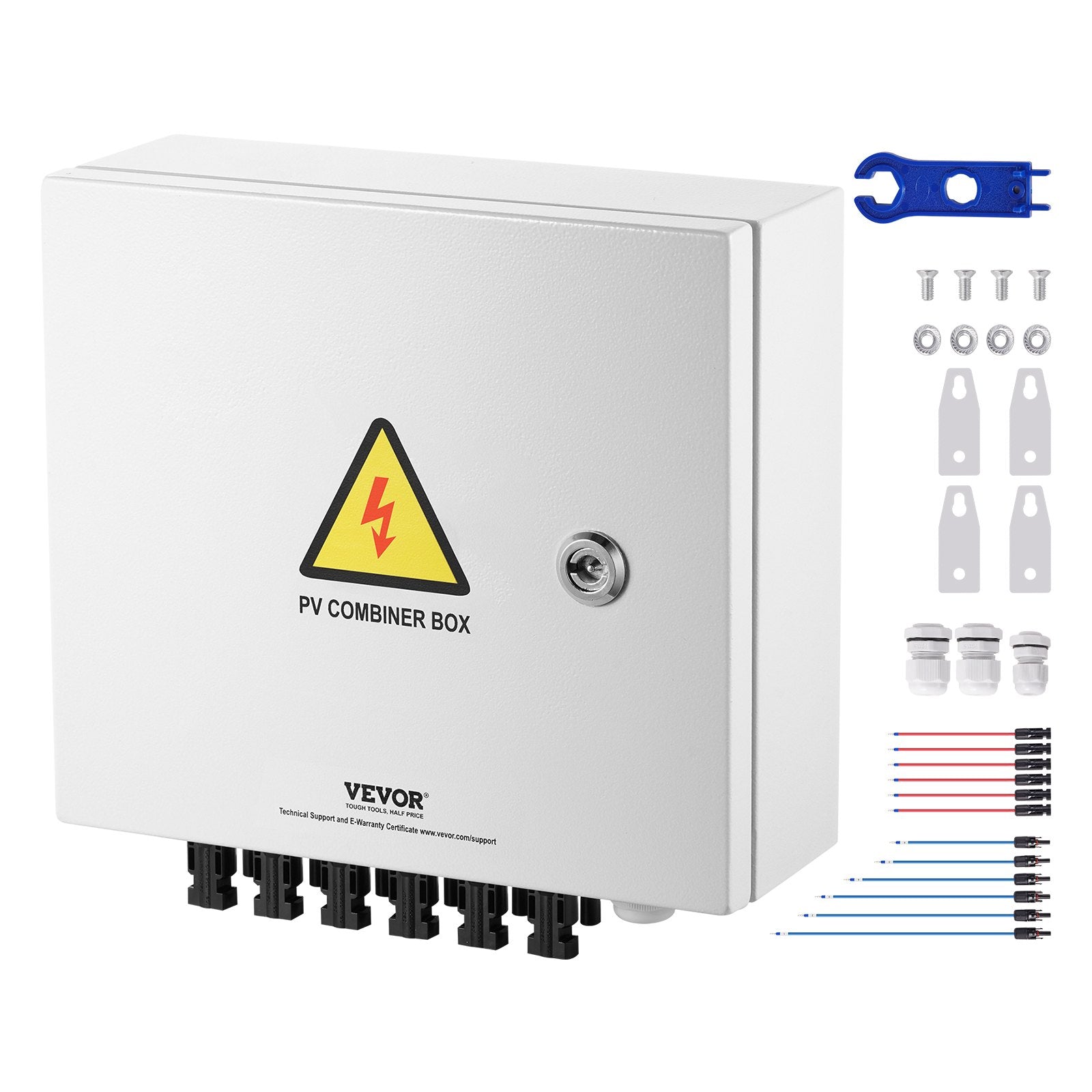

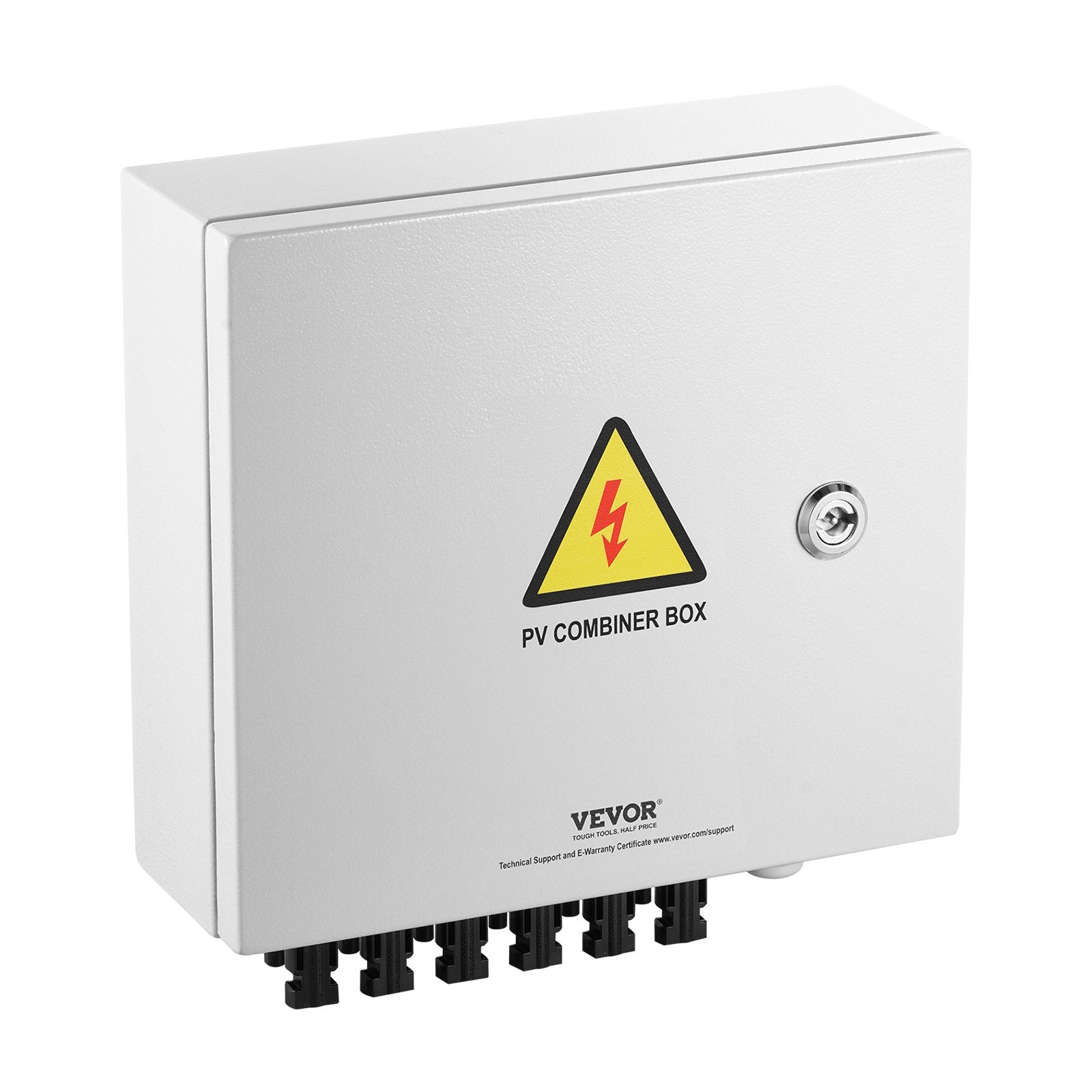

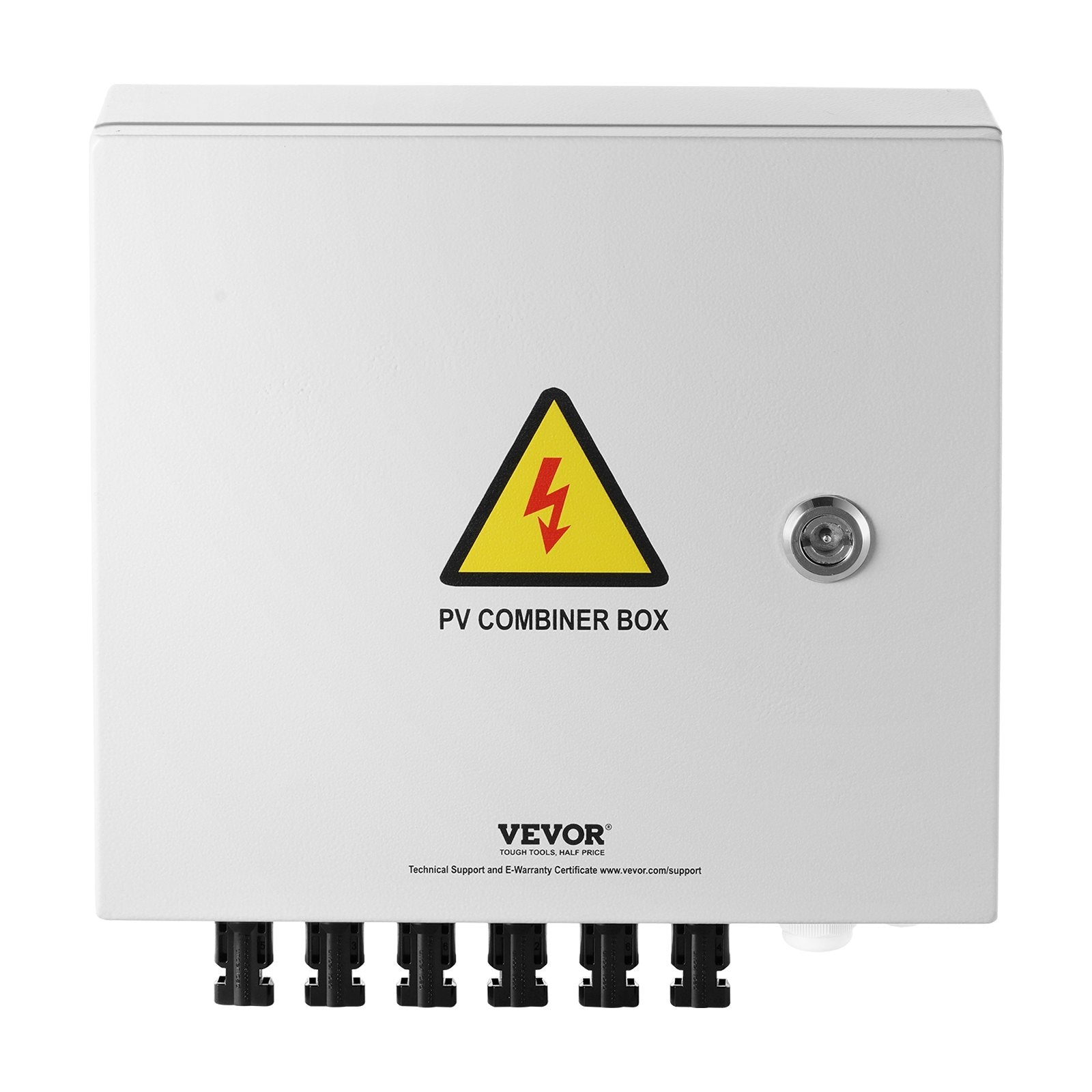

The VEVOR 6-String 15A Solar PV Combiner Box is a high-performance solution for managing and safeguarding your solar panel system. Designed for reliability and protection, this professional-grade combiner box consolidates six PV input strings into one output, streamlining your power system while ensuring optimal safety. Its heavy-duty 0.8 mm cold-rolled steel housing and IP65 rating provide superior protection against water and dust, making it ideal for both residential and commercial solar installations.
Features

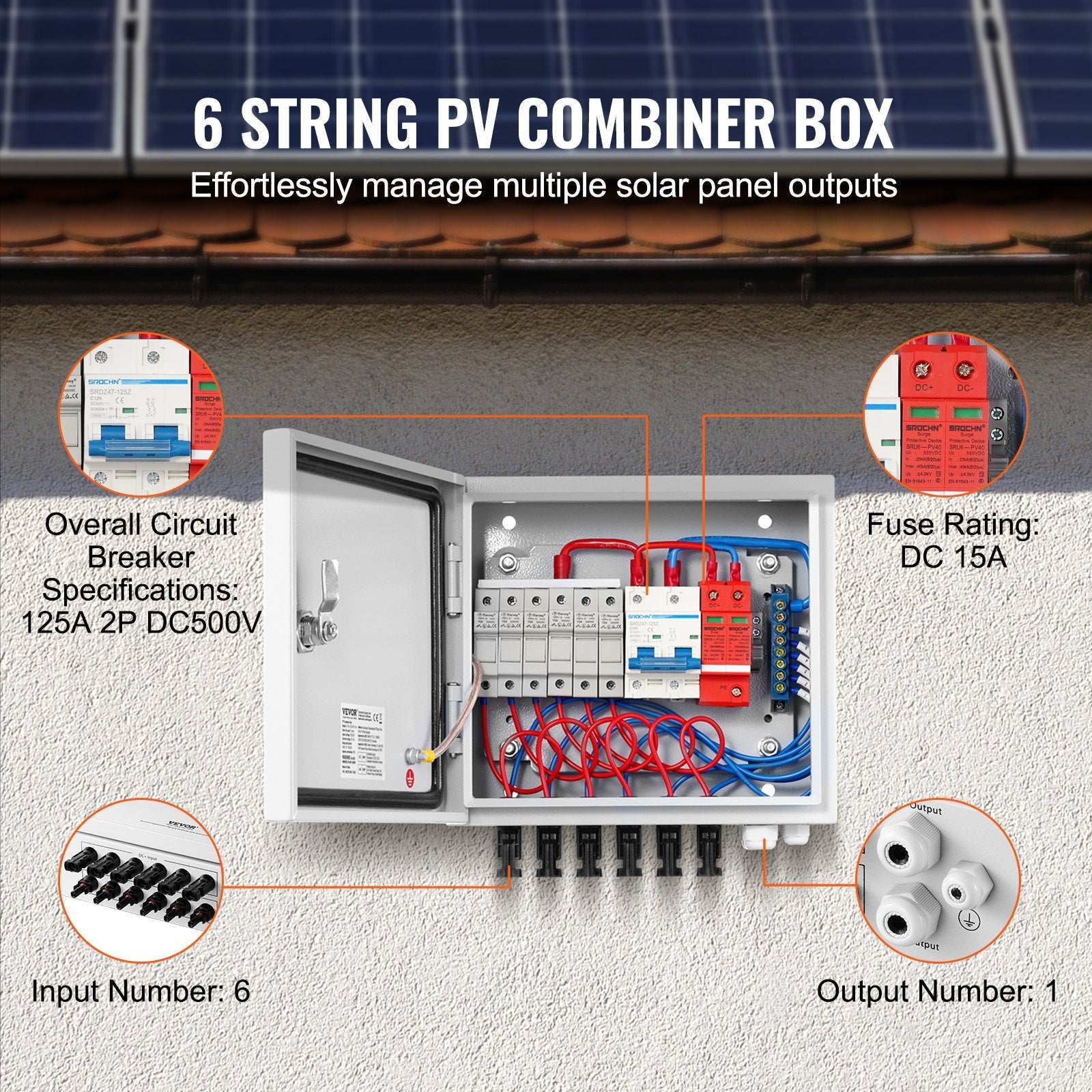

6-String Input: Accommodates up to six individual solar panel strings.

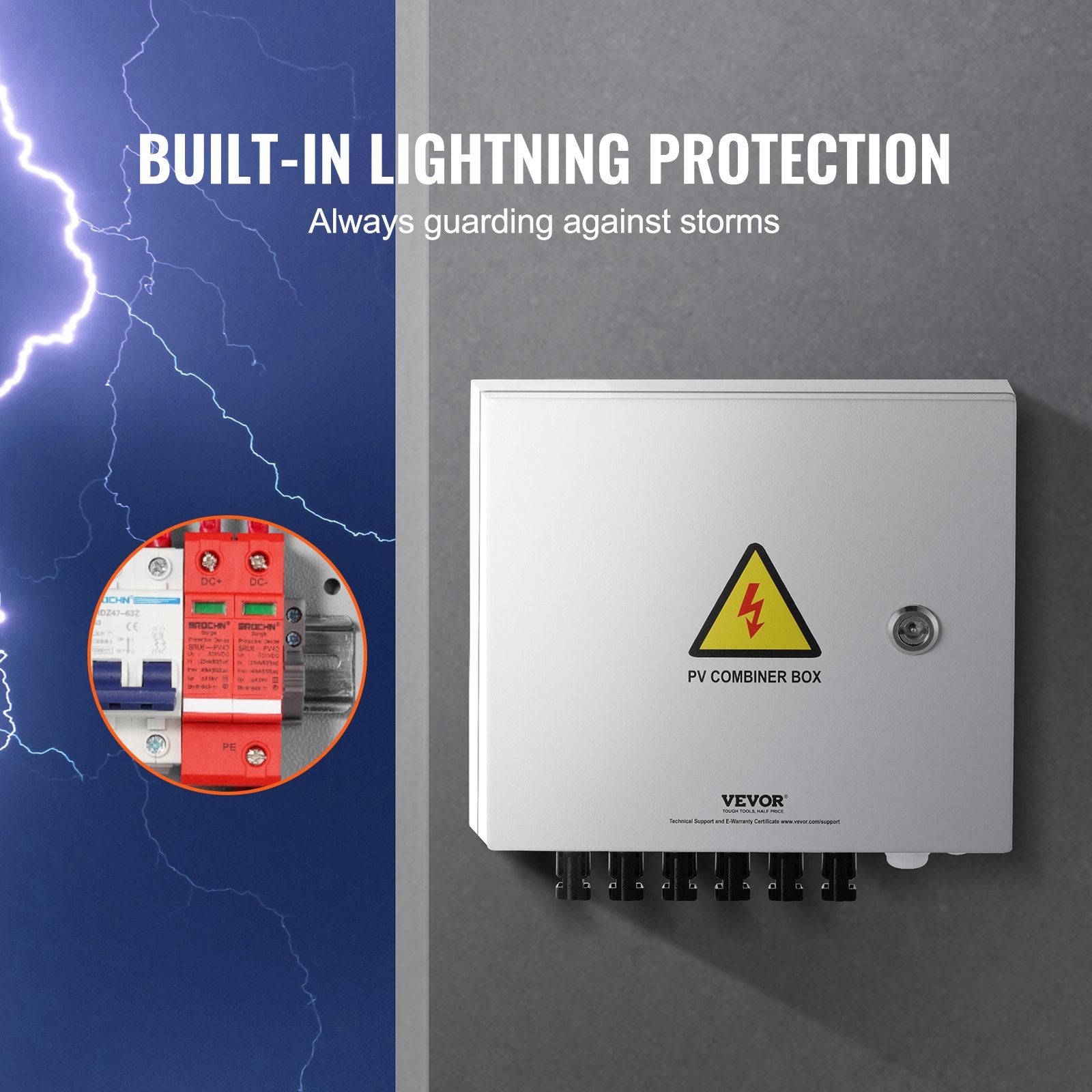

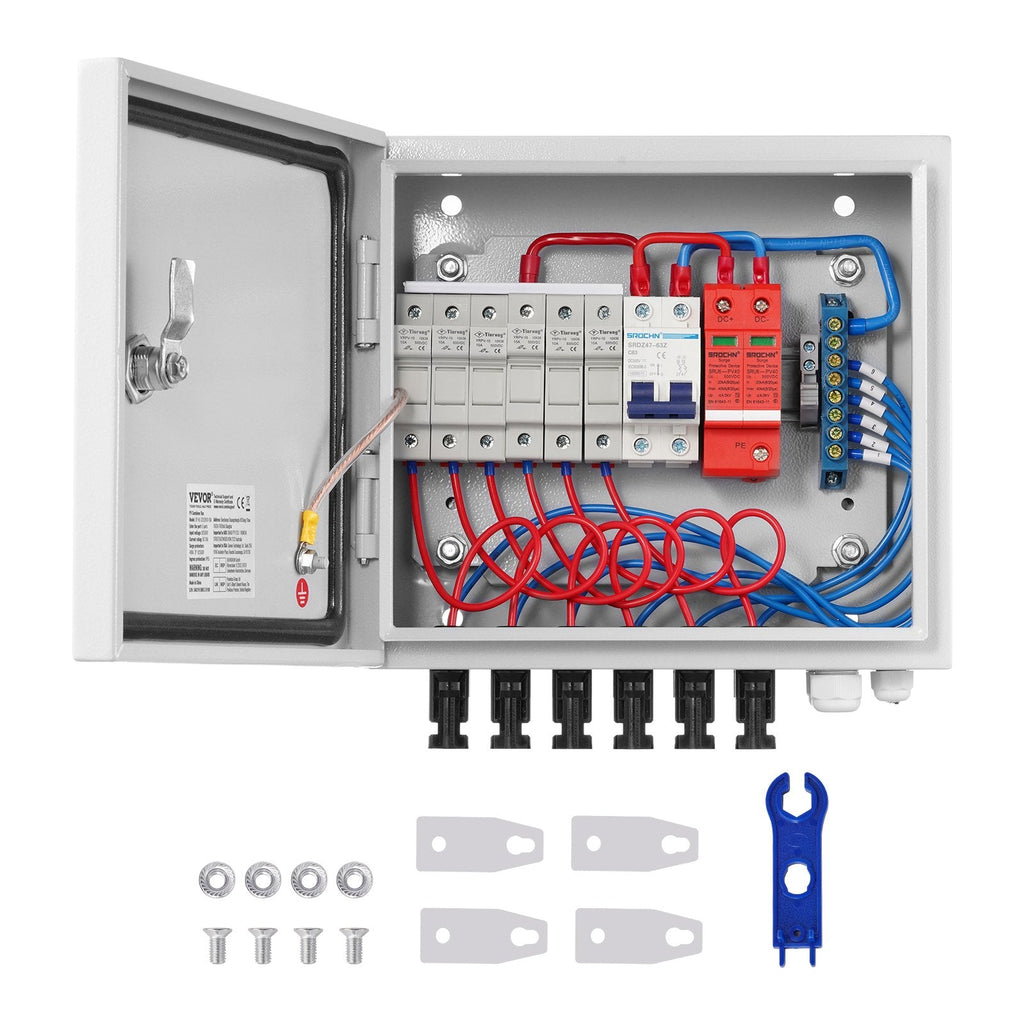

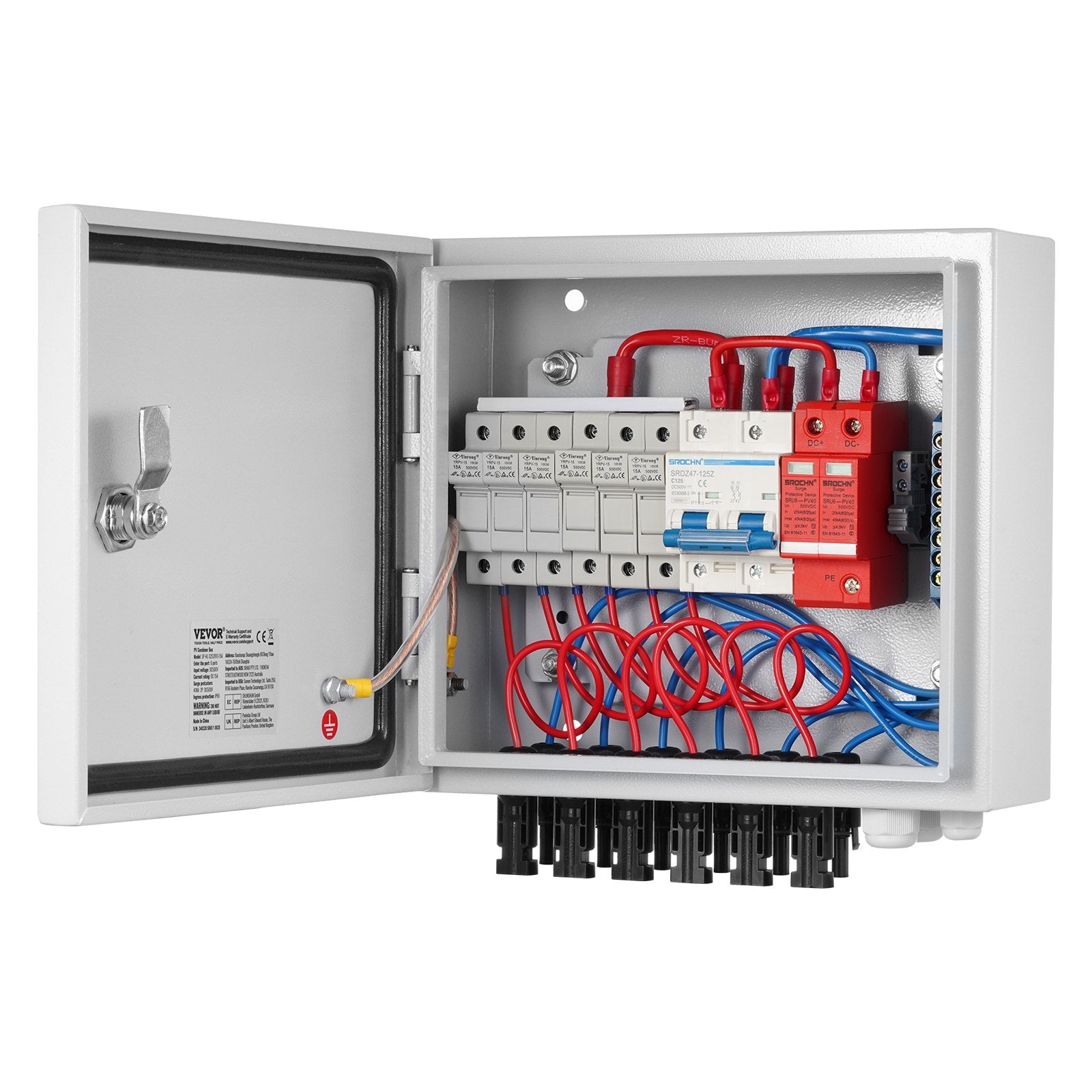

Comprehensive Protection: Equipped with a 125A 2P DC500V main circuit breaker, 40KA surge protector, and 15A DC-rated fuses for safe and efficient power management.

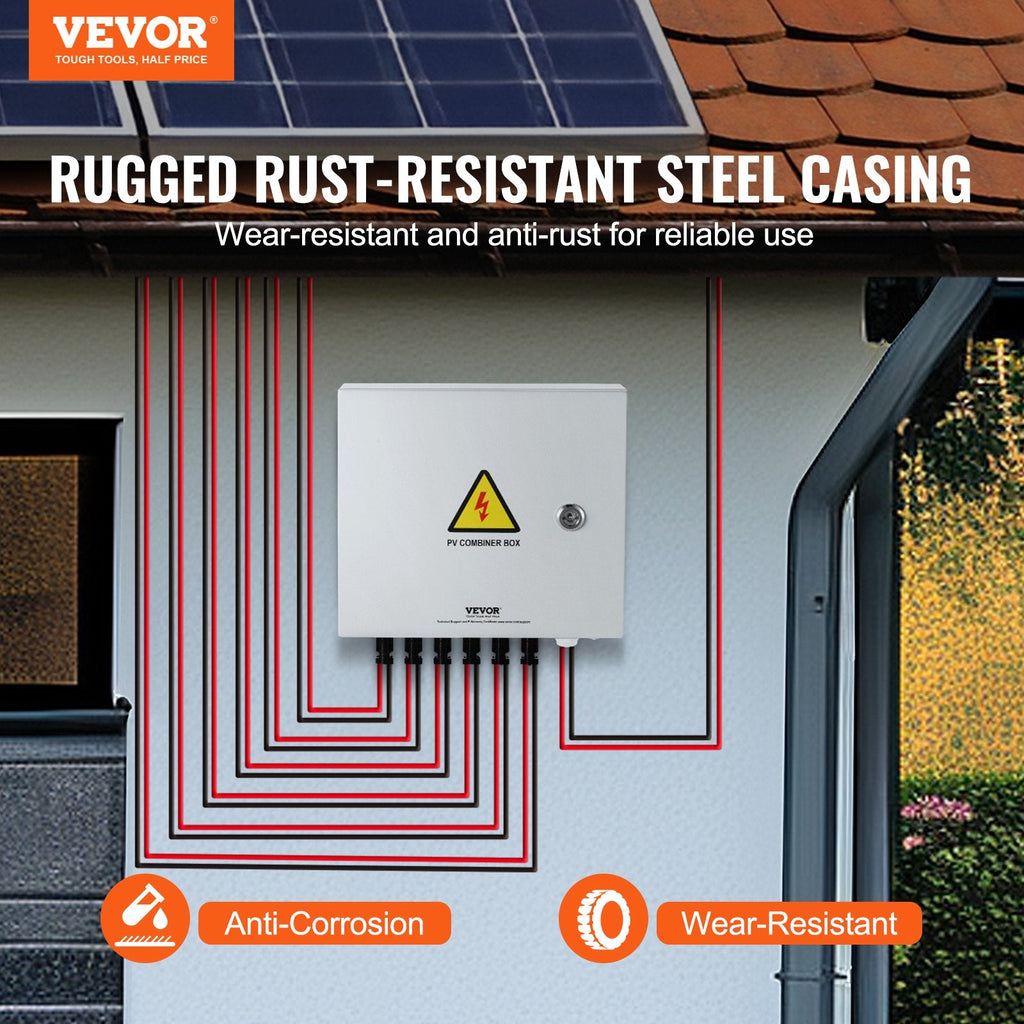

Durable Construction: Built from 0.8 mm powder-coated cold-rolled steel with a weather-resistant RAL7035 finish.

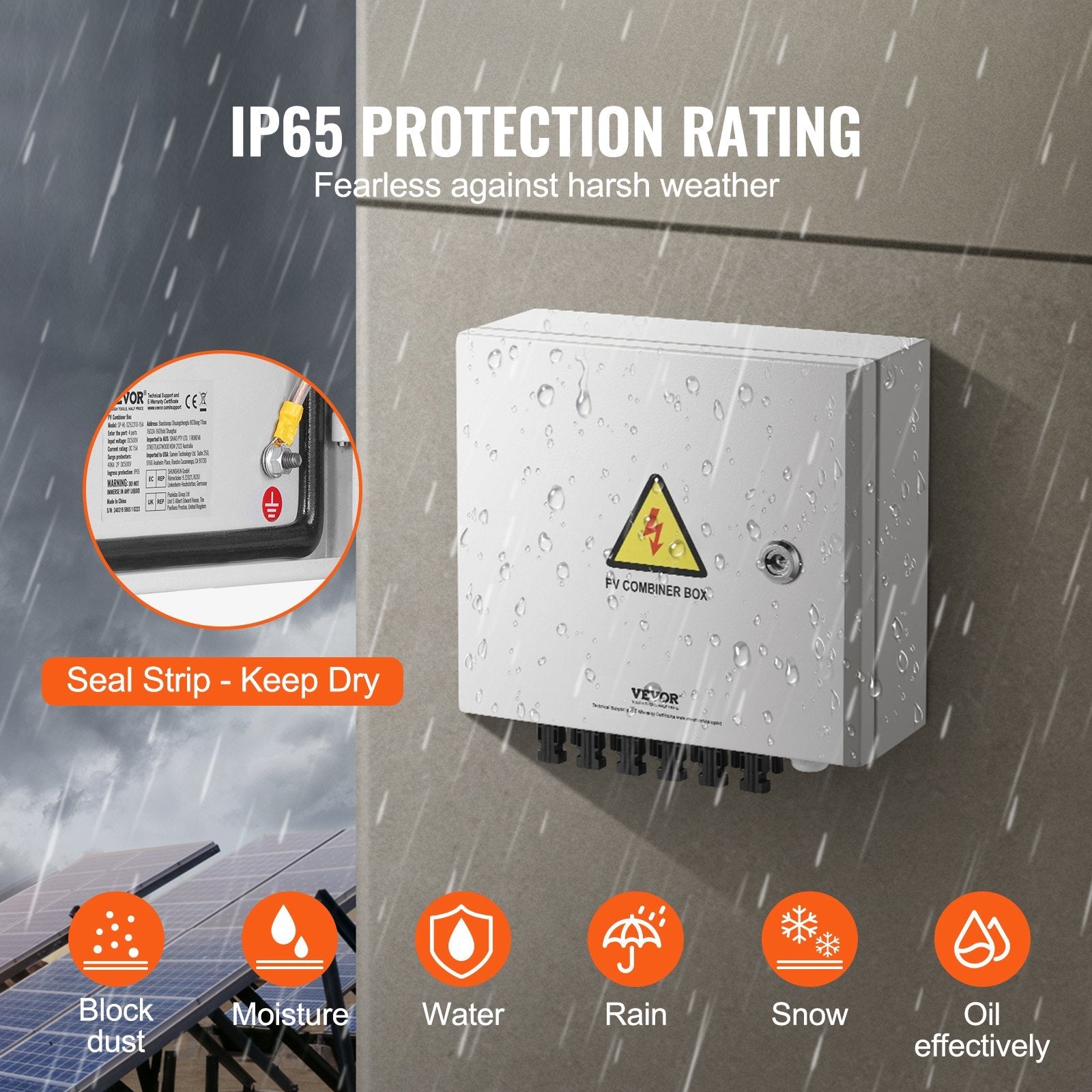

Waterproof & Dustproof: IP65-rated enclosure offers superior outdoor protection.
User-Friendly Design: Features rotary lock door and PU sealing strip for easy, secure access.
Effortless Installation: Detachable mounting plate simplifies setup on any flat surface.

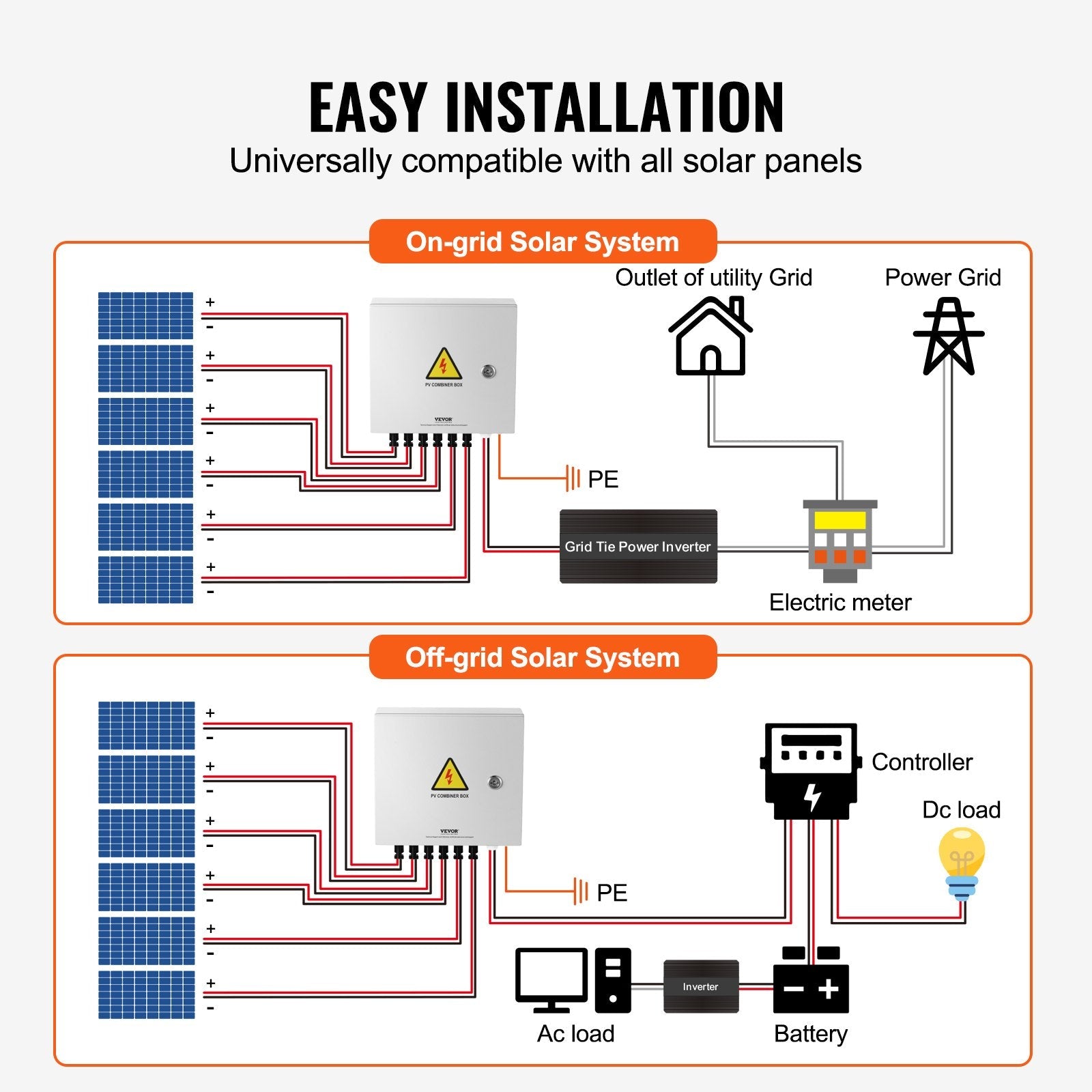

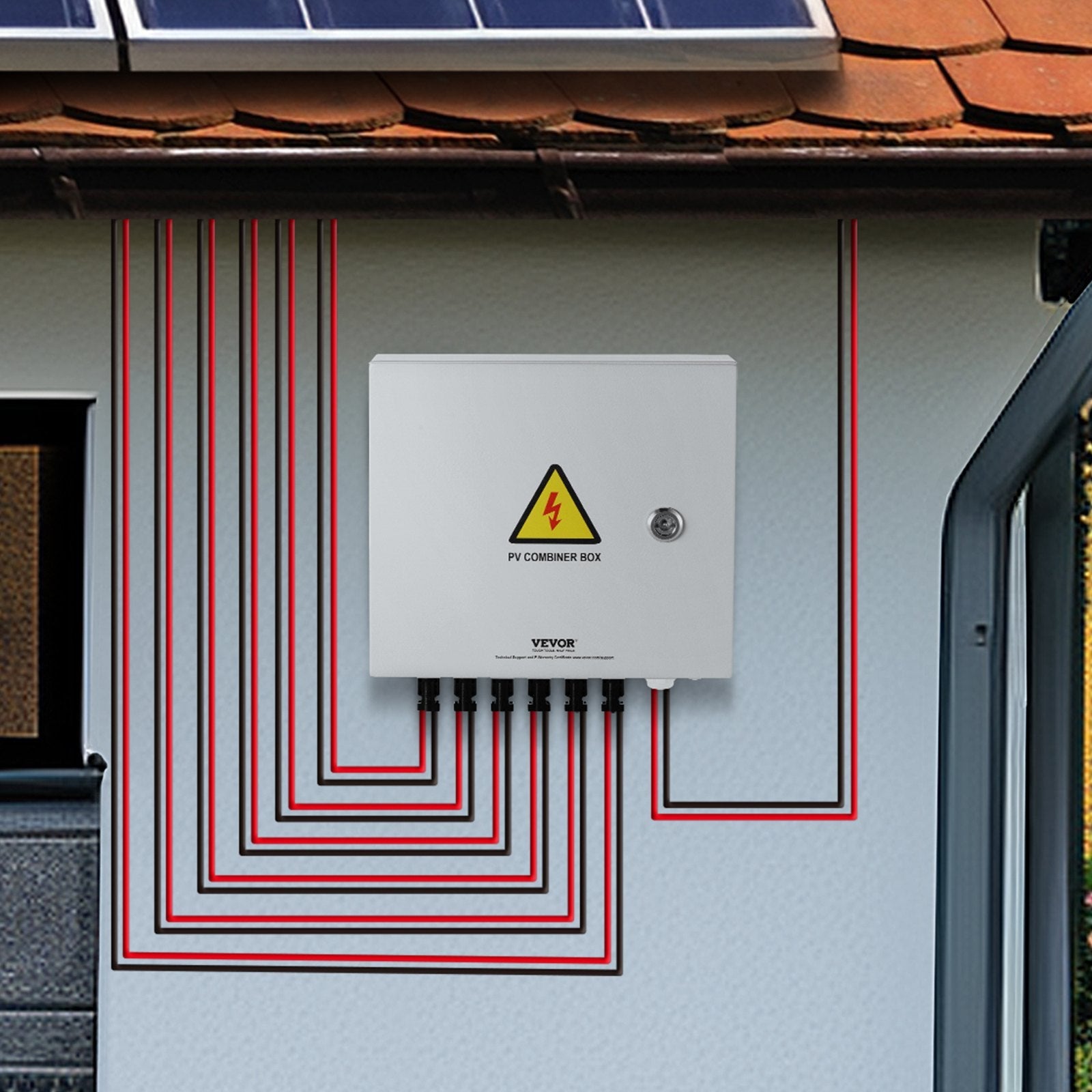

Versatile Use: Ideal for rooftop solar arrays, ground-mounted systems, and off-grid applications.

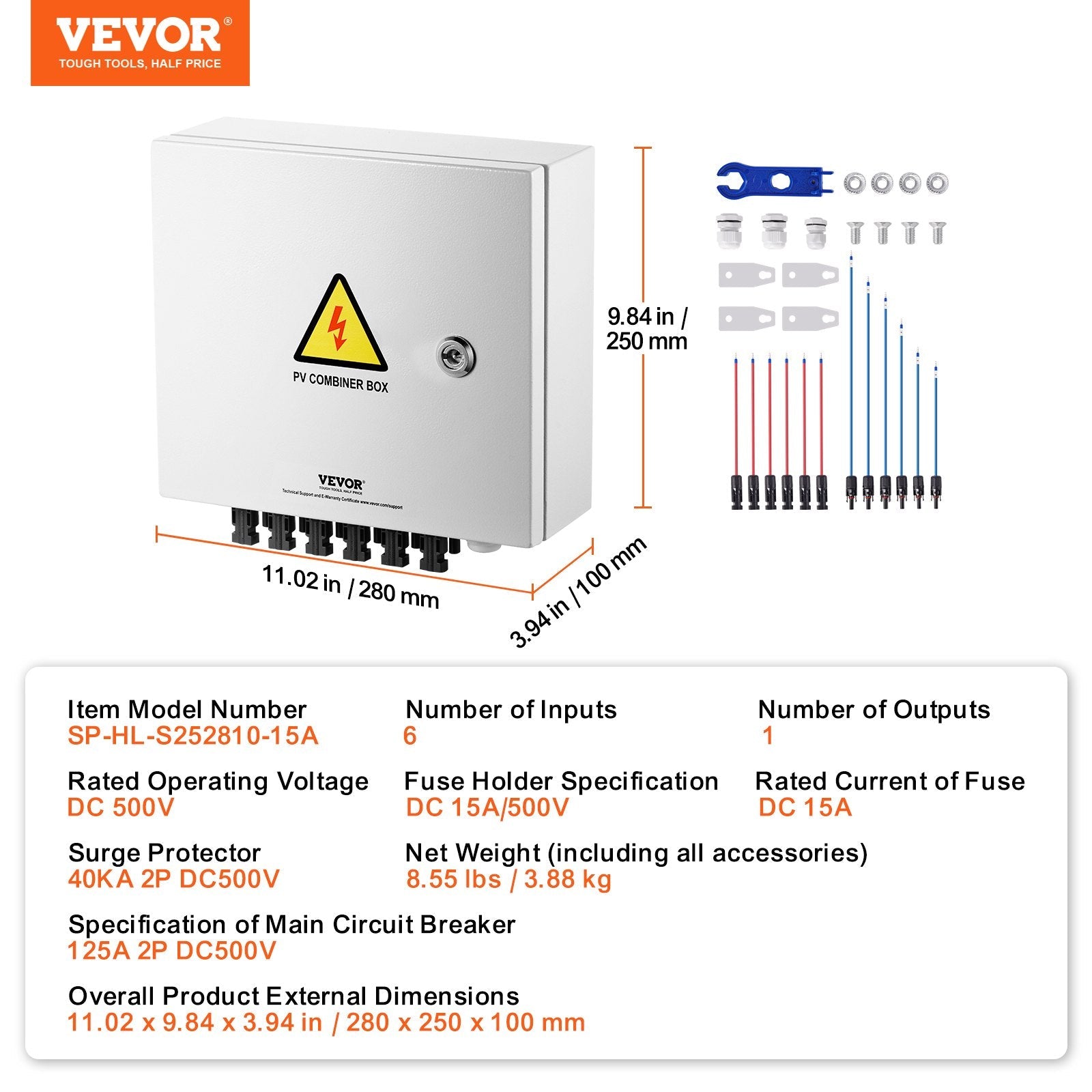

Specifications
Model Number: SP-HL-S252810-15A
Number of Inputs: 6
Number of Outputs: 1
Rated Operating Voltage: DC 500V
Rated Fuse Current: DC 15A
Main Circuit Breaker: 125A 2P DC500V
Surge Protector: 40KA 2P DC500V
Fuse Holder Specification: DC 15A / 500V
Door Opening Method: Rotary Lock
Sealing Strip: PU Polyurethane Foam (Black)
Mounting Plate Material: Powder-Coated Cold-Rolled Steel
Material: 0.8 mm Cold-Rolled Steel with RAL7035 Coating
Protection Rating: IP65
Net Weight (with accessories): 8.55 lbs / 3.88 kg
External Dimensions (L x W x H): 11.02 x 9.84 x 3.94 in / 280 x 250 x 100 mm
