Description

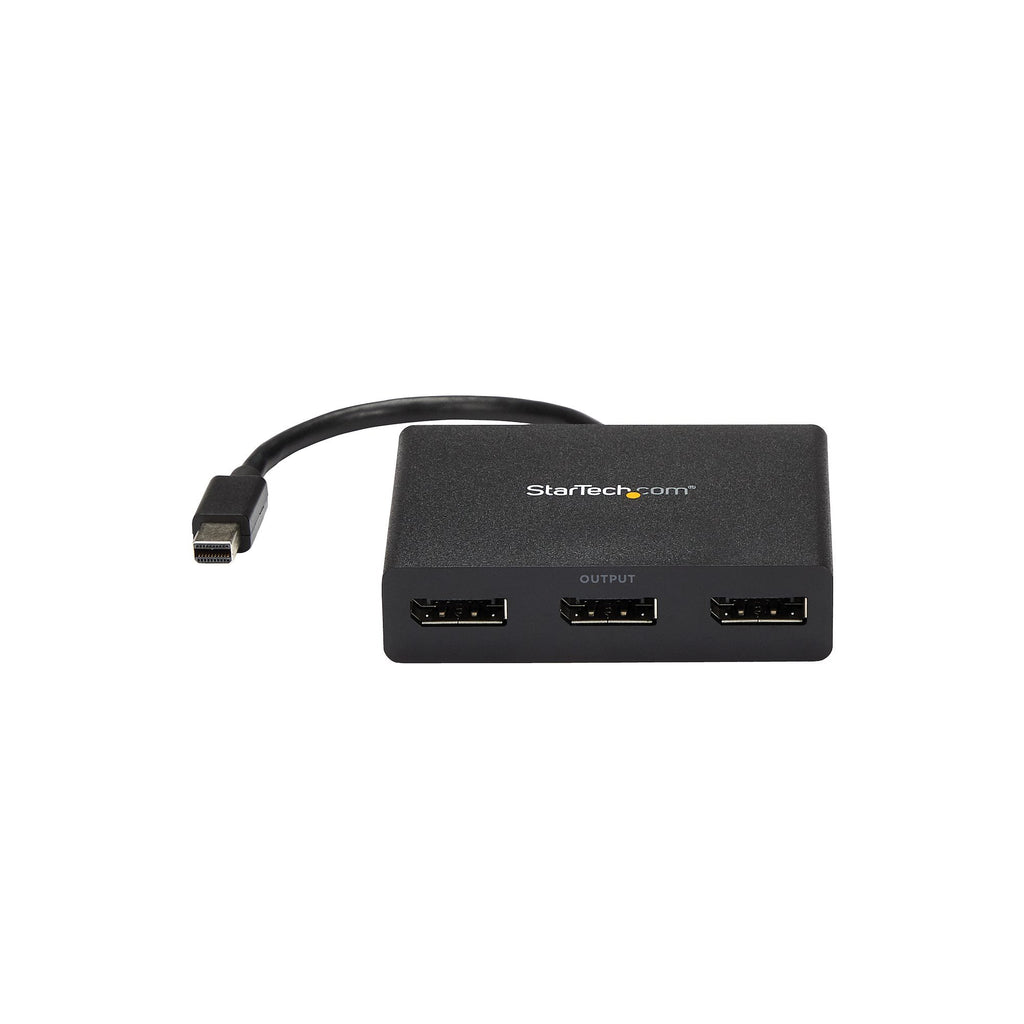

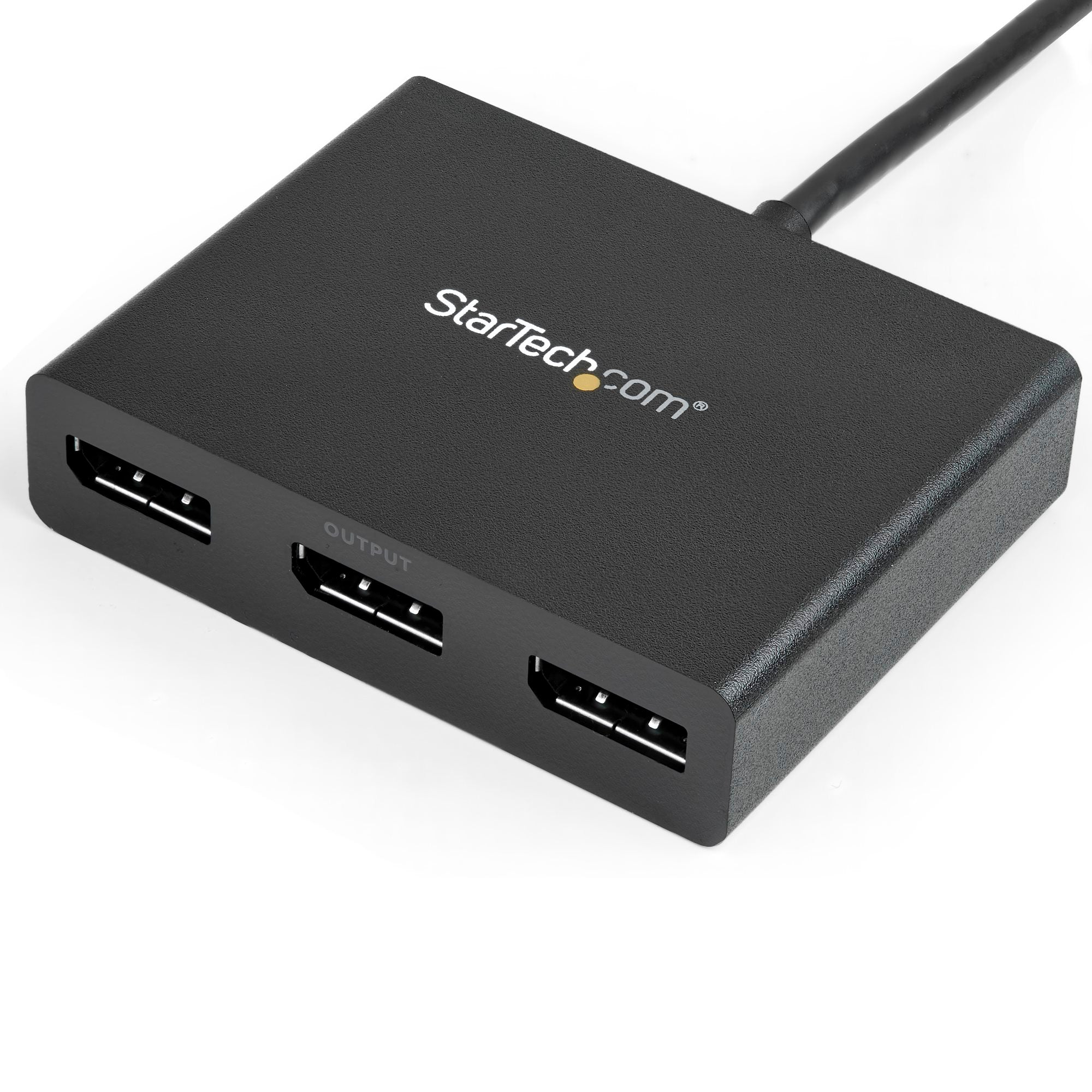

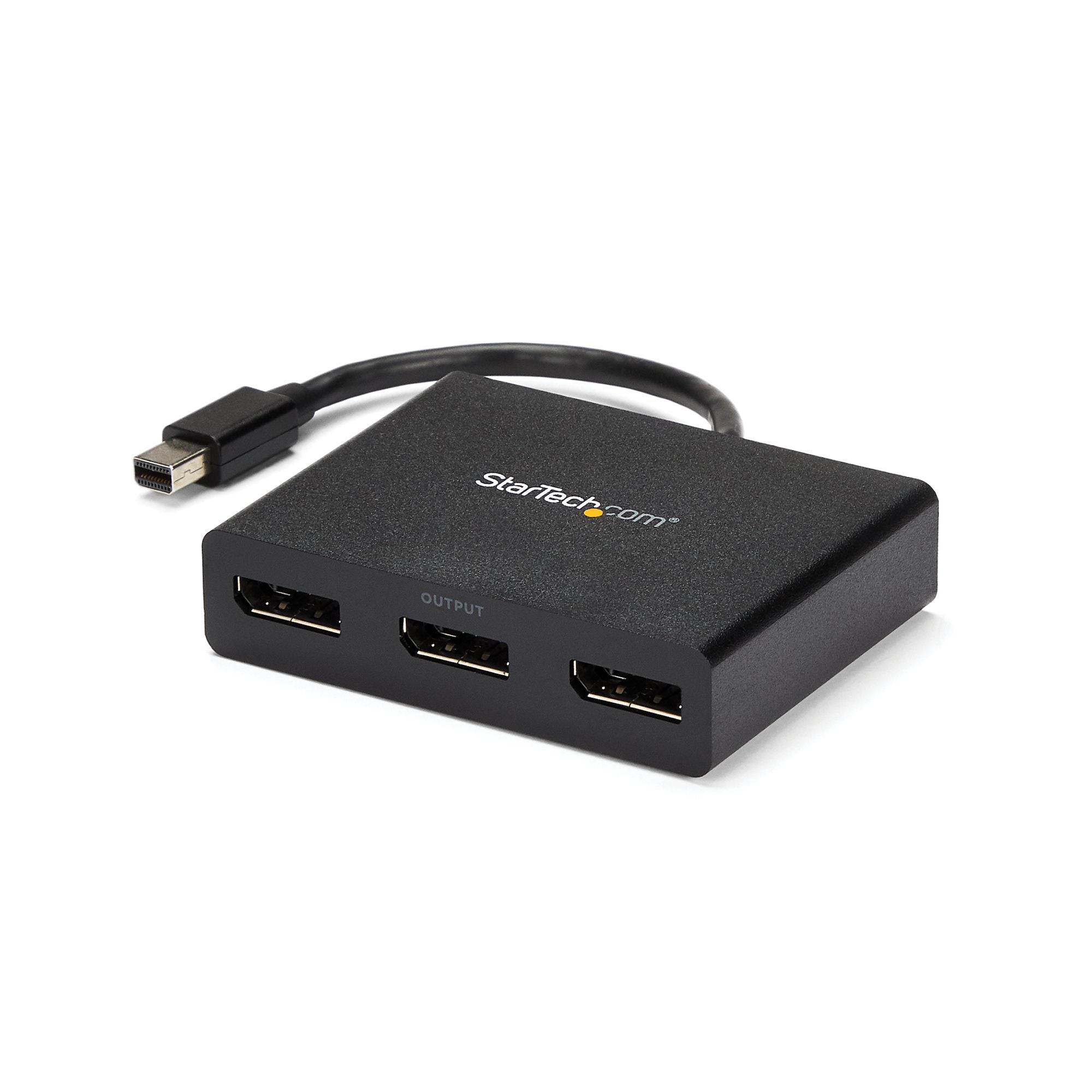

Maximize productivity with this 3-Port Mini DisplayPort to DisplayPort MST Hub, designed to connect up to three independent DisplayPort monitors from a single Mini DisplayPort 1.2 output. Supporting Dual 4K @ 30Hz and 1x 1080p @ 60Hz, this MST hub is ideal for Windows users who need expanded desktop real estate for multitasking, data analysis, or creative work. The compact, plug-and-play design makes it perfect for both mobile professionals and fixed workstations. MST is supported on Windows only—macOS does not support extended displays through MST hubs.
Key Features
-
Connect 3 Displays – Output to three DisplayPort monitors from one Mini DisplayPort source
-
High-Resolution Support – Up to 2x 4K @ 30Hz + 1x 1080p @ 60Hz, depending on GPU bandwidth
-
DisplayPort 1.2 with MST – Enables extended or mirrored desktop modes (Windows only)
-
Mini DisplayPort 1.2 Input – Compatible with Thunderbolt 1/2 ports on Windows systems
-
USB Bus-Powered – No external power adapter needed (USB-A to Micro-USB cable included)
-
Plug-and-Play – No software or drivers required
-
Compact Design – Ideal for portable and desktop use
Specifications
-
Input Connector: Mini DisplayPort 1.2 (Male)
-
Output Connectors: 3 × DisplayPort 1.2 (Female)
-
Power Input: Micro-USB (USB-A to Micro-USB cable included)
-
Max Resolution Support:
-
2 x 3840x2160 @ 30Hz + 1 x 1920x1080 @ 60Hz
-
3 x 1920x1080 @ 60Hz
-
1 x 4K @ 60Hz (if only one display connected)
-
-
Display Modes: Extended, Mirrored, Collage (via Windows Display Settings)
-
Audio Support: Yes
-
HDCP Support: Yes
-
Operating System Compatibility: Windows 10/11 only (macOS not supported)
Product Dimensions / Weight
-
Hub Size: ~3.9 x 2.4 x 0.6 in (10 x 6 x 1.5 cm)
-
Cable Length: ~6 in (15 cm)
-
Weight: ~4.6 oz (130 g)
Package Dimensions / Weight
-
Package Size: ~8.3 x 5.5 x 1.6 in (21 x 14 x 4 cm)
-
Shipping Weight: ~6.3 oz (180 g)
