Description
Engineered for high-performance networking, this Blue CAT6a Ethernet Cable delivers blazing 10 Gigabit Ethernet speeds and supports up to 100W PoE++ power delivery. Built with 27AWG pure bare copper wires and S/FTP shielding, it minimizes interference for stable data transmission even in electrically noisy environments. The LSZH (Low Smoke Zero Halogen) jacket enhances fire safety, while snagless molded boots and strain reliefs ensure secure, durable connections. Fluke tested and ETL verified, this CAT6a patch cord is ideal for enterprise networks, data centers, AV setups, and PoE devices.
Key Features:
-
CAT6a Rated Performance – Supports 10Gbps speeds up to 100 meters
-
S/FTP Shielding – Individually foil-shielded pairs + braided outer shield
-
100W PoE++ Support – Ideal for high-power devices like IP cameras and PoE switches
-
Pure Bare Copper Wires – 27AWG conductors for signal integrity and compliance
-
500MHz Bandwidth – High-frequency support for modern data applications
-
LSZH Jacket – Low smoke, halogen-free for enhanced fire safety
-

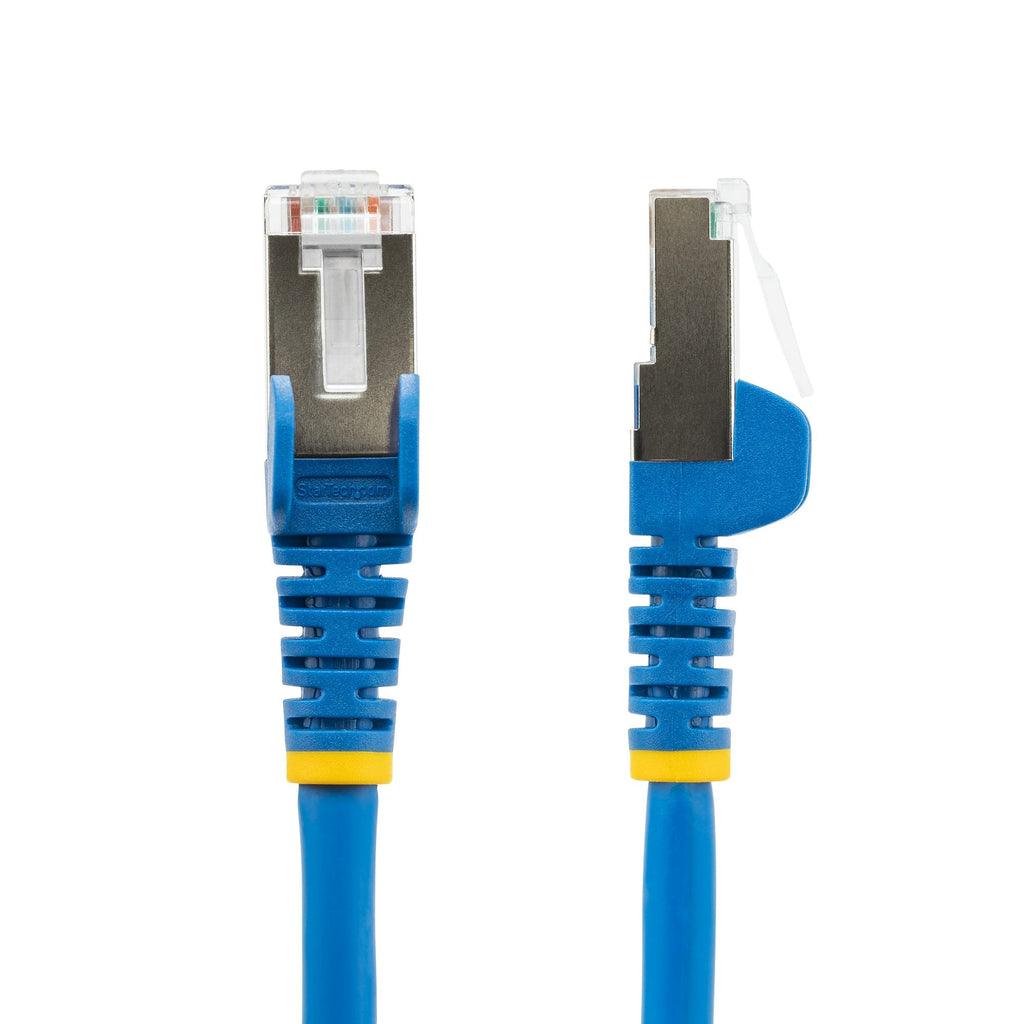

Snagless Molded Boots – Prevents latch damage during installation
-
Fluke Tested & ETL Verified – Meets or exceeds industry standards
Specifications:
-
Cable Type: CAT6a S/FTP (Shielded Foiled Twisted Pair)
-
Conductor: 27AWG solid bare copper
-
Shielding: Foil for each pair + braided outer shield
-
Bandwidth: Up to 500MHz
-
Data Rate: 10Gbps (10GBASE-T)
-
PoE Support: PoE, PoE+, PoE++ (IEEE 802.3af/at/bt), up to 100W
-
Jacket Material: LSZH (Low Smoke Zero Halogen)
-
Connector: RJ45, 8P8C with gold-plated contacts
-
Certifications: Fluke Tested, ETL Verified, RoHS Compliant
-
Color: Blue
Product Dimensions / Weight:
Varies by length (e.g., 3ft to 100ft); ~100g (for 3ft cable)
Package Dimensions / Weight (e.g., 10ft cable):
9 x 8 x 0.6 inches / ~180g
