Description

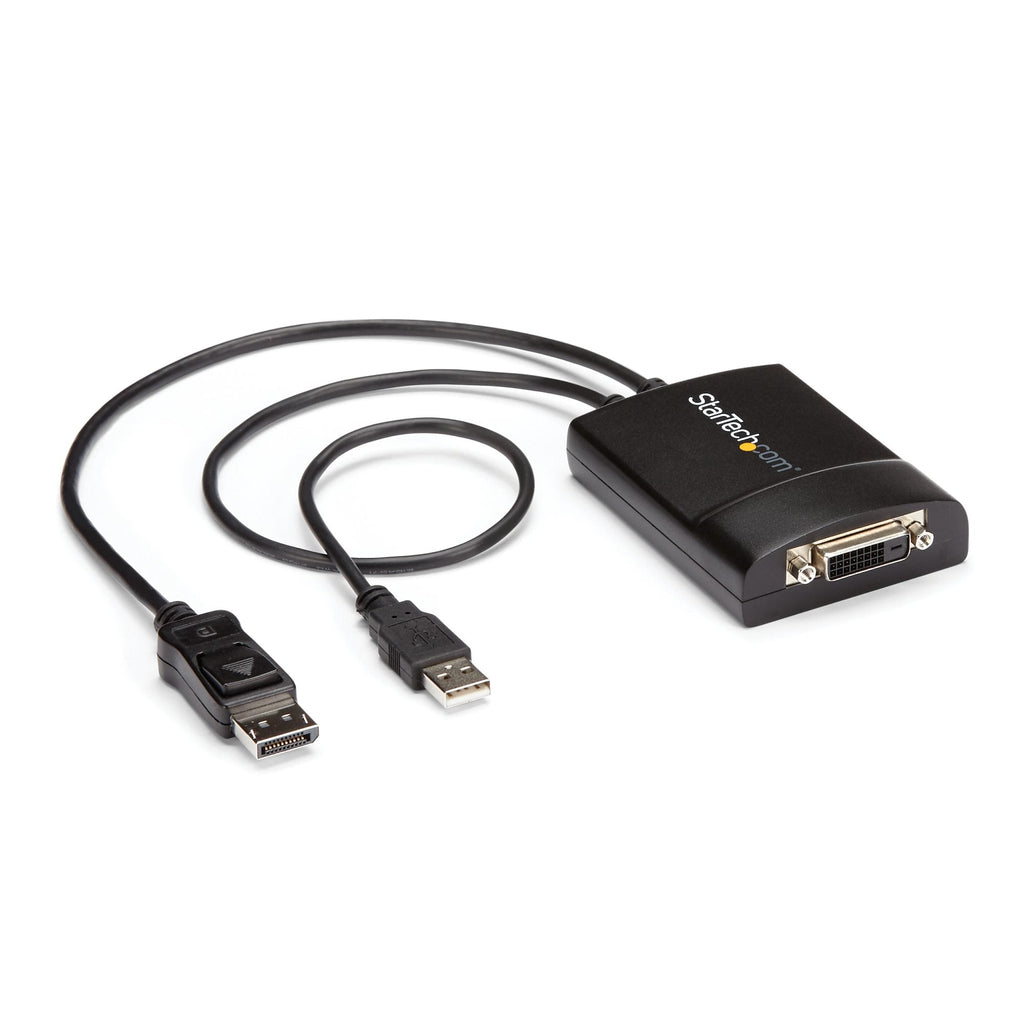

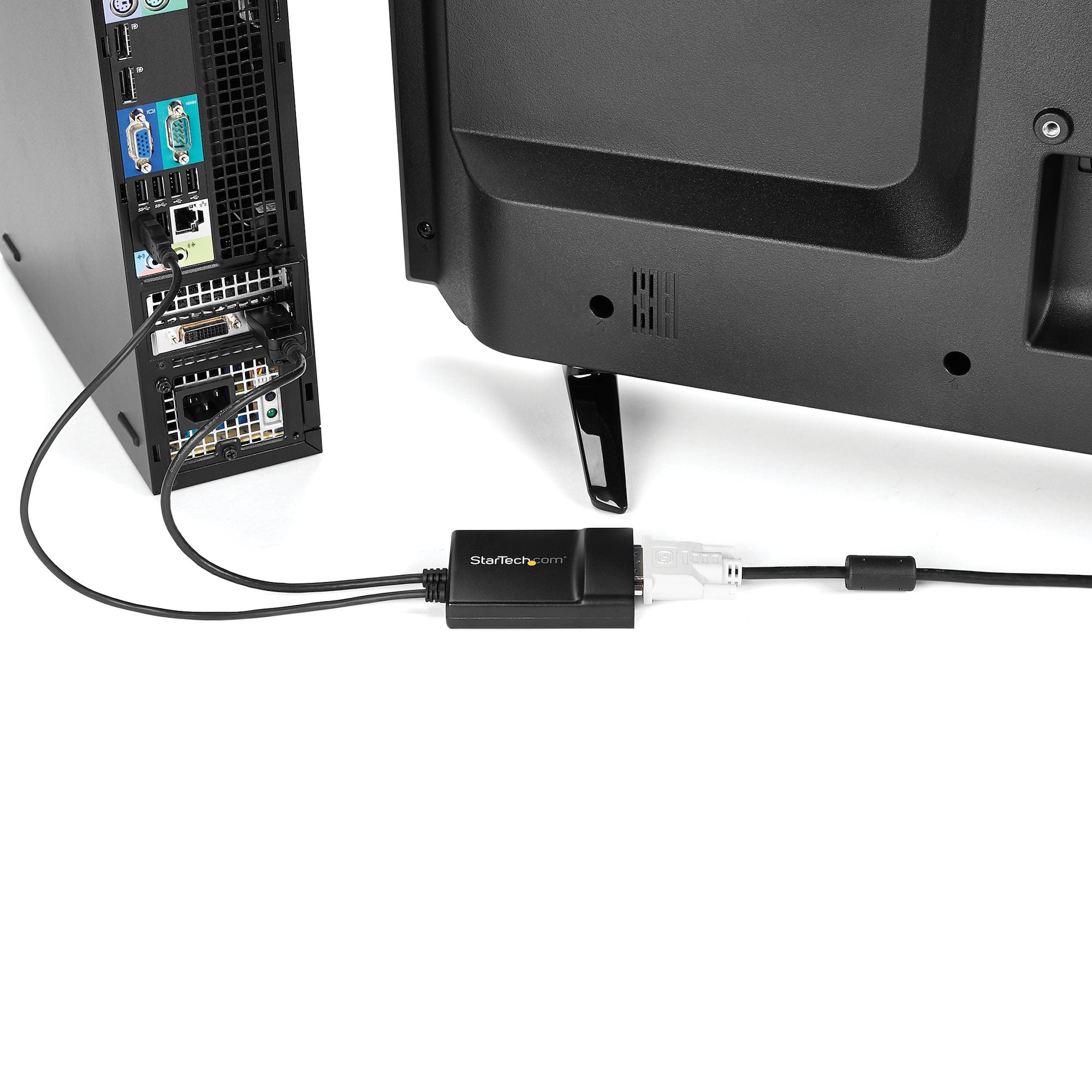

Easily connect a DisplayPort-enabled desktop or laptop to a DVI-D Dual Link monitor with this active DisplayPort to DVI adapter, delivering up to 2560x1600 resolution at 60Hz. Designed for high-resolution displays, it supports Dual-Link DVI output, making it ideal for graphic workstations, extended desktop setups, and large format displays. The adapter is USB-powered—no bulky external power supply required—and features a latching DP connector to ensure a secure connection during use.
Key Features:
-
Dual Link DVI Support – Outputs high resolution up to 2560x1600 @ 60Hz
-
Active Conversion – Compatible with DisplayPort 1.2 and DP++ sources
-
USB Powered – Draws power from included USB cable—no external adapter needed
-
Secure Fit – Latching DP connector resists accidental unplugging
-
Plug-and-Play – No driver required for most systems
-

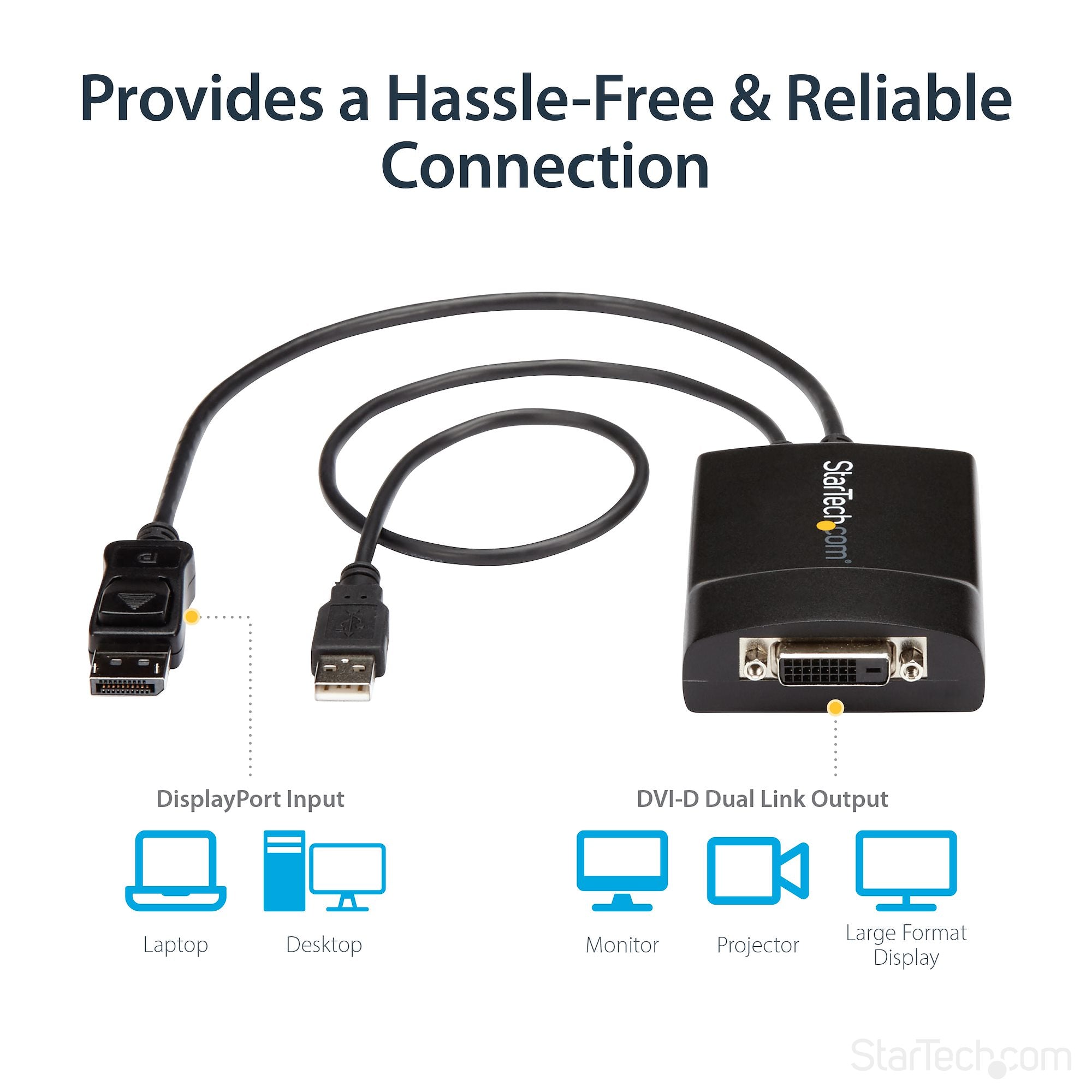

Ideal for Legacy Displays – Connects modern DisplayPort devices to DVI-only monitors
Specifications:
-

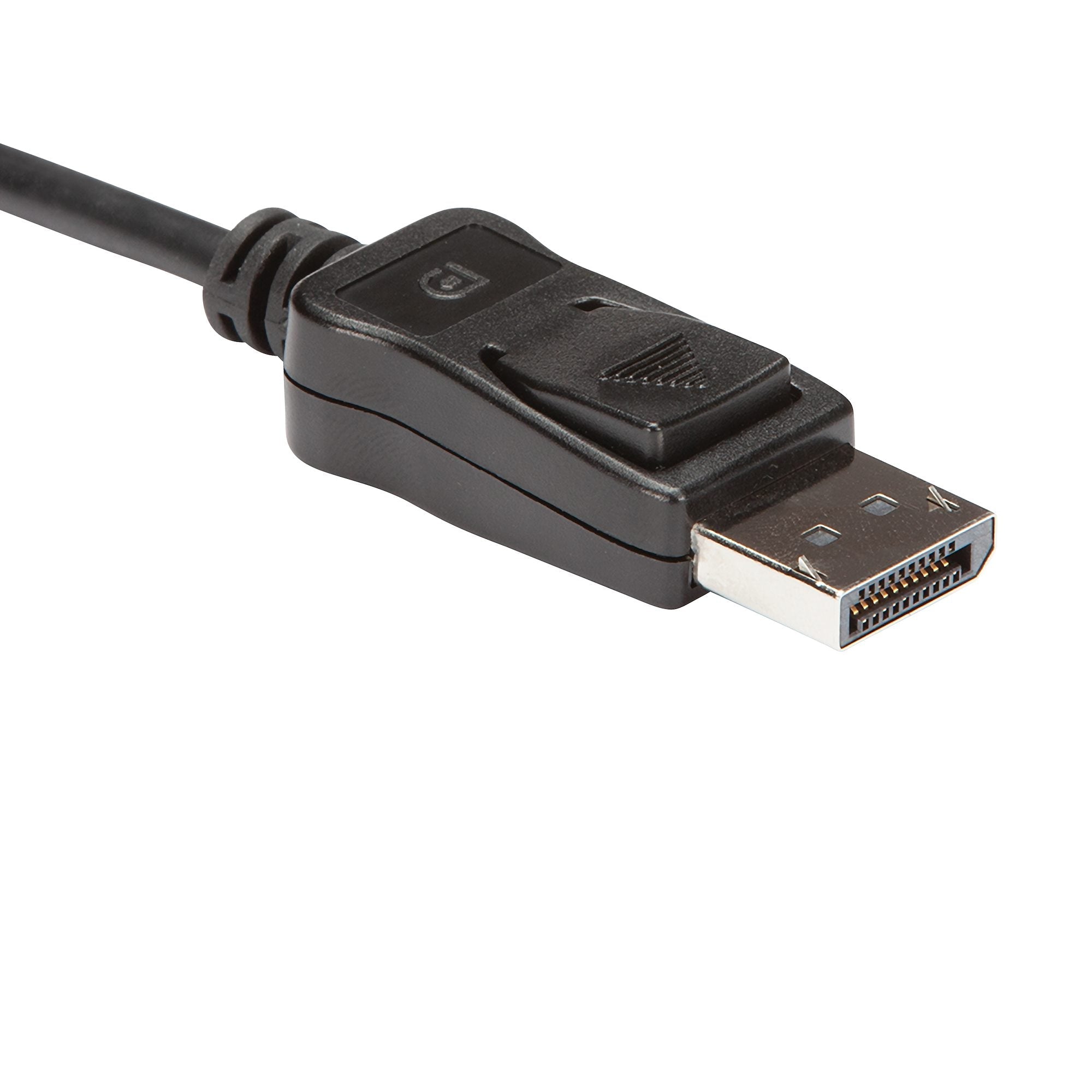

Input: DisplayPort 1.2 Male (with latch)
-

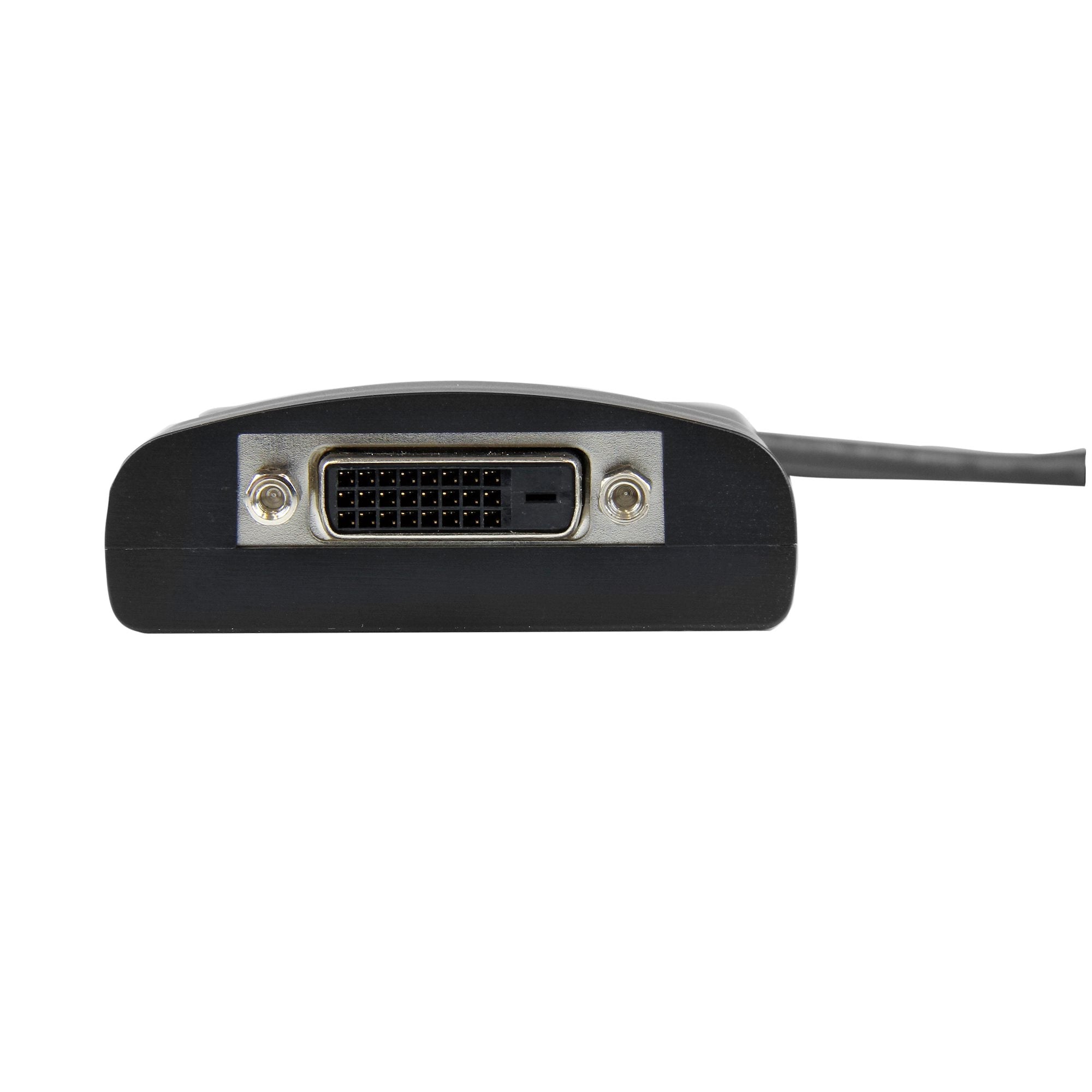

Output: DVI-D Dual Link Female
-

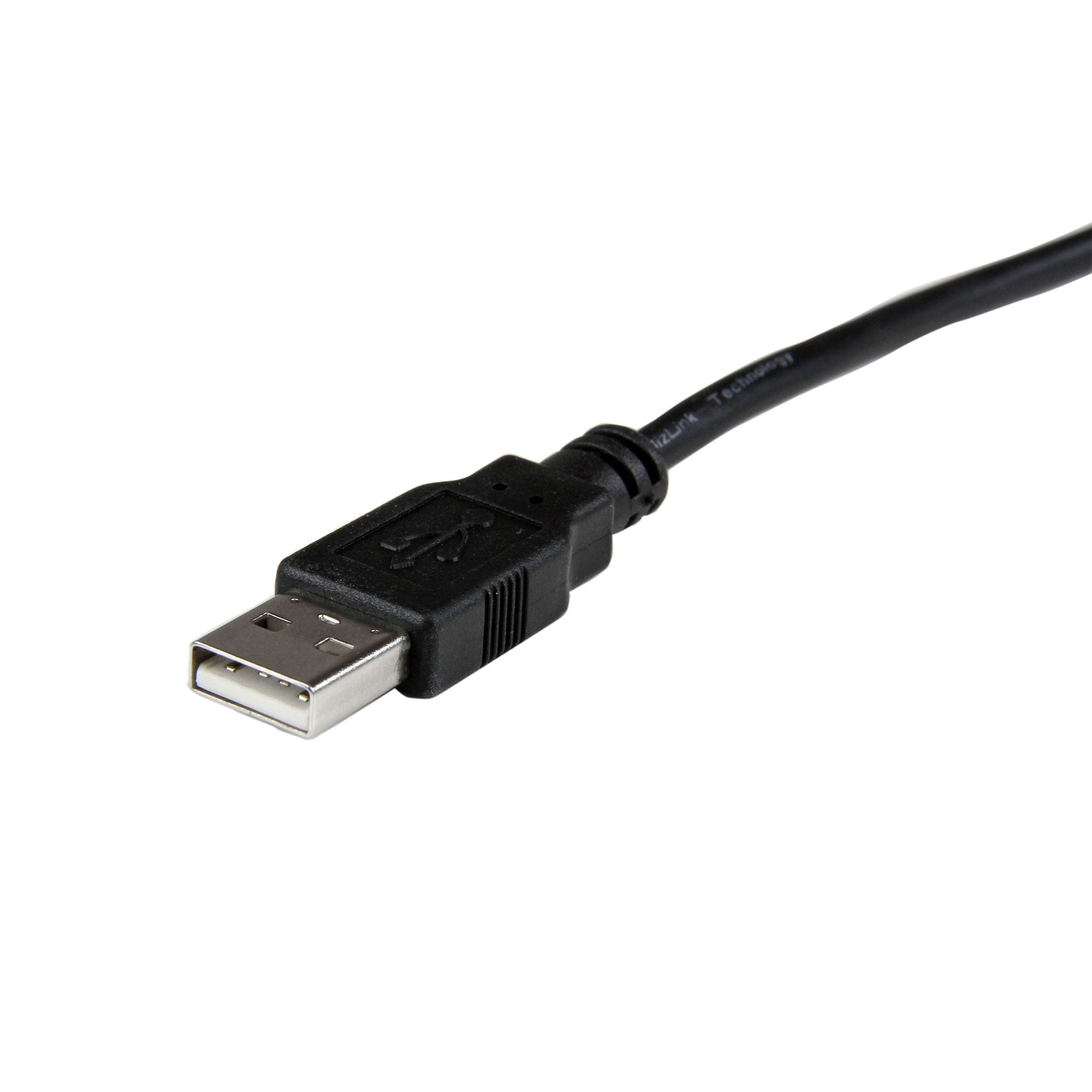

Power: USB-A Male (power only)
-
Max Resolution: 2560x1600 @ 60Hz
-
Audio: Not supported (DVI does not carry audio)
-
Adapter Type: Active
-
Chipset: Parade PS171 or equivalent
-
Compliance: CE, FCC, RoHS
Product Dimensions / Weight:
Adapter Size: 8.0 x 1.8 x 0.6 in (20.3 x 4.6 x 1.5 cm)
Cable Length (DP + USB): ~7.5 in (19 cm)
Weight: ~2.6 oz (75 g)
Package Dimensions / Weight:
Box Size: 9 x 5 x 1.2 in
Shipping Weight: ~4.4 oz (125 g)
