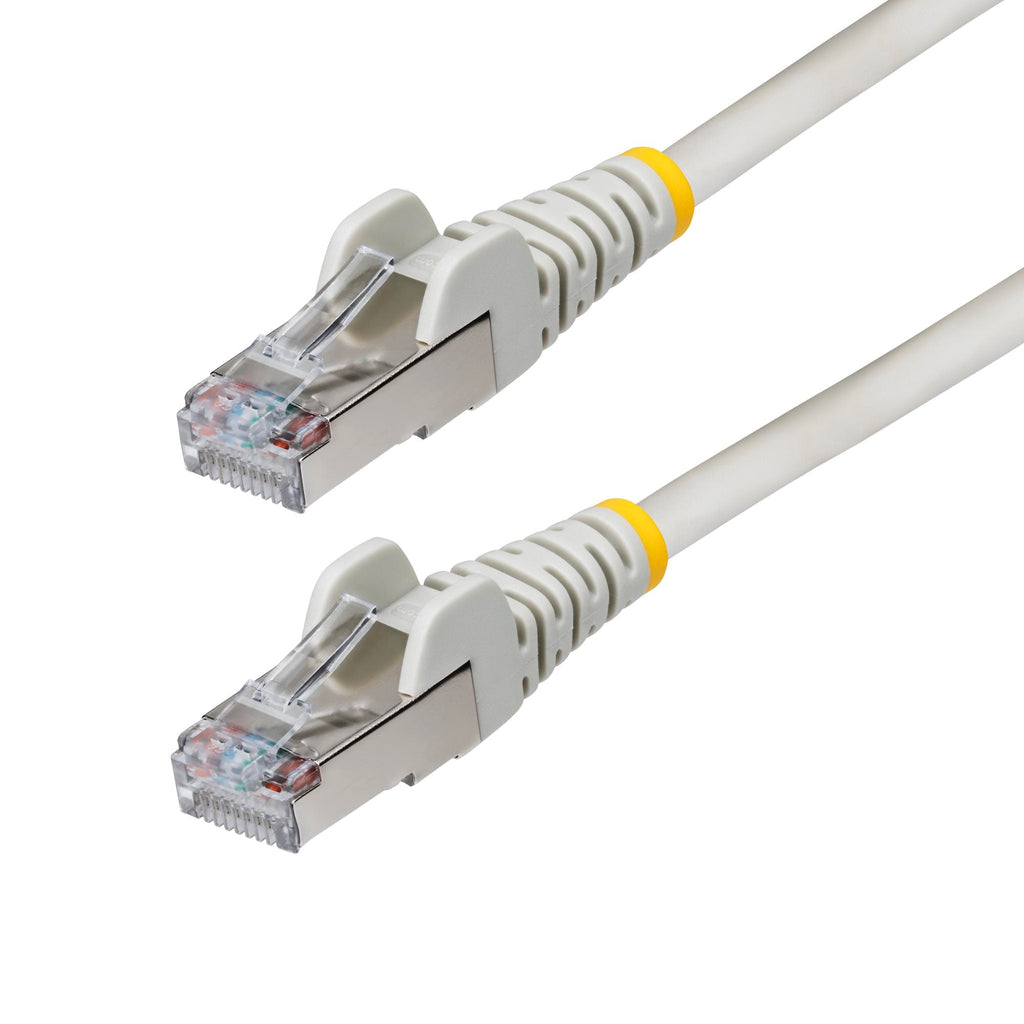

Gray CAT6a Ethernet Cable, Snagless RJ45, 10GbE, 100W PoE++, S/FTP, LSZH, 27AWG Pure Bare Copper Wire, 500MHz, Shielded Network Patch Cord w/Strain Reliefs, Fluke Tested/ETL Verified

SKU: NLGR-1F-CAT6A-PATCH

Size: 1ft
Price:
Sale price$13.99

QUESTIONS? WE ARE HERE TO HELP!

SPEAK WITH AN EXPERT TODAY FOR EXCLUSIVE PRICING

Description

The Gray CAT6a Ethernet Cable delivers high-performance networking with support for 10 Gigabit Ethernet and 100W PoE++, ideal for modern enterprise, industrial, or high-end residential applications. Engineered with 27AWG pure bare copper conductors and full S/FTP shielding, it ensures superior signal integrity and protection against EMI. The LSZH (Low Smoke Zero Halogen) jacket provides enhanced safety in enclosed or environmentally sensitive spaces. Featuring snagless RJ45 connectors with strain reliefs, and verified through Fluke Channel Testing and ETL certification, this cable is built to exceed industry standards.

Key Features:

  • 10GbE Ethernet Performance – Reliable high-speed transmission up to 100m

  • 500MHz Bandwidth – Optimized for modern data-heavy applications

  • 100W PoE++ Support – Delivers power and data over one cable

  • S/FTP Shielding – Individually foil-shielded pairs with braided overall shielding

  • 27AWG Pure Bare Copper – Maximum conductivity and low attenuation

  • LSZH Jacket – Reduces smoke and toxic emissions for added safety

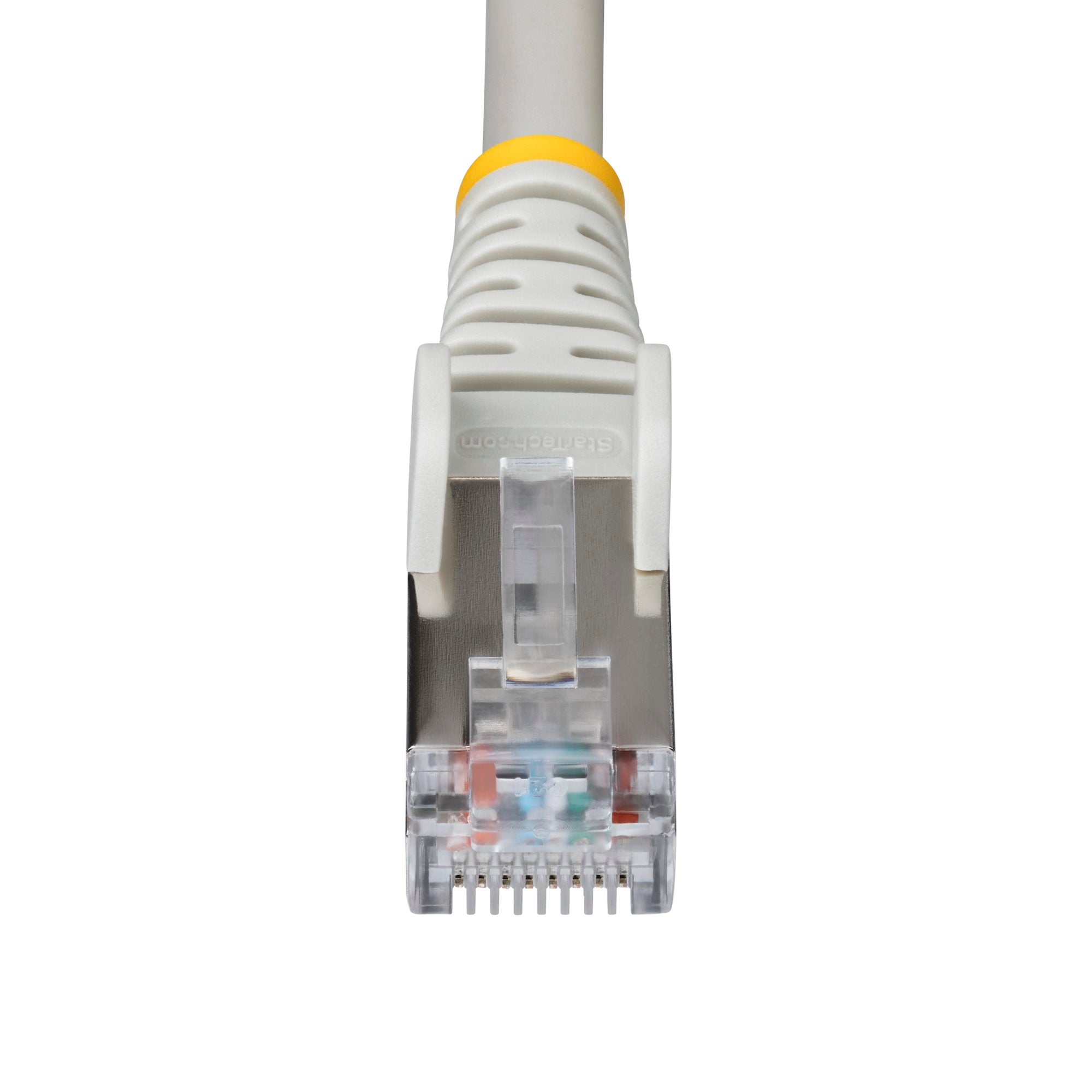

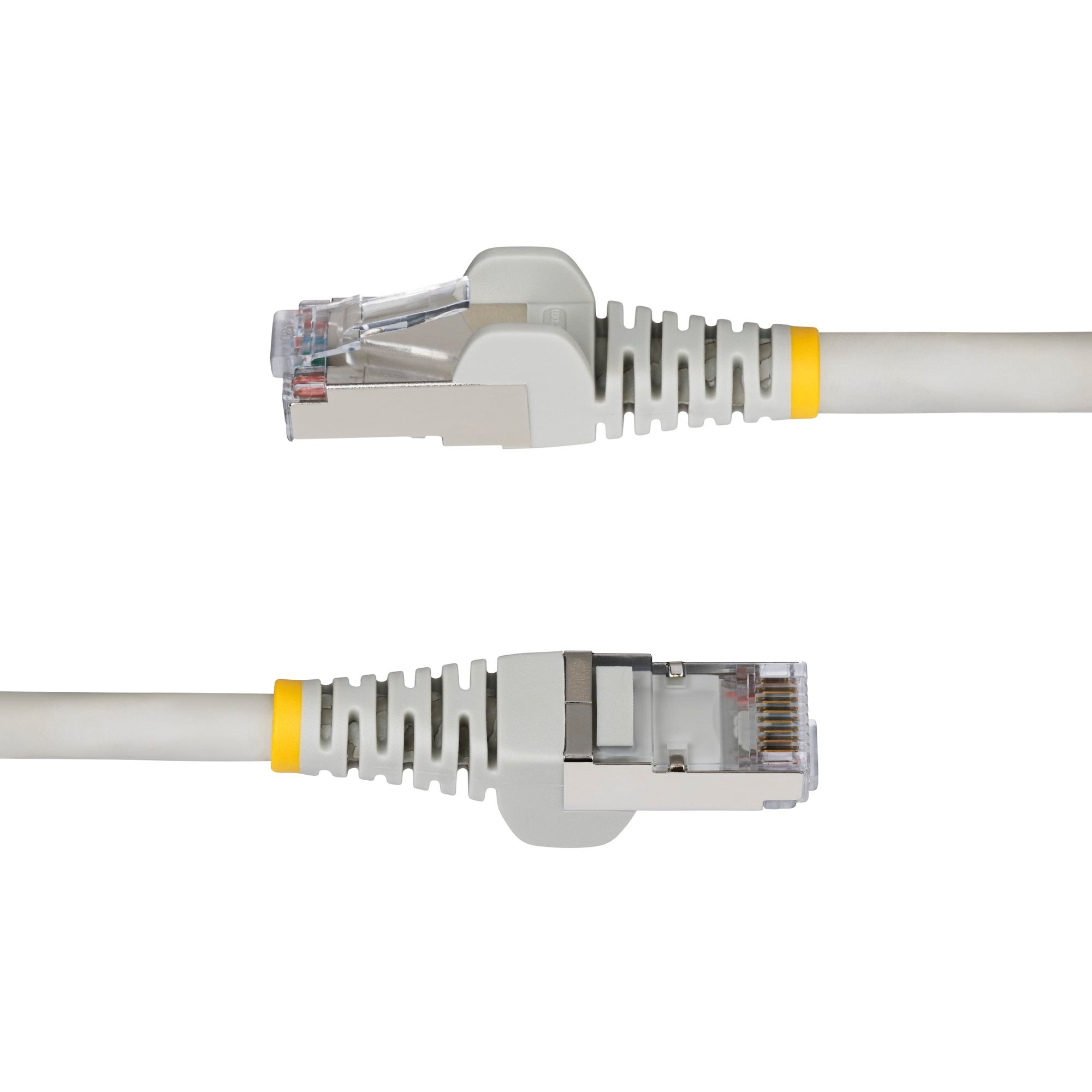

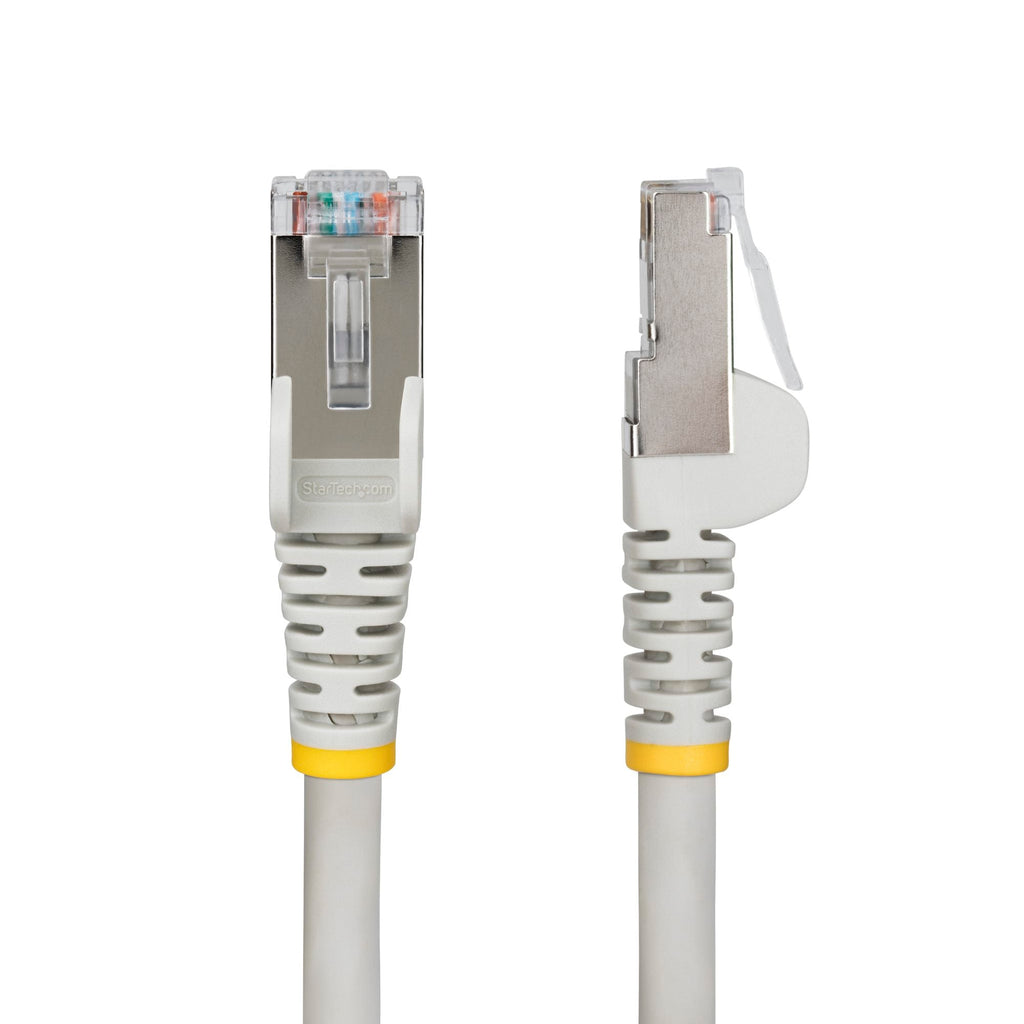

  • Snagless RJ45 Connectors – Prevents latch snags and damage during install

  • Fluke & ETL Certified – Assures compliance with performance standards

Specifications:

  • Category: CAT6a

  • Conductor: 27AWG solid bare copper

  • Shielding: S/FTP (Foil per pair + Braided shield)

  • Bandwidth: 500MHz

  • Data Rate: 10Gbps (10GBASE-T)

  • PoE Support: IEEE 802.3af/at/bt (up to 100W PoE++)

  • Jacket: LSZH (Low Smoke Zero Halogen)

  • Connectors: Snagless RJ45, gold-plated

  • Certifications: Fluke Channel Tested, ETL Verified, RoHS

Product Dimensions / Weight:
Varies by length (e.g., 3ft to 100ft); ~100g (for 3ft cable)

Package Dimensions / Weight (example 10ft cable):
9 x 8 x 0.6 inches / ~180g
