Description

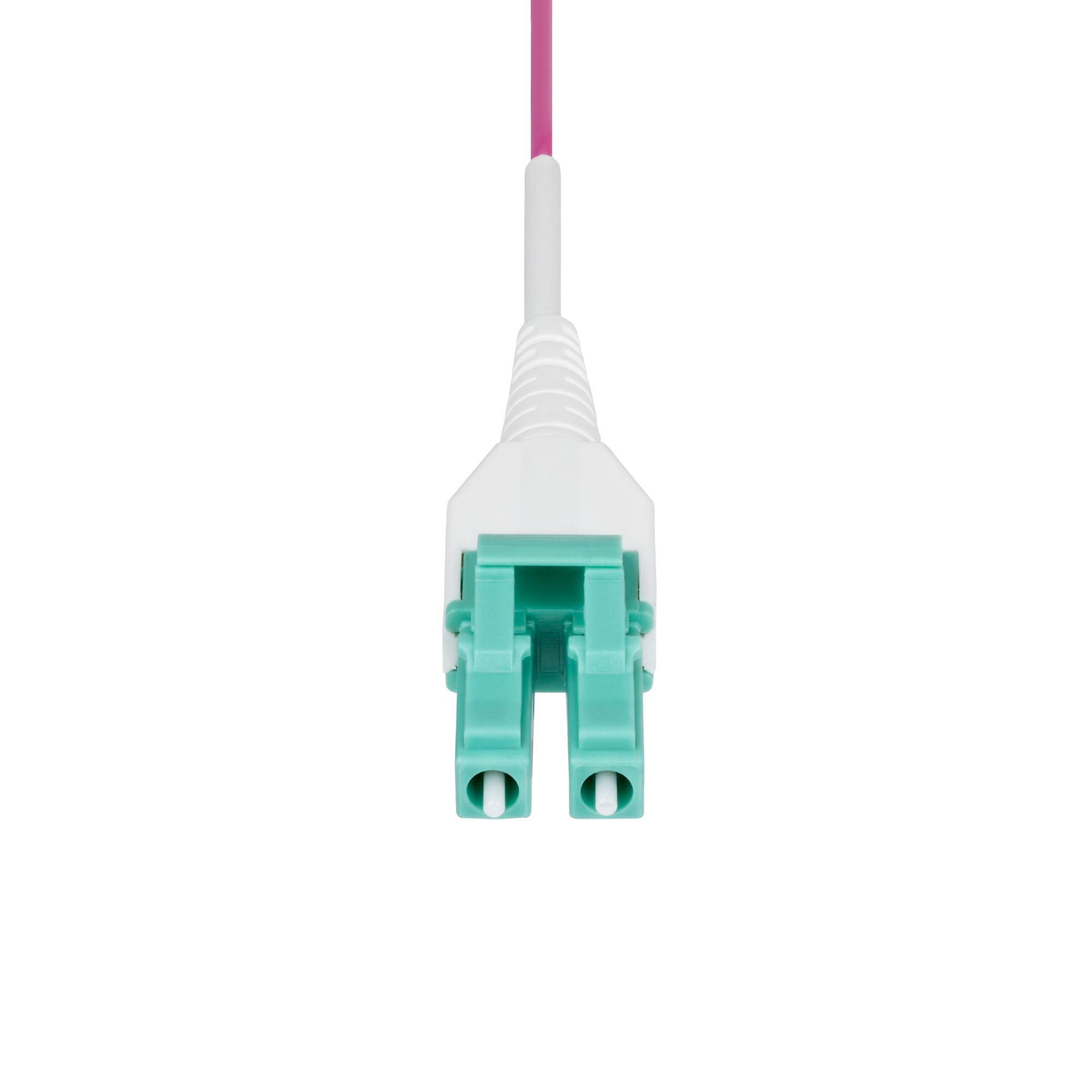

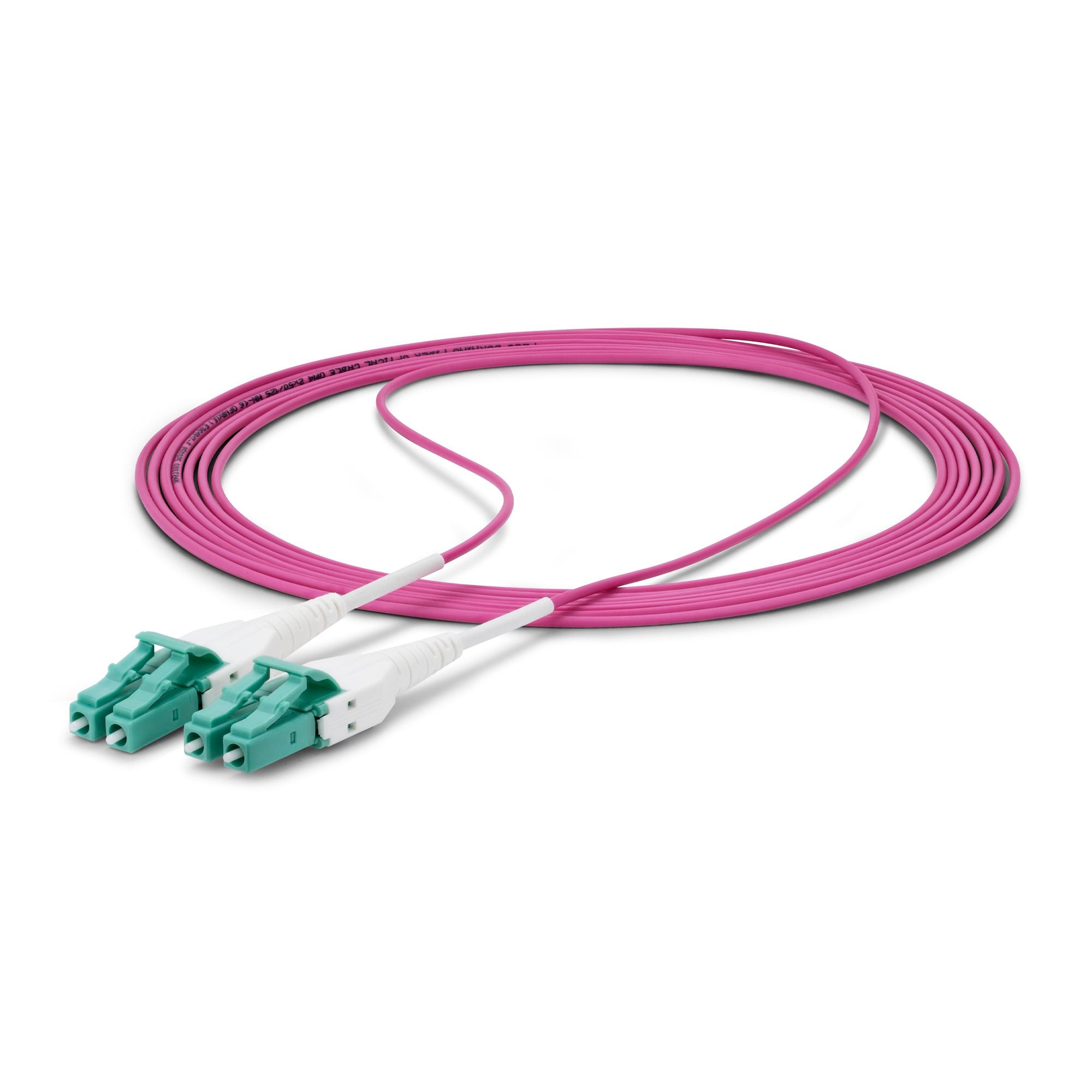

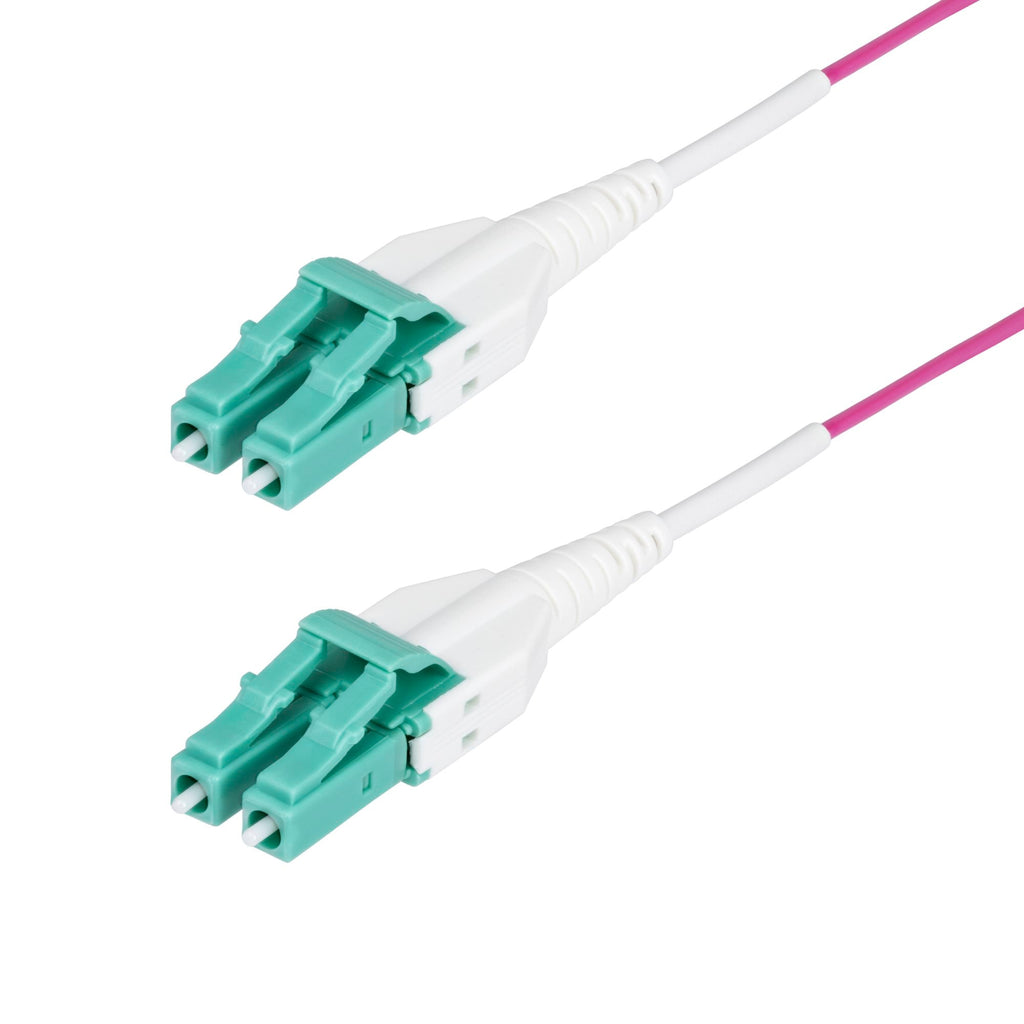

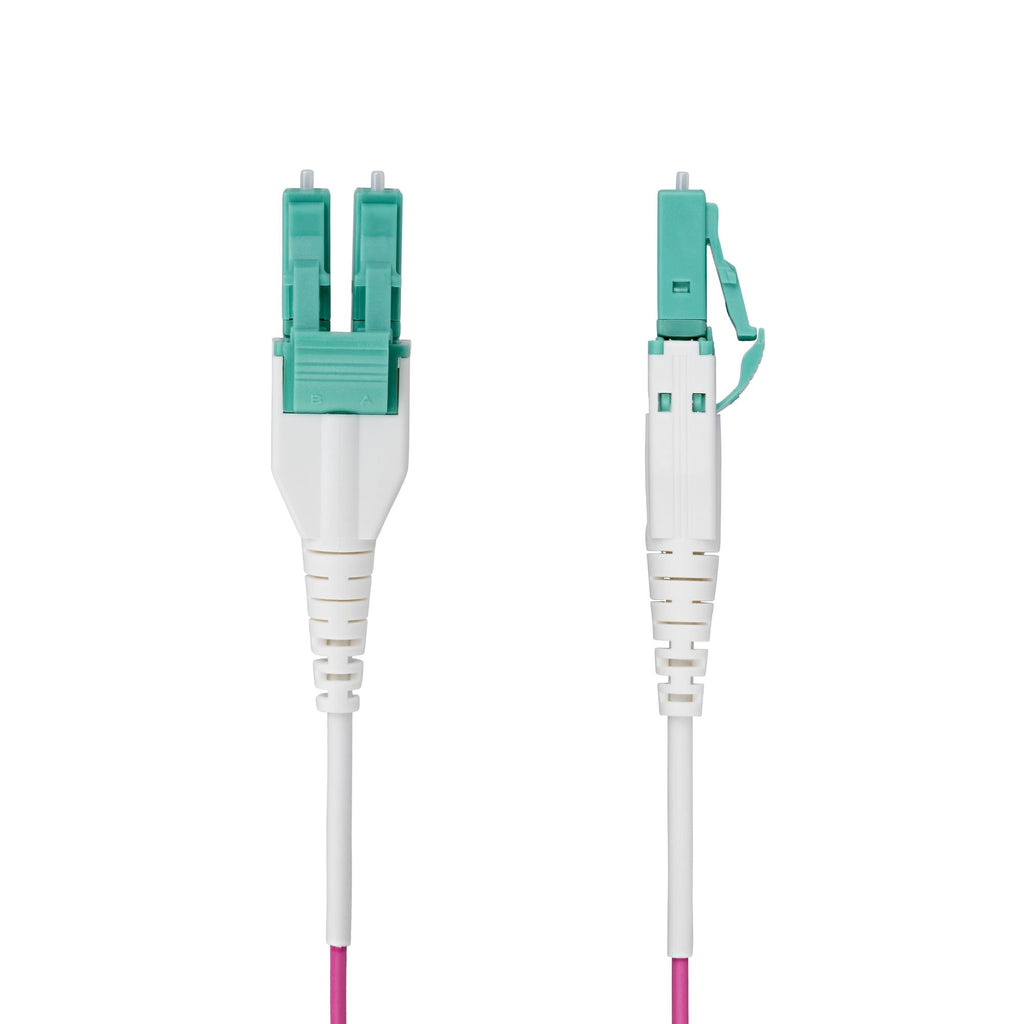

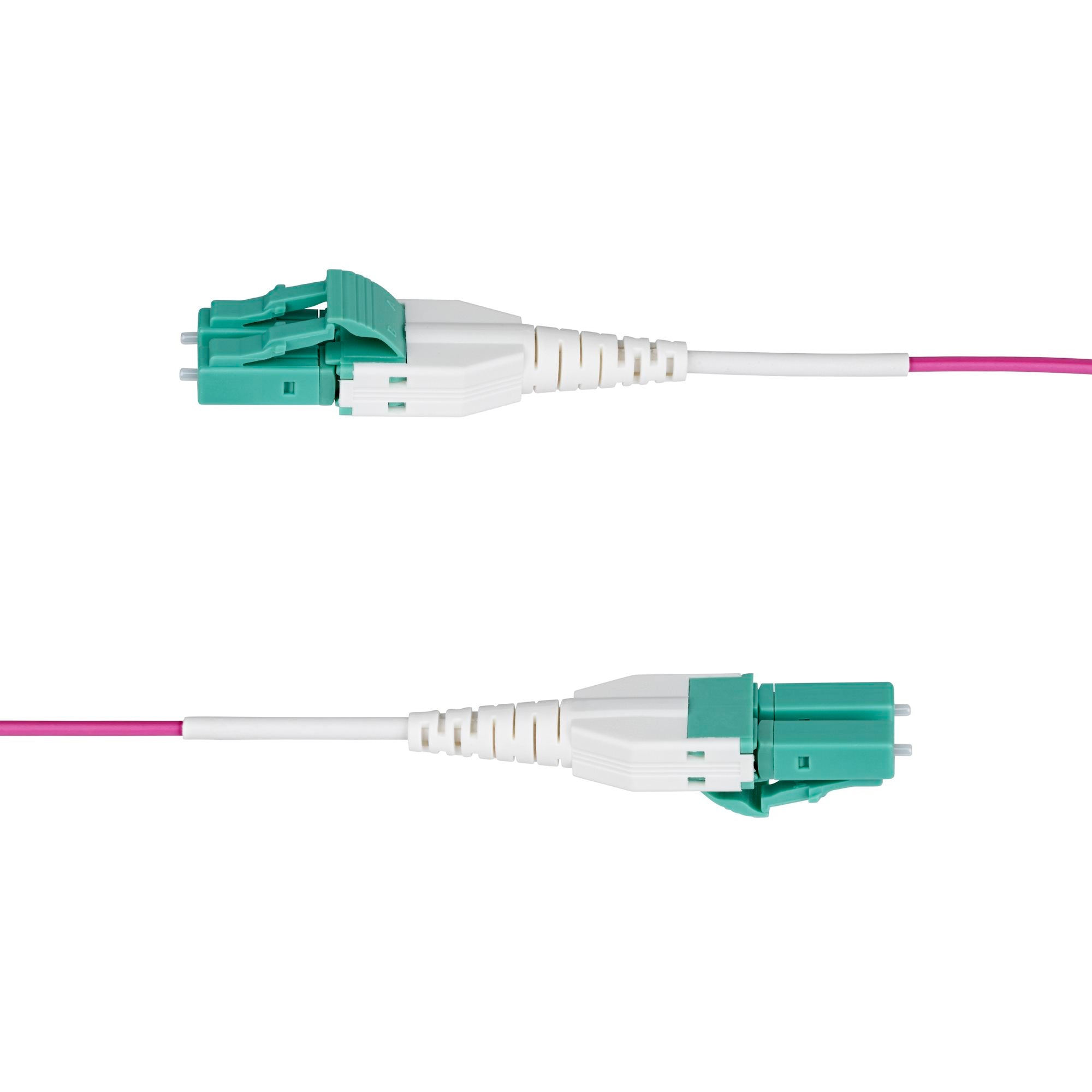

The LC to LC (UPC) OM4 Multimode Fiber Optic Cable is engineered for high-performance data transmission in modern networking environments. Featuring Erika Violet sheathing for easy identification, this uniboot fiber jumper supports Laser-Optimized Multimode Fiber (LOMMF) and is ideal for 40G/100G data centers and enterprise backbones. Built with precision UPC connectors and optimized for VCSEL laser transmission, it delivers low-loss, high-speed connectivity. The OFNR riser-rated jacket ensures safe vertical runs in riser spaces, meeting strict fire code requirements.
Key Features:
-
OM4 LOMMF/VCSEL Support – Optimized for 40G/100G high-speed transmissions
-
LC to LC UPC Connectors – Low insertion loss and high return loss
-
Erika Violet Jacket – Color-coded for OM4 identification
-
Uniboot Design – Reduces cable congestion and improves airflow
-
OFNR Riser Rated – Fire-resistant and suitable for vertical riser applications
-
Precision Polish – UPC (Ultra Physical Contact) for enhanced performance
Specifications:
-
Fiber Type: OM4 (50/125µm Laser-Optimized Multimode Fiber)
-
Connector Type: LC to LC (UPC polish)
-
Cable Construction: Uniboot
-
Jacket Type: OFNR (Riser Rated)
-
Wavelength: 850nm (optimized for VCSEL)
-
Insertion Loss: ≤ 0.25dB typical
-
Return Loss: ≥ 30dB
-
Operating Temperature: -20°C to +70°C
-
Compatibility: Data centers, telecom, enterprise LAN/WAN
Product Dimensions / Weight:
Varies by length (e.g., 1m to 30m); approx. 0.1 kg per meter
Package Dimensions / Weight:
12 x 9 x 1 inches (standard packaging) / 100g–500g depending on length
