Description

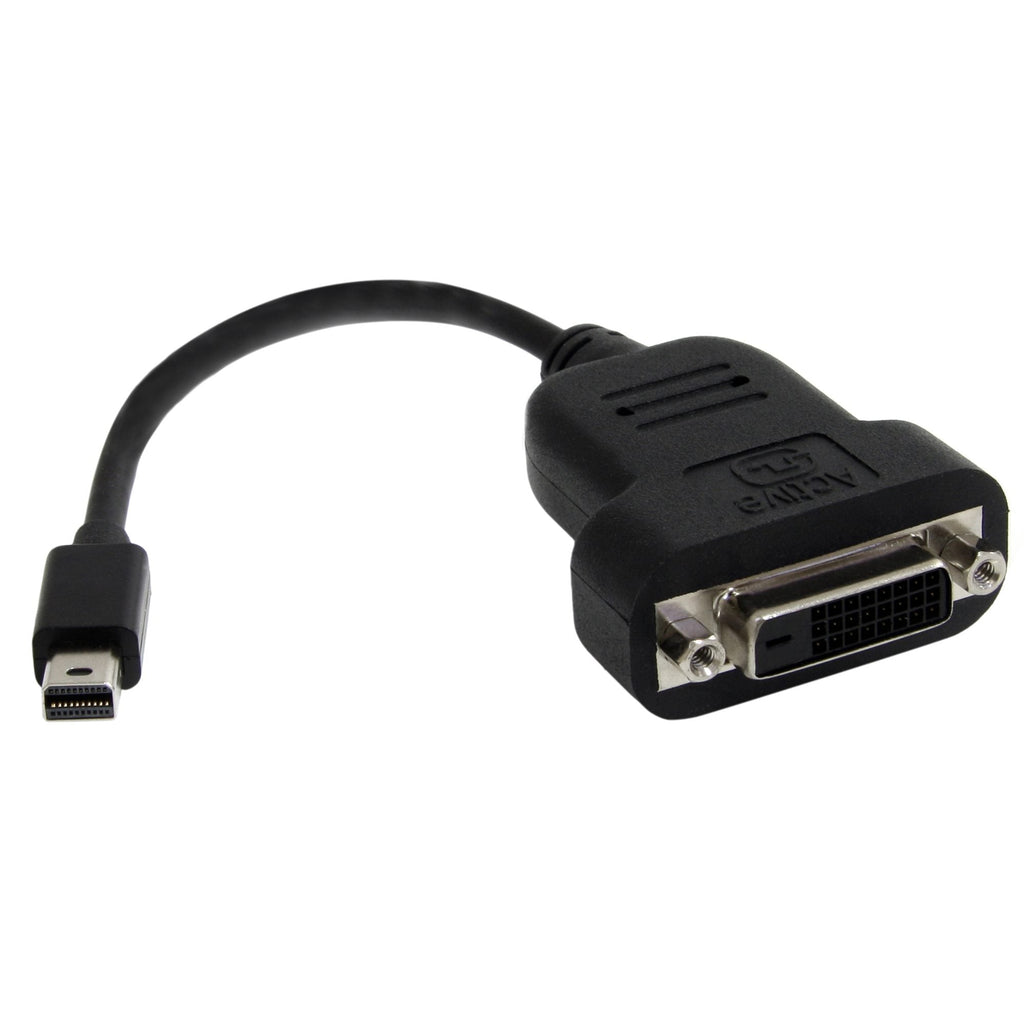

Easily connect a Mini DisplayPort or Thunderbolt 1/2-enabled computer to a DVI monitor with this Active Mini DisplayPort to DVI Adapter. Supporting resolutions up to 1080p, this compact converter is ideal for extending or mirroring displays in workstations, classrooms, or home offices. Its active chipset ensures compatibility with graphics cards that do not support DP++ (dual-mode), making it suitable for both AMD and NVIDIA systems. Perfect for MacBooks, Microsoft Surface devices, or any mDP-equipped Windows PC, this plug-and-play dongle provides reliable digital video output to DVI-D displays.
Key Features
-
Active Adapter – Supports video cards without DP++ dual-mode capability (e.g., AMD Eyefinity)
-
Mini DisplayPort to DVI-D Output – Connects mDP/Thunderbolt 1 & 2 to DVI-D monitors
-
Full HD Support – Up to 1920x1080 @ 60Hz (1080p) resolution
-
Compact and Portable – Ideal for travel, office use, or quick display setups
-
Plug-and-Play – No drivers or external power required
-
Reliable Compatibility – Works with Mac and PC systems including MacBook Pro, MacBook Air, Surface Pro, etc.
-
Digital Video Only – Supports single-link DVI-D (no analog VGA support)
Specifications
-

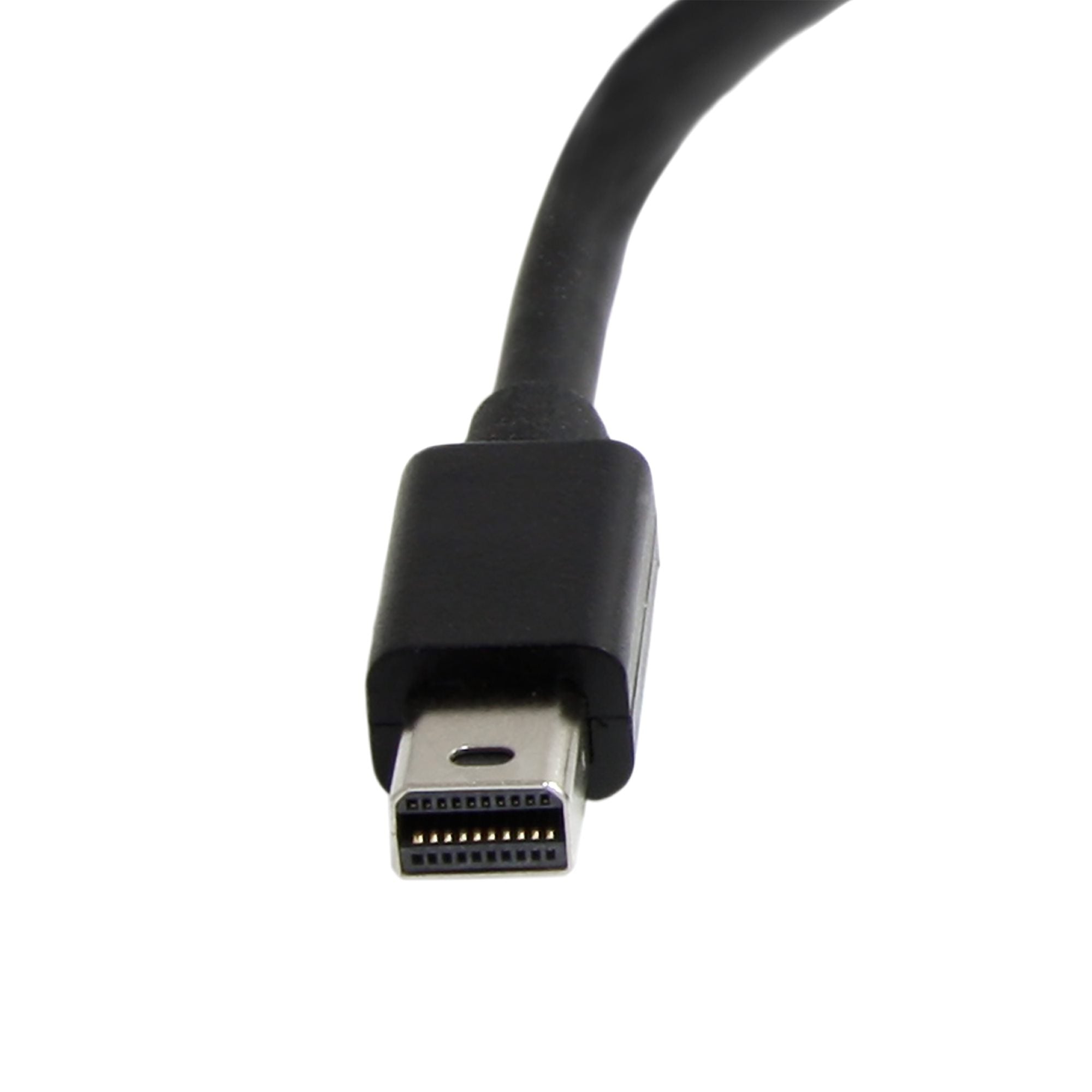

Input Connector: Mini DisplayPort (Male)
-

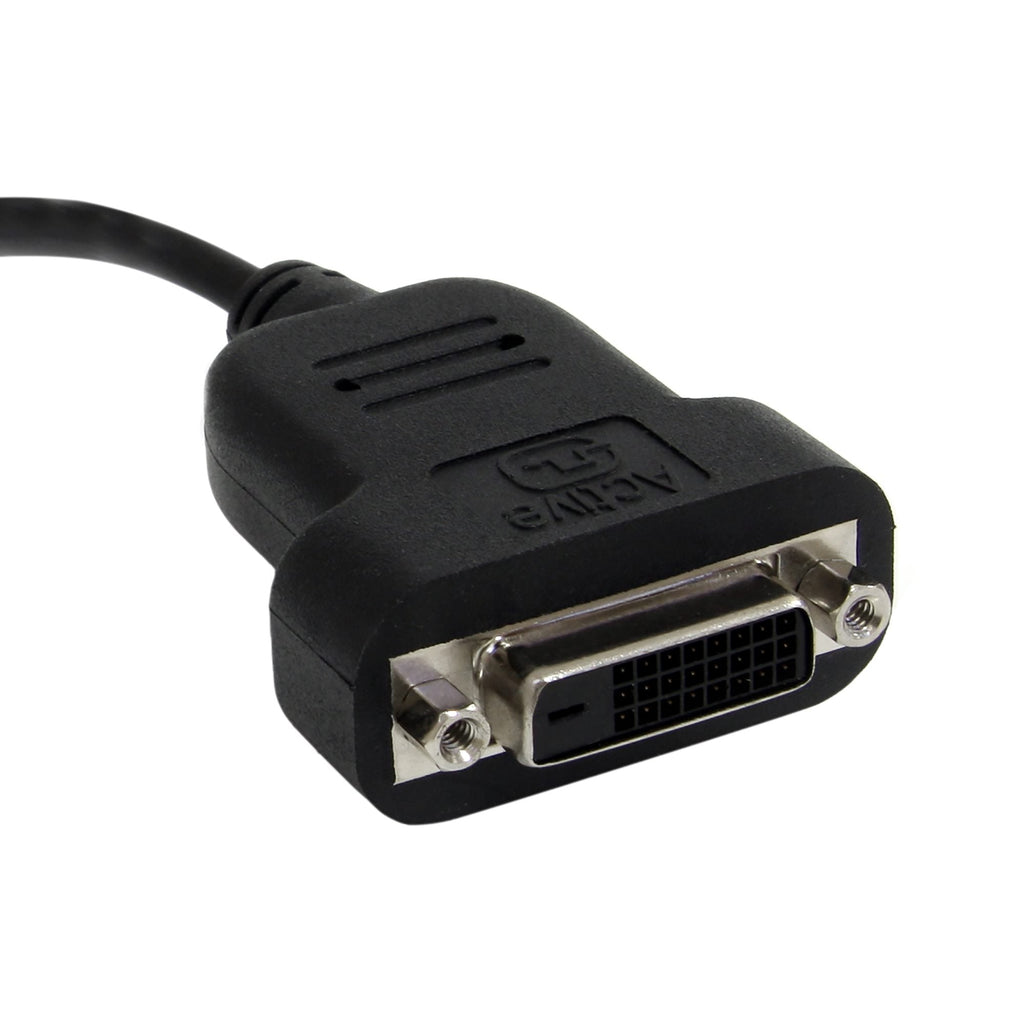

Output Connector: DVI-D (Single Link) Female
-
Adapter Type: Active
-
Max Resolution: 1920x1080 @ 60Hz
-
Compatibility: macOS, Windows, Mini DP / Thunderbolt 1/2
-
Audio Support: Not supported (DVI is video-only)
-
Housing Material: ABS plastic
-
Color: White or Black (model dependent)
Product Dimensions / Weight
-
Dimensions: ~6.3 x 1.6 x 0.6 in (16 x 4 x 1.5 cm including cable)
-
Weight: ~1.4 oz (40 g)
Package Dimensions / Weight
-
Package Size: ~7.1 x 4.7 x 1 in (18 x 12 x 2.5 cm)
-
Shipping Weight: ~2.1 oz (60 g)
