Description

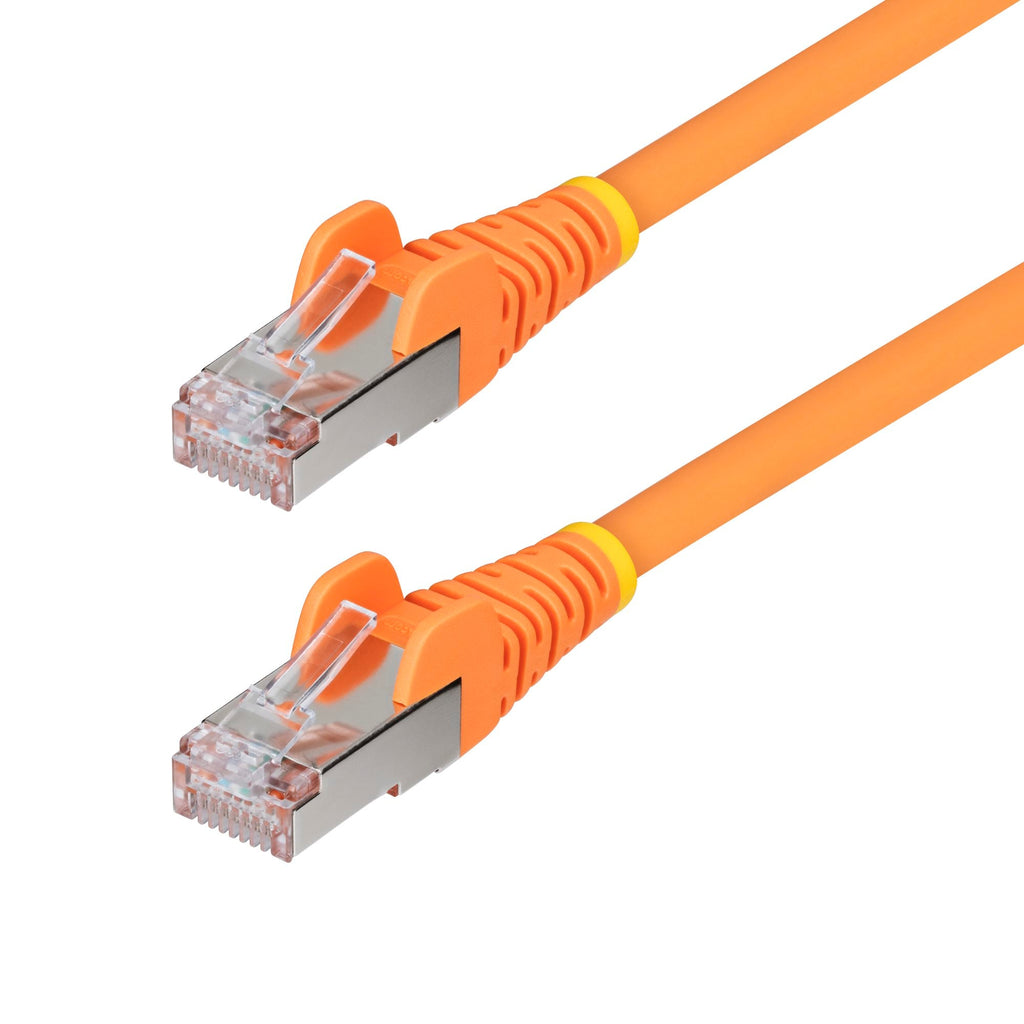

This Orange CAT6a Ethernet Cable is built for high-speed, interference-resistant networking with support for 10 Gigabit Ethernet and up to 100W PoE++ power delivery. Constructed with 27AWG pure bare copper wire and full S/FTP shielding, it ensures reliable performance in electrically noisy environments. The LSZH (Low Smoke Zero Halogen) jacket offers increased safety for confined or mission-critical installations. With molded snagless boots and strain reliefs, this cable is ideal for data centers, enterprise networks, and high-power PoE devices. Fluke tested and ETL verified for dependable performance.
Key Features:
-
10GbE Performance – Supports up to 10 Gigabit Ethernet over 100 meters
-
500MHz Bandwidth – Optimized for high-speed data transmission
-
100W PoE++ Ready – Compatible with IEEE 802.3af/at/bt standards
-
S/FTP Shielding – Foil-shielded pairs and braided outer shield for EMI protection
-
27AWG Bare Copper Conductors – Delivers low resistance and high signal integrity
-
LSZH Jacket – Safer in high-density and enclosed environments
-

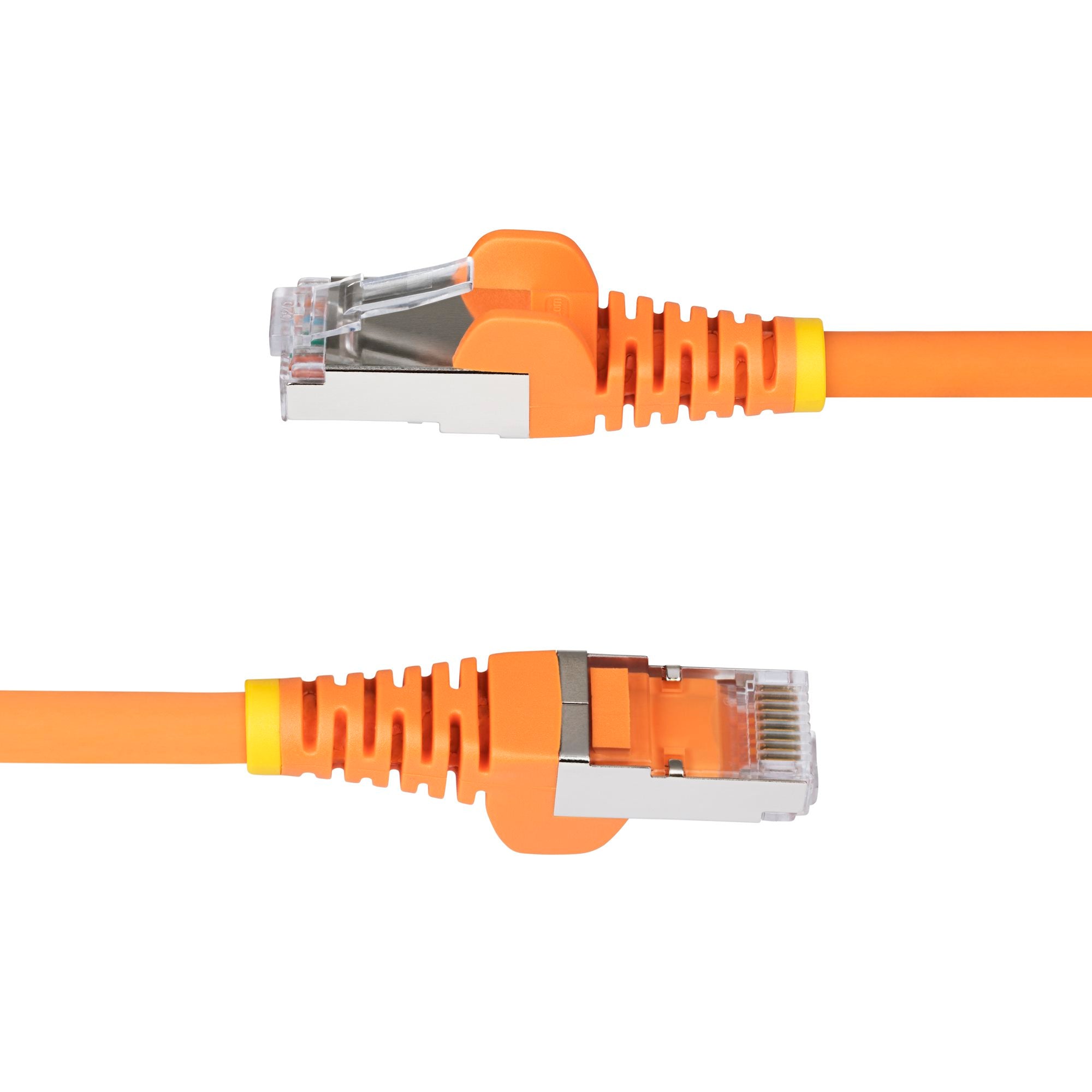

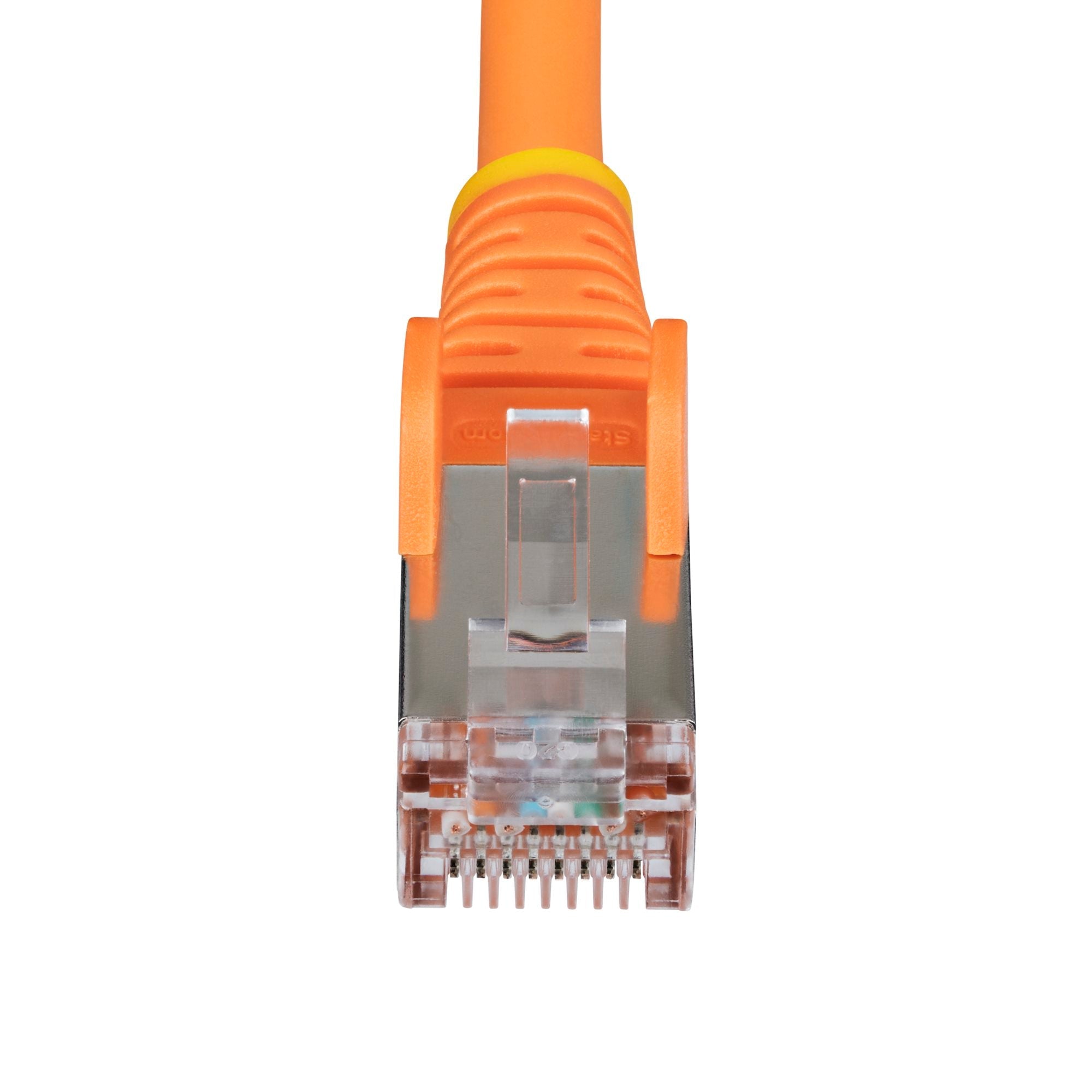

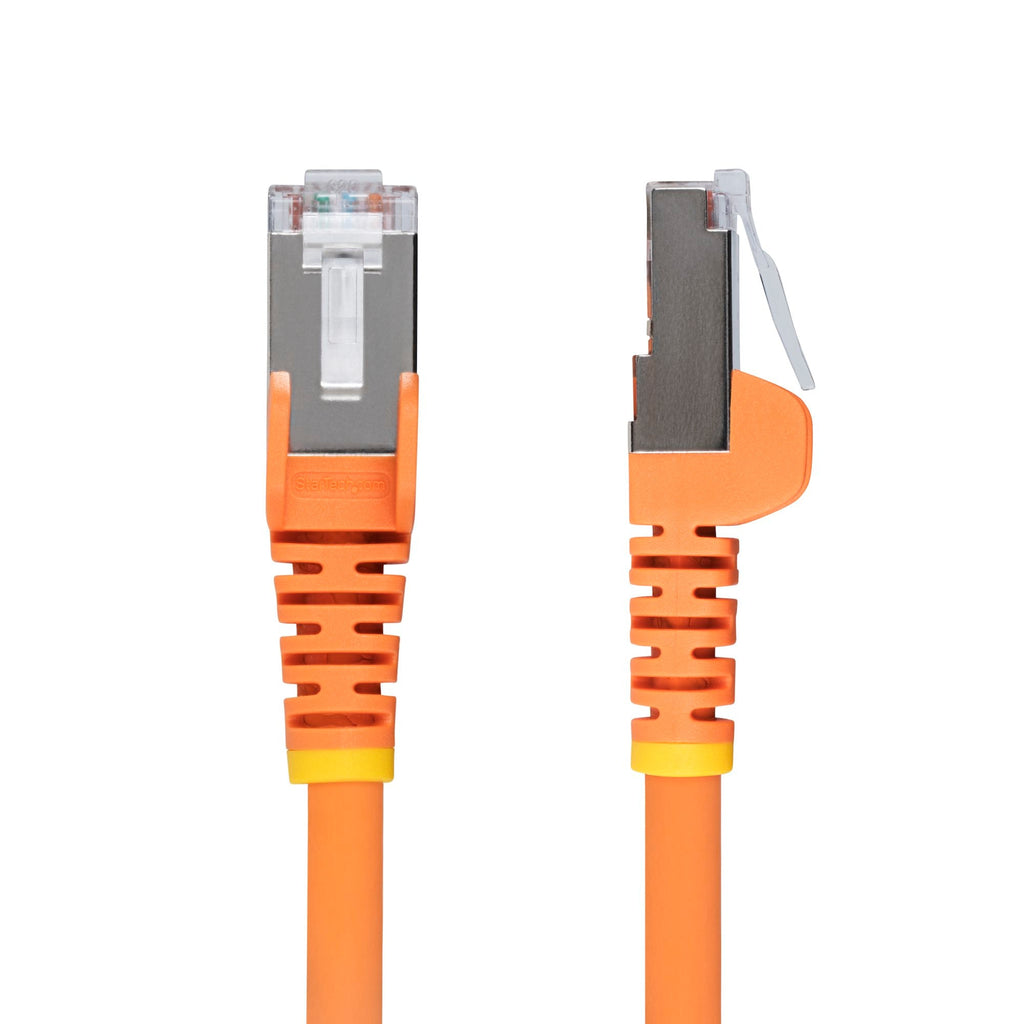

Snagless RJ45 Connectors – Prevent latch damage during installation
-
Fluke Tested / ETL Verified – Exceeds ANSI/TIA-568.2-D requirements
Specifications:
-
Cable Category: CAT6a
-
Conductor: 27AWG solid bare copper
-
Shielding: S/FTP (individually foil-shielded pairs + braided overall)
-
Bandwidth: Up to 500MHz
-
Data Rate: 10Gbps (10GBASE-T)
-
PoE Support: PoE, PoE+, PoE++ up to 100W
-
Jacket Material: LSZH (Low Smoke Zero Halogen)
-
Connector Type: RJ45, gold-plated contacts
-
Certification: Fluke Channel Tested, ETL Verified, RoHS Compliant
-
Color: Orange
Product Dimensions / Weight:
Varies by length (e.g., 3ft to 100ft); ~100g (for 3ft cable)
Package Dimensions / Weight (example 10ft cable):
9 x 8 x 0.6 inches / ~180g
