Description

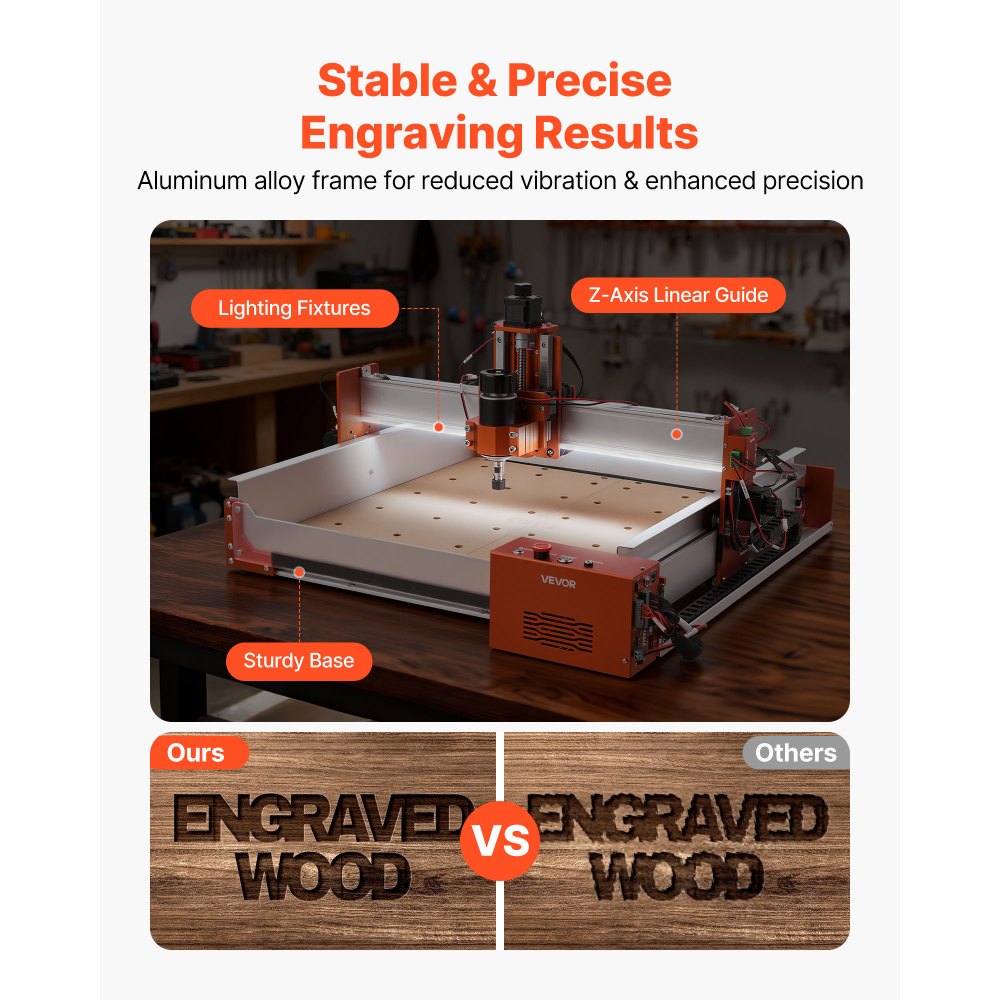

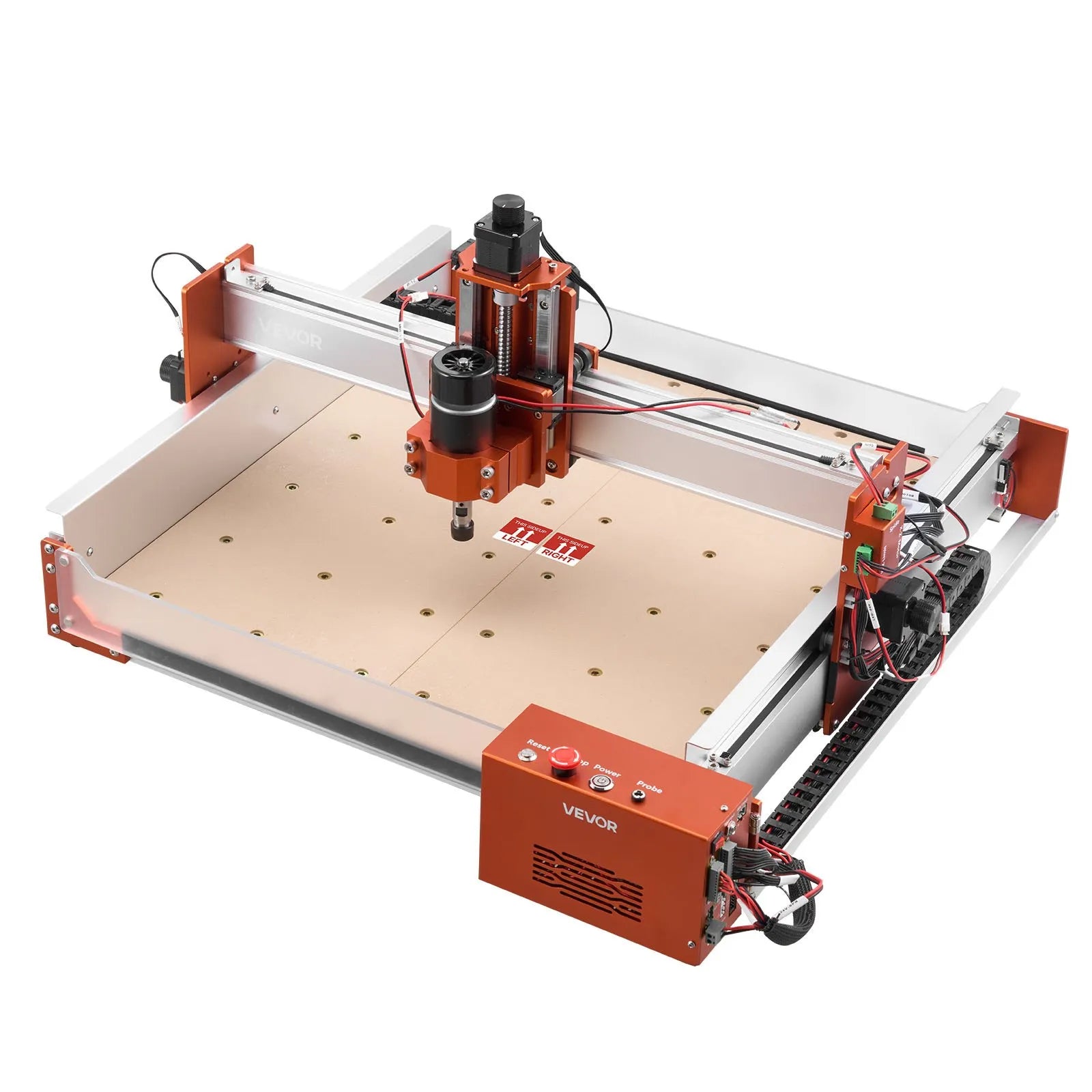

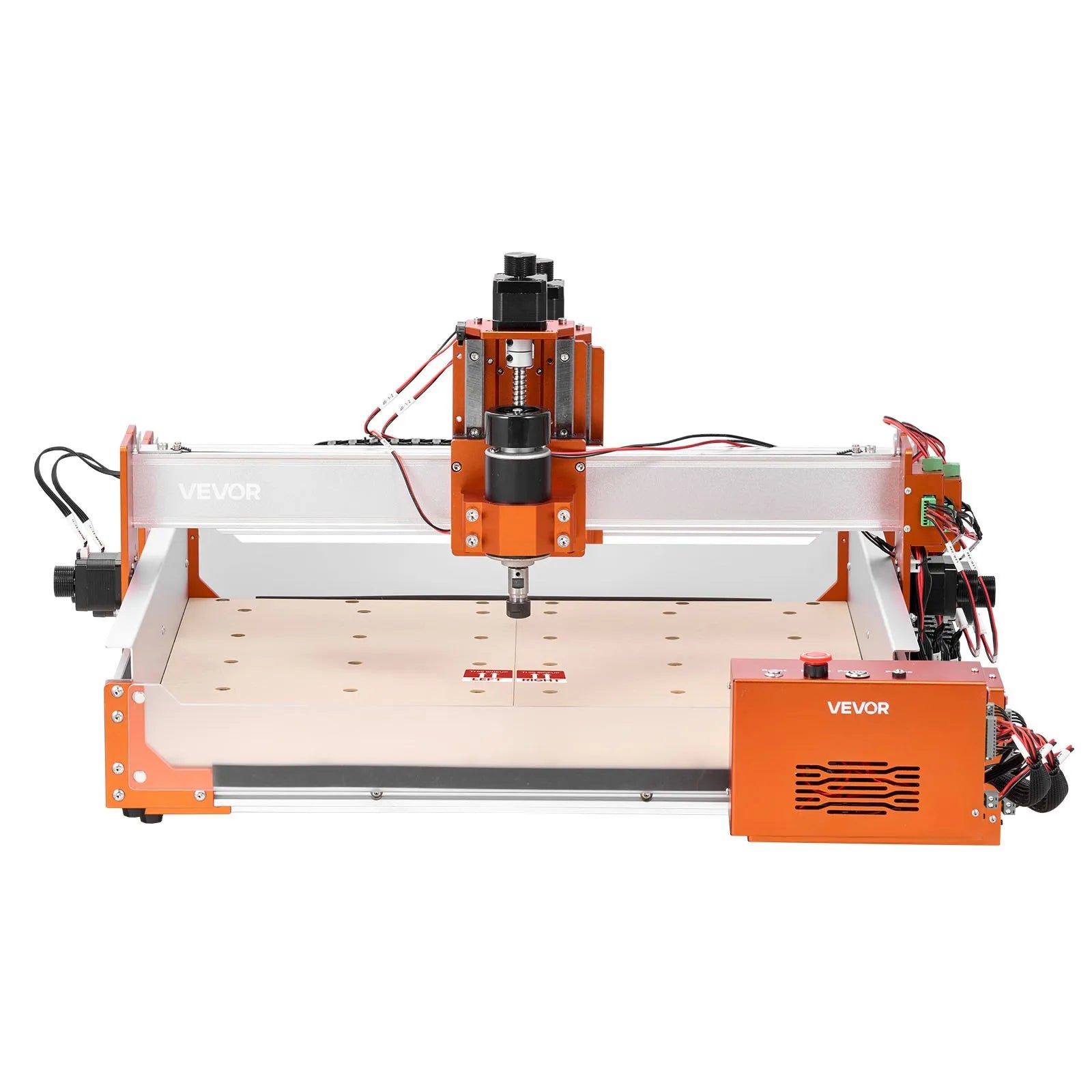

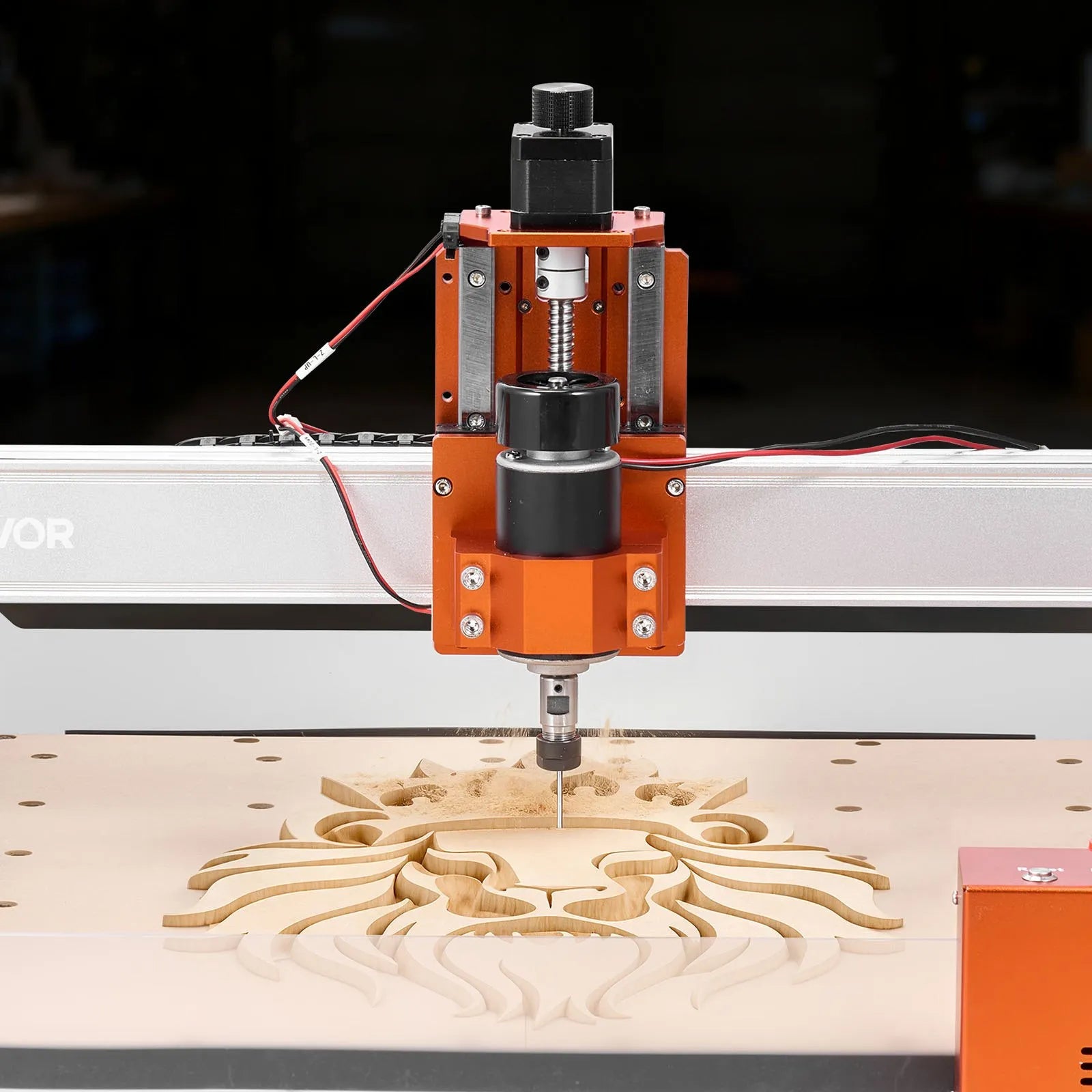

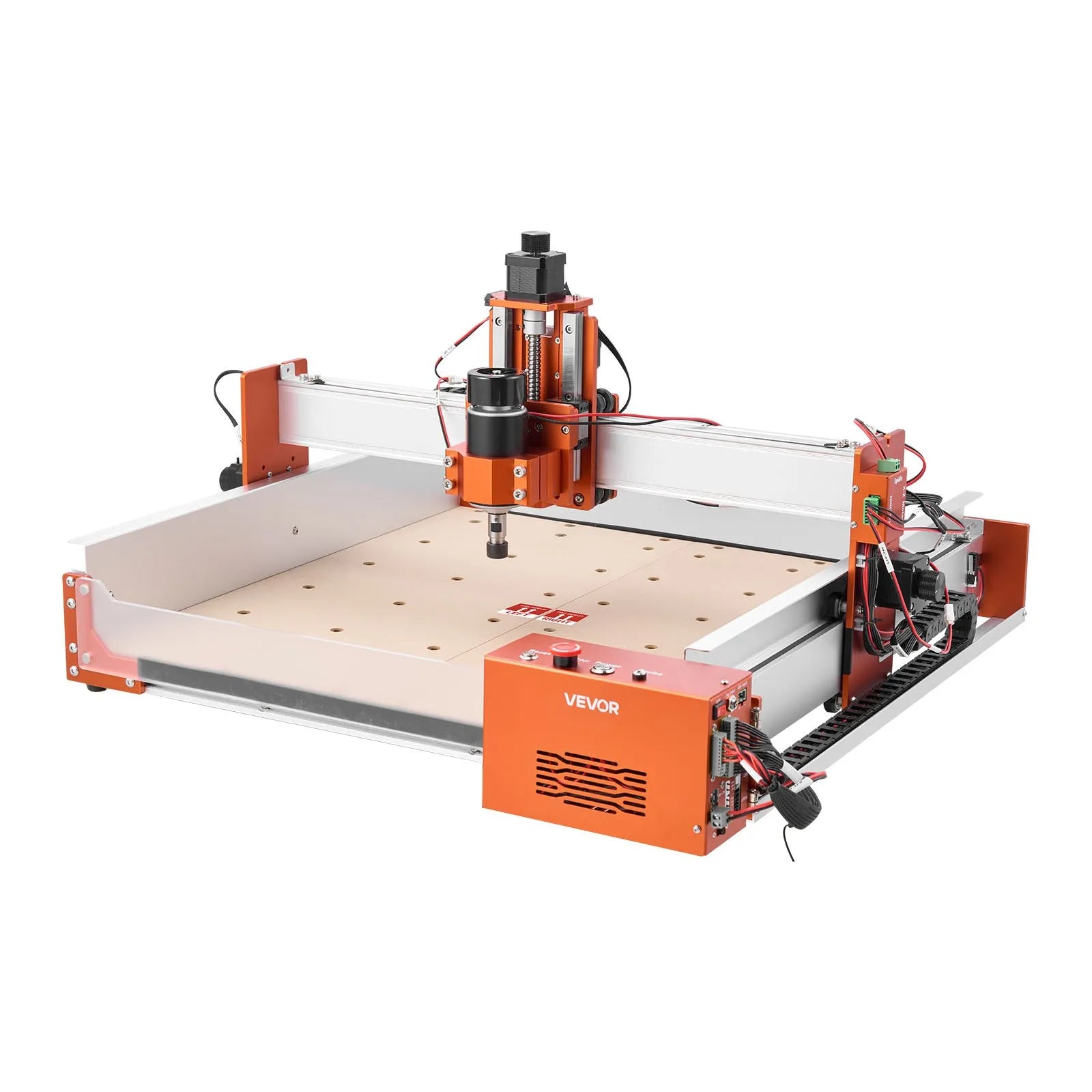

The VEVOR 4040PRO CNC Router Machine is a high-precision 3-axis desktop engraving and milling solution built for stability, accuracy, and expansion. Featuring a rigid aluminum alloy frame, Z-axis linear rail, and a 100W spindle, this CNC router delivers smooth, consistent results for makers, hobbyists, and small workshops. Its large 400 × 400 mm work area makes it ideal for signs, panels, crafts, and detailed projects.
Features:
-

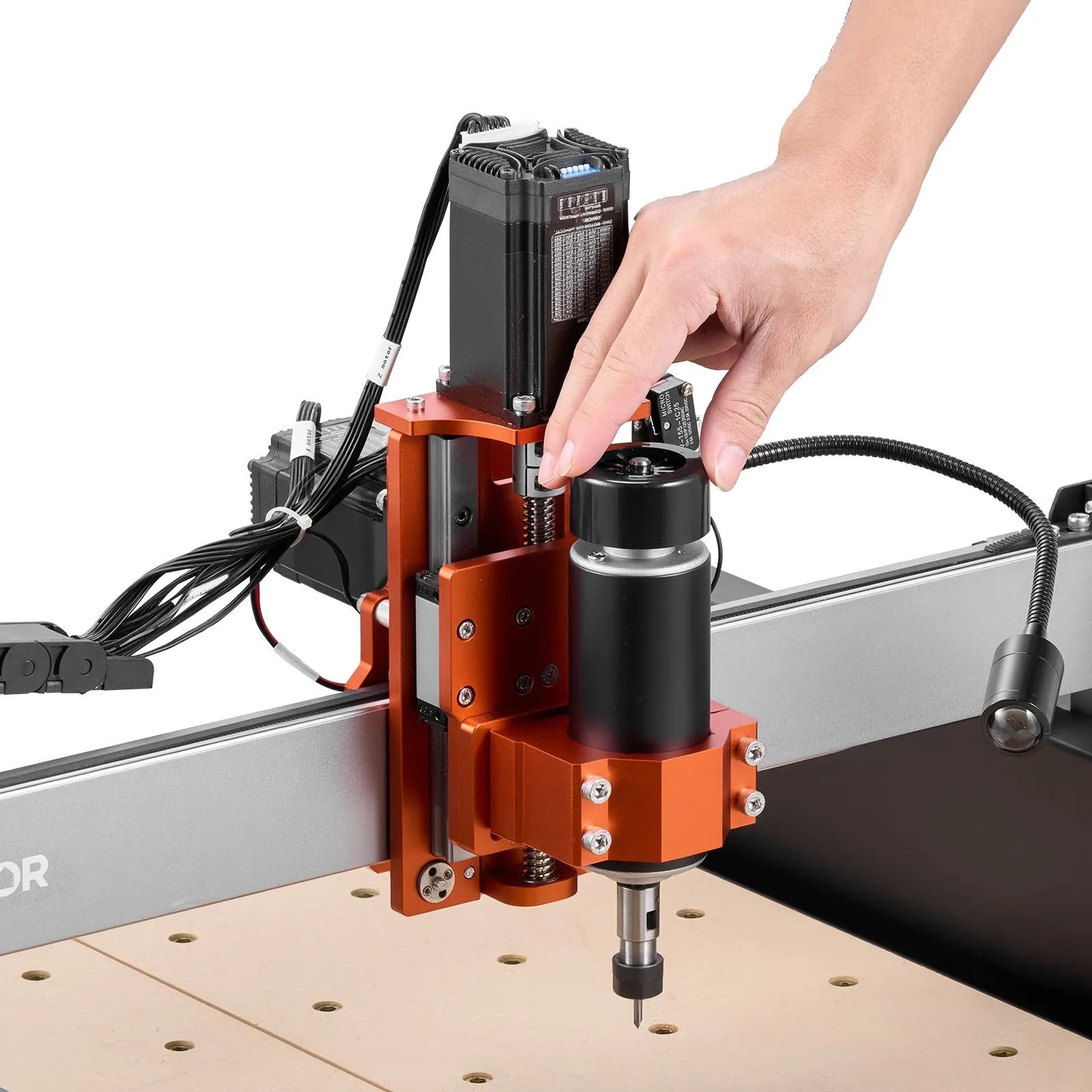

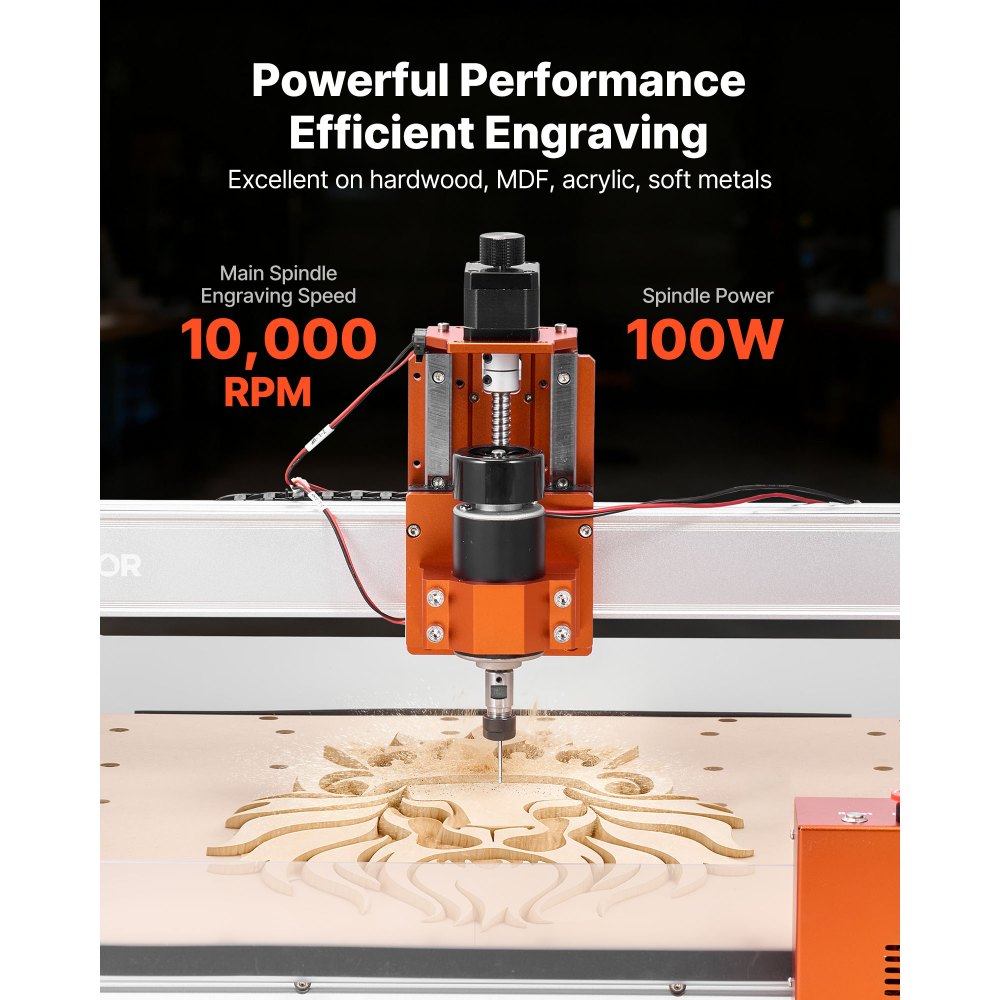

High Precision Engraving: 100W spindle, Z-axis linear rail, and 32-bit control board deliver ≤0.05 mm repeat positioning accuracy
-

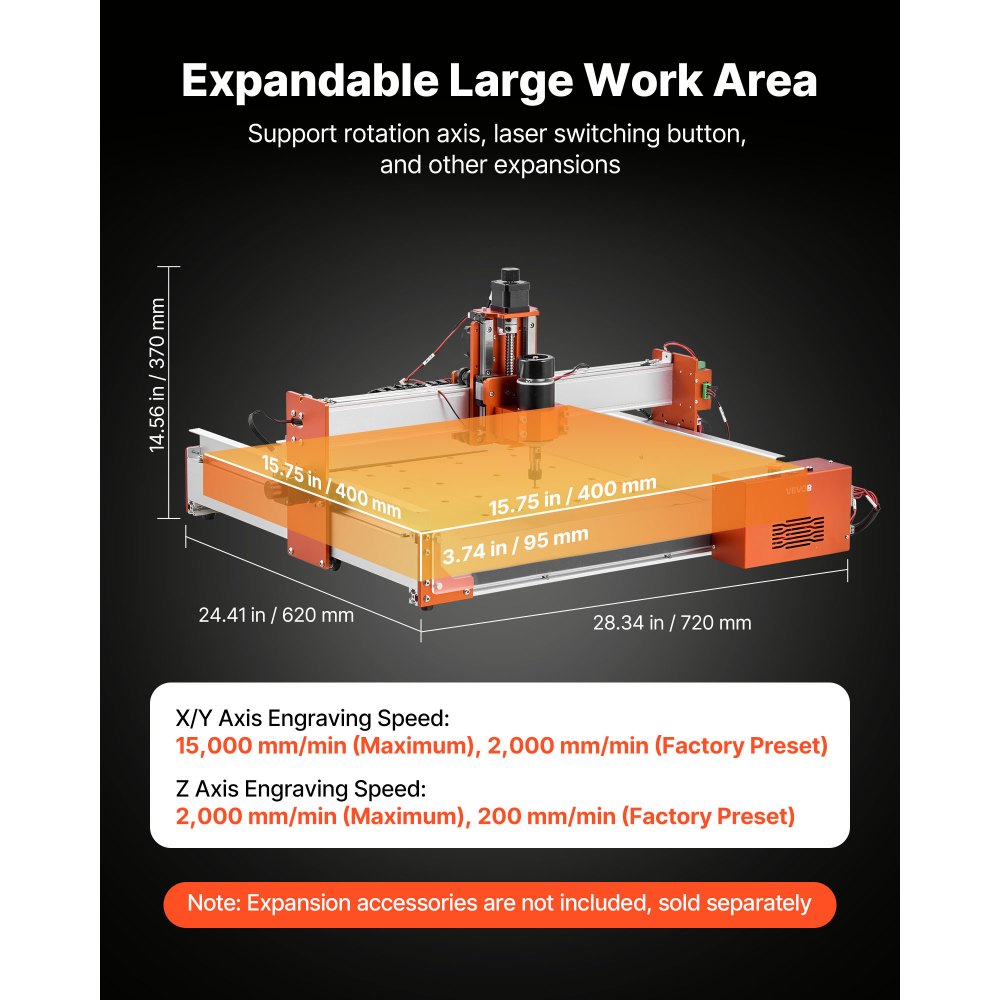

Large 4040 Work Area: Spacious 400 × 400 × 95 mm work area supports larger projects and thicker materials
-
Expandable Design: Supports optional laser module and rotary axis expansion (sold separately)
-

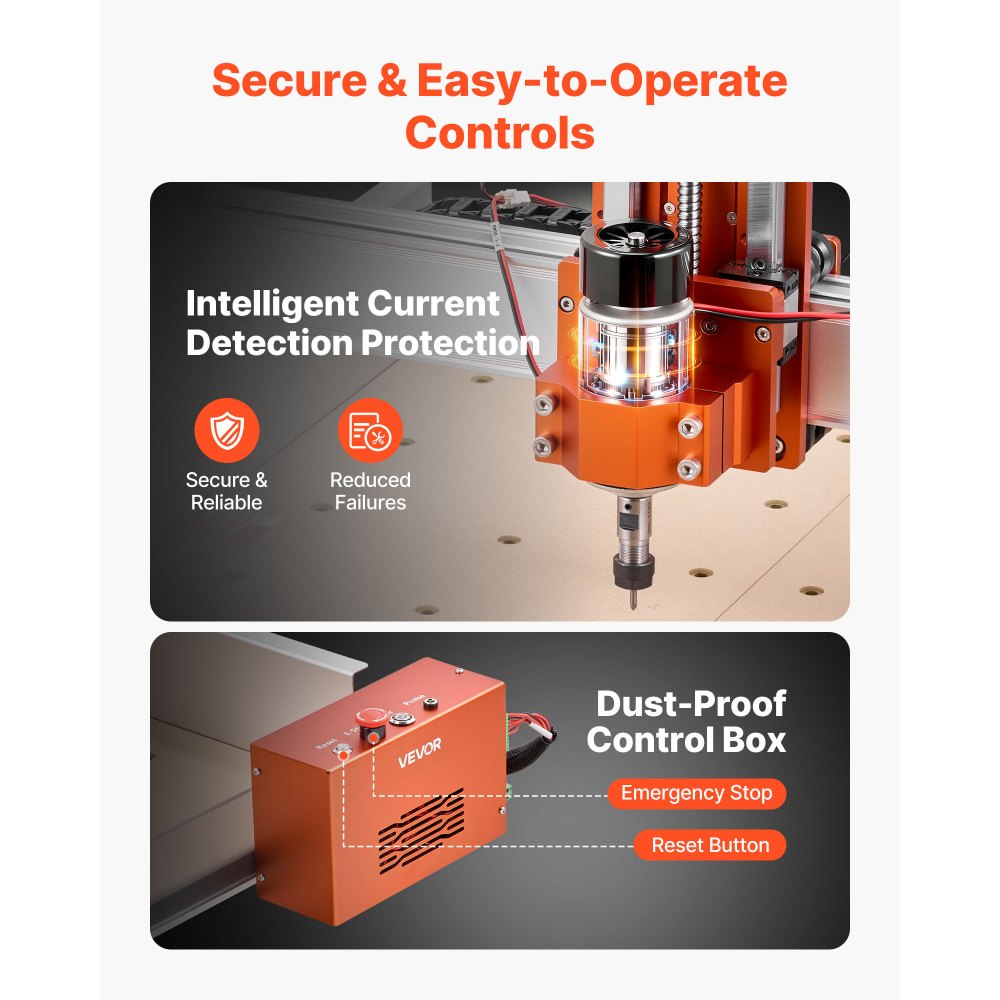

Durable & Safe Operation: Current-detection spindle protection extends lifespan up to 5,000 hours; includes dust guard, emergency stop, and home buttons
-

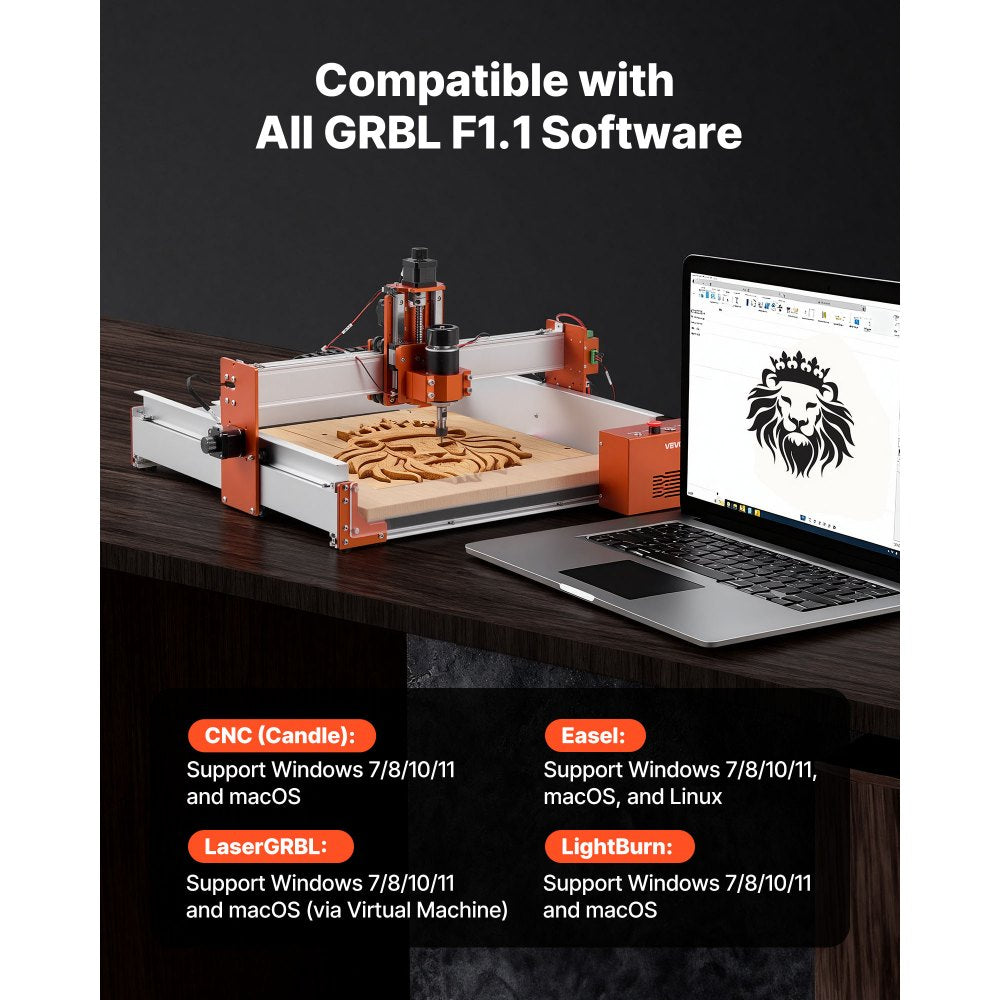

Wide Software Compatibility: Supports GRBL f1.1 firmware and works with Candle (included), Easel, LaserGRBL, and LightBurn on Windows, macOS, and Linux
-
Easy Setup & Visibility: Pre-assembled components allow fast installation; built-in LED lighting improves visibility and reduces shadows
-
Precise Speed Control: Rotary knob enables accurate spindle speed adjustments

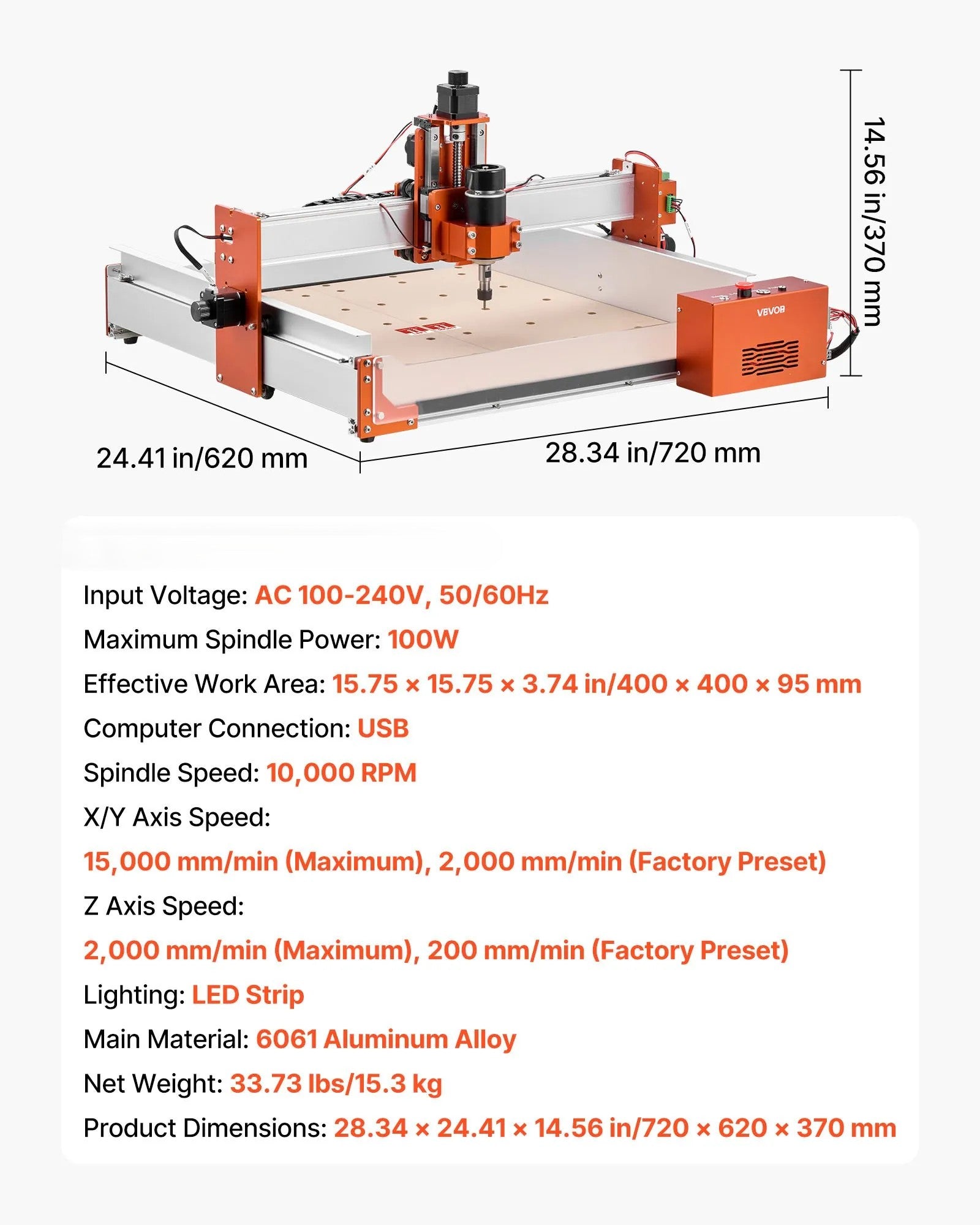

Specifications:
-
Item Model Number: 4040PRO
-
Input Voltage: AC 100–240V, 50/60Hz
-
Maximum Spindle Power: 100W
-
Spindle Speed: 10,000 RPM
-
Effective Work Area: 400 × 400 × 95 mm (15.75 × 15.75 × 3.74 in)
-
X/Y Axis Speed: Up to 15,000 mm/min (2,000 mm/min preset)
-
Z Axis Speed: Up to 2,000 mm/min (200 mm/min preset)
-
Computer Connection: USB
-
Lighting: LED strip
-
Main Material: 6061 Aluminum Alloy
